Osram Traxon propoint sconce s User manual

ProPoint Sconce

INSTALLATION GUIDE

V1.1

Cover:

ProPoint Sconce S

ProPoint Sconce M

ProPoint Sconce L

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 2 of 24

CONTENT

1. INTRODUCTION 4

2. INSTALLATION 10

3. POWER AND DATA WIRING 17

4. CONFIGURATION 20

5. TROUBLESHOOTING 22

6. WARRANTY INFORMATION 22

7. APPENDIX 23

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 3 of 24

SAFETY AND OPERATION

This installation guide uses the following special statement categories to alert you to key items:

1. WARNING - Indicates a hazardous situation that, if not avoided, could result in death or serious injury.

2. CAUTION - Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury.

3. NOTICE - Indicates information considered important for the proper operation of the product but not hazard

related.

4. Please review this manual completely prior to beginning the installation process and take note of the

following:

• The ProPoint luminaire and associated accessories must be installed by a qualiﬁed person in conjunction

with all applicable electrical codes and standards.

• The ProPoint luminaire does not contain any user-serviceable parts. Opening of the luminaire will void the

warranty.

• Do not use the product if the cables are damaged.

• Handle the luminaire carefully to prevent damage during installation. Rough handling may damage the

internal electronics and void the warranty.

• Do not attempt installation in wet or severe weather conditions.

• Do not stare directly into the light beam while the unit is illuminated.

• IP66 rated. The ProPoint luminaire is not suitable for direct immersion in water.

• Do not operate the ProPoint luminaire without a connection to earth surface without a suitable earth

connection (refer to local standards).

• The ProPoint luminaire is designed for operation at 120-277V AC (ETL)/220-240V AC (CE). Voltages

outside of this range may damage the ﬁxture and will void the warranty.

• The ProPoint luminaire housing may become hot during normal operation and present a risk of burn

injury and ﬁre hazard. Exercise caution when working in proximity to the luminaire and make sure that

combustible material does not contact the housing or lens.

• Failure to keep the luminaire within the operating temperature range (-30°C to +55°C/-22°F to +131°F) will

result in improper operation and will void the product warranty.

• Do not use harsh chemicals, cleaning solvents or strong detergents when cleaning the luminaire.

• Persons installing this product should make sure:

i. The installation complies with all applicable codes, state and local laws, ordinances, standards and

safety regulations.

ii. The installation environment is carefully studied and suitable surge protection measure(s) is taken.

Suggested surge protection measures for outdoor application should reach “Live to Neutral” 5kV,

“Live/Neutral to Earth” 10kV.

iii. All luminaires can pass surge test up to “Live to Neutral” 1kV, “Live/Neutral to Earth” 2kV according

to EN61547 standard.

iv. They are qualiﬁed or competent in the handling of electrical equipment.

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 4 of 24

1. INTRODUCTION

1.1 Product Overview

The ProPoint Sconce White + Color is an AC Line powered luminaire. The ProPoint Sconce offers a

tight, controlled grazing solution to exterior applications where the light source will be visible. The

sleek design works in both traditional and contemporary architectural environments. Available in

three sizes, with both white and color options. The daisy chain topology, and direct-wire nature of the

fixture via the two integral cable whips allow for simple installation into existing installations and new

structures.

1.2 Getting Assistance

Additional product information is available on the Traxon web site:

• www.traxontechnologies.com & www.osram.us/traxon

For additional support, please contact Traxon Technical Support:

For Americas Regional Support:

• +1 (978) 570-3189 – Business Hours Technical Support

• +1 (978) 267-5346 – After Hours Technical Support

• TRXT[email protected]

For Asia Paciﬁc Regional Support

• [email protected]

For Europe, Middle East and Africa Regional Support

• [email protected]

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 5 of 24

1.3 Dimensions

FIG.1: ProPoint Sconce S

Tilt Adjustment Range

Data Cable Length 72.00 in [1828.0 mm]

Data Cable Diameter 0.325 in [8.25 mm]

Power Cable Length 72.00 in [1828.0 mm]

Power Cable Diameter 0.315 in [8.25 mm]

90°

0.31 in [8.0 mm]

6mm hex key required

to adjust ﬁxture angle

(available from Traxon)

1.20 in [30.5 mm]

0.12 in [3.0 mm]

4.78 in [121.4 mm]

4.14 in [105.1 mm]

4.88 in [124.0 mm]

6.00 in [152.4 mm]

ø0.37 in [ø9.5 mm]

ø0.21 in [ø5.4 mm]

0.43 in [11.0 mm]

0.25 in [6.4 mm]

1.10 in [28.0 mm]

2.20 in [56.0 mm]

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 6 of 24

FIG.2: ProPoint Sconce M

Data Cable Length 72.00 in [1828.0 mm]

Data Cable Diameter 0.325 in [8.25 mm]

Power Cable Length 72.00 in [1828.0 mm]

Power Cable Diameter 0.315 in [8.25 mm]

0.31 in [8.0 mm]

Tilt Adjustment Range

90°

ø0.37 in [ø9.5 mm]

ø0.21 in [ø5.4 mm]

0.59 in [15.0 mm]

0.25 in [6.4 mm]

1.81 in [46.0 mm]

3.62 in [92.0 mm]

5.75 in [146.0 mm]

1.20 in [30.5 mm]

0.12 in [3.0 mm]

4.82 in [122.5 mm]

4.13 in [104.9 mm]

7.50 in [190.4 mm]

6mm hex key required

to adjust ﬁxture angle

(available from Traxon)

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 7 of 24

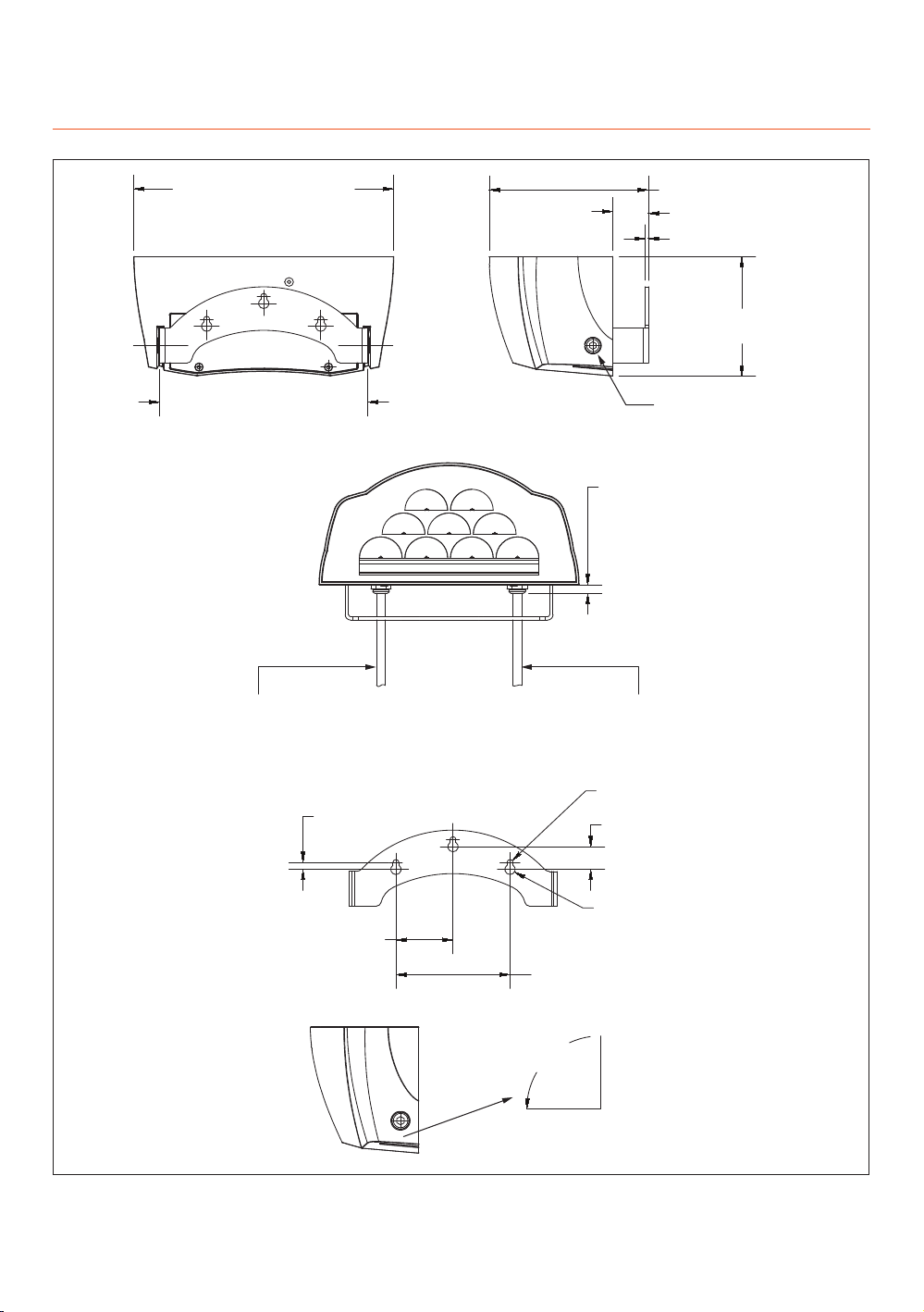

FIG.3: ProPoint Sconce L

6mm hex key required

to adjust ﬁxture angle

(available from Traxon)

Data Cable Length 72.00 in [1828.0 mm]

Data Cable Diameter 0.325 in [8.25 mm]

Power Cable Length 72.00 in [1828.0 mm]

Power Cable Diameter 0.315 in [8.25 mm]

7.45 in [189.2 mm]

5.70 in [144.9 mm]

1.28 in [32.5 mm]

0.12 in [3.0 mm]

4.32 in [109.8 mm]

ø0.37 in [ø9.5 mm]

ø0.21 in [ø5.4 mm]

0.83 in [21.0 mm]

0.25 in [6.4 mm]

2.05 in [52.0 mm]

4.09 in [103.9 mm]

0.31 in [8.0 mm]

9.32 in [236.8 mm]

Tilt Adjustment Range

90°

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 8 of 24

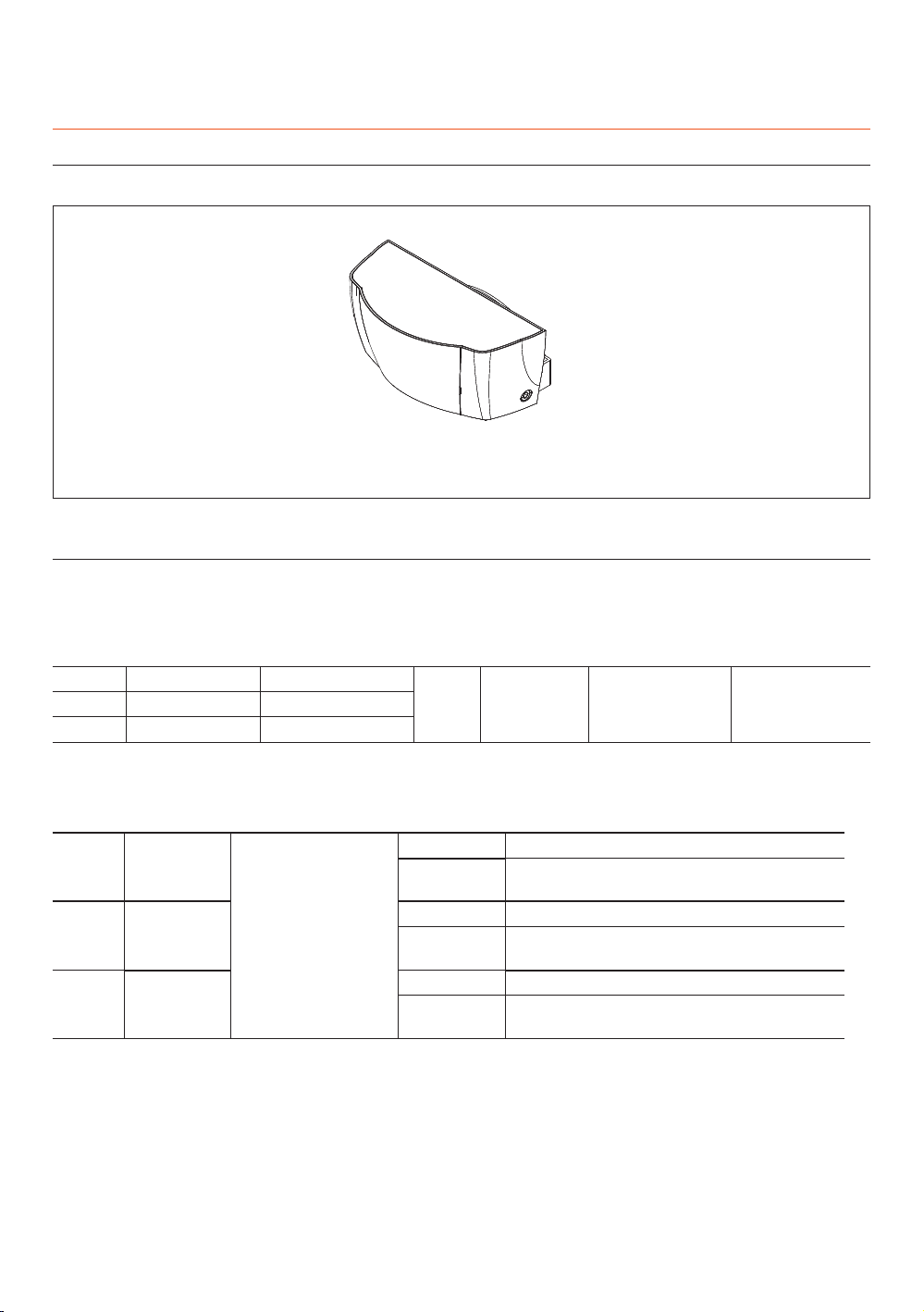

1.4 Packing Contents

FIG.4: Packing Contents

1 x ProPoint Sconce (size/model based on order)

1.5 Component Overview

Luminaire Options

The ProPoint Sconce luminaire is available in the following sizes:

Model Weight Power Consumption

(Nominal)

Power

Factor

Input Voltage

Range

Operating

Temperature

Minimum Starting

Temperature

S1.36 kg / 3.00 lbs. 9W Max.

≥0.9 120-277VAC

50/60 Hz -30°C to +55°C

(-22°F to +131°F) -20°C / -4°FM1.71 kg / 3.77 lbs. 15W Max.

L2.50 kg /5.52 lbs. 24W Max.

The ProPoint Sconce luminaire is available with the following optical engines:

Model Color Option Lens Options DMX Control

Channels

Color Temperature

S W+ Color

3000K / 4000K / Red /

Green / Blue standard.

2200K, 2700K, 3500K,

5000K, 6500K, Amber

available.

43000K / 4000K / Red / Green / Blue standard.

12200K, 2700K, 3500K, 5000K, 6500K, Amber

available.

M W+ Color 43000K / 4000K / Red / Green / Blue standard.

12200K, 2700K, 3500K, 5000K, 6500K, Amber

available.

L W+ Color 43000K / 4000K / Red / Green / Blue standard.

12200K, 2700K, 3500K, 5000K, 6500K, Amber

available.

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 9 of 24

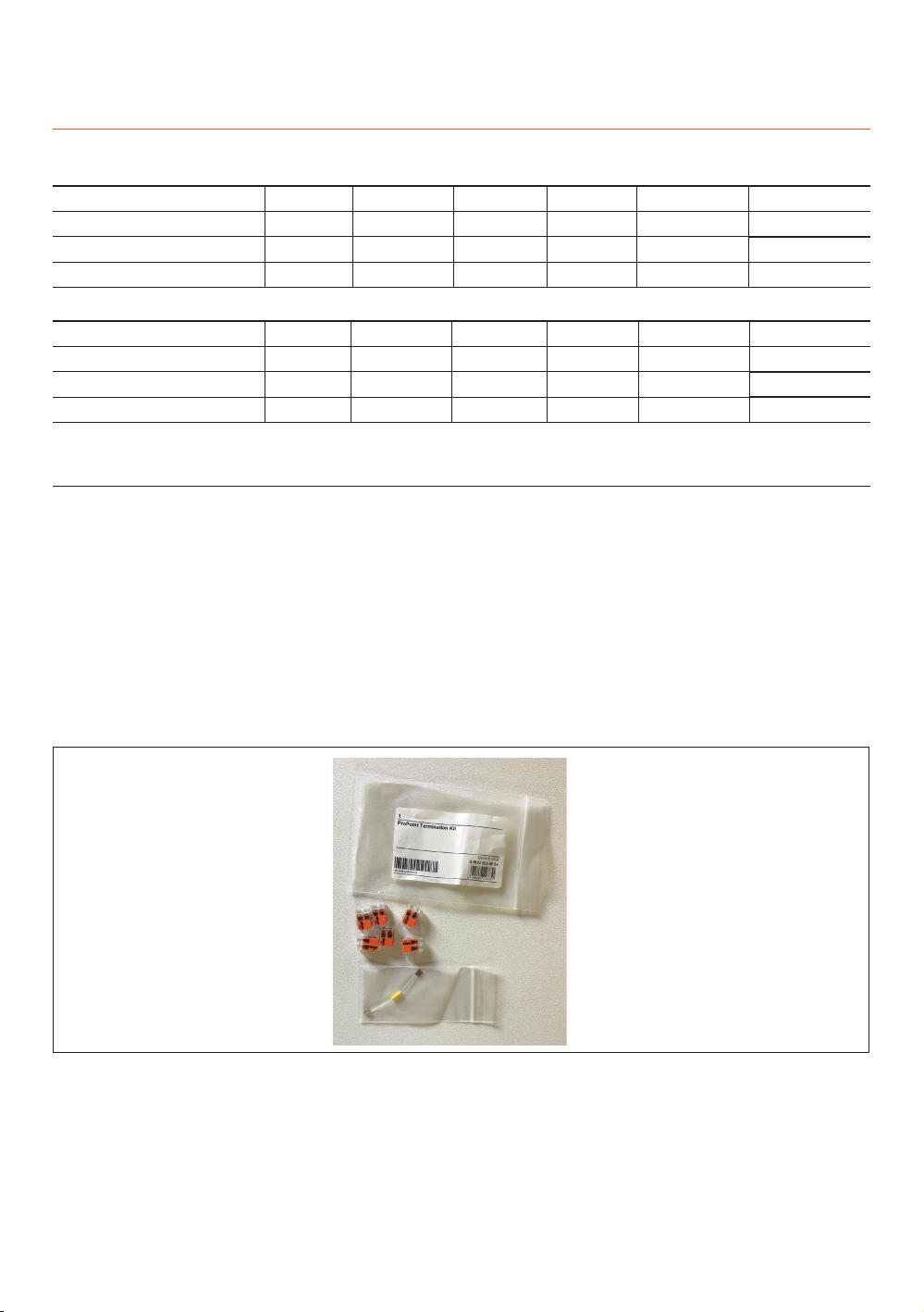

The in-rush current data of ProPoint Sconce is shown in the following tables:

In-rush current @ 120V

Description 1 Fixture 2 Fixtures 3 Fixtures …n Fixtures Present time

ProPoint Sconce S 14.5A 29A 43.5A …n*14.5A 0.05ms

ProPoint Sconce M 33A 66A 99A …n*33A 0.05ms

ProPoint Sconce L 35A 70A 105A …n*35A 0.05ms

Description In-rush current @ 230V

Description 1 Fixture 2 Fixtures 3 Fixtures …n Fixtures Present time

ProPoint Sconce S 22A 44A 66A …n*22A 0.05ms

ProPoint Sconce M 36A 72A 108A …n*36A 0.05ms

ProPoint Sconce L 40A 80A 120A …n*40A 0.05ms

1.6 Additional Accessories

Termination Kit

A ProPoint termination kit (part number AM243520054) may be purchased separately. This kit contains the

following components:

- (6) Splicing wire connectors: For use in connecting data cable conductors. See section 3.2 for additional

information on usage.

NOTE Wire nuts are not permissible for use with data connections and will void warranty.

- 120 Ohm resistor for use in terminating the DMX512 data line at the last luminaire. See section 2.6

for additional information on usage.

FIG.5: ProPoint Termination Kit

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 10 of 24

2. INSTALLATION

Each ProPoint Sconce luminaire is shipped with a mounting bracket suitable for Surface/Pole mount

applications. This mounting plate is pre-installed at the mounting interface of the luminaire.

NOTE The luminaire can be mounted upside down (light facing downwards), M8 screws

are suggested.

2.1 Wall Mounting with Standard Bracket

Required Tools

ProPoint Sconce S/M/L 6mm Allen key

Standard Bracket Installation

FIG.6: ProPoint Sconce Standard Bracket Installation

Preparation

• Remove the ProPoint Sconce luminaire from the packaging and place the unit on a level surface.

Bracket Preparation and Mounting

CAUTION It is the installer’s responsibility to ensure that the mounting surface can handle the

static weight of the fixture as well as dynamic loading from environmental factors

such as wind and snow/ice buildup. The use of Grade 5 or higher hardware is

recommended.

• Make sure that the screws or bolts on the mounting surface align with the holes on the surface mount bracket

• Install the luminaire to the mounting surface and secure using appropriate hardware (by others).

NOTICE The ProPoint Luminaire should be installed with the power and data cables exiting

the housing directly down when the luminaire is mounted on a vertical surface. For

applications that require horizontal orientation of the power and data cables, the

installer shall apply RTV silicone to the cable gland entry points. The luminaire shall

not be installed with the power and data cabling oriented up.

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 11 of 24

Standard Bracket Installation Steps

• Place the mounting bracket on the wall, align the holes and mark them and then use an electric drill

to make 3 holes for installing M6 expansion screws.

FIG.7: Standard Bracket Installation Step 1

• After aligning the mounting bracket with the 3 holes made above, tighten and ﬁx it with 3 M6 expansion screws.

FIG.8: Standard Bracket Installation Step 2

Luminaire Installation

• Assemble the luminaire on the mounting bracket.

• Tighten the set screws on both sides with a 6mm Allen key..

NOTICE It is the responsibility of the installer to ensure that the mechanical fixings are

appropriate for the task and if necessary, approved by a structural engineer as the

installation scenario is unique for each luminaire

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 12 of 24

FIG.9: Luminaire Mounting

• Adjust the luminaire angle with 6mm Allen key according to the actual need on site.

FIG.10: Adjusting angle

Adjusting angle

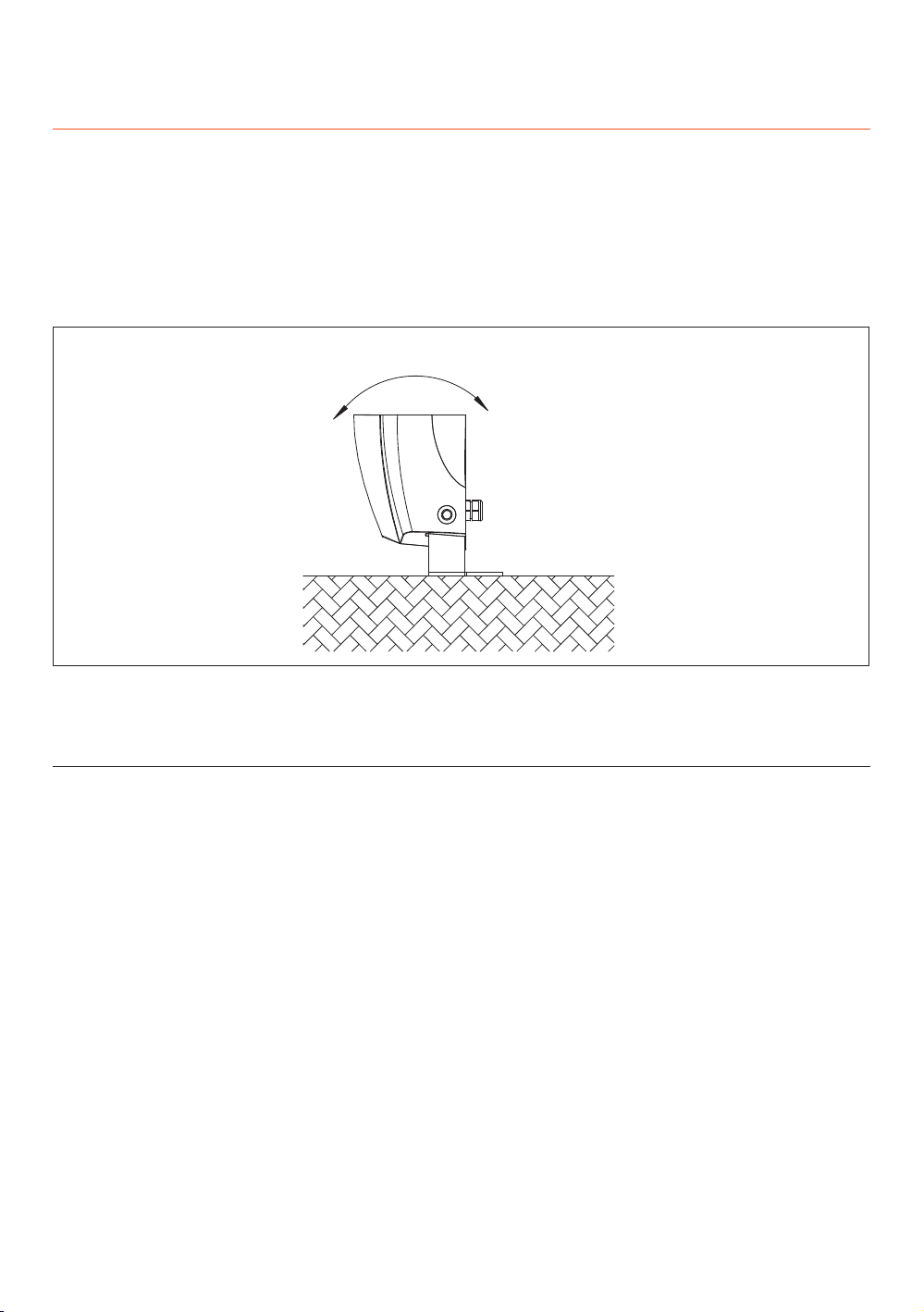

2.2 Ground Mounting with Standard Bracket

Required Tools

ProPoint Sconce S/M/L 6mm Allen key

NOTE DO NOT choose the location with water accumulation as the ground mounting

location.

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 13 of 24

Preparation

• Remove the ProPoint luminaire from the packaging and place the unit on a level surface.

Ground Mounting Steps

• Please refer to wall wanting for ground mounting details.

Adjusting Angle

• Adjust the luminaire angle with 6mm Allen key according to the actual need on site.

FIG.11: Angle Adjusting for Ground Mounting

Adjusting angle

• After adjusting the luminaire with a proper angle for expected lighting output effect, tighten the set

screws on both sides of the bracket with 6mm Allen key.

2.3 Wall Mounting with “Mount Over JBox Bracket” ( An Optional Accessory)

Required Tools

ProPoint Sconce S/M/L 6mm Allen key

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 14 of 24

Preparation

• Remove the ProPoint luminaire from the packaging and place the unit on a level surface.

Plate Mounting Steps

• Place the mounting plate on the wall, align the holes and mark them and then use an electrinic drill 4

holes for installing M5 expansion screws.

FIG.12: Place the Mounting Plate on the Wall

• After aligning the mounting plate with the 4 holes, tighten and ﬁx it with 4 M5 expansion screws.

FIG.13: Fix the Mounting Plate on the Wall

Luminaire Installation

• Assemble the luminaire on the mounting plate.

• Tighten the set screws on both sides with a 6mm Allen key.

FIG.14: Luminaire Mounting

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 15 of 24

NOTE For ease of installation and Safety, the following step may require 2 people to

perform. This is largely dependent on the location/orientation of the junction

box and the size of the fixture being mounted. All installers should refer to their

occupational safety and best practice guidelines when performing these tasks.

• Adjust the luminaire angle with 6mm Allen key according to the actual need on site.

FIG.15: Adjusting angle

Adjusting angle

Recording the UID (DMX/RDM Model Only)

Each ProPoint Sconce luminaire is marked with a Unique Identifier (UID) on the product label. This UID

is used to address the luminaire for correct operation.

Example: 16DC:0834AA0B

AA0B represents the designation shown on the label.

Before completing installation, record each luminaire’s UID in a manner similar to the table included at

the end of this manual.

FIG.16: UID Location

Record the UID code

and physical location

from the label located

on the side of each

luminaire.

UID: *0834

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 16 of 24

2.4 Power Wiring

The ProPoint Sconce luminaire is supplied with a 1.8 meter (6 foot) long power feed cable. This cable

may be ﬁeld-cut to the required length by the installer.

WARNING Risk of electrical shock. Make sure that the branch circuit is disconnected prior to

installation or inspection..

CAUTION Make sure that the cable is protected from cuts and abrasions that may result in

damage to the outer jacket.

CAUTION IP failure induced by stressed/damaged cable entry points during or after installation

will void the product warranty.

NOTICE A voltage divider is recommended (and may be required by local electrical code)

when a single junction box is utilized for termination of the power supply and data

cables.

NOTICE Cable bend radius must NOT be less than the Minimum Bending Radius (4 X Cable

Diameter) as speciﬁed by cable manufacturer and the Non-Bendable Length of 5cm

(2in) near the cable gland MUST be adhered to. In addition to the Minimum Bending

Radius, ensure that 5cm (2in) of cable at the connector junction is kept straight.

CAUTION Ensure that the power and data cabling is routed so that the luminaire mounting

interface does not crush the power and/or data cable jacketing.

• Tighten both set screws so that each screw engages securely in the surface mount bracket groove.

CAUTION Both set screws must engage within the groove. Failure of the set screws to engage

the groove could result in the luminaire separating from the surface mount bracket.

• Tighten both lock nuts over the set screws. Grasp the luminaire body and rotate it back and forth on

the mounting bracket to ensure that the fixture is securely fastened.

CAUTION Do not rotate the luminaire more than 180 degrees. Rotating more than 180 degrees

may cause the power and/or data cables to bind inside the unit resulting in damage.

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 17 of 24

3. POWER AND DATA WIRING

3.1 Data Wiring

The ProPoint Sconce luminaire is supplied with a 1.8 meter (6 foot) long data cable. This cable may be ﬁeld-cut to

the required length by the installer.

The ProPoint Sconce luminaire utilizes a “daisy chain” wiring topology for DMX data communication. Data

connections are made via the DMX input and output wiring pairs in the data cable. Utilization of a “star” wiring

topology (via t-taps, y-cables, etc.) is not permitted.

Installed data cabling shall conform to the requirements outlined in ANSI E1.11 Entertainment Technology – USITT

DMX512-A, Asynchronous Serial Digital Data Transmission Standard for Controlling Lighting Equipment and

Accessories. All cabling shall utilize stranded conductors. Solid core conductors shall not be used and can

result in denial of warranty.

A maximum of 32 ProPoint luminaires may be connected to a DMX data line. The maximum overall data line length

(from DMX controller to the last unit in the daisy chain) is 300m (984ft).

WARNING Risk of electrical shock. Ensure that branch circuit power is disconnected prior to performing

installation or inspection of data wiring.

CAUTION Make sure that the cable is protected from cuts and abrasions that may result in damage to

the outer jacket.

CAUTION IP failure induced by stressed/damaged cable entry points during or after installation will void

the product warranty.

NOTICE A voltage divider is recommended and may be required by local electrical code)

when a single junction box is utilized for both power supply and data cable

termination.

NOTICE Cable bend radius must NOT be less than the Minimum Bending Radius (4 x Cable

Diameter) as speciﬁed by cable manufacturer and the Non-Bendable Length of 5cm

(2in) near the cable gland MUST be adhered to. In addition to the Minimum Bending

Radius, ensure that 5cm (2in) of cable at the connector junction is kept straight

Installation Steps

1. Determine the required length of data cable. Make sure to account for cable management (routing, drip loops,

etc.) prior to removal of unneeded cable.

2. Make sure that there is sufﬁcient cable to account for thermal expansion and contraction.

3. Insert the data cable into the pole. The cable entry points shall be protected with ﬁttings suitable

for maintaining a water-tight installation.

NOTICE The use of RTV silicone is required at all terminal box penetration points.

4. Connect the luminaire DMX input and output conductors to the contractor installed DMX wiring.

NOTICE All data wire connections shall be made using cage clamp style connectors

included in the termination kit (ordered separately). Wire nut connections of the data

conductors shall not be used and will void the warranty.

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 18 of 24

5. Install the termination resistor (included in the termination kit) between the Data - and Data + conductors on

the last unit in the control. See Figure 23 for speciﬁc wire connections.

NOTICE Termination is required for proper operation and shall be applied at the last unit of

the daisy chain only. Failure to apply termination correctly will void the warranty.

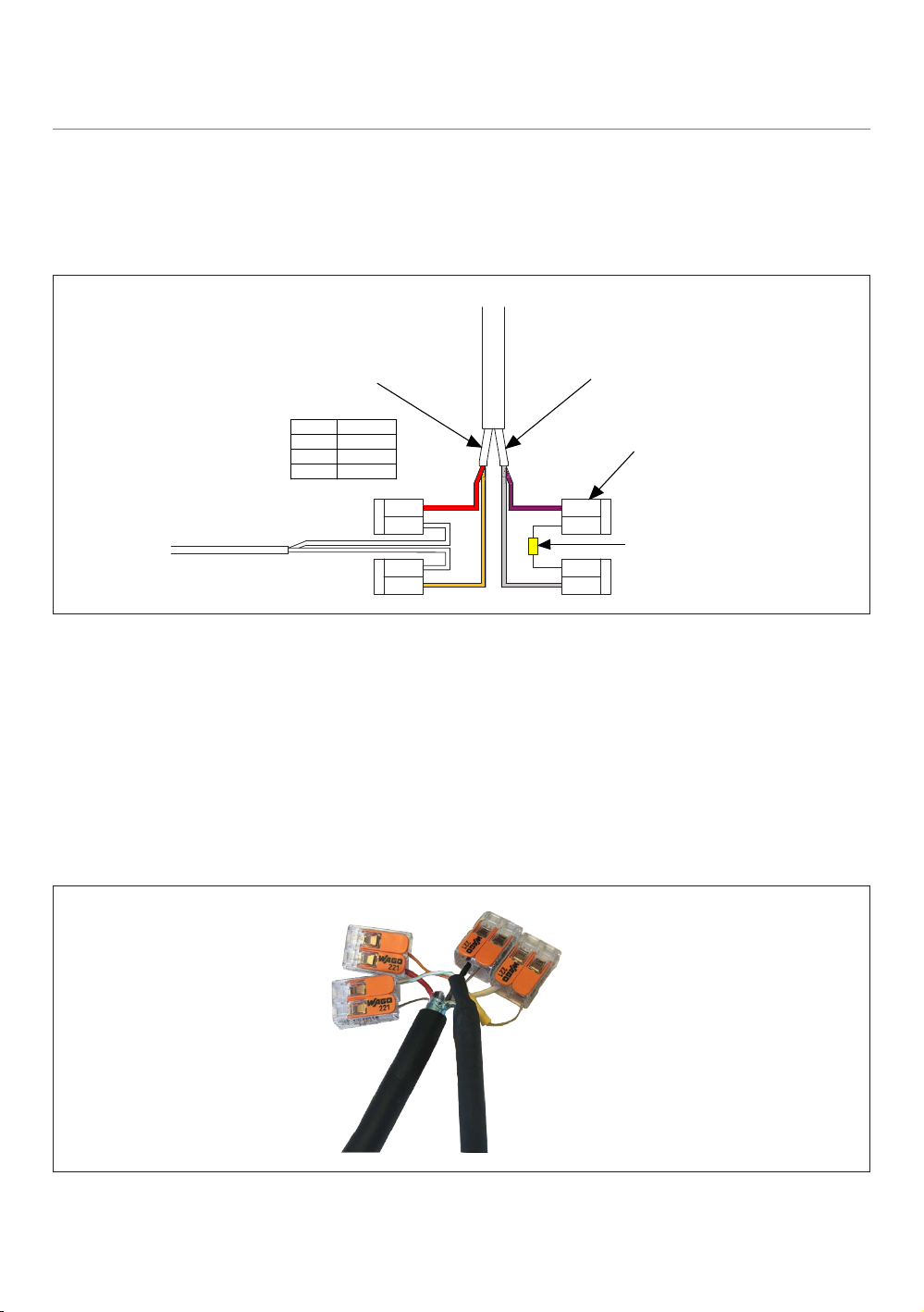

FIG.17: DMX Termination Detail

DMX +

DMX -

DMX +

DMX -

Data pair to luminaire

To ProPoint luminaire

Data pair from luminaire

WAGO 221-412 Lever Nut

(Typical of 6)

120 Ohm Terminator

Orange DMX- IN

Red DMX+ IN

Grey DMX- OUT

Purple DMX+ OUT

NOTE • Maintain data pair wire twist at all connection points.

• To prevent short circuits, do not strip more conductor insulation than required for

connection.

• The use of wire nuts is not acceptable and will void the warranty.

• Data termination shall be made in weatherproof enclosure by others. Use suitable

cable glands and apply RTV silicone at all entry points.

NOTICE Data shall enter each luminaire using the DMX In wire pair (Orange and Red

conductors). A 120 Ohm termination resistor shall be installed on the DMX Out wire

pair (between Grey and Purple conductors). Failure to terminate at the last luminaire

will void the warranty and may result in control issues.

FIG.18: DMX Termination Detail

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 19 of 24

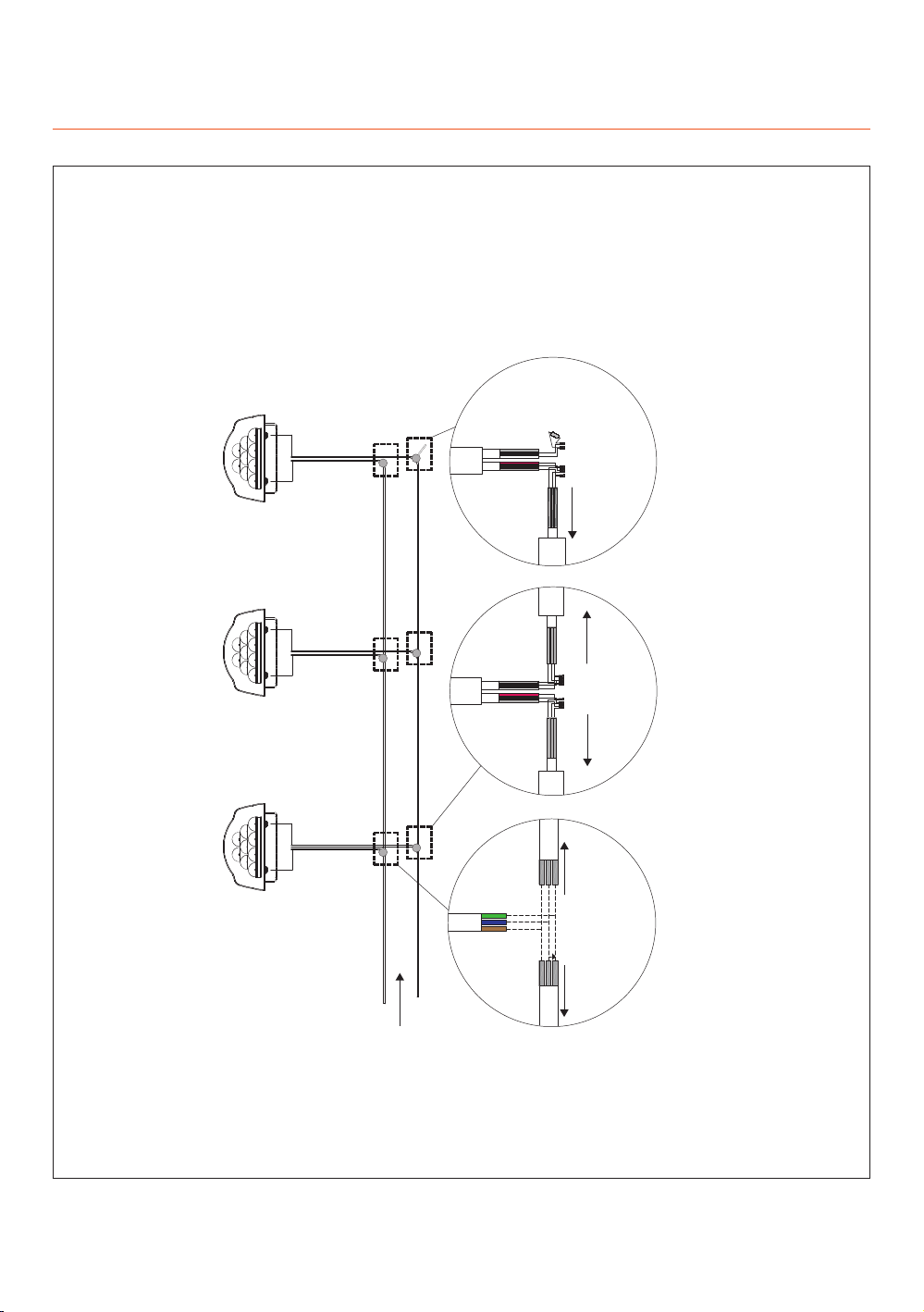

FIG.19: Wiring Details

—ProPoint Sconce ﬁxtures ship with two

cable whips: One cable whip for power

input, consisting of two wires plus a

ground, and one cable whip for

DMX512 RDM input/output.

—No more than (32) ﬁxtures on a single

DMX512 link, max 300m total (source to last ﬁxture).

—Data cabling from DMX source to ﬁrst

ﬁxture and between subsequent

ProPoint Sconce ﬁxtures shall be Cat5e

UTP or higher (stranded type only) or

other cable type suitable for DMX

communication. Consult DMX

standard for additional guidance.

signal r

—

Each DMX512 link must be

properly terminated to prevent

eﬂections.

General Notes

—All data cabling must adhere to ANSI E1.11-2008 (R2013) – Entertainment Technology – USITT DMX512-A, Asynchronous Serial Digital Data Transmission Standard for Controlling Lighting Equipment and Accessories.

—Fixture is RDM compatible.

—Fixtures allow a universal input of 120VAC to 277VAC.

—Data termination shall utilize cage clamp terminal blocks, or equivalent. Wire nuts are not permissible and will void warranty.

—The method of line voltage termination, both for data and power, is at the discretion of the installing contractor, and/or engineer. Splicing and/or joining of cables must adhere to all applicable electrical codes.

—Cables must be spliced/joined in a weatherproof enclosure/junction box, which is to be properly rated and provided by others.

From power source/

previous ﬁxture

To next ﬁxture

AC L

AC N

From DMX transmitter/

previous ﬁxture

To next ﬁxture

DMX (+)

DMX (-)

DMX(Com)

DMX (+)

DMX (-)

DMX(Com)

DMX IN DMX OUT

Terminal Blocks

(Wago 221-412 or equivalent)

DMX IN DMX OUT

ﬁxture

whip

DMX(-)

120 Ohm

Resistor

DMX(+)

From previous ﬁxture

ﬁxture

whip

ﬁxture

whip

DMX (+)

DMX (-)

DMX(Com)

120-277V

(2 Wire + Ground)

DMX512/RDM

(1 x twisted pair

+ 1 shield/common)

Line voltage junction box

(By others)

Data junction box

(By others)

ProPoint Sconce ProPoint Sconce ProPoint Sconce

(Last ﬁxture in line)

www.traxontechnologies.com | www.osram.us/traxon

PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE.

Installation Guide V1.1 03/21 P. 20 of 24

4. CONFIGURATION

4.1 Luminaire Addressing and Control

The ProPoint Sconce utilizes 4 DMX channels for the RGB unit, and 1 DMX channel for the White units.

The ProPoint Sconce luminaires are shipped with a default DMX address of 001. For installations where

independent control of luminaires is required, the DMX address will need to be modiﬁed using a controller that

supports Remote Device Management (RDM).

• Connect an RDM capable control device to the DMX line ahead of the ﬁrst luminaire.

• Enable RDM discovery per the instructions of the controller manufacturer.

• The controller will discover available ProPoint luminaires. These luminaires can be identiﬁed by the preﬁx 16DC

in each unit’s UID.

• Using the RDM identify function, locate a single unit in the installation. The associated luminaire will ﬂash.

• Note the physical location of the ﬂashing unit and then disable the identify function.

• Determine the desired address for the identiﬁed luminaire and enter it in the address ﬁeld of the RDM controller.

• Continue the above process until all units have been addressed.

• Record the UID data and associated addresses at the end of this document.

• Test each luminaire to verify correct addressing prior to completing installation.

ProPoint Power-Up and Loss of Data Behavior

The ProPoint Sconce luminaire will exhibit the following behavior upon power-up and loss of DMX

data:

Power-Up with no DMX data present Luminaire will illuminate at full power

Power-Up with DMX data present Luminaire will respond based on the DMX values being received

Loss of DMX data Luminaire will hold the last valid DMX values received until a power cycle or

until DMX is restored.

DMX Channel Functions

RGBW Unit

DMX Channel Function

1Red Intensity

2Green Intensity

3Blue Intensity

4White Intensity

White Unit

DMX Channel Function

1White Intensity

Supported RDM Parameters

This manual suits for next models

Table of contents

Other Osram Outdoor Light manuals

Osram

Osram Noxlite LED Spot User manual

Osram

Osram traxon e cue ProPoint Pixel Series Installation instructions manual

Osram

Osram SYLVANIA Series User manual

Osram

Osram ARCHISHAPE 2.0 Linear MINI User manual

Osram

Osram 5XA591 Series User manual

Osram

Osram CP62OSR User manual

Popular Outdoor Light manuals by other brands

Designplan

Designplan ALDER 400 manual

smania

smania G-LAMP instructions

Inspire

Inspire Nebi instruction manual

HEPER

HEPER LL2023.865-US Installation & maintenance instructions

kobi

kobi LED NEXPRO 100W manual

TaoTronics

TaoTronics TT-DL23 user guide

Philips

Philips Ecomoods 16902/47/16 Specification sheet

Timberlab

Timberlab Strato manual

Faro Barcelona

Faro Barcelona 70151 quick start guide

Polarite

Polarite 1486564 operating instructions

Gama Sonic

Gama Sonic ASPEN GS-8 instruction manual

LIGMAN

LIGMAN DUOMO 12 installation manual

Maxim

Maxim Scottsdale 30121CDCF manual

Dayvia

Dayvia Wellbi Instructions for use

WAC Lighting

WAC Lighting dweLED WS-W37612 Installation instruction

edishine

edishine HGSL07A instruction manual

Sistemalux

Sistemalux MEGAZIP S8500 instruction sheet

PLG

PLG NEXUS 6 user manual

Osram Traxon ProPoint Sconce S User manual

Popular Outdoor Light manuals by other brands
