OST iConverter User manual

38 Tesla, Irvine, CA 92618 USA
Phone: [phone]
iConverter®
2-Module Power Chassis
User Manual
Page 2
General and Copyright Notice
This publication is protected by U.S. and international copyright laws. All rights reserved.
The whole or any part of this publication may not be reproduced, stored in a retrieval
system, translated, transcribed, or transmitted, in any form, or by any means, manual,
electric, electronic, electromagnetic, mechanical, chemical, optical or otherwise, without
prior explicit written permission of Omnitron Systems Technology, Inc.
The following trademarks are owned by Omnitron Systems Technology, Inc.: FlexPointTM,
FlexSwitchTM, HybridNID®, iConverter®, miConverterTM, NetOutlook®, OmniLight®,
OmniConverter®, RuggedNet®, Omnitron Systems Technology, Inc.TM, OSTTM and the
Omnitron logo.
All other company or product names may be trademarks of their respective owners.
The information contained in this publication is subject to change without notice.
Omnitron Systems Technology, Inc. is not responsible for any inadvertent errors.
Warranty
This network product and the included AC/DC power adapter are warranted to the
original purchaser (Buyer) against defects in material and workmanship for a period of
two (2) years from the date of shipment. The warranty for the network product can be
extended to lifetime by registering the product at www.omnitron-systems.com/support
within ninety (90) days from the date of shipment. During the warranty period, Omnitron
will, at its option, repair or replace a product which is proven to be defective with the
same product or with a product with at least the same functionality.
For warranty service, the product must be sent to an Omnitron designated facility, at
Buyer’s expense. Omnitron will pay the shipping charge to return the product to Buyer’s
designated US address using Omnitron’s standard shipping method.
Limitation of Warranty
The foregoing warranty shall not apply to product malfunctions resulting from improper
or inadequate use and/or maintenance of the equipment by Buyer, Buyer-supplied
equipment, Buyer-supplied interfacing, unauthorized modications or tampering
with equipment (including removal of equipment cover by personnel not specically
authorized and certied by Omnitron), or misuse, or operating outside the environmental
specication of the product (including but not limited to voltage, ambient temperature,
radiation, unusual dust, etc.), or improper site preparation or maintenance.
No other warranty is expressed or implied. Omnitron specically disclaims the implied
warranties of merchantability and tness for any particular purpose.
The remedies provided herein are the Buyer’s sole and exclusive remedies. Omnitron
shall not be liable for any direct, indirect, special, incidental, or consequential damages,
whether based on contract, tort, or any legal theory.
Environmental Notices
The equipment covered by this manual must be disposed of or recycled in accordance
with the Waste Electrical and Electronic Equipment Directive (WEEE Directive) of
the European Community directive 2012/19/EU on waste electrical and electronic
equipment (WEEE) which, together with the RoHS Directive 2015/863/EU, for electrical
and electronic equipment sold in the EU after July 2019. Such disposal must follow
national legislation for IT and Telecommunication equipment in accordance with the

Page 3
WEEE directive: (a) Do not dispose waste equipment with unsorted municipal and
household waste. (b) Collect equipment waste separately. (c) Return equipment using
collection method agreed with Omnitron.
The equipment is marked with the WEEE symbol shown to indicate that it must
be collected separately from other types of waste. In case of small items the symbol
may be printed only on the packaging or in the user manual. If you have questions
regarding the correct disposal of equipment go to www.omniton-systems.com/support
or e-mail to Omnitron at [email protected].
Safety Warnings and Cautions
ATTENTION: Observe precautions for handling electrostatic discharge sensitive
devices.
WARNING: Potential damage to equipment and personal injury.
WARNING: Risk of electrical shock.
Customer Support Information
Phone: [phone]
Fax: [phone]
Address: Omnitron Systems Technology, Inc.
38 Tesla
Irvine, CA 92618, USA
Email: [email protected]
URL: www.omnitron-systems.com
Page 4
iConverter 2-Module Power Chassis
User Manual
Product Overview
The iConverter 2-Module Power Chassis is powered by a single internal universal AC
or DC power supply and can accommodate up to two iConverter media converters. It
is ideal for enterprise Local Area Network (LAN) or Metropolitan Area Network (MAN)
applications where remote management and explicit demarcation between the service
provider’s equipment and customer’s equipment is required.
2-Module Chassis (Shown without modules installed)
This User Manual describes the following models:
Model
Number Model Type Power Description
8230-x 2-Module Chassis with
8.5 watt AC Power Supply, No fan
IEC 320 Socket,
100 to 240VAC, 50/60Hz,
0.5A @ 120VAC,
8231-x
2-Module Chassis with
16.5 watt AC Power Supply,
with temperature controlled fan
IEC 320 Socket,
100 to 240VAC, 50/60Hz,
0.5A @ 120VAC,
8232-1
2-Module Chassis with
16.5 watt High Airow AC Power Supply,
with fan, with dying gasp
IEC 320 Socket,
100 to 240VAC, 50/60Hz,
0.5A @ 120VAC,
8235-x 2-Module Chassis with
6.6 watt 48 VDC Power Supply, No fan
Direct DC 3-Pin Terminal,
+/- 18 to 60VDC,
1.0A @ 48VDC
8236-x
2-Module Chassis with
16.5 watt 48 VDC Power Supply,
with temperature controlled fan
Direct DC 3-Pin Terminal,
+/- 18 to 60VDC,
2.0A @ 48VDC
8238-1
2-Module Chassis with
16.5 watt High Airow 48 VDC Power Supply,
with fan, with dying gasp
Direct DC 3-Pin Terminal,
+/- 18 to 60VDC
2.0A @ 48VDC
x indicates the the dying gasp option (0 = no dying gasp, 1 = dying gasp).
Use the Power Calculator to verify the iConverter chassis power supplies will meet the
requirements of the installation.
Depending on the installed model type and the number of modules installed, the High
Airow power supply may be required. See Application Notes for XG+ / XGT+ and GM4.
High Airow fans are always turned on.
High Airow models are only available with dying gasp.
040-08230-001M 9/22

Page 5
Dying Gasp Trap
The 8230-1, 8231-1, 8232-1, 8235-1, 8236-1 and 8238-1 chassis feature Dying Gasp
Trap, which reports loss of power input or chassis power supply failure. This feature
requires an iConverter management module be installed in the chassis. When power
failure occurs, the chassis reserves enough power to keep the installed modules running
in order to send a nal SNMP alert to the management software.
Terminology
Backplane A printed circuit board which is permanently mounted inside the
chassis and is populated with receptacle connectors into which
modules are inserted.
Slot A single chassis position consisting of a backplane connector and
its associated module-guides.
A Link A backplane slot-to-slot connection that provides Ethernet
connectivity between adjacent slots (sometimes referred to as A
Backplane Link).
A Port An interface on a module capable of Ethernet trafc via the
backplane’s A Link.
Other iConverter multi-module chassis models also support a backplane B Link.
This feature is not required on the 2-Module Chassis.
Mechanical Description
The 2-Module chassis consists of a fixed internal AC (models 8230-0, 8230-1,
8231-0, 8231-1 and 8232-1) or DC (models 8235-0, 8235-1, 8236-0, 8236-1 and 8238-1)
power supply that provides power to the chassis’ two (2) backplane connectors.
Backplane Architecture
The chassis features two (2) module slots numbered 1 (top slot) and 2 (bottom slot). As
modules are inserted into the chassis slots, they are seated into the slot connectors.
The two slots are connected using the A Link which provides Ethernet connectivity
between the two slots.
When modules with A Port capability are inserted into the adjacent chassis slots, they
can connect their Ethernet data using their A Ports and the A Link.
Note: Not all modules support and have backplane ports. Refer to the specic module’s
documentation for information on backplane support.
This chassis’ architecture facilitates a variety of applications including unmanaged,
out-of-band managed, in-band managed and multi-port congurations.

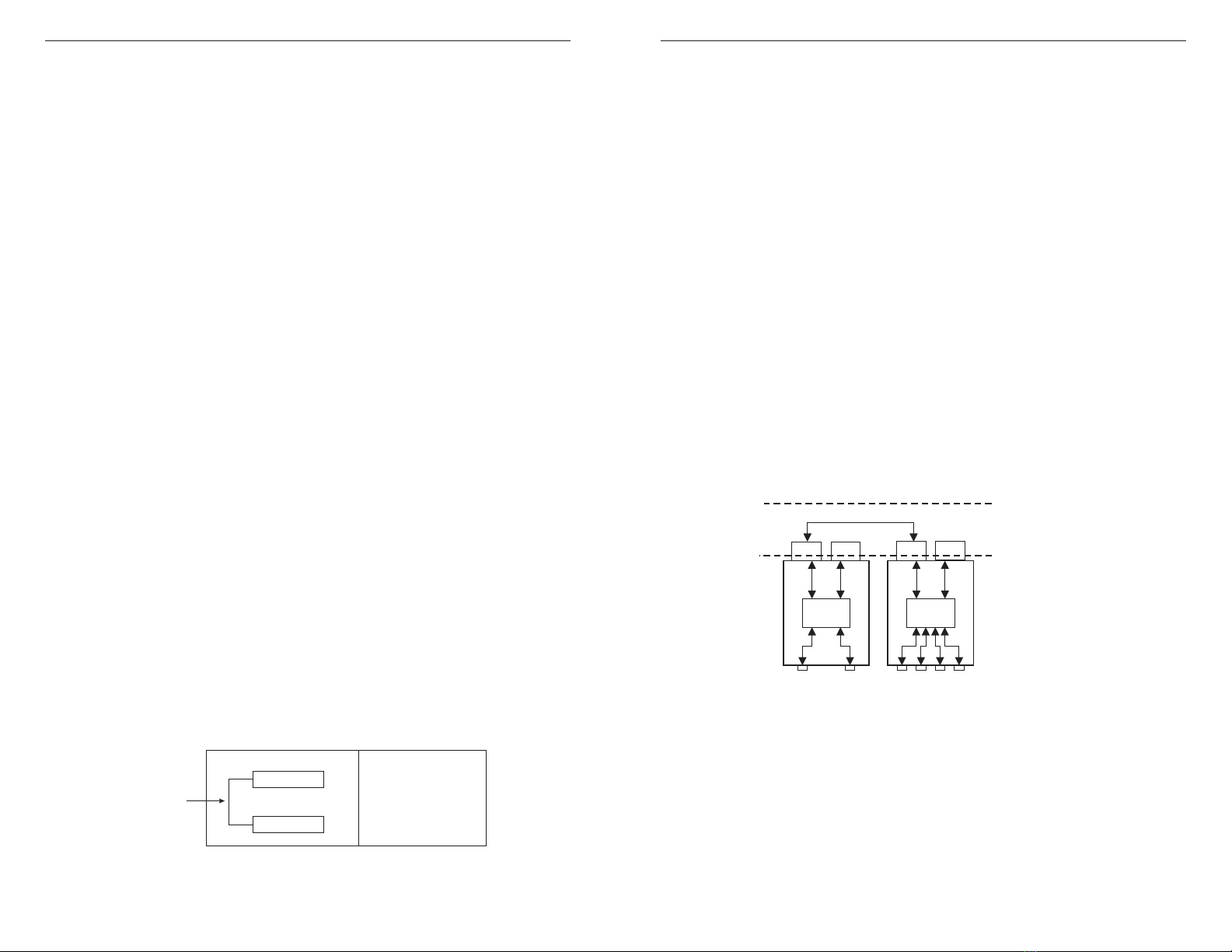

Slot 1
Slot 2
Connector
Connector
A Backplane Link
2-Module Backplane Architecture
Page 6
Application Examples
In-Band Managed 10/100 Converter Application
The gure below depicts a typical in-band managed ber to UTP conversion at a
Customer’s Premises (CP) or at a remote network edge. In-band management is a
desirable feature in these applications since it facilitates remote monitoring, conguration
and trap notication from the chassis. VLANs can be used to separate the customer
data from the management data.
This application uses an iConverter 10/100M2 module for media conversion and
management and a 4TxVT 4-Port 10/100 switch module for added customer connectivity.
Both modules are plugged into the 2-Module chassis.
The 10/100M2 converter module features two front-plane Ethernet ports (100BASE-FX
ber and 10/100BASE-T RJ-45) and two 10/100Mbps Ethernet backplane ports (A and
B Ports).
The 4TxVT module features four front-plane Ethernet ports (10/100BASE-T) and two
10/100Mbps Ethernet backplane ports (A and B Ports).
The user data ows between the ber and RJ-45 ports of the 10/100M and 4TxVT via
the backplane.
The management data ows between the ber and all the RJ-45 ports (in-band). Using
a management VLAN, the management data is recognized by the 10/100M module
and is not shared by the other ports.
This conguration provides the network administrator with the ability to manage and
maintain the converter chassis at the remote location.
10/100M Module
Internal
10/100
switch chip
UTP
10/100 port
Fiber
100 port
4TxVTModule
Internal
10/100
switch chip
4-port 10/100 UTP
Switch
“A” Link Chassis
Backplane Note that the
2-Module Chassis
does not include
theBBackplane Link
A Port A Port B Port
B Port
In-Band Managed 10/100 Converter Application

Page 7
Out-of-Band Managed 4-Port Switch Application
This application uses a 4TxVT 4-Port 10/100 switch module and an iConverter Network
Management Module (NMM2) for management. Both modules are plugged into the
2-Module chassis.
The 4TxVT features four front-plane 10/100BASE-T RJ-45 Ethernet ports and two
10/100Mbps Ethernet backplane ports (A and B Ports).
The NMM2 features a 10/100BASE-T front-plane port and a 10/100Mbps Ethernet
backplane A Port.
Out-of-band management is provided by connecting to the front-plane port on the NMM
module. The management data is separate from the user data on the 4TxVT.
This conguration provides the network administrator with the ability to efciently and
cost effectively manage a small (4-port) workgroup switch.
4TxVTModule
Internal
10/100
switch chip
4-port 10/100 UTP
Switch
NMM Module
NMM
NMM UTP
10 port
“A” Link Chassis
Backplane Note that the
2-Module Chassis
does not include
theBBackplane Link
A Port A Port B Port
Managed 4-Port Switch Application
Unpacking, Visual Inspection and Inventory
Review contents. The following items should be included:
• iConverter 2-Module Power Chassis
• One AC power cord (AC MODULES ONLY)
• One DC power connector (DC MODULES ONLY)
• User Manual
Inspect equipment and immediately report any damage or discrepancies to Omnitron
at 949-250-6510. If equipment is damaged, do not apply power to the equipment.
Wall and Rack Mounting
The 2-Module chassis can be wall/rack mounted by attaching the optional wall/rack
mount brackets (8249-0). A 19” Rack Mount Shelf (8260-0) is available to install three
2-Module chassis.
The operating temperature of this equipment is 0 to 50 degrees C or -40 to 60 degrees
C depending on the model number. If installed in a closed or multi-unit rack assembly,
the operating ambient temperature of the rack must not exceed the maximum rated
temperature for the chassis used.
Page 8
Installation of the equipment should be such that the air ow in the front and back of
the unit is not compromised or restricted.
Installing this equipment into a rack in such a way as to make it unstable may cause
injury or death. Always make sure that the rack you are installing this equipment into
is properly secured, stable, balanced and designed to carry the weight and weight
distribution of this equipment.
Never use this equipment to carry any weight except its own. Never use it as a shelf
to support the weight of other equipment.
Installing Modules
Carefully slide the modules into an open slot in the chassis. Align the modules with the
installation guides and ensure that the modules are rmly seated against the backplane.
Secure the modules by fastening the front panel thumbscrew (push in and turn clockwise
to tighten) to the chassis front.
AC Powered Chassis Site Preparation and Cabling
Power source should be available within 5 ft. of the chassis and installed per the National
Electrical Code, ANSI/NFPA-70.
This equipment requires a 100-240VAC, 0.5Amp, 50/60Hz power outlet. Appropriate
overloading protection should be provided on the AC power source outlets utilized.
Appropriate overloading protection should be provided on all AC power source outlets
utilized.
Attach the AC power cords (provided for each Power Supply) to the back of each Power
Supply. Connect the AC power cords to the AC outlets and switch the outlets ON.
Any installed iConverter modules will illuminate the power LED.
NEVER ATTEMPT TO OPEN THE CHASSIS OR SERVICE THE
POWER SUPPLYORFAN MODULE. OPENING THE CHASSIS
MAY CAUSE SERIOUS INJURYOR DEATH.
THERE ARE NO USER REPLACEABLE OR SERVICEABLE
PARTS IN THIS UNIT.
WARNING!!!

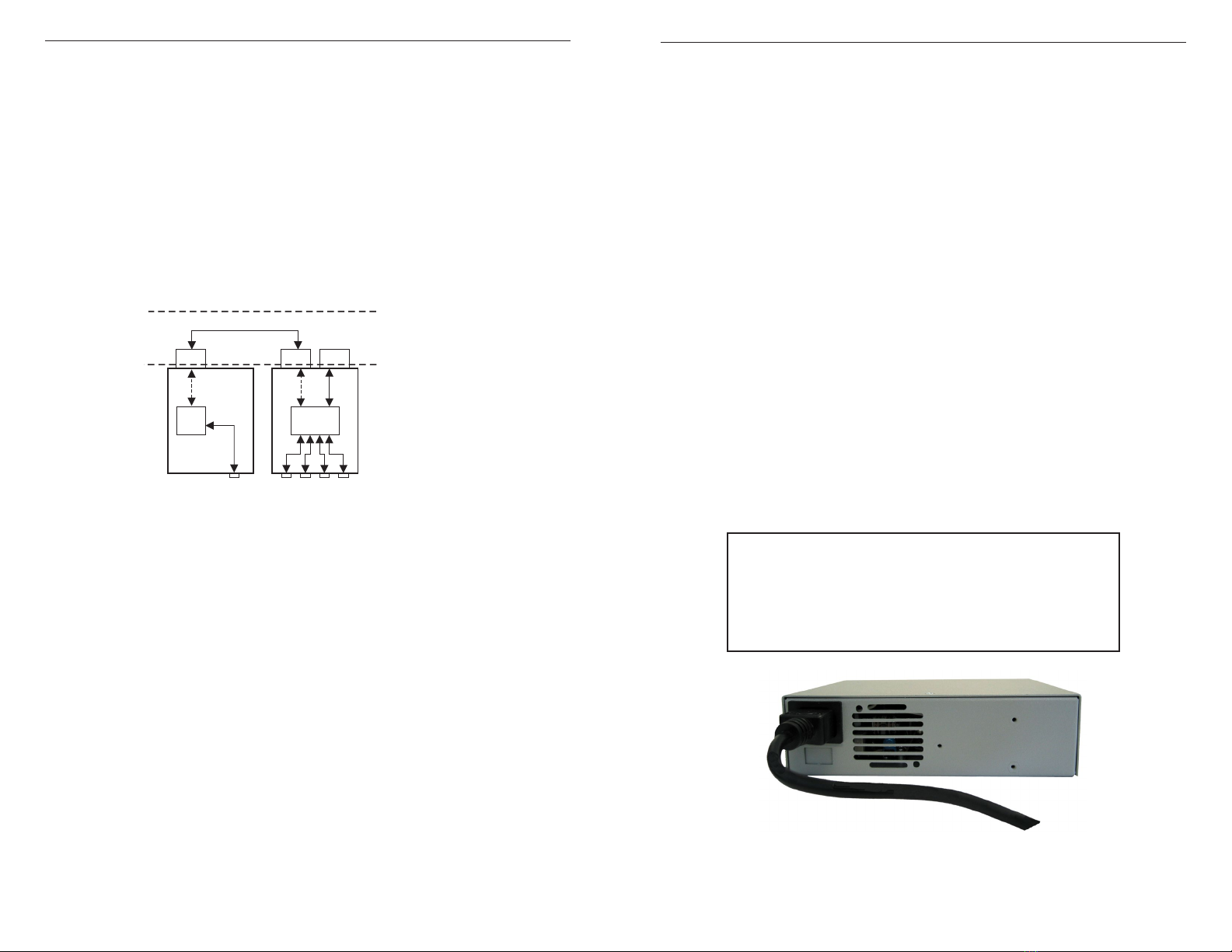

Rear of 2-Module Chassis with Power Cord

Page 10

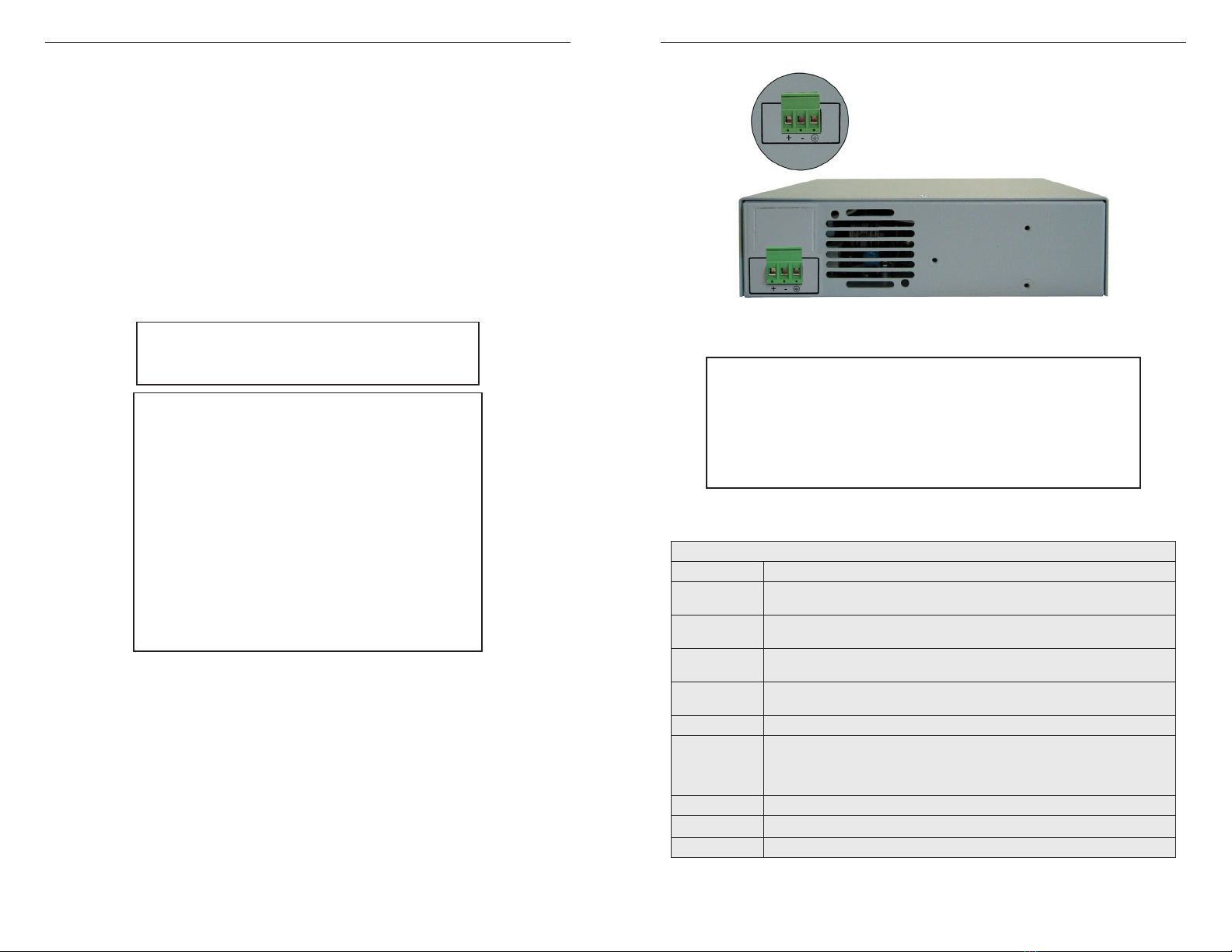

Rear of 2-Module Chassis with DC Power Connector
NEVER ATTEMPT TO OPEN THE CHASSIS OR SERVICE THE
POWER SUPPLYORFAN MODULE. OPENING THE CHASSIS
MAY CAUSE SERIOUS INJURYOR DEATH.
THERE ARE NO USER REPLACEABLE OR SERVICEABLE
PARTS IN THIS UNIT.
WARNING!!!
Specications
2-Module Chassis Common Specications
Model Number All Models
Module
Capacity 2
Power Supply
Capacity Single Fixed Internal Power Supply
Regulatory
Compliances UL, CE, FCC Class A, NEBS Level 3, RoHS, WEEE, REACH
Dimensions
W x D x H 6.7” x 5.51” x 1.87” (435.6 mm x 228.6 mm x 44.5 mm)
Weight 2.5 lb (1.14 kg)
Temperature
Commercial: 0 to 50°C
Wide: -40 to 60°C
Extended: -40 to 75°C (DC models only)
Storage: - 40 to 80°C
Humidity 5 to 95% (non-condensing)
Altitude -100m to 4,000m
Warranty Lifetime warranty with 24/7/365 free Technical Support
Page 9
DC Powered Chassis Site Preparation and Cabling
The over current protection for the connection with centralized DC shall be provided in
the building installation and shall be a UL listed breaker rated at 20 Amps, and installed
per the National Electrical Code, ANSI/NFPA-70.
This equipment requires 18-60VDC/1.0Amp (8235) or 2.0Amp (8236 and 8238) rated
power. Appropriate overloading protection should be provided on the DC power source
outlets utilized.
Appropriate overloading protection should be provided on all DC power source outlets
utilized.
NOTE: The DC power battery return (BR) terminal or positive terminal must be
grounded at the source end (power feed or DC mains power end). The DC power
BR input terminal is not connected to the equipment frame (chassis), so it is
congured as DC-I according to the GR-1089-CORE, Issue 4 (sec 9.8.3) denitions.
WARNING: OnlyaDC power source that complies with
safety extra low voltage (SELV) requirements can be
connected to the DC-input power supply.
WARNING REGARDING EARTHING GROUND:
o
o
o
o
This equipment shall be connected to the DC supply
system earthing electrode conductor or to a bonding
jumper from an earthing terminal bar or bus to which the
DC supply system earthing electrode is connected.
This equipment shall be located in the same immediate
area (such as adjacent cabinets) as any other equipment
that has a connection between the earthed conductor of
the same DC supply circuit and the earthing conductor,
and also the point of earthing of the DC system. The DC
system shall not be earthed elsewhere.
The DC supply source is to be located within the same
premises as this equipment.
There shall be no switching or disconnecting devices in
the earthed circuit conductor between the DC source and
the earthing electrode conductor.
Locate the DC circuit breaker and switch the circuit breaker to the OFF position.
Prepare a power cable using a three conductor insulated wire (not supplied) with 12AWG
to 14AWG thickness. Cut the power cable to the length required.
Strip approximately 3/8 of an inch of insulation from the power cable wires.
Connect the ground wire to the ground terminal on the chassis by fastening the stripped
end to the DC power connector (ground).
Connect the power cables to the chassis by fastening the stripped ends to the DC
power connector.
WARNING: Note the wire colors used in making the positive, negative and ground
connections. Use the same color assignment for the connection at the circuit breaker.
Connect the power wires to the circuit breaker and switch the circuit breaker ON.

Page 11
AC Power Specications
Description 2-Module AC 2-Module AC 2-Module AC
High Airow
Model Number 8230-x 8231-x 8232-1
Input Power
Requirements
(typical)
100 to 240VAC,
50/60Hz
0.5A @ 120VAC
100 to 240VAC,
50/60Hz
0.5A @ 120VAC
100 to 240VAC,
50/60Hz
0.5A @ 120VAC
Output Power
8.5 watts
2.6A @ 3.3VDC
1.5A per slot
16.5 watts
5A @ 3.3VDC
2.5A per slot
16.5 watts
5A @ 3.3VDC
2.5A per slot
Power
Connector IEC 320 Socket IEC 320 Socket IEC 320 Socket
MTBF (hrs) 151,000 413,000 50,000
DC Power Specications
Description 2-Module 48VDC 2-Module 48VDC 2-Module 48VDC
High Airow
Model Number 8235-x 8236-x 8238-1
Input Power
Requirements
(typical)
18 to 60VDC
-48VDC @ 1.0A
18 to 60VDC
-48VDC @ 2.0A
18 to 60VDC
-48VDC @ 2.0A
Output Power
6.6 watts
2A @ 3.3VDC
1.5A per slot
16.5 watts
5A @ 3.3VDC
2.5A per slot
16.5 watts
5A @ 3.3VDC
2.5A per slot
Power
Connector 3-Pin Terminal (Isolated) 3-Pin Terminal (Isolated) 3-Pin Terminal (Isolated)
MTBF (hrs) 329,000 538,000 50,000
The 8231-x and 8236-x have internal temperature-controlled fans. The fan will turn on
when the chassis internal temperature is greater then ~40oC. Under normal operating
temperature, the fan is off.
The 8232-1 and 8238-1 have internal fans that are always turned on.
Page 12
Page left intentionally blank
