Outback Dual Fuel 2 User manual

0359
Assembly and Operating Instructions for Outback®
Dual Fuel 2 Gas & Charcoal BBQ and Dual Fuel 4 Gas & Charcoal BBQ
Drawings are not to scale.
Specifications subject to change
without prior notice.
WARNING
FOR YOUR SAFETY
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open barbecue lid or hood.
4. If odour continues, discontinue use and
contact your local dealer.
FOR YOUR SAFETY
1. Do not store or use petrol or other flammable
vapours or liquids in the vicinity of this or any
other appliance.
2. A gas bottle not connected for use must not be
stored in the vicinity of this or any other
appliance.
CS3200A CS4400A
 For outdoor use only - do not use indoors! Not for commercial use.
 Read instructions before using the appliance. Failure to follow instructions
could result in death, serious bodily injury, and/or property loss.
 WARNING! Accessible parts may be very hot. Keep children and pets away!
 Do not move the appliance during use.
 Turn off the gas supply at the gas bottle after use.
 CAUTION: Do not use spirit or petrol for lighting or re-lighting! Use only
firelighters complying to EN1860-3!
 WARNING! This barbecue becomes very hot. Do not move it during operation!
 Install this barbecue on a safe and even surface.
 Any modification of the appliance, misuse, or failure to follow the instructions
may be dangerous and will invalidate your warranty. This does not affect your
statutory rights.
 Retain these instructions for future reference.
 Leak test annually, and whenever the gas bottle is removed or replaced.
Check that the hose connections are tight and leak test each time you
reconnect the gas bottle.
 For Flare-up control please refer to the ‘OPERATION’ section of this manual.
 Do not use the barbecue in a confined and/or habitable space e.g. houses, tents,
caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality.

2
CODE PART QTY Dual Fuel 2 Gas &
Charcoal BBQ
Dual Fuel 4 Gas &
Charcoal BBQ
HOOD
A1 Charcoal Hood (Pre-Assembled to Body) 1  
A2 Gas Hood (Pre-Assembled to Body)1  
A3 Stationary W arming Rack  21
A4 Swing Warming Rack  1
BODY
B1 Barbecue Body 1  
B2 Burner  2 4
B3 Gas Control Panel 1  
B4 Knob  2 4
B5 Hose and Regulator Assembly 1  
B6 Ignition Button 1  
B7 Charcoal Control Panel 1  
B8 Crank Handle 1  
B9 Air Vent Plate 1  
B10 Grill Lifting Handle 2  
B11 Charcoal Cooking Grill 2  
B12 Flame Tamer  1 2
B13 Gas Cooking Grill 1  
B14 Cooking Griddle 1  
TROLLEY
C1 Side Shelf 2  
C2 Left Side Shelf Panel 1  
C3 Right Side Shelf Panel 1  
C4 Rear Support 1  
C5 Front Support 1  
C6 Drip Tray Left Bracket 1  
C7 Drip Tray Middle Bracket 1  
C8 Drip Tray Right Bracket 1  
C9 Drip Tray Handle 2  
C10 Small Drip Tray  2 1
C11 Big Drip Tray  1
C12 Left Front Leg 1  
C13 Left Rear Leg 1  
C14 Right Front Leg 1  
C15 Right Rear Leg 1  
C16 Charcoal Bin Slider 2  
C17 Charcoal Bin Lid 1  
C18 Charcoal Bin Back Panel 1  
C19 Charcoal Bin Bottom Panel 1  
C20 Charcoal Bin Left Side Panel 1  
C21 Charcoal Bin Right Side Panel 1  
C22 Charcoal Bin Handle 1  
C23 Charcoal Bin Front Panel 1  
C24 Front Trim Panel 1  
C25 Front Panel 1  
C26 Triangle Bracket A 2  
C27 Triangle Bracket B 2  
C28 Underframe 1  
C29 Lockable Caster 2  
C30 Axle 1  
C31 Wheel 2  
C32 Wheel Hubcap 2  
C33 Locknut 2  
Parts List
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
 Pre-Assembled Component
 Quantity varies according to model purchased
Appearance, size, and construction may differ according to model purchased

3
B12
B14
B13

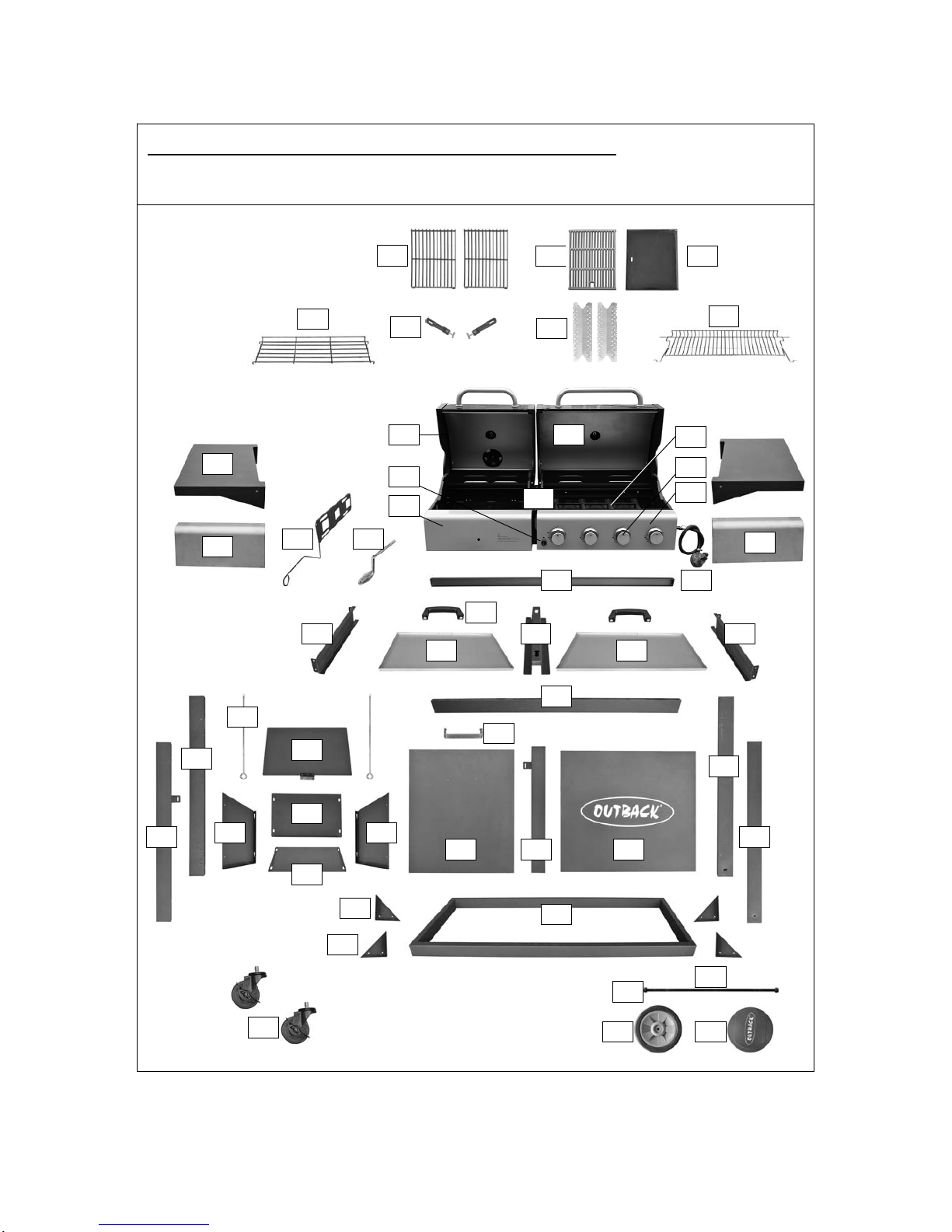

Parts Diagram: Dual Fuel 2 Gas & Charcoal BBQ
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
B1
B2
B4
B3
B5
B6
B8B9
B11
A1 A2
A3
C1
C2 C3
C4
B7
C5
C6 C7 C8
C9
C10
C13
C12
C15
C14
C16
C17
C18
C19
C20 C21
C22
C23 C24 C25
C26
C27
C28
C29
C30
C31 C32
C33
B10

4
B12
B14
B13

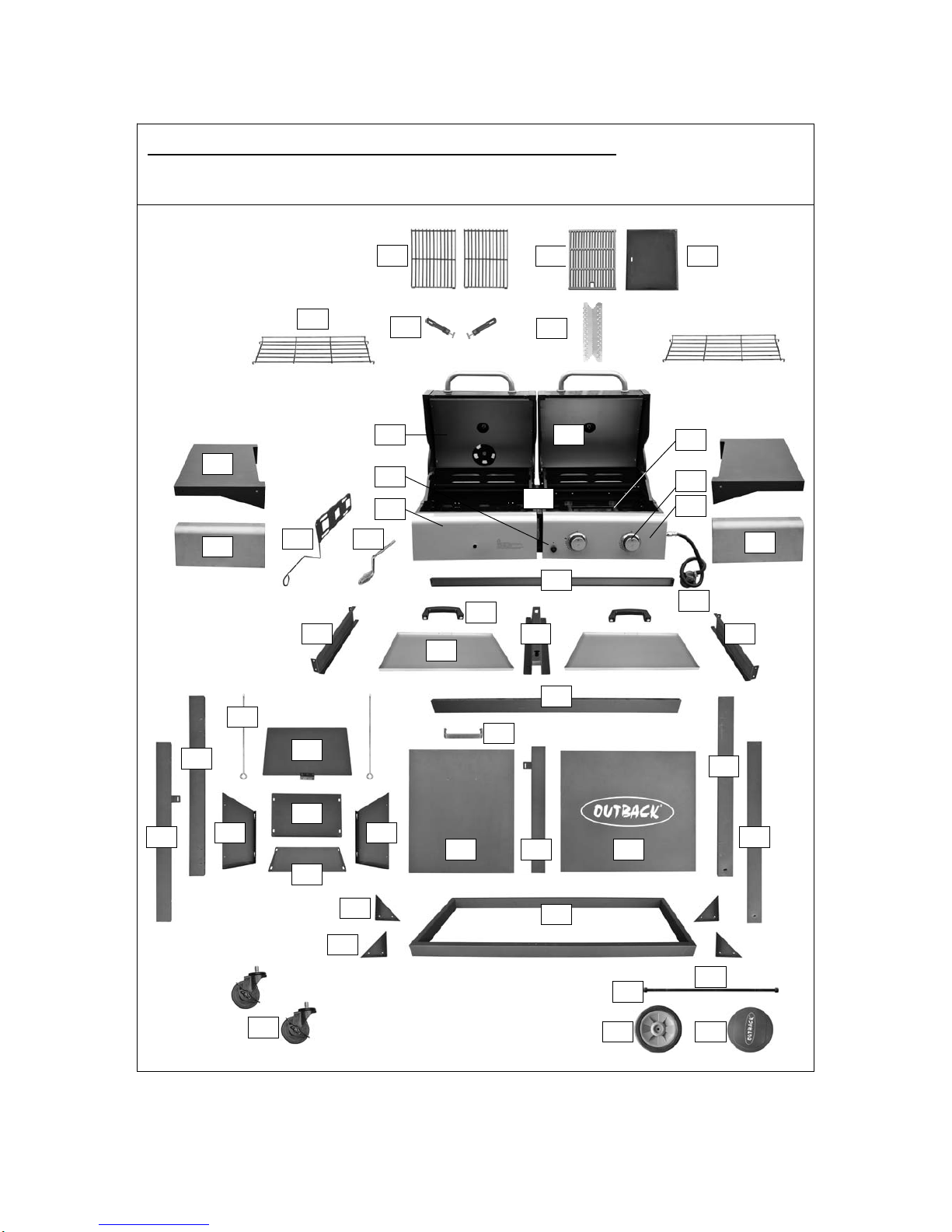

Parts Diagram: Dual Fuel 4 Gas & Charcoal BBQ
Quantity varies according to model purchased. Specifications subject to change without prior notice. For
more details on hardware, please see the corresponding ‘Hardware Reference Diagram’.
B1
B2
B4
B3
B5
B6
B8B9
B11
A1 A2
A3
C1
C2 C3
C4
B7
C5
C6 C7 C8
C9
C10 C11
C13
C12
C15
C14
C16
C17
C18
C19
C20 C21
C22
C23 C24 C25
C26
C27
C28
C29
B10
C30
C31 C32
C33
A4

5

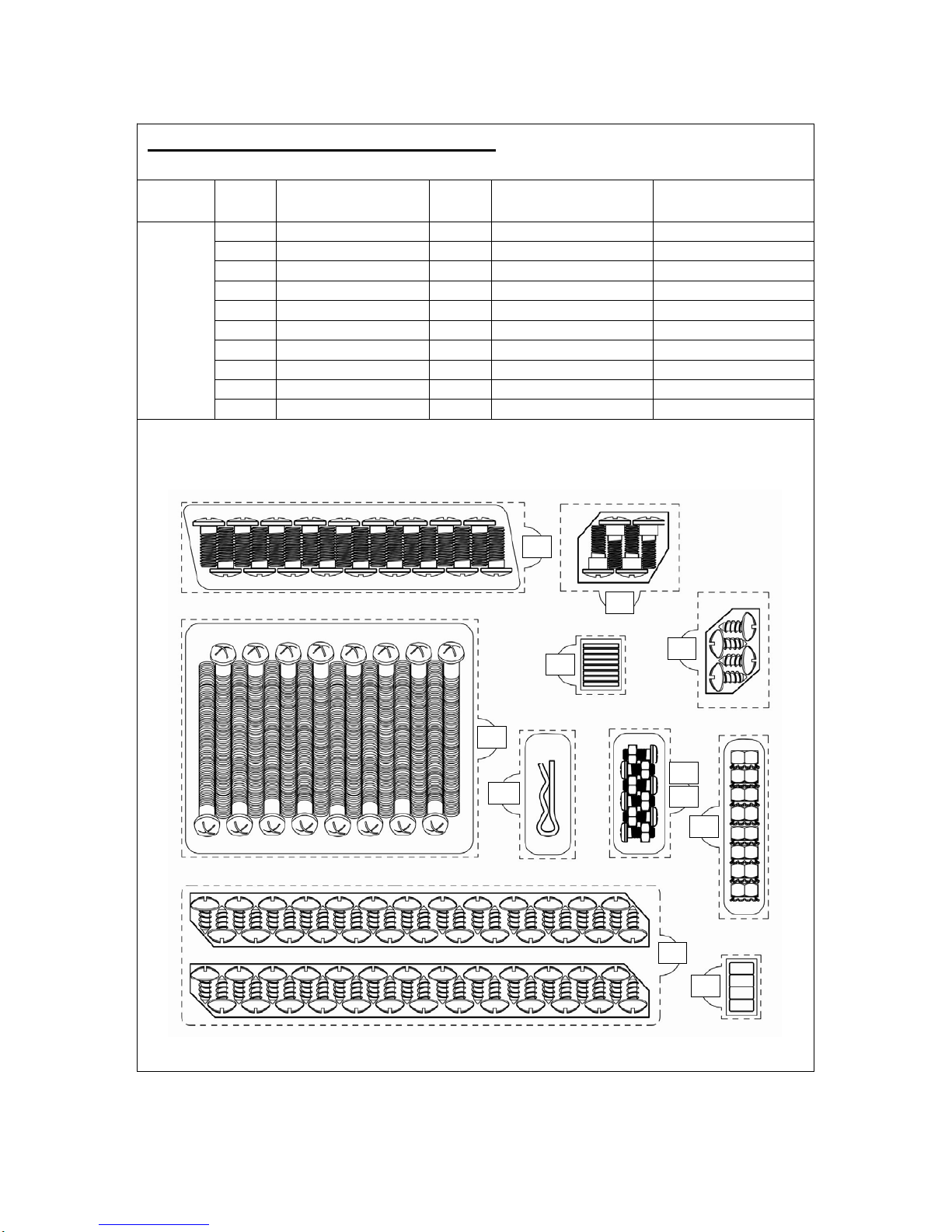

CODE PART QTY Dual Fuel 2 Gas & Charcoal
BBQ
HARDWARE
D1 ST4.0x10 Screw 56* 
D2 M4x8 Bolt 6 
D3 M4 Nut 6 
D4 M6x15 Step Bolt 4 
D5 M6x15 Bolt 18 
D6 M6x65 Bolt 16 
D7 Ø6 Washer 8 
D8 M6 Nut 8 
D9 Spacer 4 
D10 R-Clip 1 
Dual Fuel 4 Gas & Charcoal
BBQ










Hardware Reference Diagram & List
Specifications subject to change without prior notice.
D1
D1
D4
D2
D9
D8
D5
D6
D7
D10 D3
* Actual assembly need 55pcs, 1pc for reserve

6
Assembly
IMPORTANT!
 TOOLS NEEDED FOR ASSEMBLY: Medium size flat blade or Phillips/Crosspoint screwdriver,
adjustable spanner or metric spanner set.
 Remove any internal component or packaging from the barbecue body.
 Whilst every care is taken in the manufacture of this product, care must be taken during assembly in
case sharp edges are present.
 Please read the Important Information section carefully before assembly and use of your
barbecue.
1
2

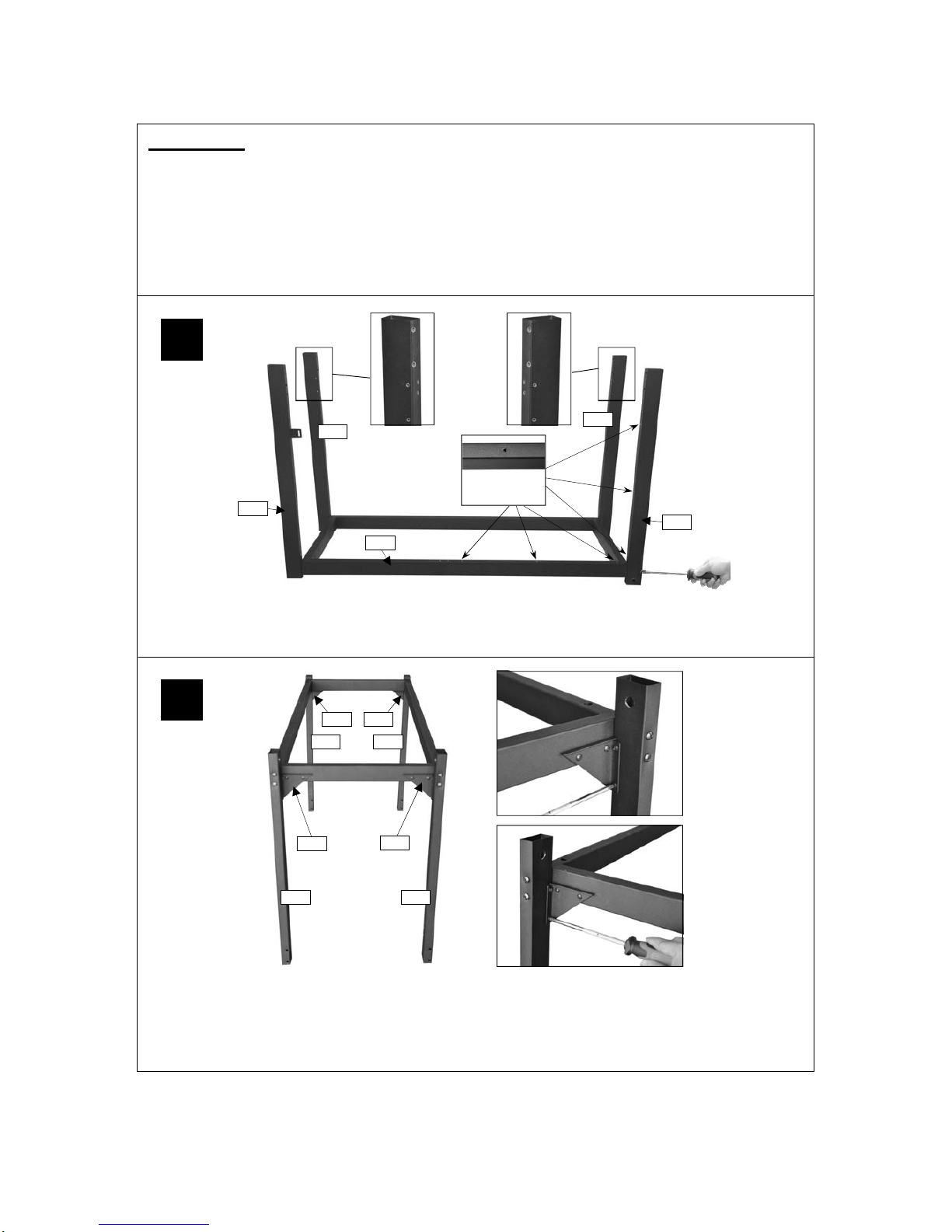

Attach the left leg (C12, C13) and right leg (C14, C15) to the Underframe (C28) using M6x65 Bolts
(D6x8pcs) as shown.
Carefully turn the trolley assembly upside-down.
Attach one Triangle Bracket A (C26) to right front leg and underframe using ST4.0x10 Screws (D1x4pcs).
Repeat above process for fixing the other triangle bracket A to left rear leg and underframe.
Attach one Triangle Bracket B (C27) to right rear leg and underframe using ST4.0x10 Screws (D1x4pcs).
Repeat above process for fixing the other triangle bracket B to left front leg and underframe.
C26
C27
C15 C14
C26 C27
C13 C12
C12
C13 C15
C14
C28
NOTE: Holes to
fix front panel

7
Unscrew the Locknuts (C33) from both ends of the Axle (C30).
Slide the axle through the corresponding holes in the right legs. Slide the Wheels (C31) over each
end of the axle. Secure the wheels into place with the locknuts. Place the Wheel Hubcaps (C32)
onto the outside of the wheels. And attach the Lockable Casters (C29) into the left legs.
3
4
Carefully turn the trolley assembly up.
Attach the Drip Tray Left Bracket (C6) to the left legs using ST4.0x10 Screws (D1x4pcs). Repeat
above process for fixing the Drip Tray Right Bracket (C8) to right legs.
C30 C31 C32
C29
C33

8
Attach the Front Support (C5) between the front legs using ST4.0x10 Screws (D1x4pcs) as shown.
5
6
C5
Attach the Rear Support (C4) between the rear legs using ST4.0x10 Screws (D1x4pcs) as shown.
C4

9
7
8
Attach the Front Panel (C25) to trolley assembly using ST4.0x10 Screws (D1x12pcs) as shown.
Attach the Front Trim Panel (C24) to the front support and underframe using ST4.0x10 Screws
(D1x4pcs) as shown.
C24
C25

10
9
10

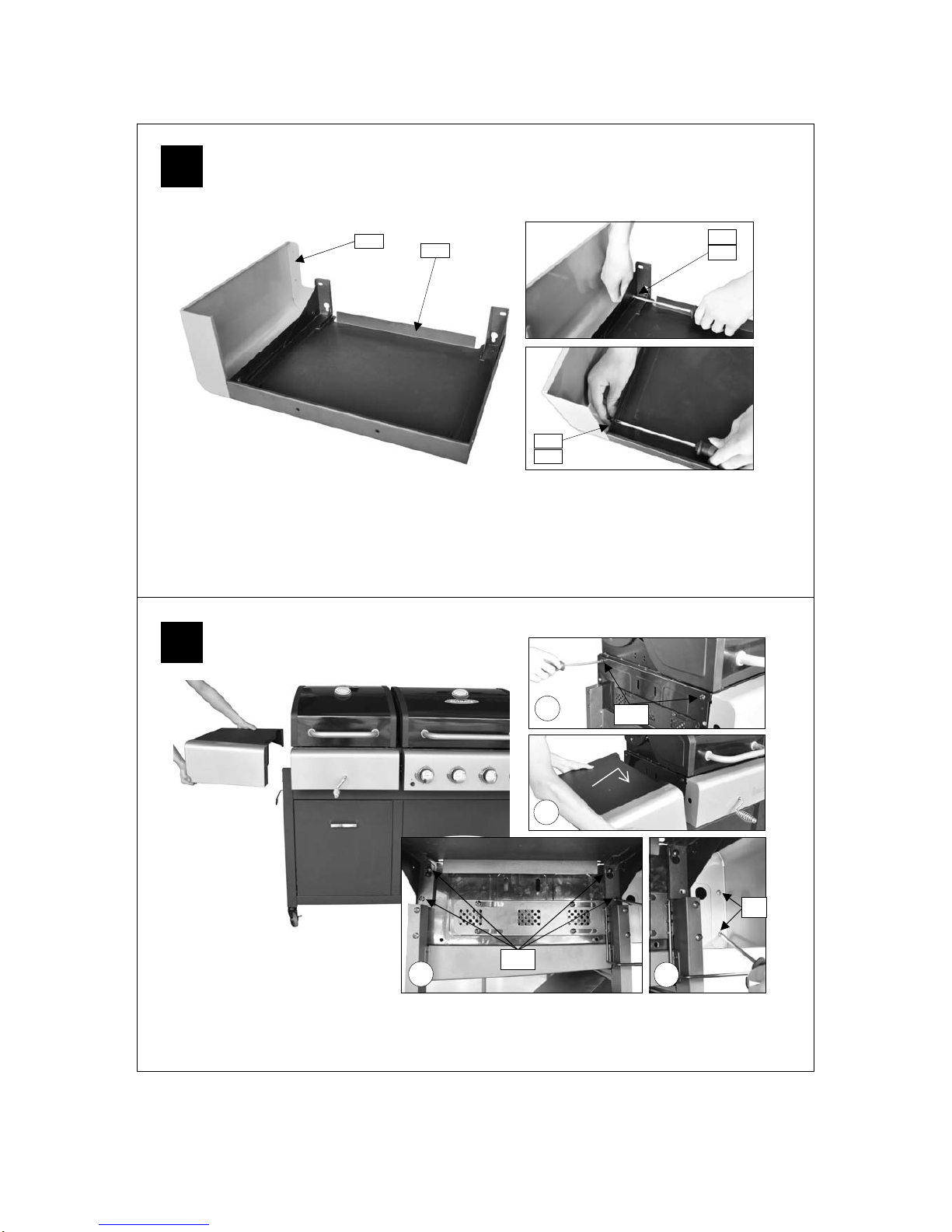

Attach Charcoal Bin Left Side Panel (C20) and Charcoal Bin Right Side Panel (C21) onto the Charcoal
Bin Back Panel (C18) as shown. And then insert Charcoal Bin Bottom Panel (C19) into place.
Make sure that each buttonhole coincide, the charcoal bin is stable.
Attach the Charcoal Bin Front Panel (C23) onto the charcoal bin assembly using M4x8 Bolts
(D2x6pcs) and M4 Nuts (D3x6pcs) as shown.
C20
C18
C19
C21
C23
C21
C18
C20
C19
Step 1
Step 2
D3
D2
 
Outside
Inside

11
Attach the charcoal bin assembly to the left front leg and front trim panel using M6x15 Step
Bolts (D4x2pcs) as shown.
11
12
Remove the retaining bolts from Charcoal Bin Handle (C22), then attach it onto charcoal bin front
panel using the retaining bolts.
C22

12
Attach the Charcoal Bin Lid (C17) to the front support using ST4.0x10 Screws (D1x3pcs)
as shown.
13
14
Feed one Charcoal Bin Slider (C16) through the hole of left front leg, and fix it onto charcoal bin
front panel by using a M6x15 Step Bolt (D4) as shown.
Repeat above process for installing the other charcoal bin slider to front trim panel and charcoal
bin front panel.
D4
C16
C17

13
15
16

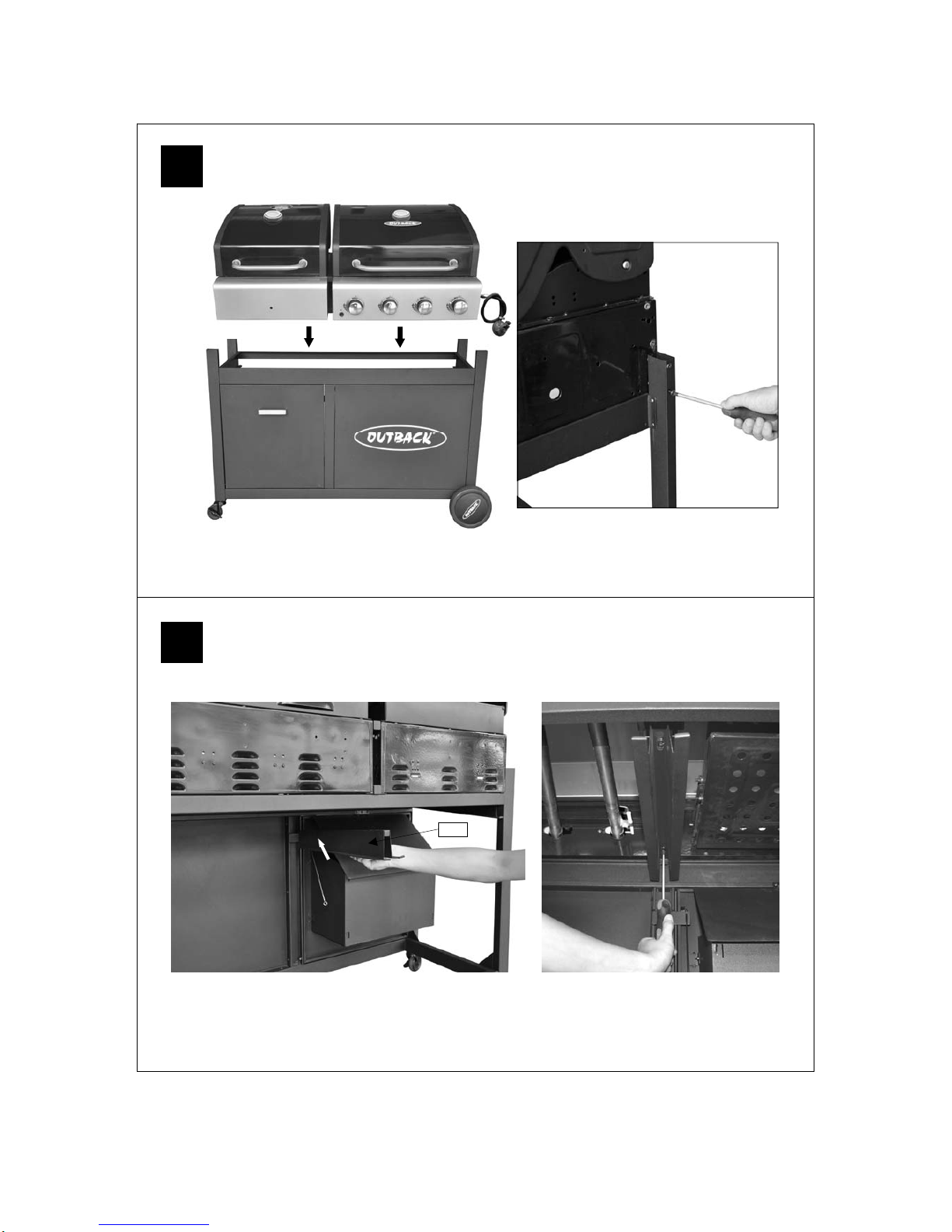

Carefully place the Barbecue Body (B1) onto the trolley assembly and fix it by using M6x65 Bolts
(D6x8pcs) as shown.
Attach the Drip Tray Middle Bracket (C7) to the barbecue body using M6x15 Bolts (D5x2pcs)
as shown.
C7

14
17
18
Attach the Air Vent Plate (B9) to the barbecue body using M6x15 Bolts (D5x4pcs), Spacers
(D9x4pcs), Ø6 Washer (D7x8pcs) and M6 Nuts (D8x4pcs) as shown.
Insert the Crank Handle (B8) through the hole in the Charcoal Control Panel (B7) and screw
it into the threaded socket, then secure with a R-Clip (D10) as shown.
B9
B8
Bottom View
D8 D7
Barbecue Body
D9 D7 D5
Air Vent Plate
Outside Inside

15
19
20
Attach the Left Side Shelf Panel (C2) onto one Side Shelf (C1) using M6x15 Bolts (D5x2pcs)
and M6 Nuts (D8x2pcs) as shown.
Attach the left side shelf assembly to the barbecue body using ST4.0x10 Screw (D1x2pcs)
and M6x15 Bolts (D5x4pcs) as shown.
C2 C1
D5
D8
D5
D8
D5
D1
1
3
2
4
D5

16
21
22
Attach the Right Side Shelf Panel (C3) onto the other Side Shelf (C1) using M6x15 Bolts
(D5x2pcs) and M6 Nuts (D8x2pcs).
C3
C1 D5
D8
D5
D8
Attach the right side shelf assembly to the barbecue body using ST4.0x10 Screw (D1x2pcs)
and M6x15 Bolts (D5x4pcs) as shown.
D5
D1
3 4
1
2
D5

17
23
24
Carefully lay the Flame Tamer (B12) into the barbecue body ensuring it lies level within the body.
Lay the Grill (B13) and Griddle (B14) into place. Place the Charcoal Cooking Grills (B11) above the
charcoal tray on the charcoal side of the barbecue, as shown.
NOTE: Ensure that the flame tamer lies directly underneath the grill.
B12
B14
B13
B11
Attach the Stationary Warming Rack (A3) to charcoal barbecue body as shown.
A3

18
25
26
Attach the Swing Warming Rack (A4) to the hood and barbecue body as shown.
Make sure that the swing legs fix to the body of the barbecue and the shorter fixed
legs go through the holes in the hood.
A4
Step 1
Step 2
Step 3
Step 4
CS3200A users, skip this step and proceed directly to step 26.
Attach the Stationary Warming Rack (A3) to gas barbecue body as shown.
A3
CS4400A users, skip this step and proceed directly to step 27.

19
27
28

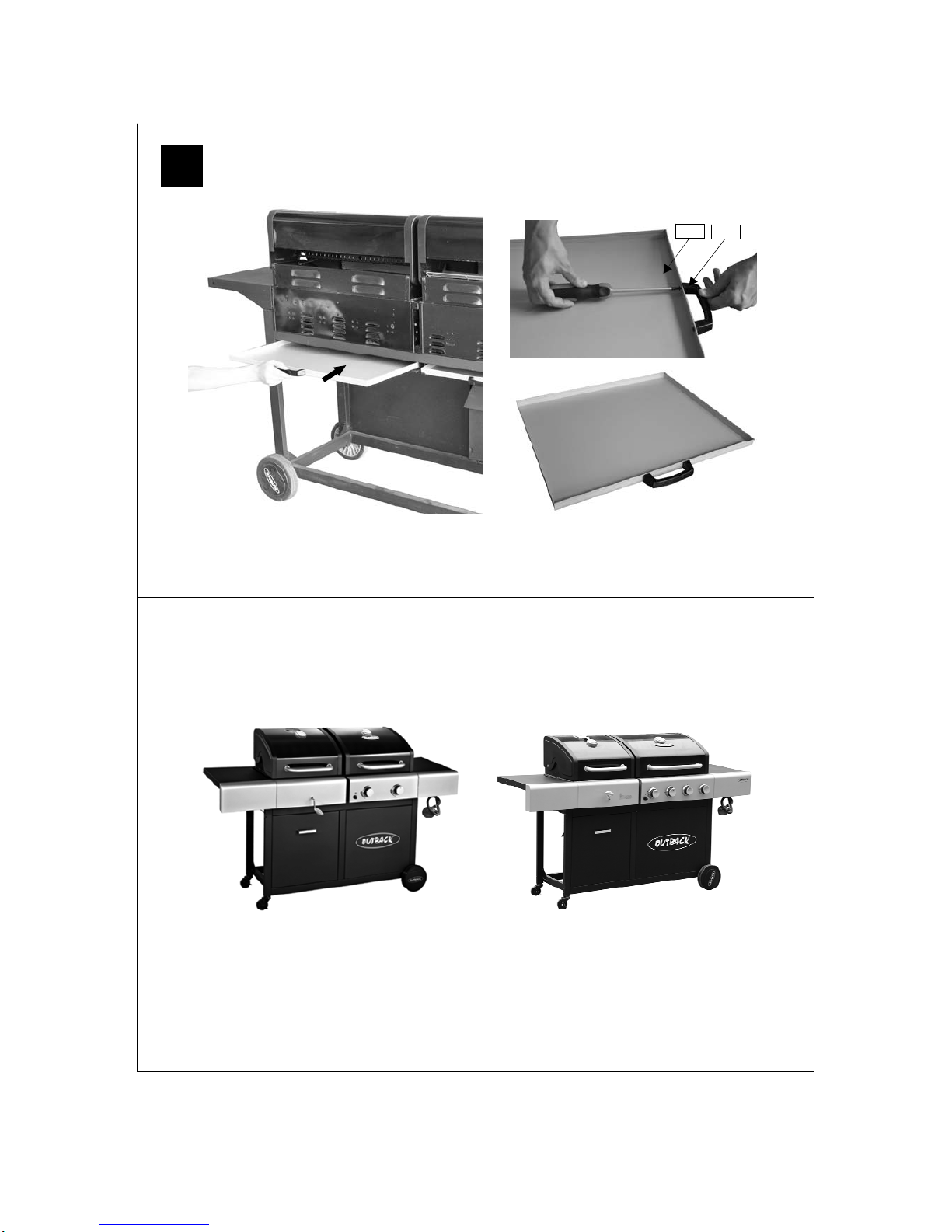

Remove the retaining bolts from Drip Tray Handle (C9), and then attach it onto the Small Drip
Tray (C10) using the retaining bolts.
Insert the small drip tray by sliding it underneath the charcoal barbecue body.
C9
C10
Remove the retaining bolts from Drip Tray Handle (C9), and then attach it onto the Small Drip
Tray (C10) using the retaining bolts.
Insert the small drip tray by sliding it underneath the gas barbecue body.
C9
C10
CS4400A users, skip this step and proceed directly to step 29.

20
29

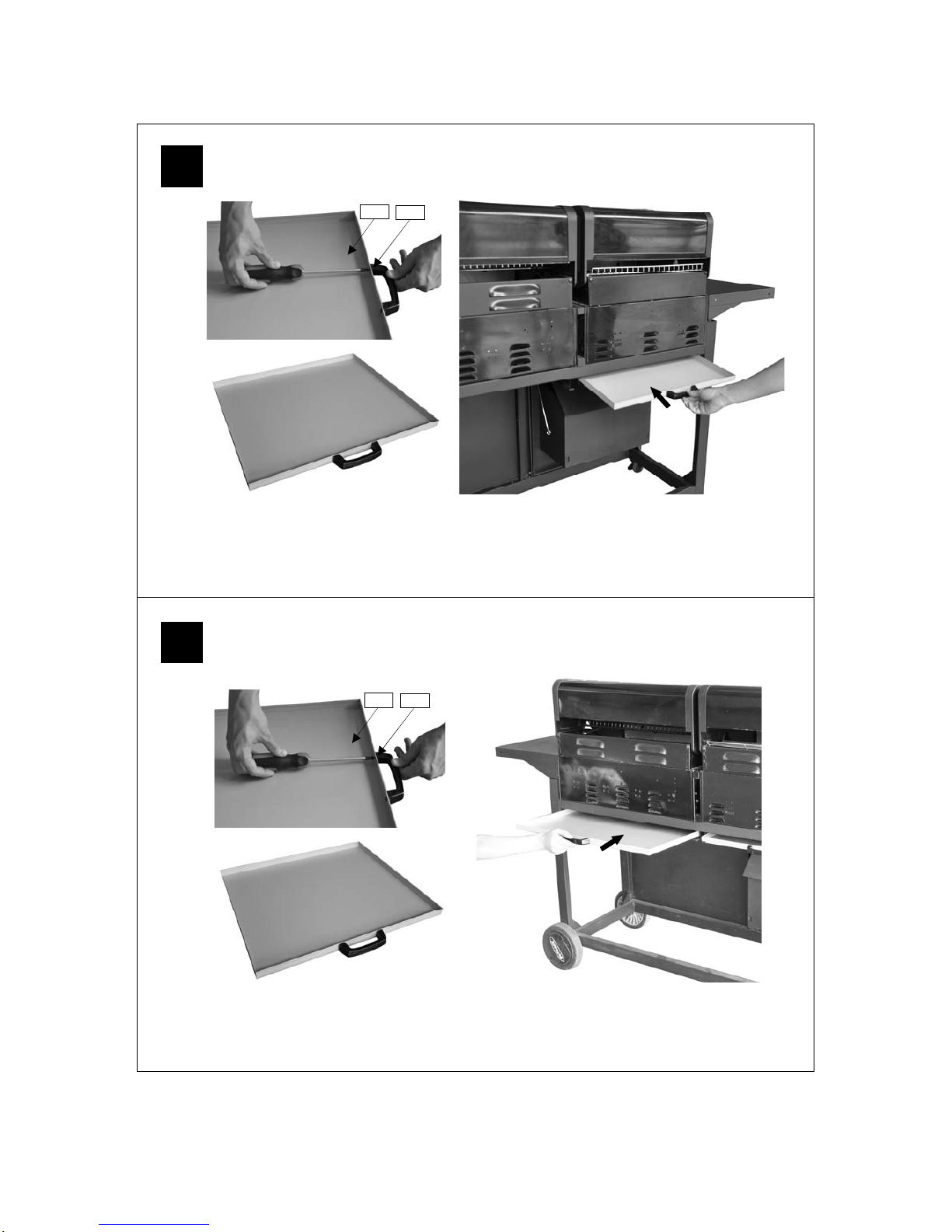

Remove the retaining bolts from Drip Tray Handle (C9), and then attach it onto the Big Drip
Tray (C11) using the retaining bolts.
Insert the big drip tray by sliding it underneath the gas barbecue body.
C9
C11
CS3200A users, skip this step.
ASSEMBLY IS NOW COMPLETE.
