SL-2-DC-001 Setup Guidelines
Disclaimer: OutdoorLink recommends that during the installation of all SmartLink units, any electrical codes that apply to
the wiring and troubleshooting of these units, are studied, and adhered to. Electrical codes vary by area, so please verify
local requirements prior to installation. OutdoorLink assumes no liability for any injury or death incurred during the
installation of the SmartLink unit.
Questions? Contact OutdoorLink’s support team at [phone] ext. 1 or [e-mail].
SL-2-DC-001 Technical Specifications
Device Management
Manages up to 2 DC devices per controller
Runtime Settings
Automatic Sunrise to Sunset and/or Manual Time Scheduling
Enclosure
Polycarbonate, 6 x 3 x 1 in. (approx. 15.2 x 7.6 x 2.5 cm)
Input Voltage
Two independent inputs, 8-30Vdc @ 3A each
Output Voltage
Two independent outputs, 5-30Vdc per output @ 3A each
Power Consumption
0.15 W or ~0.01 A
Connectivity
LTE cellular connection with internal SIM & integrated antenna
Smart Weather
Devices activate outside of scheduled run-times per NOAA forecast maps
Operating Temp.
-20°C to 70°C
Environmental
Polycarbonate enclosure, 0-95% humidity, non-condensing, RoHS
Wiring Connection
Terminal block, 18AWG
System Reporting
Power readings, proof of performance, alarm history, maintenance log, battery
temperature
Alarm Notifications
Loss of power, low power, power restore, low voltage, high voltage

© 2021 OutdoorLink, Inc. | Updated 5.1.2021 [phone] | www.outdoorlinkinc.com
2
[phone] | www.outdoorlinkinc.com

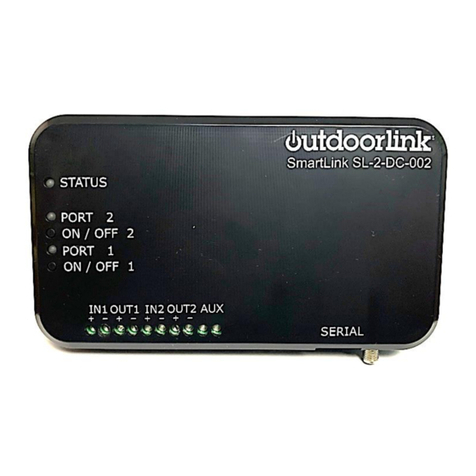

SL-2-DC-001 Interface
The SL-2-DC controller can manage up to two DC devices that are either AC or DC (solar) powered. Below is a
summary of interface options, however not all features apply to all installations.
Image 1
SL-2-DC-001 Interface Index
1
Terminal Block IN (+)
2
Terminal Block IN (-)
3
Terminal Block OUT1 (+)
4
Terminal Block OUT1 (-)
5
Terminal Block OUT2 (+)
6
Terminal Block OUT2 (-)
7
Terminal Block Temp/AUX
8
Terminal Block Temp/AUX
9
USB 2.0 Micro-B Female
10
RJ45 to Serial Female
11
Connector for optional external antenna

© 2021 OutdoorLink, Inc. | Updated 5.1.2021 [phone] | www.outdoorlinkinc.com
3
[phone] | www.outdoorlinkinc.com
SL-2-DC-001 Installation Guidelines
OutdoorLink technical support, can be reached at [phone] ext. 1 or [e-mail].
Tools & Materials Needed (not provided)
1. Wire crimpers
2. Mini standard screwdriver to secure terminal connections
3. 3M two-sided adhesive tape or two-sided Velcro for mounting
Installation Steps
1. The SL-2-DC-001 operates between 8-30Vdc. A supply line within this range is needed for the input power.
2. Voltage into the unit equals voltage out to both Ports. I.e., if a 12Vdc power supply feeds the SmartLink, then both
Port outputs will receive 12Vdc. When managing devices of different DC voltages, the higher voltage (i.e., 19Vdc)
should feed the Input to the SmartLink and a down converter should be used to convert the higher voltage to the
lower voltage device (i.e., 12Vdc).
3. Choose installation placement and confirm cable lengths are sufficient for making all device connections. The
SmartLink should be facing outward and upward for optimal cellular connectivity.
4. Place the SmartLink on the chosen location and use double-sided tape or Velcro to secure the unit.
5. Wiring Connections
a. The SL-2-DC controller requires 18 AWG wiring for both input and output connections. For devices with
barrel jack connectors, OutdoorLink can provide a Connector Kit with female and male barrel connectors for
12V and 19V DC devices.
b. SL-2-DC Wiring Overview
c. See Image 2 on page 4 for reference.
Device Management
Manages up to 2 DC devices
Input Voltage
8-30Vdc @ 6A
Output Voltage
8-30Vdc per output
Output Power
3A per port
Wiring Connection
Terminal block, 18AWG
Auxiliary Output
Battery thermistor attachment for temperature monitoring (solar)

© 2021 OutdoorLink, Inc. | Updated 5.1.2021 [phone] | www.outdoorlinkinc.com
4
[phone] | www.outdoorlinkinc.com
Image 2
6. Connect the POS and NEG power supply lines to the IN terminal block with 18AWG wire. If using an AC power supply,
then a wiring harness should be supplied to connect the female and male barrel connectors of the adapter.
7. Once power is connected to the controller, a green light should start flashing quickly. If the light is flashing slowly,
then the SIM card is still reconnecting to its cellular carrier.
8. Connect the devices to OUT 1 and OUT 2. Do this by either directly hardwiring the devices with 18AWG POS and NEG
wire or use an OutdoorLink supplied wiring harness with barrel connectors.
9. Devices will not turn on unless the schedules are assigned to be ON at the time of installation in the SmartLink portal.
To do this, login to the portal: https://portal.outdoorlinkinc.com/login, search for the last 4 digits of the ICCID number
on the SmartLink controller, and go to the unit’s Dashboard:

© 2021 OutdoorLink, Inc. | Updated 5.1.2021 [phone] | www.outdoorlinkinc.com
5
[phone] | www.outdoorlinkinc.com
10. If the schedule is set for Always On, or the Relay is scheduled to be on at the time, the device should power up once the
controller receives power and connects to its cellular carrier. If the schedule is not set to be on at the time, then push the
Power Button located on the blue header of each Relay:
If schedule is set
for Always On, then
the device should
turn on once it
receives power and
connects to its
carrier.
If schedule is not set
for Always On, and
schedule is not on at
the time of testing,
press the Power
Button on the header
of each Relay to turn
the device on.
This will keep the
device on until the
end of its upcoming
schedule (below).

© 2021 OutdoorLink, Inc. [phone] | www.outdoorlinkinc.com
6
[phone] | www.outdoorlinkinc.com
11. To confirm incoming voltage and each Relay’s load, click on the three vertical dots on the header of the
OutdoorLink Control Box and select “Get Unit Status.”
12. Go to Power Readings on the left side of the portal and select Live Power to confirm each Relay’s load.
