Outsider PLATEAU SEAT 900 Installation instructions manual

19092022
PLATEAU SEAT
#195 #200 MOUNTING GUIDE, SEAT + SEAT B-F
Kigkurren 8A Islands Brygge DK2300 Copenhagen · out-sider.dk

02
19092022
Please note:
The drawings in this manual show PLATEAU Seat 900 - the small
version. The exact same mounting principles are applied to the 1250
and the 1800 versions.
PLATEAU SEAT
Developed by out-sider in collaboration with Holscher Design.
INDEX: PAGE
Products and included items.....................................................03
Mounting of surface bracket......................................................04
Mounting of seat on surface bracket .......................................05
Mounting of seat Ø270 BF........................................................06
Mounting of disc.........................................................................07
Mounting of side-table...............................................................08
Mounting of Point Sun................................................................09
Mounting of legs........................................................................10
Cleaning.....................................................................................11

03
19092022
PRODUCTS AND INCLUDED ITEMS
Seat 1250 B-F
• 5 pcs M8 nuts
• 10 pcs M8 washer
• 4 pcs M8x 16 (for legs)
• 1 pcs M8x90
Side Table (#200)
• 1 pcs M8x30 allen key screw
Tools (not included)
• Allen key set
• Socket wrench set
• Screws and bolts for the mounting
of the surface bracket
(depends on customer wishes and
surface, see p.05 and 10)
Point Sun f. Seat (#326)
Seat 900
• 2 pcs M8x100
allen key screw
• 3 pcs M8 nuts
• 6 pcs M8 washer
• 1 pcs M8x90
Seat 1800
• 4 pcs M8x100
allen key screw
• 5 pcs M8 nuts
• 10 pcs M8 washer
• 1 pcs M8x90
Seat 1250
• 4 pcs M8x100
allen key screw
• 5 pcs M8 nuts
• 10 pcs M8 washer
• 1 pcs M8x90
Seat 900 B-F
• 3 pcs M8 nuts
• 6 pcs M8 washer
• 4 pcs M8x16 (for legs)
• 1 pcs M8x90
Seat Ø270 B-F
Assembled at delivery
ADD-ONS
To be ordered separately
Seat 1800 B-F
• 5 pcs M8 nuts
• 10 pcs M8 washer
• 4 pcs M8x16 (for legs)
• 1 pcs M8x90

04
19092022
MOUNTING OF SURFACE BRACKET
The surface bracket needs to be mounted on a surface before its assembled with Seat. The bracket has four
holes made ready for surface mounting. Use your preferred bolts or screws to mount the bracket.
Seat 1250 and Seat 1800
Make sure the two brackets have the
correct distance (24cm) between them,
before mounting them to the surface.
24 cm
Ø11 mm holes

05
19092022
1 of 1
Drawn by:
A
Rev: Page:
03-06-2022
Date:
Tlf. [phone]
E-mail : [email protected]
Outsider a/s
Kigkurren 8A
DK-2300 København S
Material:
Part:
Project:
MH/Mads
To:
Copyright: This drawing may not be copied or reproduced in any way without direct permission from Outsider a / s
1:2
Scale:
195 mounting guide
Gitte

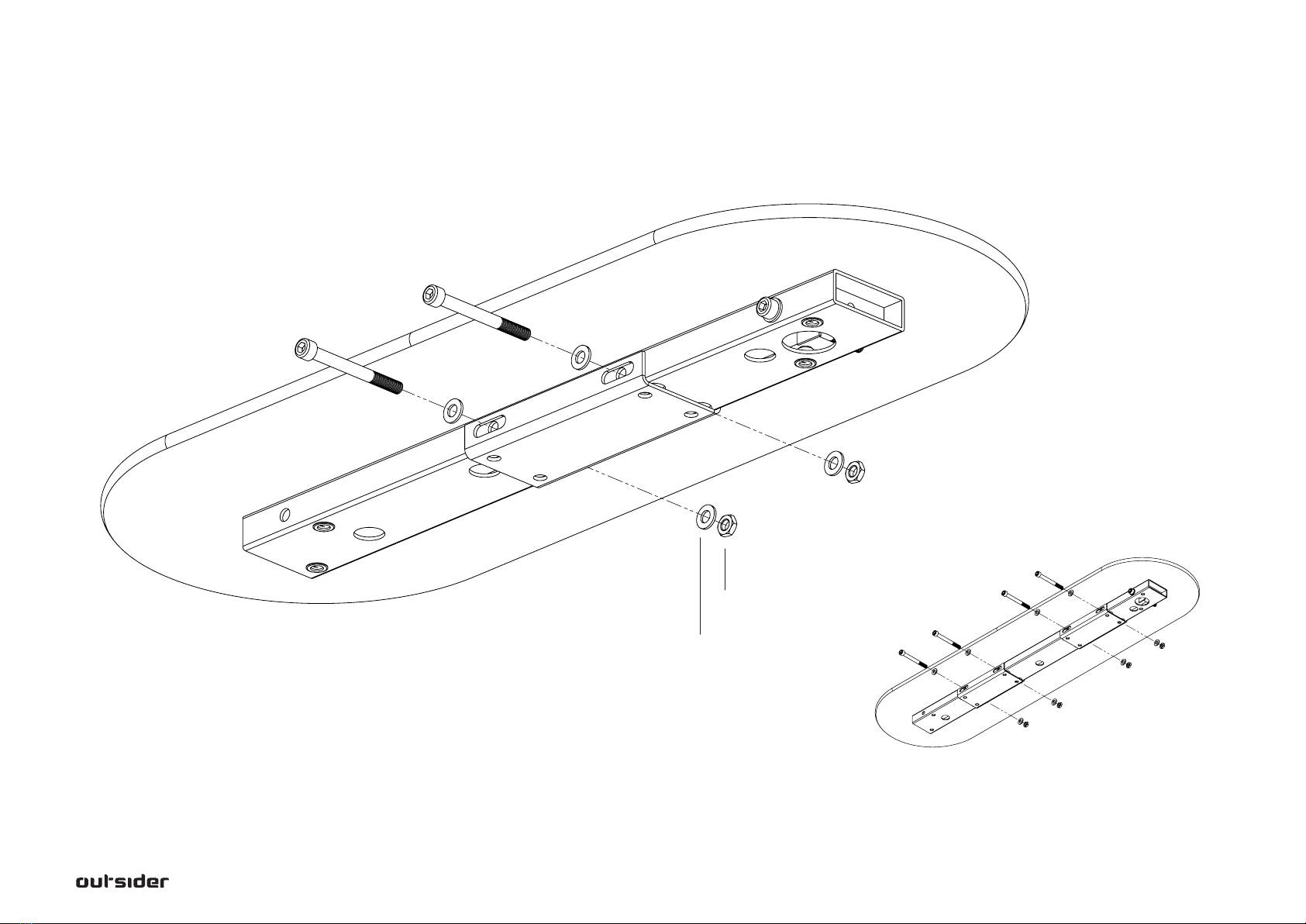

MOUNTING OF SEAT ON SURFACE BRACKET
Use the included M8 x 100mm allen key bolts to ix the sitting surface to the ixated surface
bracket. Tighten the bolts and nuts with allen key no 6. and a 17mm spanner tool.
Seat 1250 and Seat 1800
Use two brackets, same principle.
M8x100 bolt
Nut
Washer
Seat 900
1 of 1
Drawn by:
A
Rev: Page:
03-06-2022
Date:
Tlf. [phone]
E-mail : [email protected]
Outsider a/s
Kigkurren 8A
DK-2300 København S
Material:
Part:
Project:
MH/Mads
To:
Copyright: This drawing may not be copied or reproduced in any way without direct permission from Outsider a / s
1:5
Scale:
195 mounting guide
Gitte
Washer

06
19092022
MOUNTING OF SEAT Ø270 B-F
The seat ø270 comes fully assembled. The F version can be ixated to any hard surface with M8M10 countersunk bolts.
The B version can be burried and ixated into the ground. Please see our guide here.
1 of 1
Drawn by:
A
Rev: Page:
07-06-2022
Date:
Tlf. [phone]
E-mail : [email protected]
Outsider a/s
Kigkurren 8A
DK-2300 København S
Material:
Part:
Project:
MH/Mads
To:
Copyright: This drawing may not be copied or reproduced in any way without direct permission from Outsider a / s
1:5
Scale:
195 Mounting guide
Gitte
SURFACE FIXATION
out-sider does not provide any tools or materials for mounting the furniture.
1: Escavate hole.
2: Place leg 300mm below ground
surface and ill with e.g. concrete and top with soil.
Optional: Mount steel rod (max Ø20mm, and not
included) in bottom of the tube for stronger ixation.
GROUND FIXATION
When using Ø270 version B. out-sider does not provide any tools or
materials for mounting the furniture.
300mm

07
19092022
2 of 2
Drawn by:
A
Rev: Page:
03-06-2022
Date:
Tlf. [phone]
E-mail : [email protected]
Outsider a/s
Kigkurren 8A
DK-2300 København S
Material:
Part:
Project:
MH/Mads
To:
Copyright: This drawing may not be copied or reproduced in any way without direct permission from Outsider a / s
1:2
Scale:
195 mounting guide
Gitte
MOUNTING OF DISC
Use the included M8 x 90 mm unbraco bolts to ix the disc into place. Allen key 6, and a 17mm spanner tool.
Disc for Seats
Nut
Washer
M8x90 bolt

08
19092022
4 of 4
Drawn by:
A
Rev: Page:
03-06-2022
Date:
Tlf. [phone]
E-mail : [email protected]
Outsider a/s
Kigkurren 8A
DK-2300 København S
Material:
Part:
Project:
MH/Mads
To:
Copyright: This drawing may not be copied or reproduced in any way without direct permission from Outsider a / s
1:2
Scale:
195 mounting guide
Gitte
MOUNTING OF SIDE-TABLE ON SEAT
Lower Side-table into the circular slot. Rotate Side-table in such a way, that the two holes align with the steel
frame. Reuse the bolts, nut and the washer from your previous disassembly of the disc-tube.
Seat 900, 1250, 1800
Side-table mounted on Seat
M8x90 bolt
M8x30
Nut
Washer
PLATEAU SIDE-TABLE
3 of 3
Drawn by:
A
Rev: Page:
03-06-2022
Date:
Tlf. [phone]
E-mail : [email protected]
Outsider a/s
Kigkurren 8A
DK-2300 København S
Material:
Part:
Project:
MH/Mads
To:
Copyright: This drawing may not be copied or reproduced in any way without direct permission from Outsider a / s
1:2
Scale:
195 mounting guide
Gitte

09
19092022

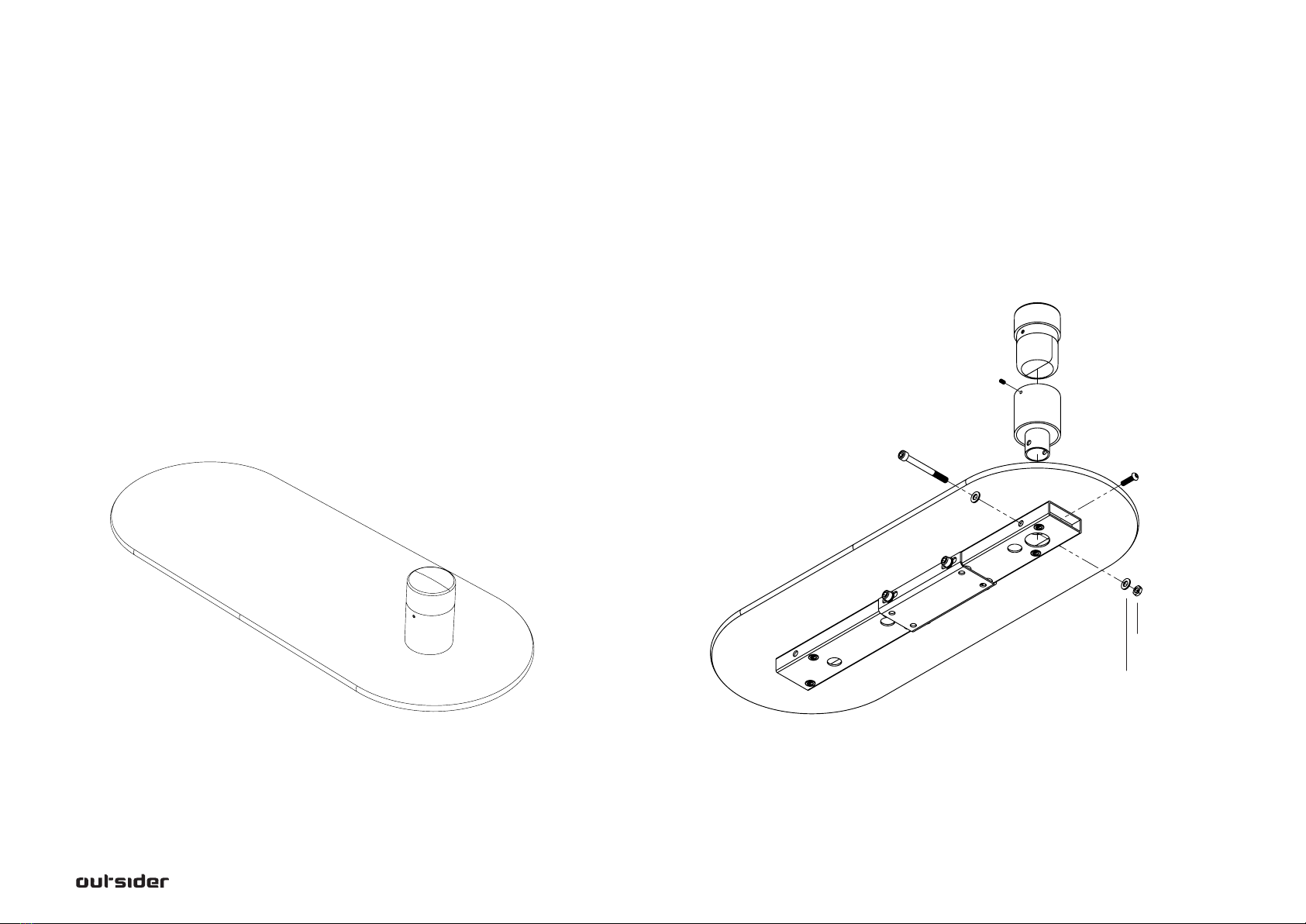

MOUNTING OF POINT SUN
Place the Point Sun light unit in the base, align the holes and tighten the safety set screw. Then place the whole
unit in the hole and use the M8x90 bolt to ix it to the metal frame underneath. Use the M8x30 to ixate it from the
side, do not overtighten.
PLATEAU POINT SUN
5 of 6
Drawn by:
A
Rev: Page:
07-06-2022
Date:
Tlf. [phone]
E-mail : [email protected]
Outsider a/s
Kigkurren 8A
DK-2300 København S
Material:
Part:
Project:
MH/Mads
To:
Copyright: This drawing may not be copied or reproduced in any way without direct permission from Outsider a / s
1:2
Scale:
195 Mounting Guide
Gitte
6 of 6
Drawn by:
A
Rev: Page:
07-06-2022
Date:
Tlf. [phone]
E-mail : [email protected]
Outsider a/s
Kigkurren 8A
DK-2300 København S
Material:
Part:
Project:
MH/Mads
To:
Copyright: This drawing may not be copied or reproduced in any way without direct permission from Outsider a / s
1:5
Scale:
195 Mounting guide
Gitte
Seat 900, 1250, 1800
Side-table mounted on Seat
M8x90 bolt
M8x30
Nut
Washer
M6 Safety set screw

010
19092022
PLATEAU SEAT 900/1250/1800 B-F
MOUNTING OF LEGS
Use 4 x M8 x 16 to fasten the two legs (207 9012). out-sider does not provide tools and materials
for surface mounting through the top lange, but recommends countersunk M8M10 bolts.
Seat 900, 1250, 1800
Legs (207 9012) mounted on Seat
2 of 2
Drawn by:
A
Rev: Page:
03-06-2022
Date:
Tlf. [phone]
E-mail : [email protected]
Outsider a/s
Kigkurren 8A
DK-2300 København S
Material:
Part:
Project:
MH/Mads
To:
Copyright: This drawing may not be copied or reproduced in any way without direct permission from Outsider a / s
1:5
Scale:
195 mouting guide
Gitte
M8x16
M8x16
207 9012
1: Escavate hole.
2: place leg 300mm below ground
surface and ill with e.g. concrete and top with soil.
Optional: Mount steel rod (max Ø20mm, and not
included) in bottom of the tube for stronger ixation.
GROUND FIXATION
When using Legs B (207 9013)
1 of 1
Drawn by:
A
Rev: Page:
07-06-2022
Date:
Tlf. [phone]
E-mail : [email protected]
Outsider a/s
Kigkurren 8A
DK-2300 København S
Material:
Part:
Project:
MH/Mads
To:
Copyright: This drawing may not be copied or reproduced in any way without direct permission from Outsider a / s
1:5
Scale:
195 Mounting guide
Gitte
300mm
207 9013

011
19092022
CLEANING
Clean the laminate surface with warm water and a soft sponge.
NEVER use the abrasive “green” side of the sponge. Use an ordinary universal cleaner.
Diicult dirt must be removed with a nano sponge and water. Please take a closer
look at our website, or contact us for information.
Kigkurren 8A
Islands Brygge
DK2300 Copenhagen
out-sider.dk
[phone]
