Oval EL4401 User manual

1
Ins. No. E-887-3N-E
This manual has been prepared to provide you with the information pertinent to the Blend Oil
Temperature Compensated FLOW COMPUTER.
With the proper application of the information and knowledge contained in this manual, you can expect
the best possible results over a long service life of this instrument. Keep this manual for ready reference.
It is suggested that the instruction manuals for the companion pulse generator (flowmeter) and receiving
instrument be referred to at the same time.
BLEND OIL TEMPERATURE COMPENSATED
FLOW COMPUTER
Model : EL4401

E-887-3N-E
2
TABLE OF CONTENTS
1. BEFORE YOU BEGIN........................................................................................................................... 4
1.1 Confirming the Nameplate .............................................................................................................. 4
1.2 Transportation Precautions ............................................................................................................. 4
1.3 Storage Precautions........................................................................................................................ 4
2. GENERAL ........................................................................................................................................... 5
2.1 Features ........................................................................................................................................ 5
2.2 Part Names ................................................................................................................................... 5
3. INSTALLATION ................................................................................................................................... 6
3.1 Outline Dimensions ....................................................................................................................... 6
3.2 Installation ..................................................................................................................................... 6
3.2.1 Installation Location ................................................................................................................ 6
3.2.2 Panel ....................................................................................................................................... 6
3.2.3 Installation ............................................................................................................................... 6
4. WIRING ................................................................................................................................................ 7
4.1 Field Wiring Cables ....................................................................................................................... 7
4.2 Wiring Connections ....................................................................................................................... 7
4.3 Description of Terminal Blocks for External Connections.............................................................. 7
5. GENERAL SPECIFICATIONS............................................................................................................... 9
6. INTERNAL COMPONENTS AND FUNCTIONS................................................................................ 10
6.1 Front Panel.................................................................................................................................. 10
6.1.1 Display .................................................................................................................................. 10
6.1.2 On-Screen Menu Items......................................................................................................... 10
6.1.3 Error Messages...................................................................................................................... 11
6.1.4 Front Panel Keypad .................................................................................................................11
7. CALCULATION FORMULAS............................................................................................................... 12
7.1 Implementation of Meter Error Correction(Uncorrected total flow)............................................ 12
7.2 Implementation of Temperature Correction on Petroleums (Corrected total flow) ........................ 13
7.3 Instant Flowrate (Corrected) ......................................................................................................... 13
8. PREPARATIONAL CHECKS AND OPERATION................................................................................. 14
8.1 Preparation Before Operation ....................................................................................................... 14
8.2 Preparational Checks.................................................................................................................... 14
8.3 Operation ...................................................................................................................................... 14
9. TROUBLESHOOTING ........................................................................................................................ 15
10. ERROR MESSAGES .......................................................................................................................... 16
11. BEHAVIOR IN ERRATIC CONDITIONS.............................................................................................. 16
12. OVERALL BLOCK DIAGRAM ............................................................................................................. 17
13. PRODUCT CODE EXPLANATION ..................................................................................................... 18
CONVENTIONS
Shown in this manual are the signal words NOTE, CAUTION and WARNING, as described
in the examples below:
NOTE: Notes are separated from the general text to bring the user's attention to
important information.
CAUTION: Caution statements signal the user about hazards or unsafe practices
which could result in minor personal injury or product or property
damage.
WARNING: Warning statements signal the user about hazards or unsafe practices
which could result in severe personal injury or death.

E-887-3N-E
3
COMPANION VOLUME
KEY OPERATION MANUAL Ins. No. E-880TM-E
CONTENTS
1. KEY ARRANGEMENT........................................................................................................... 10
2. DISPLAY SCREEN................................................................................................................ 11
3. INITIAL CHECK..................................................................................................................... 14
4. MODE SELECTION .............................................................................................................. 18
5. RUN MODE SCREEN........................................................................................................... 23
6. SET MODE............................................................................................................................ 36
7. SYS MODE ......................................................................................................................... 142
8. EL4401 ................................................................................................................................ 170
9. EL4501 ................................................................................................................................ 175
10. DIP SWITCH CONFIGURATION ........................................................................................ 182
(※: Model with communication capabilities)
COMMUNICATION MANUAL (※) Ins. No. E-880CM-E
CONTENTS
1. COMMUNICATION CAPABILITY OVERVIEW........................................................................ 5
2. NETWORK CONFIGURATION ............................................................................................... 5
3. MODE SELECTION ................................................................................................................ 6
4. LOCAL / REMOTE SELECTION ............................................................................................. 8
5. SETUP ITEMS FOR COMMUNICATION .............................................................................. 10
6. COMMUNICATION PROCEDURE........................................................................................ 11
7. COMMUNICATION FORMAT................................................................................................ 12
8. BCC / SUM CHECK .............................................................................................................. 45
9. CR / LF .................................................................................................................................. 46
10. CODES ASSIGNED TO UNITS............................................................................................. 48
11. ASCII CODE .......................................................................................................................... 49

E-887-3N-E
4
1. BEFORE YOU BEGIN
Every OVAL product is thoroughly tested and inspected before shipment from our factory.
When received, its appearance should be inspected for possible damage by rough handling during
transit. First of all, thoroughly read the handling precautions described in this section. For topics other
than those covered in this section, refer to the respective sections of this manual.
If at any time in the future you seek our assistance, contact the nearest sales office in your area.
1.1 Confirming the Nameplate
The instrument is adjusted to individual specifi-
cations before shipment from our factory. Model
number appears on the nameplate attached to the
top of the housing.
Make sure to see that the instrument you received
conforms to the General Specifications and the
Product Code Explanation.
◆When you inquire, supply complete informa-
tion as to the product name, model number,
product number, ratings, and other pertinent
information.
1.2 Transportation Precautions
(1) In order to safeguard against damage during transit, transport your instrument to the installation
location in the original package used for shipment from the factory if possible.
(2) Use care to avoid impact shocks to the instrument during transit.
1.3 Storage Precautions
If the instrument upon receipt is to be stored for extended periods of time before installation, unexpected
problems could arise. If such is the case, the following considerations should be taken:
(1) The instrument can best be stored in the original package used for transit from the factory.
(2) The place of storage should meet the following requirements:
☆Free from rain and water
☆Free from vibration and impact shocks
☆With minimal temperature and humidity variation (around 25°C and 65% R.H.)

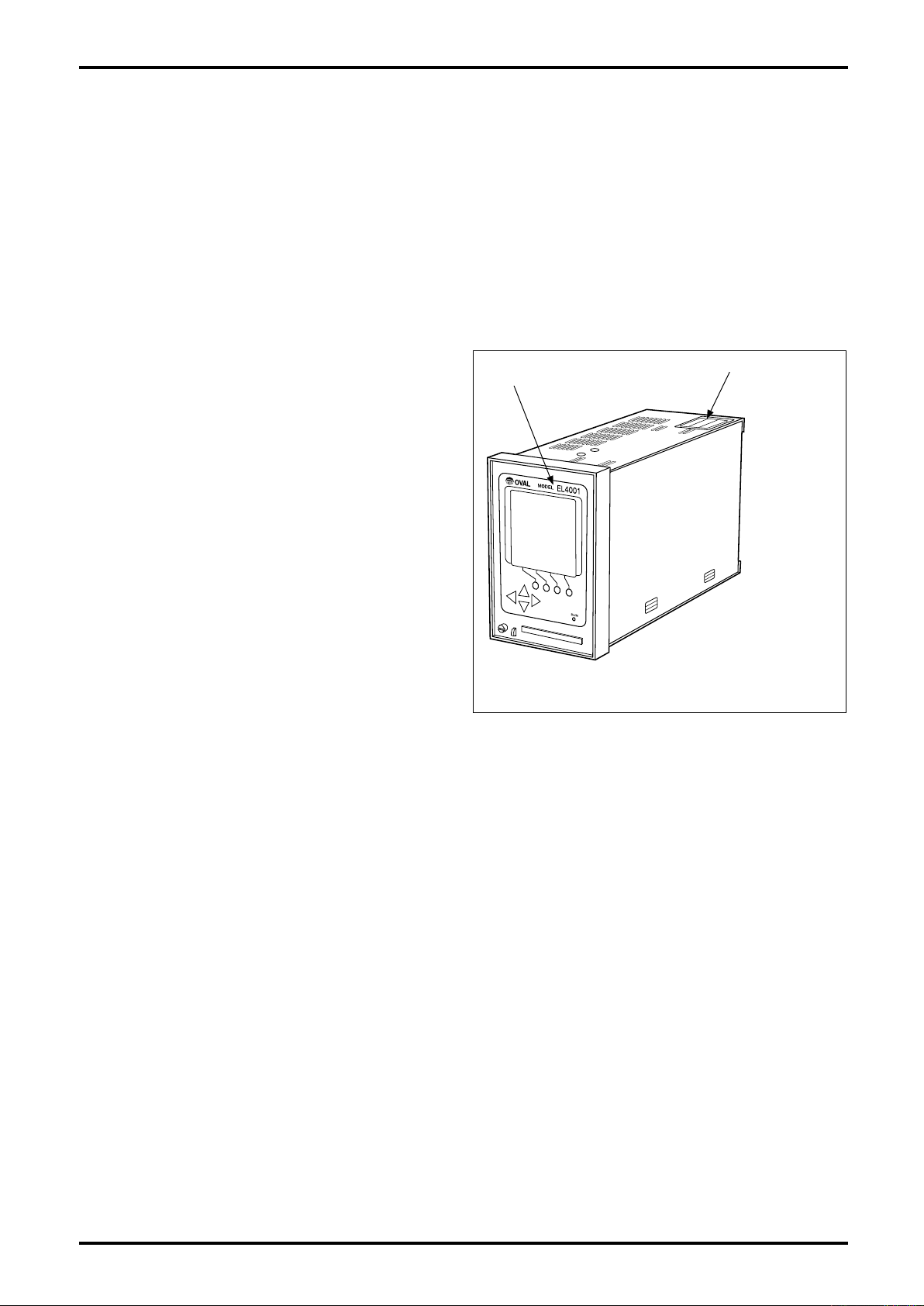

Fig. 1.1 Nameplate Location
Nameplate
(model number)
※
※EL4001 is the
generic desig-
nation of the
EL4001 series
computers.

E-887-3N-E
5
MODEL
EL4001
TB
1
TB
3
PLS OUT3 TEMP IN TEMP IN FLOW IN
0V
+− B bA
+−
+−+− +−
+−
SIG SUP
SUP
ANA OUTGND POWER
N
(
−
)
H
(
+
)
PRESS INPLS OUT1
PLS OUT2
1/1
OUT
TB
1
TB
2
TB
1
TB
2
TB
2
2. GENERAL
Using the most advanced electronic tehcnologies, this digital instrument has been developed specifically
for crude oil and heavy oil blend ratio measurement applications where accuracy is the prime
requirement.
In response to the flowrate, temperature, and blend ratio information arriving from the OVAL flowmeter, it
converts the flowrate to the equivalent volume flowrate under standard conitions and totalizes the flow.
An analog output and instant flowrate (corrected for meter error and temperature) output are additional
provisions.
2.1 Features
(1) Changing the meter factor, ranges of temperature and blend proportions, liquid kind, density, or other
parameters, of the companion flowmeter is simple by keystrokes on the front-panel keypad.
(2) Built around a microprocessor, the instrument carries out calculations entirely in digital signal
processing circuits to achieve a high degree of accuracy and reliability.
(3) Variables, such as temperature and pressure, can be reviewed on command with the front panel
keypad, whether or not calculation is in progress.
(4) A nonvolatile memory (E2PROM) retains all parameters and variables. Variables are resettable
following a power cycle or reset if so configured.
2.2 Part Names and Functions
Fig. 2.1 Part Names
Function Keys
Display
IC Card
Shift Keys
Seal Screw
Terminal Blocks

E-887-3N-E
6
912596
20 232.4
144
136
Min.120
Min.220
92 ±0.8
0
+1
138 0
600
1800
450
2200
Optimum
Range
AcceptableRange
Computer
3. INSTALLATION
3.1 Outline Dimensions
Fig. 3.1 Outline Dimensions
All dimensions in millimeters
Hold-down Fitting
3.2 Installation
3.2.1 Installation Location
Select an installation site where:
(1) Mechanical vibration, shock and corrosive gases are
negligible.
(2) Air is dry and temperature at room temperature and
stable.
NOTE: Although the manufacturer guarantees stated
performance at ambient temperatures up to
+50°C, it is recommended that the instrument
be placed in service at room temperature.
(3) Provide a sufficient working space behind the instru-
ment - at least 50 centimeters from the back panel of
the instrument to facilitate wiring and servicing.
3.2.2 Panel
(1) Use a rigid steel sheet with a minimum thickness of
1.6 millimeters. 3.2mm thick is recommended.
(2) If it is required to install instruments alongside each
other, dimensions in Fig. 3.2 are suggested.
(3) Recommended mounting height is given in Fig. 3.3.
3.2.3 Installation
(1) Front mount the instrument through the cutout in the
panel.
(2) Fit the furnished enclosure hold-down fittings into the
top and bottom slots in the enclosure and, confirming
that the instrument is positioned horizontal, secure
the instrument to the panel with hold-down fittings
(Fig. 3.1).
Fig. 3.2 Panel Cut
Fig. 3.3 Instrument Mounting Height

E-887-3N-E
7
4. WIRING
(See the "Wiring Guidelines" in the instruction manual of the companion pulse generator.)
4.1 Field Wiring Cables
(1) Use electrostatically shielded, polyethylene insulated, vinyl sheathed control cables (CEVS, 1.25 to 2
mm, 2-conductor or 3-conductor), or equivalent, for input signal cables from the flowmeter.
For output signal cables, use insulated vinyl sheathed cables (CVV, CVS ... JIS C 3401).
(2) Ground the end of shield wire to "G" terminal of the instrument. At the sensor end, leave the end of
shield wire unconnected.
4.2 Wiring Connections
(1) Field wiring through a conduit is recommended.
NOTE: In routing field wiring, use a separate conduit for power cable from other signal cables to
eliminate the possibility of stray current pickup.
(2) Separate field wiring from other power lines and power circuits to minimize the possibility of inductive
interference.
(3) Using crimp-type lugs for wiring, ensure good electrical connections.
Terminals are found on the back of the instrument (Fig. 4.1).
4.3 Description of Terminal Blocks for External Connections
Terminal blocks for external connections (TB1,
TB2 and TB3) are found on the back of the instru-
ment as shown in Fig. 4.1. Terminal identification
appears in Table 4.1 while terminal connections
appear in Table 4.2.
NOTE: TB1 and TB2 terminal numbers are
indicated on the side of terminal blocks.
TB 1TB 2
1
2
3
TB 3
PLS OUT3 TEMP IN TEMP IN FLOW IN
0V
+− B bA
+−
+− −+−
+−+− +−
+−
SIG SUP
0V SIG SUP
SUP
ANA OUT
GND POWER
N
(
−
)
H
(
+
)
PRESS INPLS OUT1
COMM1
COMM2
TEMP
PLS OUT2
1/1
OUT
DENSITY IN
TB1 TB2
1 SUP.
Flow in
12 1 SUP.
Blend in
8+Pulse out 2
2 SIG. 13 2 +9-
3 0V 14 3 -10
4 OUT 1/1 15 4 +Analog out 11
5 b
Temp. in
16 5 -12
6 B 17 6 +Pulse out 1 13
7 A 18 +Comm 1
※
7-
8+19 -TB3
9-20 +Comm 2
※
1 H(+) Power
10 +Alarm out 21 -2 N(-)
11 -3 GND
Fig. 4.1 Terminal Blocks for Ext. Connections
Table 4.1 Terminal Identification and Functions
Terminal
Screws
(M3.5)
CAUTION
Make wiring connections upon confirma-
tion of the validity of flowmeter (pulse
generator) to receiving instrument com-
bination by their product code number,
instrument number, etc.
NOTE : ※Model provided with communication interface.

E-887-3N-E
8
TB1 TB2
No Label Description No Label Description
1
Flow in
SUP. 1
2 SIG. 2
3 0V 3
4 OUT 1/1 4 Analog out +
Corrected instant flowrate
4 to 20mADC/1 to 5VDC
5
Temp. in
b 5 -
6 B 6 Pulse out 1 No
polarity
Uncorrected total flow
Static relay
7 A 7
8+8Pulse out 2 No
polarity
Corrected total flow
Static relay
9-9
10 Pulse out 3 No
polarity
Alarm out
Static relay
10
11
12 TB3
13 No Label Description
14 1Power H(+) 85 to 264VAC
or 20 to 30VDC
2 N(-)
3Ground
Screws on the terminal block: M3.5
Table 4.2 Terminal Connections
Output sync with
input signal (O.C.)
(+)
(−)
(+)
3-wire generator
Pt100Ω3-wire
4 to 20mADC/1 to 5VDC
2-wire generator
4 to 20mADC/1 to 5VDC

E-887-3N-E
9
5. GENERAL SPECIFICATIONS
Table 5.1
Item Description
Input
signals
Flow input
Signal name Pulse
generator Power to generator Speed of
response
8V 2-wire current pulse
OPTO 01, 02
8.5VDC 2kHz
Contact closure pulse PG20
13.5VDC Allowable
current
40mA app.
Shortcircuit
protection
circuit
provided
50Hz
2-wire, 12VDC 3-wire
Voltage pulse
PG30,
NPG60A (F)
2kHz
24VDC 2-wire
Current pulse (4/20mA)
PA14, 15, 25,
NPG60A (E)
24.0VDC
12VDC 2-wire Current pulse
PG30S
13.5VDC
Open collector pulse
FlowPet-5G,
NPG60A (E3)
Temperature input Resist. thermometer
Pt 100Ωat 0℃, 3-wire system, Rated current 2mA
Analog 4 to 20mADC or 1 to 5VDC
Blend input 4 to 20mADC or 1 to 5VDC
Output
signals
Pulse output
Uncorrected total flow Static relay Capacity: 230VAC/340VDC 0.2A
Pulse width: 1ms/50ms
Corrected total flow
Output sync with flow
input signal Open collector pulse
Alarm output Static relay Capacity: 230VAC/340VDC 0.2A
Analog output Corrected instant
flowrate
4 to 20mADC (Max. load resistance 500Ω)
or 1 to 5VDC (Output impedance 250Ω)
Conversion accuracy: ±0.1% of F.S.
Display type Display: ST display (128×128 dots), backlighted (※1), (※2)
Information displayed: Data, units, error message simultaneously
Menu
items
Uncorrected total flow Same as output pulse unit (l, etc.) Display capacity: 8 digits
Corrected total flow Same as output pulse unit (l, etc.)
Corrected instant flowrate
L/h, etc.
Temperature To the 2nd decimal place (when ℃is selected.)
Blend ratio To the 2nd decimal place
Overall meter error To the 4th decimal place
Vol. conversion factor To the 4th decimal place
Error alarm Number of errors + error messages
Correc-
tion
range
Density Crude oil: 0.6105 to 1.0750 Fuel oil: 0.6530 to 1.0750 Lube oil: 0.8000 to 1.1640
Temperature -10 to +100℃NOTE: Except the range not covered in JIS K 2249-1987.
Ref. temperature 15℃
Com-
puting
accuracy
Corrected total flow ±0.2% of R.D.
Temperature Pt 100Ωat 0℃ ±0.3% of span
4 to 20mADC or 1 to 5VDC ±0.1% of span
Clock IC battery backup Lithium battery (Battery life: 10 years approx.)
Communication (when com.
interface is provided.)
Interface: RS485 Multipoint (Up to 16 units can be connected.)
Dedicated protocol Baud rate: 4800 bps standard 9600 bps max.
Transmission cable
Use 3-conductor shielded cable to the resistance thermometer bulb.
Loop resist. 5Ωmax. Example: 300 meters max. with 3-conductor 1.25mm2
cable; 500 meters with 2.0mm2cable
Power source 85 to 264VAC, 50/60Hz or 20 to 30VDC
Power consumption 20W max.
Ambient temperature -10 to +50°C
Mounting Panel mount
Finish Munsell N1.5
Weight 2.5 kilograms, approx.
NOTES (※1): ST display stands for Super Twisted Nematic display.
(※2): Backlight life (luminance declined to one half its original luminance) : 2500 hours, approx.

E-887-3N-E
10
6. INTERNAL COMPONENTS AND FUNCTIONS
6.1 Front Panel
6.1.1 Display
The display is a 128 ×128-dot multiple function display capable of showing the data, units of measure,
error messages, and other information at the same time. (The display is backlighted.)
6.1.2 On-Screen Menu Items
The units of measurement vary with configuration. Their selection is made in the SET mode. Available
menu items are:
(1) Uncorrected total flow (TOTAL COUNT)
Incoming flow pulses are calibrated for meter error, integrated before correction for temperature, and
the obtained totalized flow is indicated.
Resolution, or the minimum unit of measurement, which varies with customer specifications, is set up
with front-panel keys. This unit automatically becomes identical with the output pulse unit.
While the total flow is retained irrespective of power cycling, it is resettable to zero following a
power cycle if so configured in the SYS mode.
(2) Corrected total flow (TOTAL COUNT(C))
The reading corrected for meter error and temperature is integrated and indicated. Other
specifications remain the same as (1).
(3) Corrected instant flowrate (FLOW RATE(C))
Instant flowrate corrected for meter error and temperature (hourly) is indicated.
(4) Temperature (TEMPERATURE)
The temperature value currently fed to the instrument is indicated to the first decimal place. If a
problem arises in the course of temperature conversion, such as out-of-scale, a default fallback value
is indicated.
(5) Blend ratio (BLEND PERCENT)
The blend ratio currently fed to the instrument is indicated to the first decimal place. If a problem
arises in the course of ratio conversion, such as out-of-scale, a default fallback value is indicated.
(6) Overall error (OVERALL ERROR)
Correction factor for implementing meter error correction is indicated.
[OVERALL ERROR] = E1×E2
where E1 : Meter error correction factor for temperature correction
E2 : Flowmeter body's volumetric expansion (3α) related meter error correction factor
(7) Volumetric conversion factor (VCF)
Volumetric conversion factor which is dependent on input temperature and set density is indicated.
NOTE: For more information about setup items and options, see "KEY OPERATION MANUAL".

E-887-3N-E
11
MODEL EL4001
RUN

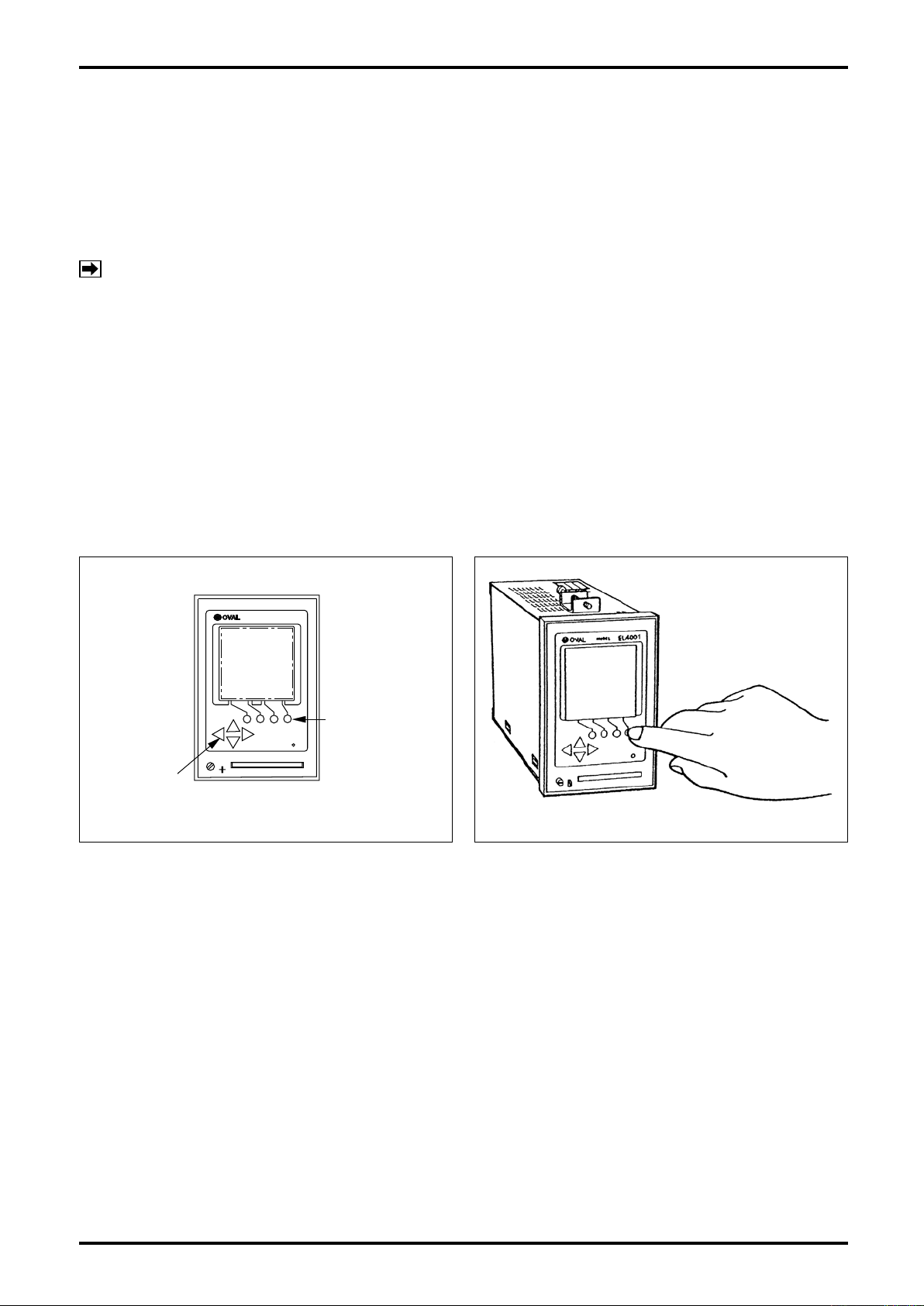

6.1.4 Front Panel Keypad
The eight front panel key switches consist of two kinds of keys - functions keys and shift keys.
・Function keys: Four round keys
Mainly used for function selection, such as activating the input conditions selected and
reconfiguration.
・Shift keys: Four triangular keys
Used for moving the cursor, moving between menu items, or changing numerical values.
Fig. 6.1 Front Panel Keys
Function Keys
Shift Keys
Fig. 6.2 Touch Key Operation
6.1.3 Error Messages
When an erratic condition arises, an error message automatically appears on the display.
(The information represented by error messages are listed on page 16.)
If two or more concurrent errors are involved, individual messages will be scrolled at intervals of
approximately 3 seconds. When an error condition disappears, an error message automatically goes out
and the normal display is resumed.
NOTE: An error logging function can store a maximum of 20 events each of which consists of year,
month, day, hour and minutes of error occurrence and recovery. (Complete details are
covered in the Key Operation Manual.)

E-887-3N-E
12
7. CALCULATION FORMULAS
7.1 Implementation of Meter Error Correction (Total flow before correction)
Q1= a×Ip×〔1 + 〕×εt
where Q1: Total flow corrected for meter error[l]
a : Meter factor[l/P]
Ip : Number of input pulses
E : Meter error correction value[%]
The line graph in Fig. 7.1 below shows how meter error curve linearization is achieved. E is approximately
determined by the relationships between input pulse frequency and instrumental error correction value
set at multipoint error points which are programmable along the flowmeter's instrumental error curve with
front-panel keys, and the frequency pulse information (flowrate) currently arriving from the flowmeter.
+
Metererror
0F1
F1thruF9Frequency(Hz)
E1thruE9Metererrorcorrectionvalue(%)
E1
E2
E3
E4
E8
E9
F2F3F4F9
F8Flowrate
(frequency)
}
Programmablewithkeys
Fig. 7.1
E
100
εt : Meter,s correction factor relative to temperature variation
εt: 1 + 3α(t
-
20)
t: Operating temperature[℃]
3α: 4.8×10
-
5(stainless steel)

E-887-3N-E
13
7.2
Implementation of Temperature Correction on Petroleums (Corrected total flow)
Correction factor in the implementation of temperature error correction on petroleum products is given
by the formula
V.C.F = exp [-αTΔt (1.0 + 0.8αTΔt)
αT= K0/ (f15)2+ (K1/ f15) αT= A + B / (f15)2
where V15 : Capacity [m3] at 15℃
Vt : Capacity [m3] at some arbitrary temperature (t℃)
ft : Density (t℃) [kg/m3]
f15 : Density (15℃) [kg/m3]
αT: Thermal expansion coefcient at 15℃-1
Δt : Temperature difference (Δt = t -15) [℃]
K0, K1, A and B : Constants (Shown in the table below.)
Sample kind Density (15℃)
range(g/cm3)
Constants
K0K1A B
CRUDE Crude oil, natural
gasoline, condensate 0.6105 to 1.0750 613.9723 0.0 ─ ─
FUEL
Mobilgas 0.6530 to 0.7700 346.4228 0.4338 ─ ─
Fuel oil 0.7705 to 0.7875 ─ ─ -0.00336312 2680.3206
Kerosene,
industrial gasoline,
aviation turbine fuel oil
0.7880 to 0.8385 594.5418 0.0 ─ ─
Light oil, heavy oil 0.8390 to 1.0750 186.9696 0.4862
LUBE Petroleum-derived
lubricants 0.8000 to 1.1640 0.0 0.6278 ─ ─
7.3 Instant Flowrate (Corrected)
Volumetric conversion factor which is dependent on blend ratio is given by the formula.
V.C.F = V.C.F1×+ V.C.F2×
where V.C.F1 : Volumetric conversion factor of set liquid 1
V.C.F2 : Volumetric conversion factor of set liquid 2
Χ: Blend ratio (%)
X
100
100-X
100
Qmc =Q2×〔1+E
100 〕×3600
where Qmc : Corrected instant flowrate [l/h]
Total flow corrected for temperature is given by the formula below:
Q2=Q1×V.C.F
where Q2: Total flow corrected for temperature [l]

E-887-3N-E
14
8. PREPARATIONAL CHECKS AND OPERATION
8.1 Preparation Before Operation
(1) Ensure that the instrument and related equipment are correctly installed and wired with no place left
unfinished.
WARNING: Make sure to see that the power terminals are connected to a power
source of the rated voltage. Applying a power source of incorrect voltage
could ruin your instrument.
(2) Supply power to this instrument and make certain to see that the front panel display is illuminated.
The display will remain unilluminated for one second after power on, which however is by no means
any indication of fault.
8.2 Preparational Checks
CAUTION: Allow a warmup period for 60 minutes or so after you turn on the power.
Verify that the instrument does not operate with no fluid flow.
How to Check
(1) Couple sources of simulated temperature and pressure signals.
(2) Using the shift keys, select menu items and verify the information displayed.
See the KEY OPERATION MANUAL.
(3) Inject a simulated input pulse train or density signal representing the type of the companion pulse
generator.
(4) Select display menu items of the total mass flow and total calorific flow, and make sure that incoming
pulses are being accumulated. Also, verify that pulse output and analog output are properly
generated.
(5) Remove the simulated pulse input and compare the obtained readings on the display with
corresponding theoretical values. Remember that this instrument is not equipped with a counter to
accumulate incoming pulses. Hence, an external counter is required.
8.3 Operation
CAUTION: Allow a warmup period for 60 minutes or so after you turn on the power.
(1) Select your power reset or non-reset (accumulated total) option.
See the KEY OPERATION MANUAL.
(2) Turn on power. While the initial check screen remains displayed, indicating that the process of
verifying parameters and variables is in progress after you turned on the power, your instrument will
not accept any pulse input.
(3) Place your instrument in service operation by allowing the fluid to be metered.

E-887-3N-E
15
9. TROUBLESHOOTING
Reminder: If internal trouble is suspected, seek our service at the nearest sales office or
customer service representative in your area.
CAUTION: Once any printed circuit board(s) of the internal assembly has been
removed for servicing, do not fail to reestablish all parameters in the
SET mode.
Symptom Check Possible Causes
Display is dead. 1. Inspect fuse.
2. Make sure of power source voltage.
1. Fuse is blown.
2. Line voltage is improper.
3. A fault in internal assembly.
Faulty temperature indication.
Erratic reading
Error messages
TEMP 1 (PT) OVER
or TEMP 1 (PT) UNDER
or TEMP 1 (ANA) OVER
or TEMP 1 (ANA) UNDER
1. Input signal line correctly wired?
2.
Input signal specifications
matched?
3. System configured correctly?
4. Temperature range set correctly?
1. Input wiring is incorrect.
2. Thermometer resistance bulb is
open or shorted.
3. Temperature converter is faulty.
4. A fault in internal assembly.
Faulty blend ratio.
Erratic reading
Error messages
BLEND OVER
or BLEND UNDER
1. Input signal line correctly wired?
2. Input signal specifications matched?
3. System configured correctly?
4. Blend range set correctly?
1. Input wiring is incorrect.
2. Blender is faulty.
3. A fault in internal assembly.
Faulty indication of meter error
correction factor and/or
temperature correction factor.
1. Temperature reading correct? 1. A fault in internal assembly.
While
fluid is
allowed
to flow.
Fails to count pulses;
fails to produce a pulse
output.
1. Input signal line correctly wired?
2. Pulse signal coming in?
3. Pulse generator specifications
matched?
1. Incorrect input wiring.
2. Pulse generator itself is faulty.
3. A fault in internal assembly.
Faulty total counter
reading.
1. Temperature reading correct?
2. Meter error and Temperature correc-
tion factor indications correct?
1. Pulse generator itself is faulty.
2. A fault in internal assembly.
Error messages
A/D CONVERT ERROR
or DENSITY CONVERT ERROR
or 4mA SCALER 1 UNDER
(Same also with SCALER 2.)
1. A fault in internal assembly.
Error message
SCALER 1 OVER
(Same also with SCALERS 2 and 3.)
1. Parameters reconfigured correctly? 1. A fault in internal assembly.
Display fails to respond to card
insertion (it remains unchanged).
1. Data in the card is lost.
2. Battery in the card has run out.
3. Card is defective.
Table 9.1

E-887-3N-E
16
10. ERROR MESSAGES
Table 10.1 List of Error Messages
11. BEHAVIOR IN ERRATIC CONDITIONS
(1) Erratic A/D Converter
If, following energization of A/D converter circuit, the conversion process is not completed within the
specified time period, it is found that the circuit has a problem. At this point, temperature and pressure
fallback values are used for calculation.
(2) Temperature and Pressure Input Out of Range
If the input exceeds the high limit or falls below the low limit, its default fallback value is used for
calculation.
(3) Analog Output Overflow
A full scale output is produced across the analog output terminals.
No. Error Message Description
1 ADJUST DATA ERROR Adjusted allowable range check error
12 A/D CONVERT ERROR A/D converter circuit error
13 DENSITY CONVERT ERROR Density converter circuit error
14 TEMP 1. (PT) OVER Temperature Pt input 1 overflow
15 TENP 1. (PT) UNDER Temperature Pt input 1 underflow
16 TEMP 2. (PT) OVER Temperature Pt input 2 overflow
17 TEMP 2. (PT) UNDER Temperature Pt input 2 underflow
18 TEMP 1. (ANA) OVER Analog temperature input 1 overflow
19 TEMP 1. (ANA) UNDER Analog temperature input 1 underflow
20 TEMP 2. (ANA) OVER Analog temperature input 2 overflow
21 TEMP 2. (ANA) UNDER Analog temperature input 2 underflow
22 PRESS 1. OVER Analog pressure input 1 overflow
23 PRESS 1. UNDER Analog pressure input 1 underflow
24 PRESS 2. OVER Analog pressure input 2 overflow
25 PRESS 2. UNDER Analog pressure input 2 underflow
26 DENSITY OVER Density input overflow (unused)
27 DENSITY UNDER Density input underflow (unused)
28 4mA SCALER 1 UNDER Analog output 1 underflow
29 20mA SCALER 1 OVER Analog output 1 overflow
30 4mA SCALER 2 UNDER Analog output 2 underflow
31 20mA SCALER 2 OVER Analog output 2 overflow
NOTE: Depending on the model in service, some of the messages are not shown.

E-887-3N-E
17
Power
Flowinput
1/1output
Densityinput
Press.input
Temp.input
Analogoutput
Pulseoutput1
Pulseoutput2
Pulseoutput3
Comport
Terminal
Block
Addresspath
Datapath
PowerBoard
InterfaceBoardCommunicationBoard
CPUBoard
I/OBoard
PowerUnit
Internal
Power
FlowInputCkt.
Dens.InputCkt.
A/D
Converter
Press.InputCkt.(analog)
Temp.InputCkt.(analog)
Temp.InputCkt.(Pt)
AnalogOutputCircuit
PulseOutputCircuit1
PulseOutputCircuit2
PulseOutputCircuit3
Multi
plexer
Isolation
TestPins
TestPins Internal
Volt.
Buzzer
Motherboard
Keyboard
ICCard
128×128dots
STDisplay
RUN
×8keys
Isolation
Isolation
Isolation
Isolation
ParallelI/O
TimerCounter
ParallelI/O CPU
20MHz
Memory
RS485
Isolation
ICCard
Interface
Circuit
32.768kHz
RealTime
Clock
Lithium
Battery
Isolation
PowerDetect
Fuse

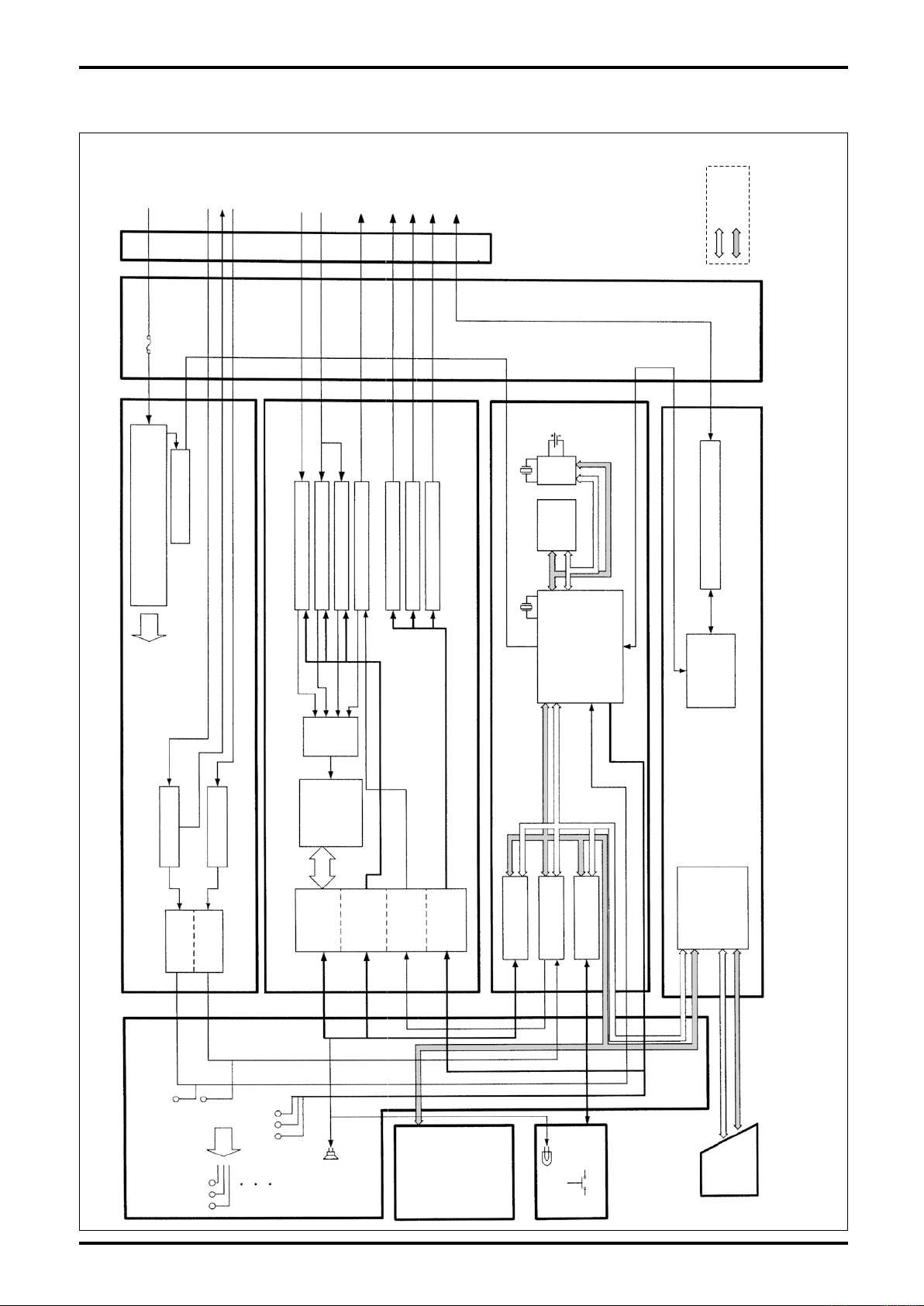

Fig. 12.1 Overall Block Diagram
12. OVERALL BLOCK DIAGRAM

E-887-3N-E
18
13. PRODUCT CODE EXPLANATION
●
Main code
① ② ③ ④ ⑤ ⑥ Model
E L 4 4 0 1 Flow computer for blend oil tempensation compensation
⑦—
⑧Power supply
D 20 to 30VDC
J 85 to 264VAC 50Hz/60Hz
⑨Input pulse signal
B Voltage pulse 12VDC 2 wires/3 wires
C Voltage pulse 12VDC (PG30S)
D Current pulse 24VDC (4/20mADC)
G Open collector pulse 12VDC 2 wires/3 wires
K Contact pulse
Z Special
⑩Temp. input
N Non
B 1 to 5V
E 4 to 20mA
FPt100Ω
GJPt100Ω
Z Special
⑪Pressure input
N Non
⑫Density input
N Non
⑬Blend input
NNon (xed)
B 1 to 5V
E 4 to 20mA
Z Special
⑭—
⑮ ⑯ Output item 1
Pulse output 1
B 1 Before correction/pulse width 1ms
B 5 Before correction/pulse width 50ms
B 9 Before correction/special pulse width
C 1 After correction/pulse width 1ms
C 5 After correction/pulse width 50ms
C 9 After correction/special pulse width
A L Alarm output
Z Z Special
⑰Output item 1 affix code
N Non
⑧−⑥⑤④③②① ⑯⑮−⑬⑫⑪⑩⑨ ⑰ ㉒㉑⑳ ㉓ ㉔ ㉕ ㉖ ㉗ − ㉙⑲⑱
Model
Power supply
Input pulse signal
Temp. input
Pressure input
Density input
Version code
Communication function
Analog output hard
Output item 4
Output item 3 affix code
Output item 3
Output item 2 affix code
Output item 2
Characteristic
Output item 1
Output item 1 affix code
Blend input
Main code
/ / / Additional code
⑱ ⑲ Output item 2
Pulse output 2
B 1 Before correction/pulse width 1ms
B 5 Before correction/pulse width 50ms
B 9 Before correction/special pulse width
C 1 After correction/pulse width 1ms
C 5 After correction/pulse width 50ms
C 9 After correction/special pulse width
A L Alarm output
Z Z Special
⑳Output item 2 affix code
N Non
Output item 3
Pulse output 3
A L Alarm output
Z Z Special
Output item 3 affix code
N Non
Output item 4
Analog output assignment
N Non
B Before correction instantaneous analog output
C After correction instantaneous analog output
Z Special
Analog output hard
2 1 to 5V
5 4 to 20mA
Z Special
Communication function
N Non
R RS-485
Version code
A Version code: A
—
Characteristic
0 Standard
Z Special

E-887-3N-E
19
Document
D S J DWG and specications for approval (Japanese)
D S E DWG and specications for approval (English)
D R 0 Re-submission of DWG with specications
D C J Final DWG (Japanese)
D C E Final DWG (English)
D W J Wiring diagram (Japanese)
D W E Wiring diagram (English)
D T J Inspection procedure (Japanese)
D T E Inspection procedure (English)
C B J Inspection certicate: B set Only Japanese
Witnessed by customer
V 1 0 Required
●
Additional code
⑧−⑥⑤④③②① ⑯⑮−⑬⑫⑪⑩⑨ ⑰ ㉒㉑⑳ ㉓ ㉔ ㉕ ㉖ ㉗ − ㉙⑲⑱
Model
Power supply
Input pulse signal
Temp. input
Pressure input
Density input
Version code
Communication function
Analog output hard
Output item 4
Output item 3 affix code
Output item 3
Output item 2 affix code
Output item 2
Characteristic
Output item 1
Output item 1 affix code
Blend input
Main code
/ / / Additional code

E-887-3N-E
All specifications are subject to change without notice for improvement.
2018.01 Revised△
2008.08 Released
E-887-3N-E (1)
This manual suits for next models
2
Table of contents
Other Oval Desktop manuals
