OVER AirFrame User manual

Operating Manual

Take care of your health, breathe clean air
• Crosseld® technology: 99,9% of ecacy against dust, virus,
bacteria, mould and fungi
• Sustainable, lterless, zero waste, external case is made of
recycled material
• Zero ozone
• Quiet at all speeds
• Smart control and data visualization via app
• Real time air quality monitoring
• Design and produced in italy
AirFrame®, the sustainable air purication system.

Filter-free Air Purier

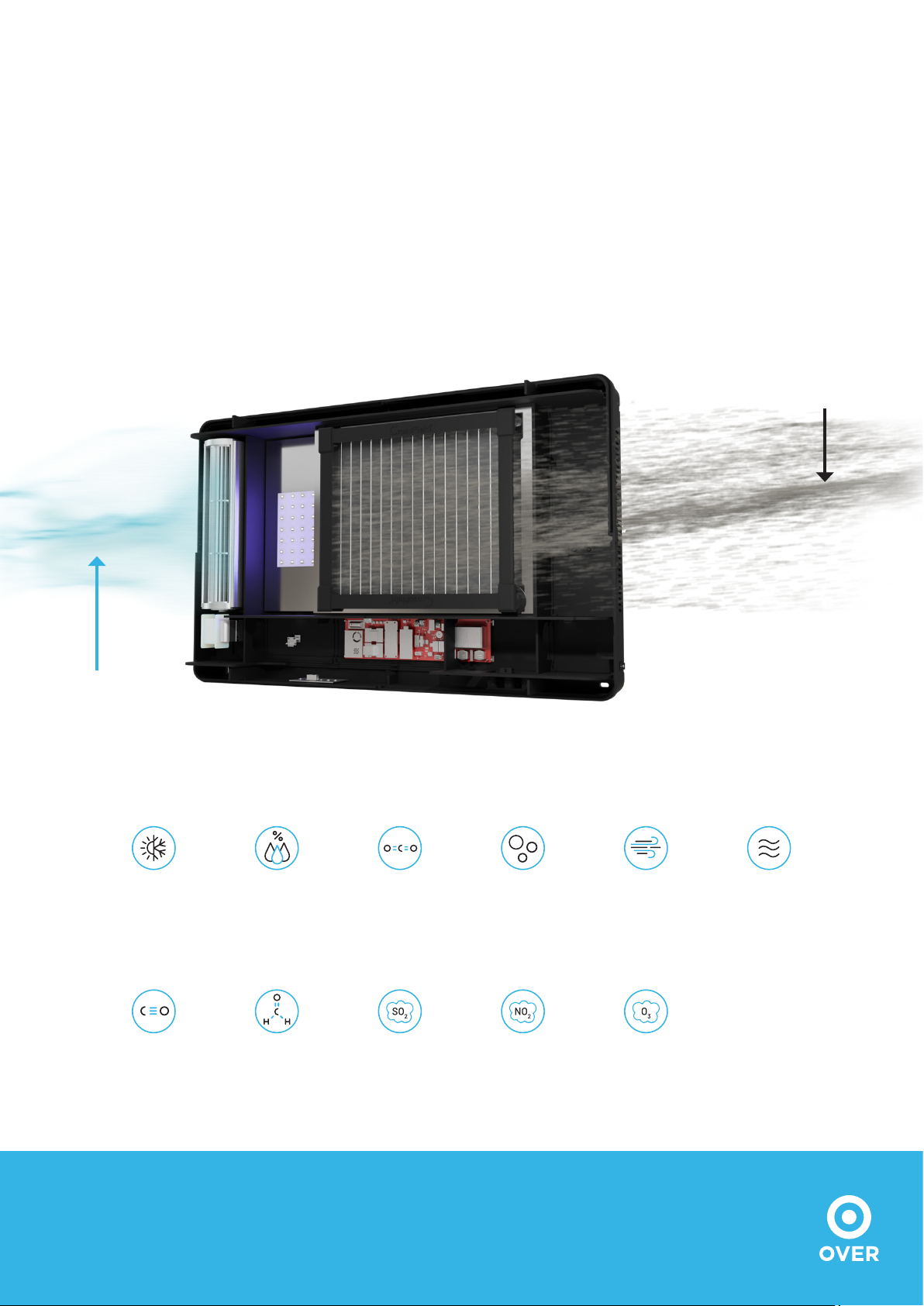

AirFrame® draws air through the side nozzle (right to left). CrossField® ltering technology en-
sures that all particles in the air are captured by the electrostatic precipitator, and what es-
capes the force of the electrostatic plates is denatured by UV-C light.
DIRTY AIR
CLEAN AIR
Humidity Carbon
Dioxid
PM 1, 2.5,10
Particulate Matter
IAQ
Indoor Air Quality
index
VOC
Volatile Organic
Compound
index
Temperature
Formaldehyde Sulphur Dioxide Nitrogen Dioxide OzoneCarbon Monoxide
Integrated sensors allow to measure
Optional measures

Led UV-C
CrossField®
How it works?
CrossField® is a sustainable solution (no mechanical lter to substitute and made by recycled
plastic) with a 99,9%* of ecacy against pollutant and bio-pollutants.
The dirty air passes primarily in the electrostatic lter that traps pollutants, traps, kills or
damages bio pollutant.
The air than pass thought UV-C rays where the sanitation process is completed.
Electrostatic Filter

min 50cm min 50cm
140cm
How to mount your AirFrame®
1. Drilling template
2. Dowels (n.8) for wall mounting
3. AirFrame®
4. Screws and washers (10mm outer
Ø, 0.5mm inner Ø) for wall mounting
5. ESP (Electrostatic Filter - array of
electrods)
6. Base cover
1
2
5
6
3
4
suggested installation position

Maintenance
AirFrame® cleaning should be performed at least every 6 months. it is recommended to use a
soft cloth and neutral detergent to avoid damaging the surface treatment.
1. Turn off the device.
2. Remove the cover.
3. Gently pull the grid out.
4. With a soft damp cloth, remove the dirt using a neutral detergent.
5. Put the grid back in the correct position.
6. Clean the plate present inside the cover.
7. Put the cover back.
1 2
5 6 7
3 4
While mechanical lters get clogged and need
to be frequently changed, AirFrame® does not
change its eciency and only needs a cloth
for cleaning.

Effective, quiet and safe,
perfect for classrooms
SCHOOL
Customizable and wall-mountable,
perfect even in crowded places
RETAIL
HEALTH CARE
Effective against viruses and bacteria,
perfect for taking care of your health

Model AIRF-AFF-S-5-103-001
Dimension 82x52x12cm
Compliance RoHS, CE and UKCA
Weight 12,5 kg
Energy consumption 26W - 57W (ECO Mode speed 1 - BOOST mode speed 3)
Ingress protection IP2X according with IEC 60529
Power supply 230V/50Hz
Air volume treated at max speed (Fan mode): 230 m3/h
Mode Auto, Boost & Eco
Relay output Dry contact max. load 250V - 2A
Noise level 30 dB — 60 dB
Sterilzer technology CrossField®
Filtration technology Electrostatic lter (ESP)
Filtering and sterilization ecacy 99,9% eciency against dust, virus, bacteria, mold and fungi
Germicidal technology UV-C wave at 254-275nm
Ozone production Zero
Measured parameters
PM1, PM2.5, PM10, temperature and relative
humidity, CO2, VOC index, IAQ index.
On request: CO, Formaldehyde, O3, NO2, SO2
How to connect Wi-Fi: frequency 2,4 GHz, Bluetooth
Operating system iOS and Android
Smartphone control
Mode settings
Fan speed control
Air Quality detection
Graphs of real time time and historical data
Sustainability
Zero waste solution
No lter disposal
Covers with 100% recycled plastic
Maintenance Use a soft damp cloth at least every 6
months to remove the pollution
Operating temperature 10-50°C
Installation Wall installation, plug-and-play
Accessories Interchangeable external covers (optional)
Recommended single device coverage area Up to a 80sqm
Warranty 2 years
Datasheet

IEC 60335 as emended (2020)
Safety requirements for electrical equipment for
measurement, control, and laboratory use - Part 1:
General requirements (EN 61010-1:2010+A1:2019)
IEC 61010-1 Household ans similar electrical appliances safety
EN 55014-1-2:2021
Lectromagnetic compatibility - Requirements for
household appliances, electric tools and similar apparatus
- Part 2: Immunity - Product family standard
IEC 61508
Functional Safety (Safety Integration Level - SIL): Products
need to be designed to reduce the potential for dangerous
malfunction resulting from people, environment and/or process.
This standard covers the principles for safety life cycle and
probabilistic failure for electrical and electronics systems.
IEC 60335-2-65:2002+AMD1:2008+AMD2:2015
(subclause 32.102)
“Household and similar electrical appliances – Safety – Part
2-65: Particular requirements for air-cleaning appliances”
ISO15714:2019 Method of evaluating the UV dose to airborne microorganisms
transiting in-duct ultraviolet germicidal irradiation devices’.
en 62471:2008 Photobiological safety of lamps and lamp systems
EN 60529 Degrees of protection provided by enclosures (IP Code)
UNI EN 11254:2007 Active electrostatic air lters for general ventilation
– Denition on ltration eciency
IEC PAS 63313:2021 Position statement on germicidal UV-C
irradiation - UV-C safety guidelines
EN 61000-6-1
Electromagnetic compatibility (EMC) - Part 6-1:
Generic standards - Immunity standard for residential,
commercial and light-industrial environments
IEC 61000-3-2 Electromagnetic compatibility (EMC) – Part 3-2:
Limits – Limits for harmonic current emissions
Lab Tests
AirFrame® has been tested in the laboratory for compliance with the following standards

EU declaration of conformity
Document No.: OVER-CE-000005 Rev: 0 Date: 01.08.2022
This declaration of conformity is issued under the sole responsibility of the manufacturer.
OVER S.p.A.
Via Mao Mai, 11 - 00157 Rome (RM), Italy
Object of declaration:
Product Name:
AirFrame
Product Code:
AIRF-AFF-S-5-103-001
The object of the declaration described above is in conformity with the relevant Community
harmonisation legislation.
Low Voltage Directive
2014/35/EU
EMC Directive
2014/30/UE
RoHS Directive as amended
2011/65/EU
Ecodesign Directive as amended
2009/125/CE
Radio Equipment Directive (RED)
2014/153/EU
and are in conformity with the following harmonized standards or other normative documents:
EN50491-5-3:2010, EN60669-2-1:2021, EN60669-2-5:2013, EN61010-1:2010AC2019+A12019,
EN 61326-1:2020, EN 63313:2021, EN 60335-1:2012+A2:2019, EN 60335-2-65:2002+A1:2008
+A2:2015, EN60529:2017, EN62471:2008
Year of CE-marking:
2022
ADRIANO CEROCCHI
Chief Executive Ocer
OVER S.p.A
www.overtechnologies.com
