Ovutek Royyt VWS530 Series User manual
Royyt Body Weight Scale
Questions or Concerns?
Contact our Customer Support Team
VWS530 Series
USER MANUAL
We want you to be healthy and happy.
Thank you for choosing Ovutek !
If you have any questions or concerns, please contact freely to our helpful
new products!
Package Contents
Specifications
Safety Information
Function Diagram
Before First Use
Operation
Using the Scale
Replacing the Batteries
Cleaning the Scale
Troubleshooting
Warranty Information
Customer Support
1
1
1
2
3
3
3
5
5
6
8
9
Table of Contents
Package Contents
1 x Body Weight Scale
4 x 1.5V AAA Batteries
1 x Quick Start Guide
Specifications
Safety Information
Please read and follow all instructions and safety guidelines in this manual.
General Use
•
•
•
•
•
lb / kg / st
0.2 lb / 100 g
Tempered Glass
4 x 1.5V AAA Batteries
5 / 20 / 30 seconds
11.8 x 11.8 x 1.0 in / 30.0 x 30.0 x 2.55 cm
3.9 lb /1.8 kg
0.2 lb≤22 lb
22lb < m ≤ 450lb
450 lb / 205 kg / 32 st
D=0.05 lb / 0.02 kg
D=0.1 lb / 0.05 kg
Weight Capacity
Minimum Weight Value
Weight Units
Platform
Power Supply
Auto-Off
Product Dimensions
Product Weight
Increments
Check the scale before using. Do not use the scale if it is damaged in any way.
Do not strike or bang on the scale and do not use the scale if there is a slight crack on the
glass. Due to the nature of tempered glass, the glass will shatter if there is a slight crack.
If you see a crack, contact Customer Support (see page 9).
The glass platform is slippery when wet. Always make sure the platform and your feet are
dry before stepping onto the scale.
Place the scale on a hard, flat surface.
To weigh safely and accurately, stand with your feet shoulder width apart while on the
scale. Do not stand on the edge of the scale or jump on the scale.
- 1 -
•
•
•
•
•
•
Batteries
•
•
Function Diagram
Avoid standing on the scale for a long period of time.
Do not overload the scale. Maximum weight capacity is 450 lb / 205 kg / 32 st.
Keep the scale in a cool area with low humidity. Keep the scale away from heat sources,
such as ovens or heaters.
Store the scale horizontally, not vertically.
For household use only. This scale is not intended for commercial use.
Handle with care.
Do not mix new and old batteries.
If the scale is not in use for a long period of time, remove the batteries to extend the
lifetime of the scale.
Display
Platform
Anti-Skid Padding
Unit Button
Battery Compartment
A.
B.
C.
D.
E.
A
B
C
D
E
Figure 1
- 2 -
Before First Use
1.
2.
3.
Operation
Using the Scale
Note:
•
1.
2.
3.

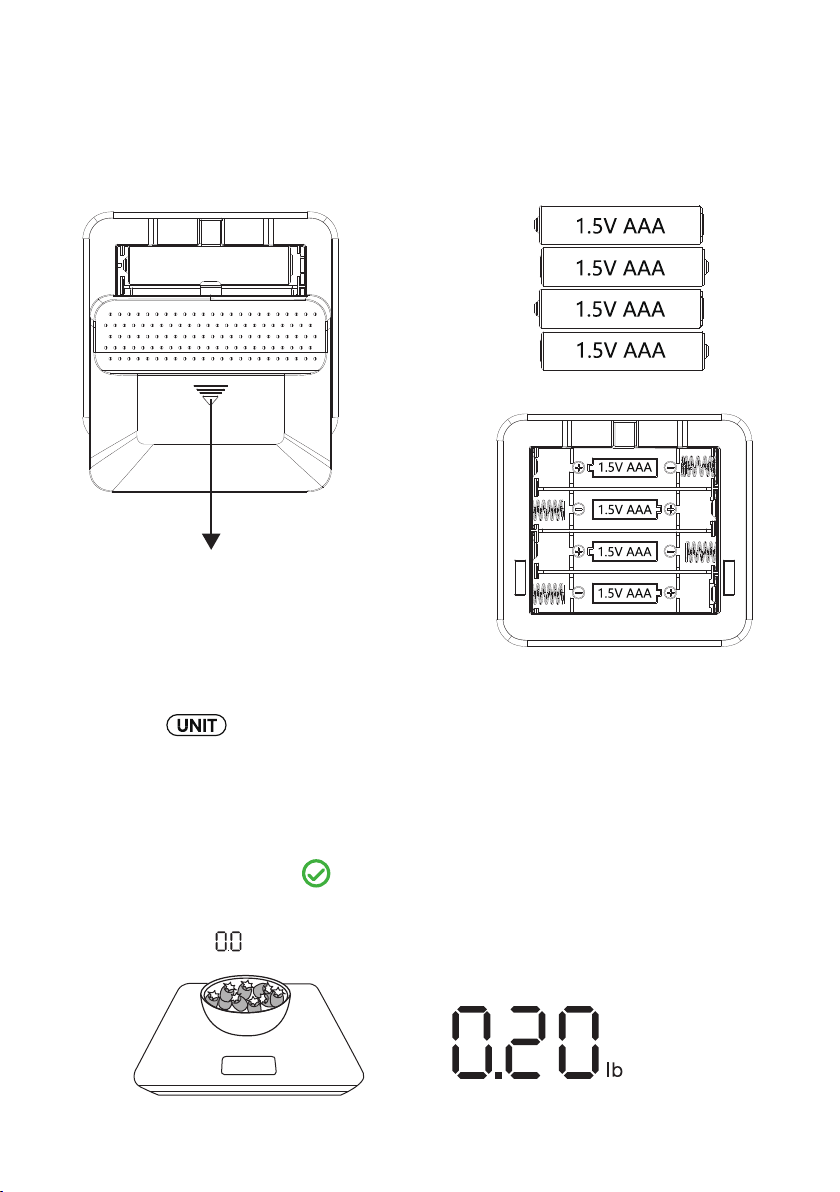

Take out the all the 4 AAA batteries from the bottom of the package box.
Open the battery compartment on the underside of the scale.
Install the batteries. Follow the guidelines in the battery compartment to match
the +and –terminals.
Press the button on the underside of the scale to switch units between pounds
(lb) , stone(st) and kilograms (kg).
Place the scale on a hard, flat surface.
Note: Using the scale on soft surfaces such as carpets and mats will result in inaccurate
measurements.
Stand on the scale until the lights up to confirm result is accurate.
Note: Activate the scale first when weighing items <5lb
Measure items as light as 0.2 lb / 100 g, like packages, pet foods, or fruits, with pinpoint
accuracy. When“ ”is displayed , a minimum of 0.2 lb / 100 g can be weighed.[Figure 3]
Slide
Figure 3
- 3 -
Figure 2

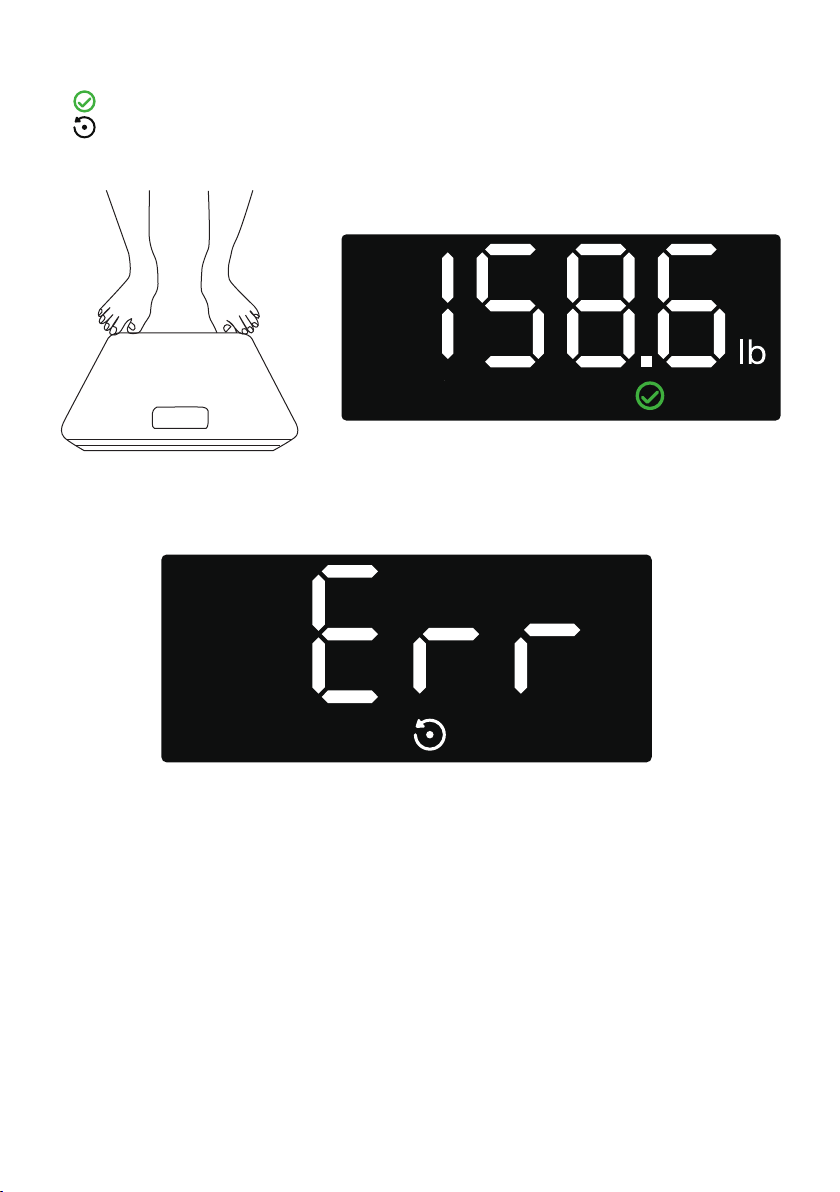

4. Measure Again
Step off the scale.[Figure 4]
Lights up to confirm the result is accurate.[Figure 5]
and "Err" will display to remind the result maybe inaccurate due to some reason,
we recommend you re-measure.[Figure 6]
5.
1.
2.
3.
Note:
•
•
- 4 -
Figure 4
Figure 6
Figure 5
Replacing the Batteries
Cleaning the Scale
1.
2.
3.
4.
1.
2.
4.
Open the battery compartment on the underside of the scale.
Remove the old batteries and dispose of them properly.
Install 4 new 1.5V AAA batteries. Make sure the polarities match.
Close the battery compartment, place the scale on a hard, flat surface.
Use a slightly damp cloth to clean the surface of the scale, followed by a soft, dry cloth to
wipe away the remaining moisture.
Do not use chemical or abrasive cleaning agents to clean the scale.
Figure 7 Figure 8 Figure 9
5.
1.
2.
3.
Note:
•
•

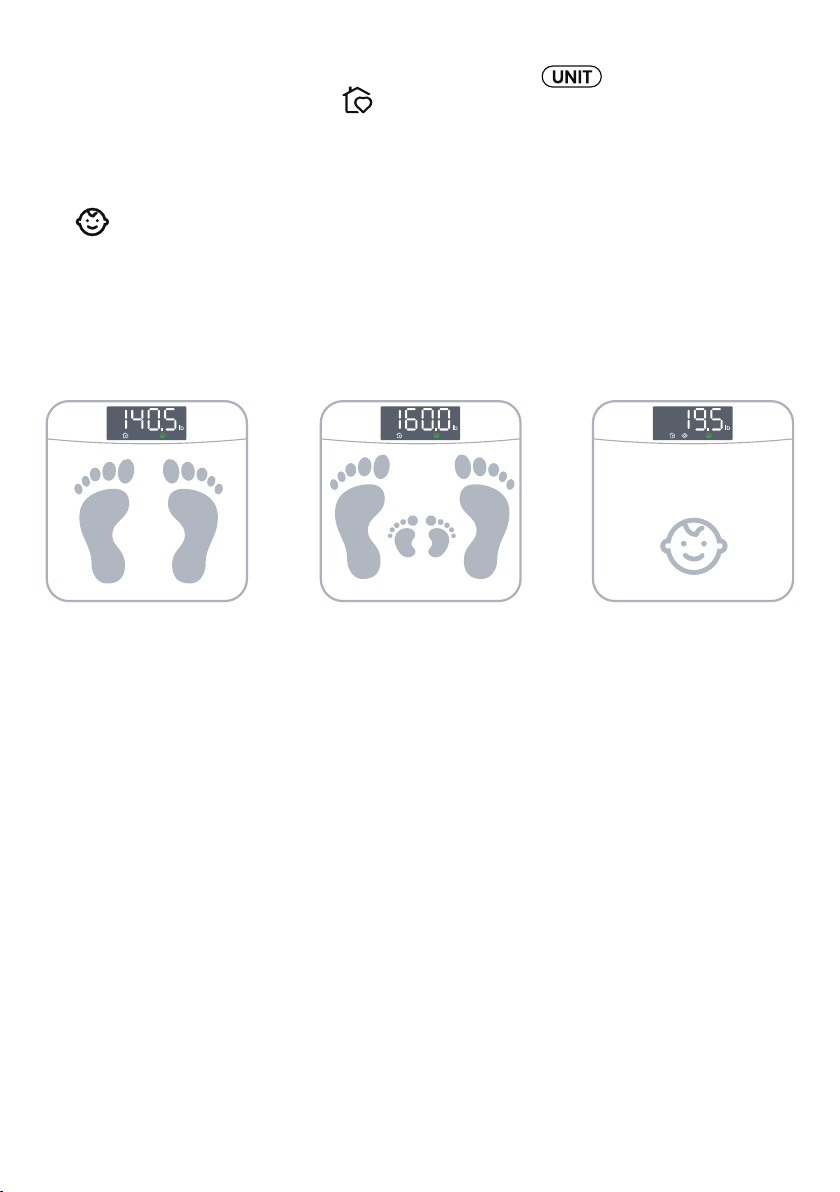

Family Mode
Long press the UNIT button at the underside of the scale for 3 secondsto switch
between family/normal mode ( means family mode).
Step on the scale and get off the scale after weighing.Figure 7
Pick up the baby/pet, weigh again, and step off the scale after completion (within 1
minute of the last weighing).Figure 8
to indicate the weight of the baby/pet.Figure 9
Family mode: The second weighing within one minute after weighing will automati-
cally calculate the weight difference.
Steps 1 & 2 can be switched according to your habits.
- 5 -
Baby's weight
Troubleshooting
Problem Possible Cause Solution
Scale does not
turn on.
No battery installed
Get the included battery from the
package and install it by matching
the + and - terminals according to the
guide in the battery box
Batteries are dead. Replace the batteries. See Replacing
the Batteries (page 10).
Display backlight
does not come on
when stepping
on scale.
Scale may be
malfunctioning.
Contact Customer Support
(see page 9).
Display shows
“ ”.
Weight exceeds
450 lb / 205 kg.
Remove weight from the scale. Use a
different scale with a higher weight
range.
Display shows
“ ”.
Display shows
“ ”.
Measure Again.
Battery power is low.
Not enough power
Replace the batteries. See Replacing
the Batteries (page 10).
Item being weighed
is too light. Use a different scale to measure item.
Display shows
“ ”. Result is accurate
Display shows“ ”
And Show “Err”
The result maybe inaccurate due to
some reason, we recommend you
re-measure.
Reading is
inaccurate.
Scale is not on a level
surface. Place scale on a level surface.
Scale was not cleared
properly.
Remove the batteries for 45 seconds
and replace them to reset the scale.
Batteries are not
properly installed.
Insert batteries under the correct
polarity as marked on battery
compartment.
If your problem is not listed, please contact Customer Support (see page 9).
- 6 -
Federal Communication Commission Interference Statement – Part 15
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
1.
2.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This equip-
ment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If
this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•
•
•
•
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
FCC SDOC SUPPLIER’S DECLARATION OF CONFORMITY
Ovutek Corporation hereby declares that this equipment is in compliance with the FCC Part
15 Subpart B. The declaration of conformity may be consulted in the support section of our
website, accessible from www.ovutek.com
This device may not cause harmful interference, and
This device must accept any interference received, including interference that may cause
undesired operation.
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
Consult the dealer or an experienced radio/TV technician for help.
- 7 -
Warranty Information
TERMS & POLICY
Ovutek warrants this product to the original purchaser to be free from defects in material and
workmanship, under normal use and conditions, for a period of 2 years from the date of
original purchase.
Ovutek agrees, at our option during the warranty period, to repair any defect in material or
workmanship or furnish an equal product in exchange without charge, subject to verification
of the defect or malfunction and proof of the date of purchase.
There is no other express warranty. This warranty does not apply:
•
•
•
•
•
•
If the product has been modified from its original condition;
If the product has not been used in accordance with directions and instructions in the user
manual;
To damages or defects caused by accident, abuse, misuse or improper or inadequate
maintenance;
To damages or defects caused by service or repair of the product performed by an unau-
thorized service provider or by anyone other than Ovutek ;
To damages or defects occurring during commercial use, rental use, or any use for which
the product is not intended;
To damages or defects exceeding the cost of the product.
Product Name：
Model：
Royyt Body Weight Scale
Order ID：
Date of Purchase：
For your own reference, we strongly recommend that you record your order ID
and date of purchase.
- 8 -
Ovutek will not be liable for indirect, incidental, or consequential damages in connection with
the use of the product covered by this warranty.
This warranty extends only to the original consumer purchaser of the product and is not trans-
ferable to any subsequent owner of the product regardless of whether the product is trans-
ferred during the specified term of the warranty.
This warranty does not extend to products purchased from unauthorized sellers. Ovutek ’s
warranty extends only to products purchased from authorized sellers that are subject to
Ovutek ’s quality controls and have agreed to follow its quality controls.
All implied warranties are limited to the period of this limited warranty.
This warranty gives you specific legal rights and you may also have other rights which vary
from state to state. Some states do not allow the exclusion or limitation of incidental or
consequential damages, so the above limitation or exclusion may not apply to you.
If you discover that your product is defective within the specified warranty period, please
contacting us. Once our Customer Support Team has approved your request, please return the
product with a copy of the invoice and order ID.
Every Ovutek product automatically includes a 2-year warranty.
This warranty is made by: Ovutek
Customer Support
If you encounter any issues or have any questions regarding your new product, please contact
our helpful Customer Support Team.
Email: [email protected]
* Please have your order invoice and order ID ready before contacting Customer Support.
