Owlet Home J1 User manual

Please consult below checklist for all the components.
User GuideUSB Cable
Video Doorbell
Batteries Double-sided Tape Screws & Tools
2MP Camera
PIR Motion Sensor
Speakers
Status Indicator
3
2
1
4
Doorbell Button
Microphone
Charging Indicator
Micro USB Port
6
5
8
7
Reset Hole
Hardwire Power Port
SD Card Slot
Battery Compartment
10
9
12
11
3
21
10
11
12
6
5
4
7
8
9
1. What’s in the box
2. Meet the doorbell
1

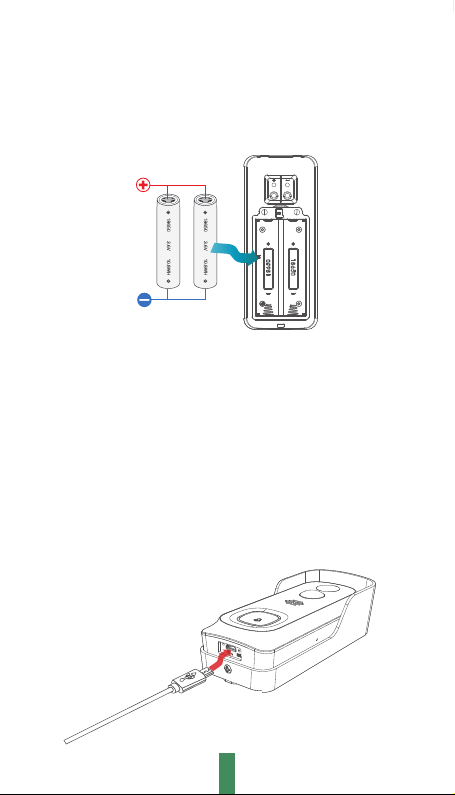

3. Battery installation
4. Battery charging
Note:
The batteries are pre-installed into the doorbell. If you had
taken out the batties somehow, please note the electrodes when
install them back. Do put the positive poles upward!
Improper battery installation will cause damage to the internal
components and may result in serious injury.
The batteries inside the video doorbell are not fully charged in
accordance with transportation safety regulations.
Please charge the batteries with an USB compatible wall
charger(not included in the box) and the provided USB cable for
around 8~10 hours prior to Wi-Fi set up and installation.
2

Note:
2.4GHz Wi-Fi

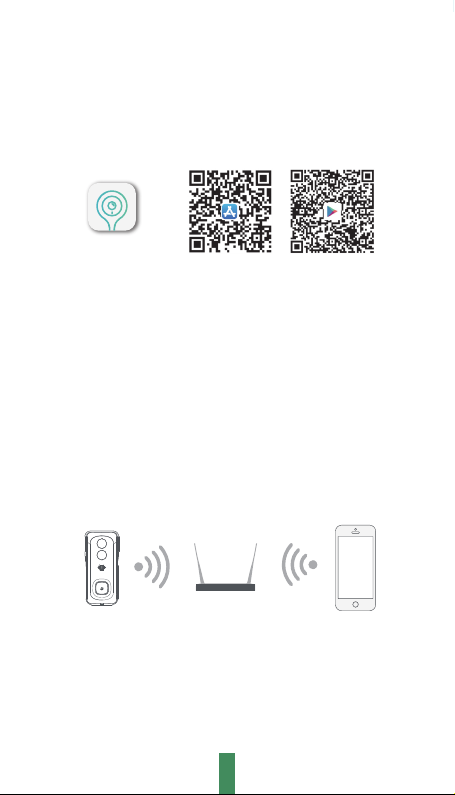

5. App download
6. Wifi set up
iOS Android
CloudEdge
Download and install the ' CloudEdge ' app from Google PlayTM or
the App StoreTM.
The app is also available by scanning below QR codes, using your
QR code scanner in your smart phone.
AndriodTM is a trademark of Google Inc. Google PlayTM is a
trademark of Google Inc. Apple, iPhone and iOS are trademarks of
Apple Inc. App StoreTM is a service mark of Apple Inc.
Before you start the Wi-Fi configuration, please note below:
1). The doorbell works with 2.4 GHz Wi-Fi, but not with 5 GHz
Wi-Fi.
2). Avoid using special characters or punctuation
symbols(@~!#�%^&*...) either in your Wi-Fi name or in the
password.
3). Perform the configuration near your Wi-Fi router.
Launch the CloudEdge APP and register an account with your
mobile phone numer of email ID. Then tap the ‘+’ button to add
a new device, select doorbell and follow the in-app
instructions to set up your doorbell.
3

7. Run a test
8. Live view interface
Note:
HD
1
4
7
2
3
5
6
9 10
12
11
8
13
14
1. Quit live viewing
2. Setting menu
3. Battery status
4. Volume on/off
5. HD/SD switch
6. Full screen view
7. Stream bit rate
8. Wi-Fi signal statusPlayback
9. Screenshot button
10. Speak to the scene
11. Record on smart phone
12. Body detection on/off
13. Notification history
14. Cloud storage
After setup, tap on the live view window in the app for a
test. Then take your doorbell outside to the installation
spot and run a test there. Make sure the installation
spot is covered by strong 2.4 GHz Wi-Fi signal.
If the video quality from the
doorbell outside is not as good
as it was indoors, you may
need to move your router
closer to your installation
spot, or invest in an Wi-Fi
extender.
4

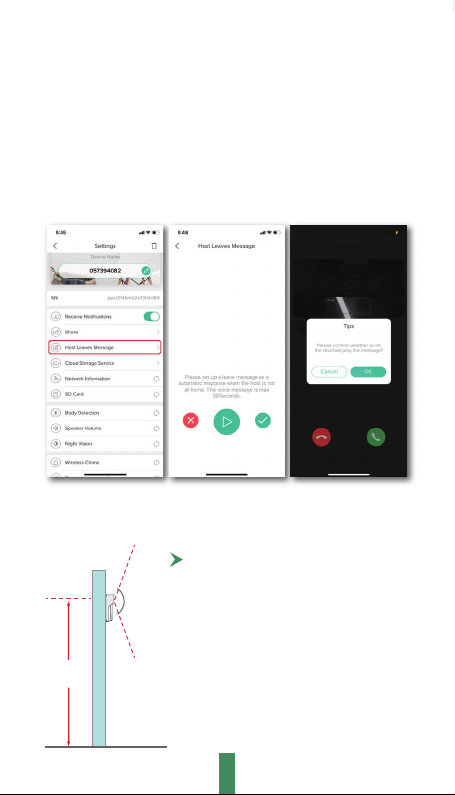

9. leave a Voice message
10. Linstallation
Steps:
5 feet
160cm
140°
Select location
You can leave a max 30 seconds voice message on the on-board
memory of your doorbell, so as to quickly respond your visitor by
a tap on your phone when you are out and occupied. It can be
done even without an Micro-SD card.
Your doorbell has 140-degree view
angle and 120-degree human detection
range.
It is suggested to mount your doorbell
at least 5 feet (160 cm) above the
ground for the best angle of view and
motion detection performance.
Setting →Host Leaves Message →Record your message →
Hang off doorbell call and play the pre-recorded voice message.
5

Tape
Tape
mount your doorbell
1. Take out the wall mount by
pushing from its back.
3. Drive the screws into the
anchors, or directly into your wall
until the bracket is tightly fastened
on your wall.
5. Attach your doorbell to the
mounting bracket. Make sure it
reaches the bottom where you can
hear a click.
6. Secure your doorbell with the
provided star-shaped security
screw and screwdriver.
All set. Congratulations!
4. (Optional) You can also use the
double-sided tape we provided
instead of screws.
2. Mark the screw positions to
mount the bracket.
6

11. Key features
Remote view & control
Full-duplex audio
Pre-recorded quick response
PIR human detection
Low battery alert
Local & cloud recording
Day & night
The devic will be sleep to save power, and can be activated remotly
from your CloudEdge app to view and control.
The device support 2-way audio intercomm. You can see, hear and
speak to your visitor even when you are not home.
A 30 second vice message can be pre-recorded into the doorbell,
which enables you to quickly respond your visitor with a tap on your
phone, even when you are out and occupied.
With PIR motion sensor built-in, you doorbell detects human
movements in front of it and sends you motion alerts and snapshots
prior to the vistor’s knock. And it prevents intrusion/burglary before
they actually happen.
Embedded with power management module, you doorbell can tell
you the battetry consumption staus, showing the estimated usage
time and sending you low-battery alerts when it needs a recharge.
Insert a Micro-SD card ( Max.support 128GB) or activate the cloud
storage service to record your viedeo clips.
The viedo doorbell support night vision. To see clearly what’s going
on infront of door anytime,anywhere.
7

12. Specification
Storage Type
Cloud storage
Recording
Storage
Video & Audio
Image Sensor
OS
Effective Pixels
Stream
Infrared LED
Lens
Angle of View
Min. Illuminance
WDR
Audio
1/2.7” CMOS (2.0MP)
Hisilicon Lite-OS
1920 × 1080 px
HD/SD dual stream
High power IR LED with ICR
1.7mm/F2.0
140°
Digital WDR
Two-way audio with noise cancellation
Color: 0.01 Lux; B&W: 0.001Lux
Micro SD Card (Max 128G)
Support
Triggered by PIR motion sensor
Network
Wifi Frequency 2.4 GHz ~ 2.4835 GHz
Standards
Live View Speed
IEEE 802.11 b/g/n
within 3 ~ 4 Sec
APP
App Name
OS
Remote View
Notification
CloudEdge
iOS, Android
Within 2~4 sec
Notification push within 2~4 sec
Others
Power Source
Standby Current
Working Current
Standby Time
Working Time
Battery Charging
Firmware Upgrade
Size (mm)
Weight (g)
Working Temp.
& Humidity
Lithium 18650 Battery (3.5V, 3000mAh ) × 2
250mA
4 ~ 6 Months
2 ~ 3 Months (20 times wake up per day)
DC5V 1A~2A Power Adapter (Micro USB Port)
61× 41 × 135
235
OTA (on the air)
-20 ~ 50 ; <90% (No condensation )
8

Trouble shooting
Q1: Why I failed to set up Wi-Fi for the doorbell?
Q2: How do I know if I have 2.4G or 5G wifi?
Q3: It has to be on same WiFi to see the camera, or is it over internet
from anywhere?
Q4: Do any of the recordings get saved to the cloud? Or is it mainly
saved in the built-in SD card?
Q5: What happens when the SD is full?
Q6: Does it work with Google Home or Alexa?
Q7: Why does it lose connection to wifi?
Q9: Can the motion detection be disabled?
Q10: Do we get charger for the batteries?
Q11: Can we have 2 or more doorbells at the same residence?
9
A1: ①.Device works with 2.4GHz Wi-Fi only, but not support 5GHz
Wi-Fi. ②.Wi-Fi network is not good, try to keep the camera near the
Wi-Fi router when setting up. ③.The Wi-Fi password is wrong. Please
check if there are special characters in the password, or the network is
specially encrypted.
A2: Please check the user manual of your Router or call the network
operator for help.
A3: You can view the camera from anywhere, if your camera is well
connected to the internet.
A4: It supports SD card recording as well as cloud storage. You can
activate the cloud storage service in App.
A5: When the memory card is full, the camera automatically erase the
oldest footage.
A8: Please check the network connection of your phone and the Wi-Fi
router. If the network signal is not strong, you may need to move your
router closer to the device, or invest in an extender.
A9:Yes, sure. Recording is triggered by detected motions. You can set up
the sensitivity or disable motion detection in the setting menu.
A10: Battery charger is not included. Please charge the batteries with a
USB compatible charger(DC5V 1A~2A) for about 8-10 hours.
A11: Yes, you can add more than one device at the same residence.
A6: Sorry, this model does not support Google Home or Alexa.
