Oypla GARDEN 3553 User manual

16 Litre Knapsack Sprayer
User Manual
USER MANUAL Model No: 3553

DO NOT ATTEMPT TO FILL THE KNAPSACK SPRAYER
ABOVE THE 16 LITRE LIMIT.
Safety Instructions
Notice: Ensure you read and fully understand instructions before use
While every attempt is made to ensure the highest degree of protection in all equipment, we cannot
guarantee freedom from injury. The user assumes all risk of injury due to use. All merchandise is sold on
this condition, which no representative of the company can waive or change.
•The sprayer is designed for the application of agricultural chemicals, disinfectants,
cleaning agents etc. Do not spray caustic or corrosive solutions as these will damage
the sprayer.
•Wash the inside of the spray tank with clean water after usage.
•Always wear the correct personal protective equipment whilst using, cleaning and
servicing the sprayer.
•Lubricate the felt sealing washer at the top of the air chamber with light oil at regular
intervals. This ensures smooth operation of the air pump and prevents leakage of
spray liquid.
•Do not expose the sprayer to strong sunlight when storing as to prevent deterioration
of the tank.
•Store the 16 Litre Knapsack Sprayer in a well ventilated area, out of the reach of
children and animals.
•Always direct the spray downwind of the operator. Spraying into the wind will result
in operator contamination.
•Do not smoke whilst using the sprayer.
•If the product is damaged or has any defects, please contact [email protected]
USER MANUAL Model No: 3553

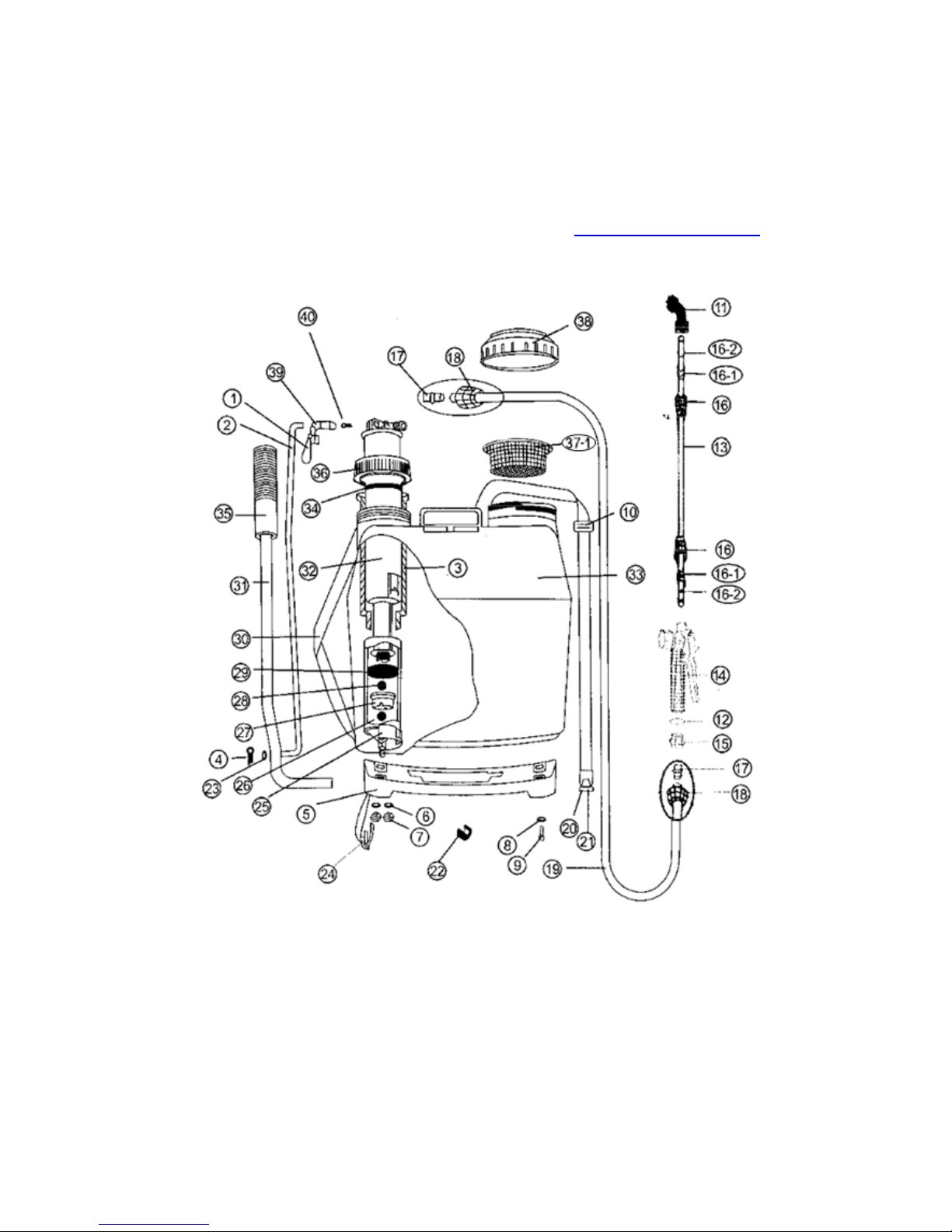

Parts List:
If you are missing any of the below parts please contact [email protected]
Please be aware that you will be referring to this parts list throughout the assembly process.
USER MANUAL Model No: 3519USER MANUAL Model No: 3553
Operating Instructions
1. Handle Securing Ring
2. Connecting Rod
3. Guide Bushing
4. Split Pin
5. Tank Base
6. Washer
7. Nut
8. Washer
9. Screw
10. Strap Buckle
11. Nozzle Attachments
12. Washer
13. Spray Lance
14. Trigger Valve
15. Adaptor
16-1. Locking Sleeve
16-2. O-ring
17. Hose Barb
18. Hose Nut
19. Hose
20. Carrying Strap End Fitting
21. Carrying Strap Hook
22. Pump Handle Attachment Clip
23. Washer
24. Carrying Strap Attachment
25. Pump
26. Valve Ball
27. Valve Seal
28. Valve Ball
29. Cup Washer
30. Carrying Strap
31. Pump Handle
32. Air Chamber
33. Pesticide Tank
34. Felt Sealing Washer
35. Pump Handle Grip
36. Air Chamber Lid
37. Pesticide Tank Filling Filter
38. Pesticide Tank Lid
39. Handle & Lance Retaining Clip
40. Split Pin

Part 35
Part 31
1. Insert the Pump Handle (part 31) into the hole in the base of the tank (part 5), securing the handle into place using
the two Pump Handle Attachment Clips (part 22) provided. Once done, push the Pump Handle Grip (part 35) onto the
top of the Pump Handle (part 31), ensuring it is secure. Please see the images above.
Part 31
Part 22
Part 5
Part 2
Part 22
2. Fit the bent end of the Connecting Rod (part 2) into the hole in the Pump Handle (part 31). After this, secure the
Connecting Rod (part 2) by placing a Washer (part 23) onto the end of the rod and securing it into place using a Split
Pin (part 4). See the images above for more detail.
Part 4
Part 23
USER MANUAL Model No: 3553

Part 17 & 18
Part 19

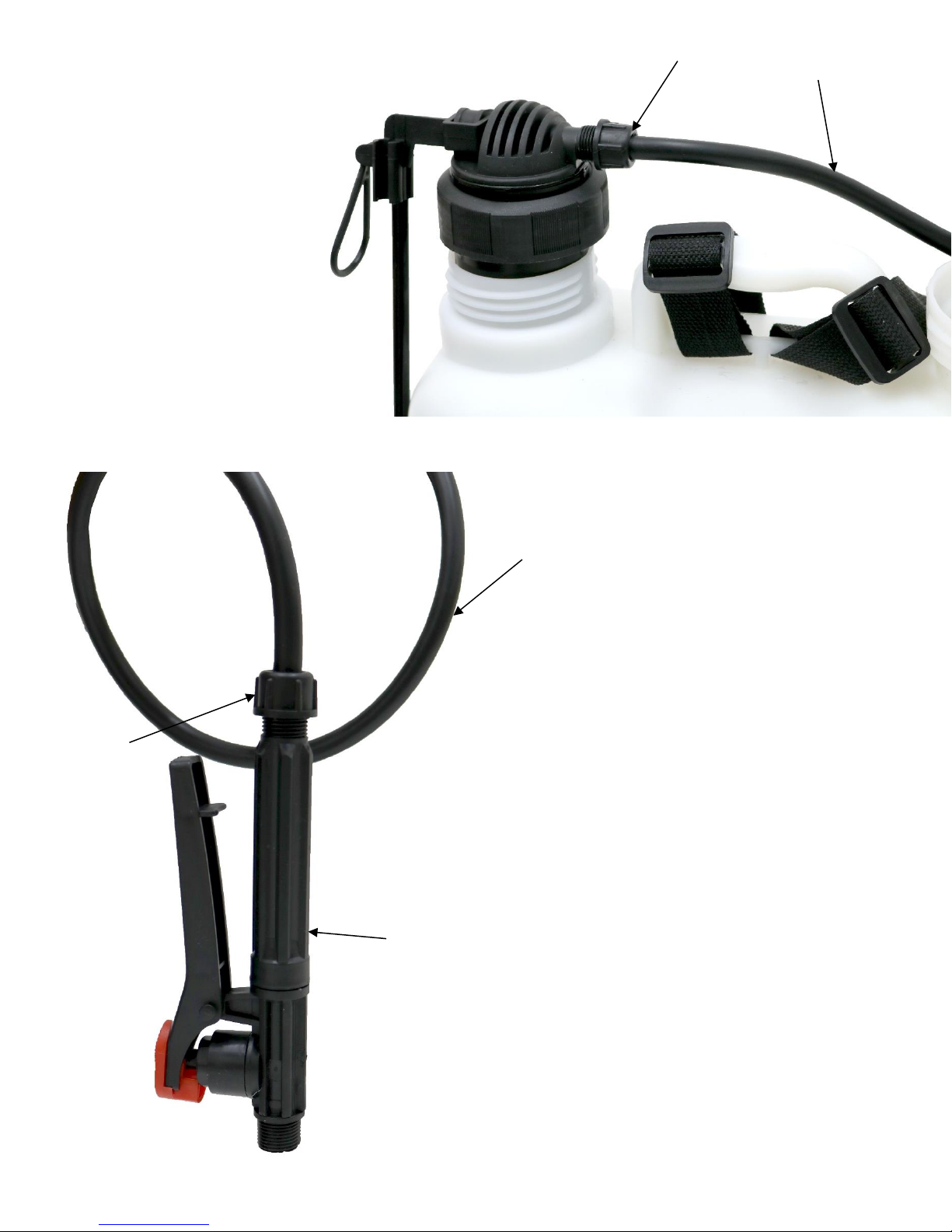

3. Attach one end of the Hose (part
19) to the fitting on the air chamber.
Please ensure that the Hose Barb
(part 17) is in the Hose Nut (part 18)
before attaching the Hose (part 19),
as without these parts the Hose
(part 19) won’t be able to be
correctly secured into place.
4. Attach the other end of the Hose (part 19) to the
inlet fitting of the Trigger Valve (part 14). Please
ensure that, just like in the previous step that the Hose
Barb (part 17) is inside of the Hose Nut (part 18) as if
it isn’t then the Hose (part 19) will not be able to be
secured correctly. See the image to the left.
Part 17 & 18
Part 19
Part 14
USER MANUAL Model No: 3553

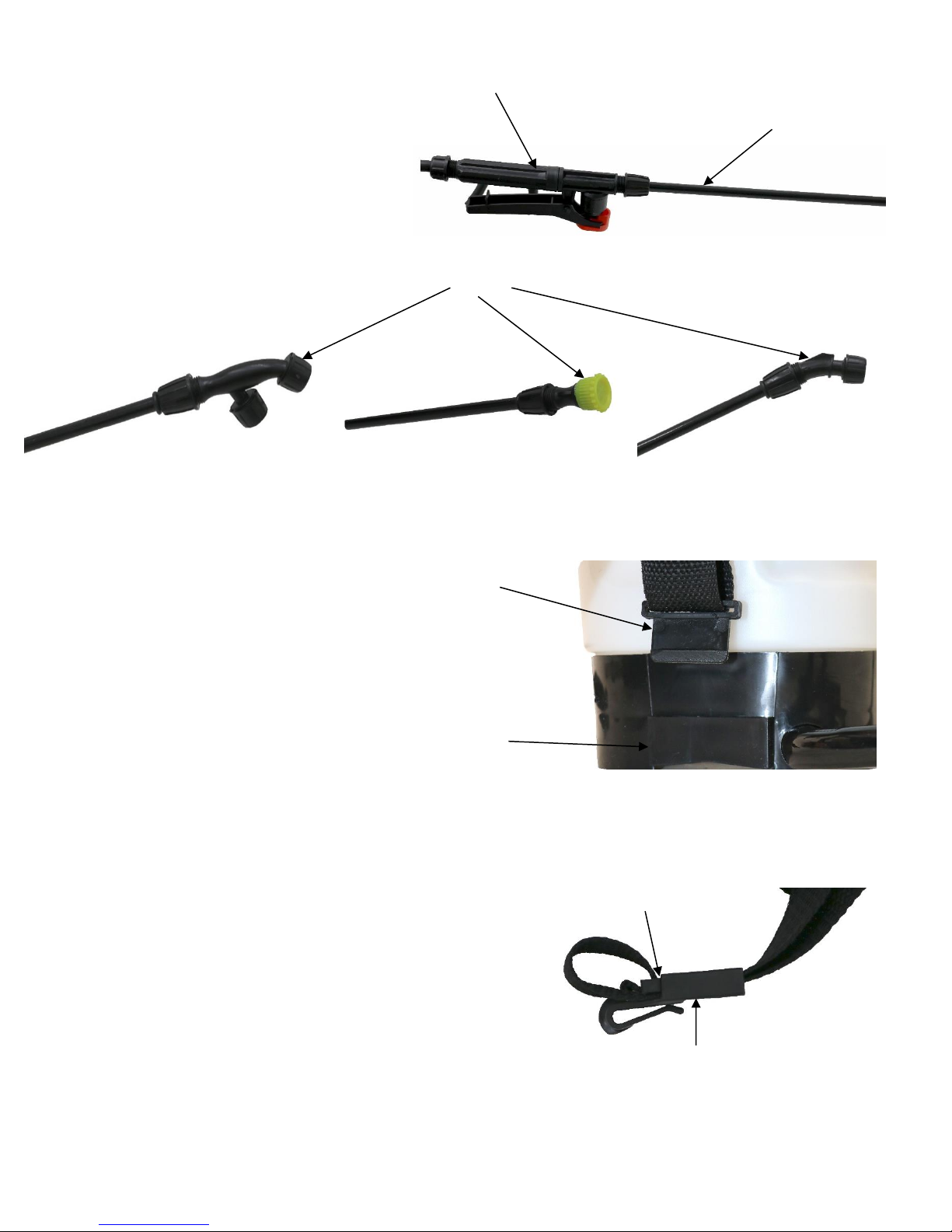

5. Slide the Spray Lance (part 13) into
the outlet of the Trigger Valve (part 14).
In regards to securing the Spray Lance
(part 13), please refer to the securing
method in the previous steps.
Part 13
Part 14
6. Once the Spray Lance (part 13) is correctly attached, attach one of the three Nozzle Attachments (part 11)
depending on the attachment you need at the time. When changing the Nozzle Attachments (part 11), please ensure
that they are secured correctly to avoid any spillage of fluids.
Part 11
USER MANUAL Model No: 3519
USER MANUAL Model No: 3553
7. Before you use the 16 Litre Knapsack Sprayer
you will be required to attach the carrying straps.
Start by passing the Carrying Strap End Fitting
(part 20) and the Carry Strap Hook (part 21)
through the opening in the side of the Tank Base
(part 5). See top image to the right.
8. After this, push the Carrying Strap End Fitting
(part 20) through the Carrying Strap Hook (part
21) as this will secure the carrying strap at the
desired length. Repeat these steps on the other
side to complete both carrying straps. Please see
the bottom image to the right.
Part 20
Part 5
Part 21
Part 20

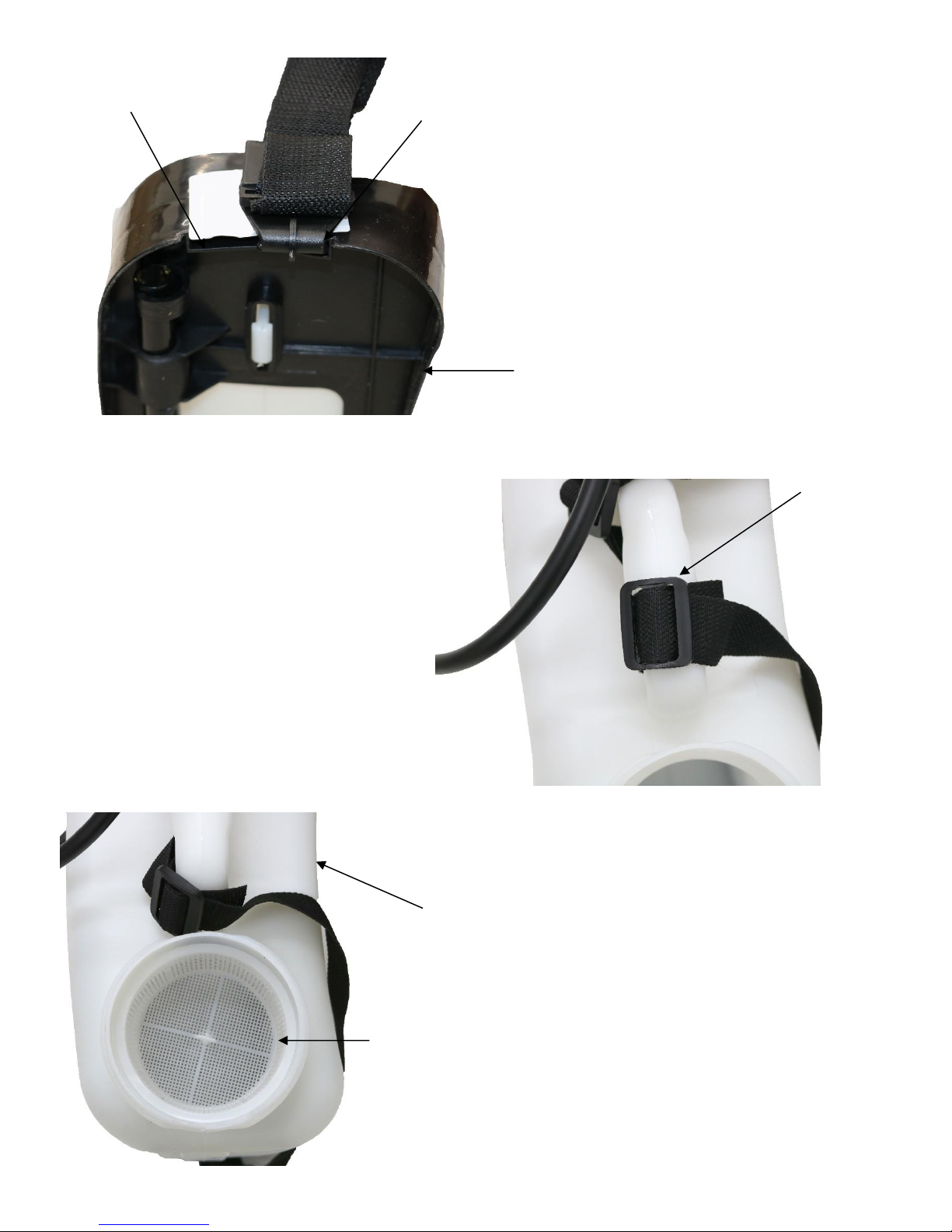

9. Clip the Carrying Strap Hook (part 21) onto the
designated area on the Tank Base (part 5). Please
see the image to the left for more detail. Repeat
this step on the other side with the other harness
strap.
Part 5
Part 21
Designated Area
Part 10
10. To lengthen the harness push the Strap
Buckle (part 10) up, however to decrease the
length you should pull the Strap Buckle (part 10)
towards you. When wearing the 16
Litre Knapsack Sprayer ensure that it isn’t loose
and dangling off of your back.
Part 37
Part 33
11. After completing all previous steps, put the
Pesticide Tank Filling Filter (part 37) into the
compartment under the Pesticide Tank Lid (part 38).
This will make sure that nothing other than liquid will
go into the Pesticide Tank (part 33)
USER MANUAL Model No: 3553

USER MANUAL Model No: 3553
Make sure to follow the instructions on the packaging of the agricultural chemicals, disinfectants, cleaning agents etc
when pouring them into the 16 Litre Knapsack Sprayer as to avoid damaging the product and/or causing harm to
yourself or those around you.
If you find one of the nozzles becomes blocked during use or doesn’t spray in the nozzle’s pattern, unscrew the nozzle
tip and clean it under running water. Do not try to unblock the nozzle using an object as this may damage the nozzle,
rendering it ineffective.
To operate the 16 Litre Knapsack Sprayer, unscrew the Pesticide Tank Lid (part 38) and fill it through the Pesticide Tank
Filling Filter (part 37) before screwing the Pesticide Tank Lid (part 38) back on. Attach the 16 Litre Knapsack Sprayer to
your back and pump the Pump Handle (part 31) to build the pressure in the Air Chamber (part 32) before spraying.
Once you’ve finished using the 16 Litre Knapsack Sprayer, remove both the Pesticide Tank Lid (part 38) and the
Pesticide Tank Filling Filter (part 37) and wash the Pesticide Tank (part 33) with warm water.
Please retain a copy of all instructions
for future consultation.
