Ozito AGS-4050U User manual

ANGLE
GRINDER
115mm (4.5”)
ORIGINAL INSTRUCTIONS
SPECIFICATIONS
Motor: 850W
No Load Speed: 12,000/min
Cutting Diameter: 115mm (4.5”)
Spindle: M14
Weight: 2.05kg
AGS-4050U
WHAT’S IN THE BOX
Angle Grinder
Inner & Outer Flange
Side Handle
ozito-diy.co.uk Pin Spanner
Metal Grinding Disc
Safety Guard
WARRANTY
OZITO UK Unit 9 Stadium Court, Wirral International Business Park, Plantation Road, Bromborough, Wirral, CH62 3QG 0516
All of our products undergo strict quality checks to ensure that they reach
you in perfect condition. In the unlikely event that your device develops a
fault, please contact our service department at the address shown on this
guarantee card. You can also contact us by telephone using the customer
service number shown. Please note the following terms under which
guarantee claims can be made:
1. These warranty terms regulate additional warranty services, which the
manufacturer mentioned below promises to buyers of its new products
in addition to their statutory guarantee claims are not affected by this
guarantee. Our guarantee is free of charge to you.
2. The warranty services only covers defects due to material or
manufacturing faults on a product which you have bought from the
manufacturer mentioned below are limited to either the rectication of said
defects on the product or the replacement of the product, whichever we
prefer.
Please note that our devices are not designed for use in commercial, trade
or professional applications. A guarantee contract will not be created if the
device has been used by commercial, trade or industrial business or has
been exposed to similar stresses during the guarantee period.
3. The following are not covered by our guarantee:
- Damage to the device caused by a failure to follow the assembly
instructions or due to incorrect installation, a failure to follow the operating
instructions (for example connecting it to an incorrect mains voltage or
current type) or a failure to follow the maintenance and safety instructions
or by exposing the device to abnormal environmental conditions or by lack
of care and maintenance.
- Damage to the device caused by abuse or incorrect use (for example
overloading the device or the use or unapproved tools or accessories),
ingress of foreign bodies into the device (such as sand, stones or dust,
transport damage), the use of force or damage caused by external forces
(for example by dropping it).
- Damage to the device or parts of the device caused by normal or natural
wear or tear or by normal use of the device.
4. Your Product is guaranteed for a period of 36 months from the original
date of purchase and is intended for DIY (Do It Yourself) use only. Lithium
Ion batteries and chargers are covered by a 12 month warranty. Warranty
excludes consumable parts. Guarantee claims should be submitted
before the end of the guarantee period within two weeks of the defect
being noticed. No guarantee claims will be accepted after the end of the
guarantee period. The original guarantee period remains applicable to the
device even if repairs are carried out or parts are replaced. In such cases,
the work performed or parts tted will not result in an extension of the
guarantee period, and no new guarantee will become active for the work
performed or parts tted. This also applies if an on-site service is used.
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO THE PLACE OF PURCHASE WITH YOUR
REGISTER RECEIPT.
Please refer to the restrictions of this warranty concerning wearing parts,
consumables and missing parts as set out in the service information in
these operating instructions.
CUSTOMER SERVICE HELPLINE
GB: 0151 294 4488
IRL: 1850 882711
Ozito-diy.co.uk

ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.

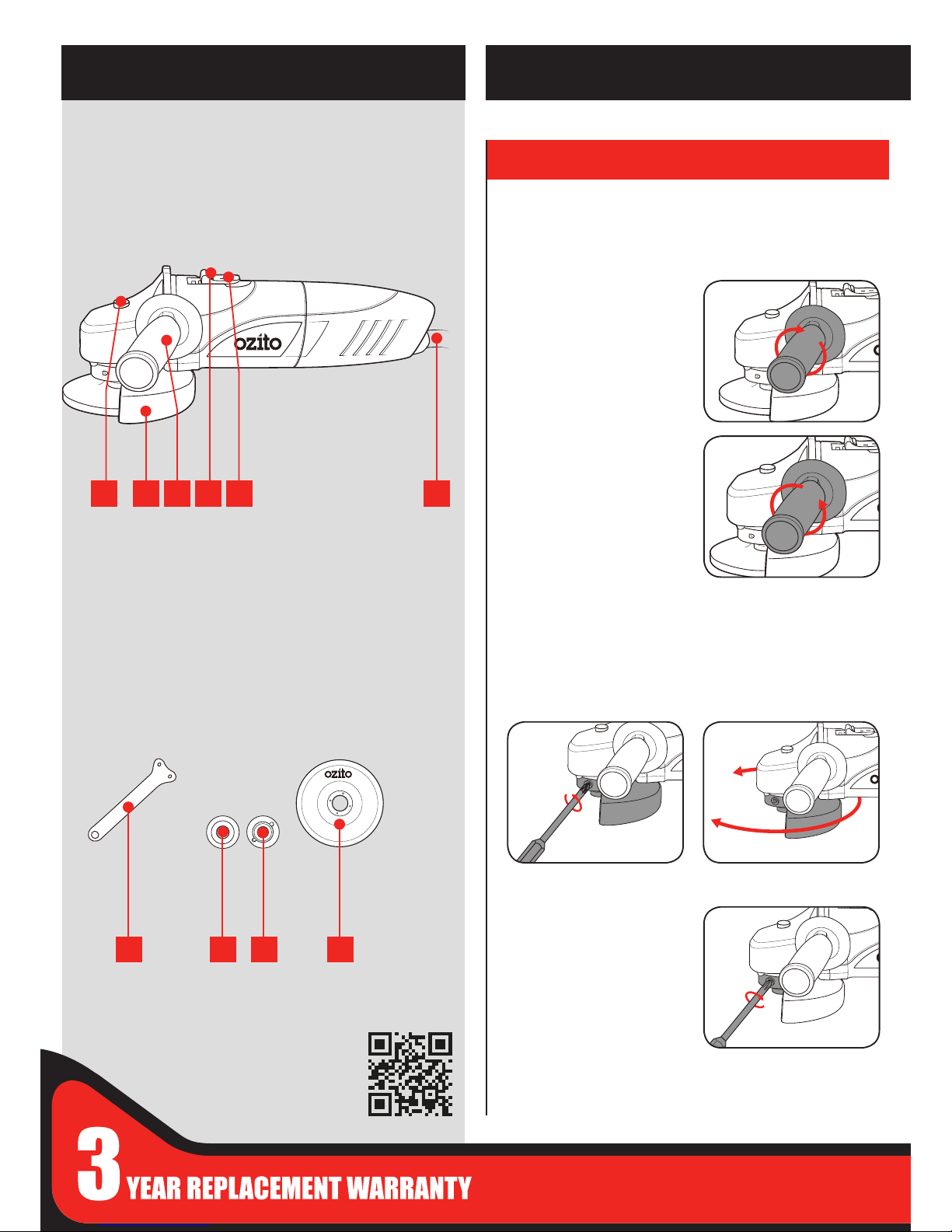

1 Spindle Lock
2 Adjustable Safety Guard
3 Side Handle
4 Lock-Off Slide Switch
5 On/Off Switch
6 Power Cord
ANGLE GRINDER
KNOW YOUR PRODUCT
1. SIDE HANDLE & GUARD
7 Pin Wrench
8 Inner Flange
9 Outer Flange
10 Metal Grinding Disc
ACCESSORIES
SETUP & PREPARATION
1 2 3 4 5 6
7 8 9 10
Adjusting the Safety Guard
Fitting the Side Handle
1 Loosen guard bolt with a
phillips head screwdriver.
3 Tighten the guard bolt to
secure in place.
1 Firmly attach the side handle
in the desired position by
rotating clockwise.
2 To remove the side handle
rotate it anti-clockwise.
The safety guard must be used at all times whilst operating the angle
grinder.
The side handle can be tted on either side of your grinder. The correct
position will be determined by your preferred hand and the operation
being performed.
2 Rotate the safety guard into
the desired position.

2. GRINDING DISC 3. SWITCHING ON & OFF
OPERATION
1 Slide and hold the lock-off
slide switch to the right.
2 Push the on/off switch into the
on position to start the grinder.
3 To stop the grinder, push the
on/off switch backward into the
off position.
1 Depress and hold the spindle
lock button. The angle grinder is tted with a lock-off slide switch to avoid accidental
start up.
3 Use the pin spanner to loosen
the outer ange.
5 Screw the outer ange onto
the spindle.
Note: The at side of the ange
locates against the disc.
Inspect the grinding disc before tment to ensure it is not cracked or
deformed. The grinding disc is suitable for grinding tasks only. Only use
grinding discs with a diameter of 115mm.
2 Rotate the spindle to locate
the lock position.
4 Insert the disc with the label
facing up.
6 Depress and hold the spindle
lock button. Firmly tighten
the outer ange with the pin
spanner.
CAUTION: REGULARLY CHECK THAT THE
OUTER FLANGE HAS NOT BECOME LOOSE
DURING OPERATION.
WARNING: THE TOOL IS RECOMMENDED FOR
USE WITH A RESIDUAL CURRENT DEVICE WITH A
RATED RESIDUAL CURRENT OF 30MA OR LESS.

AGS-4050U
4. GRINDING
1 Ensure the disc, outer ange
and safety guard are tted
securely.
2 Make sure the workpiece is
securely held down.
3 Switch the angle grinder on.
4 Begin grinding your workpiece. The optimum grinding angle is 10-15°
to the workpiece. Do not apply excessive pressure. Allow the tool to
do the work. This will prevent deep gouging.
10-15°

MAINTENANCE
DESCRIPTION OF SYMBOLS
TROUBLESHOOTING
• Keep the ventilation vents of the angle grinder clean at all times, if possible,
prevent foreign matter from entering the vents.
• After each use, blow air through the angle grinder housing to ensure it is
free from all dust particles which may build up. Build up of dust particles may
cause the angle grinder to overheat and fail.
• If the enclosure of the angle grinder requires cleaning, do not use solvents but
a moist soft cloth only. Never let any liquid get inside the angle grinder; never
immerse any part of the angle grinder into a liquid.
Carbon Brushes
When the carbon brushes wear out, the angle grinder will spark and/or stop.
Discontinue use as soon as this happens. They should be replaced prior
to recommencing use of the angle grinder. Carbon brushes are a wearing
component of the angle grinder therefore not covered
under warranty. Continuing to use the angle grinder
when carbon brushes need to be replaced may
cause permanent damage. Carbon brushes will wear
out after many uses but when the carbon brushes
need to be replaced, take the angle grinder to an
electrician or a power tool repairer for a quick and
low cost replacement. Always replace both carbon
brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the angle grinder by an unauthorised person or by mishandling
of the angle grinder.
Sparking visible through the housing air vents
A small amount of sparking may be visible through the housing vents.
This is normal and does not indicate a problem.
Excessive sparking visible through the housing air vents
and/or the angle grinder failing to operate
May indicate the carbon brushes have worn out and need to be
replaced. Carbon brushes should only be replaced by a qualied
electrician or power tool repairer.
SPARE PARTS
VVolts Hz Hertz
~Alternating current WWatts
/min Revolutions or
reciprocation per minute
Double insulated Read instruction manual
Always wear gloves
Wear eye protection
Always wear ear, eye and
safety mask
noNo load speed
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse or Homebase store.
For further information, or any parts visit
www.ozito-diy.co.uk or contact Ozito Customer Service:
Great Britain: 0151 294 4488
Ireland: 1850 882711
E-mail: [e-mail]

ANGLE GRINDER SAFETY INSTRUCTIONS
Before you connect the equipment to the mains supply make sure that the data on the rating plate are
identical to the mains data.
This tool is double insulated; therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid
a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The
insulation system is for added protection against injury resulting from a possible electrical insulation failure
within the tool.
Using an Extension Lead
Always use an approved extension lead suitable for the power input of this tool. Before use, inspect the
extension lead for signs of damage, wear and ageing. Replace the extension lead if damaged or defective.
When using an extension lead on a reel, always unwind the lead completely. Use of an extension lead not
suitable for the power input of the tool or which is damaged or defective may result in a risk of re and electric
shock.
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the warnings refers
to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceofammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to
lose control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way.
Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and
matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of electric shock
if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the
risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable
for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device (RCD)
protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do
notuseapowertoolwhileyouaretiredorundertheinuenceofdrugs,alcoholormedication.
A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as
dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will
reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to
power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your
nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on.
A wrench or a key left attached to a rotating part of the power tool may result
in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure
these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct power
tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power tool before
making any adjustments, changing accessories, or storing power tools. Such preventive safety
measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the
power tool or these instructions to operate the power tool. Power tools are dangerous in the hands
of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and
any other condition that may affect the power tool’s operation. If damaged, have the power tool
repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are
less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking
into account the working conditions and the work to be performed. Use of the power tool for
operations different from those intended could result in a hazardous situation.
5. Service
a. Haveyourpowertoolservicedbyaqualiedrepairpersonusingonlyidenticalreplacement
parts. This will ensure that the safety of the power tool
is maintained.
GENERAL POWER TOOL SAFETY WARNINGS
ELECTRICAL SAFETY
WARNING! a) This power tool is intended to function as a grinder, sanding or cut-off
tool.Readallsafetywarnings,instructions,illustrationsandspecicationsprovidedwith
this power tool.
Failuretofollowallinstructionslistedbelowmayresultinelectricshock,rand/orseriousinjury.
b) Operations such as wire brushing, or polishing are not recommended to be performed with this
power tool. Operations for which the power tool was not designed may create a hazard and cause personal
injury.
c)Donotuseaccessorieswhicharenotspecicallydesignedandrecommendedbythetool
manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe
operation.
d) The rated speed of the accessory must be at least equal to the maximum speed marked on the
power tool. Accessories running faster than their rated speed can break and y apart
e) The outside diameter and the thickness of your accessory must be within the capacity rating of
your power tool. Incorrectly sized accessories cannot be adequately guarded or controlled.
f)Thearboursizeofwheels,anges,backingpadsoranyotheraccessorymustproperlytthe
spindle of the power tool. Accessories with arbour holes that do not match the mounting hardware of the
power tool will run out of balance, vibrate excessively and may cause loss of control.
g) Do not use a damaged accessory. Before each use inspect the accessory such as abrasive wheels
for chips and cracks, backing pad for cracks, tear or excess wear, wire brush for loose or cracked wires. If
power tool or accessory is dropped, inspect for damage or install an undamaged accessory. After inspecting
and installing an accessory, position yourself and bystanders away from the plane of the rotating accessory
and run the power tool at maximum no-load speed for one minute. Damaged accessories will normally
break apart during this test time.
h) Wear personal protective equipment. Depending on application, use face shield, safety goggles or
safety glasses. As appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable
of stopping small abrasive or work piece fragments. The eye protection must be capable of stopping ying
debris generated by various operations . The dust mask or respirator must be capable of ltrating particles
generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.
i) Keep bystanders a safe distance away from work area. Anyone entering the work area must wear
personal protective equipment. Fragments of workpiece or of a broken accessory may y away and
cause injury beyond immediate area of operation.
j) Hold power tool by insulated gripping surfaces only, when performing an operation where the
cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a “live” wire
may make exposed metal parts of the power tool “live” and shock the operator.
k) Position the cord clear of the spinning accessory. If you lose control, the cord may be cut or snagged
and your hand or arm may be pulled into the spinning accessory.
l) Never lay the power tool down until the accessory has come to a complete stop. The spinning
accessory may grab the surface and pull the power tool out of your control.
m) Do not run the power tool while carrying it at your side. Accidental contact with the spinning
accessory could snag your clothing, pulling the accessory into your body.
n) Regularly clean the power tool’s air vents. The motor’s fan will draw the dust inside the housing and
excessive accumulation of powdered metal may cause electrical hazards.
o)Donotoperatethepowertoolnearammablematerials.Sparks could ignite these materials.
p) Do not use accessories that require liquid coolants. Using water or other liquid coolants may result in
electrocution or shock.
Kickback and related warnings
Kickback is a sudden reaction to a pinched or snagged rotating wheel, backing pad, brush or any other
accessory. Pinching or snagging causes rapid stalling of the rotating accessory which in turn causes the
uncontrolled power tool to be forced in the direction opposite of the accessory’s rotation at the point of the
binding.
For example, if an abrasive wheel is snagged or pinched by the work piece, the edge of the wheel that is
entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick
out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s
movement at the point of pinching. Abrasive wheels may also break under these conditions. Kickback is
the result of power tool misuse and/or incorrect operating procedures or conditions and can be avoided by
taking proper precautions as given below.
a)Maintainarmgriponthepowertoolandpositionyourbodyandarmtoallowyoutoresist
kickback forces. Always use auxiliary handle, if provided, for maximum control over kickback or torque
reaction during start-up. The operator can control torque reactions or kickback forces, if proper precautions
are taken.
b) Never place your hand near the rotating accessory. Accessory may kickback over your hand.
c) Do not position your body in the area where power tool will move if kickback occurs. Kickback will
propel the tool in direction opposite to the wheel’s movement at the point of snagging.
d) Use special care when working corners, sharp edges etc. Avoid bouncing and snagging the
accessory. Corners, sharp edges or bouncing have a tendency to snag the rotating accessory and cause
loss of control or kickback.
e) Do not attach a saw chain woodcarving blade or toothed saw blade. Such blades create frequent
kickback and loss of control.
Additional safety instructions for grinding and abrasive cutting-off operations
a)Useonlywheeltypesthatarerecommendedforyourpowertoolandthespecicguarddesigned
for the selected wheel. Wheels for which the power tool was not designed cannot be adequately guarded
and are unsafe.
b) The guard must be securely attached to the power tool and positioned for maximum safety, so
the least amount of wheel is exposed towards the operator. The guard helps to protect operator from
broken wheel fragments and accidental contact with wheel.
c) Wheels must be used only for recommended applications. For example: do not grind with the side
of cut-off wheel. Abrasive cut-off wheels are intended for peripheral grinding, side forces applied to these
wheels may cause them to shatter.
d)Alwaysuseundamagedwheelangesthatareofcorrectsizeandshapeforyourselectedwheel.
Proper wheel anges support the wheel thus reducing the possibility of wheel breakage. Flanges for cut-off
wheels may be different from grinding wheel anges.
e) Do not use worn down wheels from larger power tools. Wheel intended for larger power tool is not
suitable for the higher speed of a smaller tool and may burst.
Additional safety instructions for abrasive cutting-off operations:
a) Do not “jam” the cut-off wheel or apply excessive pressure. Do not attempt to make an excessive
depth of cut. Overstressing the wheel increases the loading and susceptibility to twisting or binding of the
wheel in the cut and the possibility of kickback or wheel breakage.
b) Do not position your body in line with and behind the rotating wheel. When the wheel, at the point
of operation, is moving away from your body, the possible kickback may propel the spinning wheel and the
power tool directly at you.
c) When wheel is binding or when interrupting a cut for any reason, switch off the power tool and
hold the power tool motionless until the wheel comes to a complete stop. Never attempt to remove the
cut-off wheel from the cut while the wheel is in motion otherwise kickback may occur. Investigate and take
corrective action to eliminate the cause of wheel binding.
d) Do not restart the cutting operation in the work piece. Let the wheel reach full speed and carefully
reenter the cut. The wheel may bind, walk up or kickback if the power tool is restarted in the work piece.
e) Support panels or any oversized work piece to minimize the risk of wheel pinching and kickback.
Large work pieces tend to sag under their own weight. Supports must be placed under the work piece near
the line of cut and near the edge of the work piece on both sides of the wheel.
f) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The
protruding wheel may cut gas or water pipes,electrical wiring or objects that can cause kickback.
Additional safety instructions for sanding operations
a) Do not use excessively oversized sanding disc paper. Follow manufacturers recommendations, when
selecting sanding paper. Larger sanding paper extending beyond the sanding pad presents a laceration
hazard and may cause snagging, tearing of the disc or kickback.
The tool is recommended for use with a residual current device with a rated residual current of
30mA or less.

size 445 x 210 mm
Danger! - Read the operating instructions to re-
duce the risk of inquiry
Caution! Wear ear-mus. The impact of noise
can cause damage to hearing.
Caution! Wear a breathing mask. Dust which
is injurious to health can be generated when
working on wood and other materials. Never use
the device to work on any materials containing
asbestos!
Caution! Wear safety goggles. Sparks gene-
rated during working or splinters, chips and dust
emitted by the device can cause loss of sight.
This safety guard is designed for sanding/
grinding.
This safety guard is designed for cutting and
grinding/sanding.
(not included in items supplied)
AGS-4050U
GB Additonal operating & safety instructions Angle Grinder
Yang/Product-ManagementWeichselgartner/General-Manager
- 135 -
explains the following conformity according to EU directives and norms for
the following product
Angle Grinder AGS-4050U (Ozito)
2014/29/EU
2005/32/EC_2009/125/EC
2014/35/EU
2006/28/EC
X2014/30/EU
2014/32/EU
2014/53/EC
2014/68/EU
90/396/EC_2009/142/EC
89/686/EC_96/58/EC
X2011/65/EU
X2006/42/EC
Annex IV
Noti ed Body:
Noti ed Body No.:
Reg. No.:
2000/14/EC_2005/88/EC
Annex V
Annex VI
Noise: measured LWA = dB (A); guaranteed LWA = dB (A)
P = KW; L/Ø = cm
Noti ed Body:
2004/26/EC
Emission No.:
Standard references: EN 60745-1; EN 60745-2-3; EN 55014-1;
EN 55014-2; EN 61000-3-2; EN 61000-3-3
Landau/Isar, den 09.05.2016
First CE: 16 Archive-File/Record: NAPR014242
Art.-No.: 44.306.63 I.-No.: 11016 Documents registrar: Robert Gerhard
Subject to change without notice Wiesenweg 22, D-94405 Landau/Isar
ISC GmbH · Eschenstraße 6 · D-94405 Landau/Isar
Declaration of conrmity
The reprinting or reproduction by any other me-
ans, in whole or in part, of documentation and
papers accompanying products is permitted only
with the express consent of the iSC GmbH.
Subject to technical changes
Service information
We have competent service partners in all countries named on the guarantee certicate whose contact
details can also be found on the guarantee certicate. These partners will help you with all service re-
quests such as repairs, spare and wearing part orders or the purchase of consumables.
Please note that the following parts of this product are subject to normal or natural wear and that the
following parts are therefore also required for use as consumables.
Category Example
Wear parts* Carbon brushes
Consumables* Cutting wheels, grinding wheels
Missing parts
* Not necessarily included in the scope of delivery!
In the eect of defects or faults, please register the problem on the internet at www.isc-gmbh.info. Plea-
se ensure that you provide a precise description of the problem and answer the following questions in all
cases:
• Did the equipment work at all or was it defective from the beginning?
• Did you notice anything (symptom or defect) prior to the failure?
• What malfunction does the equipment have in your opinion (main symptom)?
Describe this malfunction.
Beiblatt_AGS_4050U.indd 1 12.05.16 11:01

size 445 x 210 mm
Items supplied
Please check that the article is complete as
specied in the scope of delivery. If parts are
missing, please contact our service center or the
sales outlet where you made your purchase at
the latest within 5 working days after purchasing
the product and upon presentation of a valid bill
of purchase. Also, refer to the warranty table in
the service information at the end of the operating
instructions.
• Open the packaging and take out the equip-
ment with care.
• Remove the packaging material and any
packaging and/or transportation braces
(if available).
• Check to see if all items are supplied.
• Inspect the equipment and accessories for
transport damage.
• If possible, please keep the packaging until
the end of the guarantee period.
Danger!
The equipment and packaging material are
not toys. Do not let children play with plastic
bags, foils or small parts. There is a danger of
swallowing or suocating!
Proper use
The angle grinder is designed for grinding metal
and stone when using the appropriate grinding
wheel and guard.
Warning! To cut metal and stone the grinder/san-
der may only be used when the guard (available
as an accessory) is mounted.
The equipment is to be used only for its prescri-
bed purpose. Any other use is deemed to be a
case of misuse. The user/operator and not the
manufacturer will be liable for any damage or inju-
ries of any kind caused as a result of this.
Please note that our equipment has not been de-
signed for use in commercial, trade or industrial
applications. Our warranty will be voided if the
machine is used in commercial, trade or industrial
businesses or for equivalent purposes.
Technical data
Mains voltage: ............................... 230 V ~ 50 Hz
Power input: .............................................. 850 W
Idling speed: ....................................... 12000 rpm
Max. wheel diameter: ............................. 115 mm
Grinding wheel: ......................... 115 x 22 x 6 mm
Cutting wheel: ........................... 115 x 22 x 3 mm
Mounting spindle thread: ............................. M 14
Protection class: ...........................................II / &
Weight: .....................................................2.05 kg
Danger!
Sound and vibration
Sound and vibration values were measured in
accordance with EN 60745.
LpA sound pressure level ..................... 83.2 dB(A)
KpA uncertainty ............................................. 3 dB
LWA sound power level ....................... 94.2 dB(A)
KWA uncertainty ............................................. 3 dB
Wear ear-mus.
The impact of noise can cause damage to hea-
ring.
Total vibration values (vector sum of three direc-
tions) determined in accordance with EN 60745.
Surface sanding/grinding:
Vibration emission value ahAG = 4.9 m/s2
K uncertainty = 1.5 m/s2
The specied vibration value was established in
accordance with a standardized testing method. It
may change according to how the electric equip-
ment is used and may exceed the specied value
in exceptional circumstances.
The specied vibration value can be used to
compare the equipment with other electric power
tools.
The specied vibration value can be used for initi-
al assessment of a harmful eect.
Keep the noise emissions and vibrations to a
minimum.
• Only use appliances which are in perfect wor-
king order.
• Service and clean the appliance regularly.
• Adapt your working style to suit the appliance.
• Do not overload the appliance.
• Have the appliance serviced whenever
necessary.
• Switch the appliance off when it is not in use.
• Wear protective gloves.
Caution!
Residual risks
Even if you use this electric power tool in ac-
cordance with instructions, certain residual
risks cannot be rules out. The following ha-
zards may arise in connection with the equip-
ment’s construction and layout:
1. Lung damage if no suitable protective dust
mask is used.
2. Damage to hearing if no suitable ear protecti-
on is used.
3. Health damage caused by hand-arm vibra-
tions if the equipment is used over a pro-
longed period or is not properly guided and
maintained.
For EU countries only
Never place any electric power tools in your
household refuse.
To comply with European Directive 2012/19/EC
concerning old electric and electronic equipment
and its implementation in national laws, old elec-
tric power tools have to be separated from other
waste and disposed of in an environment-friendly
fashion, e.g. by taking to a recycling depot.
Recycling alternative to the return request:
As an alternative to returning the equipment to
the manufacturer, the owner of the electrical
equipment must make sure that the equipment
is properly disposed of if he no longer wants to
keep the equipment.The old equipment can be
returned to a suitable collection point that will
dispose of the equipment in accordance with the
national recycling and waste disposal regulations.
This does not apply to any accessories or aids
without electrical components supplied with the
old equipment.
Beiblatt_AGS_4050U.indd 2 12.05.16 11:01
