Ozito PXCLMS-018 User manual

BRUSHLESS
LAWN MOWER
ORIGINAL INSTRUCTIONS
SPECIFICATIONS
Voltage: 18V
Cutting Diameter: 300mm
Cutting Heights: 30, 50 & 70mm
No Load Speed: 3,300/min
Grass Catcher: 25 litres
Weight (Tool Only): 8.57kg
PXCLMS-018
Brushless Lawn Mower
Safety Key
ozito.com.au
STANDARD EQUIPMENT
WARRANTY
0518
IN ORDER TO MAKE A CLAIM UNDER THIS WARRANTY YOU MUST
RETURN THE PRODUCT TO YOUR NEAREST BUNNINGS WAREHOUSE
WITH YOUR BUNNINGS REGISTER RECEIPT. PRIOR TO RETURNING
YOUR PRODUCT FOR WARRANTY PLEASE TELEPHONE OUR CUSTOMER
SERVICE HELPLINE:
Australia 1800 069 486
New Zealand 0508 069 486
TO ENSURE A SPEEDY RESPONSE PLEASE HAVE THE MODEL
NUMBER AND DATE OF PURCHASE AVAILABLE. A CUSTOMER
SERVICE REPRESENTATIVE WILL TAKE YOUR CALL
AND ANSWER ANY QUESTIONS YOU MAY
HAVE RELATING TO THE WARRANTY POLICY
OR PROCEDURE.
The benets provided under this warranty are in addition
to other rights and remedies which are available to you at law.
Our goods come with guarantees that cannot be excluded
at law. You are entitled to a replacement or refund for a major failure and for
compensation for any other reasonably foreseeable loss or damage. You are also
entitled to have the goods repaired
or replaced if the goods fail to be of acceptable quality and the failure does not
amount to a major failure.
Generally you will be responsible for all costs associated with
a claim under this warranty, however, where you have suffered
any additional direct loss as a result of a defective product you
may be able to claim such expenses by contacting our customer service helpline
above.
WARNING
The following actions will result in the warranty being
void.
• If the tool has been operated on a supply voltage other
than that specied on the tool.
• If the tool shows signs of damage or defects caused
by or resulting from abuse, accidents or alterations.
• Failure to perform maintenance as set out within the instruction manual.
• If the tool is disassembled or tampered with in any way.
5 YEAR REPLACEMENT WARRANTY
Your Product is guaranteed for a period of 60 months from the original date of
purchase and is intended for DIY (Do It Yourself) use only. If a product is defective it
will be replaced in accordance with the terms of this warranty. Lithium Ion
batteries and chargers are covered by a 36 month
warranty. Warranty excludes consumable parts, for example: grass catcher,
wheels, blade, cord clips, bearings etc..
OZITO Australia/New Zealand (Head Ofce) 1-23 Letcon Drive, Bangholme, Victoria, Australia 3175.

ONLINE MANUAL
Scan this QR Code with your mobile
device to take you to the online manual.
12. Safety Key
1. Wheels
2. Battery Cover
3. Lower Handle
4. Grass Catcher Flap
5. Handle Securing Set
6. Upper Handle
7. Start/Stop Lever
8. Lock-off Button
9. Grass Catcher
10. Handle Securing Knob
11. Lifting Handle
BRUSHLESS LAWN MOWER

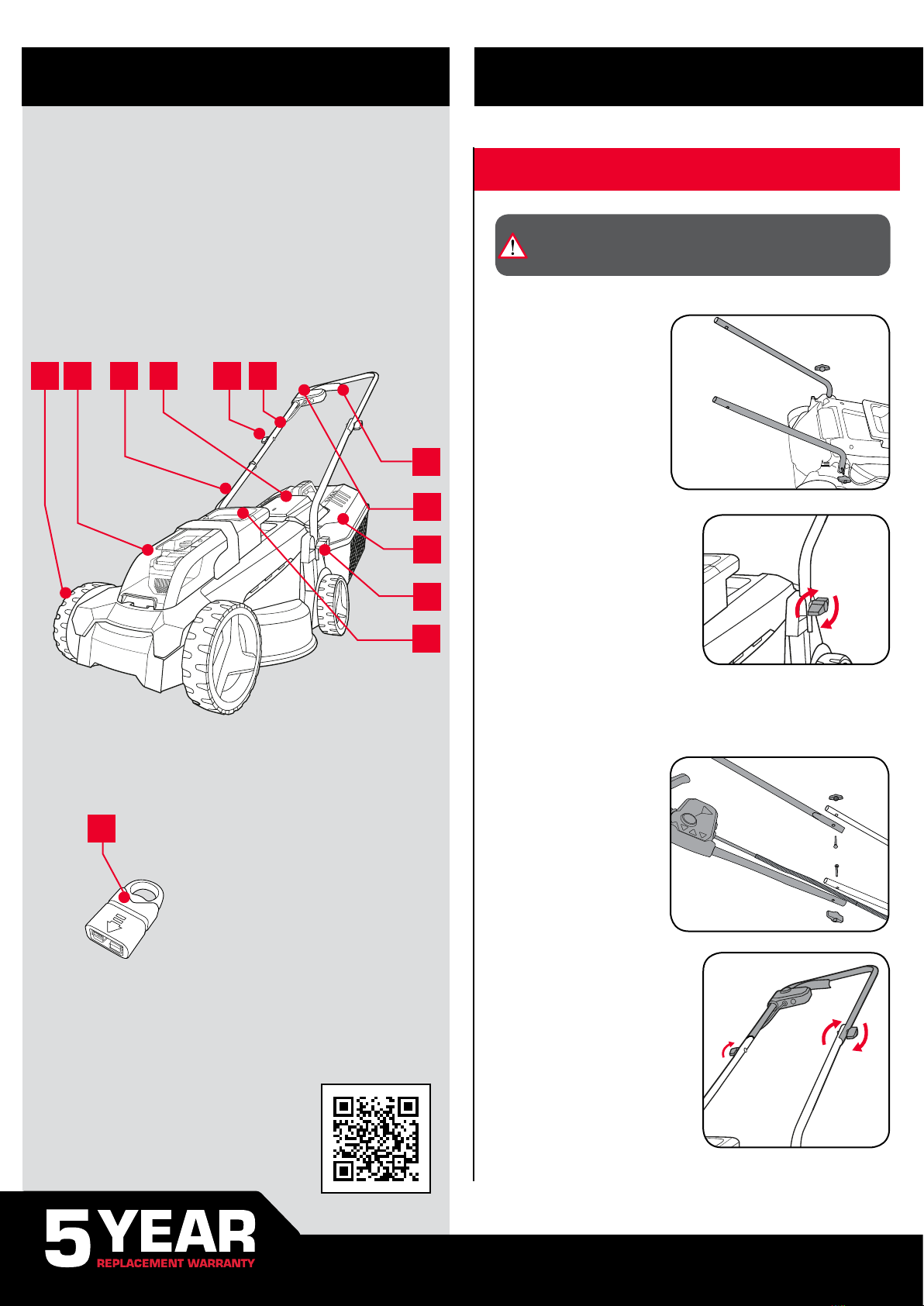

KNOW YOUR PRODUCT
1
9
2
10
3
11
4
12
5 6
7
8
1. ASSEMBLY
SETUP & PREPARATION
1. Place the upper handle over
the upper ends of the lower
handle.
1. Place the lower handle into
the threaded ends.
Fitting the Upper Handle
Fitting the Lower Handles
WARNING! ENSURE THE TOOL IS SWITCHED OFF
AND BATTERIES ARE DISCONNECTED BEFORE
PERFORMING ANY OF THE FOLLOWING TASKS.
ACCESSORIES
2. From the handle securing
set, t the bolts through
the inner side of the lower
handle and then through the
holes in the upper handle.
3. Secure in place by screwing
the handle securing knobs
over the protruding ends of
the bolts.
2. Secure with a handle securing
knob.
BATTERY & CHARGER
This tool is compatible with all battery and chargers from the Ozito
Power X Change Range.

2. INSERTING AND REMOVING BATTERY
1. Open the battery cover.
1. Open the battery cover.
3. Insert the safety key.
(If the mower is not going to be
used immediately, do not insert
the safety key.)
2. Press the battery release tab and
remove the battery.
1. Lift up the catcher ap with one
hand and guide the catcher with
your other hand over the two
hooks on the mower housing.
3. To remove, raise the ap and lift
the catcher out.
2. Slide the battery into the mower
aligning the ribs so that it clicks
into place.
4. Close the battery cover.
3. Close the battery cover.
2. Lower the grass catcher and allow
it to sit in place. Lower the catcher
ap.
Inserting the Battery into the Mower
Removing the Battery from the Mower
Fitting and Removing the Grass Catcher
IMPORTANT! ONLY FIT AND REMOVE THE CATCHER
WHEN THE MOWER IS SWITCHED OFF AND THE
MOTOR HAS COME TO A STOP.
1. Locate cord on outside of handle. Secure the power cord from the switch
housing to the mower using 2 cable ties (supplied).
Note: Care should be
taken not to impinge
cord when folding down
the handle.
Securing the Cord
Ensure the cord follows the handle smoothly from the switch to the body of
the mower.
Note: The catcher ap is held
against the grass catcher by a spring.
Grass Catcher Assembly
1. To assemble the grass catcher
align the two halves and push
them together, one side at a
time. Ensure the two halves
click together around the entire
middle section.
2. Assemble the grass catcher
handle onto the opening on the
top half of the grass catcher.
The handle will click into
position when aligned and tted
correctly.
Ensure only 3.0Ah and above batteries are used.

4. MOWING 3. CONTROLS
OPERATION
1. Press and hold the lock-off
button.
3. Release the start/stop lever to
stop the mower.
To prevent accidental start up, the mower is tted with a dual action switch.
2. Pull the start/stop lever towards
the handle to start the mower
and then release the lock-off
button.
Switching On and Off
Adjusting the Cutting Height
1
2
PXCLMS-018
• While using your lawn mower always wear substantial closed, heavy
footwear and long trousers.
• Make sure the lawn is clear of sticks, stones, wire and debris; they could
be thrown by the blade.
• Before using the lawn mower and after any impact, check for signs of
wear or damage and repair as necessary.
• Replace a worn or damaged blade together with the blade bolt to
preserve balance.
IMPORTANT! DO NOT MOW WITH POOR VISIBILITY
CONDITIONS, IN THE RAIN OR WHEN GRASS IS
WET.
Start mowing the edge of the
lawn and work along making sure
to overlap each pass by a few
centimetres.
For optimum grass collection, always
mow in a straight line; do not swing
the lawn mower from side to side.
When mowing long grass be sure to
not overload the motor. First cut with
the highest cutting height and then
to the desired height. This will help
reduce the load.
Lawn Mowing Tips
To obtain the desired cutting height, the front and rear axles are repositioned
on the underside of the mower housing.
1. Place the mower on its side.
2. Pull the wheel axle towards the
front of the mower.
3. Locate the wheel axle into the
desired cutting height adjustment
position.
Note: Make sure that front, back, left & right wheels are located in the
same cutting height adjustment position.
Cutting Height Positions
1
2
3
1 - 30mm (lowest).
2 - 50mm.
3 - 70mm (highest).

DESCRIPTION OF SYMBOLS
Read instruction manual
Nm Newton Meters
Always keep the lawnmower on the ground when mowing.
Tilting or lifting the lawnmower may cause stones to be thrown out.
Beware of servering toes or hands. Do not put hands or feet near
a rotating blade.
Do not mow in the rain or leave the lawnmower outdoors while raining.
Keep bystanders away. Do not mow whilst people especially children
or pets are in the mowing area.
Blade continues to rotate after the machine isswitchedoff. Wait until all
machine components have completely stopped before touchingthem.
Pull out Safety Key before
carry out any repair work
Regulator compliance mark
TROUBLESHOOTING
Removing and Fitting the Blade
Cleaning, Maintenance and Storage
1. To remove the blade screw, hold the blade rmly and
with a 13mm socket loosen the blade screw by turning
it anti-clockwise.
NOTE: A piece of timber will assist in holding the blade
while removing or tightening the blade bolt.
2. Remove the blade screw, washer and blade.
3. To t the blade, place the blade over the centre hole aligning the lugs.
4. Then retighten the fastening screw with the universal wrench. The tightening torque should be
approx. 25 Nm.
TIMBER
• Keep all nuts, bolts and screws tight to be sure the lawn mower is in a safe working condition.
• Check the catcher frequently for wear or deterioration.
• Replace worn or damaged parts for safety.
• Only use the replacement blade and blade bolt specied for this product.
• Be careful during adjustments of the lawn mower to prevent entrapment of the ngers between
moving blade and xed parts of the machine.
• When not in use, the mower should be stored in a dry, frost-free location, out of reach of
children. If the housing of the mower requires cleaning, do not use solvents but a moist soft
cloth and brush only.
• Frequently check the wheel threads are rm and tight.
Note: Ozito Industries will not be responsible for any damage or injuries caused by the repair of the
lawn mower by an unauthorised person or by mishandling of the lawn mower. This tool is designed
for DIY use - use in commercial or industrial environments will void the warranty.
WARNING! ALWAYS ENSURE THE LAWN MOWER
BLADE HAS COMPLETELY STOPPED, REMOVE
SAFETY KEY, BATTERY AND GRASS CATCHER PRIOR
TO ANY MAINTENANCE.
CAUTION! ALWAYS USE GLOVES WHEN HANDLING
THE BLADE. SHARP EDGES COULD CAUSE INJURY.
Problem Cause Remedy
Mower is not
starting
Possible clogging Check underneath the mower and clear out
as necessary
Battery is low in charge Charge battery
Battery not inserted
properly
Insert battery pack correctly
Grass too long Raise the cutting height to reduce starting
load
Safety key not inserted
correctly
Fit correctly
Mower is
hard to push
Height of cut too low Raise cutting height
Cutting blade blunt Replace blade
Possible clogging Check underneath the mower and clear out
as necessary
Grass too long Raise the cutting height and walk slower
Grass too dense Raise the cutting height and walk slower and
cut more frequently
Wet grass Wait until the grass dries before mowing
Motor stops
while cutting
Height of cut too low Raise the cutting height
Battery has no power Charge battery
Mower is
not catching
grass properly
Height of cut too low Raise the cutting height
Wet grass Wait until the grass dries before mowing
Mower
vibrating
Bent or damaged blade Replace blade
Replace the metal blade after 50 hours mowing or 2 years whichever
is sooner. If the blade is cracked or damaged replace it with a new
one.
MAINTENANCE
Only replace the blade with a genuine Ozito replacement blade, as this will ensure top performance
and safety under all conditions.
CARING FOR THE ENVIRONMENT
Power tools that are no longer usable should not be disposed of with household
waste but in an environmentally friendly way. Please recycle where facilities exist.
Check with your local council authority for recycling advice.
Recycling packaging reduces the need for landll and raw materials. Reuse of
recycled material decreases pollution in the environment. Please recycle packaging
where facilities exist. Check with your local council authority for recycling advice.
Battery protection system
The tool is equipped with the battery protection system, which helps to ensure a long
service life.
The output power automatically cuts off during operation when the tool and/or battery
are placed under the following situations:
• When the tool is overloaded:
If this occurs, release the start/stop lever safety key and batteries and remove
causes of overload, then reinsert the safety key and batteries, then press and hold
the lock-off button and pull the start stop lever again to restart.
• When the remaining battery capacity becomes low:
Recharge the battery pack.
Note: The indicated capacity may be lower than the actual level during use or
immediately after using the tool.

ELECTRICAL SAFETY
WARNING! When using mains-powered tools, basic safety precautions, including
the following, should always be followed to reduce risk of fire, electric shock, personal
injury and material damage.
Read the whole manual carefully and make sure you know how to switch the tool off in an emergency, before operating the tool.
Save these instructions and other documents supplied with this tool for future reference.
Before you connect the charger to the mains supply make sure that the data on the rating plate are identical to the mains data.
This tools charger is double insulated, therefore no earth wire is required.
If the supply cord is damaged, it must be replaced by an electrician or a power tool repairer in order to avoid a hazard.
Note: Double insulation does not take the place of normal safety precautions when operating this tool. The insulation system is for
added protection against injury resulting from a possible electrical insulation failure within the tool.
The power supply for this products charger should be protected by a residual current device (rated at 30mA or less). A residual current
device reduces the risk of electric shock.
Spare parts can be ordered from the Special Orders Desk at
your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
LAWN MOWER SAFETY WARNINGS
GENERAL POWER TOOL SAFETY WARNINGS
WARNING! Read all safety warnings and all instructions. Failure to follow the warnings and
instructions may result in electric shock, re and/or serious injury.
Save all warnings and instructions for future reference. The term “power tool” in the
warnings refers to your mains-operated (corded) power tool or battery-operated (cordless)
power tool.
1. Work area safety
a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose
control.
2. Electrical safety
a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use
any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will
reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges
and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk
of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power
tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords
increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and use common sense when operating a power
tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol
or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting
to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the
power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and
gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities,
ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
4. Power tool use and care
a. Do not force the power tool. Use the correct power tool for your application. The correct
power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or the battery pack from the power
tool before making any adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar
with the power tool or these instructions to operate the power tool. Power tools are dangerous in
the hands of untrained users.
e. Maintain power tools. Check for misalignment or binding of moving parts, breakage of
parts and any other condition that may affect the power tool’s operation. If damaged,
have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to
bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions,
taking into account the working conditions and the work to be performed. Use of the power
tool for operations different from those intended could result in a hazardous situation.
5. Battery tool use and care
a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one
type of battery pack may create a risk of re when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may
create a risk of injury and re.
c. When battery pack is not in use, keep it away from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal objects, that can make a connection from
one terminal to another. Shorting the battery terminals together may cause burns or a re.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek
medical help. Liquid ejected from the battery may cause irritation or burns.
6. Service
a. Have your power tool serviced by a qualified repair person using only identical
replacement parts. This will ensure that the safety of the power tool is maintained.
WARNING! If not used properly this lawn mower can be dangerous!
This lawn mower can cause serious injury to the operator and others, the warnings and safety instructions must be followed
to ensure reasonable safety and efciency in using this lawn mower. The operator is responsible for following the warning and
safety and instructions in this manual and on the lawn mower. Never use the mower unless the catcher or guards provided by the
manufacturer are in the correct position.
1) Training
• Read the instructions carefully. Be familiar with the controls and the proper use of the appliance.
• Never allow children or people unfamiliar with these instructions to use the appliance. Local regulations may restrict the age of the operator.
• Never mow while people, especially children, or pets are nearby.
• The operator or user is responsible for accidents or hazards occurring to other people or their property
• Know your controls. Read the manual carefully. Learn how to stop the engine quickly in an emergency.
2) Preparation
• While mowing, always wear substantial footwear and long trousers.
• Do not operate the appliance when barefoot or wearing open sandals.
• Thoroughly inspect the area where the appliance is to be used and remove all stones, sticks, wires, bones, and other foreign objects. They
could be thrown by the blade.
• Before using, always visually inspect to see that the blades, blade bolts and cutter assembly are not worn or damaged. Replace worn or
damaged blades and bolts in sets to preserve balance.
DAMAGED BLADES AND WORN BOLTS ARE MAJOR HAZARDS.
• On multi-bladed appliances, take care as rotating one blade can cause other blades to rotate.
3) Operation
• Mow only in daylight or in good articial light.
• Avoid operating the appliance in wet grass, where feasible.
• Always be sure of your footing on slopes.
• Walk, never run.
• For wheeled rotary mowers, mow across the face of slopes, never up and down.
• Exercise extreme caution when changing direction on slopes.
• Do not mow excessively steep slopes.
• Use extreme caution when reversing or pulling the appliance towards you.
• Never cut grass while walking backwards.
• Stop the blade(s) if the appliance has to be tilted for transportation when crossing surfaces other than grass, and when transporting the
appliance to and from the area to be mowed such as gravel drives, walks or roads.
• Never operate the appliance with defective guards or shields, or without safety devices, for example deectors and/or grass catchers, in
place.
• Start the motor according to instructions and with feet well away from the blade(s).
• Do not tilt the appliance when starting the motor, except if the appliance has to be tilted for starting. In this case, do not tilt it more than
absolutely necessary and lift only the part which is away from the operator. Always ensure that both hands are in the operating position
before returning the appliance to the ground.
• Do not put hands or feet near or under rotating parts. For rotary mowers, keep clear of the discharge opening at all times.
• Never pick up or carry an appliance while the motor is running.
• Stop the motor:
- whenever you leave the machine;
- before clearing a blockage;
- before checking, cleaning or working on the appliance;
- after striking a foreign object. Inspect the appliance for damage and make repairs as necessary;
- if the appliance starts to vibrate abnormally (check immediately).
• Do not over-speed the mower or alter governor settings. Excessive speed is dangerous and shortens mower life.
4) Maintenance and storage
• Keep all nuts, bolts, and screws tight to be sure the appliance is in safe working condition.
• Check the grass catcher frequently for wear or deterioration.
• Replace worn or damaged parts for safety.
• For cylinder mowers, be careful during adjustment of the appliance to prevent entrapment of the ngers between moving blades and xed
parts of the appliance.
• Store the mower in a well-ventilated room away from naked ames such that may be found in hot water heaters.
