Ozito RHD-4100 User manual

1
ROTARY
HAMMER
DRILL KIT
850W
INSTRUCTION MANUAL
SPECIFICATIONS
Motor: 850W
Impact Rate: 3,000 bpm
Impact Energy: 3.8 Joule
Accessory Fitment: SDS+
Drilling Capacities: Timber 40mm
Steel 13mm
Masonry 28mm
RHD-4100
WHAT’S IN THE BOX
Kit Box
Rotary Hammer Drill
Side Handle
Accessories
ozito.com.au

1
ONLINE MANUAL
Scan this QR Code with your
mobile device to take you to
the online manual.
required
drilling
depth
KNOW YOUR PRODUCT
1. USING THE DEPTH ROD
The depth rod allows you to drill to a predetermined depth.
1. Loosen the side handle
by turning as shown.
2. Drill the hole until
the end of the
depth rod touches
the workpiece.
3. To secure the
depth rod in
position, tighten
the side handle by
turning as shown.
2. Adjust the depth
rod so the drill bit
extends beyond the
end of the depth
rod to the required
drilling depth.
1 SDS+Accessory Holder
2 Accessory Locking Sleeve
3 Magnesium Gear Case
4 Depth Rod Locking Hole
5 Side Handle
6 Side Mode Selector
7 Grease Cap
8 Rear Mode Selector
9 On/Off Switch
10 Soft Grip Rear Handle
HAMMER DRILL
11 Depth Rod
12 3 x SDS+150mm Drill Bits
13 1 x SDS+Flat Chisel
14 x 250mm
14 1 x SDS+Point Chisel
14 x 250mm
15 Dust Cover
16 Tub of Grease
17 Pin Spanner
ACCESSORIES
SETUP & PREPARATION
Ensure the tool is disconnected from the power supply before
performing any of the following operations.

1
2. SDS+ACCESSORIES 3. FITTING AND USING THE DUST COVER
1. Prior to insertion into
chuck, ensure the SDS+
accessory is clear of
dust and debris.
1. Slide dust cover over
accessory.
3. Insert drill bit in locking
sleeve.
4. Press dust cover to the
end of locking sleeve.
2. Add lubrication grease.
3. Pull locking sleeve back
and hold.
5. Rotate and continue to
insert as far as possible.
7. Checked SDS+accessory
is locked. Try to pull it out.
Note: It should have approx
10 – 20mm movement. This
is normal.
2. Prior to insertion into
drill add supplied
lubricant to the SDS+
accessory.
4. Insert SDS+Accessory.
6. Release locking sleeve.
8. To remove the SDS+
accessory pull back the
locking sleeve and pull
accessory out.
Accessory
SDS+
The cover catches dust and debris - while using the drill upright or
overhead - to avoid dust entering the air vents.

1
RHD-4100

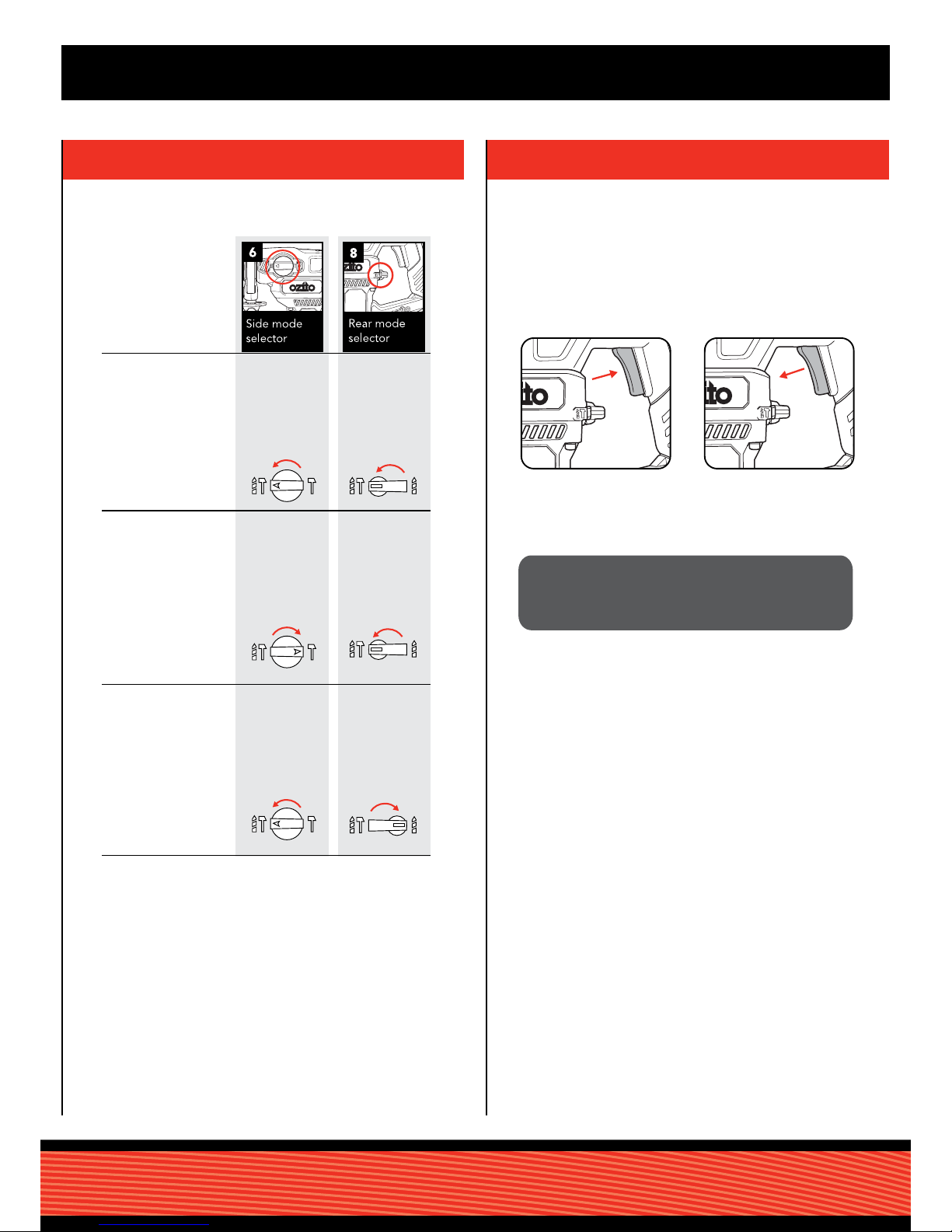

4. OPERATING THE HAMMER DRILL
4. To start drilling squeeze
the On/Off switch.
5. To stop drilling release
the On/Off switch.
NOTE: PRIOR TO CHANGING MODES, THE ON/
OFF SWITCH SHOULD BE RELEASED AND THE
DRILL SHOULD HAVE COME TO A COMPLETE
STOP.
1. Choose an
operation mode:
Hammer Drill
Rotate the side mode selector to the hammer and drill icon,
and rotate the rear mode selector to the drill and hammer icon.
This setting is recommended for use when drilling holes in
concrete and other masonry products. The hammer action will
be in operation while simultaneously the drill bit rotates.
Chiselling
Rotate the side mode selector to the hammer icon, and rotate the rear
mode selector to the drill and hammer icon. This setting is recommended
for use when you desire a hammer action without the accessory rotating
which is ideal for “chiseling or chipping” away at masonry products, pick
or chisel accessory bits should be used.
Drilling
Rotate the side mode selector to the hammer and drill icon, and
rotate the rear mode selector to the drill icon. This setting is
recommended for use when you desire the accessory to rotate
without hammer action. Ideal for drilling into timber or steel when
correct accessories for such materials are used.
OPERATION
2. Ensure your workpiece is securely clamped where possible.
3. Connect the tool to the mains power supply.

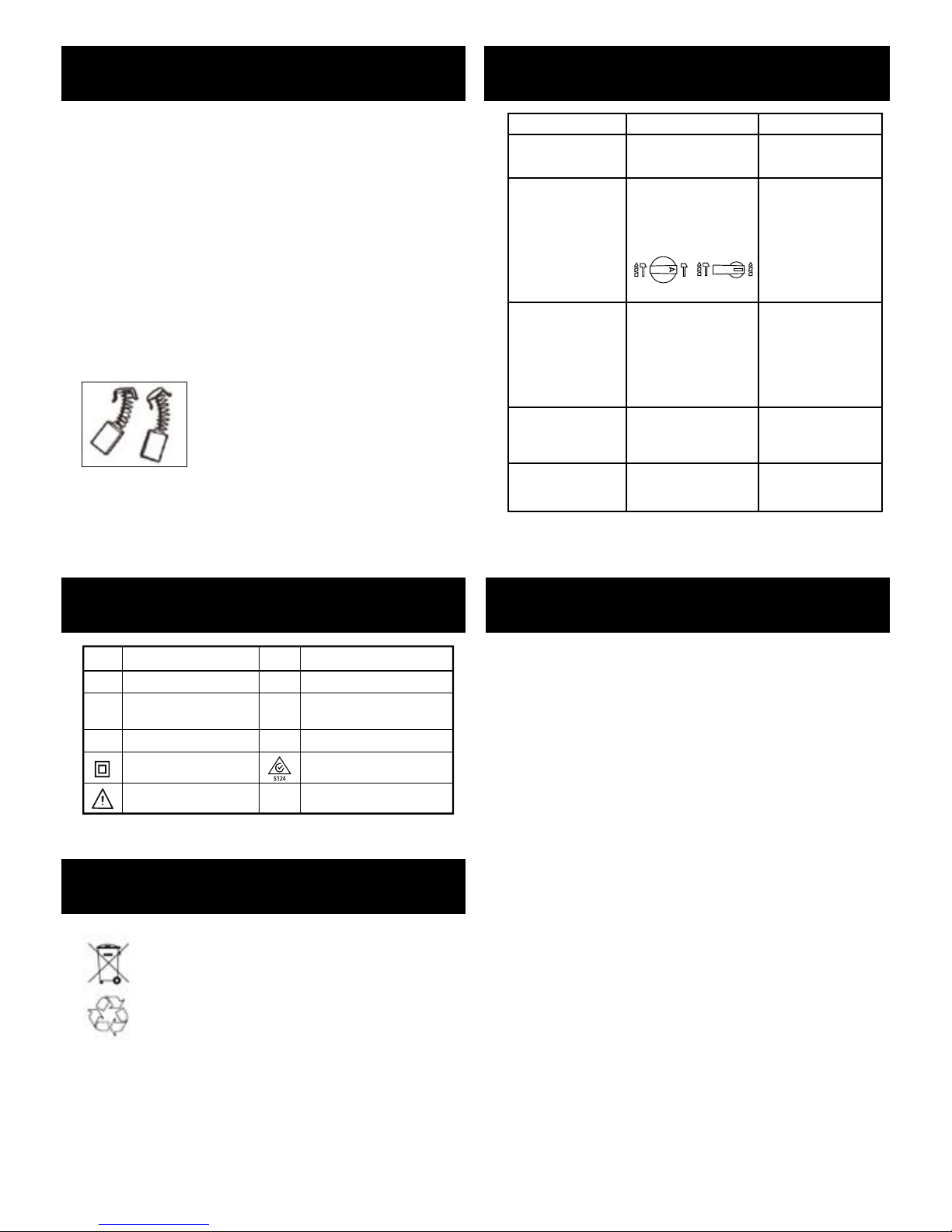

MAINTENANCE
DESCRIPTION OF SYMBOLS
CARING FOR THE ENVIRONMENT
TROUBLE SHOOTING
Power tools that are no longer usable should not be disposed of
with household waste but in an environmentally friendly way. Please
recycle where facilities exist. Check with your local council authority
for recycling advice.
Recycling packaging reduces the need for landll and raw materials.
Reuse of recycled material decreases pollution in the environment.
Please recycle packaging where facilities exist. Check with your
local council authority for recycling advice.
V Hz
~ W
/bpm
ø
/min
n
o
Volts
Alternating current
Revolutions or
reciprocation per minute
Impact rate
Double insulated
Warning
Hertz
Watts
No load speed
Diameter
Regulator compliance mark
• Keep the ventilation vents of the drill clean at all times.
• After each use, blow air through the drill housing to ensure it is free from all
dust particles which may build up. Build up of dust particles may cause the
drill to overheat and fail.
• If the enclosure of the drill requires cleaning, do not use solvents but a moist
soft cloth only. Never let any liquid get inside the drill; never immerse any part
of the drill into a liquid.
Gear Box Grease Replenishment
The grease in the gearbox will require replenishment after approximately 50
hours accumulative use. After this time, add approximately 50 grams (approx
2 – 3 teaspoons) of the grease (supplied), into the gearbox. First remove
the grease cap from the drill by using the pin spanner. Once removed, add
the grease through this hole. Ensure the grease cap is secured back into
position prior to operation. Further grease (normal ball bearing grease) can be
purchased through your local Bunnings Warehouse.
Carbon Brushes
When the carbon brushes wear out, the drill will spark and/or stop. Discontinue
use as soon as this happens. They should be replaced prior to recommencing
use of the drill. Carbon brushes are a wearing
component of the drill therefore not covered under
warranty. Continuing to use the drill when carbon
brushes need to be replaced may cause permanent
damage to the drill. Carbon brushes will wear out
after many uses but when the carbon brushes
need to be replaced, take the drill to an electrician
or a power tool repairer for a quick and low cost
replacement. Always replace both carbon brushes at the same time.
Note: Ozito Industries will not be responsible for any damage or injuries caused
by the repair of the drill by an unauthorised person or by mishandling of the
drill.
Brush Holder (pair) SPRHD4100-81
Carbon Brush (pair) SPRHD4100-82
Brush Cap SPRHD4100-83
Switch SPRHD4100-75
Spare parts can be ordered from the Special Orders Desk
at your local Bunnings Warehouse.
For further information, or any parts not listed here, visit
www.ozito.com.au or contact Ozito Customer Service:
Australia 1800 069 486
New Zealand 0508 069 486
E-mail: [email protected]
SPARE PARTS
Problem Cause Remedy
Rotary Hammer
Drill is not working
No power supplied make sure all plugs are
connected and power
outlet is in working order
Mode Selectors in wrong
position.
Chisel Function will not
engage is mode selectors
are as shown below
Please refer to
‘Operating The Hammer
Drill’ section in the
manual.
Hammer Function
Not Engaging
Excess grease has been
packed
Insert SDS+ accessory
and then set both the
modes to hammer
function. Turn the
drill on, rmly tap the
accessory bit up and
down onto a scrap piece
of material to activate.
Motor brushes binding in
brush holders.
Clean brush holders.
Remove carbon dust by
using compressed air to
blow out brush dust
Excessive
sparking visible
through air vents
carbon brushes have
worn out
replace carbon brushes
as per maintenence
section.
