TF 2000
BGA/CSP Rework System
MANUAL NO. 5050-0482
REV. C
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 2of 67
TABLE OF CONTENTS
Safety................................................................................................................... 4
Introduction .......................................................................................................... 5
Packing Contents ................................................................................................. 5
Features............................................................................................................... 7
Set-Up................................................................................................................ 10
Operation ........................................................................................................... 13
Before Operating ..................................................................................... 13
General Operating Procedure ................................................................. 13
Explanation of Each Operation........................................................................... 17
Placing PCB into Board Holder ............................................................... 17
Component Alignment and Placement .................................................... 17
Component Reflow.................................................................................. 19
Adjusting Airflow...................................................................................... 20
Component Removal............................................................................... 20
Selecting a Profile .............................................................................................. 21
Creating and Saving Profiles.............................................................................. 21
PC Software ....................................................................................................... 24
Setup Tab................................................................................................ 25
Optics Tab Alignment View ..................................................................... 27
Print/Review ........................................................................................... 29
Operation Tab ......................................................................................... 30
Process Control/Validation................................................................. 31
Profile Development Tab ......................................................................... 33
General Information ........................................................................... 34
Profile Creation .................................................................................. 36
Maintenance....................................................................................................... 39
Cleaning the Blower Filter ....................................................................... 39
Replacing the Top Heater........................................................................ 39
Alignment and Calibration .................................................................................. 41
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 3of 67
PCB to Optics.......................................................................................... 41

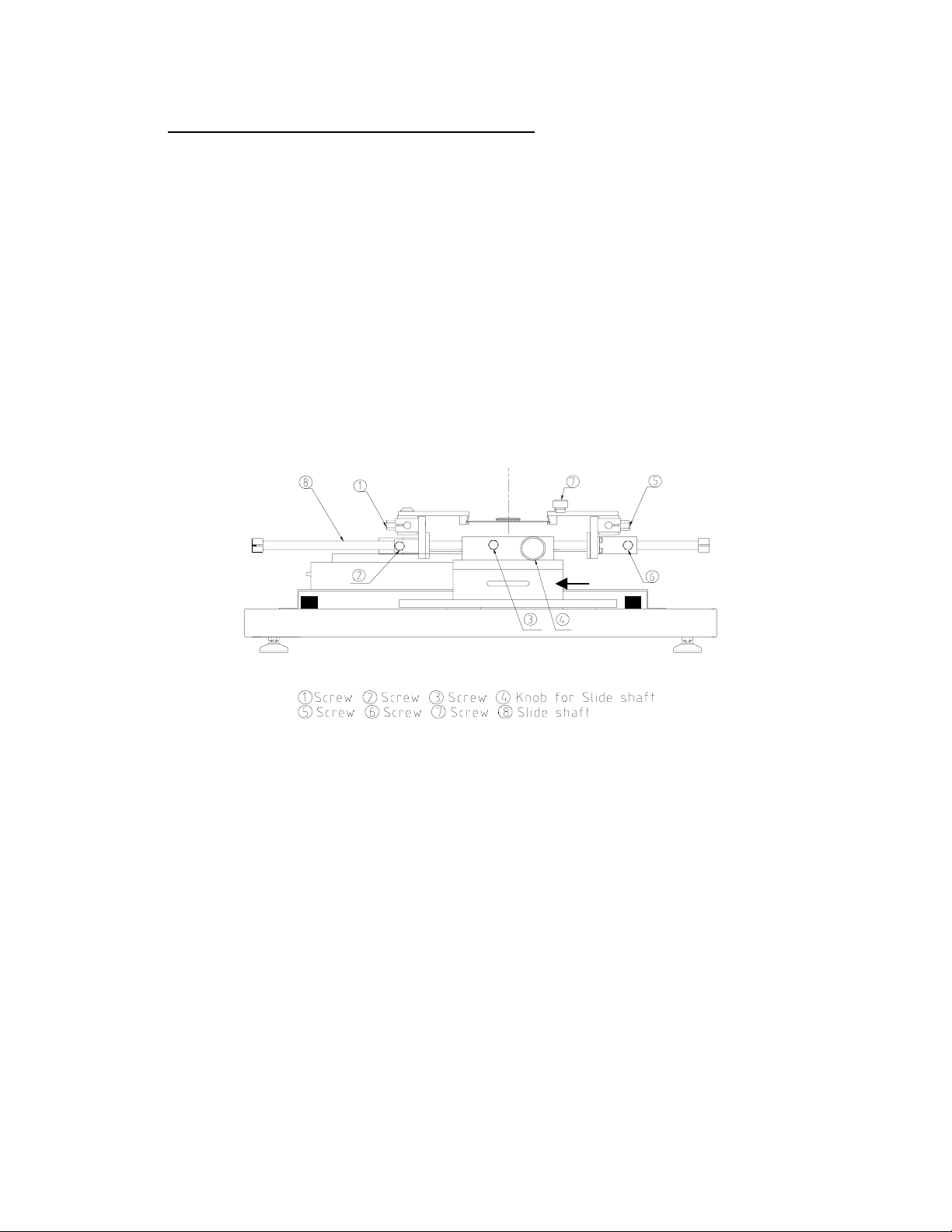

Sliding Shaft Holder (Indexing)................................................................ 42
Vacuum Nozzle Planarity ........................................................................ 33
Reflow Head Planarity ............................................................................. 44
Reflow Head – “Y” Directional Adjustment .............................................. 46
General Troubleshooting.................................................................................... 47
Initial Operation Flow Chart ..................................................................... 48
Nozzle Operation Flow Chart .................................................................. 49
Vacuum Pick Operation Flow Chart......................................................... 49
General Troubleshooting Table ............................................................... 51
TF 2000 L/LE Model Differences........................................................................ 52
Installing the Board Holder ...................................................................... 52
Bottom-Side Heaters ............................................................................... 53
Sliding Shaft Holder Indexing .................................................................. 54
Alignment and Calibration Differences .................................................... 55
Specifications ..................................................................................................... 56
Instructions for using the Board Supports .......................................................... 58
Accessory Items................................................................................................. 59
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 4of 67
Safety
The following are safety precautions that personnel must understand and
follow when using or servicing PACE products.
1. POTENTIAL SHOCK HAZARD - Repair procedures on PACE
products should be performed by Qualified Service Personnel only.
Line voltage parts may be exposed when the equipment is
disassembled. Service personnel must avoid contact with these
parts when troubleshooting the product.
2. To prevent personnel injury, adhere to safety guidelines in
accordance with OSHA and other applicable safety standards.
3. Always use PACE systems in a well ventilated area. A fume
extraction system, such as those available from PACE, is highly
recommended to help protect personnel from solder flux fumes.
4. Exercise proper precautions when using chemicals (e.g., solder
paste). Refer to the Material Safety Data Sheet (MSDS) supplied
with each chemical and adhere to all safety precautions
recommended by the manufacturer.
5. The following safety precautions cover use of PACE hot air
systems/hand pieces (e.g., ThermoFlo®, ThermoJet®).
a) Be careful when using in places where there are combustible
materials.
b) Do not use in the presence of an explosive atmosphere.
c) A fire may arise if a hot air hand piece is not used with care.
Do not leave the hand piece unattended when in use.
d) The heater assembly housing and any installed nozzle are
hot when the system is being cycled and for a period of time
thereafter. DO NOT touch either the heater assembly
housing, nozzle or direct heated air stream. Severe burns
may result!
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 5of 67
Introduction:
Thank you for purchasing the TF 2000 BGA/CSP Rework Station. As
electronic devices continue to get smaller, lighter and more compact,
components and printed circuit boards are also becoming smaller and the
amount of available space on PCBs is continually decreasing. In order to
maximize board space, area array devices are growing in popularity. Area
array devices are BGAs, CSPs and “micro-BGAs”, and Flip Chips. These
devices require an optical overlay vision system to ensure proper placement
and high levels of process control during rework to ensure successful
installation. The TF 2000 has been specifically designed to rework these
types of components and can also install and remove a variety of other SMT
devices.
NOTE: This device complies with part 15 of the FCC rules. Operation
is subject to the following two conditions: (1) This device may
not cause harmful interference and (2) This device must accept
any interference received, including interference that may cause
undesired operation.
The TF 2000 also complies with 98/37/EC and 89/336/EEC.
Caution: During normal operation, the top heater, nozzle, bottom-
side-heater(s) and halogen lamps will get hot. Do not
contact them directly as serious injury could occur.
Packing Contents
TF 2000 with Video Monitor
1. TF 2000B, BE, BL, or BLE: 1 each
2. TF 2000R: 1 each
3. TF 2000P: 1 each
4. Video Monitor: 1 each
5. B/C Video Cable: 1 each
6. Hand Held Vacuum Pick for removal: 1 each
7. Suction rubber (spare for #9): 3 each
8. Vacuum nozzle for positioning: 1 each Large, Medium and
Small sizes
9. Hex Wrench Set and Screwdriver: 1 each
10. Top Heater Element (spare): 1 each
11. Halogen Lamp (spare): 2 each
12. TF 2000 Manual: 1 each
13. K-Type ThermoCouple: 2 each
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 6of 67
TF 2000 with PC
1. TF 2000B, BE, BL, or BLE: 1 each
2. TF 2000R: 1 each
3. TF 2000P: 1 each
4. Computer: 1 each
5. Computer Monitor: 1 each
6. S-Video Cable: 1 each
7. TF 2000 Software Package: Installed on PC
8. Serial Cable: 2 each
9. Hand Held Vacuum Pick for removal: 1 each
10. Suction rubber (spare for #9): 3 each
11. Vacuum nozzle for positioning: 1 each Large, Medium and
Small sizes
12. Hex Wrench Set and Screwdriver: 1 each
13. Top Heater Element (spare): 1 each
14. Halogen Lamp (spare): 2 each
15. TF 2000 Manual: 1 each
16. K-Type ThermoCouple: 2 each
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 7of 67
Features
1. The TF 2000 System is comprised of three self-contained stations:
The Reflow Station (Model TF 2000R)
The Placement Station (Model TF 2000P), and
The Base/Pre-Heater Station (Models TF 2000B, TF 2000BE, TF
2000BL, or TF 2000BLE)
Each individual station is lightweight and compact, allowing for easy
set-up and portability.
2. Up to 40 reflow profiles can be stored by the TF 2000. Saved profiles
can be recalled at the touch of a button and are displayed on the LCD
display panel.
3. A colored LED indicates each phase of the reflow cycle so the status of
each operation can be easily seen and monitored.
4. The Placement Station can easily handle components up to 70 mm
square. If needed, a split screen function is available through the
optional software package.
5. A highly efficient, 1000-watt topside heater used in conjunction with a
truly unique nozzle design insures the uniformity of the temperature
across the assembly.
6. The ceramic panel bottom side heater with a wide heating area is
incorporated to insure the co-planarity of the PCB, to prevent warping,
and to enhance the reflow of large BGAs.
7. The blower and vacuum pumps are self-contained. No external air
supplies are required.
8. A cooling fan automatically activates at the end of the reflow cycle to
cool the component, PCB, and nozzle.
9. The TF 2000 is versatile, adaptable and ensures repeatable results.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 8of 67
Figure 1: TF 2000 BGA/CSP Rework Station
Features:
Please refer to Figure 1.
A) LCD Display Panel Displays profile variables (time and temperature)
and allows the user to enter/modify profile
parameters.
B) Phase Display Panel Each phase of the reflow cycle is indicated by this
panel.
C) Data Entry Panel Used to enter/modify reflow profile parameters and
to save or recall profiles.
I
H
G
A
B
C
D
E
F
J
L
K
N
TF 2000B or TF 2000BE
TF 2000R TF 2000P
M
P
O
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 9of 67
D) Operations Panel Allows the operator to start/stop a profile cycle,
turn on/off the cooling fan and raise/lower the
reflow head.
E) Air Flow Meter This device is used to control and monitor the
airflow.
F) Cooling Fan The component and the PCB are cooled down by
the cooling fan, which activates automatically,
after the reflow cycle is completed.
G) Alignment Apparatus X, Y, Z and Θaspects of the component position
are adjusted in relation to the land pattern on the
PCB through this apparatus.
H) Camera Control The zoom and focus functions of the optical
overlay system are controlled at this location. The
Auto-focus feature may also be selected.
I) Light Control The upper (component side) and lower (PCB side)
lights within the optics housing can be adjusted for
intensity (overlay contrast) at this location.
J) Optics Housing Contains the camera and beam splitter. The
housing is retractable and should be kept in the
retracted position when not in use. The lights for
the optics will turn on/off automatically when the
housing is extended.
K) Bottom Side Heater Used to warm the PCB from the underside. It is
an IR type of heating source. The pre-heater
temperature is set in the “PRE-HEAT” display and
will remain on throughout the reflow cycle. When
the cycle enters the reflow phase, the bottom-side
heater temperature will increase by 30ºC to ensure
successful reflow. A power consumption indicator
light is mounted onto the pre-heater to indicate
when it is drawing power.
**NOTE: For TF 2000L/LE models, refer to
Section 10 for model differences.
L) Board Holder The board holder is fully adjustable in both the X
and Y directions. The right side of the holder is
spring loaded to hold the PCB securely. Fine
adjustment in the X direction is achieved by using
the adjustment knob on the Sliding Shaft Holder.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 10 of 67
M) Sliding Shaft Holder Supports the rail system for the board holder. It is
also used to index the table from the Placement
Position to the Reflow Position using the handle
on the front.
N) Sensor 1 & 2 Inputs The sensor inputs have been designed to use K-
type thermo-couples. Measured temperatures are
displayed on the LCD display, real time, and can
be interfaced to a PC using the TF 2000 Software
(optional) through the serial port on the back of the
TF 2000R.
O) Reflow Head Contains the top-side heater and moves up and
down via an electric motor that is controlled
through the operations panel. A power
consumption indicator light is mounted onto the
front of the reflow head to indicate when it is
drawing power. The reflow head is clutched to
prevent excessive downward force from being
applied.
P) Nozzle The nozzles for the TF 2000 are easily changed.
Several varieties are available. Use caution and
proper hand protection when changing nozzles, as
they will be hot.
**NOTE: For TF2000 L/LE models, refer to Section 10 for a detailed
description of model differences.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 11 of 67
1 SET-UP
TF 2000 Setup & Connection to Video Monitor
1-1 Place the TF 2000B, TF 2000BE, TF 2000BL, or TF 2000BLE on a
flat and stable bench. Refer to Section 10 for board holder
installation on L/LE models.
1-2 Place the TF 2000R and TF 2000P on the base as indicated in
Figure 1.
1-3 Secure the TF 2000R and TF 2000P by following the directions in
the box containing the base unit. Refer to Figure 1.
1-4 Connect the power cables as indicated in the wiring diagram label
on the back of the units. See Figure 2.
1-5 Connect the hand-held vacuum pick to the vacuum port on the front
of the TF 2000P and hang the vacuum pick on the side of the TF
2000P using the bracket provided.
1-6 Connect a B/C cable (included) and a power cable between the
video monitor and the TF 2000P
1-7 Connect the main power cable to an appropriate 115 VAC, 60 Hz or
230 VAC 50 Hz power supply.

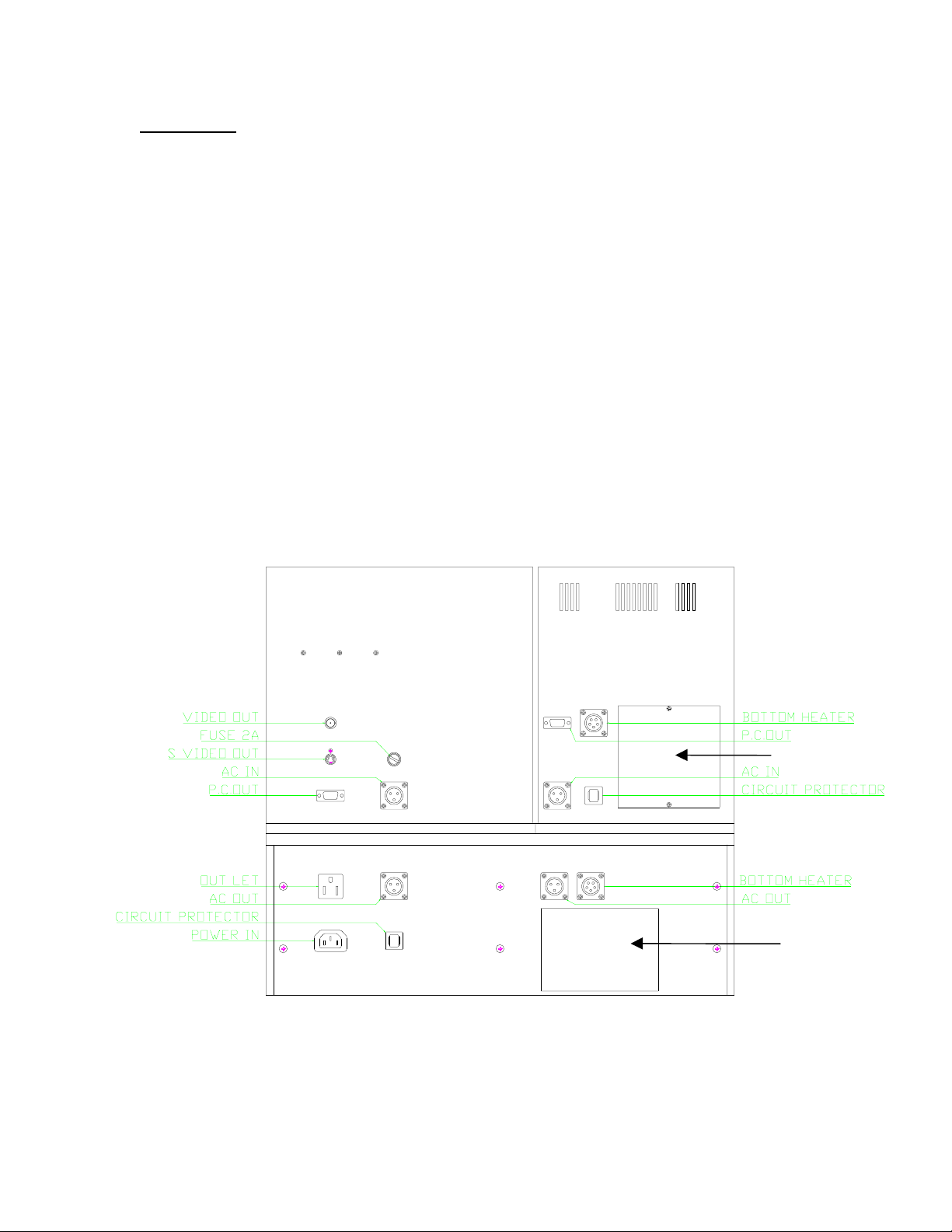

Figure 2: Back of TF 2000
Wiring Diagram
Access Panel
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 12 of 67
TF 2000 Set up & Connecting to PC (Optional Package)
1-1 Place the TF 2000B, TF 2000BE, TF 2000BL, or TF 2000BLE
on a flat and stable bench.
1-2 Place the TF 2000R and TF 2000P on the base as indicated in
Figure 1.
1-3 Secure the TF 2000R and TF 2000P by following the directions
in the box containing the base unit. Refer to Figure 1.
1-4 Connect the power cables as indicated in the wiring diagram
label on the back of the units. See Figure 2.
1-5 Connect the hand-held vacuum pick to the vacuum port on the
front of the TF 2000P and hang the vacuum pick on the side of
the TF 2000P using the bracket provided.
1-6 Connect the S-video cable (included) to the S-video port on the
back of the TF 2000P. Then connect the other end of the cable
to the S-video port on the back of the video expansion card on
the PC. (See Figure 3)
1-7 Connect the serial port on the back of the TF 2000R to Serial
Port 1 (located next to the monitor port) on the computer using
one 9 pin serial cable (included). (See Figure 3)
1-8 Connect the serial port on the back of the TF 2000P to Serial
Port 2 on the computer using the other 9 pin serial cable
(included). (See Figure 3)
1-9 Connect the power cable to an appropriate 115 VAC, 60 Hz or
230 VAC 50 Hz power supply.
1-10 Do not plug the PC or PC monitor into 1 amp power receptacle
on the back of the TF 2000P.
SERIAL PORT 1 S-Video PORT SERIAL PORT 2
Figure 3: PC Back Panel
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 13 of 67
2 OPERATION
2-1 Before Operating
•Make sure the TF 2000 is on a stable platform
•It is recommended that the TF 2000 be turned on for at least 15
minutes before use to ensure the Bottom Side heater has reached
its set temperature and stabilized. Once the bottom-side heater is
at temperature it will deliver consistent heating, ensuring highly
repeatable heating from operation to operation.
•It is advisable to conduct a trial operation each day to ensure all
systems are operating properly. Also, it is important to verify the
airflow of the unit: Maximum airflow is 25 l/min and Minimum
airflow is 18 l/min.
•Verify that the devices/parts being soldered to the PCB do not
exceed the height limitations. Exceeding the limitations may
interfere with the operation of the machine.
1. The maximum height of any component or device on the top
of the PCB is limited to 30 mm (1.2”).
2. The maximum height of any component or device on the
bottom of the PCB is limited to 15 mm (0.6”).
2-2 General Operating Procedure
1. Insert PCB into Board Holder. See Figure 4.
Figure 4: Board Holder and PCB
2. Apply flux or solder paste: One of the following methods is
applicable depending on the rework conditions, the specification of
Device/PCB, or operator preference.
A) Dispense flux on the land pattern using a brush or flux
pencil.
B) Apply solder paste to the land pattern using a conventional
stenciling technique
C) Apply paste or flux to the BGA, solder ball side, by means of
a flux application tool. See Reference Section.
BOARD
H
O
LDER
PCB
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 14 of 67
D) Print paste on the BGA, solder ball side, by using a
component stenciling tool kit. See Reference Section.
Note: Method 2 must be completed prior to insertion of PCB into
board holder and methods 3 and 4 apply flux/paste to the
underside of the component, not the PCB. They should be
performed before placing component with vacuum pick on
TF 2000P.
3. Activate vacuum on TF 2000P and pick up component using
vacuum nozzle on placement station.
Figure 5: Component held by Vacuum Pick on TF 2000P
4. Pull the optics housing out from the front of the TF 2000P using the
handle. Be sure the Sliding Shaft Holder is in the placement
position.
5. Align component solder ball/lead pattern to the land pattern on the
PCB using the adjustment knobs on the alignment apparatus. See
Figure 6. The BGA ball side and the PCB pattern side are super-
imposed on the video or computer monitor, depending on chosen
configuration, by the optical system.
10
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 15 of 67
Figure 6: TF 2000P
A) Zoom in so the lands on the PCB fill the screen and center
the land pattern on the display.
B) Adjust the lighting so both images are clear.
C) Align the component to the land pattern using the X,Y and Θ.
See Figures 6 and 7.
(A) (B)
Figure 7 - Unaligned (A) and Aligned component (B) as they would appear.
6. Lower the Alignment Apparatus to PCB.
7. Release component by turning off the vacuum and return alignment
apparatus to the upper position. See Figure 6.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 16 of 67
8. Using the handle on the Sliding Shaft Holder, index the table from
the Placement Position to the Reflow Position.
9. Select the desired profile or enter time and temperature parameters
for pre-heat, soak, and reflow phases. Those values will be shown
on the LCD display. See Figure 8. As each phase in the reflow
profile is entered, the LED indicator lights will show which phase
the process is in. See Figure 8.
Figure 8: Display and Data Entry Panel
10.Once the reflow profile has been completed, the reflow head will lift
up automatically and the cooling fan will turn on for 55 seconds.
Airflow from the cooling may be directed by loosening the locking
thumb screw on the fan and rotating it around its shaft.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 17 of 67
3 EXPLANATION OF EACH OPERATION
3-1 Placing BCB into Board Holder - Please see Figure 9.
1. Center the sliding shaft (8) in the holder (9).
2. Adjust the sides of the board holder so that the distance between
them is 3 mm smaller (half the width of the rail) than the width of
the PCB. Secure the sides by tightening the setscrews (6 & 2)
3. The right side of the board holder is spring loaded. Insert the PCB
into the support slots while holding the right side of the board holder
open. When the PCB is positioned, let the right side close.
Figure 9: Board Holder and Base
3-2 Component Alignment and Placement - Please refer to Figures 6
and 9.
1. Set the sliding shaft holder at the Placement Position at the far right
side of the base
2. Verify that the height (Z-axis) adjusting screw (#4, Fig. 6) is
positioned in the center of the square hole as shown in Figure 4.
This position is the reference point for all alignment procedures.
3. Extend the optical housing by pulling the handle towards you. The
lights will come on automatically.
4. Focus the array pattern on the PCB by focusing manually or by
using the AUTO FOCUS feature. When using the AUTO FOCUS
feature, switch the feature off after the array pattern has been
focused.
5. Center the PCB array pattern on the Display. Zooming in on the
array allows for easier centering.
9) Sliding Shaft Holder
Reflow Position Placement Position
9
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 18 of 67
6. Tighten the setscrews (#1 & 5, Fig. 9) to secure the “Y” position of
the PCB.
7. Tighten the setscrew (#3, Fig. 9) on the sliding shaft holder (#9, Fig.
9) to secure ”X” position of the PCB.
8. Switch on the vacuum switch (#7, Fig. 6).
9. Hold the component to be placed using the vacuum nozzle. See
Figure 7.
10.Adjust the lighting using the adjustment knobs (#1 & 2 Fig 5) so the
image of the PCB land pattern and the image of the solder balls on
the component can be seen clearly.
11.Adjust the height of the device with the height (Z-axis) adjusting
screw (#4 Fig 5) to bring solder balls/leads into focus. Failure to
focus the component may result in inaccurate alignment.
12.Turn the “AUTO-FOCUS” feature on after the PCB and component
are focused.
13.Adjust θaspect of the component by turning the θadjustment knob
(#3, Fig. 6).
14.Adjust the X and Y aspects of the component by adjusting the X
and Y adjustment knobs (#5 & 6, Fig. 6).
15.When the component is aligned (See Figure 7), return the optics
housing to its retracted position. The lights will turn off
automatically.
16.Using the handle, lift the alignment apparatus upwards by hand to
release, then lower the apparatus slowly. As the apparatus
reaches the PCB, the damper will engage to ensure the component
lands softly on the PCB.
NOTE: The alignment apparatus cannot be lowered while the
optics housing is extended.
DO NOT DROP THE ALIGNMENT APPARATUS FROM THE
UPPER POSITION.
NOTE: When repeating operations using the same PCB and
device, steps 4 and 11 may be eliminated. However,
when changing devices, it is important to include steps 4
and 11 in the initial setup procedure.
3) Confirm that the component has contacted the PCB. Turn off the
vacuum switch (#7, Fig 6).
When repeating operations using the same PCB and device, the
mechanical stop on the right side of the alignment apparatus may
be set to ensure repeatability.
4) Return the alignment apparatus to its original position.
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com

Page 19 of 67
19) Move the sliding shaft holder to the Reflow Position using the
handle.
NOTE: For TF 2000L/LE models, refer to the Sliding Shaft
Holder Indexing portion of Section 10 for a description of
model differences.
3-3 Component Reflow - Please refer to Figure 10
1) Make sure that an appropriately sized nozzle is fitted to the reflow
head.
2) Verify the sliding shaft holder is at the Reflow Position at the far left
side of the base
3) Select a profile or enter reflow parameters. Refer to section 4.
Figure 10: Operations Panel
4) Push the NOZZLE DOWN button. The nozzle will go down and
stop automatically 16 mm (will vary with PCB thickness) above the
PCB. See Figure 10.
5) Confirm that the component position is aligned with the nozzle.
Press and hold the NOZZLE DOWN button. The reflow head will
lower itself, slowly. Lower the reflow head until there is no gap
between the nozzle and the PCB. See Figure 11. If you need to
raise the reflow head up by a slight amount, press the NOZZLE UP
button briefly.
When repeating operations using the same PCB and device, the
mechanical stop on the left side of the reflow apparatus may be set
to ensure repeatability.
The reflow head has a clutch that will engage if the nozzle applies
pressure on the PCB or the mechanical stop. This ensures the
safety of the PCB and the motor that drives the reflow head.
NOTE: In some instances the space around a component will be
insufficient to bring the nozzle into contact with the PCB.
Should this occur, select a nozzle with dimensions that
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
