1. INTRODUCTION
1.1 GENERAL INFORMATION
This user manual provides the rules for the use, safe operation and maintenance of the
sweeping machine.
If you do not understand the information in the manual, contact the company selling the
sweeping machine or directly to the manufacturer.
Particularly important information and instructions are presented in bold and with the signal
word "ATTENTION".
Information and instructions for hazards, safety measures and work safety are labelled herein as
follows:
and are described in the section “Work Safety".
The clock symbol indicates periodic maintenance.
1.2 INTENDED USE
The sweeping machines are used for cleaning and sweeping of roads, squares, car parks and
other hard surfaces of streets and pavements. The sweeping machines are supplied with plastic
(polypropylene) sweeping segments, and supporting wheels. The sweeping machines can be used
with front loaders equipped with a floating or non-floating hydraulic coupling. If the sweeping
machines are used for other purposes, the manufacturer assumes no responsibility for the
consequences of such use. In case of use of the sweeping machine for non-intended purposes, the
warranty is deemed null and void.

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 5
2. WORK SAFETY
2.1 GENERAL
This user manual includes important indications that must be observed when mounting the
equipment, during its operation and maintenance. Therefore the staff must read this manual before
coupling the equipment and putting it into service. Keep instructions in an accessible place.
It is necessary to take into account not only the general safety guidelines described in the
section "Work Safety", but also the following specific safety instructions.
The safety instructions and rules are to be observed in all cases.
All servicing and repair works must be carried out when the sweeper is in stationary position.
Turn off the tractor engine and remove the ignition key.
Check the fixing of all screws after finishing the works. Tighten them up, if necessary.
Make sure there no people are in the work area.
When sweeping, the supports must be lifted to the top position. After finishing the works,
lower the supports to avoid the brush deformation.
Damaged hydraulic hoses must be replaced immediately.
When using the sweeper on public roads, follow the road traffic rules.
2.2 EMPLOYEES’ QUALIFICATION AND TRAINING
The SHARK sweeper may be used, put to service and repaired only by persons who are well-
equipped and well informed about potential hazards. A person responsible is assigned by the
operator who also monitors the workflow. If employees are unaware of essential rules of use, they
must be trained and instructed. The operator must check if the staff have fully understood the
instructions.
Repair works not described herein may only be performed by an authorized personnel.
2.3 POSSIBLE DANGER IN CASE OF FAILURE TO COMPLY WITH THE
SAFETY PRECAUTIONS
Failure to observe the safety instructions can cause damage to persons, the environment and the
machine.
Non-compliance with safety guidelines may waive the right to claim damages.
In separate cases, non-compliance can lead to the following consequences:
- Danger to persons working in unprotected workplaces

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 6
- Malfunctioning of the equipment
- Inefficiency of the described methods of putting into service and repair works
- Damage to persons due to mechanical and chemical effects
- Damage to the environment due to hydraulic oil leakage
2.4 PRINCIPLES OF SAFE OPERATION
It is mandatory to observe the safety guidelines described herein, the applicable national / local
regulations on preventing accidents, as well as the rules relating to the workplace, operation and
safety.
It is mandatory to observe occupational safety rules and regulations on preventing accidents,
which are determined by responsible professional associations.
The manufacturer's safety instructions must be taken into account.
When working and moving on public roads, follow the applicable regulations and road traffic
rules as well as the manufacturer's instructions.
2.5 SAFETY INSTRUCTIONS FOR THE USER / OPERATOR
- Before starting the work, go through all the devices, connectors and their functions. It is too
late to do that after the sweeper operation has been started.
- Users’ clothing should be tight-fitting. Avoid loose clothing.
- Before operation, check the stability and safety of the seat with regard to the method of
fitting, and whether it is not damaged. Also, check if the hydraulic hoses are in place, as the damage
may occur if bent or under load.
- Before mounting or removing the hoses, place the fasteners in their correct position.
- Adhere to the permissible axle loads, overall weight and transport dimensions. Check and
attach the transport equipment –lights, warning devices and protective devices, if any.
- If in any position the light fitted to the trusses is tucked away / hidden, additional lamps must
be fitted.
- When connecting the sweeper to the tractor, the suspension must be adjusted according to the
level indicators (Fig. 1).

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 7
Fig. 1. Level indicators
- Before you start driving and operating the equipment, inspect the nearest area (if there are no
children). Make sure you have enough visibility.
- While working or driving the machine, it is forbidden to take passengers.
- Ensure that the sweeper hydraulic system does not accidentally start up or go down during
driving.
- Driving (driver’s) position cannot be changed while driving.
Avoid sudden turns when driving in hilly terrain.
- Take into account the effects of movement, control and braking caused by the activated
sweeper.
- Choose your driving speed according to the street and local road traffic regulations. - Operate
the sweeper only after making sure that all safety measures and devices are functioning.
- It is prohibited to make a stop in the work area.
- The turning device can only be actuated if there are no people in the turning area.
- The hydraulic parts of the machine contain presses and scissors.
-Before leaving the sweeping machine, lower the supports to the ground, or adjust the
supporting wheels to avoid the brush deformation. Remove the ignition key, check and make sure
that the machine will not start suddenly or start rolling.

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 8
- When the machine is switched off, a dangerous weakening inertia occurs. At that time, do not
get near the machine. Wait until the machine is completely off.
- Hydraulic unit pressure must be null.
- High-pressure liquids (hydraulic oil) can penetrate the skin and severely damage the tissues.
In case of injury, seek medical advice immediately. Danger of infection!
- Install the hydraulic hoses only under zero hydraulic pressure.
- The hydraulic hoses must be changed not later than after 6 years of operation (including up to
2 years of storage).
- Regularly check hydraulic hoses, replace them if they are damaged or obsolete. The hose used
for replacement must meet manufacturer's requirements.
- Leaked liquids are hazardous to the environment. They must be collected and removed
immediately.
- When looking for or collecting leaks, protective measures must be used to avoid injury.
2.6 SAFETY INSTRUCTIONS RELATED TO REPAIR, CONTROL AND
INSTALLATION WORKS
The user must ensure that all repair, inspection and installation works are carried out by
authorized specialists who are familiar with the machine's operating instructions. All work can only
be performed when the machine is switched off. Follow the procedure for switching off the machine
described in the instructions.
If repair works are carried out on the lifted device, it must be stably supported by suitable
supporting elements.
When replacing the brush segments, use appropriate tools and wear gloves.
Remove lubricants in accordance with applicable provisions.
After completing the work, immediately install and activate all safety and protective
equipment.
When putting into service after repairs, the guidelines specified in the operating instructions
must be followed.
If the sweeper was not used for more than 4 weeks, it must be checked carefully
before operation.
Check the sweeper's technical condition in the following cases:
- Before starting the sweeper operation
- At a specified frequency of inspection

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 9
- After repair or a break in operation
The life of the hydraulic hoses and tubes must not exceed 6 years.
During the inspection, check the following:
- Fixing of all screws; tighten them up, if necessary
- Tightness of the hydraulic unit
- Appropriate fitting of all protective devices
- The condition of sliding parts and the functioning of safety locks.
- Check and clean the sweeper shellboards and lubrication points.
- Lubricate the specified lubrication points
For the first time, check the tightness of screws and nuts after 5 working hours, then check
them periodically (approximately every 50 hours); tighten if necessary.
A = thread size
The resistance class is indicated on the screw head.
A
3.6
5.6
6.8
8.8
10.9
12.9
M4
1
1.34
2.6
3.04
4.31
5.15
M5
1.96
2.65
5.1
6.03
8.48
10.2
M6
3.43
4.51
8.73
10.3
14.71
17.65
M7
5.59
7.45
14.22
17.16
24.52
28.44
M8
8.24
10.79
21.57
25.5
35.3
42.17
M10
16.67
21.57
42.17
50.01
70.61
85.32
M12
28.44
38.25
73.55
87.28
122.58
147.1
M14
45.11
60.8
116.7
135.27
194.17
235.36
M16
69.63
93.16
178.46
210.84
299.1
357.94
M18
95.13
127.4
245.17
289.3
411.88
490.34
M20
135.33
180.44
348.14
411.88
576.5
669.26
M22
126.4
245.17
470.72
558.98
784.45
941.44
M24
230.46
308.91
598.21
710.99
1000.28
1196.42
All tightening torques refer to metric threads according to DIN 13.
Friction number 0.14 refers to new screws with no lubrication applied. The above are indicative
values recommended by the various screw manufacturers. We take no responsibility for the use of
those values.
2.7 MODIFICATIONS AND REPLACEMENT OF PARTS
Sweeper modification and replacement of any parts is allowed only with prior agreement of the
manufacturer and its consent. Original spare parts and parts approved by the manufacturer guarantee
safety. Use of other parts may invalidate the consumer's right to claim damages in the event of a
malfunction or an accident.

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 10
2.8 GUIDELINE AND WARNING NOTES AND SYMBOLS ON THE SWEEPER
Description and meaning of the guideline and warning notes and symbols provided on the
sweeper are presented in Table No. 1.
Table No. 1 Guideline and warning notes and symbols on the sweeper
No.
Symbol (mark) or the contents
of the note
Meaning
1
SHRAK 250/300/330/350
Sweeping machine type
2
WARNING! The user must read the user manual before
starting the sweeper operation, adjustment or maintenance
works.
3
WARNING! When the tractor engine is running, stand at a
safe distance from the sweeper. A risk of injury to the leg or
feet!
4
CAUTION: CRUSH HAZARD
Unauthorized persons are not allowed to stand in areas
marked with this sign during the sweeper operation. If any
works must be performed in these areas, ensure a stable
sweeper position and disconnection from the power source.
5
WARNING! Keep hands away from the crush hazard area –
if the sweeper's structural components move, there is a risk
of crushing your hands or fingers.
6
WARNING! Before touching the parts of the machine, wait
until they stop completely. When the engine is switched off,
the sweeping segments will rotate for a while and may cause
injury.

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 11
3. ADDITIONAL DATA
3.1 DOCUMENTS PROVIDED WITH THE SWEEPING MACHINE
The documents provided with the sweeper are as follows:
User manual
Warranty certificate
3.2 WARRANTY CONDITIONS
V.Padagas ir Ko, UAB guarantees that the sweeping machine will be free from manufacturing
defects, except for parts produced by other companies, for a period of 12 months from the date of
loading or 6 months from the date of delivery to the consumer.
This warranty does not apply to defects which occurred due to irrational use of the sweeper,
including improper assembly, improper maintenance, improper handling and accidents, operation at
higher speed or load than stated in the instructions, improper lubrication or improper storage.
NOTE
The buyer must request the seller to properly prepare the warranty and complaint
documents. If the documents do not contain the date of purchase of the sweeper or the seal
of the maintenance company, the manufacturer may refuse to accept the claims from the
sweeper owner.
3.3 DISPOSAL UPON TERMINATION OF USE
If the user decides to terminate the sweeper operation, the machine must be handed over to the
waste recycling company designated by authorities. The replacement parts remaining after repair
must also be transferred to the recycling company.

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 12
4. INSTRUCTIONS ON THE USE
4.1 TECHNICAL CHARACTERISTICS
Sweeping machine
SHARK 250
SHARK 300
SHARK 330
SHARK 350
Working width (mm)
2460
2960
3260
3460
Sweeping segment diameter (mm)
800
800
800
800
Sweeping machine turning angle (o)
±25
±25
±25
±25
Weight (kg)
535
568
610
597
Drive
Hydraulic
motor
Hydraulic
motor
Hydraulic
motor
Hydraulic
motor
Flow rate (l/min at max 175 bar
pressure)
100
100
100
100
Water pump (V)
12
12
12
12
Water capacity (l)
146-292
146-292
146-292
146-292
Dimensions and weight are preliminary and are subject to change. The manufacturer reserves
the right to change the product design and construction without a separate notice.
The sweeping machine may be attached to:
Tractors
Front loaders

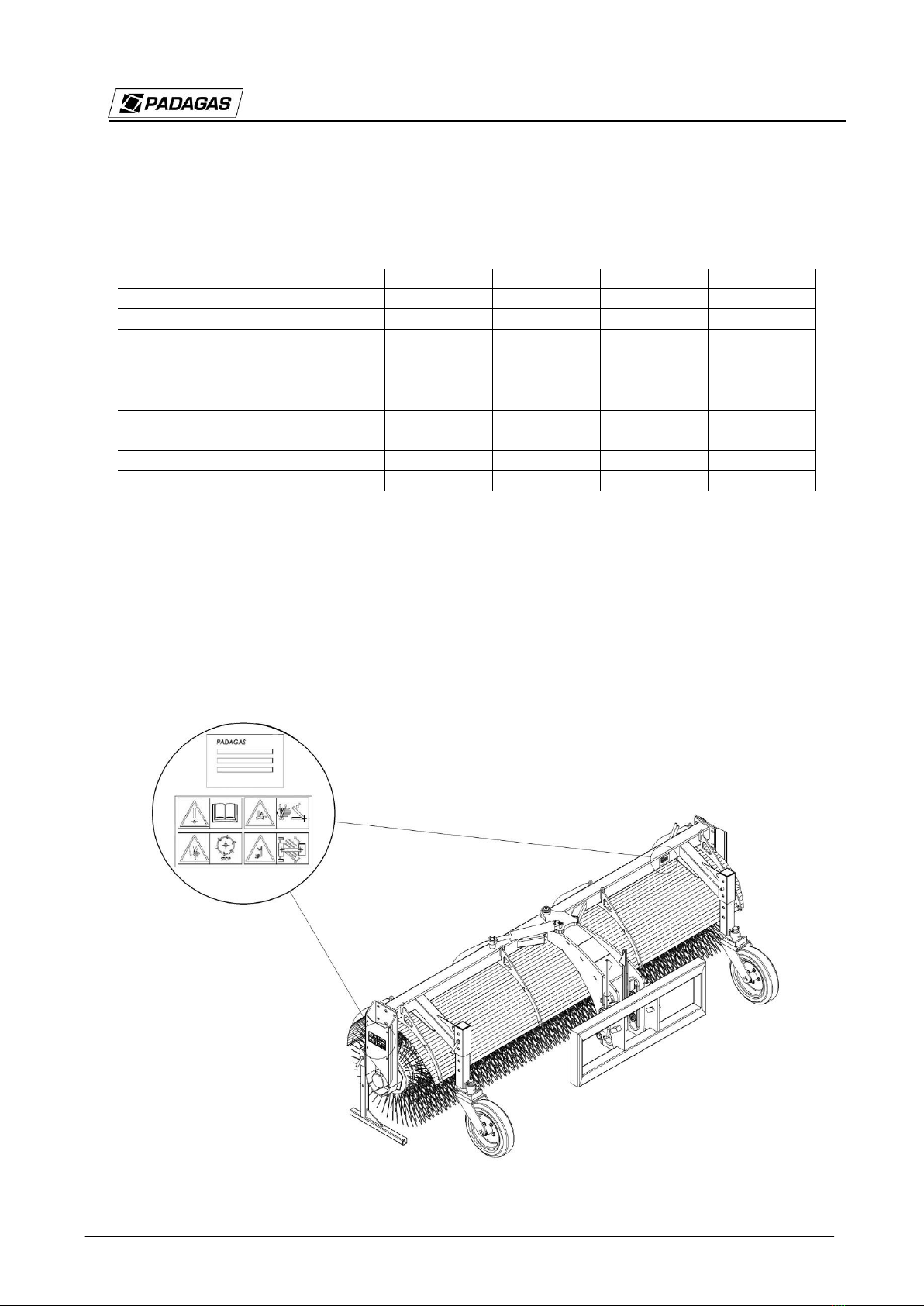

The sweeper’s nameplate is located on the right side of the sweeper frame (Fig. 2).

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 13
Fig. 2. Nameplate of the sweeper
4.2 SWEEPER DESCRIPTION
The sweeper consists of the following main parts: frame, shaft, suspension, supporting wheels
and supporting legs.
The sweeping machine shaft is a rotated by a hydraulic drive. The torque for the shaft is
provided by the hydraulic motor, which is rotated by connecting the hoses to the tractor's hydraulic
system.
The sweeping machine has three cleaning positions (Fig. 2): straight, turned right, and turned left.
The cleaning positions are set mechanically –rotated with a rod or hydraulically - rotated by a
hydraulic cylinder.
Fig. 3. Positions of the sweeping machine.
4.3 LIGHTS
Pay attention to other road users. Attached working units must be equipped with lights as
appropriate in specific conditions and in case if the equipment obscures the tractor lights.
5. USING THE SWEEPING MACHINE
Before starting the sweeper operation, the user must read the user manual. Directives for proper
operation must be followed.

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 14
5.1 PRECONDITIONS FOR THE SWEEPER’S ATTACHMENT TO THE
TRACTOR
The device is suspended on the front or rear of the tractor. The hydraulic hoses are connected to
the tractor’s hydraulic system.
The sweeper may be attached to the tractor if it does not cause problems and does not require
additional tools. Check the proper connection of all elements.
When connecting the hydraulic hoses to the tractor, ensure that they are not twisted, without
loops and protected from damage.
To ensure the optimal operation of the sweeping machine:
The sweeper requires a hydraulic circuit with backflow and a quick connect coupler.
Checking the turning parts (hydraulic motor, cleaning brush shaft) regularly (at least
every 8 working hours).
WARNING!
Strictly follow the guidelines on fixing points
5.2 CONNECTING THE SWEEPING MACHINE TO THE HYDRAULIC
SYSTEM
Remove the plugs of the quick connect couplings from the safety catches (or pull out the
attachment tips) and connect to external couplings on the tractor's hydraulic system. When
connecting the hydraulic hoses, make sure the hoses are not bent and are protected against damage.
5.3 TESTING THE SWEEPING MACHINE
The sweeping machine must be tested:
Before starting the sweeper operation
Periodically (at least once a month)
After repair works have been carried out
The user of the machine must ensure that the hydraulic hoses are replaced after a certain period
of time, even if any defects are not visible. The hydraulic hoses should not be used for more than 6
years. Date of production and permissible dynamic pressure are indicated on the hose.

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 15
5.4 WORKING WITH THE SWEEPING MACHINE
After checking the attachment of all safety devices and hydraulic connectors, you may start
working with the sweeper.
The sweeper working speed depends on the type of the surface to be cleaned and the amount of
garbage (but may not exceed 10 km/h).
When operating the sweeper:
With two wheels, observe that during operation the sweeping machine rolls on the wheels
Observe that the loader does not press the sweeping machine with its own weight
The hydraulic hoses must be connected in a way allowing the shaft to rotate in the
required direction
The supporting wheel sand garbage collection box may not obstruct the shaft
Before sweeping, check the shaft pressing to the ground. The shaft is pressed by
adjusting the supporting wheels (Fig. 4). If the sweeping segments are worn, the
supporting wheels must be reinstalled to ensure that the sweeping segments are in contact
with the surface to be cleaned.
Note! When the shaft is being reassembled, ensure that the axle is not bent. The hydraulic system
must be repaired by specialist workshops. In a daily work with the sweeping machine, observe its
safe condition.
Fig. 4. Wheel adjustment

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 16
5 pav. Šlavimo segmentų prispaudimas prie pagrindo rekomendacijos
5.5 HYDRAULIC UNIT
Before each sweeper disconnection from the tractor's hydraulic system, reduce the partial
pressure of the hydraulic unit.
Always check the oil level in the tractor's hydraulic system before starting working
with the sweeper.
If the machine has not been used for more than 4 weeks, it must be checked
carefully before operation.
The life of the hydraulic hoses must not exceed 6 years.
After disconnecting the hydraulic quick connect couplers from the tractor, the hydraulic
coupler plug must be covered with a special hydraulic stopper, and the hydraulic hoses must be hang
in a designated area to prevent the hoses from being contaminated or damaged.

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 17
5.6 LUBRICATION
Fig. 5. Lubrication
The sweeper must be lubricated at least every 16 working hours.
We recommend using lubricants LT-42 or LT-43.

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 18
6. SWEEPER EQUIPMENT
6.1 ADDITIONAL EQUIPMENT
Double tank watering system.
Volume of the double tank watering system –300 l.
6.2 HITCH FRAME
Floating hitch frame.
The floating hitch frame is used only on in the front of the tractor.
The floating hitch frame has a universal suspension mount
(Multibracket).

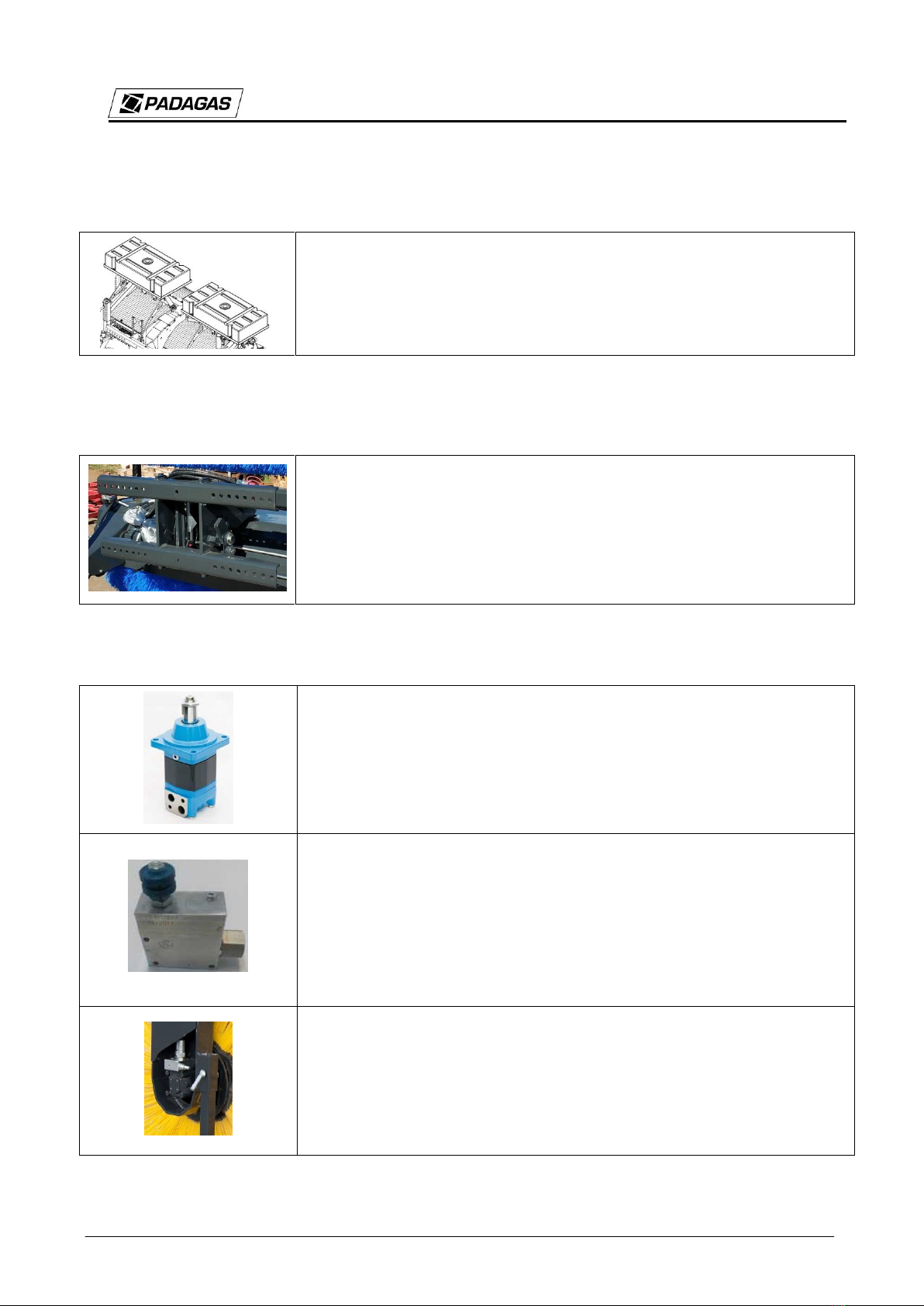

6.3 HYDRAULIC COMPONENTS AND ADDITIONAL OPTIONS
Hydraulic motor.
The oil pressure and flow of the tractor should be adjusted only to half
of maximum parameters of the hydraulic motor.
The shaft rotation speed should be approximately 80-120 rpm.
Flow controller.
If the oil flow rate of the tractor is above 140 l/min, it is recommended
to install a flow control valve in the hydraulic system to avoid
overloading the hydraulic system of the sweeper. The oil flow controls
the rotation speed of the shaft. The shaft rotation speed should be
approximately 80-120 rpm.
Hydraulic motor safety valve.
The safety valve of the hydraulic motor acts as a pressure relief valve
and opens when back pressure from D1 to D2 occurs, as well as in the
reverse direction.

SHARK
© V. Padagas ir ko, UAB. All rights reserved. 19
6/2 solenoid valve
A double action control circuit for two hydraulic functions can be used
using the 6/2 solenoid valve.
Electrical control is required to operate the valve
Draining (Pos. 1).
The drain hose is connected when the pressure in the return hose can
exceed the allowable limit.
The drain hose must be connected to allow the oil to flow freely into the
tank of the tractor
6.4 ELECTRICAL COMPONENTS
The water pump of the watering system must be connected via a switch,
using a 10 A fuse in line.
The connector must be installed on the positive (red) current wire.
The water pump of the watering system.
The water pump is used to ensure a steady flow of water over any
operating range.
The pump voltage is 12 V or 24 V.
Marker light.
The marker lamp clearly defines the width of the vehicle.
