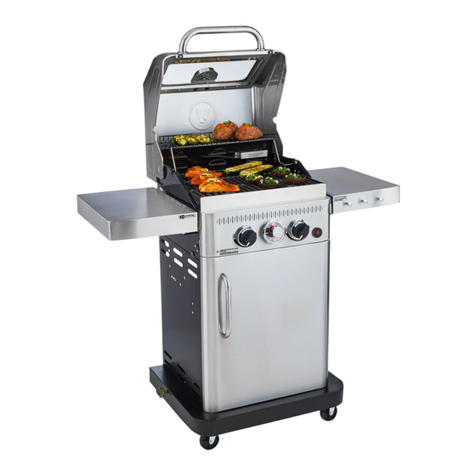

Paderno Essence Series User manual

4Burner
Barbecue
Assembly Manual
Essence Series
SKU
08531914/G47801
Last updated
WZ - Feb 3, 2021
Your feedback is important to us.
Share your experience by writing a review
at www.canadiantire.ca

2
BUILD IT

3
BUILD IT
paderno.com | 1-800-263-9768
THIS MANUAL MUST REMAIN WITH
THE PRODUCT AT ALL TIMES
HEAVY ITEM, NEEDS 2 TO LIFT
THIS BARBECUE IS FOR OUTDOOR USE ONLY
CONTACT CALL CENTRE IF ANY PARTS ARE MISSING
18002639768
To order non-warranty replacement parts or accessories, please contact
Vida by PADERNO customer service: 18002639768
WARNING
Failure to follow all of the manufacturer’s
instructions could result in hazardous ires,
explosions, property damage or serious
personal injury or even death.
Follow all leak check procedures carefully
prior to operation of barbecue, even if grill
was dealer assembled. Do not try to light
this barbecue without reading the Lighting
Instructions section of this manual.
CAUTION
Read and follow all safety statements,
assembly instructions and use and
care directions before attempting to
assemble and cook.
CAUTION
Sharp edges. Wear gloves when
assembling your grill.
INSTALLER OR ASSEMBLER/
CONSUMER
This manual should be kept with the
barbecue at all times.
DANGER
1. If you smell gas:
a. Shut o gas to the appliance
b. Extinguish any open lame
c. Open lid
d. If odour continues, keep
away from the appliance and
immediately call your gas
supplier or your ire department
2. Requires two people to complete
the assembly process.
WARNING
1. Do not store or use gasoline or
other lammable liquids or vapours
in the vicinity of this or any other
appliance.
2. An LP cylinder not connected for use
shall not be stored in the vicinity of
this or any other appliance.
WARNING
YOUR BARBECUE’S STAINLESS STEEL
AND PAINTED STEEL PARTS CAN
BECOME VERY HOT WHEN IN USE OR
WHEN IN DIRECT SUNLIGHT.
WARNINGS

4
BUILD IT
Tools required
Hardware pack
Screwdrivers Wrench 2 People
PART NO. DESCRIPTION PHOTO QTY
11/4" × 13mm screw 28
2NO.1024UNC × 13 screw 17
3NO.832UNC × 10 screw 2
4ST4.8 × 10 tapping screw 2
5M4 wing nut 1
6Side burner bezel 1
7AA Battery 1
8Caster pin 1
9Tool hook 3
10 NO.540 × 10 screw 3
11 Burner box washer 6
C
M
Y
CM
MY
CY
CMY
K
PARTS

5
BUILD IT
paderno.com | 1-800-263-9768
Parts list - 08531914 / G47801
ITEM
NO. DESCRIPTION PART NO. QTY
AA Top Lid Assembly G478010001 1
AB EasyCHECK Window G478000201 1
AC Lid Handle G513000402 1
AD Lid Handle Bezel G352001501 2
AE Thermometer G478000701 1
AF Vida Logo plate G478000601 1
AG Top Lid Screw G369001701 2
AH Lid Bumper G527000201 4
BA Burner Box Assembly G478020001 1
BB Control Panel G478001401 1
BC Control Panel Heat Shield G478001001 1
BD TempASSURED Burner Assembly G374220001 2
BE Main Burner G478240001 2
BF Electrode Set 50 cm, Main Burner G466005701 1
BG Electrode Set 90 cm, Main Burner G619006701 1
BH Carryover Assembly A G478000801 2
BI Carryover Assembly B G478000901 1
BJ Grease Cup Rail A G478003601 1
BK Grease Cup Rail B G478003801 1
BL Grease Collection Tray G478003501 1
BM Grease Cup G416001501 1
BN Probe Cover G478001201 1
BO Rear Wire Clip G367005901 5
CA Manifold Assembly G478410001 1
CB Metal Hose, TempASSURED Assembly G305001501 1
CC Hose Connector G466008501 1
CD Regulator Bracket G46600C301 1
CE Metal Hose, Side Burner G208002301 1
CF Side Burner Valve G478002301 1
CG Regulator G46600C801 1
CH EasyCHECK Control Knob G478001701 5
CI EasyCHECK Bezel G478001801 5
CJ TempASSURED Control Knob G478001901 1
CK TempASSURED Control G478430001 1
CL Warming Rack G478002101 1
CM Heat Tent G478002201 4
CN Cooking Grate A G426000401 1
CO Cooking Grate B G426000501 2
ITEM
NO. DESCRIPTION PART NO. QTY
DA Side Burner Table, Left G478070001 1
DB Side Burner Fascia, Left G478003001 1
DC Side Burner Lid G501007003 1
DD Side Burner Drip Pan G515008303 1
DE Side Burner G540200001 1
DF Electrode Set, Side Burner G515003901 1
DG Cooking Grate, Side Burner G501007701 1
DH Side Shelf Table, Right G478060001 1
DI Side Shelf Fascia, Right G478002701 1
DJ Ignition Button G478003701 1
EA Cart Side Panel, Left G478002801 1
EB Cart Side Panel, Right G478002901 1
EC Match holder G608001902 1
ED Electronic Ignition Module G539000301 1
EE Ground Wire G602002403 1
EF Upper Back Panel G478002001 1
EG Lower Back Panel G478002401 1
EH Heat Shield, Burner Box G552160001 1
EI Front Brace G478600001 1
EJ Door Magnet Assembly G527003701 1
EK Door, Left G478900001 1
EL Door, Right G478910001 1
EM Door Handle G453005302 2
EN Tank Exclusion Brace G532007702 2
EO Lower Door Brace G545000101 1
EP Bottom Panel G478050001 1
EQ Castor with Lock G350002301 2
ER Castor G350002401 2
F1 Hardware Pack G478B00101 1
F2 Assembly Manual G478M00101 1
F3 Safe Use and Care Manual G374M00102 1
F4 Tank Screw G505004701 1
PARTS

6
BUILD IT
Exploded diagram - 08531914 / G47801
AA
AB
AC
AD
AE AF
AG AH
BA
BC
BD BD
BE BE
BF
BG
BH BH
BI
EF
BL
BJ
BK
BM
BN B0
BB
CA
CB
CC
CD
CE
CF
CG
CH
CI
CJ
CK
CL
CM
CO CN
DA
DB
DC
DD
DE
DF
DG
DH
DI
DJ
EA
EB
ED
EE
EH
EG
EI
EJ
EK
EC
EL
EM
EN
EO
EP
EQ
ER
F4
F1
F2
F3
Hardware
Pack
Assembly
Manual
User
Manual
EXPLODED DIAGRAM

7
BUILD IT
paderno.com | 1-800-263-9768
Step 1
81
ER
EP
EQ
Note:
Use this pin as a tool to lock all 4
casters during assembly.
4

8
BUILD IT
Step 2A
42
EB
ED
EE
EE

9
BUILD IT
paderno.com | 1-800-263-9768
Step 2B
13
EP
EA

10
BUILD IT
Step 2C
EP
13
EB

11
BUILD IT
paderno.com | 1-800-263-9768
Step 3
14
21
EG
EG
2
2

12
BUILD IT
Step 4
EG
EG
EP
EP
22
EN

13
BUILD IT
paderno.com | 1-800-263-9768
Step 5
14
EI
EB
EA

14
BUILD IT
Step 6A
AA
EB
14

15
BUILD IT
paderno.com | 1-800-263-9768
Step 6B
CD
CD
22

16
BUILD IT
Step 7
12
EH
EA

17
BUILD IT
paderno.com | 1-800-263-9768
Step 8A
BL
BJ
BK
24

18
BUILD IT
Step 8B
BL
BA
BL
BA

19
BUILD IT
paderno.com | 1-800-263-9768
Step 8C
BM
BM
BK
BJ

20
BUILD IT
Step 9
Step 10
AC
CI
CJ
AD
12
AA
