Painless Performance Products 50334 User manual

Off-Road Switch Panel
Installation Instructions
50334: Off-road 4 Toggle switches/Dash Mount w/Push-Button Start
50336: Off-road 6 Toggle switches/Dash Mount w/ Push-Button Start
Painless Performance Products recommends you, the installer, read this installation
manual from front to back before installing this harness.

1
Painless Performance Products, LLC
2501 Ludelle Street
Fort Worth, TX 76105-1036
800-423-9696 phone –817-244-4024 fax
Web Site: www.painlessperformance.com
E-Mail: [email protected]
If you have any questions concerning the installation of this product,
feel free to call Painless Performance Products' tech line at 1-800-423-
9696. Calls are answered from 8am to 5pm central time, Monday thru
Thursday, 8am-4:30pm Friday, except holidays.
Here we have provided you with accurate instructions for the
installation of this product. However, if you have comments/suggestions
concerning these instructions, please call or email us (our contact
information can be found at the top of this page or online at
www.painlessperformance.com). We sincerely appreciate your business.
Painless Performance Products, LLC shall in no event be liable in
contract or tort (including negligence) for special, indirect, incidental, or
consequential damages, such as but not limited to, loss of property, or any
other damages, costs or expenses which might be claimed as the result of
the use or failure of the goods sold hereby, except only the cost of repair or
replacement.
Should you damage or lose part of your manual, a full-color copy of
these instructions can be found online at www.painlessperformance.com
2nd Edition: Jan 2019
Copyright 2019 by Perfect Performance Products, LLC

2

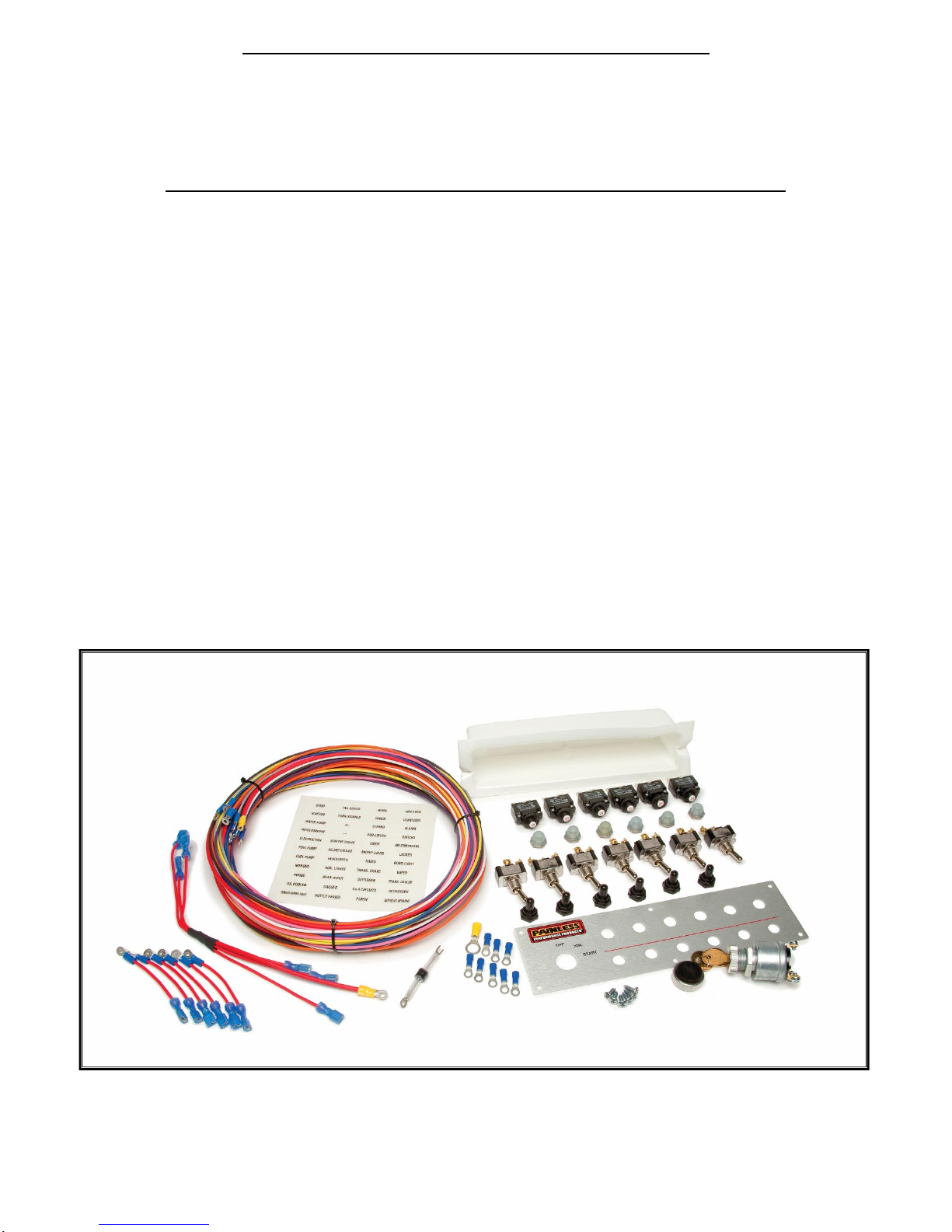

CONTENTS OF THE PAINLESS KIT
Refer to the Contents Figure (below) to take inventory. See that you have
everything you’re intended to have in this kit. If you find that anything is missing or
damaged, please contact the dealer where you obtained the kit or Painless Performance
at [phone].
The Painless Off-Road toggle Switch Kit should contain the following:
(1) 4 or 6-Switch Customizable Switch Panel w/ (1) label sheet
(1) Foam Liner
(5 or 7) Toggle Switches
o(3 or 5) On-Off
o(1) On-Off-On
o(1) Off- Momentary On
(4 or 6) Toggle Switch Boots
(1) Ignition Switch & (1) Ignition Switch Nut w/ Boot
(4 or 6) Circuit Breakers
o(1) 10 amp (50332 only)
o(1 or 2) 15 amp
o(3) 20 amp
(4 or 6) Clear Circuit Breaker Boot
Hardware: (1) 10-12 ga. 3∕8” Ring Terminal, (7 or 9) 14-16 ga. #10 ring
Terminals, & (6) 8x12 screws
(1) Diode Assembly
(1) Ign. Sw. to Circuit Breaker Power Wire Assembly
(1) Power Wire
(1) Purple Starter Solenoid Wire
(4 or 6) Red Jumper Wires
(5 or 7) Pre-Terminated Control Wires.
Zip-ties

3
INSTALLATION
First, decide what switches will be used for your
application and install them into the panel. Start by
adjusting the hex shaped backing nut on each of the
switches ¾ of the way back toward the body of the switch.
Insert the switch through the switch hole opening
with the slot on the threads facing down and screw the black
toggle switch boot onto the front of switch by hand until
snug.
Next, using either a 5∕8”or a 16mm deep wall
socket hold the switch boot in place while tightening
the hex shaped backing nut to fully secure the switch
to the panel. Tightening the switch using the nut
inside the switch boot could damage the shoulders
around the boot.
In order to allow the maximum amount
of room for the switch labels, line the switch
boots up with the flat sides of the hex-shaped
nut running parallel with the top and bottom
sides of the switch panel.
Follow this same procedure for
installing the push button circuit breakers.
NOTE: A thread locker may be used to assist in keeping the switch and circuit
breaker mounting nuts from vibrating loose.
Install the push button start switch into the switch panel. Tighten the weather-
resistant retaining nut by hand. NOTE: A thread locker may be used to assist in
keeping the start button nut from vibrating loose.
The large spliced red wire assembly is included to provide power from the battery
to the switch panel.

4
Notice on the first switch to the left, from the start button, there is a red jumper from
the circuit breaker directly below it for power. You will install the pink control wire with the
doubled red wire onto the output of this switch. This short red wire will then be routed to
the second circuit breaker to the left of the start button and the pink wire will be routed
out to the ignition coil. With this setup you will then have an ignition hot only switch that
can be used for a variety of functions of your choice.
Six or Four (depending on which kit you have) terminated jumper wires are
provided to supply power from the circuit breakers to the toggle switches.

5
Individual wires with terminals on one end are the wires to be routed from the
toggle switch to the device being controlled. The terminal end is for the switch and once
the wire has been routed, the extra length may be cut off and then terminated. Each kit
has one extra switch and one extra wire, which may be needed in your particular
application. The following blank chart is to help you keep track of which wire color is
controlling which component. An example of those connections can be seen in the far
right column. Note: Make sure to install a neutral safety switch on the purple starter
solenoid wire to prevent the accidental pushing of the start button from cranking
the engine over and creating a hazardous situation.

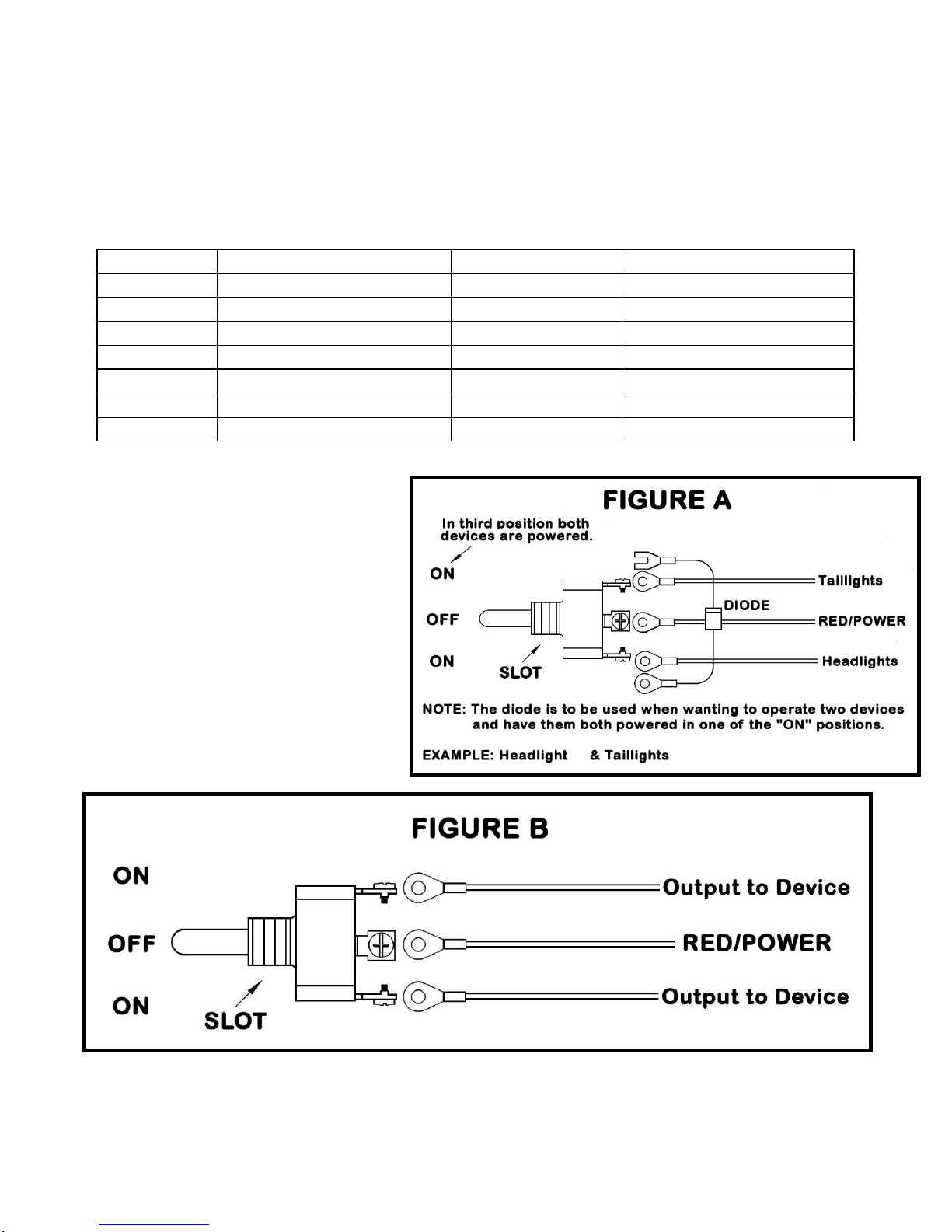

Figure "A" illustrates the proper
hookup of wires using an on/off/on switch
when two devices are to be operated and
one of the devices is to be on in both
positions. An example might be headlights
and taillights. With the switch in the lower
position only the taillights are on and in the
upper position the headlights and taillights
are on. The diode, in the illustration, allows
this function to take place. If the diode is not
used, the switch operates two devices
independently as shown in Figure "B."
CIRCUIT #
WIRE COLOR
CONNECTED TO
Example
1
Pink
Ignition Coil
2
White
Headlights
3
Yellow/White
Fuel Pump
4
Orange
Fuel Pump 2
5
Blue
Water Pump
6
Gray/White (50336 Only)
Electric Cooling Fan Relay
7
Brown (50336 Only)
Taillights

6

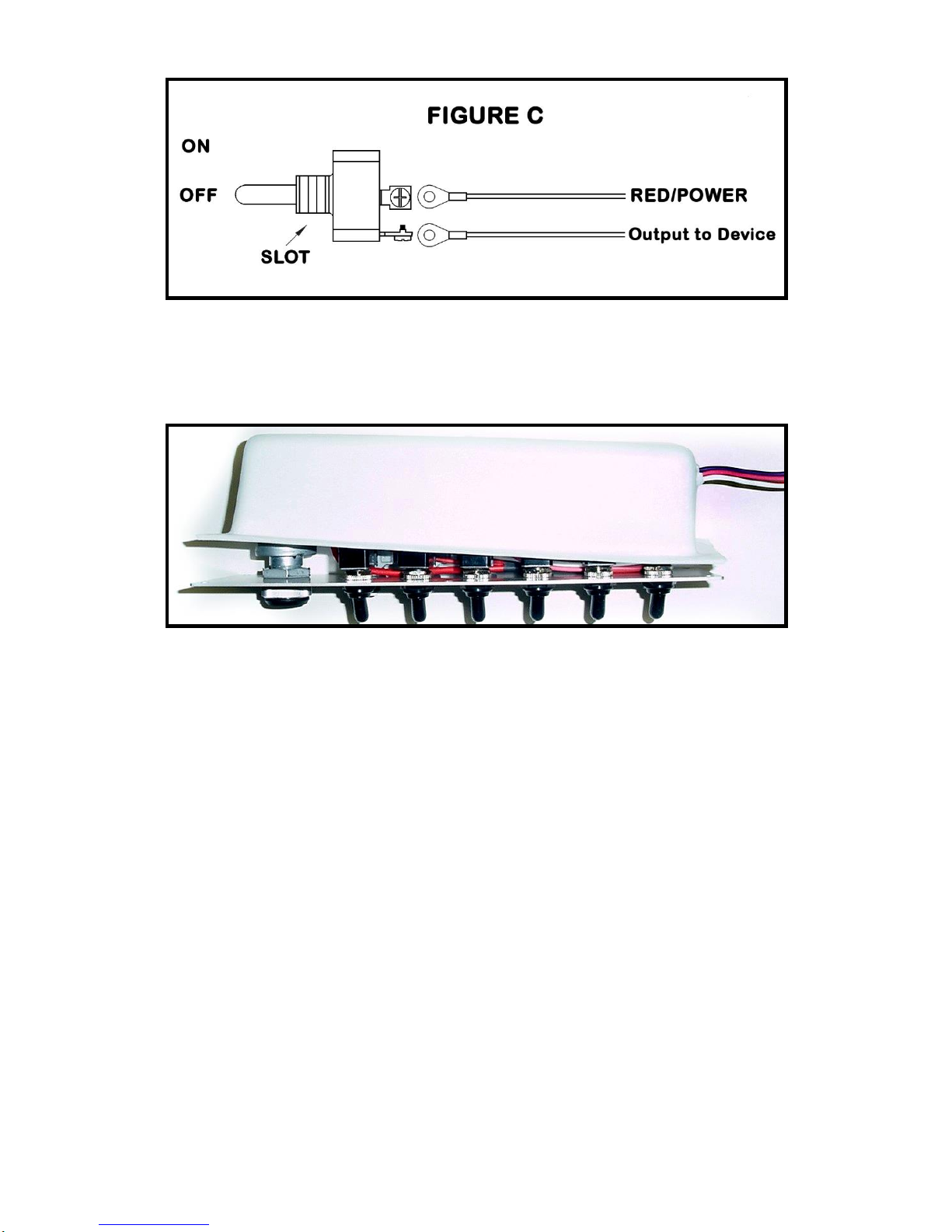

Figure "C" illustrates the proper hookup of wires to an on/off switch, which will
control a single device.
Once all of the wires have been connected to the switches, the polyethylene liner
can be installed. First decide where the wires will be exiting and make a small hole in the
liner and pass the wires through the opening, then slide the liner over the switches and
flush to the panel.
For dash mounted panels, you must cut a 7 ¼” x 2 ¼” opening for the four switch
panel or a 9 ¾” x 2 ¼” opening for the six switch panel to allow room for the polyethylene
liner.
The plastic wire ties are for looming and securing the wires to the vehicle.
The label sheet included is to identify each switch of its function. Simply peel off the
label needed and place it under the switch wired for that function. The "R" and "L"
labels are for right and left in the event an on/off/on switch is turned sideways for turn
signals

7
The illustrations below are some examples of typical relay installations.
Electric Cooling Fan connection using Painless weatherproof relay kit #30130
Electric Fuel Pump connection using Painless weatherproof relay kit #30131

8
Electric Water Pump connection using Painless weatherproof relay kit #30132
