Pakole ZENIT 80+ Series User manual
EN
www.pakole.com
009_007_011_180712_V001_EN
Appliance types:
ZENIT 80+12...42
Linear - and “U”- form types.
ZENIT 80+TYPE TUBE RADIANT HEATER Contents
Contents
...................................................................................................................3
.................................................................................................................4
Installer’s responsibilities ...........................................................................................................4
Data board .................................................................................................................................4
Corrosive materials ....................................................................................................................5
Standards and laws ...................................................................................................................5
Safety signs ...............................................................................................................................5
Safe usage.................................................................................................................................5
...................................................................................6
..................................................................................................................6
................................................................................................................................7
Components of „I” -form tube radiant heater, assembly distances ............................................7
Components of „U”-form tube radiant heater, assembly distances............................................7
Appliance installation .................................................................................................................8
Electrical connection ..................................................................................................................8
Regulatory options .....................................................................................................................9

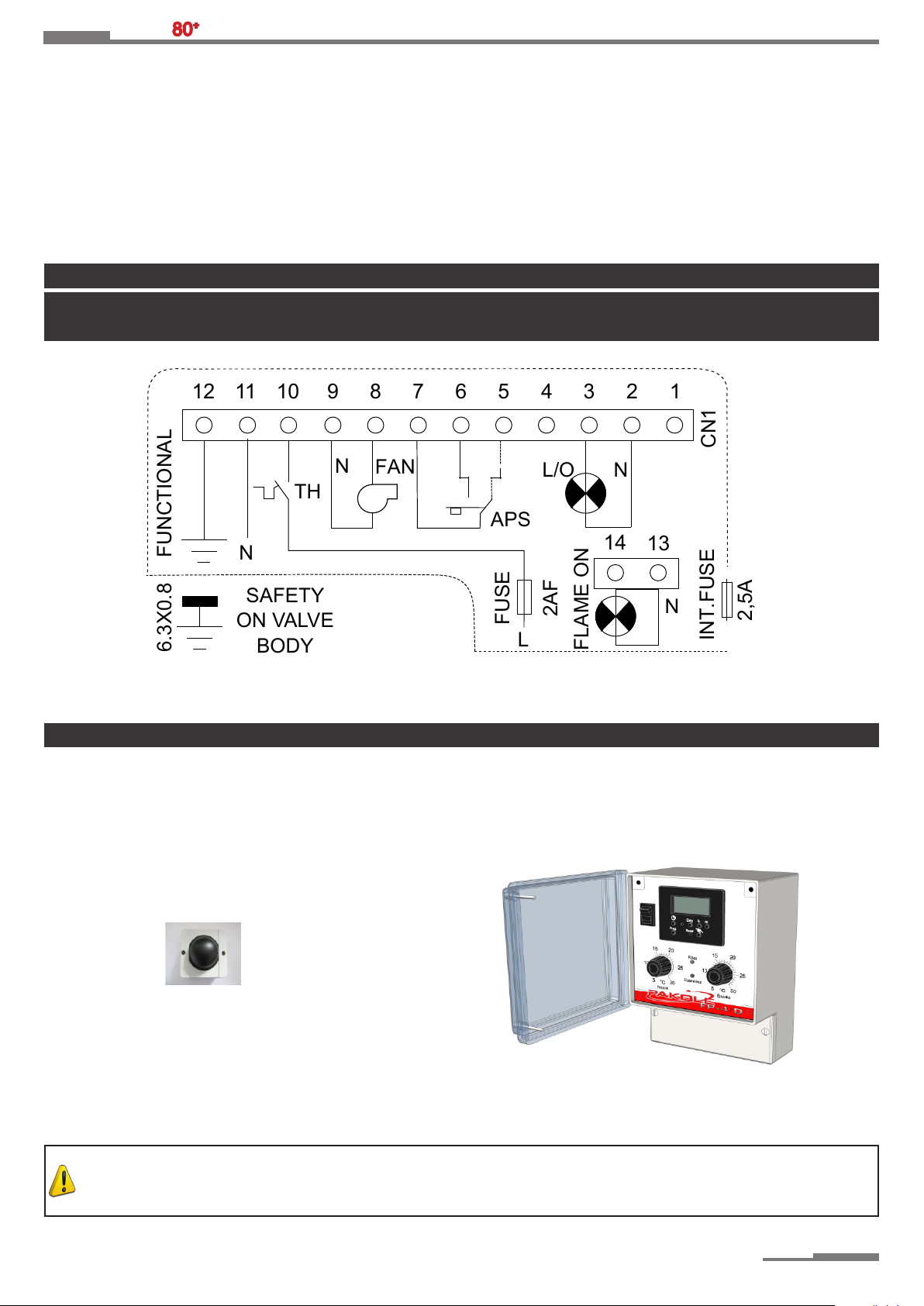

Electrical connection scheme of SIT 579 DBC type automatic burner control...........................9
Optional accessories..................................................................................................................9
Electrical connection ................................................................................................................10
Protective distances.................................................................................................................10
Combustion-air supply ...........................................................................................................12
6. .................................................................................................12

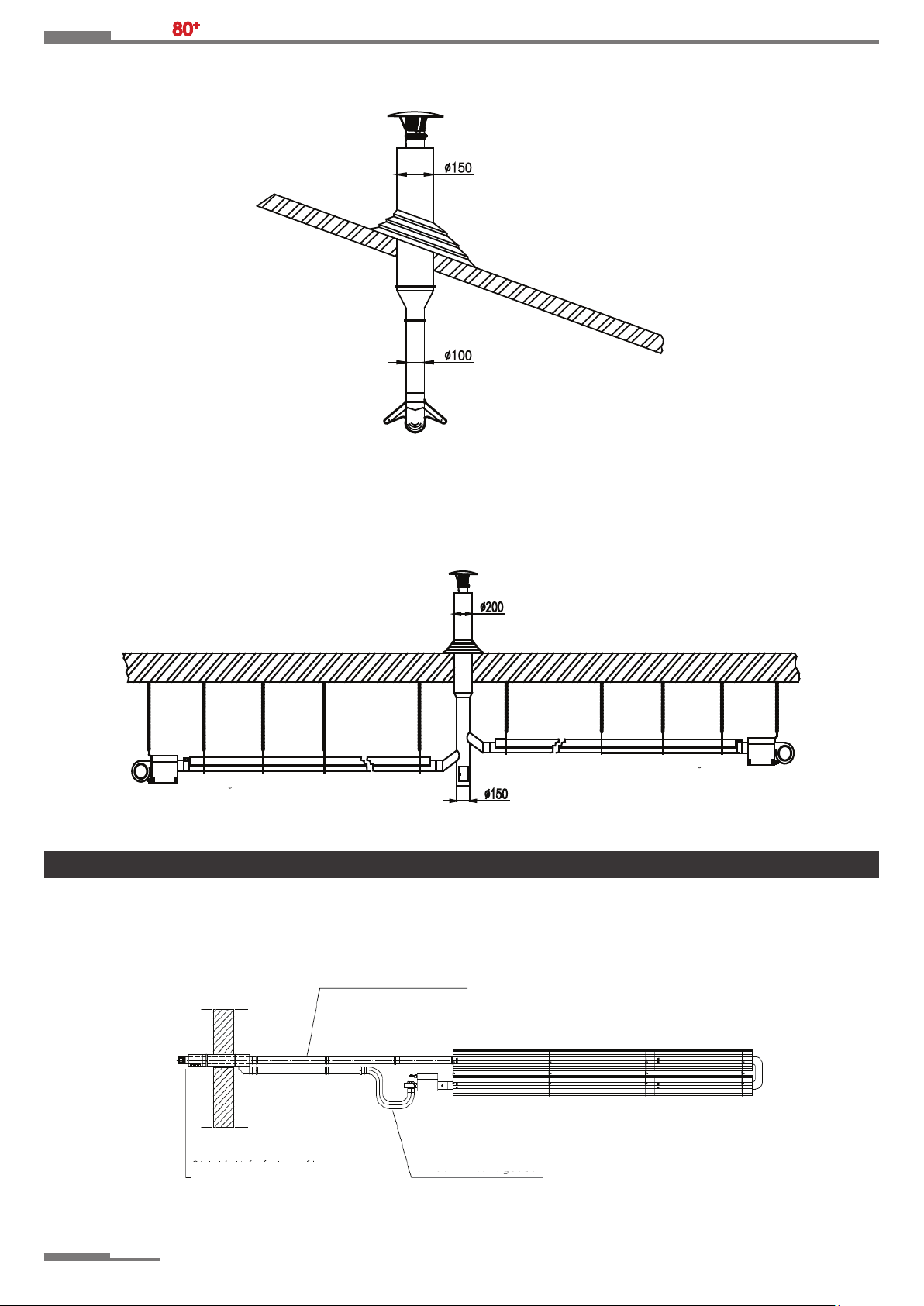

Exhoust out taking +combustion air intaking............................................................................14
...............................................................................................................16
..........................................................................................................16
Start, restart .............................................................................................................................16
Operation of automatic burner control ( SIT 579 DBC typ) ......................................................16
...............................................................................................................................17
Check at the beginning of season............................................................................................17
Maintenances...........................................................................................................................17
..................................................18
Gas change..............................................................................................................................18
...................................................................................................................18
...............................................................................................................................19
Enclosure 1.: Variety-list of ZENIT 80+ -type tube radiant heaters ..........................................19
Enclosure 2.: Heating and consumption values of ZENIT 80+ -type tube radiant heaters ......20
ECO-Design Declaration of Conformity ...................................................................................21
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
3
Other standards can give you directions in terms of proper using of natural and propan gas as follows: leading/piping, storing etc.!
Concerning the detailed content of these standards the local Bureau of Standards can help.
Carbon- monoxide poisoning:
and/or nausea! If these symptons are observed in that case the appliance probably does not work satisfactorily! First of all go fresh air,
ventilate the rooms and have the appliance investigated!
Propan-gas:The propan-gasis odorless! Mercaptan-derivative as scented component is mixed into the gas to be able to observe the
possible escape! In spite of the typical smell is not felt the propan gas can be present in the environmental air in case of escaping!
1.
The ZENIT -
continuosly! In case of proper using the appliance guarantees safety and energy-saving operation! The combustion products issued du-
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
4
1. picture: Data board
Make sure that read and understood all the warnings, correct keeping of which can guarantee the safety and faultless operation !
During the installation be always circumspect! Follow the valid instructions and recommendations!
groundings are prepared as per MSZ EN 60335 standard!
protection!
The appliance must not be used in the open air!
The application of device is STRICTLY PROHIBITED in such rooms, which are used for sleep or continuous stay!
In the interests of avoiding of dust explosion do not used the device in such rooms where the degree of dust concentration is
high if the device is installed without outside air supply!
Before starting of appliance in every case check it in order to detect the possible damages! Never use damaged equipment!
In case of Propan-gas operation never install the device in basement or from that lower being rooms! The propan-gas is heavier
Before every starting of heater appliance check the condition of connecting gas hose and if it is particularly worn or damaged in
Preserve the equipment in genuine condition, do not leave it to grow old!
Do not use seriously aged equipment any longer!
• Fix the appliance on such stable surface, which during operation despite warming of appliance preserves its stability !
Never block the air supply and exhaust pipes!
Keep away the children and animals from the equipment!
Never service/mend such devices, which are hot and during operation or electrical charged!
Never mount such air duct unit on front or back side of device, which is not approved by manufacturer!
Use exclusively genuine-approved by manufacturer-spare parts,do not install similar quality spare parts for substitution! These
kind of substitute parts can cause serious damages concerning the operation of appliance!
• Fix the appliance on such stable surface, which during operation despite warming of appliance preserves its stability !
Never block the air supply and exhaust pipes!
Keep away the children and animals from the equipment!
Never service/mend such devices, which are hot and during operation or electrical charged!
Never mount such air duct unit on front or back side of device, which is not approved by manufacturer!
Use exclusively genuine-approved by manufacturer-spare parts,do not install similar quality spare parts for substitution! These
kind of substitute parts can cause serious damages concerning the operation of appliance!
Supervisory Authority or Fire-service),
supply of the necessary materials/components for installation(which are not belong to appliance),
planing of air duct systems (ventilation/connections)
service execution,
placing the copy of present manual at owner’s disposal,
The appliance is equipped with data board, which is placed on outside of device’s door. On this data board there are information con-
2.
Installer’s responsibilities
Data board
8,6 mbar
Manufacturer
Type
Nominal input:
32 kW
Naturalgas
Pconnecting max.:
20-8945-00003
Series number:
GB
Targeted country:
1008 CP 2745
Category:
II2H3+,II2H3P
15 mbar
Gas type:
Electrical protection:
Electrical connection:
Max.current entry:
IP21
AC 230V 50Hz
Pconnecting min.:
Flue system
Date/place of production
2017.10.21.
60 mbar
Jet pressure:
NOx
4
B23, C13, C33, C53
ZENIT-32/L/80+
PAKOLE Trade Kft.
8000 Székesfehérvár,
Börgöndi út 8-10.
1008 14
PIN:
0,45 A
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
5
The manufacturer can not assume responsibility for fault of equipment in case the installation is not happened according to the above.
ask our colleague for help
-
rosive materials, halo hydrocarbons etc.), and with knowledge of these materials must be planed the heater system!
-
CAUTION
!
DANGER
!
CAUTION
!
ELECTRIC
SUPPLY
CAUTION
!
DANGEROUS
OPERATION
CAUTION
!
DANGEROUS
OPERATION
CAUTION
!
HIGH
TEMPERATURE
CAUTION
!
DISCONNECT
POWER LINE
ATTENTION
!
COMPULSORY:
EARTHING
ATTENTION
!
THE USIGE OF
MOVING EQUIPMENT
IS COMPULSORY
ATTENTION
!
COMPULSORY:
USE PROTECTIVE
GLOVES
ATTENTION
!
ONLY
QUALIFIED
PERSON
ATTENTION
!
FORBIDDEN!
CAUTION
!
DANGER
!
ATTENTION
!
ONLY
QUALIFIED
PERSON
Installation must be carried out always strictly complying with the current standards of
the country where the appliance is going to be used and following, of course, the instructions
given by the producer.
and trained personnel only.
-
informations.
ATTENTION
!
COMPULSORY:
EARTHING
ATTENTION
!
ONLY
QUALIFIED
PERSON
CAUTION
!
DANGER
!
CAUTION
!
ELECTRIC
SUPPLY
Always make sure that the unit and all its electrical parts have been cor-
rectly earthed prior starting up the unit.
CAUTION
!
DANGER
!
ATTENTION
!
ONLY
QUALIFIED
PERSON
ATTENTION
!
COMPULSORY:
USE PROTECTIVE
GLOVES
If you have to disassemble the unit, use special protective gloves.
Beware of sharp edges inside the unit!
Beware of roof corners of outdoor units!
Keep suction grids always clear!
CAUTION
!
DANGER
!
CAUTION
!
DANGEROUS
OPERATION
ATTENTION
!
FORBIDDEN!
Before cleaning or maintaining the unit, make sure that all electrical parts
and cannot be inadvertently started prior to opening inspection panels.
in the electric fan.
CAUTION
!
DANGER
!
CAUTION
!
ELECTRIC
SUPPLY
CAUTION
!
DISCONNECT
POWER LINE
We recommend to install a safety switch which can be easily reached to
-
Before opening the unit, make sure that all electrical parts have been
inadvertently started prior to opening inspection panels.
CAUTION
!
DANGER
!
Should the unit work in a house where disabled people and/or children live, it must be placed safely away from their
reach. Always make sure that the access door to the inside control board stay locked.
An incorrect installation can cause damages to people, animals and property. In case of erroneous installation, the
manufacturer cannot be held responsible for such damages.
•
Corrosive materials
Standards and laws

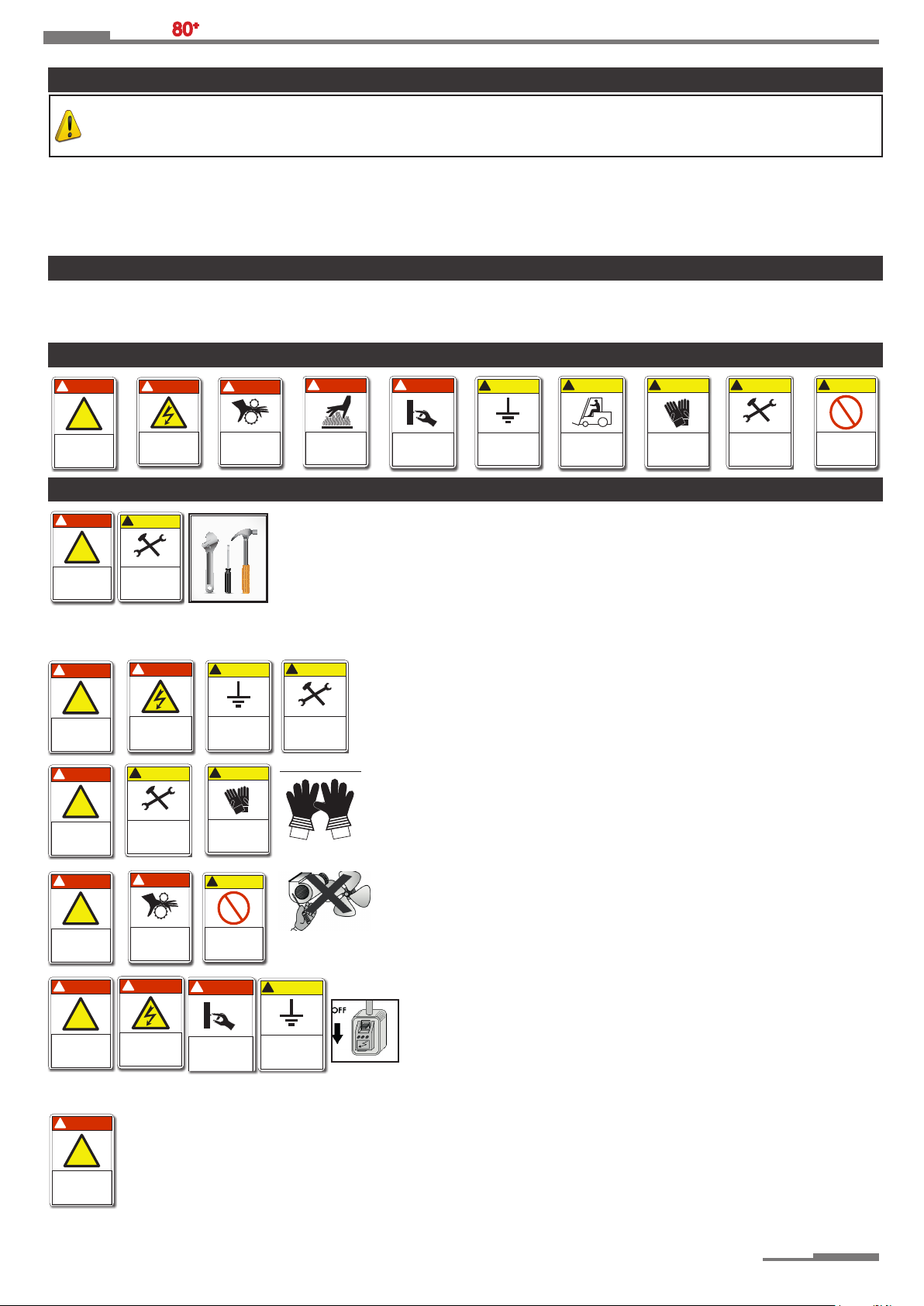

Safety signs
Safe usage
ATTENTION
!
COMPULSORY:
EARTHING
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
6
Never use the unit to support other equipment.
Never leave tools, spare parts, etc. inside the unit.
Make sure that all inspection panels are closed properly.
to anyone in any way.
The delivery must be made according to the following:
The package must be carefully secured in the loading space.
The package must be transferred in a closed space (always keep packing parts away environmental impacts).
The unit has a special safety packing for transport and delivery which must be kept in good conditions till the unit is positioned
on the installation place.
Check if there are any damages and if the unit abbreviation is the same as the one of the ordered model.
Every unit is factory tested before shipment, therefore, if there are damages, report them immediately to the carrier.
Transporting, unloading and moving is a process which must be made carefully to avoid any kind of damages. Try not to use the unit’s
CAUTION
!
DANGER
!
ATTENTION
!
THE USIGE OF
MOVING EQUIPMENT
IS COMPULSORY
ATTENTION
!
FORBIDDEN!
ATTENTION
!
ONLY
QUALIFIED
PERSON
The appliances will be delivered in card board box. The unpacking process of the appliance:
unload the burner the tubes and the accesories from the card board box.
do not remove the protection cap from the burners gas connection or from the gas joining set (optional) util You do not
conect it to the pipe line.
Check the unit and its accesories for any damages which could be arise during the transportation.
if there are any damages found, report them immediately to the manufacturer or your closest dealer.
There is an envelope inside the unit containing the Instructions for Installation and Servicing, User’s Guide use and Guarantee and
services and the warranty documents.
3.
ATTENTION
!
FORBIDDEN!
ATTENTION
!
ONLY
QUALIFIED
PERSON
4.
the made heat to the heated area.
Operation principle: the centrifugal fan of tube radiant heater draws in the combustion-air and pushes out the combustion products -
The variety-list of appliances to be found in the enclosure 1.
The heating and consumption values to be found in the enclosure 2. as per appliance and gas types.
The supply of combustion air of appliance can be realized in two ways:
painting workshops and workshops, which are using explosive or corrosive materials etc.
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
7
Combi hanger
Burner
Combustion air
Electrical connection

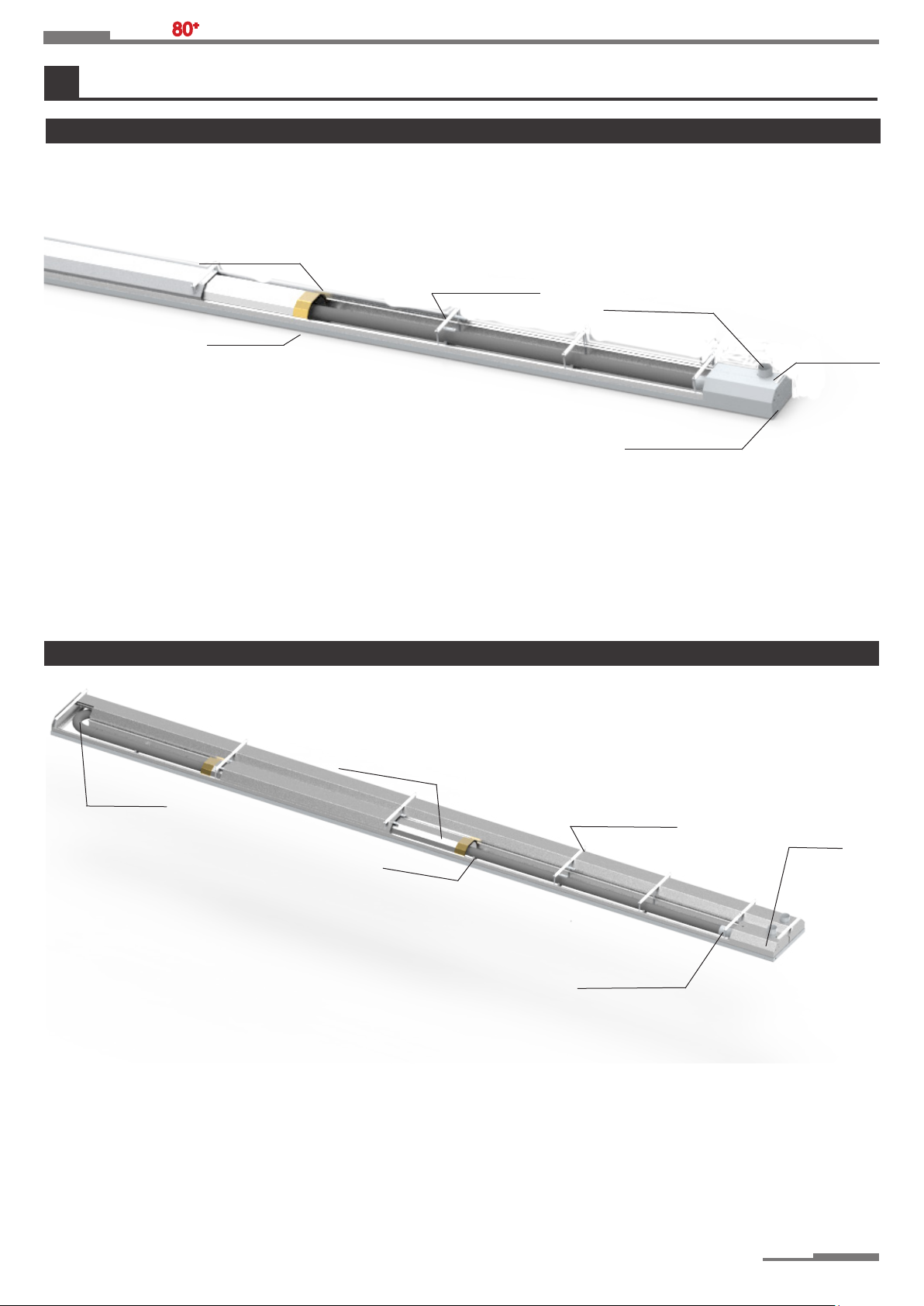

Components of „I” -form tube radiant heater, assembly distances
Combi hanger
Burner
Tube connection
U-element
Components of „U”-form tube radiant heater, assembly distances
5.
2. picture: “I”-form appliance
3. picture: “U”- form appliance
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
8
• SOLELY INTERIOR installation is possible.
• The installation must comply with the valid standards.
•
• The appliance has to be placed in that way that its every part be accessible.
Appliance installation
Works to be performed during gas connection
Gas pipes cleaning
The thorough cleaning of gas-supply system is very important before attachment of appliance.
Gas leakage checking
-
mounting and assembling!
VIGYÁZAT
!
VESZÉLY
!
VIGYÁZAT
!
ÁRAM
ELLÁTÁS
FIGYELEM
!
FÖLDELÉS
KIALAKÍTÁSA
SZÜKSÉGES

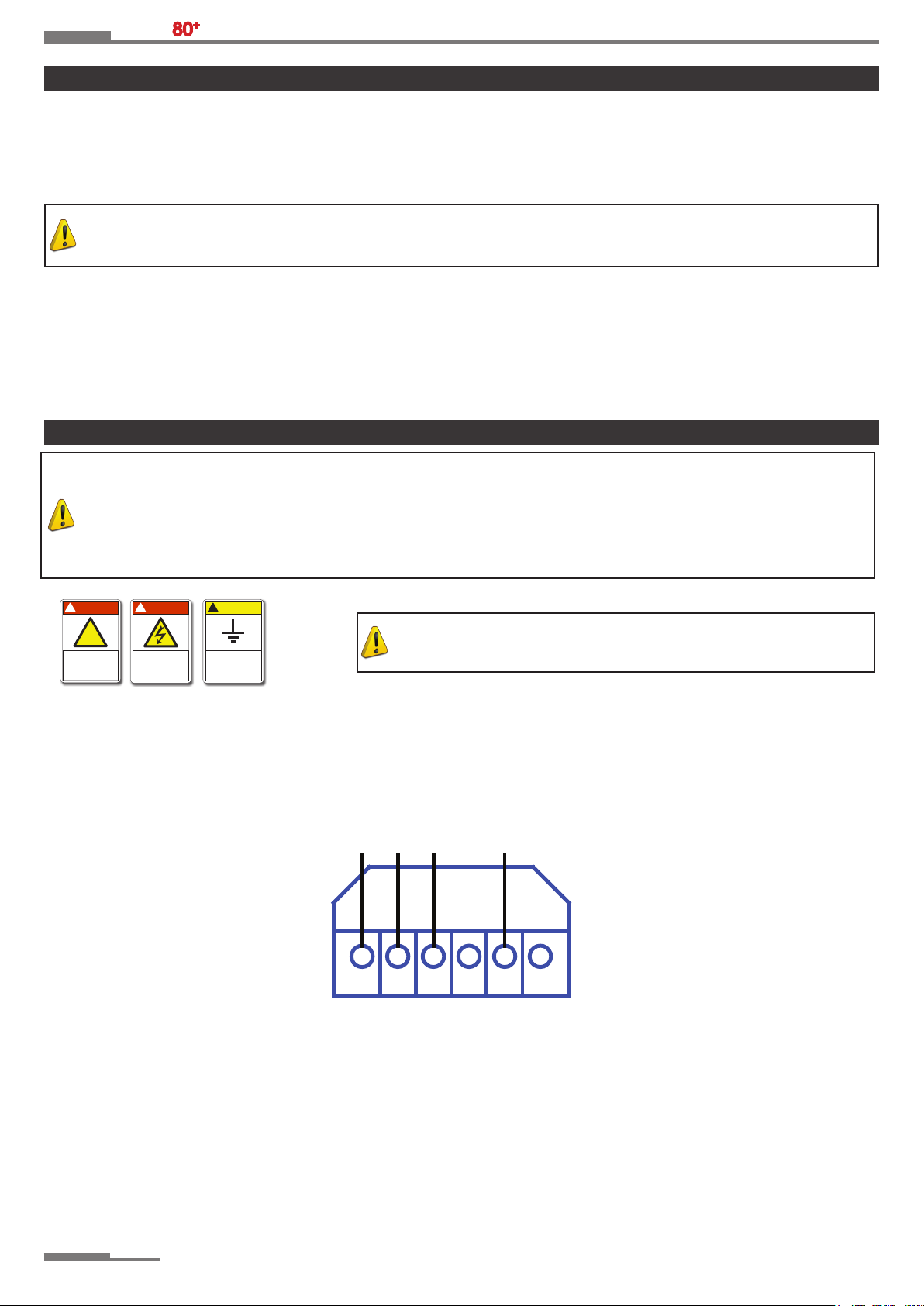

Electrical connection
ELECTRICAL CONNECTING SPECIFICATIONS:
The appliance/burner head can be connected to the mains by safety electrical connector (Fig.13) located on the fan side
of appliance head.
The appliance must be operated under dry circumstances.
At electrical installation of appliance the relevant MSZ 2364 standard must be considered.
The appliance is phase-sensitive for this reason the connection always must be according to the Fig.13.
-
in-switch must be installed.
Electrical wiring: 3 x 0,75 MT cable
Fuse: 2A dissolving fuse
Before change of dissolving fuse by disconnecting of Hirschmann plug the appliance must be detached from electrical supply.
4.picute: Electrical connection
LPE N
FUSE
NMVeLNL1LT
VLVN
SL
V.15-1
C
FAN
VL
VN
SL
PE
12 11 10 9 8 765 4 3 2 1
SIT 579 DBC
APS
14 13
Green
Red
Pici Hirschmann
845 SIGMA
Segéd
szelep
LPE NError sign
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
9
-
control the black tube radiant heater according to needed set up temperature. (The detailed manual of thermostat can be found suppli-
ed with thermostat) When the thermostat send a sign than the heater starts with maximum performance (this time is minimum 30 sec)
thermostat can be: only use capable type of control which can handle the modulation control.(e.g.: FP-MOD type by Pakole Trade Kft.)
5.picture: SIT 579 DBC Electrical connection
12
11
10
9
8
7
6
5
4
3
2
1
N
T
H
N
F
A
N
A
P
S
L
/
O
N
C
N
1
I
N
T
.
F
U
S
E
14
13
F
L
A
M
E
O
N
N
F
U
S
E
2
A
F
L
6
.
3
X
0
.
8
F
U
N
C
T
I
O
N
A
L
2
,
5
A
SAFETY
ON VALVE
BODY
Electrical connection scheme of SIT 579 DBC type automatic burner control
Regulatory options
Recommended temperature controllers for the appliance
(these can be purchased at the appliance manufacturer)
Optional accessories
Temperature sensor
FP-MOD typed thermostat
6.picture: Temperature controller
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
10
VIGYÁZAT
!
VESZÉLY
!
VIGYÁZAT
!
ÁRAM
ELLÁTÁS
FIGYELEM
!
FÖLDELÉS
KIALAKÍTÁSA
SZÜKSÉGES
Electrical connection
and distances!
Protective distances
7.picture: Explanation of heat-radiated area
8.picture: Fire-protection distances
C
1
E
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
11
10 15 20 25 30 35 40 45 50 55 60
3,4 3,7 4 4,2 4,4 4,6 4,9 5,2 5,4 5,7 5,9
30o3 3,2 3,4 3,7 3,9 4,1 4,3 4,6 4,8 5 5,3
3,2 3,5 3,7 4 4,2 4,5 4,7 5 5,2 5,4 5,6
30o2,7 3 3,2 3,4 3,6 3,9 4,1 4,3 4,5 4,7 4,9
ZENIT
„U” alakú
Egyenes
„E”
Típus Kivitel Szerelés Bevitt teljesítmény (kW), beépítési magasság (m)
„U”
FORM
Type Execution Location
horizontal
horizontal
23.picture Minimal ascent of installation
After determining the number and exact position of appliances and hangers,you have to provide for hanging them at a minimum of 400
mm (hanging chains for example). This is necessary, so it does not hinder the length change, which increases dueing thermal expansion,-
wall.The suspension of appliances have to be executed by hanger located on the fan side of burner and combination brackets.
At mounting take the correct hanging up of burner head into consideration becuse the improper hanging up can cause deformation on
the burner head during heat dilatation.
9.picture: Minimal installation height
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
12
Combustion air may be drawn in from more spaces.
a) from inside (heated) space
b) from outside, in case outside combustion-air system is connected to the fan.
The combustion air must not drawn in from internal space in the following cases:
if the heated building is under lower pressure than the outside
fan and pipe system
Tube length for combustion-air supply
6 meter with one elbow from 100 mm diameter tube.
Combustion-air supply
When two appliances are controlled by one thermostat in that case a common combustion-air sypply can be used.The common duct of
10.picture: Outside combustion-air supply
Inhale opening
End plate
Exhaust arrangements of combustion products
Flue channel to the outside of building at each appliance
Flue pipe is not allowed to have a low point, it must be made of Ø100mm stainless steel or aluminium.The minimum ascent of ue
piping must be 2cm/m≈1°
Type of the exhaust system:
The lenght of exhaust system:
The lenght of the exhaust system depend on the allowed maximal lenght and the used length of the appliance.The total lenght of ex-
– plus 6 m.
L :Total lenght of exhaust system
Lmax
Lused :The used lenght of appliance (at the installation)
L = LMAX - Lused + 6 [m]
The total lenght of exhaust system can be completed with 1pc 90° elbow without any correction.
6.
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
13
Correction 1 pc 90° elbow = 1 m exhaust tube (combustion products leading tube)
The exit module of exhaust system must be at least higher than 1 m from openings(sucking hole of vent etc.) of force-assisted ventilation
systems. The bottom side of exit opening must be minimum from 30 cm any kind of frontal wall-protruding.
11.picture: Side-wall exit module
12.picture: Flue leading across wall
Zenit Tube Radiant Heaters
13.picture: Flue leading across at roof
Zenit Tube Radiant Heaters
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
14
14.picture: Flue leading across slanting roof
15.picture: Common ue vent set
Zenit Tube Radiant Heaters
Zenit Tube Radiant Heaters
16.picture: Side-wall ue vent set
Exhoust out taking +combustion air intaking
Ø 100mm INOX fule element
ZENIT Tube heater
air intake element Ø 100mm INOX combustion Air tube
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
15
17.picture: Coaxial roof vent set
Ø 100mm INOX
combustion Air tube
Ø 100mm INOX fule element
element
Ø 100mm INOX fule element
ZENIT Tube heater
air intake element
Ø 100mm INOX combustion Air tube
18.picture: Closed burning ue vent system
19.picture: Common ue vent set
Ø 100mm INOX fule element Ø 100mm INOX fule element
ZENIT Tube heaterZENIT Tube heater
air intake element
air intake element
Insulated vertical venting element with rain
cap
Ø 100mm INOX air intake tubeØ 100mm INOX air intake tube
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
16
Clean duct system of gas supply from any contamination.
Check the presense and suitability of pressure regulator located centrally or before every appliance.( the pressure regulator
is needed if the gas supply pressure is higher than 60mbar,in this way the capacity of pressure regulator can be max.60m-
bar)
Make sure of protective ground of appliance.
Check the proper electrical connection of temperature regulator.
Open the gas supply valve.
Check the gas pressure on the inlet side of solenoid valve.(the maximum allowed pressure is 60mbar).
Connect the mains voltage to the appliance (by temperature regulator or central stage main-switch).
At Natural gas – depending on output: 8.6, 9.5 vagy 10 mbar
At „S” gas – depending on output: 8.6, 10, 11, 11.8, vagy 12.5 mbar
At Propane and butane: 24.9 mbar
7.
Following the switched on voltage the fan operates continuously assuring the 30 seconds prepurge time. This time period ensures the
three times air change of combustion volume in case of biggest appliance’s power.
8.
Start, restart
Operation of automatic burner control ( SIT 579 DBC typ)
OUTPUT
Following the switched on voltage the fan operates continuously assuring the 30 seconds prepurge time. This time period ensures the
three times air change of combustion volume in case of biggest appliance’s power.
(eg.: external heat, light)
20.picture: Input and output gas pressure cheking connections in case of SIT solenoid valve
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
17
Carry out starting test and check the regular operation of appliance.
Checking of the regular operation.
seconds,then turn on the gas valve once more, the appliance starts the operation again..
pressure switch switches over to OFF position from ON.The automation closes the solenoid valve and the appliance stops and
red control lamp is lighting.
Remove the closing of tube and reset the original condition.Start the appliance again by interraption then reconnecting of
mains voltage.
Check at the beginning of season
9.
The ZENIT -type tube radiant heater appliance apart from the supervision and cleaning of radiant tubes (see: Maintenance supervi-
sion by the customer), do not need extra maintenances but to be able to preserve the SAFETY OPERATION and LONG LIFETIME of
Maintenances
Maintenance supervisions by the customer
a) Supervision and cleaning of heat radiant tubes.
Clean the external surface of tubes from any dust by a brush and make sure that there is not any burnout or warping.
b) Check connection and sealing of burner tube and heat radiant tubes by a survey. In case there is lack of sealing, colouring shows it.
d) Check the suspensions, make sure that the load is distributed smoothly at all mountings.You can check it moving each hanger a little.
Remove the barrier by the combustion product and reset the original condition
Restart the device by interrupting and resetting the power supply.
-
nance.
electrode – the appliance operates and the green control lamp is lighting. During operation of appliance its automatic burner control con-
then it stops the gas supply of burner. The fan continues to rotate, none of control lamps is lighting.
In case during the burning process the pressure decrease under the permissible minimal value ont he positive side of air pressure (from
the fan side), then automation prohibits:
- gas supply and fan stops
The fan continues to rotate, none of control lamps is lighting.
In case during burning process the pressure increases above the permissible maximum value on the negative side of air pressure switch
(from the burner tube side, eg.at combustion back),then it switches back to rest position and the automation prihibits.
- gas supply and fan stops
The appliance stands into error position and red control lamp is lighting.
.
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
18
b) Checking the condition of pressure regulator.
e) Checking the presence of protective ground.
f) Supervision of electrical connection.
g) Supervision of combustion air fan.
Check,wheter the wheel of fan is able to revolve free and remove the possible contaminations from revolving blades.
Maintenance supervisions by a qualified service department
(all kinds of interventions for which disassembly of appliance is necessary)
Gas change
The following controll lamps located on the bottom side of appliance (burner head) indicates the mode :
10.
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
19
80+ selection list of tube radiants
Type
Power (kW)
Full lenght (m )
L U L U L U L U
9 12 6 15 18 9
12 15 18
ZENIT 80+-12/8 12,8/7,9 x x - - - - - -
ZENIT 80+-14/9,3 14,1/8,9 x x - - - - - -
ZENIT 80+-16/10,5 15,8/9,6 x x x x - - - -
ZENIT 80+-18/12 18,3/10,6 x x x x - - - -
ZENIT 80+-20/13,4 20,4/11,6 x x x x x x - -
ZENIT 80+-22/14,7 21,9/12,8 x x x x x x - -
ZENIT 80+-24/16 24,4/14,8 - - x x x x x x
ZENIT 80+-26/17,4 26,2/15,9 - - x x x x x x
ZENIT 80+-28/18,7 28,4/16,8 - - x x x x x x
ZENIT 80+-30/20,1 30,6/17,8 - - x x x x x x
ZENIT 80+-32/21,4 31,9/19,1 - - - - x x x x
ZENIT 80+-34/22,8 33,8/20,1 - - - - x x x x
ZENIT 80+-36/24 36,2/21,1 - - - - x x x x
ZENIT 80+-38/25,4 38,4/21,9 - - - - x x x x
ZENIT 80+-40/26,4 39,6/22,9 - - - - x x x x
ZENIT 80+-42/28,5 42,8/24,7 - - - - - - x x
(Minimum and maximum pipe lengths allowed for full lengths)
Enclosure 1.: Variety-list of ZENIT 80+ -type tube radiant heaters
11.
ZENIT 80+TYPE TUBE RADIANT HEATER User’s Manual
20
Type
(kW)
Gas consumption
m3/h kg/h
PB Propan
ZENIT 80+-12/8 12,8/7,9 1,34/0,83 1,07/0,66 1,03/0,64
ZENIT 80+-14/9,3 14,1/8,9 1,48/0,93 1,18/0,74 1,14/0,72
ZENIT 80+-16/10,5 15,8/9,6 1,66/1,01 1,32/0,8 1,28/0,78
ZENIT 80+-18/12 18,3/10,6 1,92/1,11 1,53/0,89 1,48/0,86
ZENIT 80+-20/13,4 20,4/11,6 2,14/1,22 1,7/0,97 1,65/0,94
ZENIT 80+-22/14,7 21,9/12,8 2,3/1,34 1,83/1,07 1,77/1,03
ZENIT 80+-24/16 24,4/14,8 2,56/1,55 2,04/1,24 1,97/1,2
ZENIT 80+-26/17,4 26,2/15,9 2,75/1,67 2,19/1,33 2,12/1,29
ZENIT 80+-28/18,7 28,4/16,8 2,98/1,76 2,37/1,4 2,3/1,36
ZENIT 80+-30/20,1 30,6/17,8 3,21/1,87 2,56/1,49 2,47/1,44
ZENIT 80+-32/21,4 31,9/19,1 3,35/2,01 2,67/1,6 2,58/1,54
ZENIT 80+-34/22,8 33,8/20,1 3,55/2,11 2,82/1,68 2,73/1,62
ZENIT 80+-36/24 36,2/21,1 3,8/2,22 3,03/1,76 2,93/1,71
ZENIT 80+-38/25,4 38,4/21,9 4,03/2,3 3,21/1,83 3,1/1,77
ZENIT 80+-40/26,4 39,6/22,9 4,16/2,4 3,31/1,91 3,2/1,85
ZENIT 80+-42/28,5 42,8/24,7 4,49/2,59 3,58/2,06 3,46/2
Enclosure 2.: Heating and consumption values of ZENIT 80+ -type tube radiant heaters
Other manuals for ZENIT 80+ Series
1
Table of contents
Other Pakole Gas Heater manuals
Popular Gas Heater manuals by other brands
Astria Fireplaces
Astria Fireplaces Blaze&Glow18MP Installation and operation instructions
Desa
Desa VRL24NR owner's manual
Cannon
Cannon Fitzroy FITZIB-PMEXx instruction manual
Rasmussen
Rasmussen K18-C1C-M-N Assembly, installation and operation instructions
Baxi
Baxi Solo 2 PF Installation and servicing instruction
Rinnai
Rinnai RSEP1S25P Installation and operation manual
Desa
Desa Comfort Glow CG2618PV OWNER'S OPERATION AND INSTALLATION MANUAL
Desa
Desa 35-R owner's manual
Empire
Empire RH-25-2 Installation instructions and owner's manual
Hatco
Hatco POWERMITE PMG-100 Installation, operating, service and parts manual
Monessen Hearth
Monessen Hearth IRVF2T Installation, operation and maintanance manual
Truma
Truma S 2200 operating instructions
Nu-Flame
Nu-Flame THE HOTBOX H.E. Use, installation & servicing instructions
PERFECTION
PERFECTION VC220-KS Installation and operating instructions
Greenheck
Greenheck VSU Installation, operation and maintenance manual
Allied Air
Allied Air 506299-01 User's information manual
Rinnai
Rinnai Avenger 25 Plus Customer operation & installation manual
FMI
FMI Heat Majic FVF18P OWNER'S OPERATION AND INSTALLATION MANUAL
