Palas Fidas 200 Series User manual

Fine Dust Measuring Device
Fidas 200 – System
Operating Manual
For specialized users
5200-en_V2.0_06/20 V 2.0

Copyright
For all information in this technical document as well as drawings and technical descriptions provided by us,
Palas GmbH reserves all proprietary and intellectual property rights. Duplication or dissemination to third
parties without our prior written consent is prohibited.
Technical changes reserved.

Table of contents
5200-en_V2.0_06/20 3
Table of contents
1 About this manual 5
1.1 Function of the manual 5
1.2 Target group for the manual 5
1.3 Validity of the manual 5
1.4 Related documents 5
1.5 Storage of documents 5
1.6 Presentation rules 6
2 For your safety 7
2.1 Hazards and safety instructions 7
2.2 Warnings 8
2.2.1 Warnings on the device 9
2.3 Regulations 10
2.4 Obligations of the user 10
3 Product description 11
3.1 Use 11
3.1.1 Intended use 11
3.1.2 Improper use 11
3.2 Models 12
3.2.1 Components of the model Fidas 200 12
3.2.2 Components of the model Fidas 200 E 13
3.2.3 Components of the model Fidas 200 S 14
3.3 Controller 16
3.4 Functional description 19
3.5 Environmental conditions 20
3.6 Type plate 20
3.7 Conformity 20
3.8 Dimensions 22
3.9 Minimum clearance 25
3.10 Scope of delivery 26
3.11 Optional accessories 27
4 Initial commissioning 28
4.1 Overview 28
4.2 Setting up and connecting Fidas 200 28
4.3 Setting up and connecting Fidas 200 E 30
4.4 Setting up and connecting Fidas 200 S 32
4.4.1 Installing weather station 33
4.4.2 Installing sampling tube 35
4.5 Attaching sampling head 38
5 Operation and settings 39
5.1 Turning the device on 39
5.2 Fidas Firmware 40
5.2.1 Main menu 40
5.2.2 Data screen – current measured values 42
5.2.3 Dust chart screen – course of fine dust values measured 43
5.2.4 Air sensor chart screen – course of values measured by weather
station 44
5.2.5 Accessories screen – accessories and other information 45
5.2.6 Intelligent Aerosol Drying System (IADS) screen 46
5.2.7 Weather station screen – data measured by weather station 48
5.2.8 PM data screen (alternative PM values) 49
5.2.9 Filter system screen 50
5.2.10 Particle size distribution screen 51
5.2.11 Alarms screen 52

Table of contents
45200-en_V2.0_06/20
5.2.12 Weather station calibration screen 53
5.2.13 Datalogger screen – measured data 54
5.2.14 Settings/calibration screen 56
5.2.15 Device status screen 58
5.2.16 Expert mode 61
5.2.17 Interface screen 62
5.3 Shut down the firmware and switch off the device. 63
5.3.1 Completely switching off device 63
5.3.2 Closing the firmware but not Windows 63
5.4 Removing/activating write protection 64
5.5 Files in the folder Fidas 65
5.5.1 Control file promo.ini 67
5.5.2 Adjusting measuring algorithm 71
6 Verifying and calibrating measuring system 72
6.1 Checking that aerosol sensor is unobstructed 75
6.2 Checking that controller shows no leakage 76
6.3 Checking device for leakage 78
6.4 Checking aerosol sensor zero point 80
6.5 Setting aerosol sensor offset 81
6.6 Calibrating flow rate 81
6.7 Setting average particle velocity 83
6.8 Calibrating particle size and particle velocity 84
6.9 Creating backup of control files 89
7 Maintenance 90
7.1 Maintenance intervals 91
7.2 Replacing filters for pumps 92
7.3 Cleaning aerosol sensor optical glasses 93
7.4 Replacing sealing rings 95
7.5 Servicing gravimetric filter 97
7.6 Replacing the fuse 98
7.7 Remote maintenance 98
8 Errors 99
9 Decommissioning 100
10 Packaging and transportation 101
10.1 Preparing the device 101
10.2 Packaging and transportation 101
11 Disposal 102
12 Spare parts 103
13 Declaration of conformity 104
14 Technical data 105

1About this manual
5200-en_V2.0_06/20 5
1 About this manual
1.1 Function of the manual
This manual provides information on fine dust measurement devices in the
series Fidas200.
Some of the topics addressed are:
• Safety
• Functionality
• Use
• Operation
• Maintenance
The manual specifies all of the tasks necessary for initial commissioning of
the device. For more information, refer to the section "Initial commissioning
[}28].”
1.2 Target group for the manual
This manual is intended for specialized users who are familiar with activi-
ties in the field of particle measuring technology based on their technical ed-
ucation or experience.
1.3 Validity of the manual
This manual applies to the following types of devices:
• Fidas 200
• Fidas 200 E
• Fidas 200 S
1.4 Related documents
For the user of the device
• Operating manual for the PDAnalyze software
• Operating manual for the PDAnalyze Fidas software
• Descriptions of communication protocols
• Operating instructions for the weather station
For the user of the advanced settings (expert mode)
Expert user software operating manual
1.5 Storage of documents
The storage of documents is the responsibility of the owner and/or user to
ensure the documents are available when they are needed. Store the docu-
ments together with the device.

1About this manual
65200-en_V2.0_06/20
1.6 Presentation rules
The following presentations are used in this manual:
Text Product names and product descriptions
Example: Fidas
Cross-references to other documents
Example: Information about … is found in the manual for
the …
Text Menu items
Example: Shut Down System
Selection and settings
Example: Start measuring with Record
Text > Text Menu paths. The sequence of the menus is indicated by
the “>” character.
Example: Menu > Check for Updates
“Text” Word compositions and figurative language
Example: “Measuring Unit”
[▷32] Reference to page number
Example: For further information, see the section “Tech-
nical data [▷12]”

2For your safety
5200-en_V2.0_06/20 7
2 For your safety
2.1 Hazards and safety instructions
Electric shock Mains voltage is applied to the electrical connections. This can lead to elec-
tric shock.
1. Work on the electrical installation may only be performed by special-
ized personnel.
2. Work on the electrical components may only be performed by special-
ized personnel.
3. Ensure that live components do not get wet.
4. Observe the applicable regulations.
Safe operation of the de-
vice 1. Operate the device only when it is connected to an electrical outlet with
residual current circuit breaker.
2. Only operate the device with the insulation and/or casing fully installed.
3. Make sure that the housing and/or the casing on the device is undam-
aged, complete, and correctly installed.
Safe use of the device 1. Do not use the device in a flammable or explosive environment, e.g.
rich in hydrogen or oxygen.
2. Do not use the device with flammable or explosive carrier gases, e.g.
rich in hydrogen or oxygen.

2For your safety
85200-en_V2.0_06/20
2.2 Warnings
The warnings in this manual are highlighted with pictographs and signal
words. The severity of a hazard is indicated by the pictograph and signal
word.
Layout of the warnings
The warnings that precede each action are shown as follows:
DANGER
Type and source of the hazard
Explanation of type and source of the hazard / description of conse-
quences of failure to comply with the warning.
4Measures to avert the hazard
Meaning of the signal words
DANGER Immediate danger to life or risk of severe physical in-
jury if this hazard is not avoided.
WARNING Possible risk of severe physical injury if this hazard is
not avoided.
CAUTION Possible risk of minor physical injury if this hazard is
not avoided.
NOTICE Damage to property if this hazard is not avoided.
Meaning of the pictographs
DANGER
Warnings with information about the severity of the hazard
DANGER
Danger to life due to electric shock
NOTICE
Damage to property

2For your safety
5200-en_V2.0_06/20 9
2.2.1 Warnings on the device
There are warning stickers on the rear of the device.
Meaning of the pictographs
Disconnect the power plug before opening the housing.
Read the operating manual.

2For your safety
10 5200-en_V2.0_06/20
2.3 Regulations
Observe the following regulations and directives:
Legal requirements • Legal regulations for Health and Safety at Work
• Legal regulations for environmental protection
• Employer's Liability Insurance Association provisions
Standards and directives • The applicable safety requirements according to DIN, EN, and VDE
2.4 Obligations of the user
To ensure proper functioning of the device, observe the following:
1. Carefully read through the manual before using the device.
2. Keep the manuals in the vicinity of the device to ensure that informa-
tion can be checked at all times.
3. Only carry out activities described in the manual intended for your use.
4. Make sure that the required inspections and maintenance tasks are
carried out.
5. Have the device serviced by the manufacturer or an authorized distrib-
utor.
6. Have damage to the device repaired promptly by the manufacturer.

3Product description
5200-en_V2.0_06/20 11
3 Product description
3.1 Use
3.1.1 Intended use
The device is manufactured and tested according to good engineering prac-
tices and the recognized safety rules. In order to avoid hazards to yourself or
third parties and damage to the device and other assets, only use the device
properly and as intended.
The device is intended to be used only for measuring fine dust.
Measurable fine dust fractions: PM1, PM2,5, PM4 and PM10.
Countable particle sizes within the certified range: 0.18 - 18 µm.
The potential range of the device is a factor of the respective model:
Fidas 200 and Fidas 200 E: The device is intended to be installed in a
weatherproof and air conditioned (+5°Cto+40°C) measurement station.
Fidas 200 S: The device can be set up outdoors.
The sampling tube and the weather station have to be secured to suitable
structures.
The device is intended to be used only by the following persons:
• Persons who are familiar with activities in the field of particle measuring
technology based on their education or experience.
Any use other than the intended use is prohibited. The manufacturer as-
sumes no liability for damages resulting from this. All warranty claims are
voided if changes are made to the device, including in the course of assem-
bly and installation.
All corresponding documentation must be observed for any work on the de-
vice.
3.1.2 Improper use
The device is not intended for use by the following persons:
• Persons with limited physical, sensory or mental abilities
• Persons lacking the required qualification, experience or knowledge
• Persons under 18 years of age
The manufacturer or supplier will not be liable for damage resulting from im-
proper use.

3Product description
12 5200-en_V2.0_06/20
3.2 Models
These operating instructions describe three models of the measuring sys-
tem:
•Fidas 200: Controller with attached aerosol sensor
•Fidas 200 E: Controller with external aerosol sensor
•Fidas 200 S: Controller with attached aerosol sensor and with weather-
proof housing

3Product description
5200-en_V2.0_06/20 13

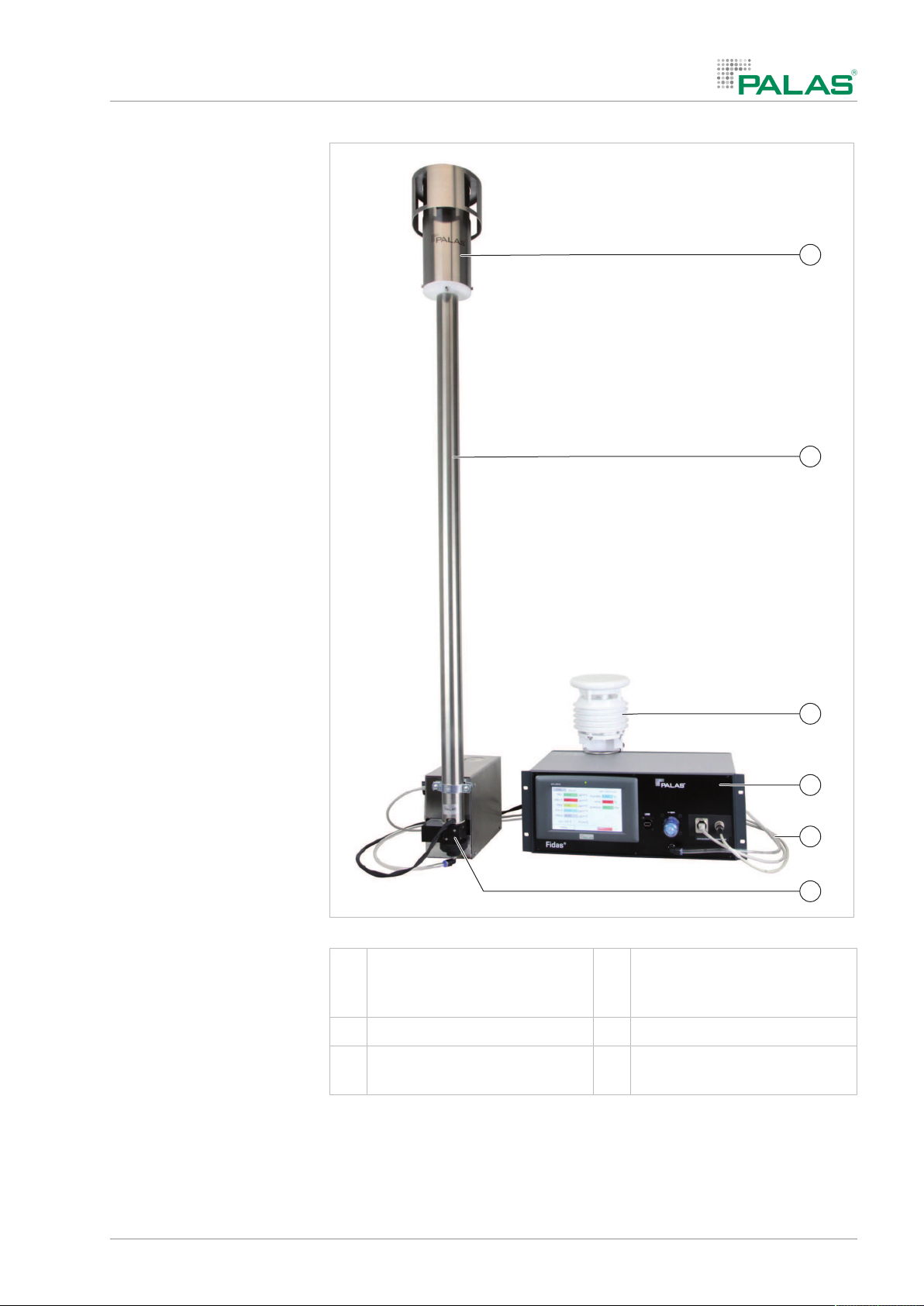

3.2.1 Components of the model Fidas 200
2
1
3
4
5
Components of the model Fidas 200
1 Sampling head Sigma-2 2 Sampling tube with drying sec-
tion IADS (Intelligent Aerosol
Drying System)
3 Weather station 4 Controller
5 Aerosol sensor and gravimetric
filter

3Product description
14 5200-en_V2.0_06/20
3.2.2 Components of the model Fidas 200 E
1
2
6
3
4
5
Components of the model Fidas 200 E
1 Sampling head Sigma-2 2 Sampling tube with drying sec-
tion IADS (Intelligent Aerosol
Drying System)
3 Weather station 4 Controller
5 Connecting line Aerosol sensor and gravimetric
filter

3Product description
5200-en_V2.0_06/20 15

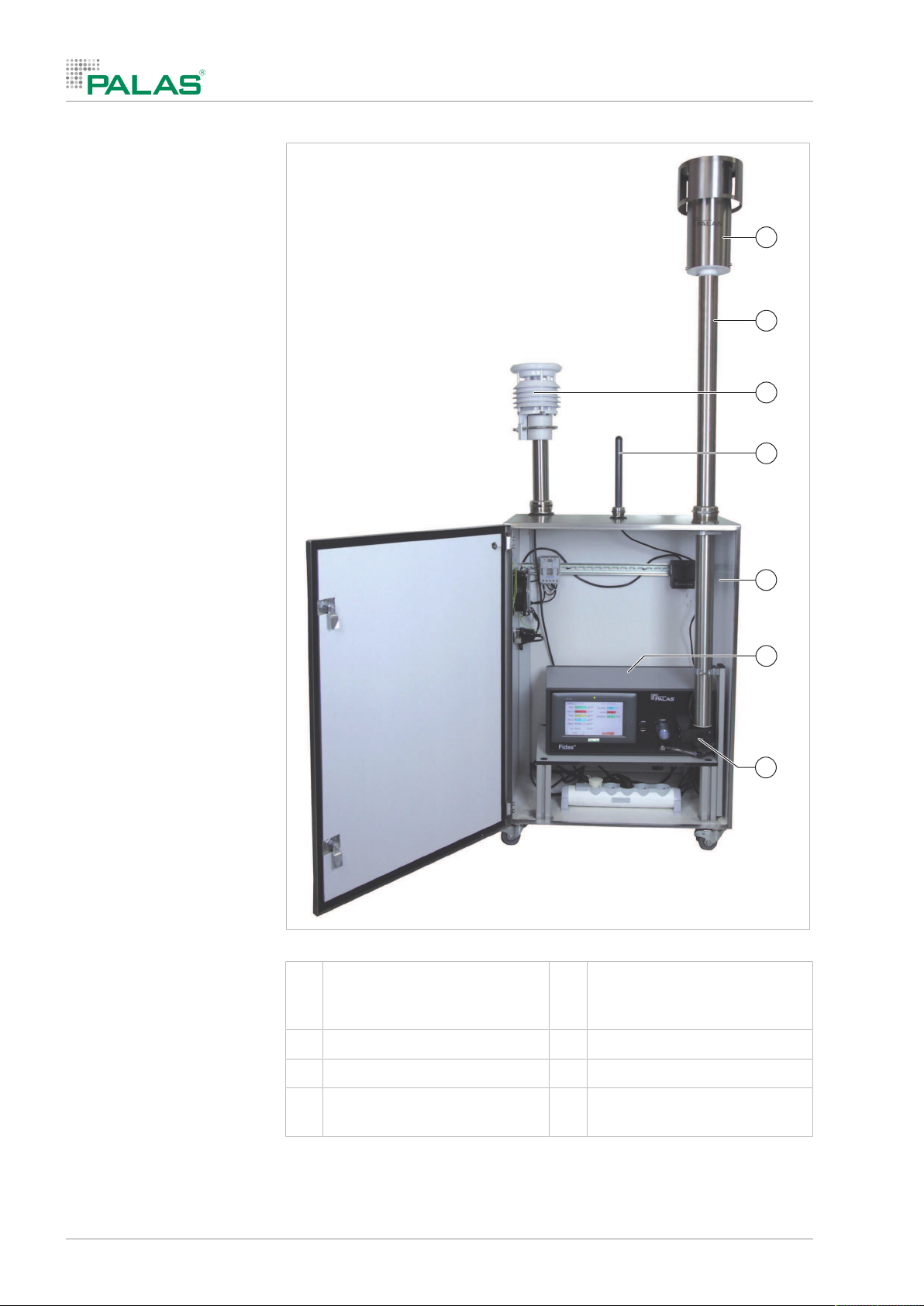

3.2.3 Components of the model Fidas 200 S
1
3
6
5
2
4
7
Components of the model Fidas 200 S
1 Sampling head Sigma-2 2 Sampling tube with drying sec-
tion IADS (Intelligent Aerosol
Drying System)
3 Weather station 4 UMTS antenna (optional)
5 Weatherproof housing 6 Controller
7 Aerosol sensor and gravimetric
filter

3Product description
16 5200-en_V2.0_06/20
3.3 Controller
Controller with aerosol sensor (Fidas200 and Fidas200S)
1
543
6 7
2
Controller with attached aerosol sensor – front of device
1 Aerosol inlet tube 2 Gravimetric filter
3 Aerosol sensor 4 Feed line to interior aerosol
pumps
5 Touch screen 6 USB port
7 Filter for the aerosol pumps

3Product description
5200-en_V2.0_06/20 17

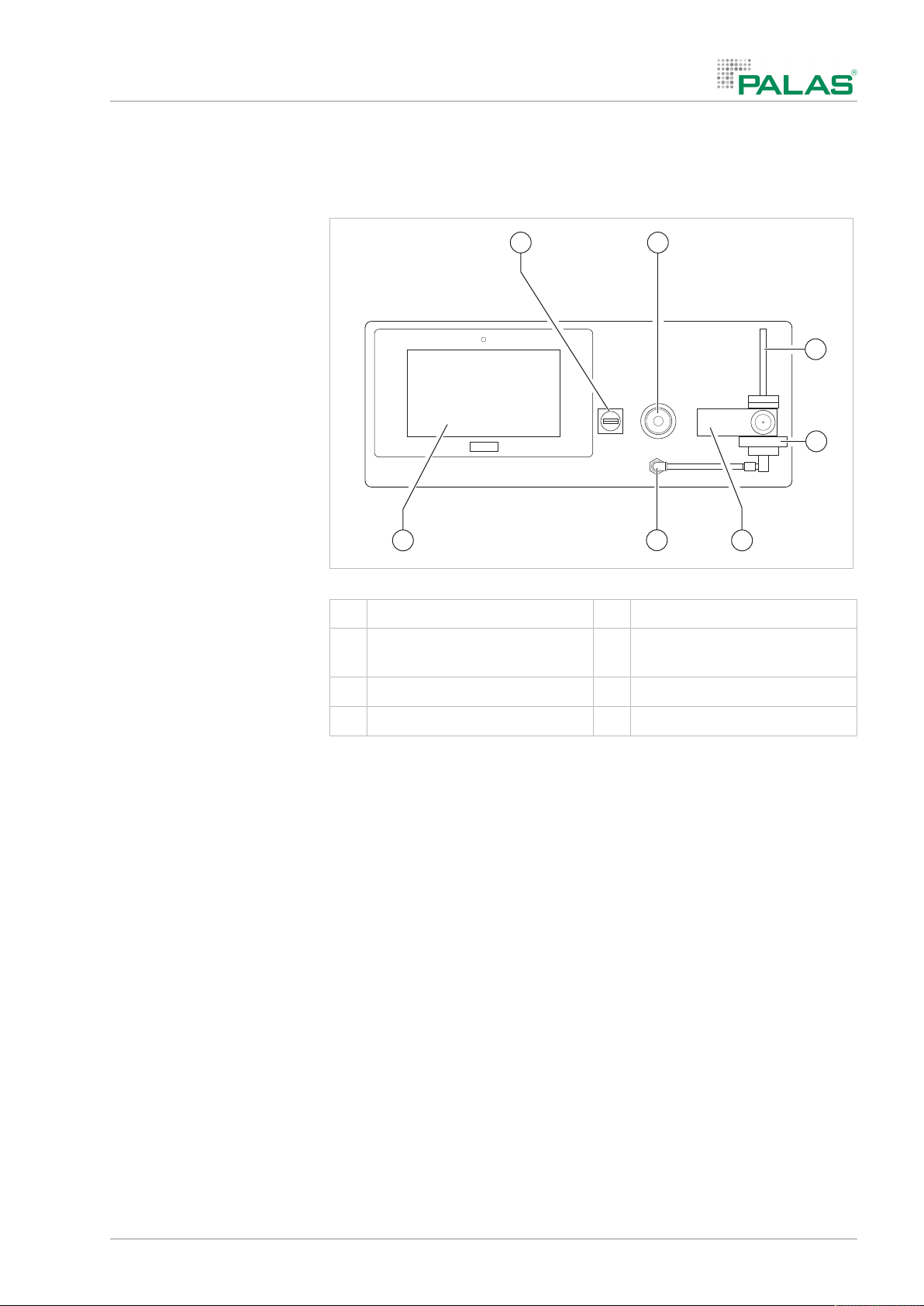

Controller without aerosol sensor (Fidas 200 E)
1
543
6 7
2
Controller without aerosol sensor – front of device
1 Port for LAN cable for data
transmission
2 Port for cable for power supply
to external sensor unit
3 Tube to external aerosol sen-
sor
4 Feed line to interior aerosol
pumps
5 Touch screen 6 USB port
7 Filter for aerosol pumps

3Product description
18 5200-en_V2.0_06/20

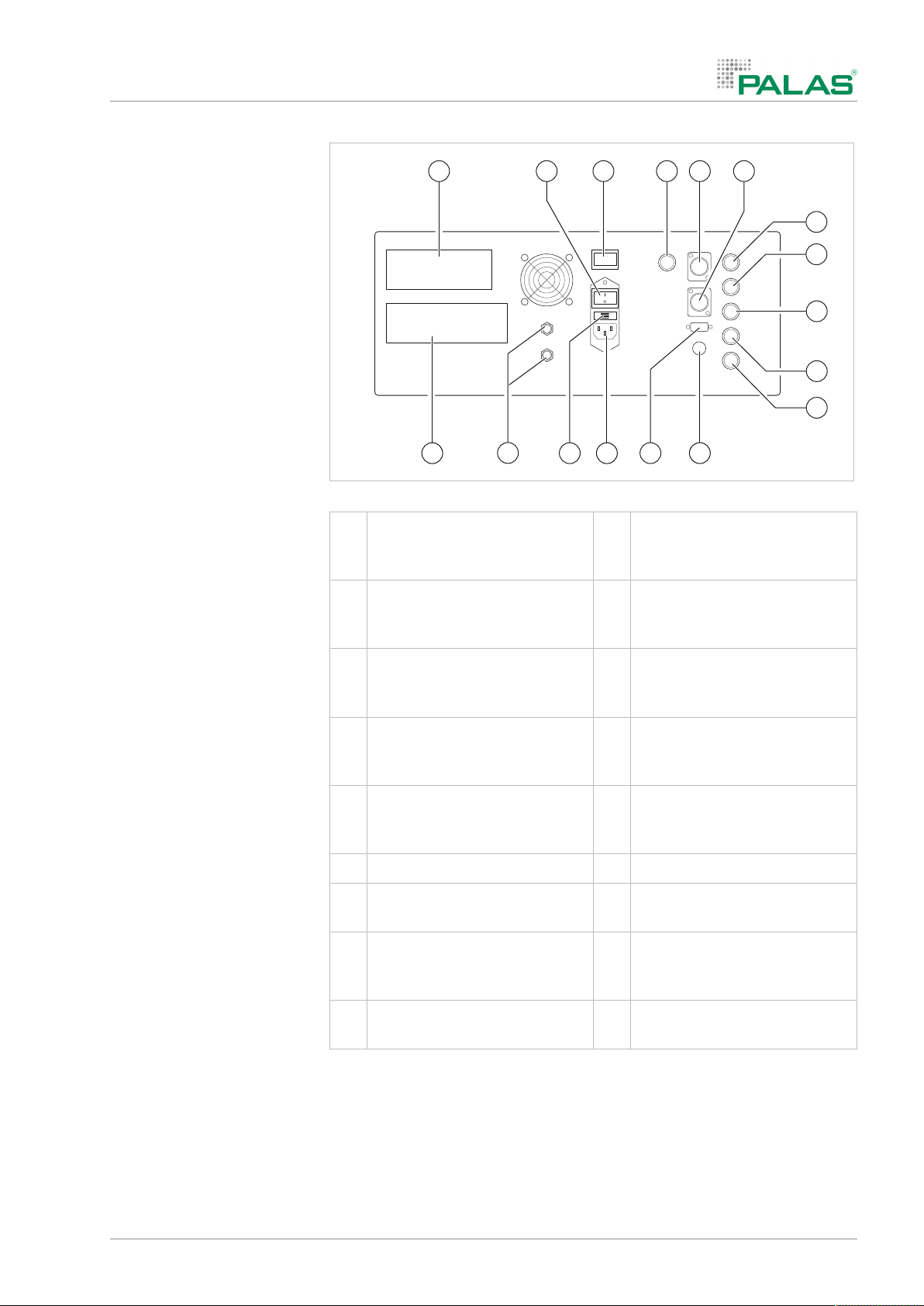

Elements on the back of the controller
1
2
4
5
7 6
13 14 15 17
10
3
98
16
11
12
Elements on the back of the controller
1 “temp., r.h.”
Port for external moisture and
temperature sensor
2 “abs. pressure”
Port for an external pressure
sensor (barometric pressure)
3 “diff. pressure”
Port for external differential
pressure sensor*
4 “weather station”
Port for the weather station
5 “IADS”
Port for the drying section
IADS
6 Fuse
7 “serial interface”
RS-232 plug as serial interface
to externally trigger controller
8 Receptacle for power cable
9 Fuse 10 “outlet”
Outlet for filtered air to be used
for sample
11 Warning sign 12 Type plate
13 Power switch 14 “op. hours”
Operating hours meter
15 “digital out”
Port to emit the digital signal
“Limit PM10 exceeded”
16 “USB”
Port for an external device, e.g.
a keyboard
17 “Ethernet”
Port for a network(LAN)
* Only on certain models

3Product description
5200-en_V2.0_06/20 19
3.4 Functional description
Analysis of particles in
ambient air
Fine dust measurement devices in the series Fidas 200 are aerosol spec-
trometers certified in accordance with EN16450. These devices continu-
ously analyze fine dust particles from the ambient air and simultaneously
calculate the immission values PM2,5 and PM10, which require monitoring.
The values PM1, PM4, PMtot, the particle number concentration Cn and the
particle size distribution are calculated and recorded. The number of parti-
cles is determined by means of optical light scattering.
Sampling and drying The sampling head Sigma-2 draws in ambient air.
Volume flow rate: approx.0.3m3/h.
The aerosol passes through the sampling tube with drying section IADS and
into the aerosol sensor. The drying section dries the air that was sucked in,
thus preventing distortion of the measurement by any remaining moisture or
mist particles.
Weather data The following weather-related factors have an impact on and control the dry-
ing effect:
• Air temperature
• Air pressure
• Humidity
The weather station measures this data. Additional data can be measured
and taken into consideration with some models:
WS300 WS500 WS600
Air temperature Air temperature Air temperature
Air pressure Air pressure Air pressure
Humidity Humidity Humidity
- Wind direction Wind direction
- Wind speed Wind speed
- - Precipitation
Scattered light analysis The central element of the device is an optical aerosol sensor. Lorenz‐Mie
scattered light analysis of single particles is applied to determine the particle
size. The single particles move through an optically differentiated measure-
ment volume that is homogeneously illuminated with a polychromatic LED
light source. Each particle generates a scattered light impulse that is de-
tected at an angle of 85° to 95° degrees. The particle count is determined
based on the number of scattered light pulses. The level of the measured
scattered light pulse is a measure of the particle diameter.

3Product description
20 5200-en_V2.0_06/20
Data processing The compiled data is processed in the controller and saved. The device can
be integrated into a higher ranking measurement system via the interfaces
(RS-232 and Ethernet).
The measured data can also be transferred via the USB port to an external
data medium. The data can then be analyzed or processed with the external
device. The software PDAnalyze should be used to process the data with an
external device. PDAnalyze is included in delivery.
Firmware The device is operated via a touch screen. The touch screen shows the user
interface of the firmware Fidas. The firmware Fidas runs on the operating
system Windows Embedded for Point of Service (WEPOS).
3.5 Environmental conditions
Environmental conditions affect the functionality of the device.
The following environmental conditions apply for the operation and storage
of the device:
• Temperature range for Fidas 200 and Fidas 200 E:
+5°C to +40°C
Temperature range for Fidas200S:
-20°C to +50°C
• Relative humidity: non-condensing, meaning that moisture in the air is
not permitted to condense as water on or in the device
• Air pressure: atmospheric pressure
Operation and storage under other environmental conditions, for instance in
corrosive or explosive environments, powerful electrical or electromagnetic
fields, areas with ionizing radiation or areas subject to shocks and vibrations
are prohibited.
3.6 Type plate
13
2
Type plate
1 Product designation 2 Serial number
3 Manufacturer with address
