:KDW#LV#606"
SMS stands for Short Messaging Service - a standardized protocol for
exchanging electronic text messages using GSM cellular telephones. These
messages may be up to 160 characters in length.
HandPHONE SMS sends messages from the Palm™handheld via your mobile
phone to an SMS message center, which dispatches them to their destination.
Recipients are usually other mobile phones, but some service providers also
allow you to send e-mail and faxes in addition to SMS messages.
HandPHONE allows you to choose message type, but you should check with
your service provider if you intend to send formats other than SMS text
messages. The receiving party’s mobile phone will automatically download
pending SMS messages up to the memory capacity of the phone.
HandPHONE SMS lets you:
ƒSend and receive SMS messages up to 160 characters using your
connected GSM cellular telephone
ƒStore messages locally and delete messages from your phone
ƒWrite SMS messages easily
ƒInsert destination numbers right from your handheld’s Address Book
ƒRead and write messages off-line and connect when it’s convenient

Overview 5
5HTXLUHG#HTXLSPHQW
To run HandPHONE SMS you will need:
ƒA Palm III™or more recent handheld, or compatible machine running Palm
OS®3.0 or higher, with around 105 KB of free storage space
ƒA Windows or Macintosh computer with a HotSync®connection, HotSync
software, and application installer software.
,QVWDOODWLRQ
This section describes “manual” installation of the HandPHONE SMS
application file. You may skip directly to Chapter 2 – Getting Started if the
software is already installed on your Palm handheld.
HandPHONE SMS operates entirely on your Palm handheld. After installation,
there is no interaction with your desktop computer. To install the software, you
will need to connect your Palm handheld to your PC or Macintosh computer in
order to run HotSync software and upload the HandPHONE SMS program file.
The instructions given in this section are valid both for Windows and Macintosh
systems. To install HandPHONE SMS:
1. Locate the
phonesms.prc
file. You may copy the file to your hard disk or
install it directly from your distribution media.
2. Place your Palm handheld in its cradle and make sure the cable is
correctly connected to your Windows or Macintosh desktop computer.
3. Use your mouse to double-click on the
phonesms.prc
file. This will start the
Palm application installer program.
4. Confirm your selection. HandPHONE SMS will be copied to your Palm
handheld next time you perform a HotSync operation.
5. Next, make sure the HotSync Manager application is active on your
desktop computer, and press the HotSync button on the unit’s cradle to
begin file transfer.

6 HandPHONE SMS
5
55
5*HWWLQJ#VWDUWHG
*HWWLQJ#VWDUWHG*HWWLQJ#VWDUWHG
*HWWLQJ#VWDUWHG
6WDUWLQJ#+DQG3+21(#606
Start HandPHONE SMS by tapping on the application
icon (shown here on the left) in your Palm™handheld’s
Applications screen.
%DVLF#VHWWLQJV
The first time you start HandPHONE SMS, you will be prompted to validate
basic SMS settings as shown here:
Default values will work fine in most cases, though you may choose enter the
Service Center Number at this time. You can always come back to this screen
by tapping on Options ÖMessage Options on your handheld.
Validity period Specifies the maximum length of time for which
your message will be allowed to sit at the
message center before being deleted (in case
the recipient’s mobile phone never picks it up).
Message type Here you may choose between SMS, Fax, or E-
mail. In most cases, you should leave this on

Getting started 7
the default SMS, unless your service provider
explicitly supports e-mail and fax services.
Status report... Indicates to the service center that you should
receive notification on the status of your
message. Status reports are sent from the
message center to your mobile phone. Some
phones permit the Palm handheld to check
Status report
Service center... Enter the service center (SMS-C) number given
to by your network carrier. Get button retrieves
the current SMS-C from your phone. Set allows
you to copy an SMS-C number to your phone.
Tap OK or Cancel when you are done.
&RQQHFWLRQ#W\SHV
To choose the type of connection between your Palm handheld and your GSM
phone, select Options ÖProfile Setup and tap on the pull-down menu as
shown here:
Ö
Old phone - Cable Serial cable to “early model” cell phones
Old phone - Infrared Infrared connection to “early model” cell
phones
Recent phone - Cable Serial cable to telephones that use SMS
“Phase 2+”
Recent phone - Infrared Infrared connection to telephones that
use SMS “Phase 2+”

8 HandPHONE SMS
Tap on OK to confirm your choice. At this point, you may test your connection
by performing any of the operations that exchange data with your phone, as
described in the next sections.

Using SMS 9
6
66
68VLQJ#606
8VLQJ#6068VLQJ#606
8VLQJ#606
5HWULHYLQJ#PHVVDJHV
As mentioned earlier, your mobile phone automatically receives messages
when it is activated. You may read those messages either read directly on your
phone (using its own integrated software) or using HandPHONE SMS, which
offers an interface that is much easier to manipulate.
Follow these steps to retrieve messages:
1. Tap on the Menu icon ( ), select Message ÖRetrieve (or the Graffiti®
stroke R).

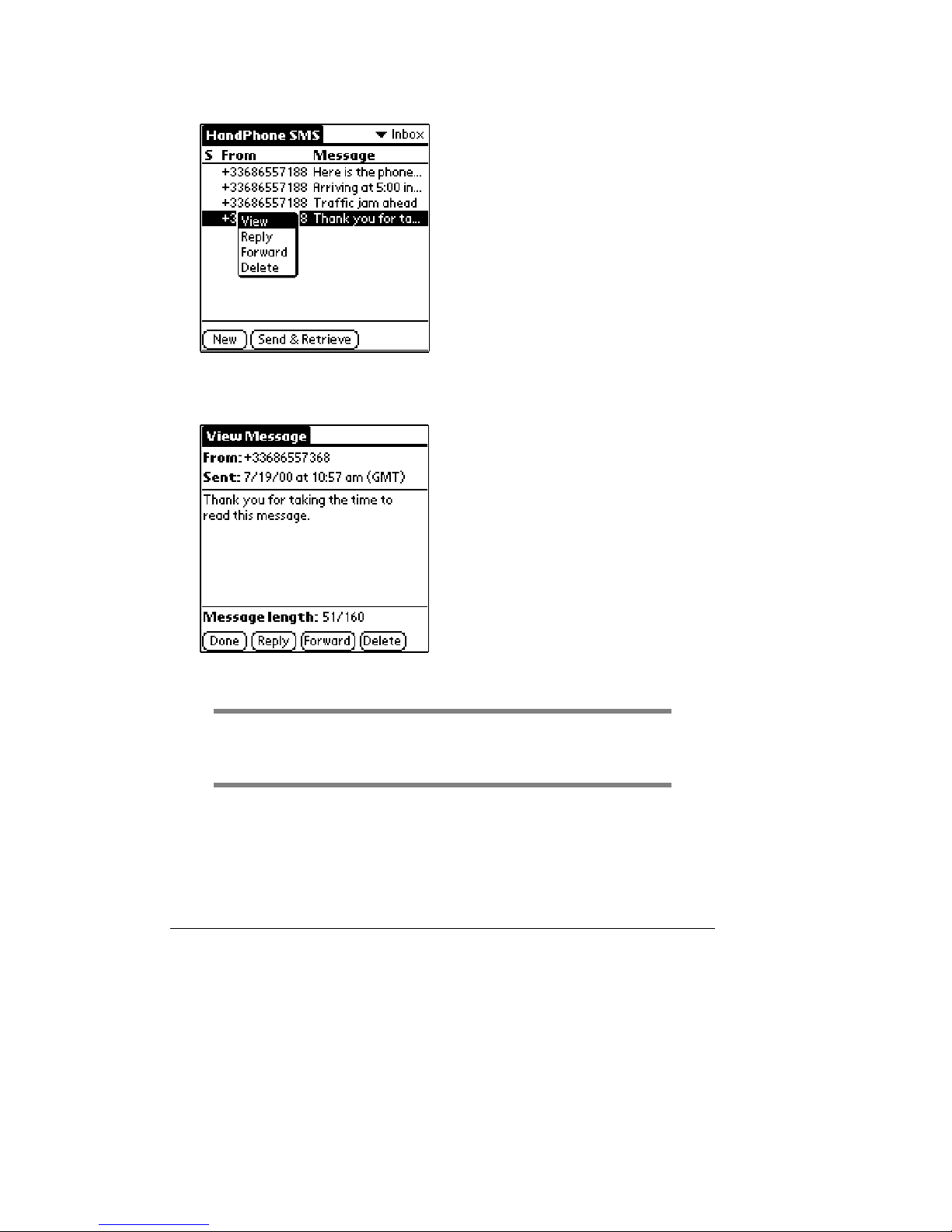

2. HandPHONE SMS will connect to your mobile phone and download all
currently available messages, displaying them in a list as shown here:

10 HandPHONE SMS
3. Tap on a message to view it, or perform other actions:
4. An opened message looks like this:
Note HandPHONE SMS only downloads
incoming
messages,
not
outgoing
messages that you may have typed
manually on your phone.

Using SMS 11
Leaving originals on the phone
By default, messages are removed from the mobile phone after they are
downloaded to your handheld, but you may choose to leave them intact on the
mobile phone:

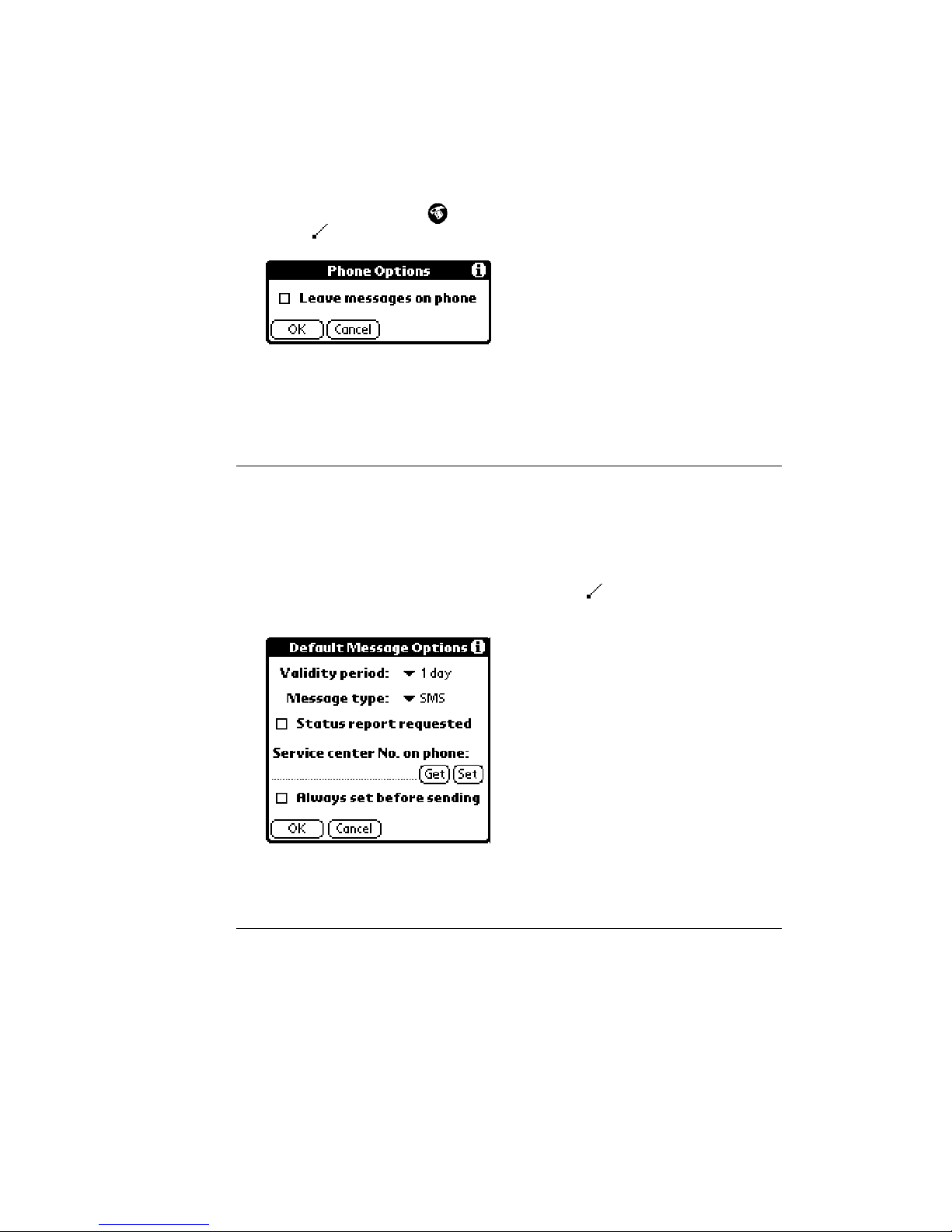

1. Tap on the Menu icon ( ), select Options ÖPhone Options, (Graffiti
stroke O) to open the screen shown here:
2. Use this check-box to specify whether or not to leave original SMS
messages on your phone as you download them to your handheld.
6HQGLQJ#PHVVDJHV
Configuration
As mentioned in Chapter 1 – Getting Started, you may need to specify a few
simple configuration options, described here.
1. Select
Options ÖMessage Options, (Graffiti M) which opens the
screen for configuring outgoing messages:

12 HandPHONE SMS
2. Assign message options accordingly:
Validity period Specifies the maximum length of time for which your
message will be allowed to sit at your carrier’s
message center before being deleted (in case the
recipient’s mobile phone never picks it up).
Message type Here you may choose between SMS, Fax, or E-
mail. In most cases, you should leave this on the
default SMS, unless your service provider explicitly
supports e-mail and fax services.
Status report... Indicates to the service center that you should
receive notification on the status of your message.
Status reports are sent from the message center to
your mobile phone, and are not downloaded to your
Palm™handheld.
Service center... Enter the service center (SMS-C) telephone number
given to by your network carrier. The Get button
retrieves the current SMS-C from your phone. Set
allows you to copy an SMS-C number to your
phone.
Note With some early model GSM phones it is important to
enter the SMS service center number in this field, and to
place a check in the box Always set before sending.
You may either configure these options for all subsequent messages (
before
creating any outgoing messages), or specifically for a single message (i.e. by
editing message Details
after
you have created it).

Using SMS 13
Writing and sending messages
Follow these steps to write and send messages:
1. Select
Message ÖNew Message, (Graffiti N) to create a message:
2. Enter a phone number directly on the To field, or tap on To to lookup the
recipient’s phone number in your Address Book:
3. Select a number and tap on Add to return to your message.
Note: Remember that international phone calls require a “+” (plus) sign in
front of the recipient’s phone number.
4. The
Name field is for your own convenience and is not sent as part of the
message.

14 HandPHONE SMS
5. Enter your message in the space below Name. SMS messages may be up
to 160 characters, and the Message length counter keeps track of how
many characters you have written.
6. When you are done, tap on the appropriate button to place the message in
either the Outbox (it is ready to send), the Draft folder (to send at a later
time). You may delete this message by tapping Cancel, or re-set
configuration options
for this message only
by tapping on Details… as
described in the preceding section.
7. To send messages currently in your Outbox, make sure your mobile phone
is turned on and properly connected, then select Message ÖSend All
(Graffiti S) or Send & Retrieve (Graffiti T).

Using SMS 15
0DQLSXODWLQJ#PHVVDJHV
This section describes how to handle messages in HandPHONE SMS and
how to use the various folders available to you – Inbox, Outbox, Draft, and
Sent. Context sensitive pop-up menus present available options whenever you
tap on a message in any list view.
Incoming messages
When looking at the Inbox list of received messages, you can tap on any
message to open the pop-up window as shown below:
View Opens the message so you can read it.
Reply Creates a new message using the sender’s
phone number as the new destination.
Forward Allows you to send a copy of this message to
another recipient.
Delete Removes this message from the list.

16 HandPHONE SMS
Outgoing/sent messages
When you write SMS messages, you may store them into either the Outbox or
the Draft folder.
Outbox
All messages in the Outbox will be sent the next time you select Message,
Send All (or Send & Retrieve). By tapping on a message in the Outbox you
may
edit
,
move
your message to the draft box, or
delete
it.
Draft Folder
Messages in the Draft folder will not be sent, and may be re-edited at any time.
When you are ready to send a message from the draft folder, you should move
it to the Outbox. You may also choose to edit the message, edit a copy of the
message, or delete the message entirely.
Sent folder
The Sent folder keeps copies of the messages you have sent, whether or not
they were successfully transmitted to the recipient. In the Sent folder, you may
highlight a message in order to view it, move it directly to the Outbox to send
again, move it to the Draft folder to send at a later time, or delete it.
Note Remember to clean out the Sent folder from time to time
to keep it from using memory unnecessarily.

Troubleshooting 17
7
77
77URXEOHVKRRWLQJ
7URXEOHVKRRWLQJ7URXEOHVKRRWLQJ
7URXEOHVKRRWLQJ
(UURU#PHVVDJHV
An error occurred while encoding the message.
Indicates that non-authorized characters were found in your message -
usually in the message center phone number or the recipient’s phone
number. All invalid characters are replaced with “?”.
An error occurred while saving this message to the database.
Your Palm™handheld might be out of memory, or the database has been
corrupted. If this message occurs frequently, delete the HandPHONE SMS
application
and
from your backup directory in the Palm handheld desktop
on your PC or Mac. Then re-install the application.
An error occurred with the GSM connection. Please make sure you are
using the right Connector/Mobile Phone combination, and that they are
connected.
Check your setup (Menu
Profile setup).
An error occurred while getting storage information.
Check to make sure that your cables and adapter are firmly attached, and
that the batteries are charged.
An error occurred while retrieving.
Check the connection and try again. You may also refresh the display.
An error occurred while sending.
Check the connection and try again.
An error occurred while trying to delete message.
Check the connection and try again. Refresh the display to make sure the
entry is still really present.
Cannot establish connection with mobile phone.
This message indicates a cabling or infrared problem. Check all
connections from your Palm handheld to your mobile phone. If you are
using Infrared, make sure that it is enabled on your phone.

18 HandPHONE SMS
Cannot set the Message Center phone number on your phone.
This command is not supported by all phones, and is not always necessary.
Either your mobile phone is off or HandPHONE SMS cannot access its
storage.
Check the connection.
Sorry, there is not enough free memory to perform this operation.
There is not enough memory left in your Palm handheld for HandPHONE
SMS to function. Try deleting unused applications or cleaning out
HandPHONE SMS message folders.
The text contained in this message cannot be saved.
This indicates that HandPHONE SMS encountered non-standard text in
your message, or that there was not enough memory to proceed.
You must fill the recipient's phone number before saving this message.
Messages that you store in the Outbox need to contain the recipient's
phone number.
You must fill the recipient's phone number before moving this message.
Before moving messages to the Outbox you need to make sure to enter the
recipient’s phone number.
You must fill the service center phone number before moving this
message.
Before moving messages to the Outbox you need to make sure to enter the
service center phone number. To avoid this error use Options ÖMessage
Options to set the Service Center number permanently.
You must fill the service center phone number before saving this
message.
Messages that you store in the Outbox need to contain the service center’s
phone number. To avoid this error use Options ÖMessage Options to set
the Service Center number permanently.
You must fill the service center phone number before saving this
message to the Outbox.
You will receive this message if you try to transfer a message from the Draft
box to the Outbox without specifying the service center phone number. To
avoid this error use Options ÖMessage Options to set the Service
Center number permanently.

Troubleshooting 19
You must fill the recipient's phone number before saving this message to
the Outbox.
You will receive this message if you try to transfer a message from the Draft
box to the Outbox without specifying the recipient's phone number.
Your account does not allow you to send messages.
Check with your mobile phone carrier.
Your mobile phone is busy. Exit SMS management before using
HandPHONE SMS.
This message indicates that your mobile phone is currently performing
SMS-related tasks. HandPHONE SMS cannot access the phone in this
case, so you need to exit SMS management and leave the phone in “ready”
mode.
Your modem (or phone) does not support SMS.
Some early model GSM phones may not support SMS messaging. Check
the technical specifications for your phone.

20 HandPHONE SMS
8
88
8,QGH[
,QGH[,QGH[
,QGH[
A
Address Book · 12
Application installer · 5
C
Configuration · 10
D
Draft · 13
E
Error messages · 16
F
Folder
Draft · 15
Incoming · 14
Outbox · 15
Sent · 15
G
Get · 7, 11
GSM · 4
H
HotSync · 5
I
Infrared · 7
L
Lookup · 12
M
Message length · 13
Message type · 6, 11
Moving messages · 15
O
Outbox · 13
P
phonesms.prc · 5
Profile Setup · 7
R
Retrieve · 8
