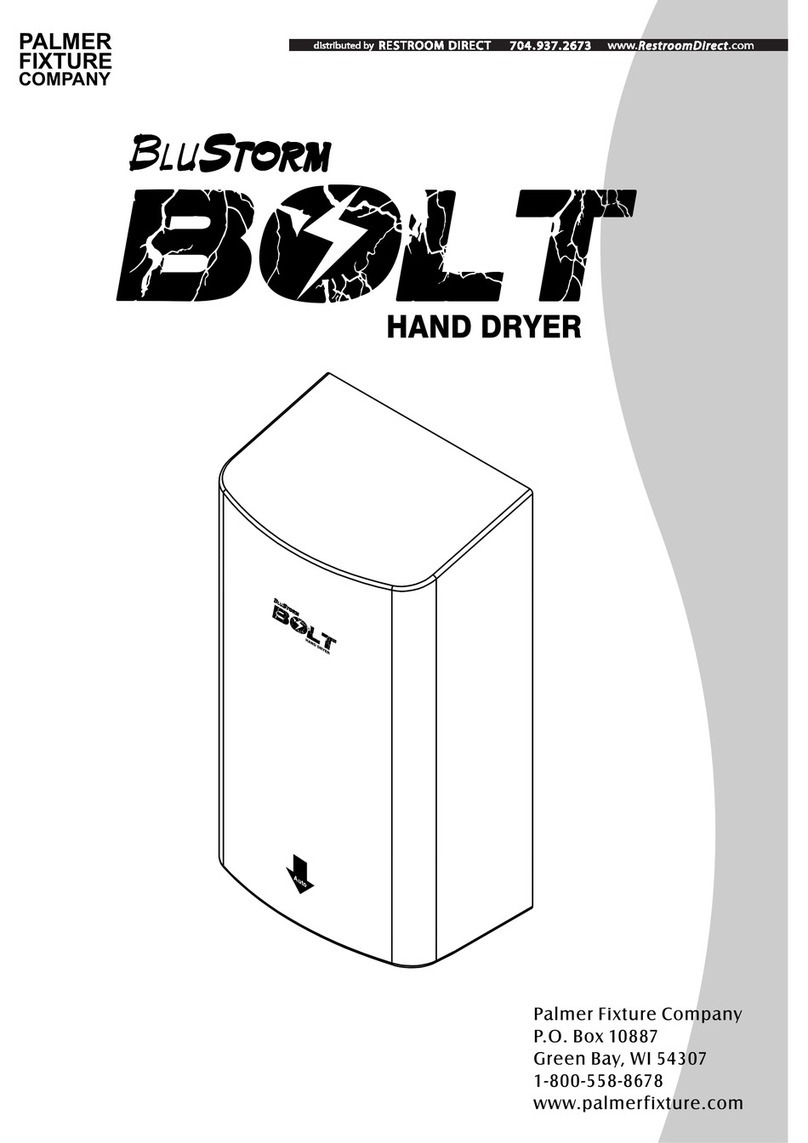

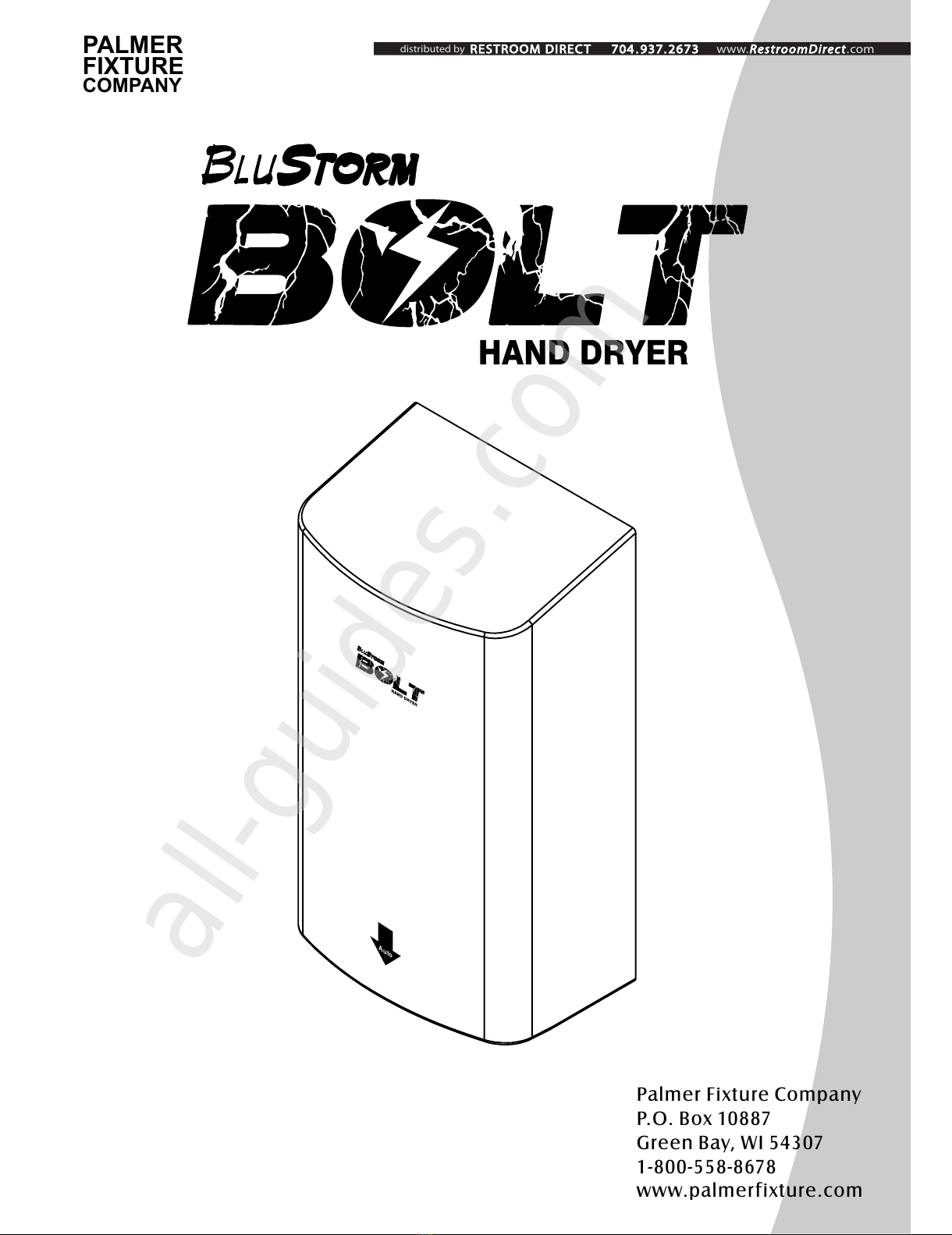

Palmer Fixture BLUSTORM BOLT User manual

PALMER
FIXTURE
COMPANY
Palmer Fixture Company
P.O. Box 10887
Green Bay, WI 54307
1-800-558-8678
www.palmerfixture.com
uto
A
distributed by RESTROOM DIRECT 704 . 937.2673 www.RestroomDirect.com
All manuals and user guides at all-guides.com
all-guides.com

1
ITEM CATEGORY
Operating Voltage
Output Warm Air Volume
Output Warm Air Temp
Output Air Speed
Sound Pressure
Motor Type
Motor Thermal Protection
Heater Element
Heater Thermal Protection
Drying Time
Circuit Operation
Sensor Range
Timing Protection
Timing Duration
Cover Type
Cover Finish
Net Weight
Shipping Weight
Unit Size
PERFORMANCE DATA

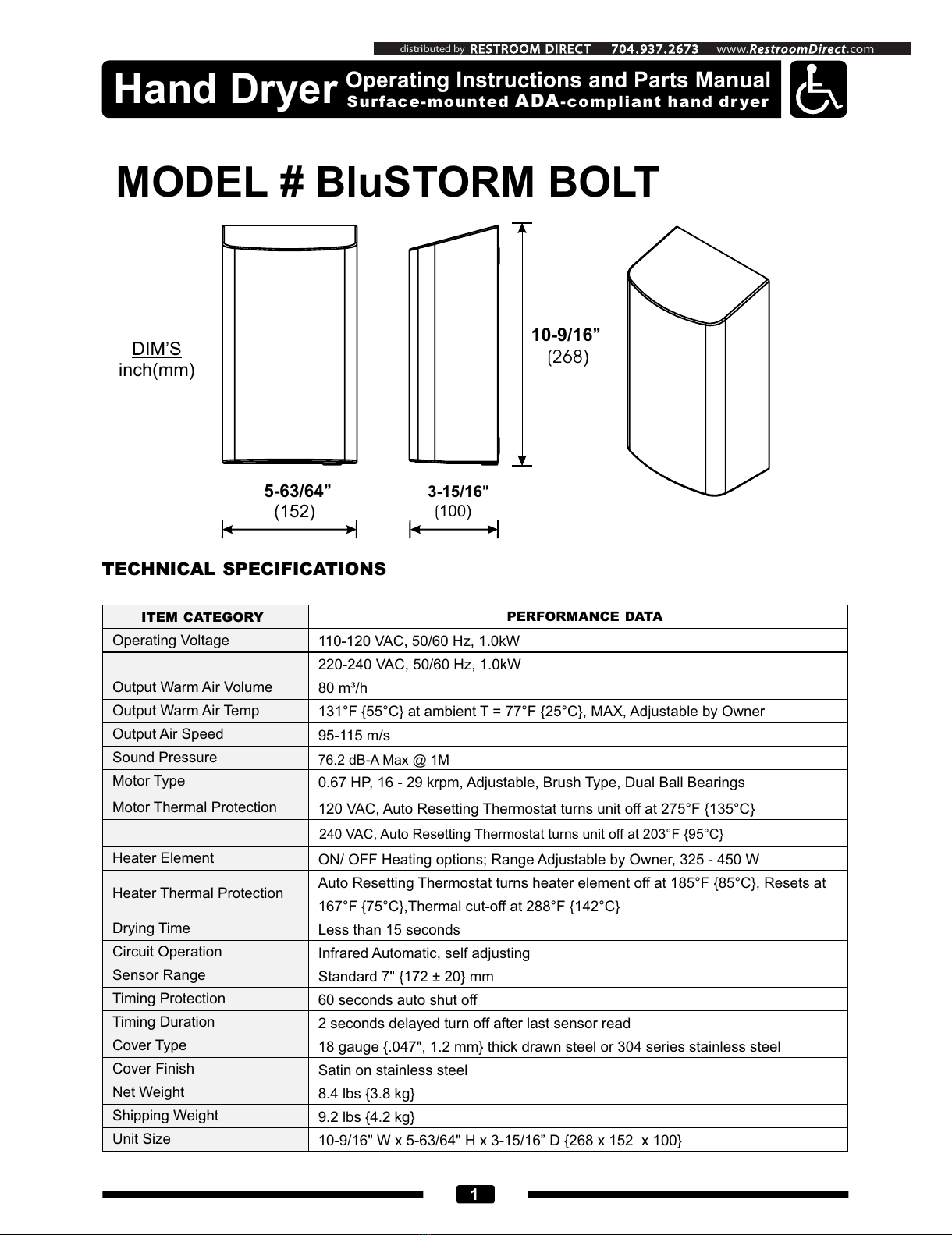

TECHNICAL SPECIFICATIONS
110-120 VAC, 50/60 Hz, 1.0kW
80 m³/h
131°F {55°C} at ambient T = 77°F {25°C}, MAX, Adjustable by Owner
95-115 m/s
76.2 dB-A Max @ 1M
0.67 HP, 16 - 29 krpm, Adjustable, Brush Type, Dual Ball Bearings
120 VAC, Auto Resetting Thermostat turns unit off at 275°F {135°C}
ON/ OFF Heating options; Range Adjustable by Owner, 325 - 450 W
Auto Resetting Thermostat turns heater element off at 185°F {85°C}, Resets at
167°F {75°C},Thermal cut-off at 288°F {142°C}
Less than 15 seconds
Infrared Automatic, self adjusting
Standard 7" {172 ± 20} mm
60 seconds auto shut off
2 seconds delayed turn off after last sensor read
18 gauge {.047", 1.2 mm} thick drawn steel or 304 series stainless steel
Satin on stainless steel
8.4 lbs {3.8 kg}
9.2 lbs {4.2 kg}
10-9/16" W x 5-63/64" H x 3-15/16” D {268 x 152 x 100}
DIM’S
inch(mm)
MODEL # BluSTORM BOLT
5-63/64”
(152)
3-15/16”
(100)
10-9/16”
(268)
Operating Instructions and Parts Manual
Hand Dryer Surface-mounted ADA-compliant hand dryer
220-240 VAC, 50/60 Hz, 1.0kW
240 VAC, Auto Resetting Thermostat turns unit off at 203°F {95°C}
distributed by RESTROOM DIRECT 704 . 937.2673 www.RestroomDirect.com
All manuals and user guides at all-guides.com

Installation
Installation Kit Included (find in carton)
2
1. Make sure power supply breaker is switched off. Installation must be carried out in accordance with
the current edition of the local wiring regulations code having jurisdiction. Installation should be
performed only by a qualified electrician.
2. Place template against wall at desired height (see mounting height recommendations) and mark
locations of 4 mounting holes and wire service entry at knockout (KO) location.
Note: For two or more dryers, dryers should be no closer than 24 inches (610 mm) on center.
3. Remove and retain 2 cover screws and cover.
4. a. For in-wall (concealed) power supply - (See MT & IG 1207101509)
Provide supply wire to KO location according to local code and attach securely to chassis at KO
with appropriate strain relief connector (not supplied).
b. For Surface Mounted Conduit (exposed) power supply -
Provide appropriate conduit to entry location according to local code and attach securely to chassis
with correct strain relief connector (not supplied).
5. Drill four (4) holes at locations A, B, C and D of Ø5/16" (Ø8) Diameter x 1-3/8" (35mm) deep if using
wall anchors supplied with unit. Install supplied anchors flush with wall face, or install other fastening
system suitable for wall conditions (not supplied). Attach dryer to wall. For wood wall/studs use Ø1/4
inch (M6) screws at length that will ensure 1 inch (25 mm) min. stud penetration. For masonry walls
use expansion bolts or anchors for Ø1/4 inch (M6) screws to ensure penetration 1/4 inch (6 mm)
deeper than anchor. Shim if necessary to ensure base plate is flat against wall.
6. Connect supply and ground wires to terminal block where indicated or connect supply wires to
terminal block where indicated and connect ground wire to base plate with ground screw.
Connections:
A. Connect the live wire (colored Brown, Red or Black) to the terminal block marked "L".
B. Connect the neutral wire (colored Black, Blue, White or Grey) or connect the second live wire
(colored Red or Orange) to the terminal block marked "N".
C. Connect the ground wire to the terminal block marked " " or to the green screw marked " ".
Bare grounding (earth) wires should be sleeved with green and yellow or green tubing.
Colors of live and neutral wires depend on voltage of supply service and requirements of Building
and Electrical Code having jurisdiction.
7. Replace cover. Do not over-tighten screws.
Service Tool Included (with installation kit)
Security hex driver 4 mm x 1 pcs (5/32" pin-hex will work if tool is lost)
Please unpack the unit and check the quantity of the above tool and kit.
Operating Instructions and Parts Manual
Hand Dryer Surface-mounted ADA-compliant hand dryer
VAC
110
115
120
208
220
230
240
277
Motor Heater
Vac
110
115
120
208
220
230
240
240
Inrush A(W)
5.73 (630)
5.99 (689)
6.25 (750)
2.71 (563)
2.86 (630)
2.99 (689)
3.13 (750)
3.13 (750)
Operating A (W)
3.82 (420)
3.99 (459)
4.17 (500)
1.81 (376)
1.91 (420)
2.00 (459)
2.08 (500)
2.08 (500)
3.82 (420)
3.99 (459)
4.17 (500)
1.81 (376)
1.91 (420)
2.00 (459)
2.08 (500)
2.08 (500)
Vac
110
115
120
208
220
230
240
240
Total
Inrush A(W)
9.55 (1050)
9.98 (1148)
10.42 (1250)
4.51 (939)
4.77 (1050)
4.99 (1148)
5.21 (1250)
5.21 (1250)
Operating A(W)
7.64 (840)
7.99 (918)
8.33 (1000)
3.61 (751)
3.82 (840)
3.99 (918)
4.17 (1000)
4.17 (1000)
Input
Inrush / Operating A(W)
1. Self-Threading screws 1/4" x 1-1/2" (M6 x 38) x 4 pcs 4. Crimp-on terminal wire tip x 3 pcs
2. Metal Washer 3/8" x 7/8"x 1/16" (Ø10 x Ø22 x 1.6 thk) x 4 pcs
3. Nylon bushing x 4 pcs
5. Plastic anchor Ø5/16" x 1-3/8"
(Ø8 x 35) x 4 pcs
distributed by RESTROOM DIRECT 704 . 937.2673 www.RestroomDirect.com
All manuals and user guides at all-guides.com

Operation
Periodic cleaning of the unit is recommended to ensure optimum performance.
Disconnect the electrical supply.
Remove the two cover-mounting screws.
Remove the cover.
Clean all dust lint from the interior of the dryer.
Replace the cover. Do not over tighten the screws.
Wipe the cover with a damp cloth and mild
cleaning solution. Do not Soak. Never use
abrasives to clean the cover.
Cleaning and Maintenance
50"
3
Recommended mounting heights - from bottom edge of dryer above finished floor (AFF)
See Mounting Template & Installation Guide (MT & IG)
1207101509 (Supplied with unit)
Men
Women
Children 4-7 years
Children 8-10 years
Children 11-13 years
Children 14-16 years
Handicaped
(1270 mm)
47" (1194 mm)
35" (889 mm)
39" (991 mm)
43" (1092 mm)
47" (1194 mm)
40" (1016 mm)
All Approaches 48" (1219 mm)
Reference ADAAG
Reach LIMIT (unrestricted)
AFF (maximum)
Circuit Diagram
Shake excess water from hands.
Place hands under the nozzle and dryer
automatically starts operation.
Rub hands lightly and rapidly under the nozzle.
Dryer stops when hands are removed from
sensor zone or if maximum time is reached.
Operating Instructions and Parts Manual
Hand Dryer Surface-mounted ADA-compliant hand dryer
General safety information:
Disconnect power at the
service breaker before installing or servicing.
This product is intended
for installation by a qualified service person.
Use AWG NO. 12 solid conductor for wiring.
All units must be supplied
with a 3-wire service. The ground wire must
be connected to the dryer's backplate.
Failure to properly ground
unit could result in severe electrical shock
and/or death.
Circuit Board Module
Transistor
Power Switch
MO2 HE2 N MO1 HE1 L
Transistor
Power Switch
VR
G
N
L
Thermostat
Red (110-120~Vac) (208-240~ 277~Vac)/ Blue
Black
Black
G/Y
Blue
Brown
Motor With Thermal Switch 2A
Heater With Thermo-fuse
FOR SE NS OR
SW.FOR HE ATER
White (110-120~Vac)
(208-240~ 277~Vac)
/
Brown
Sensor module
ON
1
VR FOR MO TOR
G
G/Y
distributed by RESTROOM DIRECT 704 . 937.2673 www.RestroomDirect.com
All manuals and user guides at all-guides.com

4
Diagnostics and Remedies
If the dryer will not run
The dryer cycles by itself
or runs constantly
The dryer runs but air
stream is low pressure
and/or low velocity
Ensure that there is no obstruction on or in front of the IR sensor. Clean
any dirt or debris off the sensor lens. If problem persists, replace sensor.
First ensure that the breaker supplying the dryer is operational. If it is,
disconnect the power and remove the dryer cover. Taking suitable
precautions to avoid shock hazard, reconnect the power and check for
Voltage at the terminal block. Verify that connections are made correctly.
Ensure that the supply Voltage is correct. Dryer will run weakly if the
input Voltage is too low. Verify Voltage requirement on unit rating label
and correct supply as required.
The dryer makes a loud
noise and does not run
for a complete cycle
Ensure that the supply Voltage is correct. Dryer will make a loud humming
noise if the input Voltage is too high. Verify Voltage requirement on unit
rating label and correct supply as required. If CBM has been damaged,
replace CBM, IR sensor module.
Symptom Corrective Actions for Initial Installation Failures
Symptom Corrective Actions for In-Service Failures
If the dryer will not run
The IR sensor only “sees”
close range objects
The dryer only blows cold
air during a full cycle
Ensure that there is no obstruction on or in front of the IR sensor. Clean
any dirt or debris off the sensor lens. If problem persists, disconnect the
power and remove the dryer cover and replace CBM, IR sensor module.
First ensure that the breaker supplying the dryer is operational. If it is,
disconnect the power and remove the dryer cover. Replace the CBM
and IR sensor module. Taking suitable precautions to avoid shock
hazard, reconnect the power and check for Voltage at the terminal block.
Disconnect the power. Remove the dryer cover and check/ ensure heater
SW is ON. Disassemble the blower-motor/fan housing. Test the thermostat
for open circuit. Check the heater element for signs of burning or breakage.
Damaged element must be replaced.
The heater gets hot but
no air stream is produced
Disconnect the power. Remove the dryer cover. Check VR for speed
setting Disassemble the blower- motor/ fan housing. Replace the fan motor.
Reassemble.
The air stream is low
pressure and velocity
Check the output nozzle for obstructions. If none are present, disconnect
the power. Remove the dryer cover. Remove any dust/lint buildup from
intake vent slots. Check VR for speed setting. Disassemble the blower-
motor/fan housing. Check the motor brushes for worn condition (≤ 1-3/16”
[30 mm] graphite remains) and replace them, if necessary.
Operating Instructions and Parts Manual
Hand Dryer Surface-mounted ADA-compliant hand dryer
Important Information
This Product falls within the scope of the Waste Electrical &
Electronic Equipment Directive 2002/96 EC. (WEEE) NOTE:
This Product should not be disposed
of with household waste
Please recycle where facilities exist.
Check with your local authority for
recycling advice.
distributed by RESTROOM DIRECT 704 . 937.2673 www.RestroomDirect.com
All manuals and user guides at all-guides.com

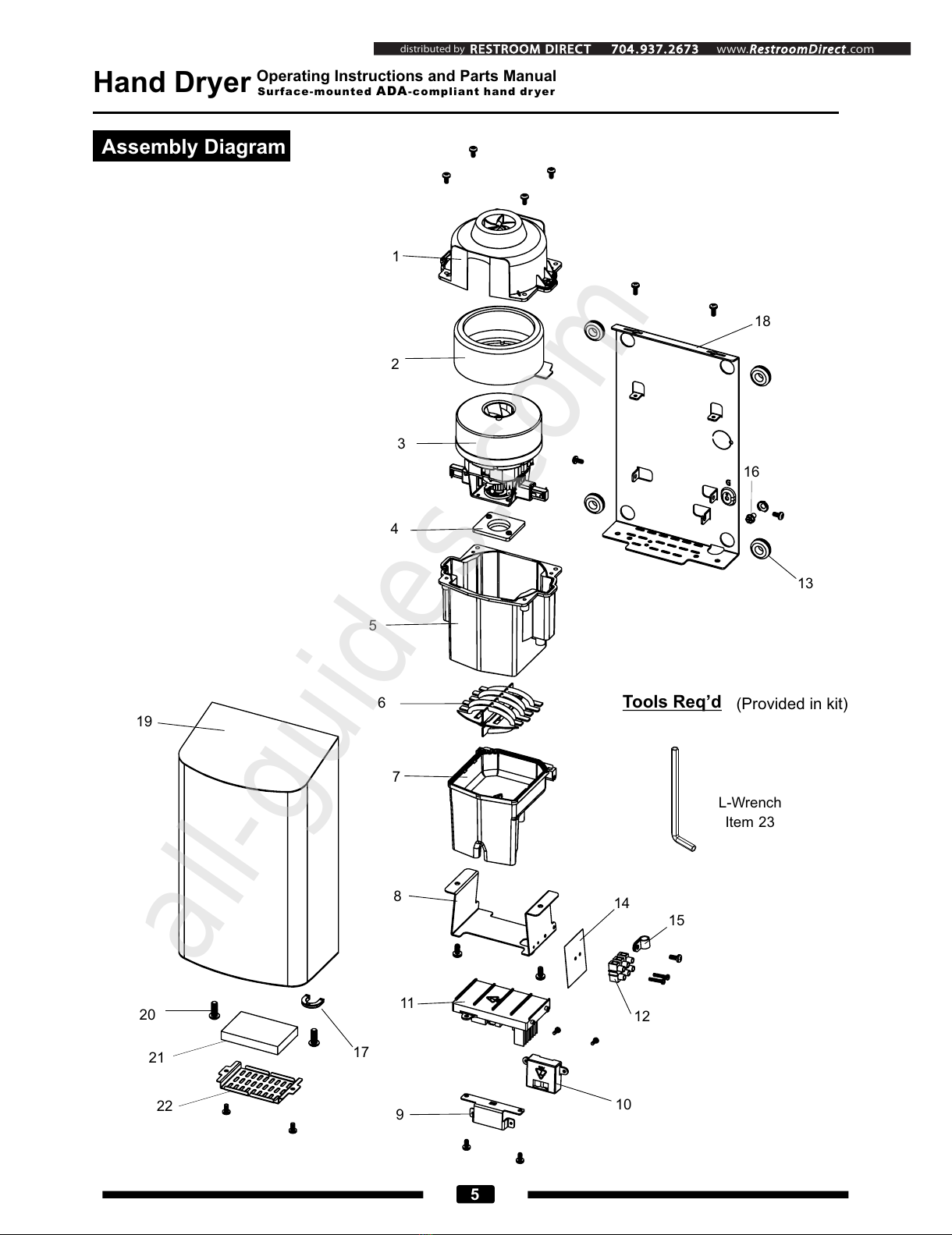

Assembly Diagram
Operating Instructions and Parts Manual
Hand Dryer Surface-mounted ADA-compliant hand dryer
5
1
2
3
4
5
6
7
8
910
11
13
12
14
15
16
17
18
19
20
21
22
Tools Req’d
(Provided in kit)
L-Wrench
Item 23
distributed by RESTROOM DIRECT 704 . 937.2673 www.RestroomDirect.com
All manuals and user guides at all-guides.com
all-guides.com

Repair parts list
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Key Description Qty
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
1
1
2
1
1
1
Blower housing - Upper
Motor rubber - Lower
Motor
0.67HP@120Vac
0.67HP@240Vac
Motor rubber - Upper
Blower housing - Lower
Heater assembly
500W@120Vac,28.8Ω
500W@240Vac,115.2Ω
Αir outlet
Αir outlet bracket
Sensor bracket
Sensor module
Terminal block
Rubber grommet -Base
Mylar shield with LNG marked
Cable clamp
Grounding screw with cup washer
Cable protector
Base plate
Cover BluStorm Bolt
Stainless steel - Satin
Security hex cap head 1/4"-20
x 5/8" screw with lock washer
Filter assembly
Filter assembly bracket
L-Wrench
Circuit Board Module (CBM)
110-120Vac
220-240Vac
Operating Instructions and Parts Manual
Hand Dryer Surface-mounted ADA-compliant hand dryer
6
distributed by RESTROOM DIRECT 704 . 937.2673 www.RestroomDirect.com
All manuals and user guides at all-guides.com
