Palsonic TFTV8072M User manual

Offering Australians quality since 1958 www.palsonic.com.au
TFTV8072M
INSTRUCTION MANUAL
80cm (31.5”) D-LED TV / DVD Combo
WITH DVB-T
5
INPUT MENU CH- CH+ VOL- VOL+ PLAY EJECT POWER
12 VOLT
COMPATIBLE

Power Supply..................................................................................................................................................... 1
Installation......................................................................................................................................................... 2
Use and Maintenance....................................................................................................................................... 3
Important Safety Instructions ............................................................................................................................ 4-5
Overview(Back View) ........................................................................................................................................ 7
Overview(Front View) / Accessories ................................................................................................................. 6
Remote control .................................................................................................................................................. 8-9
Basic Operation ................................................................................................................................................. 10
1. PICTURE Menu ............................................................................................................................................ 11
2. SOUND Menu ............................................................................................................................................... 12
4. FEATURE Menu ............................................................................................................................................ 15-16
5. SETUP Menu ................................................................................................................................................... 17
3. CHANNEL Menu ............................................................................................................................................... 13-14
Contents
OSD Menu
Recording Operation
Recording Operation ......................................................................................................................................... 21-23
Multimedia Operation
Multimedia Operation ........................................................................................................................................ 18-20
DVD operation ................................................................................................................................................... 24-31
DVD operation
Simple Troubleshooting ................................................................................................................................... 32
Specifications ................................................................................................................................................... 33

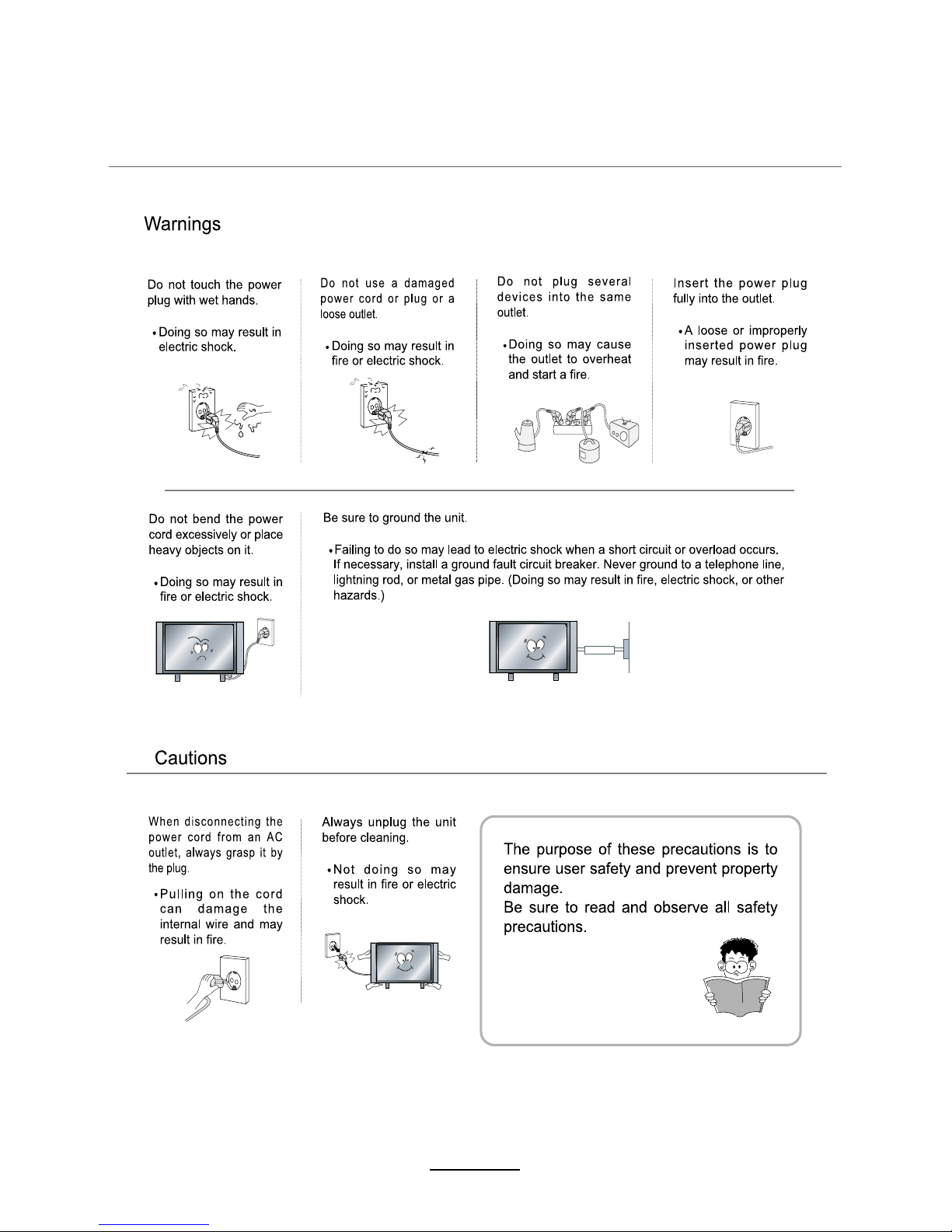

Power Supply
1

Installation
2

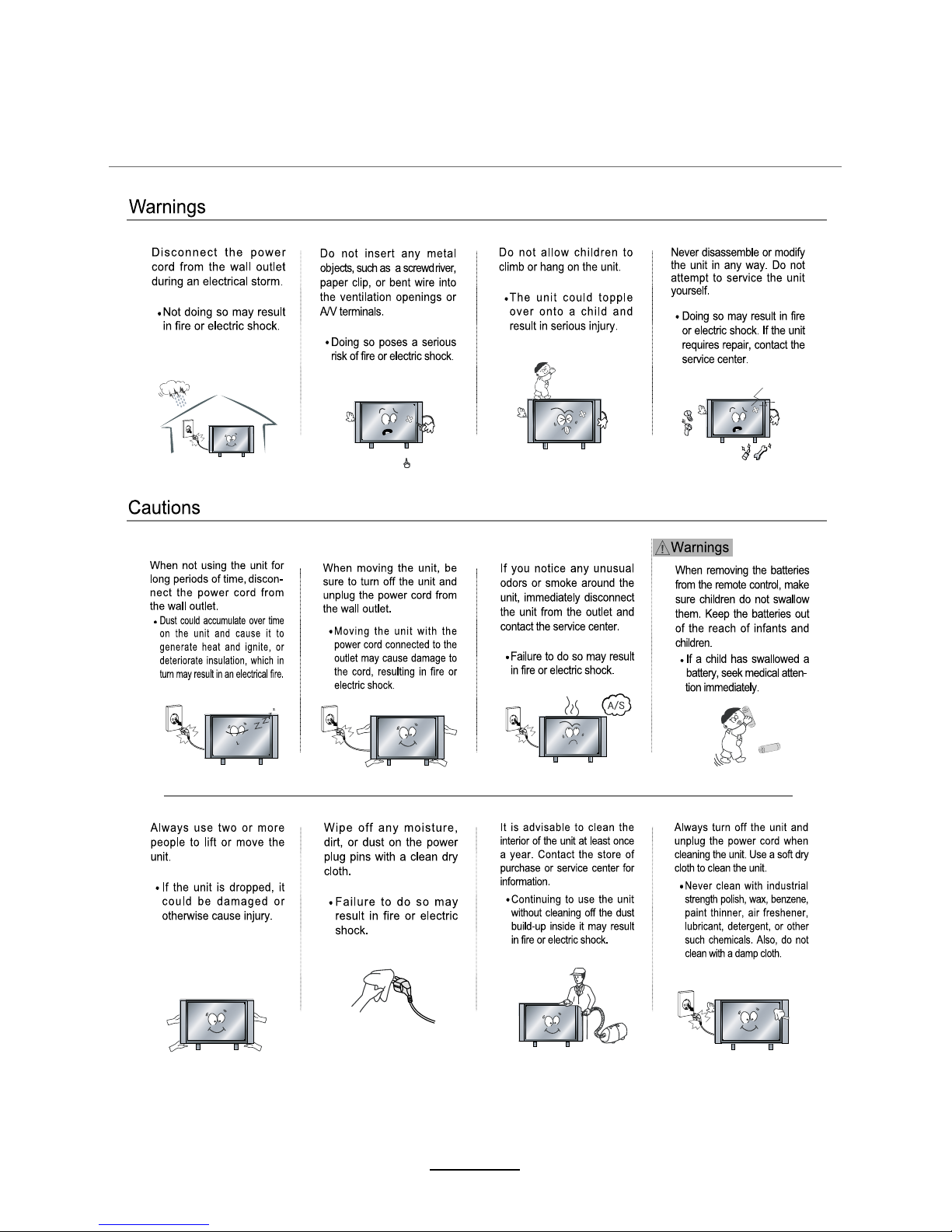

Use and Maintenance
3

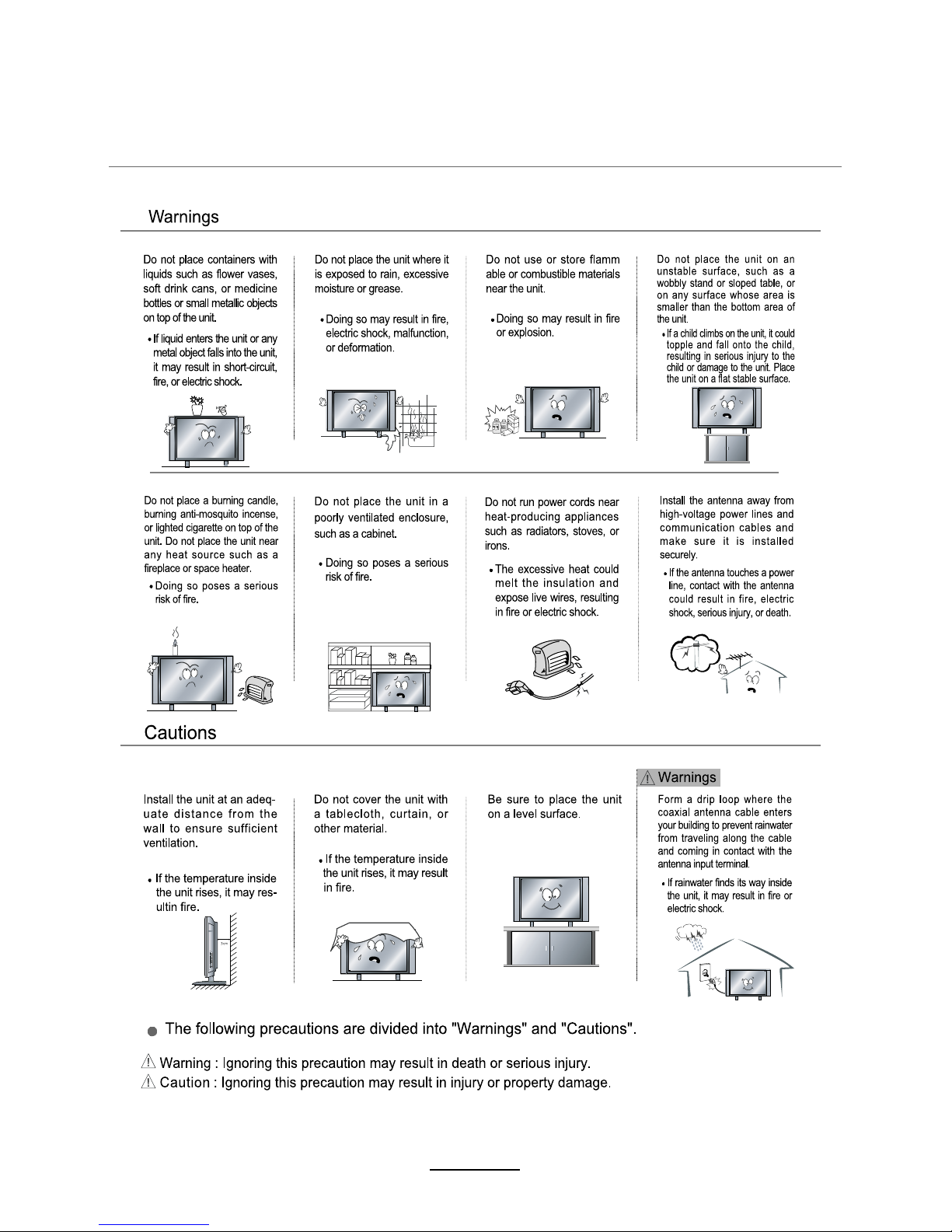

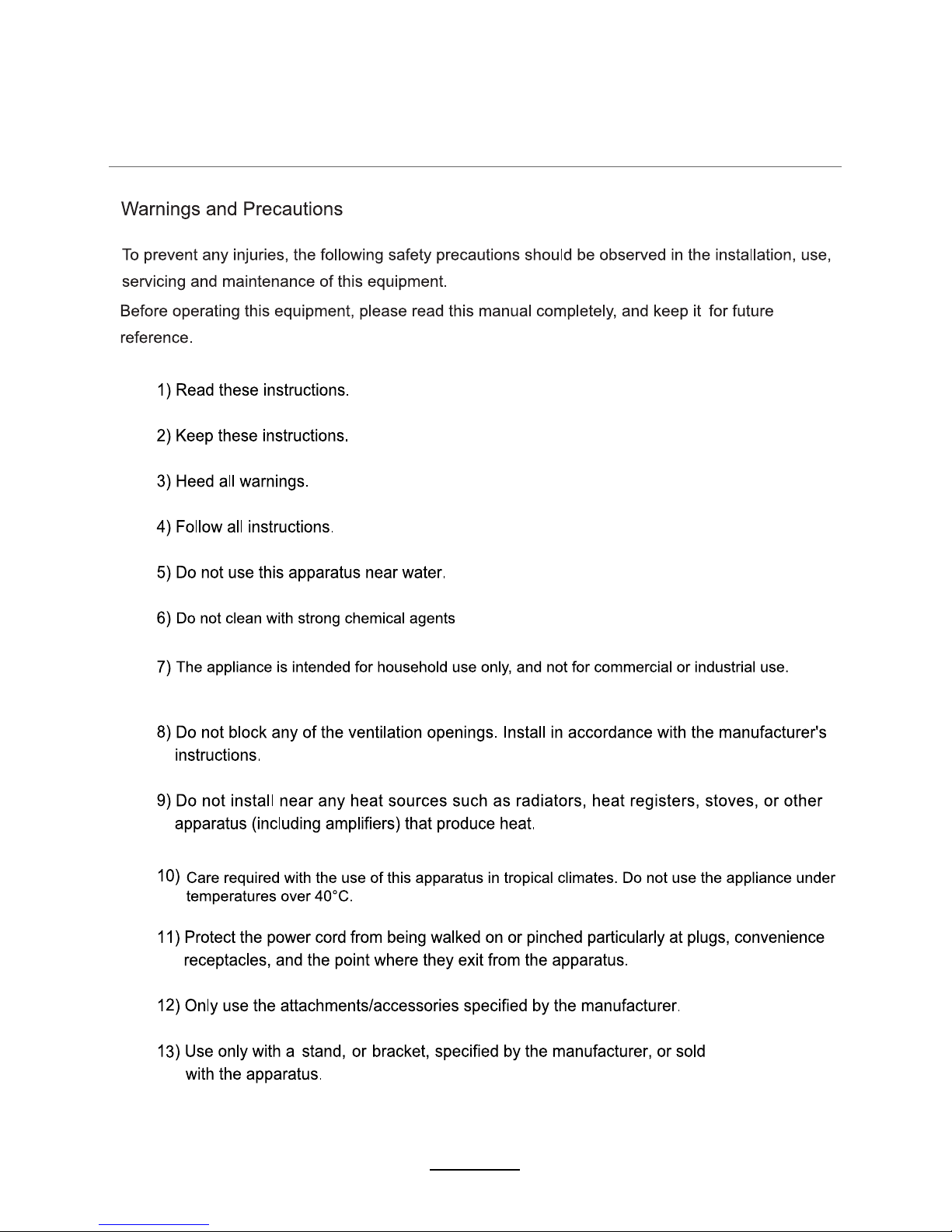

Important Safety Instructions
4

Important Safety Instructions
5

Overview
Front View
MENU: Display/exit the OSD menu.
CH+/-: Scan through channels.
VOL+/-: Adjust the volume.
INPUT:
PLAY: Play / Pause the disc playing
EJECT: Eject the disc.
Display the input source menu.
POWER: Turn on/standby the TV set.
Please insert a 12cm disc
according to the silk
User’s Guide Remote Control )AAAx2(seirettaB
Remote Control Sensor
(keep clear)
LED Indicator
6
Power Adaptor Mini AV
INPUT MENU CH- CH+ VOL- VOL+ PLAY EJECT POWER

Overview
Back View
Y Pb Pr
USB COAX
HDMI1POWER
HDMI2 HDMI3
PC AUDIO
AV
USB: USB jack for Recording and Media.
HDMI 1/2/3: Connect it to the HDMI of DVD or other equipment.
YPbPr: Connect them to the YPbPr video output terminal of DVD.
PC AUDIO:Connect it to the audio output terminal of PC.
VGA: For PC display. Connect it to the D-Sub 15 pins analog output connector of the PC.
COAX:
AV:
Digital output to AV receiver.
HEADPHONE: Connect it to your headphone or other audio equipment.
RF: Connect antenna or cable 75 Ohm coaxial to receive TV signal.
HEADPHONE
7
POWER: Connect to the power.
VIDEO :Connect to video output terminal of external devices.
R/L in :Connect to the audio output terminal of external devices.(shared with YPbPr)

Remote Control
ETUMREWOP
REC
EPG
INPUT
TIXEUNEM
HCLOV
SETUP
A-B GOTO
D-MENU
TITLE
HOLD SIZE SUBPAGE INDEX
NICAM/A2
TV/TXT CANCEL REVEAL
SOUND SLEEP
FAV
1234
5678
90
DISPLAY
REP
PVR/DVD
SUBTITLE
OK
REC LIST CH/LIST
PRO
SLOW
SCREEN
LAN
POWER: Turn the TV on/standby.
MUTE: Press to mute the sound, press again or press
VOL+ to unmute.
REC LIST: Record List.
CH/LIST: Display the programs list.
SUBTITLE: Turn on/off the subtitle display in DTV mode
and DVD mode.
EPG: To show the Electronic Program Guide during no-menu
state only in DTV mode.
REP: Repeat playing the title or chapter.
: Load/eject DVD disc.
CURSOR KEYS OK
Allows you to navigate the on-screen menus and adjust the
system settings to your preference.
NUMBER BUTTONS
Press0-9 to select a TV channel directly when you
are watching TV.
Return to the previous channel viewed.
INPUT: Press to display the input source menu.
DISPLAY: Press to display the current mode’s information.
* In DTV mode, play display one time, display the basic information.
Play a second time, display the detail information.
Play a third time to exit.
MENU: System setup menu.
EXIT: Exit the OSD menu.
FAV: Display the favorite program list.
PVR/DVD
REC : Press to start record the program in DTV mode.
: Previous chapter.
: Next chapter.
: Fast reverse.
: Fast forward.
: Stop program.
: Pause program.
: Play program.
8

Remote Control
ETUMREWOP
REC
EPG
INPUT
TIXEUNEM
HCLOV
SETUP
A-B GOTO
D-MENU
TITLE
HOLD SIZE SUBPAGE INDEX
NICAM/A2
TV/TXT CANCEL REVEAL
SOUND SLEEP
FAV
1234
5678
90
DISPLAY
REP
PVR/DVD
SUBTITLE
OK
REC LIST CH/LIST
PRO
SLOW
SCREEN
LAN
SETUP:DVD system setup.
D-MENU:DVD play list/Disc menu.
TITLE: DVD title.
PRO: Edit the program and play.
LAN: Select DVD disc language.
A-B: Select and play the preferable paragraph of DVD program
by pressing this key twice at the beginning and end of it.
GOTO: Play your favorite title/chapter/track.
SLOW: Play DVD programs at slow speed.
CH / : Scan through channels.
VOL / : Adjust the volume.
PICTURE: Select the picture mode.
NICAM/A2: TV Nicam/A2 select.
SOUND: Select the sound mode.
SLEEP: Standby timer.
SCREEN: Turn on/off the screen.
TV/TXT: Turn off/on the Teletext display.
CANCEL: Cancel the Teletext display.
REVEAL: Reveal any hidden text.
HOLD: Hold or carry on the current subpage.
SIZE: Press to see top half of page double size,
Press again to see the bottom
half of page double size. Press again for normal size.
SUBPAGE: Press to enter subpages, pressagain to cancel.
INDEX: Go to index.
Colour buttons: Short cuts-follow the coloured links in the text
9

button to select the function item, press / OK button to enter
Basic Operation
Power on/off
1. Connect to the power supply with an adaptor.
2. -To turn on the TV
Press POWER button on the TV or remote control.
-To turn off the TV
Press POWER button on the TV or remote control.
Input Source select
Press INPUT button on the TV set or remote control to display the
input source menu, and use CH+/- button on the TV set or ġĢbutton
on remote control to select the input source, press OK button on the
remote control to enter.
Note: Before you select the input source, make sure the
connections are prepared.
Basic OSD Menu operation
Main menu: Picture Sound Channel Feature Setup
Submenu
(Picture menu
for example)
Hint---you should operate
Press MENU button to display the OSD menu as below:
Use /
Ģ
button to select the main menu, and press / OK button to enter the submenu.
In the submenu, use
the setup menu, then press / button to adjust, or press / to select and press OK /
/ button to confirm.
ġ
/
Ģ
ġĢ
ġĢ
* (Press MENU / button to return to the upper menu.)
* (Press EXIT button to exit the menu display.)
Note1: Only when you input the suitable signal, the relevant items can be activated
Note2: Please operating the OSD menu according to hint on the bottom of the banner.
the OSD menu according
to the hint.
DTV
AV
YPBPR
PC
HDMI1
HDMI2
HDMI3
ATV
Media
DVD
10

OSD Menu
1. Picture menu
Description
Picture Mode: Select your desired picture mode from Dynamic, Standard, Mild and User.
Brightness: Adjust image black level.
Contrast: Adjust image contrast.
Sharpness: Adjust the sharpness(Gray and invalid in VGA/PC mode).
Colour: Adjust image colour from black and white.
Colour Temp.: Select an optimum color temperature mode to suit your eyes for viewing from
Warm, Cool, Standard.
Noise Reduction: If the broadcast signal received is weak, you can select the Noise Reduction
option to reduce the video noise level between Off, Low, Middle and High.
Tint: Control the tint ( NTSC mode only).
Aspect Ratio: Change the aspect for the screen from 4:3,16:9, full, Zoom1, Zoom2 etc...
11

OSD Menu
OSD Menu
2. Sound menu
Description

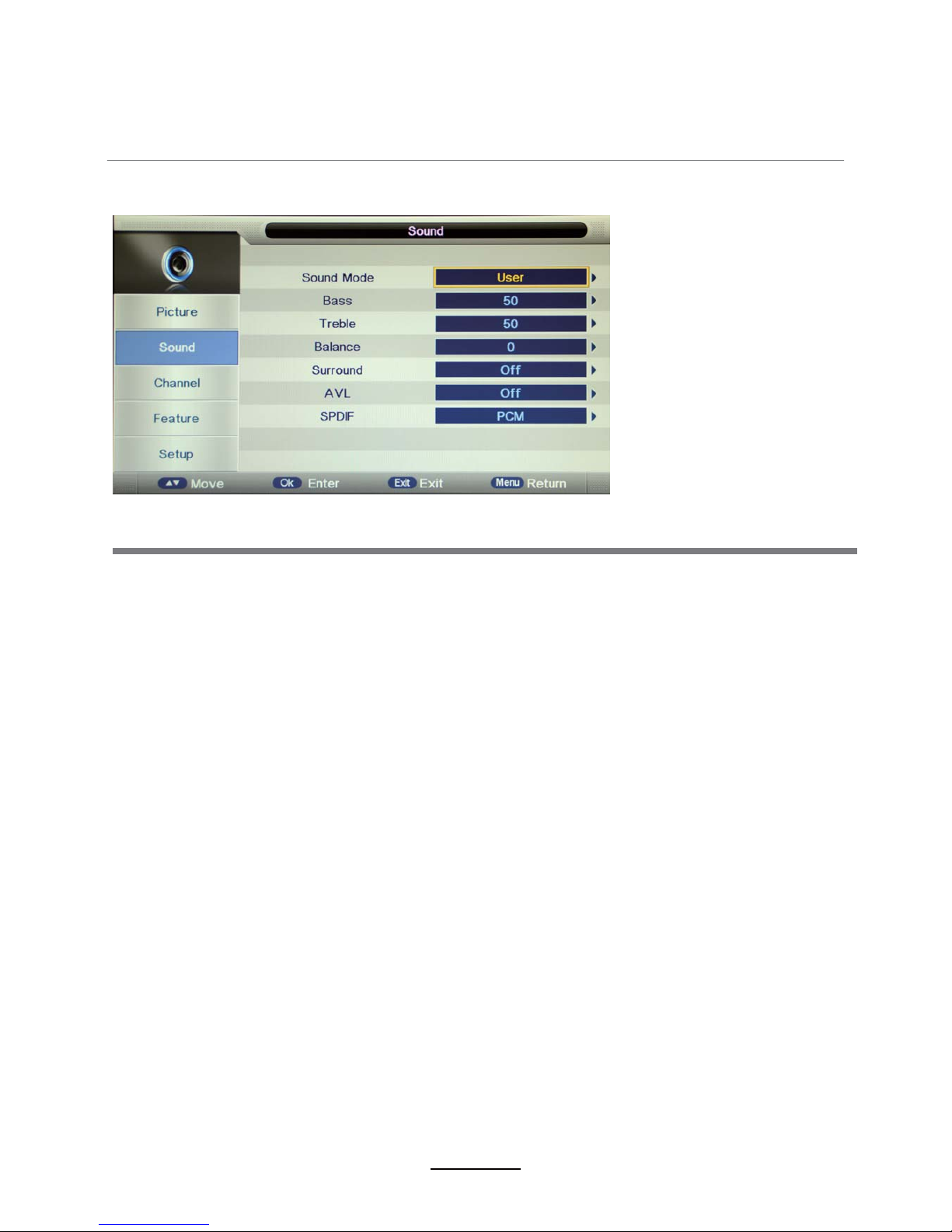

Sound Mode: Select your desired sound mode from Standard, Movie, Music, Speech and User.
Bass: Adjust the level of the lower-pitched sounds.
Treble: Adjust the level of the higherpitched sounds.
Balance: Adjust the audio output between left and right speakers.
Auto Volume Level (AVL): The volumes of all sources will be maintained when the function’s on.
SPDIF: Select the spdif mode for the TV from off, PCM and Auto.
Surround: Turn on/off the surround sound function.
12

OSD Menu
3. Channel menu(In ATV/DTV mode)
Description
Channel Management: Enter the Channel management menu to edit the channels.
Press GREEN button to sign(lock) or cancel(unlock) the channel. And you have to enter the
password to view the program.
User must set the “Lock enable”(Feature-Lock- Lock enable) at ON to active this function.
PressDelete:
Lock:
RED button to sign the channels you want to delete, it will hint you when you exit.
PressSkip: YELLOW button to skip the channel or cancel the setting, and the program will not be
programed by CH+/- button.
Press
Swap:
Rename:
BLUE button to sign the channel, press / button to move, and press OK button to
swap the position.
Press OK button to enter the rename menu to rename the ATV channel.
Favorite Management: Add or remove
favourite channels by the colour buttons.
Up to 4 favourite lists are available,
RED-Fav1, GREEN-Fav2, YELLOW-Fav3,
BLUE-Fav4.
Note: You could display the Favourite list 1/2/3/4
by press the FAV button once/twice/three times/
four times.
Australia
13

OSD Menu
Country: Select the country.

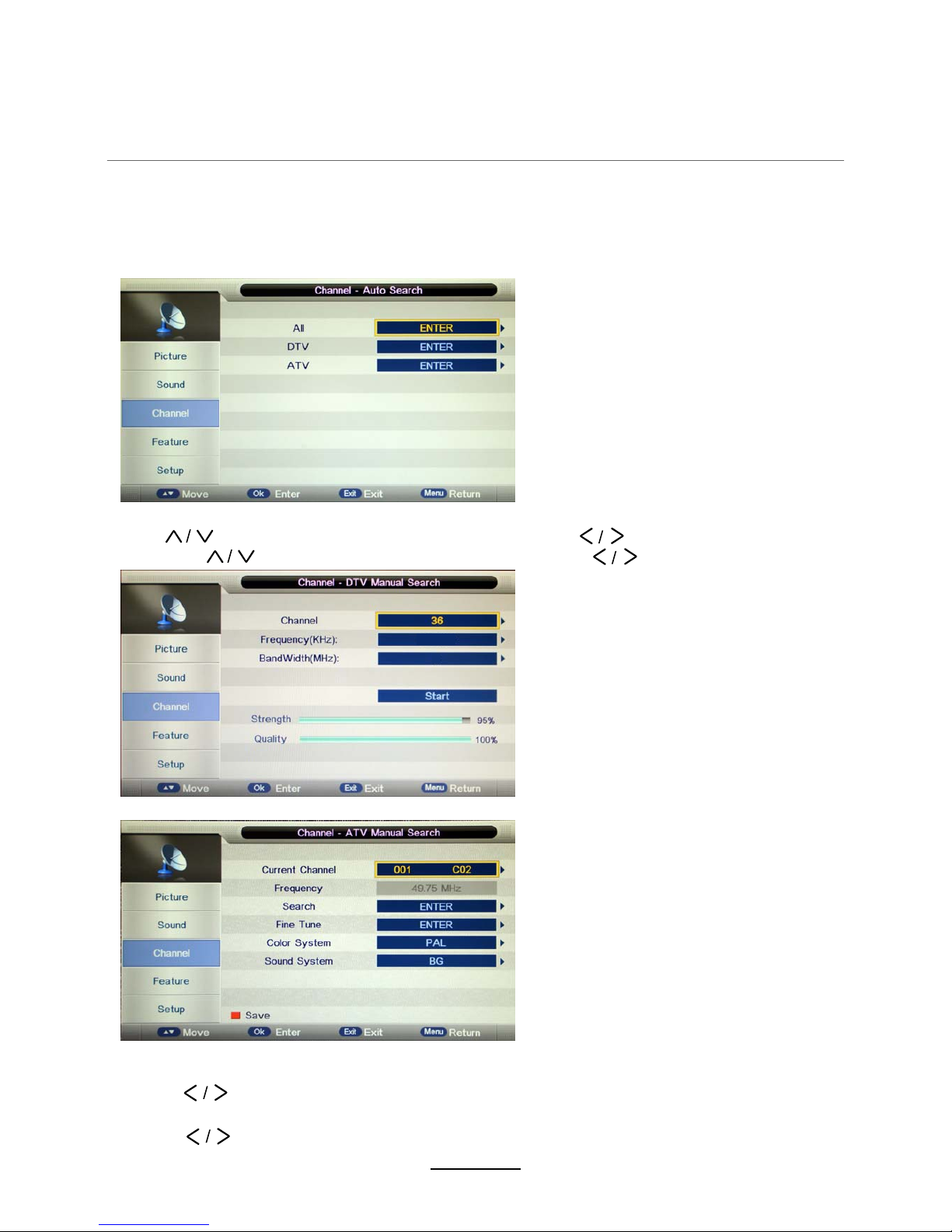

Auto Search: Press OK button to enter the Auto Search menu, select search mode, and press
DTV Manual Search : Enter the DTV Manual Search menu.
Press button to select the “Channel” item, and press button to select the channel,
then press button to select the “Start” item, and press button to manual search.
OK button to start auto search.
ATV Manual Search : Enter the ATV Manual Search menu.
Fine Tune: Press OK button to enter the Fine tune menu, and fine tune the frequency
Current Channel: Select the current channel for manual searching.
Search: Press OK button to enter the search menu, and manual search the frequency
Color/Sound System: Select the Color/Sound system for the program.
by button.
by button.
Note:
1. ALL: Auto search channels for DTV, ATV and
Radio.
DTV: Auto search channels for DTV and radio.
ATV: Auto search channels for ATV.
2. When the TV is auto tunning, you could
press MENU button to stop auto tunning and
return to preview menu.
When the Child Lock is on, please enter the Password (Lock Password in Feature menu)
to start Auto and Manual Search.
7
585500
14

OSD Menu
OSD Menu
4. Feature menu
Description

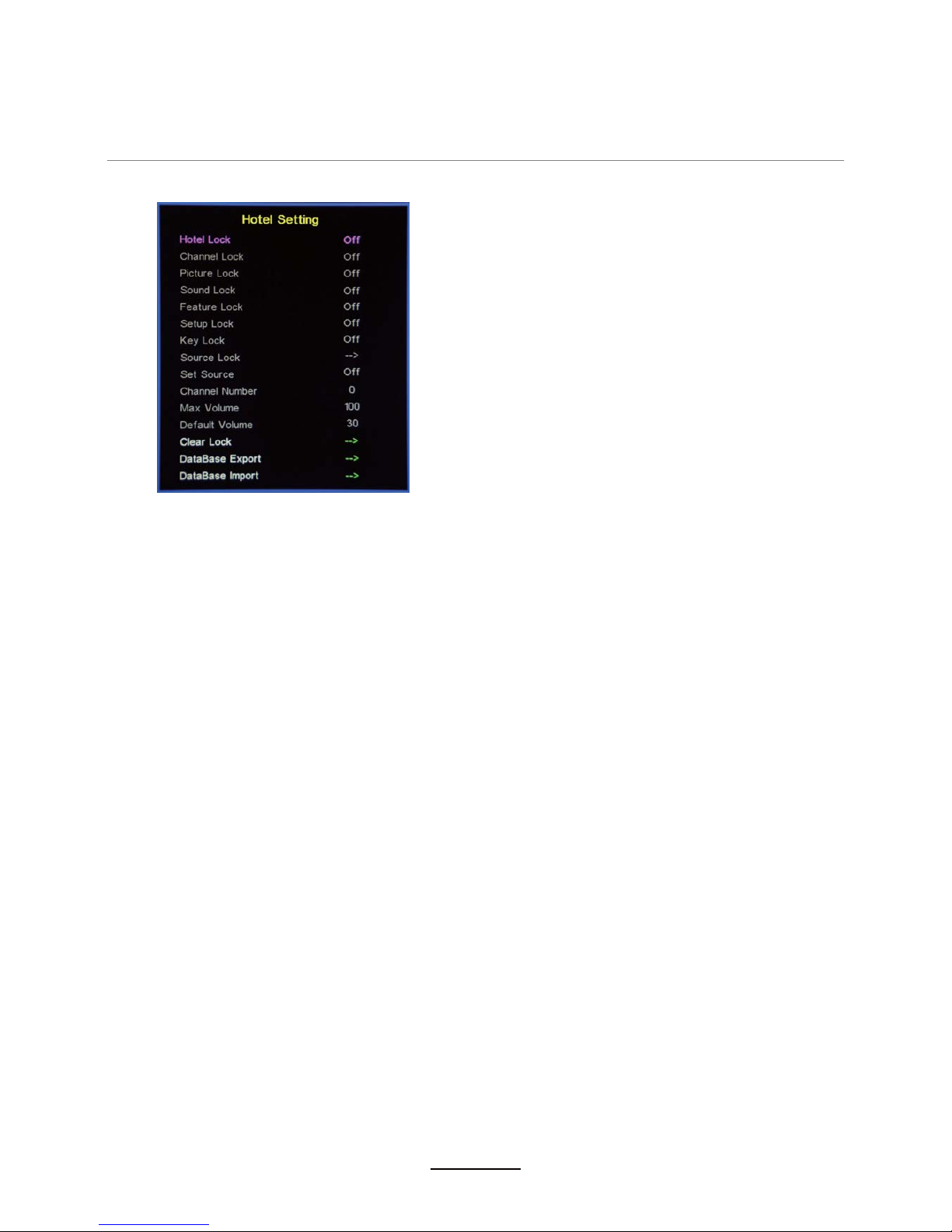

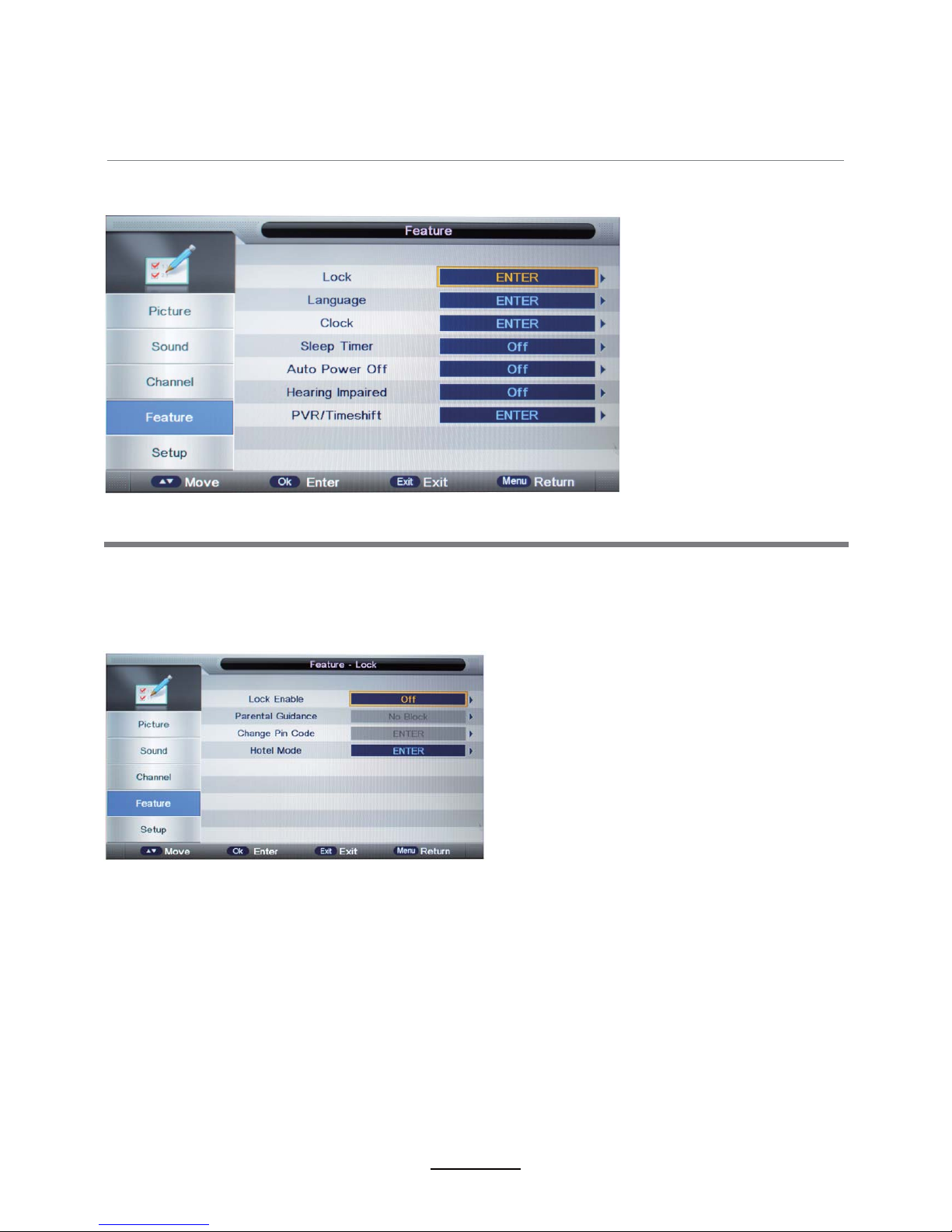

Lock: This menu allows you to lock certain features of the television so that they can not be used
or viewed. For example if you don’t want certain channels viewed by children or if the television
is to be used in a hotel and you want certain channels be locked.
When you enter the system lock menu you will be asked for a password. As default it is 0000.
Lock Enable - Turn on/off the Lock Channel function.
Parental Guidance - Select the Parental Guidance mode, or turn off the function.
Note: When it is be turned on, the functions of Parental Guidance and Change Pin code
below will be locked, and the functions Lock(in Channel Management), Auto Search, DTV
Manual Search, ATV manual Search in Channel menu will also be locked.
Change Pin Code – Press OK button to enter, first enter the current code, then enter your
new code and confirm your new code.
15

OSD Menu
OSD Menu
Hearing Impaired: You can switch on the hearing impaired feature, this provides additional
information and subtitles
PVR/Timeshift: Setup menu for recording, please see the Recording Operation section.
Hotel Mode - Enter the Hotel Setting menu.
Language: Lets you adjust the different language options available.
Clock: Allows you to set the time zone (as default the information is taken automatically from the
digital signal).
Sleep Timer: Lets you set the sleep timer so the television automatically switches off after a
certain amount of time.
Auto Power Off: The TV will switch off itself automatically if no change in status within the
time you select. You can choose 1H, 2H, 4H or off.
Hotel Lock: Turn on/off the Hotel Lock function.
Channel Lock: Disable the Channel menu in OSD.
Picture Lock: Disable the Picture menu in OSD.
Sound Lock: Disable the Sound menu in OSD.
Feature Lock: Disable the Feature menu in OSD.
Setup Lock: Disable the Setup menu in OSD.
Key Lock: Disable the buttons on the TV set.
Source Lock: Disable the input source you desired.
Set Source: Select the default source when you turn on the TV.
Channel Number: Select the default channel number when you
turn on the TV.
Max Volume: Set the Max volume for the TV.
Default Volume: Set the default volume when the program is on.
Clear Lock: Clear all the locks above, it means set all the locks to
OFF and max volume to 100.
Database Export: Export all Hotel Settings to the USB device.
Database Import: Import all Hotel Settings from the USB device.
16

OSD Menu
OSD Menu
OSD Timer: Lets you adjust the amount of time the On Screen Menu stays on the screen
before disappearing.
Blue Screen: Changes the background when there is no input between clear and a blue
background (Only available in some sources).
Reset TV Setting - This clears all the TV settings for the television.
Software Upgrade: From time to time we may release new firmware to improve the running
of the television (available to download). This menu lets you upgrade that software onto the
television. Further details of how to do this will be issued with the firmware. Contact the
helpline or refer to the ‘product support’ section of the website.

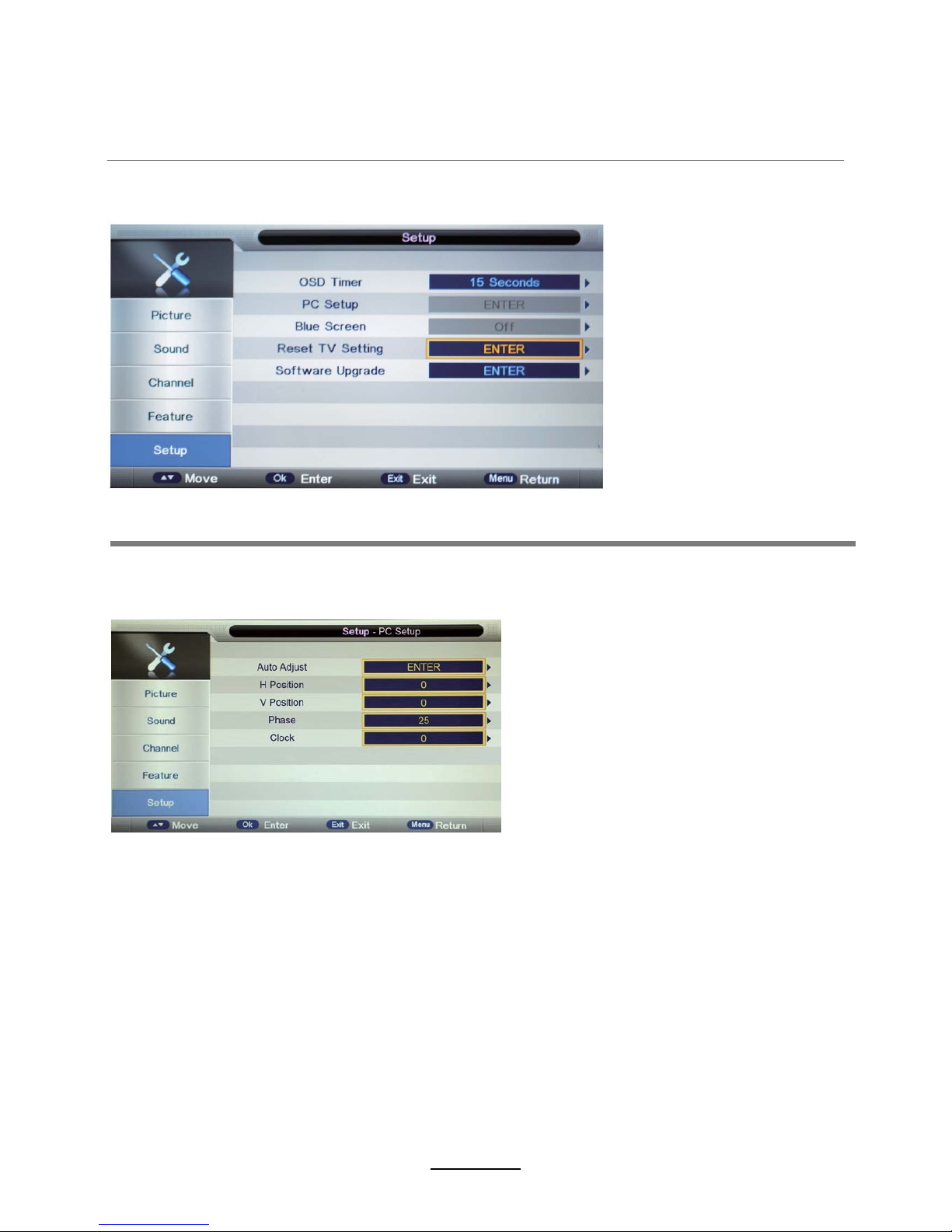

5. SETUP menu
Description
PC Setup: Change the PC Settings in PC mode.
Auto Adjust: Setup the parameter of the screen automatically.
H/V-Position: Adjust the transverse/vertical position of the screen.
Phase: Adjust the phase of the ADC sampling clock relative to the sync signal, until a
stable image is obtained.
Clock: Adjust the pixel clock frequency, until the image size is maximized for the screen.
17
