Panasonic S48C90KAU6 User manual

1.4
1.6
1.8
2.0
2.2
2.4
2.6
2.8
-20 -10 010 20 30 40
Current (A)
75
115
155
195
235
275
-20 -10 010 20 30 40
Input Power (W)
200
400
600
800
1,000
1,200
1,400
1,600
1,800
2,000
-20 -10 010 20 30 40
Evaporating Temperature (°F)
Capacity (BTU/H)
110°F 120°F 130°F
Rated Performance Data
Capacity . . . . . . . . . . . . . . 454 Btu/h ±10% *
E.E.R. . . . . . . . . . . . . . . . . . 3.75 Btu/Wh ±10% *
Current . . . . . . . . . . . . . . . 1.61 Amps *
Nominal Motor Data Motor Input . . . . . 121 Watts*
Rated Current . . . 1.68 Amps
Type . . . . . . . . . . RSIR, PTC relay
Locked Rotor . . . . . . . . . . 9.80 Amps
Start Current . . . . . . . . . . 15.04 Amps
Coil Resistances Run . . . . 3.40 Ohms
@ 68°F (20°C) Start . . . 10.82 Ohms
*Test Conditions for Performance Specifications
Test Oil . . . . . . . . . . . . . . . . Freol α 22
Shell Temp . . . . . . . . . . . . . . 170.0°F / 76.0°C
Condensing Temp . . . . . . . . . 130.0°F / 54.4°C
Evaporating Temp . . . . . . . . .-10.0°F / -23.3°C
Ambient Temp . . . . . . . . . . . . 90.0°F / 32.2°C
Gas Superheat . . . . . . . . . . . 90.0°F / 32.2°C
Liquid Sub-Cooling . . . . . . . . 90.0°F / 32.2°C
Electrical Accessories
Overload Protector
Nominal Operating Characteristics
Model Name T145AH6.1
Manufacturer Matsushita
Temperature To . . . . . . . . . . . Open: 293°F ± 9°F / 145°C ± 5°C
Close: 194°F ± 27°F / 90°C ± 15°C
Trip Current . . . . . . . . . . . . . . @212°F (100°C) 4.7 to 5.7 Amps
@77°F (25°C) 17.0 Amps @ 13 sec. max.
P.T.C. Starting Device†
Nominal Operating Characteristics
Model Name PTH490C-AS4R7
Manufacturer Murata Mfg.
Base resistance
@ 77°F(25°C) ±20% 4.7 Ohms
Power Consumption (max) 3.3 Watts
Operation time 1.3 to 3.0 seconds
Recovery time (max) 65 seconds
Run Capacitor —µF — V
†Although these accessories are listed by UL/CSA for use with this compressor,
Matsushita assumes no responsibility whatsoever for these or any other components
sourced by the refrigeration system manufacturer from third parties.
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315 Rev#1-5/9
Evaporating Temp.
Condensing Temp. Rating -10°F +10°F +30°F
130°F Btu/h 454 840 1,400
Watts 121 170 230
Amps 1.61 1.91 2.39
E.E.R. 3.75 4.94 6.09
120°F Btu/h 478 874 1,454
Watts 118 164 218
Amps 1.58 1.87 2.31
E.E.R. 4.05 5.33 6.67
110°F Btu/h 502 908 1,509
Watts 116 158 208
Amps 1.56 1.84 2.22
E.E.R. 4.33 5.75 7.25
MATSUSHITA Compressor Single Phase 115V
MODEL# S48C90KAU6 R-134a 60
Hz

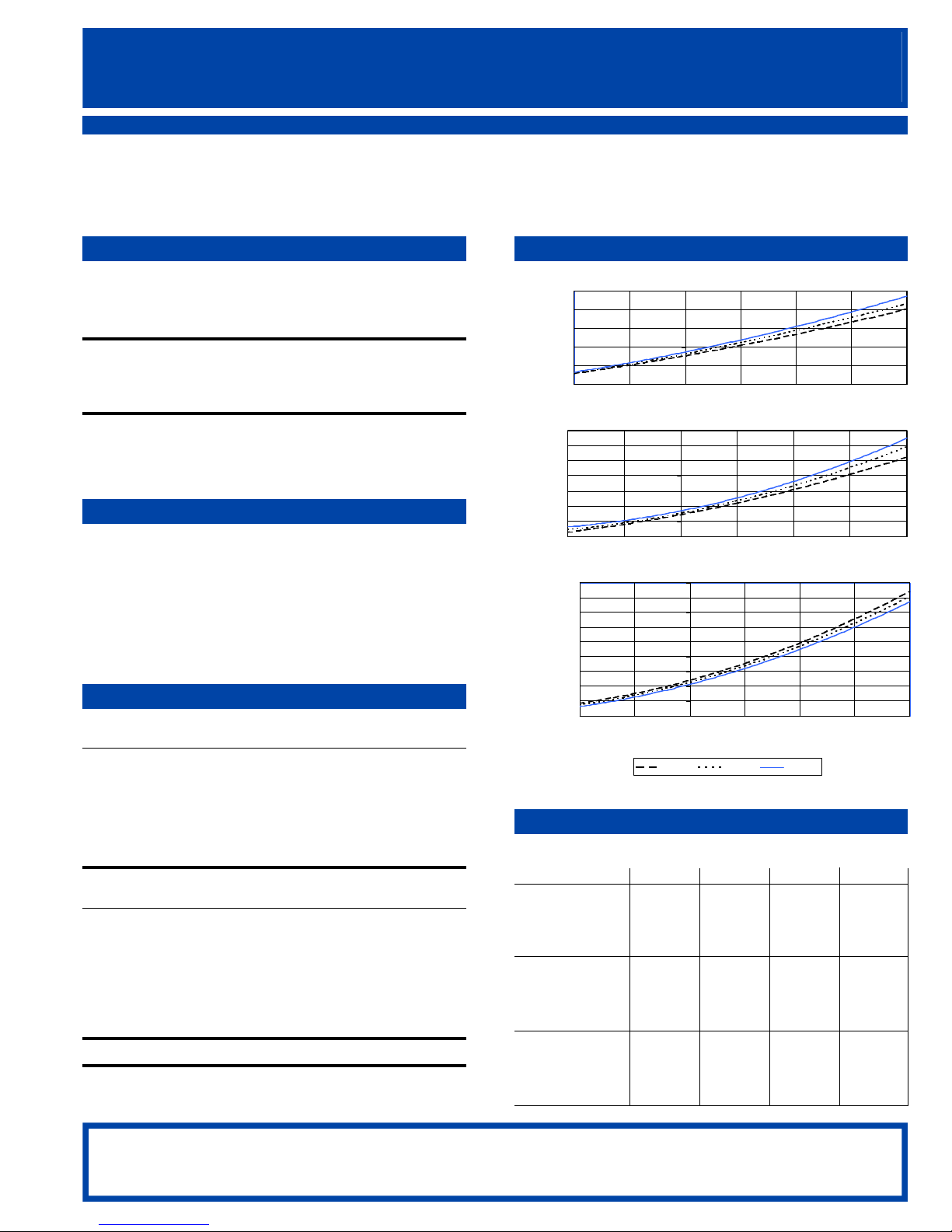

Performance Curves
Voltage Range . . . . . . . . . 103 Volts to 127 Volts @ 60 Hz
Application . . . . . . . . . . . . Low Back Pressure
Compressor Cooling . . . . Static Cooling
Refrigerant Control . . Capillary Tube
Evaporator
Temp. Range . . . . . . . -31°F to 23°F / -35°C to -5°C
9 – Point Data
P
a
na
s
o
n
ic
®

Dimensions*
mm inches
A . . . . . . . . . . . . . . . . . . . . . 168.6 . . . . . . . . . . . . . . . . . . . 6.64
B . . . . . . . . . . . . . . . . . . . . . 60.8 . . . . . . . . . . . . . . . . . . . . 2.39
C . . . . . . . . . . . . . . . . . . . . . 107.8 . . . . . . . . . . . . . . . . . . . 4.24
D . . . . . . . . . . . . . . . . . . . . . 69.1 . . . . . . . . . . . . . . . . . . . . 2.72
E . . . . . . . . . . . . . . . . . . . . . 60.3 . . . . . . . . . . . . . . . . . . . . 2.37
F . . . . . . . . . . . . . . . . . . . . . 139.3 . . . . . . . . . . . . . . . . . . . 5.48
* All dimensions are for reference only
Tubes Tube O.D. Wall Material
Suction . . . . . . . . . 0.33 in. / 8.3 mm 0.035 in. / 0.9 mm Copper
Process . . . . . . . . 0.3125 in. / 7.94 mm 0.028 in. / 0.7 mm Copper
Discharge . . . . . . . 0.25 in. / 6.35 mm 0.028 in. / 0.7 mm Steel
U.L. File # . . . . . . . . . SA 4615
C.S.A. File #’s . . . . . . LR - 36593
General Data Oil Charge . . 215 cc ± 5 cc / 13.1 cu.in. ± 0.3 cu.in.
Net Weight With Oil . . . . . . . . . . . . 15.0 lbs, 6.8 kg
Approved Oils . . . . . . FREOL α22, FREOL α22E
Residual Moisture . . . . . . . . . . . . . . . 120 mg max.
Impurities . . . . . . . . . . . . . . . . . . . . . . 10 mg max.
Displacement . . . . . . . . . . . 4.85 cc. / 0.296 cu. in.
Panasonic Industrial Company
Refrigeration Products Department
Tel: 201 - 392 - 4249
Fax: 201 - 392 - 4315 Rev#1-5/9
This document sets forth certain operational parameters and conditions for
operation of this product. If this product is operated outside of the parameters
and conditions stated herein, buyer assumes sole and full responsibility and
shall indemnify seller with respect to all product failures and all consequences
thereof. Operation of the product outside of the parameters and conditions
specified herein shall serve to invalidate all seller warranties, if any, with respect
to the product. This document is for reference only. For specifications, please
contact Panasonic’s engineering department.
MATSUSHITA Compressor Single Phase 115V
MODEL# S48C90KAU6 R-134a 60Hz
P
a
na
s
o
n
ic
®
M
C
S
~
2
8
7
56
Compressor
Motor
PTC Relay
Internal Motor Protector
R.S.I.R.
Tube
Tube
Process
Suction
Tube
19mm (.75") DIA
4 Holes
16mm (.63") DIA
4 Holes
207.1mm (8.15")
170mm (6.69")
165.1mm (6.50")
34mm
(1.34") 54.5mm
(2.15")
113mm (4.45")
100mm (3.94")106.3mm (4.19")
70mm
(2.76")
130.6mm
(5.14")
101.6mm
(4.00") 38.4mm
(1.51")
(5.89")
149.6mm
163.6mm (6.44") DIA
C
ED
F
A
2.5mm (.10")
B
Discharge
