Panasonic CS-PW9CKE User manual

1 Functions 2
2 Product Specifications 5

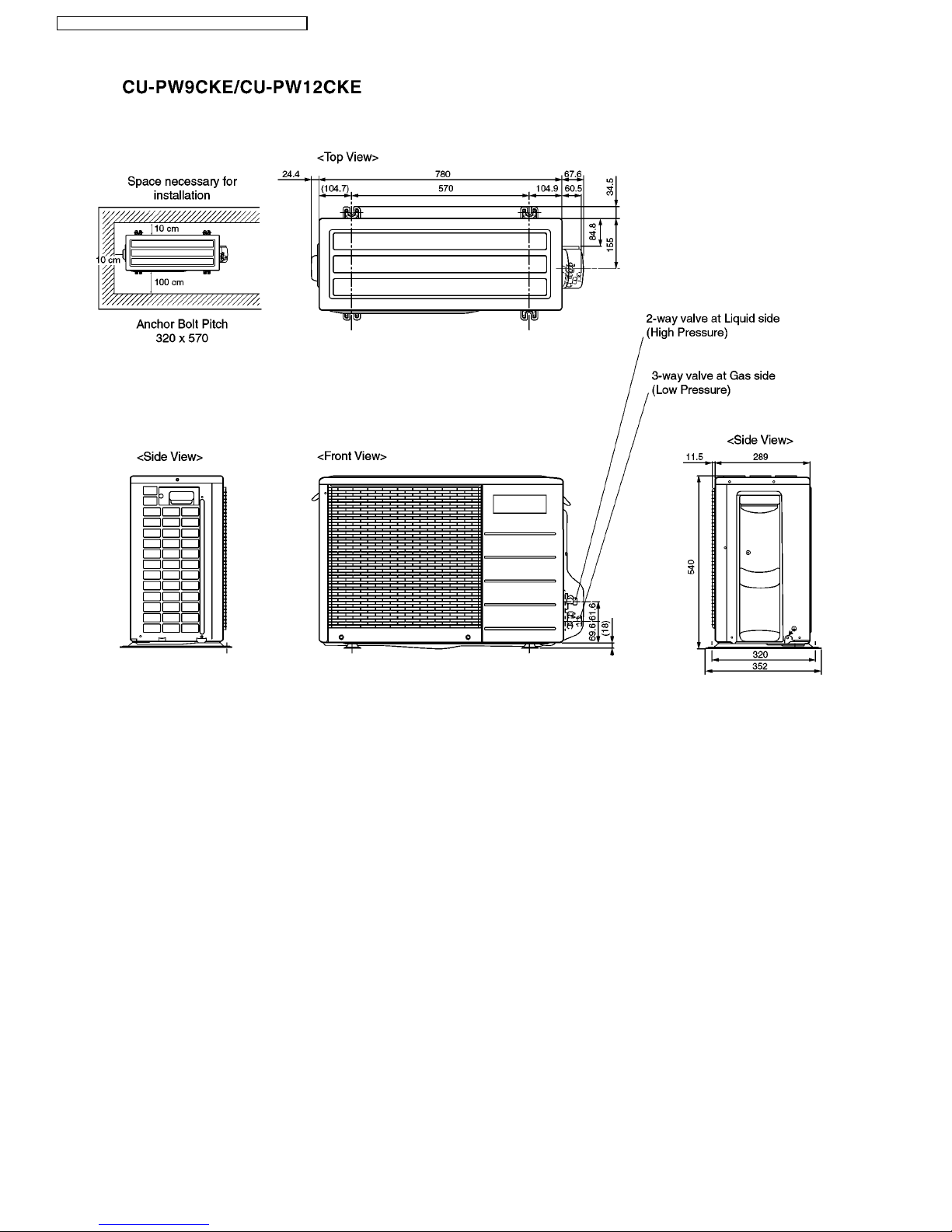

3 Dimensions 9
4 Refrigeration Cycle Diagram 11
5 Block Diagram 12

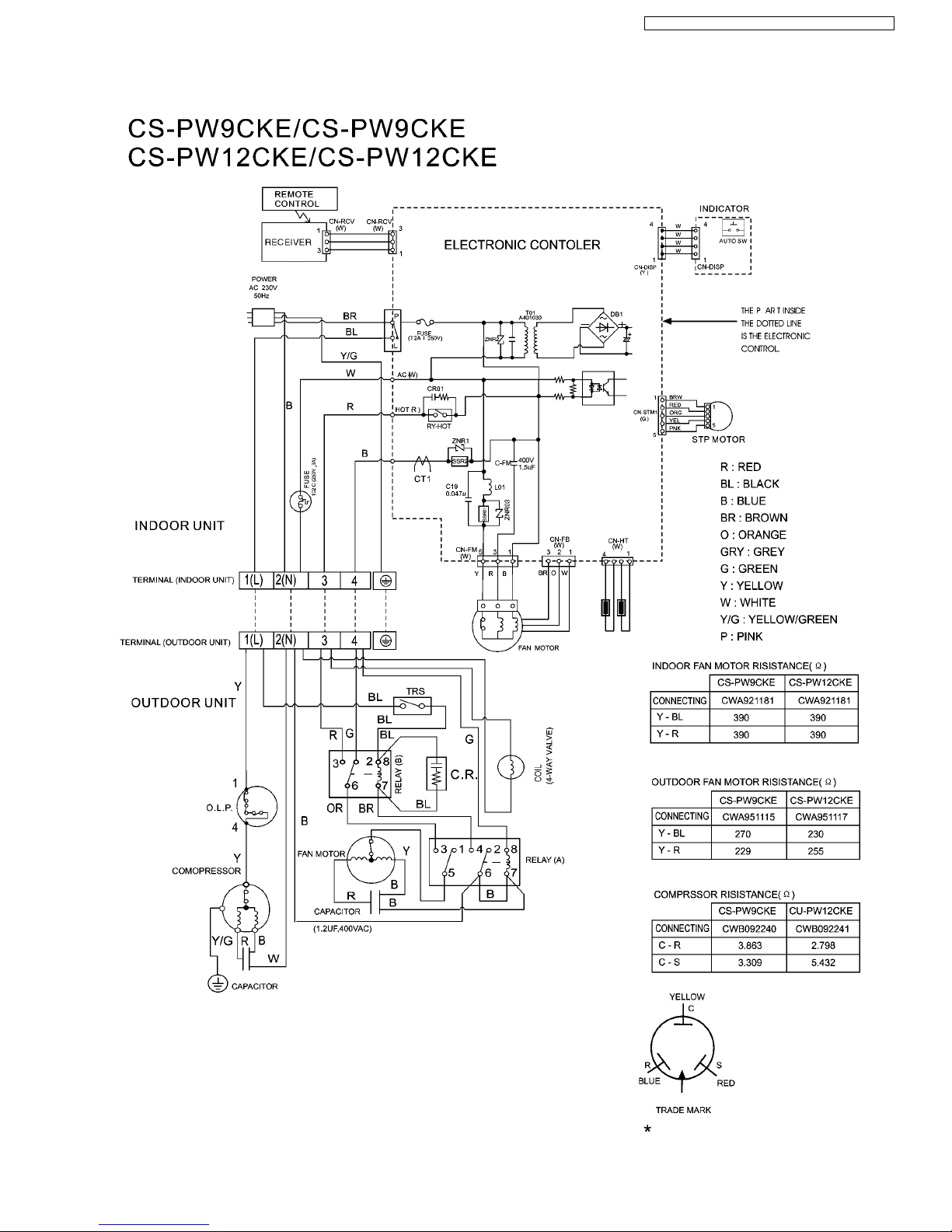

6 Wiring Diagram 13
7 Operation Details 14
8 Installation Instructions 27
9 Installation and Servicing Air Conditioner Using R410A 37
© 2003 Matsushita Electric Industrial Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
CS-PW9CKE
CU-PW9CKE
CS-PW12CKE
CU-PW12CKE
10 Servicing Information 48
11 Troubleshooting Guide 52
12 Technical Data 54
13 Exploded View 58
14 Replacement Parts List 59
15 Exploded View 60
16 Replacement Parts List 61
17 Electronic Circuit Diagram 62
18 Electronic Circuit Diagram(Remote Control) 65
Room Air Conditioner
CONTENTS
Page Page
Order No. GMAC0311009C2
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

1 Functions
Remote Control
Operation OFF / ON
OFF/ON
Room Temperature Setting
TEMP.
Operation Mode Selection
AUTO Automatic Operation Mode
HEAT Heating Operation Mode
COOL Cooling Operation Mode
DRY Soft Dry Operation Mode
MODE
TIME
Time / Timer Setting
Hours and minutes setting.
Indoor Fan Speed Selection
FAN SPEED
FAN
Low Fan Speed
FAN Medium Fan Speed
FAN High Fan Speed
AUTO Automatic Fan Speed
FAN
Vertical Airflow Direction Control
24-hour, OFF / ON Real Timer Setting.
ON-TIMER
OFF-TIMER
Timer Operation Selection
SET
CANCEL
Timer Operation Set / Cancel
ON Timer and OFF Timer setting and
cancellation.
AIR SWING
AUTO
Automatic Vertical Airflow
Direction Control
MANUAL Vertical Airflow Direction
Manual Control (5 stages of
adjustment)
Heating, Cooling, Soft Dry Operation.
T
emperature Setting (16oC to 30oC)
Automatic Operation
Operation with 2
o
C higher than
standard temperature.
Operation with standard temperature.
Operation with 2
o
C lower than
standard temperature.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
2
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Indoor Unit
Random Auto Restart Control
•Operation is restarted randomly after power
failure at previous setting mode.

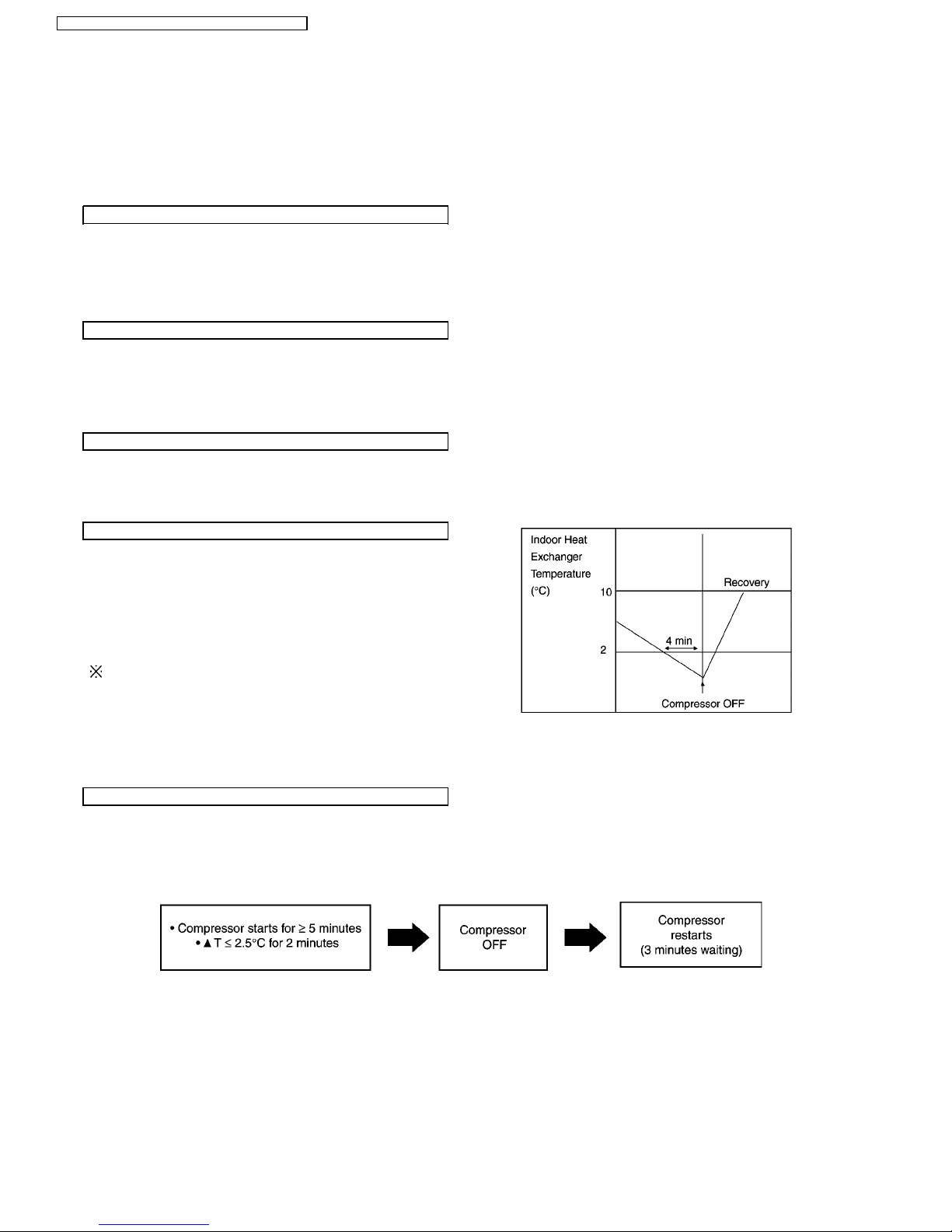

Anti-Freezing Control
Anti-Freezing control for indoor heat
exchanger. (Cooling and Soft Dry)
Indoor Fan Speed Control
High, Medium and Low.
Automatic Fan Speed Mode
–Heating : Fan speed varies from Me
SSLo in accordance with
indoor heat exchanger.
–Cooling : Fan rotates at Hi, Me and SLo
speed. Deodorizing control is
available.
–Soft Dry : Fan rotates at Lo- speed.
Deodorizing control is
available.
Automatic air swing and manual adjusted
by remote control for vertical airflow.
Manually adjusted by hand for horizontal
airflow.
Airflow Direction Control
Automatic Operation Button
Press for < 5s to operate Automatic
operation mode.
(Used when the remote control cannot be used.)
Press continuously for 5s or < 10s to
operate Test Run/Pump down. “Beep”
sound will be heard at the 5th second.
(Used when test running or servicing.)
Press continuously for 10s and above to
omit or resume the remote control signal
receiving sound. “Beep, beep”sound will
be heard at the 10th second.
Operation Indication Lamps (LED)
(Green) ......... Lights up in operation,
blinks in Automatic
Operation Mode judging.
Operation Mode
Heating, Cooling, Soft Dry and Automatic
Mode.
Time Delay Safety Control
Restarting is inhibited for appro. 3 minutes.
Starting Current Control
7 Minutes Time Save Control
Cooling Operation only.
Fan motor is delayed for 1.6 seconds when
compressor starts simultaneously.
30 Minutes Time Save Control
Heating Operation only.
Hot-Start Control
At Heating Operation the indoor fan will
operate at SLo speed when indoor heat
exchanger temperature reaches 30C.
Anti Cold Draft Control
The indoor fan operates at SSLo when the
indoor heat exchanger temperature is low.
(During Heating mode thermal off)
3
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Outdoor Unit
•To protect compressor from reverse
rotation when there is a instantaneous
power failure.
60 Secs. Forced Operation Control
•Once the compressor is activated, it
does not stop within the first 60 secs.
However, it stops immediately with
remote control stop signal.
Overload Protector
•2-Stage OLP to protect the compressor.
Overload Protector will trip when
–Temperature of compressor increases
to 120°C.
–High temperature or high current flows
to compressor.
(Refer circuit diagram for OLP
characteristic)
Compressor Reverse Rotation
Protection Control
Outdoor Fan Operation Control
•Temperature Fuse.
4-Way Valve Control
•When the unit is switched to “OFF”
during Heating Operation, 4-way valve
stays at Heating position for 5 minutes.
Overload Protection Control
•Outdoor fan stops when indoor heat
exchanger temperature rises to 51°C
and above, and restarts when the indoor
heat exchanger temperature drops to
49°C and below.
•Compressor stop when indoor heat
exchanger temperature reaches 65°C or
above. (Heating Operation Only)
Deice Control
•To prevent frosting at outdoor heat
exchanger. (Only for Heating Operation)
•
Temperature of outdoor heat exchanger
is sensed by TRS (Thermal Reed Switch).
TRS OFF temperature 4°C.
TRS ON temperature -3°C.
Compressor Protection Control
•If the outdoor fan motor is not running
after compressor starts for 50 secs.,
compressor will stop. (Cooling and Soft
Dry Operation only).
4
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

2 Product Specifications
Unit CS-PW9CKE CU-PW9CKE
Cooling Capacity kW 2.65
Heating Capacity kW 2.85
Moisture Removal L/h 1.60
Power Source Phase
V
Cycle
Single
230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Circulation Indoor air (low) m3/min Cooling: 7.4, Heating: 8.0 —
Indoor air (medium) m3/min Cooling: 9.0, Heating: 9.0 —
Indoor air (high) m3/min Cooling: 10.2, Heating: 10.4 —
Outdoor air m3/min —35.0
Noise Level dB(A) Cooling: High38, Low29 Cooling: High50
Heating: High40, Low29 Heating: High53
Electrical Data Input W Cooling: 880
Heating: 830
Running Current ACooling: 3.90
Heating: 3.70
EER/COP W/W Cooling: 3.01
Heating:3.43
Starting Current A 16.5
Piping Connection Port (Flare piping) Inch
Inch
G: half union 3/8"
L: half union 1/4"
G: 3-way valve 3/8"
L: 2-way valve 1/4"
Piping Size
(Flare piping)
Inch
Inch
G: gas side 3/8"
L: liquid side 1/4"
G: gas side 3/8"
L: liquid side 1/4"
Drain
Hose
Inner diameter mm 12 —
Length m 0.6 —
Power Supply Cord Length (Number of core-wire) m 1.9
3 core-wire/1.5mm2
—
—
Dimensions Height mm 275 540
Width mm 799 780
Depth mm 210 289
Net Weight kg 9.0 32
Compressor Type —Rotary (1 cylinder)Rolling piston
type
Motor Type —Induction(2 pole)
Rated Output W —700
5
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Unit CS-PW9CKE CU-PW9CKE
Air Circulation Type Cross-flow Fan Propeller fan
Motor Type Induction(4 pole) Induction (6 pole)
Input W 47.4 55.9
Rated Output W 15 25
Fan Speed Low rpm Cool: 890±30 —
Heat: 960±30
Medium rpm Cool: 1080±30 —
Heat: 1080±30
High rpm Cool: 1230±30 805±30
Heat: 1250±30
Heat Exchanger Description Evaporator Condenser
Tube Material copper copper
Fin Type slot type Corrugation type
Rows / Stage (Plate fin configuration, forced draft)
2×15 1 ×24
FPI 21 17
Dimensions mm 610 ×315 ×25.4 841 ×504 ×18.2
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60
(350)
Refrigerant (R410A) g—870
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Length mm —Cooling720, heating:742
Circulation L/min —Cooling:6.0, heating:7.5
Inner dia mm —Cooling:1.2, heating:1.3
Air Filter P.P Honeycomb —
Refrigerant Circulation Control Device Capillary
Compressor Capacitor µFV —30µF, 370V
Fan Motor Capacitor µFV 1.5µF, 400V 2µF, 400V
• • •
• Specifications are subject to change without notice for further improvement.
6
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Unit CS-PW12CKE CU-PW12CKE
Cooling Capacity kW 3.40
Heating Capacity kW 5.30
Moisture Removal L/h 1.90
Power Source Phase
V
Cycle
Single
230
50
Airflow Method OUTLET
INTAKE
SIDE VIEW TOP VIEW
Air Circulation Indoor air (low) m3/min Cooling: 7.3, Heating: 7.8 —
Indoor air (medium) m3/min Cooling: 9.1, Heating: 9.1 —
Indoor air (high) m3/min Cooling: 10.2, Heating: 10.6 —
Outdoor air m3/min —33
Noise Level dB(A) Cooling: High40, Low31 Cooling: High53
Heating: High41, Low31 Heating: High51
Electrical Data Input W Cooling: 1200
Heating: 1120
Running Current ACooling: 5.3
Heating: 4.9
EER/COP W/W Cooling: 2.83
Heating:3.21
Starting Current A 21.1
Piping Connection Port (Flare piping) Inch
Inch
G: half union 1/2"
L: half union 1/4"
G: 3-way valve 1/2"
L: 2-way valve 1/4"
Piping Size
(Flare piping)
Inch
Inch
G: gas side 1/2"
L: liquid side 1/4"
G: gas side 1/2"
L: liquid side 1/4"
Drain
Hose
Inner diameter mm 12 —
Length m 0.6 —
Power Supply Cord Length (Number of core-wire) m 2.2
3 core-wire/1.5mm2
—
—
Dimensions Height mm 275 540
Width mm 799 780
Depth mm 210 289
Net Weight kg 9.0 33
Compressor Type —Rotary (1 cylinder) Rolling piston
type
Motor Type —Induction(2 pole)
Rated Output W —900
7
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Unit CS-PW12CKE CU-PW12CKE
Air Circulation Type Cross-flow Fan Propeller fan
Motor Type Induction(4 pole) Induction (6 pole)
Input W —63.6
Rated Output W 15 30
Fan Speed Low rpm Cool: 900±30 —
Heat: 960±30
Medium rpm Cool: 1120±30 —
Heat: 1120±30
High rpm Cool: 1260±30 835±30
Heat: 1300±30
Heat Exchanger Description Evaporator Condenser
Tube Material copper copper
Fin Type slot type Corrugation type
Rows / Stage (Plate fin configuration, forced draft)
2×15 2 ×40
FPI 21 17
Dimensions mm 610 ×315 ×25.4 735 ×504 ×18.7
Refrigerant Control Device —Capillary Tube
Refrigeration Oil (c.c) —SUNISO 4GDID or ATMOS M60
(350)
Refrigerant (R410A) g—1000
Thermostat Electronic Control —
Protection Device —Overload Protector
Capillary Length mm —Cooling:270, heating:590
Circulation L/min —Cooling:5.0, heating:8.2
Inner dia mm —Cooling:1.2, heating:1.3
Air Filter P.P Honeycomb —
Refrigerant Circulation Control Device Capillary
Compressor Capacitor µFV —25µF, 370V
Fan Motor Capacitor µFV 1.5µF 400V 2µF, 400V
• • •
• Specifications are subject to change without notice for further improvement.
8
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

3 Dimensions
9
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

10
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

4 Refrigeration Cycle Diagram
11
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

5 Block Diagram
12
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

6 Wiring Diagram
13
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Cooling in operation according to Remote Control setting.
Time Delay Safety Control (3 minutes)
7 minutes Time Save Control
Starting Current Control
Anti-Freezing Control
• • •
• If the temperature of the indoor heat exchanger falls
continuously below 2°C for 4 minutes or more, the
compressor turns off to protect the indoor heat exchanger
from freezing. The fan speed setting remains the same.
• • •
• Compressor will restart again when the indoor heat
exchanger temperature rises to 10°C (Recovery).
3 minutes waiting of Time Delay Safety Control is valid for
Cooling Operation.
Compressor Reverse Rotation Protection Control
7 Operation Details
7.1. Cooling Mode Operation
• • •
• When the compressor is stopped by Remote Control, it restarts after 3 minutes when it is turned ON by Remote Control.
• • •
• When the setting temperature is reached during cooling operation, the compressor stops and it will not start for 3 minutes.
• • •
• The compressor will start automatically if it has stopped for 7 minutes even if the room temperature is between the compressor
ON temperature and OFF temperature.
• • •
• When the compressor outdoor fan motor and indoor fan motor are simultaneously started, the indoor fan motor will operate 1.6
second later.
• • •
• If the compressor is operating continuously for 5 minutes or longer and the temperature difference between intake air and
indoor heat exchanger is 2.5°C or less for 2 minutes, compressor will stop and restart automatically.
(Time Delay Safety Control is valid)
!T = Intake air temperature - Indoor heat exchanger temperature
This is to protect reverse rotation of the compressor when there is a instantaneous power failure.
14
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Compressor Protection Control
Automatic Fan Speed Mode
• • •
• After the compressor starts for 50 seconds but the outdoor fan motor is still OFF, the compressor will stop and restart
automatically. (Time Delay Safety Control is valid).
• • •
• If the above phenomenon is repeated for 3 times, the compressor will stop totally.
• • •
• The above phenomenon is reset when there is a change to heating mode or stopped by Remote Control Switch.
When Automatic Fan Speed is selected at Remote Control during cooling operation.
• • •
• Fan speed rotates in the range of Hi to Me.
• • •
• Deodorizing Control.
15
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Cooling Operation Time Diagram
16
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Time Delay Safety Control
Starting Current Control
Anti-Freezing Control
Compressor Reverse Rotation Protection Control
Compressor Protection Control
Automatic Fan Speed Mode
7.2. Soft Dry Mode Operation
• • •
• The unit starts cooling operation until the room temperature reaches the setting temperature set on the Remote Control, and
then Soft Dry operation will start.
• • •
• During Soft Dry operation, the Indoor Fan will operate at Lo- speed.
• • •
• The operation will be switched on and off for up to 10 minutes “ON”and 6 minutes “OFF”. Once Soft Dry operation is turned
off, it stops for 6 minutes.
• • •
• Once the compressor stops, it will not start for 3 minutes during Cooling operation.
• • •
• Same as Starting Current Control for Cooling Mode operation.
• • •
• Same as Anti-Freezing Control for Cooling Mode operation. (For Soft Dry region, 6 minutes waiting is valid during compressor
stops.)
• • •
• Same as Compressor Reverse Rotation Protection Control for Cooling Mode Operation. (For Soft Dry region, 6 minutes waiting
is valid during compressor stops.)
• • •
• Same as Compressor Protection Control for Cooling Mode Operation.
When Automatic Fan Speed is selected at Remote Control during Soft Dry operation.
• • •
• Fan speed rotates at Lo- speed.
• • •
• Deodorizing Control.
17
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Soft Dry Operation Time Diagram
Quiet Operation Control
(For Dry region at Soft Dry Mode)
18
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Heating in operation according to Remote Control setting.
Time Delay Safety Control
30 minutes Time Save Control
Overload Protection Control
(b) Compressor high pressure protection
Compressor Reverse Rotation Protection Control
7.3. Heating Mode Operation
• • •
• When the compressor is stopped by Remote Control, it restarts after 3 minutes when the Remote Control is turned ON.
• • •
• When the setting temperature is reached during heating operation, the compressor stops and it will not start for 4 minutes.
• • •
• The compressor will start automatically if it has stopped for 30 minutes even if the room temperature is between the compressor
ON temperature and OFF temperature.
(a) Outdoor Fan Control
• • •
• If the temperature of the indoor heat exchanger rises to 51°C, Outdoor Fan stops.
The Outdoor Fan restarts when the indoor heat exchanger temperature falls to 49°C.
• • •
• If the indoor heat exchanger becomes 65°C or more, the compressor will stop and restart automatically.
(Time Delay Safety Control - 4 minutes waiting).
• • •
• If the compressor is operating continuously for 5 minutes or longer and temperature difference between intake air and indoor
heat exchanger is 5°C or less for 2 minutes, compressor will stop and restart automatically.
(Time Delay Safety Control is valid).
!T = Indoor heat exchanger temperature - intake air temperature.
This is to protect reverse rotation of the compressor when there is a instantaneous power failure.
19
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com

Hot Start Control
When Heating operation starts, Indoor Fan will not start until the indoor heat exchanger reaches 30°C as diagram shown.
Hot Start is completed when indoor heat exchanger rises to 39°C or over 4 minutes.
20
CS-PW9CKE / CU-PW9CKE / CS-PW12CKE / CU-PW12CKE
Panasonic ilmalämpöpumput korjaa ja huoltaa pääkaupunkiseudulla: Jäähdytinpalvelu RefGroup Oy
www.ilmalämpöpumput.com
