Panasonic CW-XC100HU User manual

INSTALLATION AND OPERATING INSTRUCTIONS
Room Air Conditioner
Models: CW-XC100HU, CW-XC120HU
Please read these operating instructions thoroughly
before using your air conditioner and keep for future reference.
For U.S. customers:
For assistance, please call: 1-800-211-PANA(7262) or
Register your product at :http://www.panasonic.com/register
CW382820391K
R

2
Safety Precautions
About the Controls on the Air Conditioner
Features and Installation
Before you call for service...
FOR YOUR RECORDS
Write the model and serial numbers here:
Model #
Serial #
You can find them on a label on the side of the unit.
Dealer's Name
Date Purchased
Staple your receipt here for proof of purchase.
Inside you will find many helpful hints on how to use and
maintain your air conditioner properly. Just a little preventive
care on your part can save you a great deal of time and
money over the life of your air conditioner.
You'll find many answers to common problems in the chart
of troubleshooting tips. If you review our chart of
Troubleshooting Tips first, you may not need to call for
service at all.
READ THIS MANUAL
CAUTION
• Contact the authorized Service technician for repair or
maintenance of this unit.
• The air conditioner is not intended for use by young
children or infirm persons without supervision.
• Young children should be supervised to ensure that they
do not play with the air conditioner.
Safety Precautions
Safety Precautions.............3
About the Controls on
the Air Conditioner
Controls..............................5
Ventilation ..........................7
Air Direction........................7
How to Secure Drain Pipe..7
Care and Maintenance
Air Filter Cleaning...............8
How to Insert Batteries.......8
Features
Features.............................9
Installation
How to Install the Unit......10
Window Requirements.....10
Installation Kit Contents .....11
Suggested Tool
Requirements...................11
Cabinet Installation...........12
Electrical Data..................14
Electrical Safety ...............15
Before you call for
service...
Normal Operation.............16
Abnormal Operation.........16

3
Safety Precautions
WARNING
Safety Precautions
To prevent injury to the user or other people and property damage, the following instructions must be
followed.
■Incorrect operation due to ignoring of instruction will cause harm or damage. The seriousness is classified
by the following indications.
WARNING : This symbol indicates the possibility of death or serious injury.
CAUTION :This symbol indicates the possibility of injury or damage to
property only.
■Meanings of symbols used in this manual are as shown below.
Be sure not to do this.
Be sure to follow the instructions.
Plug in the power plug
properly.
• Otherwise, it will cause electric
shock or fire due to heat
generation.
Do not operate or stop the
unit by inserting or pulling
out the power plug.
• It will cause electric shock or fire
due to heat generation.
Do not damage or use an
unspecified power cord.
• It will cause electric shock or fire.
• If the power cord is damaged, it must
be replaced by the manufacturer or
an authorized service center or a
similarly qualified person in order to
avoid a hazard.
Do not modify power cord
length or share the outlet
with other appliances.
• It will cause electric shock or fire
due to heat generation.
Do not operate with wet
hands or in a damp
environment.
• It will cause electric shock.
Do not direct airflow at room
occupants.
• This could damage your health.

4
Safety Precautions
When the air filter is to be
removed, do not touch the
metal parts of the unit.
• It may cause an injury.
Do not clean the air
conditioner with water.
•Water may enter the unit and
degrade the insulation. It may
cause an electric shock.
Ventilate well when used
together with a stove, etc.
• An oxygen shortage may occur.
When the unit is to be
cleaned, switch off, and turn
off the breaker.
•Since the fan rotates at high
speed during operation, it may
cause an injury.
Do not put a pet or house
plant where it will be exposed
to direct air flow.
• This could injure the pets or
plants.
Do not use for special
purposes.
• Do not use this air conditioner to
preserve precision devices, food,
pets, plants, and art objects.
It may cause deterioration of
quality, etc.
Do not operate switches
with wet hands .
• It may cause an electric shock.
Do not apply an insecticide
or flammable spray.
• It may cause a fire or deformation
of the cabinet.
Do not put a heater, etc.
where it is exposed to direct
air flow.
•
It may cause imperfect
combustion.

5
About the Controls on the Air Conditioner
About the Controls on the Air Conditioner

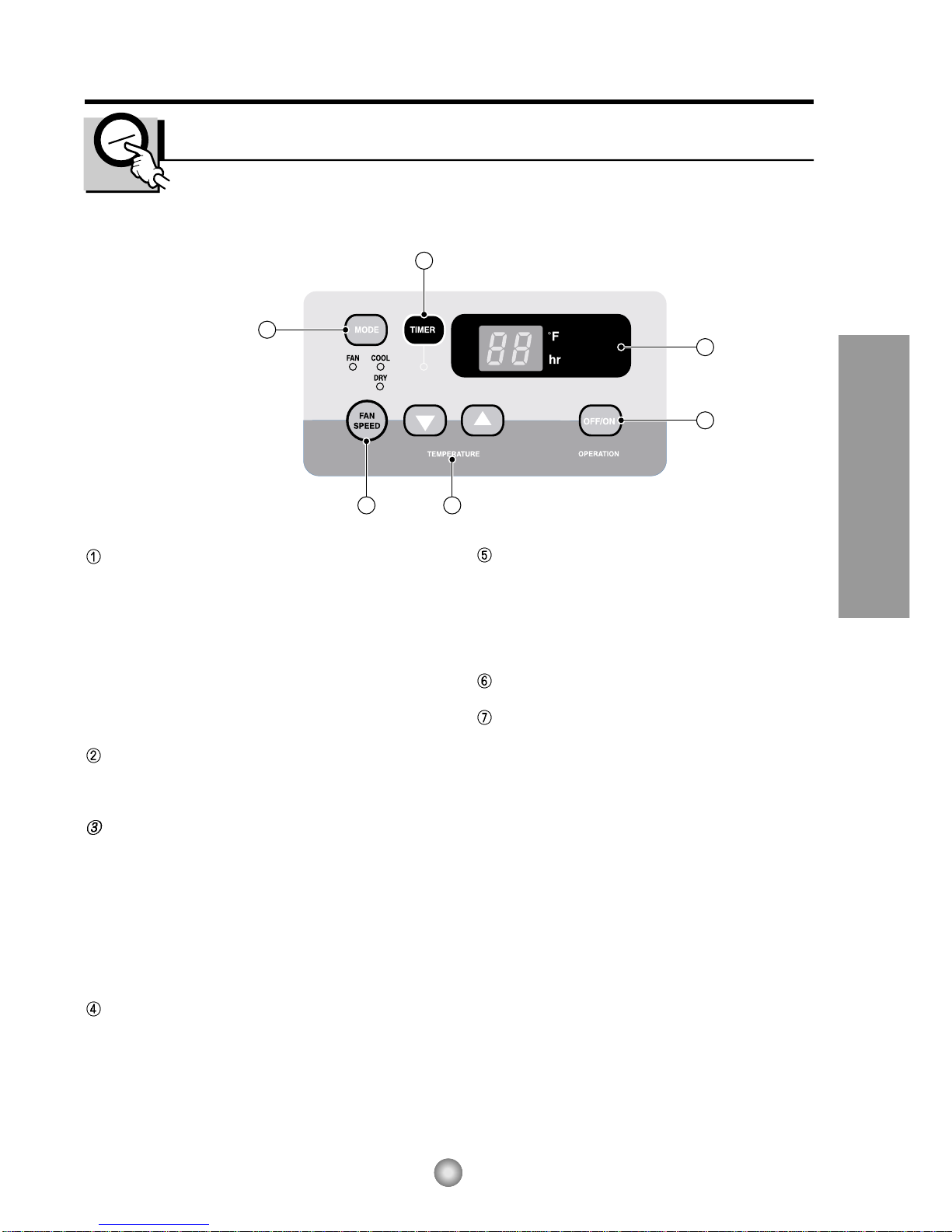

Controls
Models:CW-XC100HU
CW-XC120HU
2
1
6
4
3
5
OPERATION
•To turn the air conditioner ON, push the
OFF/ON button.
To turn the air conditioner OFF, push the
button again.
•This button takes priority over any other
buttons.
•When you first turn it on, the air conditioner is
on the High cool mode and the temp. at 72°F
(22°C).
MODE
•Every time you push this button, it will toggle
between COOL, FAN and DRY.
ON/OFF TIMER
•Every time you push the TIMER button, timer
is set as follows. (1Hour →2Hours →3Hours
→4Hours →5Hours 6Hours →7Hours →
8Hours →9Hours →10Hours 11Hours →
12Hours → 0)
•The Setting Temperature will be raised by 2°F
(1˚C) 30 min. later and by 2°F (1˚C) after
another 30 min.
FAN SPEED
•Every time you push this button it is set as
follows. {High(F3) →Low(F1) →Med(F2) →
High(F3)...}.
TEMPERATURE SETTING
•This button can automatically control the
temperature of the room. The temperature
can be set within a range of 60°F to 86°F by
1°F(16˚C to 30˚C by 1˚C). Select the lower
number for lower temperature of the room.
REMOTE CONTROL SIGNAL RECEIVER
DRY
•When this unit is in dry mode, the fan rotates
in low speed. The fan stops when the
compressor stops cooling.
Approximately every 3 minutes the fan will
turn on and the unit checks the room air
temperature to set itself.

6
About the Controls on the Air Conditioner
OPERATION
TEMP
TIMER
MODE FAN SPEED
1
3
2 4
5
Models: CW-XC100HU, CW-XC120HU

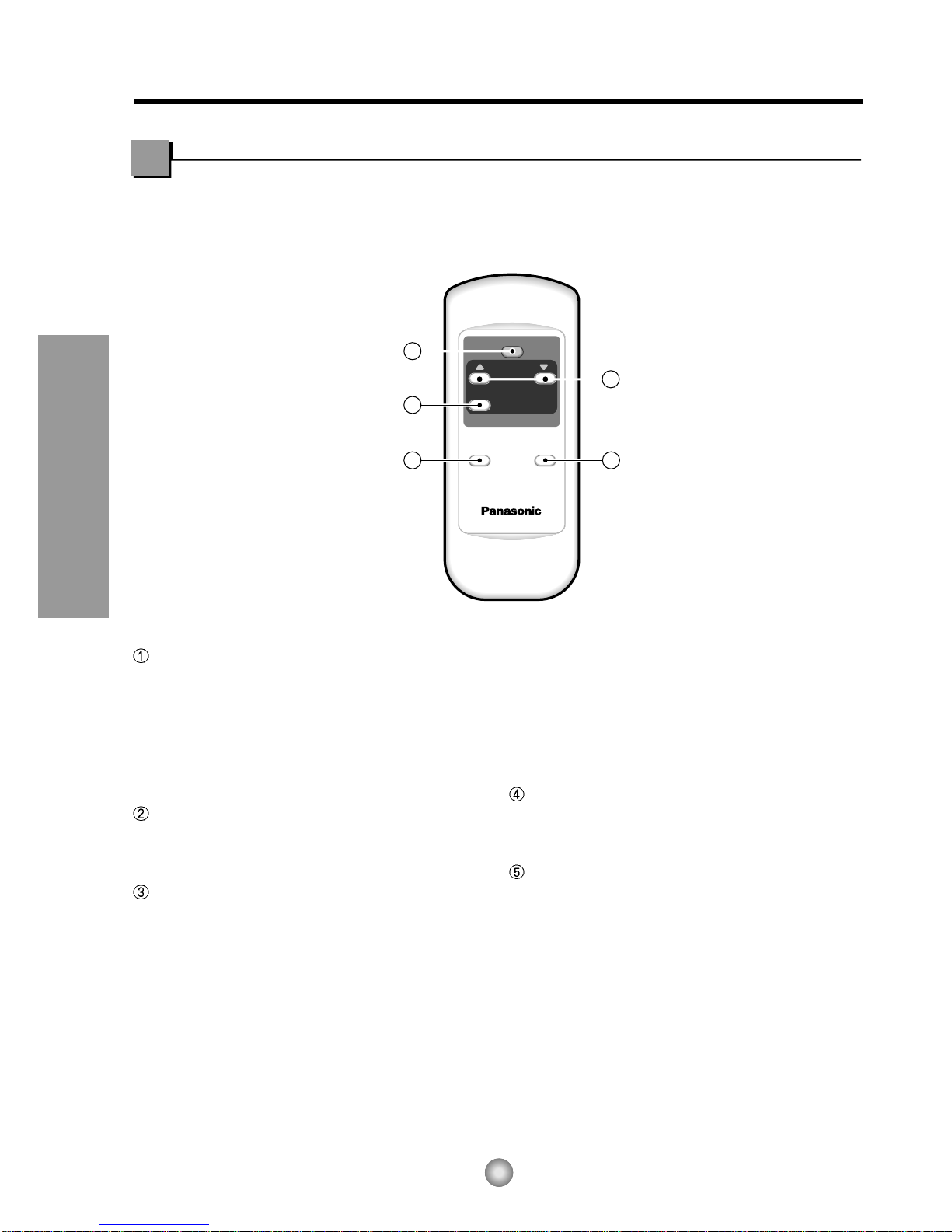

Remote controller
OPERATION
•To turn the air conditioner ON, push the button.
To turn the air conditioner OFF, push the button
again.
•This button takes priority over any other buttons.
•When you first turn it on, the air conditioner is on
the High cool mode and the temp. at 72°F(22˚C).
MODE
•Every time you push this botton,it will toggle
between COOL, FAN and DRY.
ON/OFF TIMER
- STOPPING OPERATION
•Every time you push this button, when the air
conditioner is operating, timer is set as follows.
(1Hour →2Hours →3Hours →4Hours →5Hours
→6Hours →7Hours →8Hours →9Hours →
10Hours →11Hours →12Hours →O).
•The Setting Temperature will be raised by
2°F (1°C) 30 min. later and by 2°F (1°C) after
another 30 min.
- STARTING OPERATION
•Every time you push this button, when the air
conditioner is not operating, timer is set as follows.
(1Hour →2Hours →3Hours →4Hours →5Hours
→6Hours →7Hours →8Hours →9Hours →
10Hours →11Hours →12Hours →O)
FAN SPEED
•Every time you push this button it is set as follows.
{High(F3) →Low(F1) →Med(F2) →High(F3)...}.
TEMPERATURE SETTING
•This button can automatically control the
temperature of the room.
The temperature can be set within a range of 60°F
to 86°F by 1°F(16˚C to 30˚C by 1˚C). Select the
lower number for lower temperature of the room.
Precaution: The Remote Controller will not function properly if strong light strikes the sensor window of the
air conditioner or if there are obstacles between the Remote Controller and the air conditioner.

How to Secure the Drain Pipe
In humid weather, excess water may cause the BASE PAN to overflow. To drain the water, remove the
DRAIN CAP and secure the DRAIN PIPE to the rear hole of the BASE PAN. Press the drain pipe into the
hole by pushing down and away from the fins to avoid injury. (See Fig.1)
Optional (CW3H02502B)
1. Remove the rubber plug and slide the chassis out
from the cabinet. (See Fig. 2)
2. Install the drain pan over the corner of the cabinet
where you removed the plug with 4 (or 2) screws.
(See Fig.3)
3. Connect the drain hose to the outlet located at the
bottom of the drain pan. You can purchase the drain
hose or tubing locally to satisfy your particular
needs. (Drain hose is not supplied). (See Fig.3)
4. Select the most appropriate connection from among
the figures to the right (by considering the hole of the
unit) to fit drain pan to your own unit. (See Fig.3)
5. Slide the chassis back into the cabinet. Reinstall the
cabinet screws. Secure the cabinet to chassis by
using screws. (See Fig.4)
7
About the Controls on the Air Conditioner
VENTCLOSE OPEN
Part A
Part B
Drain pipe
Drain cap
Controlled
manually
OFF/ON
OPERATION
TEMP/TIMER
COOL
FAN
HIGH
MED
LOW
MODE
FANSPEED
SET
TIMER
SET/
CANCEL
AIRSWING
ECONOMY
hr
F
Wireless
RemoteControl
Remove the
rubber plug
OFF/ON
OPERATION
TEP/TI
COOL
FAN
HIGH
MED
LOW
MOE
FANSPEED
SET
TIMER
SET/
CNE
AIR
ECONOMY
F
Wireless
RemoteControl
Fig. 4
Fig. 3
Fig. 2
Fig. 1
Controlled
manually
DRAIN
PAN DRAIN HOSE
Inside diameter 17mm (5/8")
CABINET
SCREW
Additional controls and important information.
Ventilation
The ventilation lever must be in the CLOSE position in order to maintain the
best cooling conditions.
When fresh air is necessary in the room, set the ventilation lever to the OPEN
position.
The damper is opened and room air is drawn out.
NOTE: Before using the ventilation feature, and prior to installing the front
grille, pull down part until level with part .
Air Direction
The direction of air can be controlled wherever you want to cool by adjusting the horizontal
louver and the vertical louver.
The vertical air direction is adjusted
by rotating the horizontal louver
forward or backward manually.
The horizontal air direction is adjusted by
rotating the vertical louver right or left manually
or by Remote Controller.
•VERTICAL AIR-DIRECTION CONTROL
• HORIZONTAL AIR-DIRECTION CONTROL

8
About the Controls on the Air Conditioner
Care and Maintenance
Air Filter Cleaning
The air filter behind the front grille should be checked and cleaned at least once every 2
weeks or more often if necessary.
TO REMOVE:
1. Open the inlet grille upward by pulling out the bottom of the inlet grille or downward by
pulling out the top of the inlet grille.
2. Using the tab, pull up slightly on the filter to release it and pull it down or up.
3. Clean the filter with warm, soapy water under 40°C (104°F).
4. Rinse and gently shake the water from the filter and let it dry before replacing it.
CAUTION: DO NOT operate the air conditioner without a filter because dirt and lint will
clog it and reduce performance.
TURN THE AIR CONDITIONER OFF AND REMOVE THE PLUG FROM THE POWER OUTLET.
1. Remove the cover from the back of the remote
controller.
2. Insert two AAA dry cell batteries.
•Be sure that the (+) and (-) directions are correct.
•Be sure that both batteries are new.
3. Re-attach the cover.
•Do not use
rechargeable batteries.
Such batteries
differ from standard dry
cells in shape,
dimensions, and
performance.
•Remove the batteries
from the remote
controller if the air
conditioner is not going
to be used for an
extended length of time.
HOW TO INSERT BATTERIES

9
Features and Installation
Features
Learning parts name prior to installation will help you understand the installation procedure.
Features
CABINET
FRONT GRILLE
AIR FILTER AIR INTAKE
(INLET GRILLE)
AIR DISCHARGE
VERTICAL AIR DEFLECTOR
(HORIZONTAL LOUVER)
EVAPORATOR
CONTROL BOARD
REMOTE
CONTROLLER
POWER CORD
BASE PAN
CONDENSER
COMPRESSOR
BRACE

10

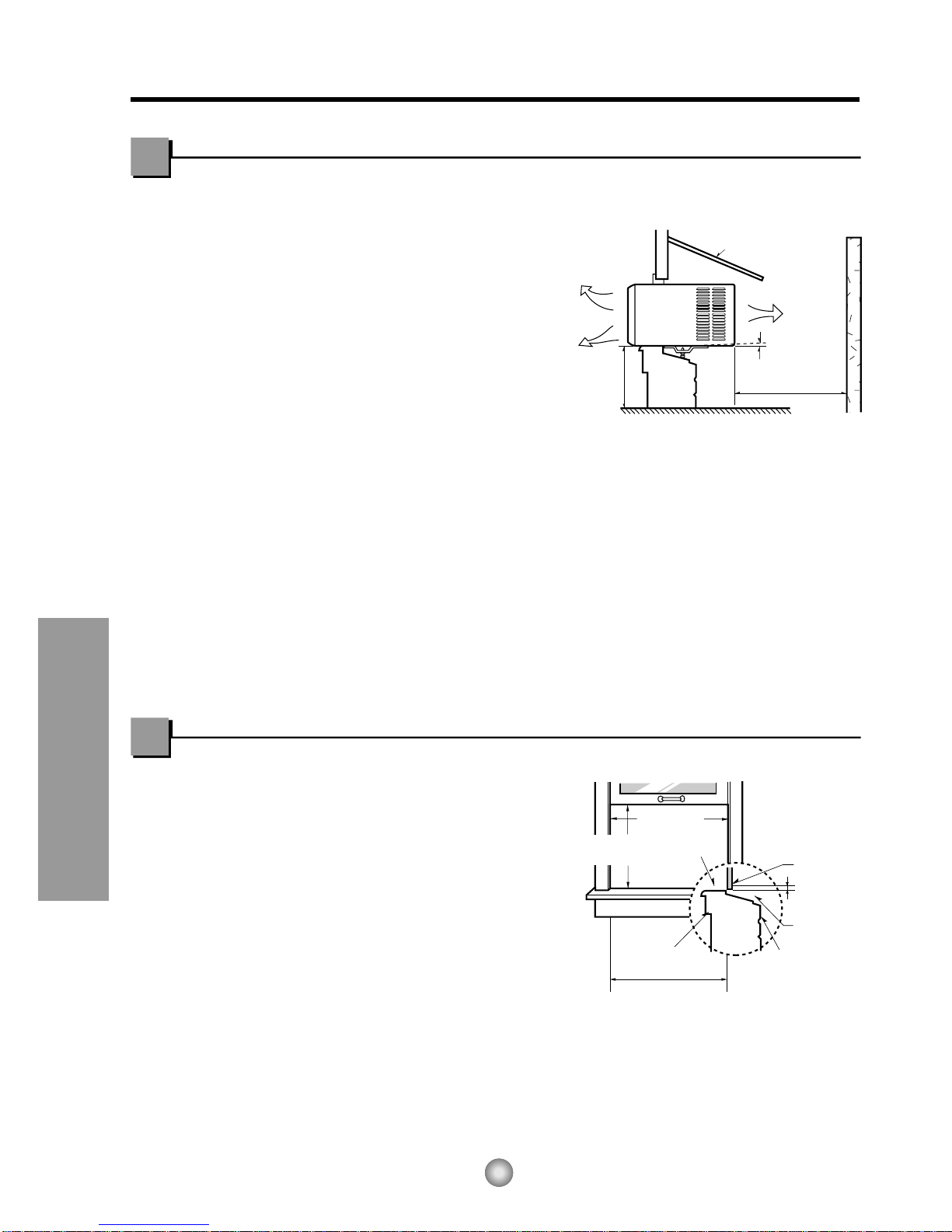

Features and Installation
Installation
27" to 39"
(68.6~99.1cm)
Offset
1/2" to 11/4"
(12.7~31.8mm)
Sill
Exterior
Interior wall
23
5
/ 8 " min.(60cm)
(Without frame curtain)
Stool
16" min (40.6cm)
(With frame curtain)
About
1
/ 2 "(12.7mm)
30"~60"
(76.2~152.4cm)
Awning
Cooled air
Fence
Over 20"(50.8cm)
Heat
radiation
1. To prevent vibration and noise, make sure
the unit is installed securely and firmly
2. Install the unit where the sunlight does not
shine directly on the unit.
3. The outside of the cabinet must extend
outward for at least 12" (30.5cm) and there
should be no obstacles, such as a fence or
wall, within 20" (50.8cm) from the back of
the cabinet because it will prevent heat
radiation of the condenser.
Restriction of outside air will greatly reduce
the cooling efficiency of the air conditioner.
CAUTION: All side louvers of the cabinet must remain exposed to the outside of the
structure.
4. Install the unit a little slanted so the back is slightly lower than the front
(about 1/2"(12.7mm)).
This will force condensed water to flow to the outside.
5. Install the unit with the bottom about 30"~60"(76.2~152.4cm) above the floor level.
Window Requirements
NOTE: All supporting parts should be secured to firm wood, masonry, or metal.
This unit is designed for installation in standard
double hung windows with actual opening widths
from 27" to 39" (68.6~99.1cm).
The top and bottom window sash must open
sufficiently to allow a clear vertical opening of
16" (40.6cm) from the bottom of the upper sash
to the window stool.
How to Install the Unit

11
Features and Installation
9
5
5
5
(Type A)
(Type A)
11
Shipping
Screws
12 3 4
811
12
9
765
10
Lower guide
PREPARATION OF CHASSIS
1. Remove the screws which fasten the cabinet
at both sides and at the back.
2. Slide the unit from the cabinet by gripping the
base pan handle and pulling while bracing the
cabinet.
3. Cut the window sash seal to the proper
length.
Peel off the backing and attach the FOAM-PE
to the underside of the window sash.
4. Remove the backing from the top upper guide
FOAM-PE and attach it to the bottom of
the upper guide
5. Attach the upper guide onto the top of the
cabinet with 3 type A screws.
6. Insert the Frame Curtain into the upper
guide.
7. Fasten the curtains to the unit with 4 Type
A screws.
Suggested Tool Requirements
■Top retainer bar
is in the product
package.
Installation Kits Contents
SCREWDRIVER(+, -), RULER, KNIFE, HAMMER, PENCIL, LEVEL
NO. NAME OF PARTS Q'TY
1 FRAME CURTAIN 2
2 SILL SUPPORT 2
3 BOLT 2
4 NUT 2
5
SCREW(TYPE A) (10mm (25/64")) 16
6
SCREW(TYPE B) 3
7
SCREW(TYPE C) 5
8 FOAM-STRIP 1
9
FOAM-PE (600mm x 25mm x 2mm) 1
10
WINDOW LOCKING BRACKET 1
11
FOAM-PE (920mm x 30mm x 2mm) 1
12 DRAIN PIPE 1
D5.1mm (3/16")/16mm (5/8")
D4.1mm (5/32")/16mm (5/8")

12
Features and Installation
Upper Guide
Window Sash
Window sill
Front Angle
Upper guide
Frame Curtain
1
Foam-pe
8
Foam-pe
11
Cabinet
INDOOR OUTDOOR
INDOOR OUTDOOR
Sash track
Front Angle
Cabinet
About
1
/
2
" (12.7mm)
About
1
/
2
"(12.7mm)
Sill Support
2
Nut
4
Bolt
3
Screw (Type B)
6
Screw (Type B)
6
Sill support
2
Sill support
2
Screw (Type A)
5

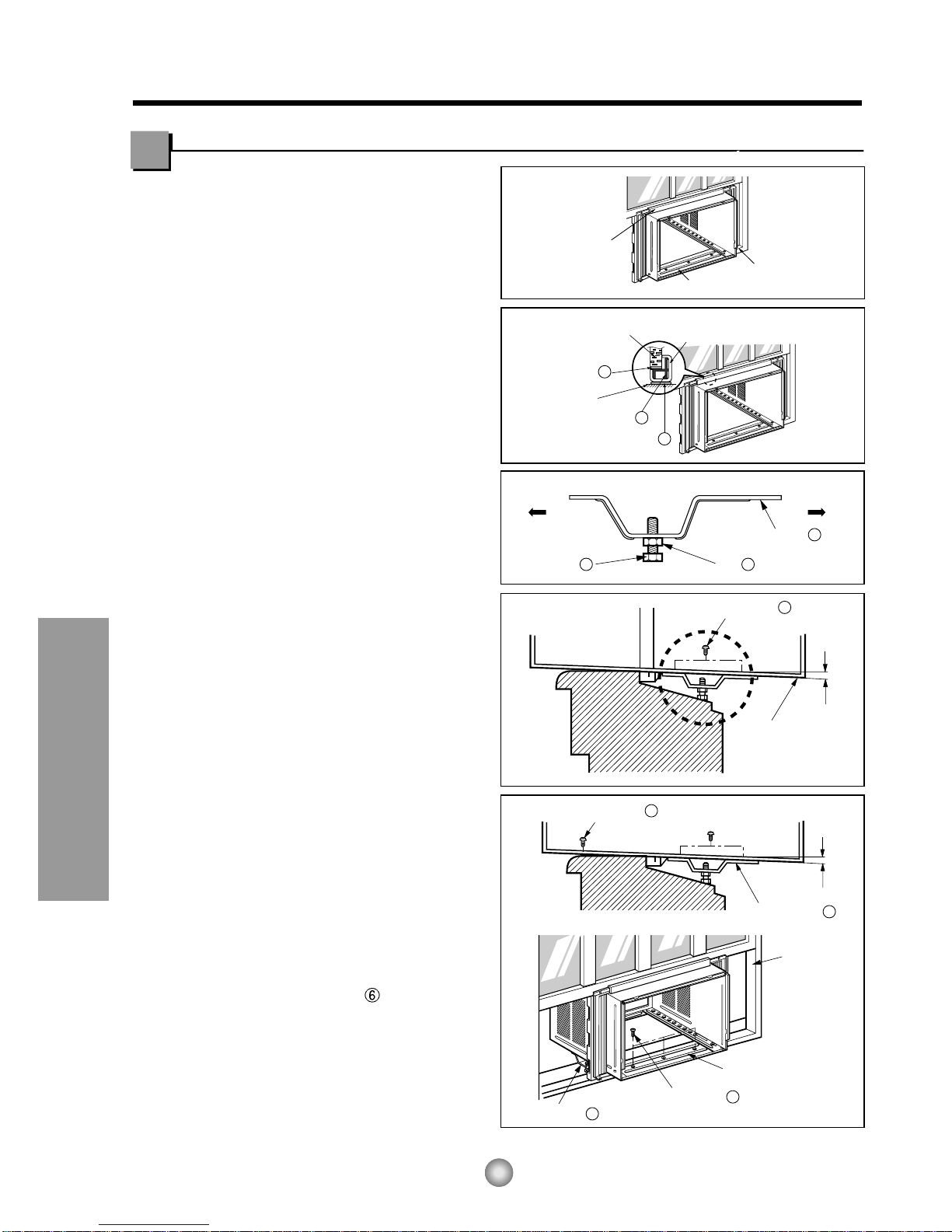

1. Open the window. Mark a line on
center of the window sill(or desired air
conditioner location).
Carefully place the cabinet on the
window sill and align the center mark
on the bottom front with the center
line marked in the window sill.
(See Fig.1)
2. Pull the bottom window sash down
behind the upper guide until it meets.
(See Fig.2)
NOTE:
•Do not pull the window sash down so
tightly that the movement of Frame
Curtain is restricted.
3. Loosely assemble the sill support
using the parts in Fig. 3.
4. Select the position that will place the
sill support near the outer most point
on sill (See Fig. 4)
5. Attach the sill support to the cabinet
track hole in relation to the selected
position using 2 Type A screws in
each support (See Fig. 4).
6. The cabinet should be installed with a
very slight tilt (about 1/2"(12.7mm))
downward toward the outside (See
Fig. 5).
Adjust the bolt and the nut of sill
support for balancing the cabinet.
7. Attach the cabinet to the window sill
by driving the screws (Type B)
through the front angle into window
sill.
8. Pull each Frame curtain fully to each
window sash track, and repeat step 2.
Cabinet Installation
Fig. 1
Fig. 2
Fig. 3
Fig. 4
Fig. 5

13
Features and Installation
Type C
7
Screw
Screw
Power cord
Foam-Strip
8
Window locking bracket
10

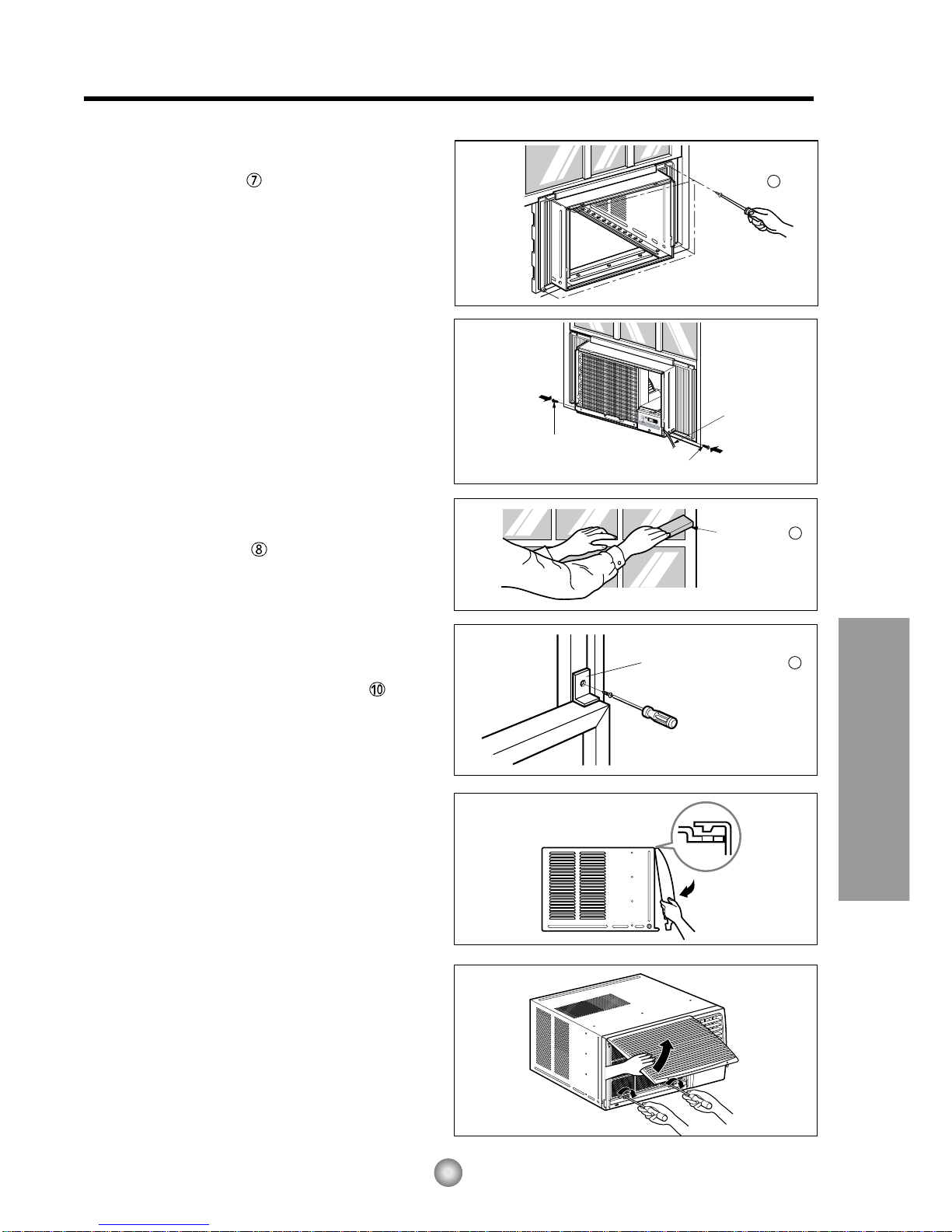

9. Attach each Frame curtain to the window
sash using screws (Type C). (See Fig. 6)
CAUTION: DO NOT DRILL A HOLE IN THE
BOTTOM PAN.
The unit is designed to operate
with approximately 1/2" (12.7mm)
of water in bottom pan.
10. Slide the unit into the cabinet. (See Fig. 7)
CAUTION: For security purpose, reinstall
screws at cabinet's sides.
11. Cut the foam-strip to the proper length
and insert between the upper window sash
and the lower window sash.
(See Fig. 8)
12. Attach the window locking bracket with
a type C screw. (See Fig. 9)
13. Attach the front grille to the cabinet by
inserting the tabs on the grille into the tabs
on the front of the cabinet. Push the grille
in until it snaps into place. (See Fig.10)
NOTE: Please refer page 7 for setting the
ventilation knob.
14. Lift the inlet grille and secure it with two
type A screw through the front grille.
(See Fig. 11)
15. Window installation of room air conditioner
is now completed. See ELECTRICAL DATA
for attaching power cord to electrical outlet.
Fig. 6
Fig. 7
Fig. 8
Fig. 9
Fig. 10
Fig. 11

14
Features and Installation
Do not under any
circumstances cut
or remove the
grounding prong
from the plug.
Line Cord Plug Use Wall Receptacle Power Supply
Power supply cord with
3-prong grounding plug Standard 125V, 3-wire grounding receptacle rated 15A, 125V AC
Use 15 AMP, time
delay fuse or circuit
breaker.
Electrical Data
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly discourage the use of an extension cord. However, if you
wish to use an extension cord, use a CSA certified/UL-listed 3-wire (grounding) extension cord, rated 15A,
125V.

15
Features and Installation
PREFERRED METHOD
Ensure proper ground
exists before use
TEMPORARY METHOD
Adapter plug
Receptacle cover
Metal screw

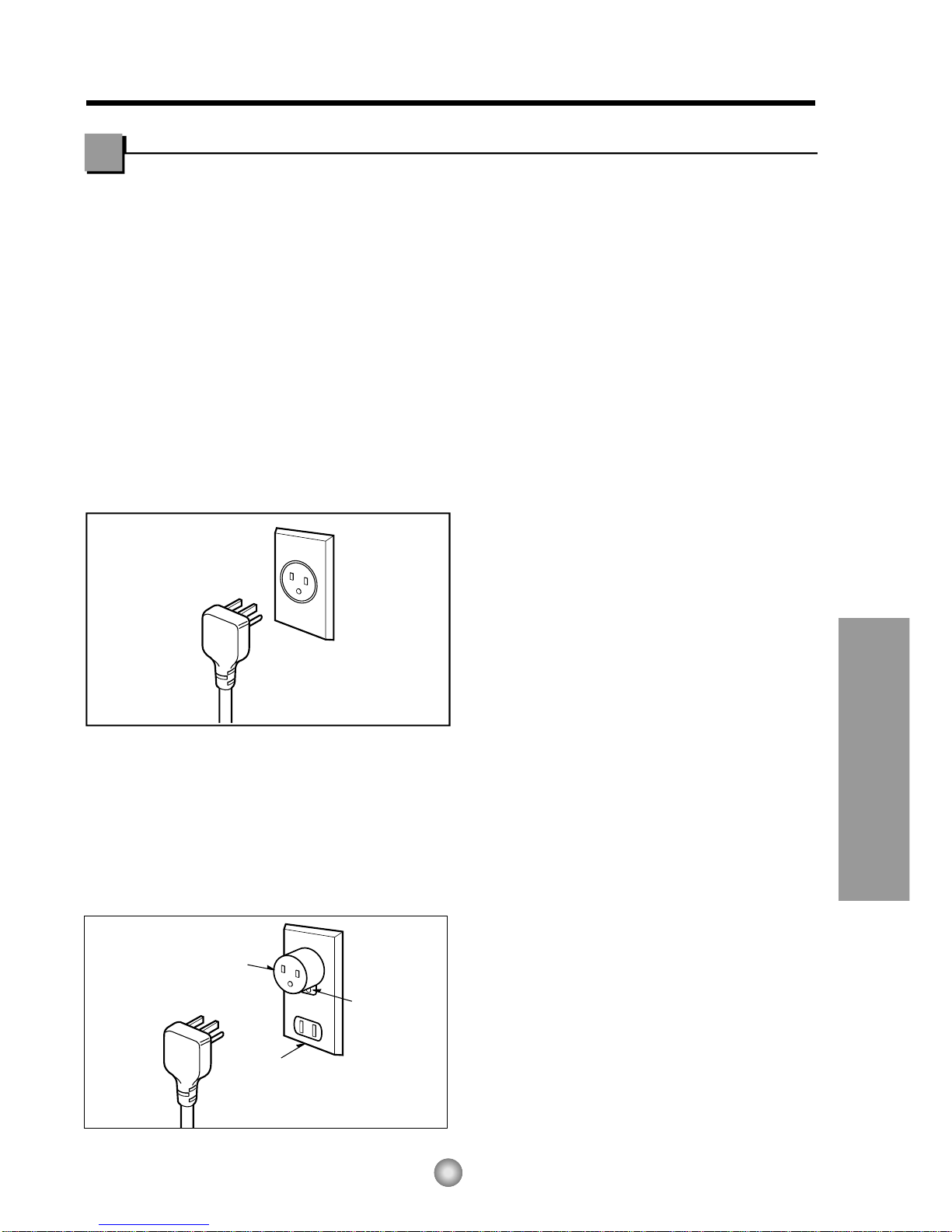

Electrical Safety
IMPORTANT
(PLEASE READ CAREFULLY)
FOR THE USER'S PERSONAL SAFETY, THIS
APPLIANCE MUST BE PROPERLY GROUNDED
The power cord of this appliance is equipped with a
three-prong (grounding) plug. Use this with a
standard three-slot (grounding) wall power outlet
(Fig. 12) to minimize the hazard of electric shock.
The customer should have the wall receptacle and
circuit checked by a qualified electrician to make
sure the receptacle is properly grounded.
DO NOT CUT OR REMOVE THE THIRD
(GROUND) PRONG FROM THE POWER PLUG.
A. SITUATIONS WHERE THE APPLIANCE
WILL BE DISCONNECTED ONLY
OCCASIONALLY:
Because of potential safety hazards, we strongly
discourage the use of an adapter plug. However, if
you wish to use an adapter, a TEMPORARY
CONNECTION may be made. Use UL-listed
adapter, available from most local hardware stores
(Fig. 13). The large slot in the adapter must be
aligned with the large slot in the receptacle to
assure a proper polarity connection.
CAUTION: Attaching the adapter ground terminal to
the wall receptacle cover screw does not ground the
appliance unless the cover screw is metal, and not
insulated, and the wall receptacle is grounded
through the house wiring.
The customer should have the circuit checked by a
qualified electrician to make sure the
receptacle is properly grounded.
Disconnect the power cord from the adapter, using
one hand on each. Otherwise, the adapter ground
terminal might break. DO NOT USE the appliance
with a broken adapter plug.
B. SITUATIONS WHERE THE APPLIANCE
WILL BE DISCONNECTED OFTEN.
Do not use an adapter plug in these situations.
Unplugging the power cord frequently can lead to
an eventual breakage of the ground terminal. The
wall power outlet should be replaced by a three-slot
(grounding) outlet instead.
USE OF EXTENSION CORDS
Because of potential safety hazards, we strongly
discourage the use of an extension cord. However,
if you wish to use an extension cord, use a CSA
certified/UL-listed 3-wire (grounding) extension
cord, rated 15A, 125V.
Fig. 12
Fig. 13

16
Before you call for service...
Before you call for service...
Troubleshooting Tips Save time and money!
Review the chart below first and you may not need to call for service.
Normal Operation
•You may hear a pinging noise caused by water being picked up and thrown against the condenser
on rainy days or when the humidity is high. This design feature helps remove moisture and improve
efficiency.
•You may hear the relay click when the compressor cycles on and off.
•Water will collect in the base pan during high humidity or on rainy days. The water may overflow
and drip from the outdoor side of the unit.
•The fan may run even when the compressor does not.
Abnormal Operation
Problem Possible Causes What To Do
■ The air conditioner is
unplugged.
■ The fuse is blown/circuit
breaker is tripped.
■ Power failure.
■ Airflow is restricted.
■ TEMP Control set to a
higher number.
■ The air filter is dirty.
■ The room may have been
hot.
■ Cold air is escaping.
■ Cooling coils have iced up.
■ Ice blocks the air flow and
stops the air conditioner
from cooling the room.
•Make sure the air conditioner plug is pushed
completely into the outlet.
•Check the house fuse/circuit breaker box and
replace the fuse or reset the breaker.
•When power is restored, wait 3 minutes to restart the
air conditioner to prevent tripping of the compressor
overload.
•Make sure there are no curtains, blinds, or furniture
blocking the front of the air conditioner.
•Set the TEMP Control to a lower number.
•Clean the filter at least every 2 weeks.
See the operating instructions section.
•When the air conditioner is first turned on
you need to allow time for the room to cool down.
•Check for open furnace floor registers
and cold air returns.
•Set the air conditioner's vent to the closed position.
•See Air Conditioner Freezing Up below.
•Set the mode control at High Fan at a high
temperature.
Air conditioner
does not start
Air conditioner
does not cool as it
should
Air conditioner
freezing up

17
Memo

18
Precauciones Importantes de seguridad
Instrucciones de Funcionamiento
Características e Instalacion
Antes de avisar al Servicio Técnico
PARA SU INFORMACION
Precauciones
Importantes de
Seguridad
Precauciones Importantes
de seguridad....................19
Instrucciones de
Funcionamiento
Controles...........................21
Ventilación.........................23
Como controlar la
direccion del aire...............23
Como installar el Tubo de
Desagüe............................23
Cuidado y Mantenimiento
Limpieza de filtro de aire .....24
Cómo poner las Baterías ....24
Características
Características ..................25
Instrucciones de
instalación
Elija el major lugar.............26
Requisitos de ventana.......26
Contenido del juego de
instalación ..........................27
Requisitos de las herra
mientas sugeridas ...............27
Instalación del Gabinete....28
Datos Electricos ................30
Informacion Electrica.........31
Antes de avisar al
Servicio Técnico
Operacíon normal ............32
Operacíon anormal ..........32
Escriba aquí los números de serie y modelo de las
unidades exterior e interior:
Nº de Modelo
Nº Serie
Los números figuran en una etiqueta en el lateral de cada
unidad.
Distribuidor
Fecha de compra
Adjunte su recibo aquí para probar que lo adquirió.
• Aquí encontrará numerosas sugerencias sobre cómo
utilizar y mantener adecuadamente su acondicionador de
aire. Con unos cuantos cuidados preventivos se puede
ahorrar mucho tiempo y dinero a lo largo de la vida útil de
su acondicionador de aire.
• En la tabla de sugerencias para la resolución de
problemas encontrará respuestas a la mayoría de los
problemas más comunes. Si consulta primero la tabla de
Sugerencias para la resolución de problemas, quizá ni
siquiera necesite avisar al servicio técnico.
• Consulte con el servicio técnico autorizado sobre la
reparación o el mantenimiento de esta unidad.
• El acondicionador de aire no debe ser utilizado por
niños pequeños o personas inestables sin
supervisión.
• Es preciso vigilar a los niños pequeños para
asegurarse de que no juegan con el acondicionador
de aire.
LEA ESTE MANUAL
PRECAUCION

Precauciones Importantes de seguridad
ADVERTENCIA
19
Precauciones Importantes de Seguridad
Para prevenir tanto lesiones al usuario u otras personas como daños materiales, es preciso seguir estas instrucciones.
■El manejo incorrecto debido a la inobservancia de estas instrucciones puede causar lesiones o daños cuya gravedad
está clasificada en las siguientes indicaciones.
ADVERTENCIA Este símbolo indica la posibilidad de lesiones mortales o graves.
PRECAUCION
Este símbolo indica la posibilidad de lesiones o daños
materiales.
■ El significado de los símbolos utilizados en este manual se indica a continuación.
Asegúrese de no hacerlo.
Asegúrese de seguir las instrucciones.
Conecte correctamente el
enchufle
• De otra forma, ello ocasionaría
una descarga eléctrica o
incendio a causa de la
generación de calor.
No opere o pare la unidad
insertando o tirando del
enchufe
• Ello ocasionaría una descarga
eléctrica o incendio a causa de la
generación de calor.
No dañe o utilize un cable
eléctrico inadecuado
• Ello ocasionaría una descarga
eléctrica o incendio.
No modifique el largo del cable
eléctrico, y tampoco comparta
el tomacorriente con otros
aparatos
• Ello ocasionaría una descarga
eléctrica o incendio a causa de la
generación de calor.
No lo maneje con las manos
humedas
• Puede ocasionar una descarga
eléctrica.
No exponga durante mucho
tiempo la piel al aire frío
procedente directamente del
acondicionador.
• Esto podría dañar su salud.

20
Precauciones Importantes de seguridad
PRECAUCION
Cuando se vaya a quitar el
filtro de aire no toque las
partes metálicas de la unidad
interior.
• Esto podría causar heridas.
No limpie el acondicionador
de aire con agua.
• El agua podría entrar en la
unidad y degradar el aislamiento.
También podría causar una
sacudida eléctrica.
Ventile bien cuando utilice el
acondicionador junto con
una estufa, etc.
• En este caso tal vez se produzca
una falta de oxígeno.
Cuando limpie la unidad,
desconecte la alimentación y
desconecte también el
disyuntor.
• Puesto que el ventilador gira a
alta velocidad durante la
operación, podría ocasionar
heridas.
NO ponga un animal doméstico
ni una planta donde quede
directamente expuesto al flujo
de aire.
• Esto podría dañar al animal o a
la planta.
No lo utilice para propósitos
especiales.
• No utilice este acondicionador de
aire para conservar dispositivos de
precisión, alimentos y objetos de
arte; no ponga tampoco animales
y plantas cerca de él. Esto podría
deteriorar la calidad, etc.
No manipule los
interruptores con las manos
mojadas.
• Esto podría causar una sacudida
eléctrica.
No aplique aerosoles con
insecticida o productos
inflamables.
• Esto podría causar un incendio o
deformar la caja.
No ponga una estufa, etc.
donde quede expuesta al
flujo de aire directo.
•
Esto podría causar una
combustión imperfecta.
