Panasonic CS-BE25TKE User manual

Nederlands Italiano Deutsch Español Français English
ACXF55-05600
Model No.
Indoor Unit Outdoor Unit
CS-BE25TKE
CS-BE35TKE
CS-BE50TKE
CS-DE25TKE
CS-DE35TKE
CS-DE50TKE
CS-KE25TKE
CS-KE35TKE
CS-KE50TKE
CU-BE25TKE
CU-BE35TKE
CU-BE50TKE
CU-DE25TKE
CU-DE35TKE
CU-DE50TKE
CU-KE25TKE
CU-KE35TKE
CU-KE50TKE
Operating Instructions
Air Conditioner
Operating Instructions
Air Conditioner
2-13
Before operating the unit, please read these operating
instructions thoroughly and keep them for future reference.
The included Installation Instructions should be kept and read
by the installer before installation.
Remote control is packaged in the indoor unit and removed
by the installer before installation.
Comment utiliser l’appareil
Climatiseur
14-25
Avant d’utiliser l’appareil, veuillez lire ce mode d’emploi dans
son intégralité et conservez-le pour toute référence ultérieure.
Le manuel d’installation inclus doit être conservé et lu par
l’installateur avant l’installation.
La télécommande est emballée dans l’unité intérieure et
retirée par l’installateur avant l’installation.
Instrucciones de funcionamiento
Climatizador de aire
26-37
Antes de utilizar la unidad, sírvase leer atentamente estas
instrucciones de funcionamiento y conservarlas para futuras
consultas.
El instalador debe guardar y leer las Instrucciones de
instalación incluidas antes de la instalación.
El mando a distancia viene embalado en la unidad interior y
debe ser retirado por el instalador antes de la instalación.
Bedienungsanleitung
Klimagerät
38-49
Bevor Sie das Gerät in Betrieb nehmen, lesen Sie bitte diese
Bedienungsanleitung aufmerksam durch und bewahren Sie
sie als künftige Referenz auf.
Das mitgelieferte Installationshandbuch sollte aufbewahrt und
vor der Installation vom Installateur gelesen werden.
Die Fernbedienung ist im Innengerät verpackt und wird vor
der Installation durch den Installateur entfernt.
Istruzioni di funzionamento
Condizionatore d’aria 50-61
Prima di utilizzare l’unità, leggere attentamente le istruzioni
e conservare questo opuscolo per potervi fare riferimento in
futuro.
Le istruzioni per l’installazione fornite in dotazione
devono essere conservate e lette dall’installatore prima
dell’installazione.
Il telecomando si trova nell’unità interna e deve essere
rimosso dall’installatore prima dell’installazione.
Handleiding
Airconditioner
62-73
Lees voor u het apparaat gebruikt deze gebruikshandleiding
grondig en bewaar deze voor toekomstig gebruik.
De bijgevoegde installatiehandleiding moet door de
installateur worden bewaard en gelezen vóór de installatie.
De afstandsbediening is in de binnenunit verpakt en moet
vóór de installatie door de installateur worden verwijderd.
ACXF55-05600_01EN.indd 1ACXF55-05600_01EN.indd 1 1/25/2017 10:03:26 AM1/25/2017 10:03:26 AM

2

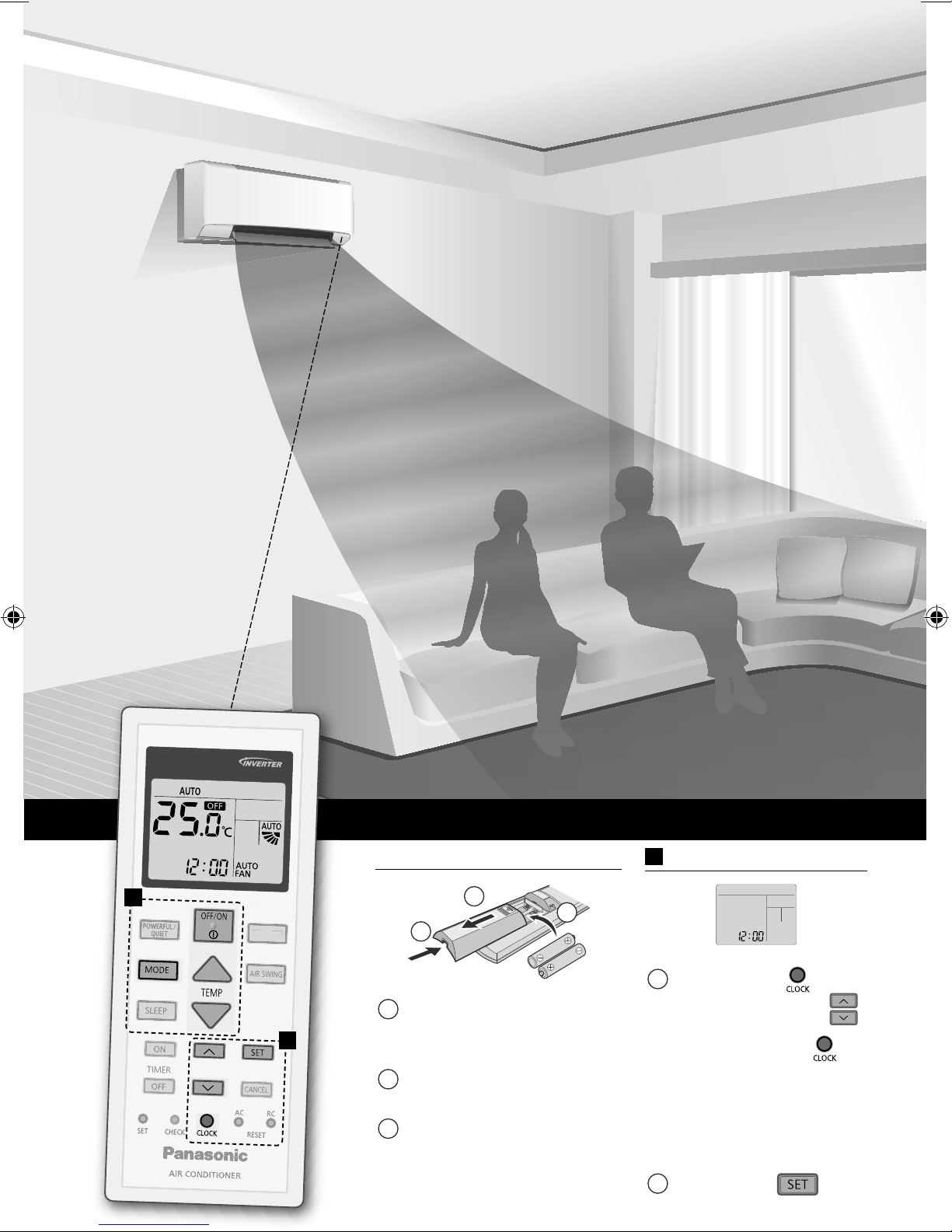

Provides maximum comfort and clean air
with optimal energy saving methods.
Use remote
control within 8 m
from the remote
control receiver of
the indoor unit.
Quick Guide
Inserting the batteries
12
3
1Pull out the back cover
of remote control.
2
Insert AAA or R03
batteries.
3Close the cover.
AClock setting
1Press and
set the
time .
•Press and hold
for approximately
5 seconds to show
time in 12-hour
(am/pm) or 24 hour
indication.
2Confirm .
FAN SPEED
FAN SPEED
A
B
ACXF55-05600_01EN.indd 2ACXF55-05600_01EN.indd 2 1/25/2017 10:03:28 AM1/25/2017 10:03:28 AM

3
English
Table of contents
Safety precautions ………… 4-6
How to use
……………………… 7-8
To learn more
………………… 9
Cleaning instructions
……… 10
Troubleshooting
………… 11-13
Information………………… 74
Accessories
• Remote control
• AAA or R03 batteries × 2
• Remote control holder
• Screws for remote control
holder × 2
The illustrations in this manual are for
explanation purposes only and may differ
from the actual unit. They are subject
to change without notice for future
improvement.
BBasic operation
1Press to select
the desired mode.
DRY
AUTO HEAT
COOL
2Press to start/
stop the operation.
POWER
•Please note that
the indication
is on display to
start the unit.
3Select the desired
temperature.
Up
Down
Selection range:
16.0 °C ~ 30.0 °C /
60 °F ~ 86 °F.
•Press and hold for
approximately 10 seconds
to switch the temperature
indication in °C or °F.
Thank you for purchasing
Panasonic Air Conditioner.
ACXF55-05600_01EN.indd 3ACXF55-05600_01EN.indd 3 1/25/2017 10:03:32 AM1/25/2017 10:03:32 AM

4

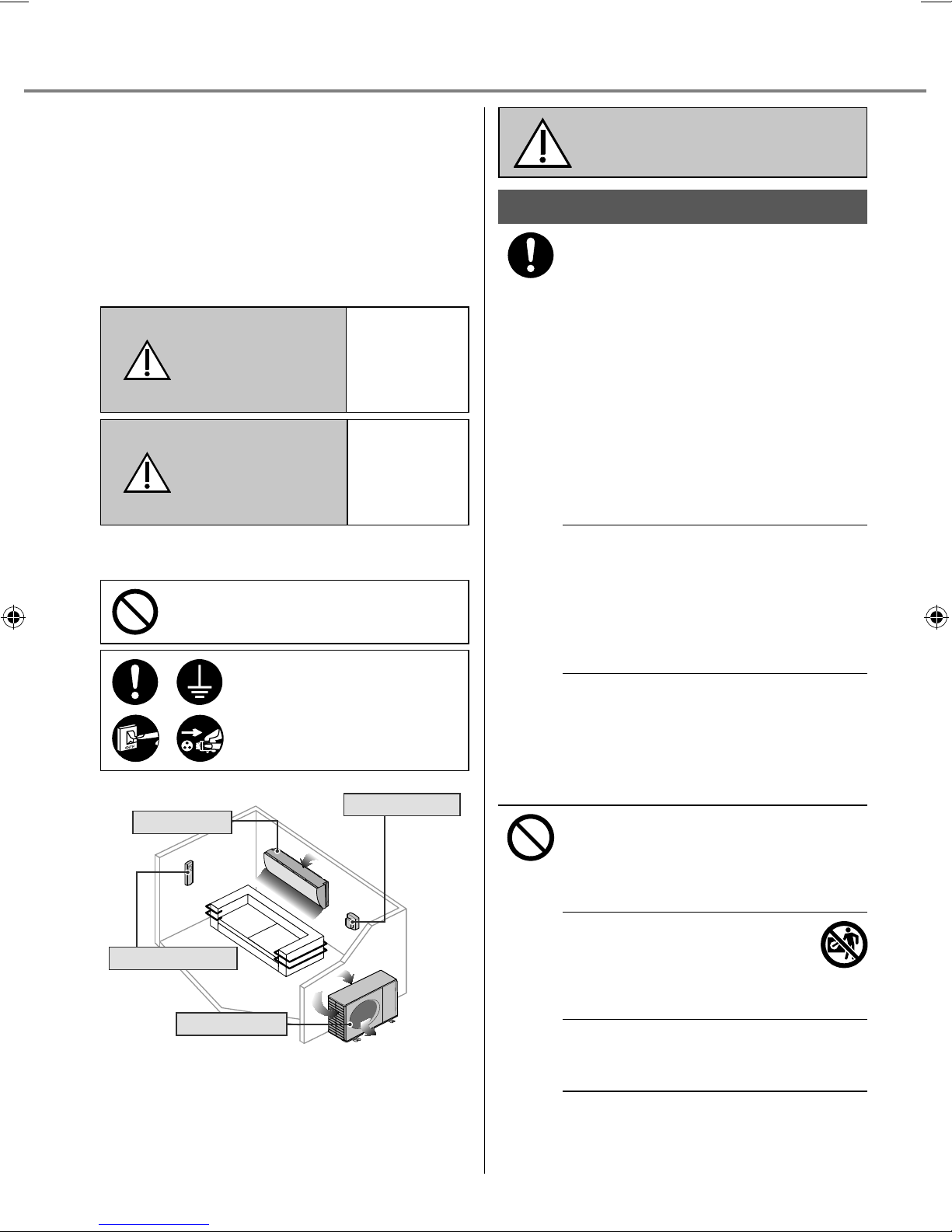

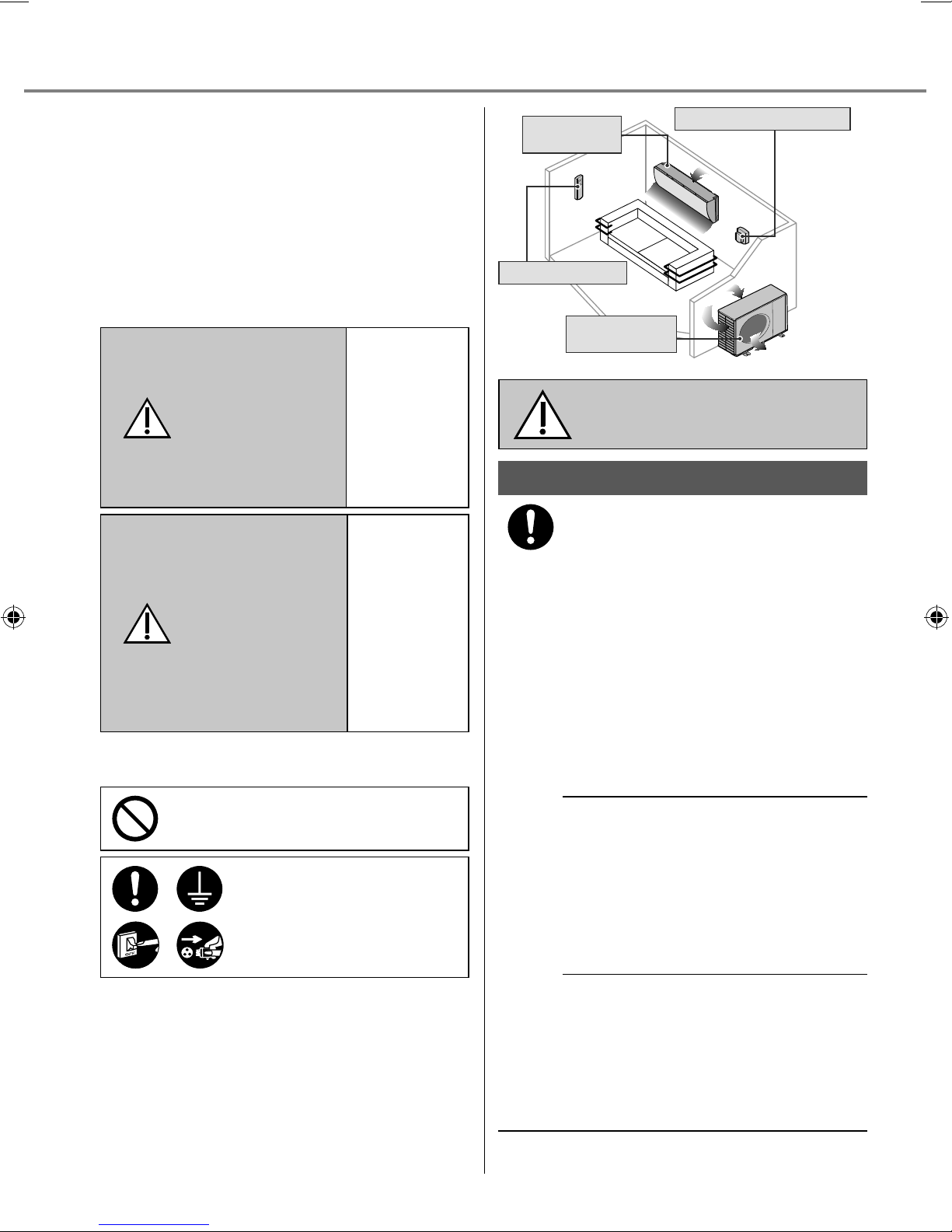

Safety precautions
To prevent personal injury, injury to
others or property damage, please
comply with the following:
Incorrect operation due to failure to
follow instructions below may cause
harm or damage, the seriousness of
which is classified as below:
This appliance is not intended for
accessibility by the general public.
WARNING
This sign
warns of
death or
serious
injury.
CAUTION
This sign
warns of
injury or
damage to
property.
The instructions to be followed are
classified by the following symbols:
This symbol denotes an
action that is PROHIBITED.
These symbols denote
actions COMPULSORY.
WARNING
Indoor unit and outdoor unit
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
Please consult authorised dealer
or specialist to clean the internal
parts, repair, install, remove
and reinstall the unit. Improper
installation and handling will
cause leakage, electric shock or
fire.
Confirm with authorised dealer
or specialist on usage of any
specified refrigerant type.
Using refrigerant type other than
the specified may cause product
damage, burst and injury etc.
Do not install the unit in
a potentially explosive or
flammable atmosphere.
Failure to do so could result in
fire.
Do not insert your fingers
or other objects into the
air conditioner indoor or
outdoor unit, rotating parts
may cause injury.
Do not touch the outdoor
unit during lightning, it may
cause electric shock.
Indoor unit
Outdoor unit
Power supply
Remote control
Air inlet
Air inlet
Air inlet
Air inlet
Air outlet
Air outlet
Air outlet
Air outlet
ACXF55-05600_01EN.indd 4ACXF55-05600_01EN.indd 4 1/25/2017 10:03:34 AM1/25/2017 10:03:34 AM

5
EnglishSafety precautions
Do not expose yourself directly
to cold air for a long period to
avoid excess cooling.
Do not sit or step on the
unit, you may fall down
accidentally.
Remote control
Do not allow infants and small
children to play with the remote
control to prevent them from
accidentally swallowing the
batteries.
Power supply
Do not use a
modified cord, joint
cord, extension cord
or unspecified cord to
prevent overheating
and fire.
To prevent overheating, fire or
electric shock:
•Do not share the same power
outlet with other equipment.
•Do not operate with wet hands.
•Do not over bend the power
supply cord.
•Do not operate or stop the unit
by inserting or pulling out the
power plug.
If the supply cord is damaged,
it must be replaced by the
manufacturer, service agent or
similarly qualified persons in
order to avoid a hazard.
It is strongly recommended to
be installed with Earth Leakage
Circuit Breaker (ELCB) or
Residual Current Device (RCD)
to prevent electric shock or fire.
To prevent overheating, fire or
electric shock:
•Insert the power plug properly.
•Dust on the power plug should
be periodically wiped with a dry
cloth.
Stop using the product if any
abnormality/failure occurs and
disconnect the power plug or
turn off the power switch and
breaker.
(Risk of smoke/fire/electric
shock)
Examples of abnormality/failure
•The ELCB trips frequently.
•Burning smell is observed.
•Abnormal noise or vibration of
the unit is observed.
•Water leaks from the indoor
unit.
•Power cord or plug becomes
abnormally hot.
•Fan speed cannot be controlled.
•The unit stops running
immediately even if it is
switched on for operation.
•The fan does not stop even if
the operation is stopped.
Contact your local dealer
immediately for maintenance/
repair.
This equipment must be earthed
to prevent electrical shock or fire.
Prevent electric shock by
switching off the power supply
and unplug:
-Before cleaning or servicing,
-When extended non-use, or
-During abnormally strong
lightning activity.
ACXF55-05600_01EN.indd 5ACXF55-05600_01EN.indd 5 1/25/2017 10:03:35 AM1/25/2017 10:03:35 AM

6
Safety precautions
CAUTION
Indoor unit and outdoor unit
Do not wash the indoor unit
with water, benzine, thinner
or scouring powder to avoid
damage or corrosion at the unit.
Do not use for preservation
of precise equipment, food,
animals, plants, artwork or other
objects. This may cause quality
deterioration, etc.
Do not use any combustible
equipment in front of the airflow
outlet to avoid fire propagation.
Do not expose plants or pet
directly to airflow to avoid injury,
etc.
Do not touch the sharp
aluminium fin, sharp parts
may cause injury.
Do not switch ON the indoor
unit when waxing the floor. After
waxing, aerate the room properly
before operating the unit.
Do not install the unit in oily and
smoky areas to prevent damage
to the unit.
Do not dismantle the unit for
cleaning purpose to avoid injury.
Do not step onto an unstable
bench when cleaning the unit to
avoid injury.
Do not place a vase or water
container on the unit. Water may
enter the unit and degrade the
insulation. This may cause an
electric shock.
Do not open window or door
for long time during operation,
it may lead to inefficient power
usage and uncomfortable
temperature changes.
Prevent water leakage by
ensuring drainage pipe is:
-Connected properly,
-Kept clear of gutters and
containers, or
-Not immersed in water
After a long period of use or use
with any combustible equipment,
aerate the room regularly.
After a long period of use, make
sure the installation rack does
not deteriorate to prevent the unit
from falling down.
Remote control
Do not use rechargeable (Ni-Cd)
batteries. It may damage the
remote control.
To prevent malfunction or
damage of the remote control:
•Remove the batteries if the unit
is not going to be used for a
long period of time.
•New batteries of the same type
must be inserted following the
polarity stated.
Power supply
Do not disconnect the plug
by pulling the cord to prevent
electric shock.
ACXF55-05600_01EN.indd 6ACXF55-05600_01EN.indd 6 1/25/2017 10:03:35 AM1/25/2017 10:03:35 AM

7
EnglishSafety precautions / How to use

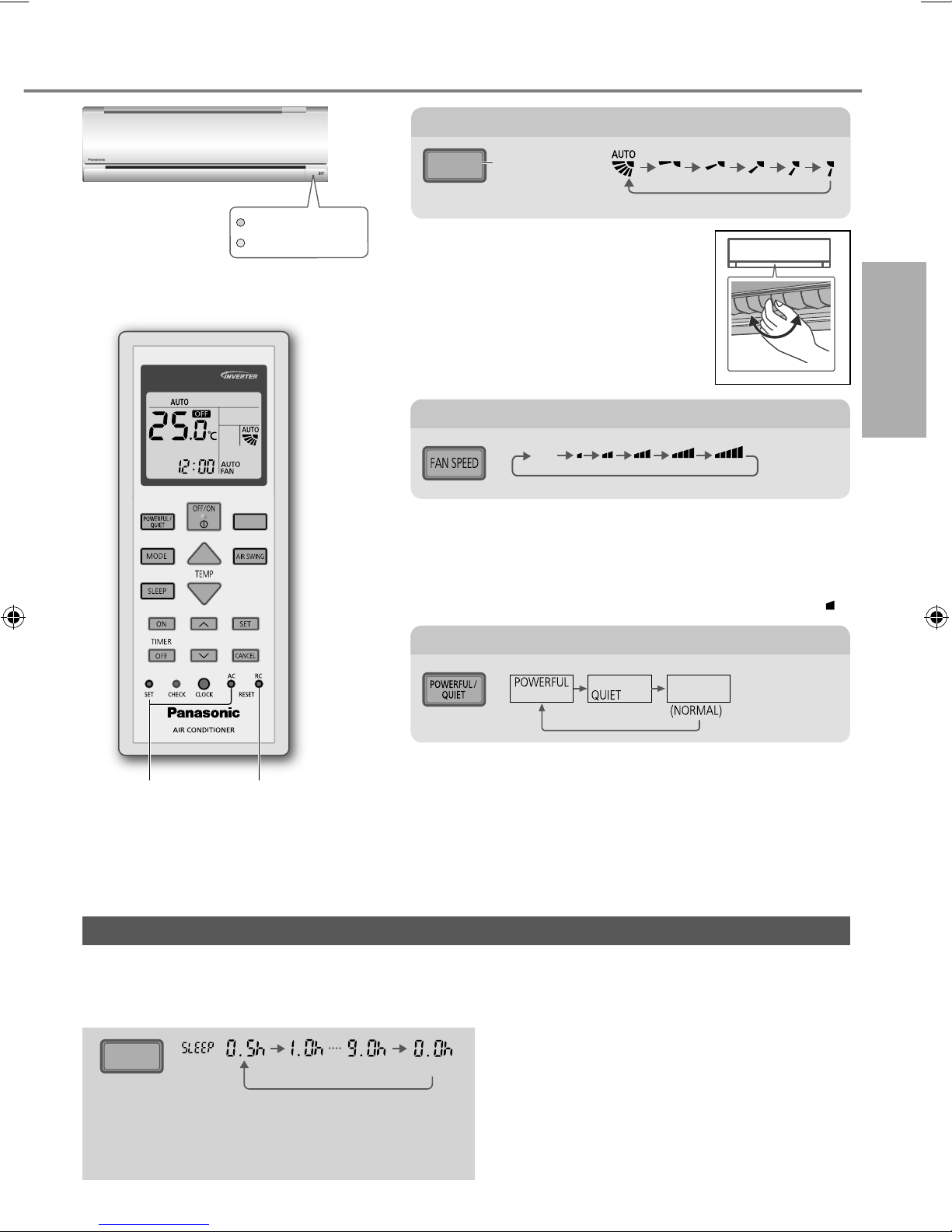

How to use
To adjust airflow direction
To adjust fan speed
To switch between powerful/quiet
POWERFUL:
To reach the preset temperature quickly
•This operation stops automatically after 20 minutes.
QUIET:
To enjoy quiet operation
•This operation reduces airflow noise.
•For AUTO, the indoor fan speed is automatically
adjusted according to the operation mode.
•To have low noise priority operation, select the
lowest fan speed ( ).
AUTO
FAN
Indicator
•Do not adjust the flap by hand.
To maximise comfort while sleeping
• This operation can be set together with timer.
Sleep operation has the priority over OFF
timer.
• This operation can be cancelled by pressing
the respective button when the sleep timer
reaches 0.0h.
This operation provides you with a comfortable environment while sleeping. It will
automatically adjust the sleep pattern temperature during the activation period. The indoor
unit indicator will dim when this operation is activated. This is not applicable if the indicator
brightness has been manually dimmed.
SLEEP
(Cancel)
This operation is incorporated with the
activation timer (0.5, 1, 2, 3, 4, 5, 6, 7, 8 or 9
hours).
To adjust airflow direction
AIR SWING
Upper direction
•For lateral direction, it is manually
adjustable as shown.
FAN SPEED
Not used
in normal
operations.
Press to restore
the remote
control to default
setting.
POWER
(Green)
TIMER
(Orange)
ACXF55-05600_01EN.indd 7ACXF55-05600_01EN.indd 7 1/25/2017 10:03:35 AM1/25/2017 10:03:35 AM

8
To set the timer
Note
,
SLEEP
•Can be activated in all modes and can be
cancelled by pressing the respective button
again.
•Cannot be selected at the same time.
ON
OFF
TIMER
CANCEL
SET
C
AN
C
E
L
21 3
1Select ON or OFF
timer Example: OFF at 22:00
•Each time pressed:
Cancel
2Set the time
3Confirm
•To cancel ON or OFF timer, press
or to select respective or then
press .
•If timer is cancelled manually or due to
power failure, you can restore the timer
again by pressing or to select
respective or then press .
•The nearest timer setting will be displayed
and will activate in sequence.
•Timer operation is based on the clock set
in the remote control and repeats daily
once set. For clock setting, please refer to
Quick Guide.
2 sets of ON and OFF timers are available to turn ON or OFF the unit at different preset
times.
Operating conditions
Use this air conditioner in the temperature range indicated in the table.
Temperature °C (°F) Indoor Outdoor
DBT WBT DBT WBT
COOL Max. 32 (89.6) 23 (73.4) 43 (109.4) 26 (78.8)
Min. 16 (60.8) 11 (51.8) 5 (41.0) -
HEAT Max. 30 (86.0) - 24 (75.2) 18 (64.4)
Min. 16 (60.8) - -15 (5.0) -16 (3.2)
DBT: Dry bulb temperature, WBT: Wet bulb temperature
How to use
ACXF55-05600_01EN.indd 8ACXF55-05600_01EN.indd 8 1/25/2017 10:03:37 AM1/25/2017 10:03:37 AM

9
EnglishHow to use / To learn more...
Operation mode
AUTO : During operation, the POWER indicator will blinks at initial.
Unit selects operation mode every 10 minutes according to the setting and room
temperatures.
HEAT : The POWER indicator blinks at the initial stage of this operation. Unit takes a while
to warm up.
COOL : Provides efficient comfort cooling to suit your needs.
DRY : Unit operates at low fan speed to give a gentle cooling operation.
Energy saving temperature setting
Operating the unit within the recommended temperature range may save energy.
HEAT : 20.0 °C ~ 24.0 °C / 68 °F ~ 75 °F.
COOL: 26.0 °C ~ 28.0 °C / 79 °F ~ 82 °F.
Air flow direction
In COOL/DRY mode:
If AUTO is set, the flap swings up/down automatically.
Auto restart control
If power is resumed after a power failure, the operation will restart automatically after a
period of time with previous operation mode and airflow direction.
•This control is not applicable when TIMER is set.
To learn more...
ACXF55-05600_01EN.indd 9ACXF55-05600_01EN.indd 9 1/25/2017 10:03:38 AM1/25/2017 10:03:38 AM

10
Cleaning instructions
To ensure optimal performance of the unit,
cleaning has to be carried out at regular intervals.
Dirty unit may cause malfunction and you may
see error code “H 99”. Please consult authorised
dealer.
•Switch off the power supply and unplug before
cleaning.
•Do not touch the aluminium fin, sharp parts may
cause injury.
•Do not use benzine, thinner or scouring powder.
•Use only soap ( pH 7) or neutral household
detergent.
•Do not use water hotter than 40 °C / 104 °F.
Indoor unit
Wipe the unit gently with a soft,
dry cloth.
Outdoor unit
Make sure the air outlet of the
outdoor unit is not blocked by
fallen leaves or snow.
Clear any blockage from the
drain pipe.
Air filters
Once every 2 weeks
•Wash/rinse the filters gently
with water to avoid damage to
the filter surface.
•Dry the filters thoroughly under shade,
away from fire or direct sunlight.
•Replace any damaged filters.
Remove air filter Attach air filter
Insert into the unit
Front panel
Wash gently and dry.
Remove the front panel Close it securely
POWER
TIMER
1Release the hooks at
both ends.
2Pull out and lift up.
POWER
TIMER
1Insert at
both sides.
2Push in.
3Close down.
4Press both ends and center of the front panel.
Indoor unit
Air Purifying Filter
•Do not wash/rinse the filter with water.
•Replace the filter every 2 years or replace
any damaged filter.
Part no.: CZ-SA31P
Air Purifying Filter
Aluminium fin
POWER
TIMER
Front panel
Air filters
Air Purifying Filter
(CS-KE25/35TKE)
Air Purifying Filter
(CS-KE50TKE)
ACXF55-05600_01EN.indd 10ACXF55-05600_01EN.indd 10 1/25/2017 10:03:38 AM1/25/2017 10:03:38 AM
