Panasonic T3 Series User manual

Operating Instructions
Air Conditioner
ENGLISH
Before operating the unit, read these operating instructions thoroughly and
keep them for future reference.
Panasonic Corporation
1006 Kadoma, Kadoma City, Osaka, Japan WEB-ACXF55-28660-EN
Ceiling (Type T3)
Model No.
INDOOR UNIT
Ceiling (Type T3)
S-3650PT3E
S-6071PT3E
S-1014PT3E
OUTDOOR UNIT
Single Split
See page 11.
01_330091_EN.indb 1 2021/1/13 9:49:02

2
 Safety Precautions........................................................... 2
 Precautions for Use ......................................................... 5

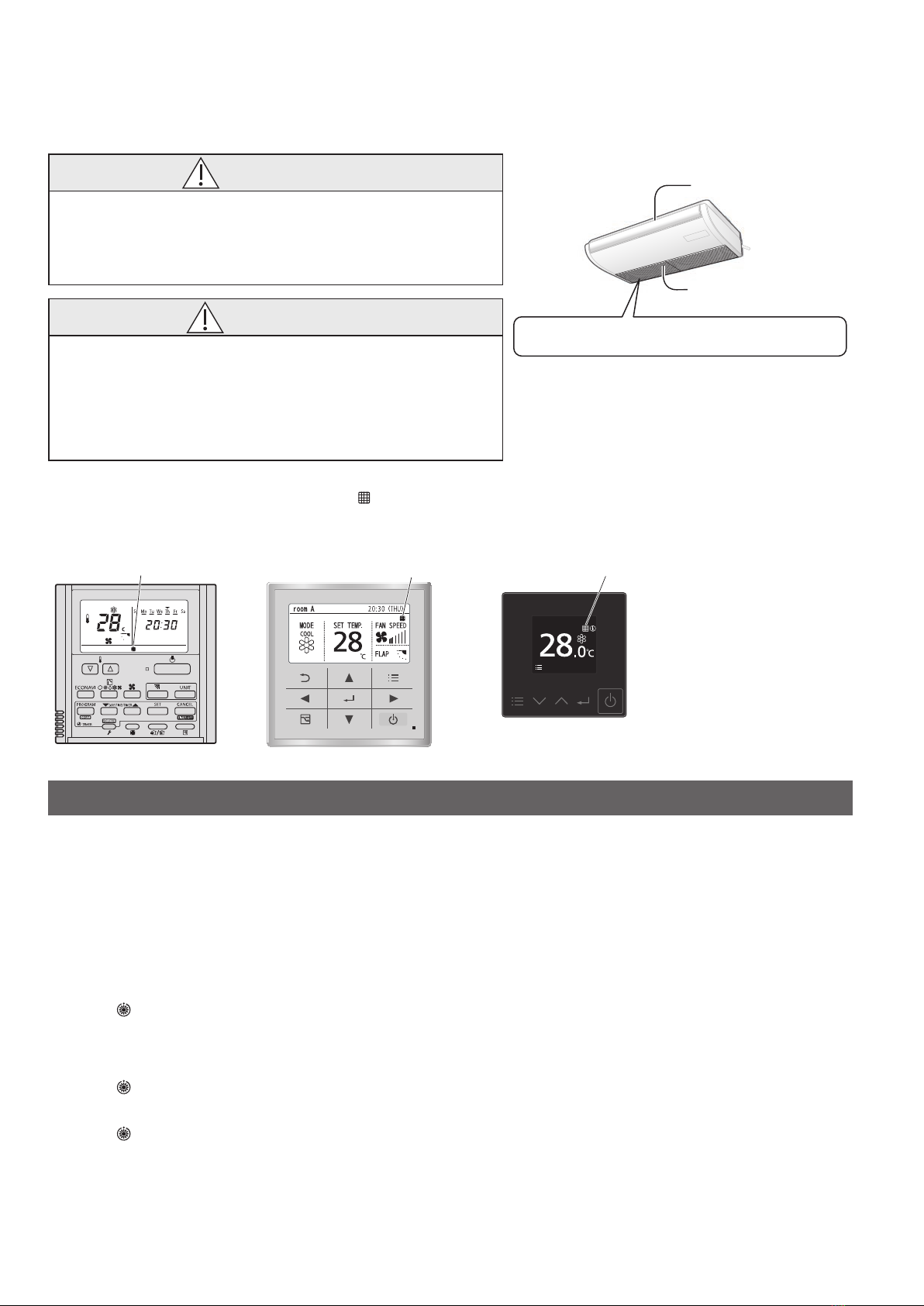

 Names of Parts................................................................. 6
 Maintenance ..................................................................... 7
•Operation Mechanism ................................................... 7

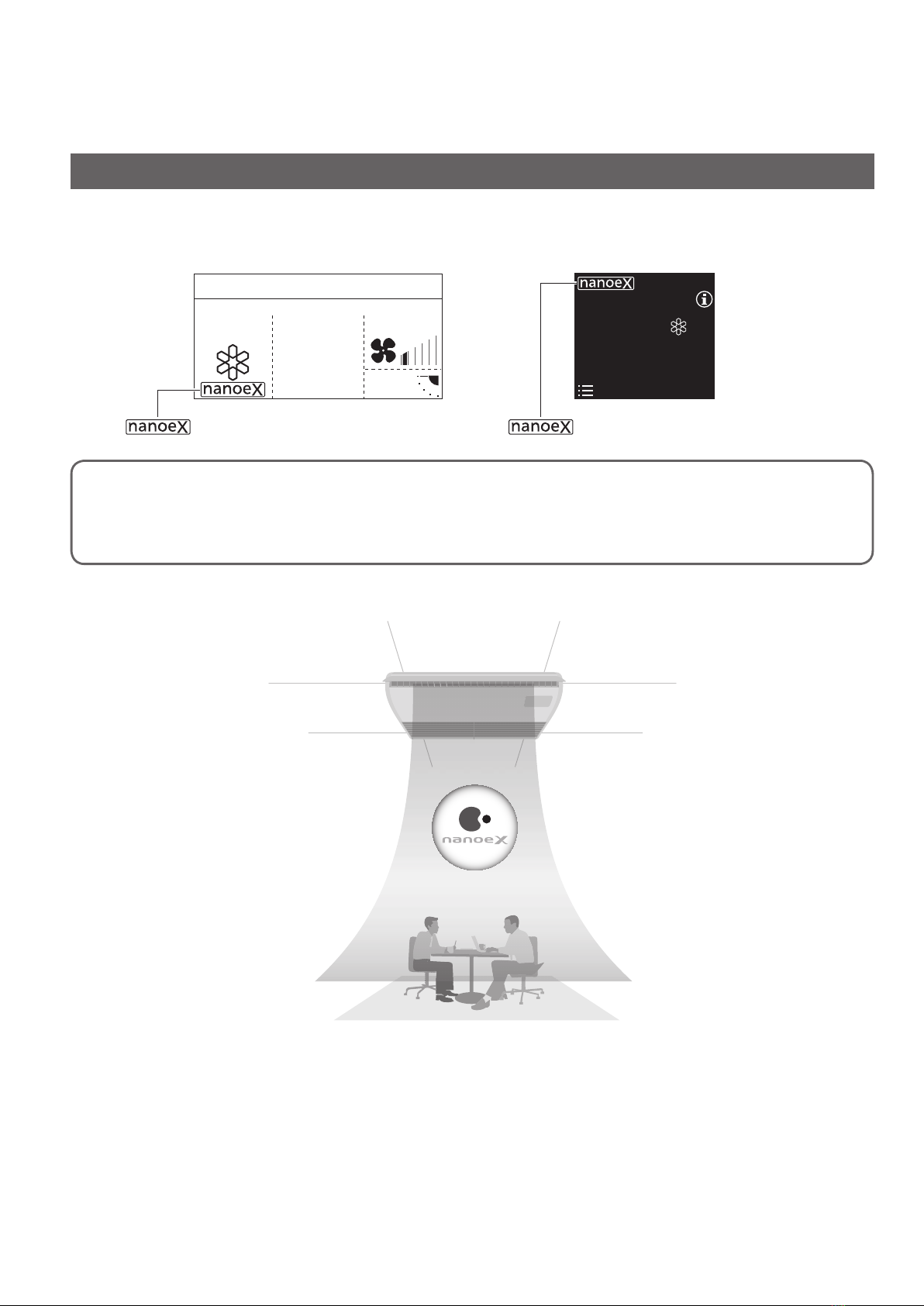

 nanoe™ X Function ......................................................... 8
 Troubleshooting............................................................... 9
•Before Requesting Services....................................... 10
 Specications................................................................. 12
•Indoor unit.................................................................... 12
•Outdoor unit................................................................. 13
Contents
Thank you for purchasing this Panasonic product.
This product is a commercial air conditioner indoor unit.
Installation Instructions attached.
Product Information
If you have problems or questions concerning your Air
Conditioner, you will need the following information. Model and
serial numbers are on the nameplate.
Model No.
Serial No.
Date of purchase
Dealer’s address
Phone number
Safety Precautions
The following symbols used in this manual, alert you to
potentially dangerous conditions to users, service personnel or
the appliance:
WARNING This symbol refers to a hazard or
unsafe practice which can result in
severe personal injury or death.
CAUTION
This symbol refers to a hazard or
unsafe practice which can result
in personal injury or product or
property damage.
Prohibited matters Matters to be
observed
•Read these Operating Instructions carefully before using this
airconditioner.Ifyoustillhaveanydifcultiesorproblems,
consult your dealer for help.
•This air conditioner is designed to give you comfortable
room conditions. Use this only for its intended purpose as
described in these Operating Instructions.
Conrmtoauthorizeddealer
or specialist on usage of
speciedrefrigeranttype.Using
of refrigerant other than the
speciedtypemaycauseproduct
damage, burst and injury etc.
This air conditioner has no
ventilator for intaking fresh air
from outdoors. You must open
doors or windows frequently
when you use gas or oil heating
appliances in the same room,
which consume a lot of oxygen
from the air.
Otherwise there is a risk of
suffocation in an extreme case.
Never use or store gasoline or
otherammablevapororliquid
near the air conditioner — it is
very dangerous.
Do not use this appliance in a
potentially explosive atmosphere.
Never touch the unit with wet
hands.
Donotinsertyourngersor
other objects into the air
conditioner indoor or
outdoor unit, rotating parts may
cause injury.
WARNING
WARNING
This symbol shows that this equipment
uses a flammable refrigerant. If the
refrigerant is leaked, together with
an external ignition source, there is a
possibility of ignition.
CAUTION This symbol shows type of flammable
refrigerant contained in the system.
CAUTION
This symbol shows that a service
personnel should be handling this
equipment with reference to the
Technical Manual.
CAUTION
This symbol shows that there is
information included in the Operating
Instructions and/or Installation Instructions.
Important Information Regarding The
Refrigerant Used
NOTE
Refer to the Installation Instructions attached to the
outdoor unit.
01_330091_EN.indb 2 2021/1/13 9:49:03

3
If the refrigerant comes in contact
withaame,itproducesatoxic
gas.
For safety, be sure to turn the
air conditioner off and also to
disconnect the power before
cleaning or servicing.
Pull off the power plug from
a receptacle, or switch off
the breaker, or switch off
the power disconnecting mean to
isolate the air conditioner from the
main power supply in case of
emergency.
Dispose of according to national
and/or local legislation.
Thisproductmustnotbemodied
or disassembled under any
circumstances.
Modiedordisassembledunit
maycausere,electricshockor
injury.
Do not clean inside the indoor and
outdoor units by users. Engage
authorized dealer or specialist for
cleaning.
In case of malfunction of this
appliance, do not repair by yourself.
Contact the sales dealer or service
dealer for a repair and disposal.
Provide a power outlet to be used
exclusively for each unit, and a
power supply disconnect, Earth
Leakage Circuit Breaker (ELCB)
or Residual Current Device (RCD)
for overcurrent protection should
be provided in the exclusive line.
Provide a power outlet
exclusively for each unit, and full
disconnection means having a
contact separation in all poles
mustbeincorporatedinthexed
wiring in accordance with the
wiring rules.
To prevent possible hazards
from insulation failure, the
unit must be grounded.
WARNING
Donotusemodied
cord, joint cord,
extension cord or
unspeciedcordtoprevent
overheatingandre.
The appliance shall be stored
in a room without continuously
operating ignition sources (for
example:openames,an
operating gas appliance or an
operating electric heater).
Be aware that refrigerants may
not contain an odour.
An unventilated area where
theapplianceusingammable
refrigerants is installed shall be
so constructed that should any
refrigerant leak, it will not stagnate
soastocreateareorexplosion
hazard.
The appliance shall be stored
in a well-ventilated area where
the room size corresponds to
theroomareaasspeciedfor
operation.
After the unit is installed, never
failtoasktheinstallerfortheoor
space of the room where the unit
is installed and the refrigerant
charge amount.
In case the unit or the room
divider is changed, never fail to
consult the sales dealer or service
dealer.
Do not use means to accelerate
the defrosting process or to clean,
other than those recommended
by the manufacturer.
Do not pierce or burn.
In cases that require mechanical
ventilation, ventilation openings
shall be kept clear of obstruction.
01_330091_EN.indb 3 2021/1/13 9:49:03

4
WARNING
Stop using the product when any
abnormality/failure occurs and
disconnect the power plug or turn
off the power switch and breaker.
(Riskofsmoke/re/electricshock)
Examples of abnormality/failure:
•The ELCB trips frequently.
•The product sometimes does not
start when turned on.
•The power is sometimes
disconnected when the cord is
moved.
•Burnt odor or abnormal noise is
detected during operation.
•The body is deformed or
abnormally hot.
•Water leaks from the indoor unit.
•Power cord or plug becomes
abnormally hot.
•Fan speed cannot be controlled.
•The unit stops running
immediately even if it is switched
on for operation.
•The fan does not stop even if the
operation is stopped.
Contact immediately your local
dealer for maintenance/repair.
Do not sit or step on the unit.
You may fall down accidentally.
This appliance is intended to be used by
expert or trained users in shops, in light
industry and on farms, or for commercial
use by lay persons.
This appliance is not intended for use
by persons (including children) with
reduced physical, sensory or mental
capabilities, or lack of experience
and knowledge, unless they have
been given supervision or instruction
concerning use of the appliance by
a person responsible for their safety.
Children should be supervised to ensure
that they do not play with the appliance.
<for European market only>
This appliance can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack of
experience and knowledge if they have
been given supervision or instruction
concerning use of the appliance in a
safe way and understand the hazards
involved. Children shall not play with
the appliance. Cleaning and user
maintenance shall not be made by
children without supervision.
Keeptherealarmandtheairoutletat
least 1.5 m away from the unit.
Do not cool or heat the room too much
if babies or invalids are present.
Do not turn the air conditioner on and
off from the power mains switch. Use
the ON/OFF operation button.
Do not stick anything into the air
outlet of the outdoor unit. This is
dangerous because the fan is
rotating at high speed.
Do not touch the air inlet or the
sharpaluminumnsofthe
outdoor unit. You may get
injured.
Do not stick any object
into the FAN CASE. You
may be injured and the unit
may be damaged.
CAUTION
•Theapplianceshallbestoredsoastopreventmechanicaldamagefromoccurring.
•The compressor may occasionally stop during thunderstorms. This is not a mechanical failure. The unit automatically recovers
after a few minutes.
•The English text is the original instructions. Other languages are translation of the original instructions.
NOTICE
The appliance shall be stored
in a room without continuously
operatingopenames(for
example: an operating gas
appliance) and ignition sources
(for example: an operating electric
heater).
01_330091_EN.indb 4 2021/1/13 9:49:04

5
Precautions for Use
Installation
 Thisairconditionermustbeinstalledproperlybyqualied
installation technicians in accordance with the Installation
Instructions provided with the unit.
 Before installation, check that the voltage of the electric
supplyinyourhomeorofceisthesameasthevoltage
shown on the nameplate.
WARNING
Avoid the following locations for installation.
 Locations where smoke or combustible gas exists.
Also locations of extremely high temperature such as a
greenhouse.
 Locations where excessively high heat-generating
objects are placed.
Attention:
 Avoid installing the outdoor unit where salty sea water can
splash directly onto it or in sulphurous air near a spa.
(To protect the air conditioner from heavy corrosion)
Wiring
 All wiring must conform to the local electrical codes.
(Consultyourdealeroraqualiedelectricianfordetails.)
 Each unit must be properly grounded with a ground (or
earth) wire or through the supply wiring.
 Wiringmustbedonebyaqualiedelectrician.
Operation Preparation
Turn the power mains on 5 hours before
the start of operation.
(For warm-up)
 Leave the power mains ON for continuous use.
ON
NOTE
Pull off the power plug from a receptacle, or switch off the
breaker, or switch off the power disconnecting mean to isolate
the air conditioner from the main power supply when not in use
for a long time.
Information for Users on Collection and Disposal of
Old Equipment and Used Batteries
These symbols on the products, packaging,
and/or accompanying documents mean that
used electrical and electronic products and
batteries should not be mixed with general
household waste.
For proper treatment, recovery and recycling
of old products and used batteries, please
take them to applicable collection points, in
accordance with your national legislation and
the Directives 2002/96/EC and 2006/66/EC.
By disposing of these products and batteries
correctly, you will help to save valuable
resources and prevent any potential negative
effects on human health and the environment
which could otherwise arise from inappropriate
waste handling.
For more information about collection and
recycling of old products and batteries, please
contact your local municipality, your waste
disposal service or the point of sale where you
purchased the items.
Penalties may be applicable for incorrect
disposal of this waste, in accordance with
national legislation.
For business users in the European Union
If you wish to discard electrical and electronic
equipment, please contact your dealer or
supplier for further information.
[Information on Disposal in other Countries
outside the European Union]
These symbols are only valid in the European
Union. If you wish to discard these items,
please contact your local authorities or dealer
and ask for the correct method of disposal.
Pb
Note for the battery symbol (bottom two
symbol examples):
This symbol might be used in combination with
a chemical symbol. In this case it complies
with the requirement set by the Directive for
the chemical involved.
Tips for Energy Saving
Avoid
 Do not block the air intake and outlet of the unit.
(If either is obstructed, the unit will not function
well, causing malfunction.)

During cooling operation, use sunshades, blinds or
curtains to prevent direct sunlight from entering the
room.
Do
 Alwayskeeptheairlterclean.
(Acloggedlterwillimpairtheperformanceoftheunit.)
→“Maintenance”(P.7)
 To prevent conditioned air from escaping, keep
windows, doors and any other openings closed.
01_330091_EN.indb 5 2021/1/13 9:49:04

6
Names of Parts
INDOOR UNIT
OUTDOOR UNIT
Type T3 Label
(attached to the lid of electrical component box)
This air conditioner incorporates a biocidal product.
Ionized air generated by a device incorporated
in the air conditioner deactivates bacteria and
viruses in the air, and on surfaces, and inhibits
mould growth on surfaces.
Active substances: free radicals generated in situ
from ambient air or water
PZ3 (Type 36, 50) PZ2 (Type 60, 71) PZ3
(Type 100, 125, 140)
PZ2
(Type 100, 125, 140)
PZ3 (Type 60, 71)
Air intake
Air outlet
PZH3 (Type 36, 50, 60)
PZH2 (Type 36, 50, 60)
PZH3 (Type 71)
PZH2 (Type 71)
PZH3 (Type 100, 125, 140)
PZH2 (Type 100, 125, 140)
Air intake
Air intake
Operation&AdjustingAirowDirection
Refer to the Operating Instructions attached to the Remote Controller.
*Theapdisplayontheremotecontrollerdiffersfromtheactualapangle.
A
Model No.
CZ-RTC4
For all indoor
units
Read the Operating Instructions included with the Remote Controller.
Wireless Remote
Controller
Timer Remote
Controller
Wired Remote
Controller
High-spec Wired
Remote Controller
Optional
Air outlet
Air intake
Air outlet
Air outlet
Model No. CZ-RWS3
The receiver : Model No.
CZ-RWRT3 (Type T3)
CZ-RWRC3
(For all indoor units)
(Infrared Remote Controller)
Model No.
CZ-RTC5B
For all indoor
units
Model No.
CZ-RTC6*
For all indoor
units
Air intake
Air outlet Air outlet Air outlet
Air intake Air intake
Water drain
Air outlet
Air intake grille
(air intake)
01_330091_EN.indb 6 2021/1/13 9:49:08

7
Operation Mechanism
Heating performance
 This air conditioner utilizes outside air for heating; its
heating performance reduces as outside temperature
decreases.
→Intheeventthatheatingisnotsufcient,pleaseusean
additional heating appliance.
Defrosting
 This appliance may start defrosting operation to melt
frost formed in the outdoor unit.

Defrosting starts: The indoor unit fan stops (or the
speed becomes extremely slow).
→“ ”(STANDBY)appears.

Heating operation resumes after several
minutes: The indoor unit fan remains stopped (or
it will run at a very slow speed) until the indoor heat
exchangercoilwarmsupsufciently.
→“ ”(STANDBY)appears.

Defrosting is complete: The indoor unit fan starts
operation.
→“ ”(STANDBY)disappears.
‘‘DRY’’ operation
 Once the room temperature reaches the level that was
set, the outdoor unit repeats the cycle of turning on and
off automatically.
 When the room temperature is more likely to reach the
level that was set, the fan speed is set to ‘‘breeze’’ (light
wind) automatically.
Should power failure occur while the unit is
running
The unit will resume operation automatically. Operation
settings prior to power failure will be used.
WARNING
 For safety, be sure to turn the air conditioner off and disconnect
the power before cleaning. (Otherwise, electric shock or injury may
result because the fan is rotating at high speed.)
 Do not pour water on the indoor unit. (This may damage the internal
components and cause an electric shock hazard.)
CAUTION
 Never use solvents or harsh chemicals. Also, do not wipe plastic
parts using very hot water. (This may cause deformation or change
in colour.)
 Somemetaledgesandnsaresharp.Becarefulwhenyouclean
those parts. (Injury may result.)
 Usearmstoolorladderwhencleaninganindoorunitinstalledin
high locations.
Maintenance
The internal coil and other components of the
outdoor unit must be cleaned periodically.
•Consult your dealer or service center.

Air Filter Maintenance
Consult your dealer or service center when the (Filter) appears on the display of the wired remote controller.
Timer Remote Controller High-spec Wired
Remote Controller
Filter indicator
A
°
Filter indicator
Wired Remote Controller
Filter indicator
Indoor unit (Type T3)
Air outlet
Air intake
Wipe with a soft cloth.
(If it is very dirty, use a cloth moistened with water.)
01_330091_EN.indb 7 2021/1/13 9:49:09

8
nanoe™ X Function
Display during operation of nanoe™ X
nanoe™ X For a freshness and cleaner environment
nanoe™ X generates negative ions using the air in the room to give a healthy air.
It also reduces the smell in the room, and constrains propagations of mold and bacteria.
When purchased, the nanoe™ X function is designed to automatically operate.
•IfyouwishtosettoOFF,refertotheoperatinginstructionsfortheremotecontrolleradaptabletonanoe™Xfunction.
Example: Initial screen of remote controller
°C
28.0
FAN SPEED
SET TEMP.
°C FLAP
20:30 (THU)
COOL
MODE
28
room A
: Under operation of nanoe™ X
CZ-RTC5B CZ-RTC6*
: Under operation of nanoe™ X
01_330091_EN.indb 8 2021/1/13 9:49:10

9
Troubleshooting
Symptom Cause / Action
Indoor unit
Noise
Sound like streaming water is heard
during operation or after operation.
•Soundofrefrigerantliquidowinginsideunit
•Sound of drainage water through drain pipe
Cracking noise is heard during operation
or when operation stops. •Sound due to temperature changes of parts
Discharged air smells during operation.
•Indoor odor components, cigarette odor and cosmetic odor
accumulated in the air conditioner and its air is discharged.
•The unit inside is dirty.
(Contact your dealer.)
Dewdrops accumulate near the air outlet
during cooling operation.
•Internal moisture is cooled by cool wind and accumulates as
dewdrops.
Fog occurs during cooling operation.
•If the air conditioner has been installed at places such as
restaurants where large amounts of oil mist exist, cleaning is
necessary because the unit inside (heat exchanger) is dirty.
(Contact your dealer.)
Fog occurs during heating operation. •Defrost operation is in process.
The fan is rotating for a while even though
operation stops.
•Fan rotation makes operation smooth.
•The fan may rotate to dry the heat exchanger depending on
the setting.
Airow
direction
Airowdirectionchangeswhileoperating.
Airowdirectioncannotbeset.
Airowdirectioncannotbechanged.
•When air discharge temperature is low during heating
operation,orduringdefrostoperation,horizontalwindowis
made automatically.
Dust is discharged. •Dust accumulated inside the indoor unit is discharged.
Humming noise comes out. •This is the sound of nanoe™ X being discharged.
is not displayed on the remote
controller.
•Has nanoe™ X been set to OFF?
→SettoON.
is displayed on the remote
controller.
•nanoe™ X is considered abnormal.
(Contact your dealer.)
Outdoor unit
No operation
(When the power is turned on immediately /
When operation is stopped and resumed
immediately)
•Operationisnotactivatedfortherstapprox.3minutes
because the compressor protection circuit is activated.
Noise occurs during heating operation.
•Defrost operation is in process.
Steam comes out during heating operation.
The fan continues to rotate even after the
operation is stopped using the remote
controller.
•This is for smooth operation.
Check before consulting or requesting services.
01_330091_EN.indb 9 2021/1/13 9:49:10

10
Symptom Cause Action
The air
conditioner does
not operate
although the
power is turned
on.
Power failure or after power failure Press the power ON/OFF button on the remote controller.
The operation (power) button is turned off.
•If the breaker is turned off, turn the power on.
•If the breaker has been tripped, consult your dealer
without turning it on.
Fuse blow out. Contact your dealer.
Poor cooling
or heating
performance
The air intake or air outlet of indoor and
outdoor units is clogged with dust. Remove the dust.
Thefanspeedswitchissetto“Low”.* Changeto“Medium”or“High”.*
Improper temperature settings
See“TipsforEnergySaving”.(P.5)
The room is exposed to direct sunlight in
cooling mode.
Doors or windows are open.
Theairlterisclogged. See“Maintenance”.(P.7)
Too many heat sources in the room in
cooling mode. Use minimum heat sources and in a short time.
Too many people in the room in cooling
mode.
Lowerthetemperaturesettingorchangeto“Medium”or
“High”.*
* Regarding the fan speed control display on the remote controller, see page 12.
If your air conditioner does not work properly even after checking each item of
“Before Requesting Services” and “Troubleshooting”
 Stop the operation immediately and turn the power off. Then contact your dealer and report the serial number and symptom.
You also report if the inspection mark and the letters E, F, H, L, P in combination with numbers appear on the LCD of the
remote controller.
 Never repair the air conditioner by yourself since it is very dangerous for you to do so.
Before Requesting Services
Troubleshooting
01_330091_EN.indb 10 2021/1/13 9:49:10

11
Connectable outdoor unit lineup
Europe
Refrigerant type : R32
Outdoor unit type 36 50 60
PZH2 1-phase U-36PZH2E5 U-50PZH2E5 U-60PZH2E5
3-phase – – –
PZ2 1-phase – – U-60PZ2E5
3-phase – – –
Outdoor unit type 71 100 125 140
PZH2 1-phase U-71PZH2E5 U-100PZH2E5 U-125PZH2E5 U-140PZH2E5
3-phase U-71PZH2E8 U-100PZH2E8 U-125PZH2E8 U-140PZH2E8
PZ2 1-phase U-71PZ2E5 U-100PZ2E5 U-125PZ2E5 U-140PZ2E5
3-phase – U-100PZ2E8 U-125PZ2E8 U-140PZ2E8
Outdoor unit type 36 50 60
PZH3 1-phase U-36PZH3E5 U-50PZH3E5 U-60PZH3E5
3-phase – – –
PZ3 1-phase U-36PZ3E5 U-50PZ3E5 U-60PZ3E5
3-phase – – –
Outdoor unit type 71 100 125 140
PZH3 1-phase U-71PZH3E5 U-100PZH3E5 U-125PZH3E5 U-140PZH3E5
3-phase U-71PZH3E8 U-100PZH3E8 U-125PZH3E8 U-140PZH3E8
PZ3 1-phase U-71PZ3E5 U-100PZ3E5 U-125PZ3E5 U-140PZ3E5
3-phase – U-100PZ3E8 U-125PZ3E8 U-140PZ3E8
01_330091_EN.indb 11 2021/1/13 9:49:10

12
Specications
Ceiling (Type T3)
Model Name S-3650PT3E S-6071PT3E S-1014PT3E
Power source (Europe) 220 - 230 - 240 V～ 50 Hz
Power source (Oceania) – 230 - 240 V～50 Hz
Cooling capacity
kW
3.5 4.0 5.0 6.0 6.8 9.5 12.1 13.4
BTU/h
11,900 13,600 17,100 20,500 23,200 32,400 41,300 45,700
Sensible kW
3.0 3.3 3.8 4.7 5.2 7.3 8.8 9.5
Latent kW
0.5 0.7 1.2 1.3 1.6 2.2 3.3 3.9
Heating capacity
kW
4.0 4.7 5.6 7.0 8.0 11.2 14.0 16.0
BTU/h
13,600 16,000 19,100 23,900 27,300 38,200 47,800 54,600
Cooling electric
power input
*
kW
0.035 0.040 0.040 0.050 0.055 0.080 0.110 0.120
Heating electric
power input
*
kW
0.035 0.040 0.040 0.050 0.055 0.080 0.110 0.120
Sound
pressure
level
**
High dB(A)
36 37 37 38 39 42 46 47
Medium dB(A)
32 33 33 34 35 37 40 41
Low dB(A)
28 28 28 29 30 34 35 36
Sound
power
level
**
High dB(A)
54 55 55 56 57 60 64 65
Medium dB(A)
50 51 51 52 53 55 58 59
Low dB(A)
46 46 46 47 48 52 53 54
Unit dimensions
(H×W×D)
mm
235×960×690 235×960×690 235×960×690 235×1,275×690 235×1,275×690 235×1,590×690 235×1,590×690 235×1,590×690
Net weight
kg
26 26 26 34 34 40 40 40
Operation condition temperature range
•Coolingmode:18°C~32°CDB•Heatingmode:16°C~30°CDB
* In the case of nanoe™ X ‘‘OFF’’
** Fan speed display on the remote controller
High : (CZ-RTC4), (CZ-RTC5B, CZ-RTC6*)
Medium : (CZ-RTC4), (CZ-RTC5B, CZ-RTC6*)
Low : (CZ-RTC4), (CZ-RTC5B, CZ-RTC6*)
Indoor unit
01_330091_EN.indb 12 2021/1/13 9:49:11

13
Outdoor unit
Single Split Outdoor Unit (R32)
Europe Model Name
U-36PZH2E5 U-50PZH2E5 U-60PZH2E5
Power source 220 - 230 - 240 V～50 Hz
Cooling capacity
kW
3.5 5.0 6.0
BTU/h
11,900 17,100 20,500
Heating capacity
kW
4.0 5.6 7.0
BTU/h
13,600 19,100 23,900
Sound pressure level
(Cooling / Heating)
dB(A)
43 / 44 45 / 48 46 / 49
Sound power level
(Cooling / Heating)
dB(A)
62 / 64 64 / 68 65 / 69
Unit dimensions
(H×W×D)
mm
695×875×320 695×875×320 695×875×320
Net weight
kg
43 43 44
Operation condition temperature range
•Coolingmode:-15°C~46°CDB•Heatingmode:-20°C~24°CDB
Europe Model Name
U-71PZH2E5 U-100PZH2E5 U-125PZH2E5 U-140PZH2E5
Power source 220 - 230 - 240 V～50 Hz
Cooling capacity
kW
6.8 9.5 12.1 13.4
BTU/h
23,200 32,400 41,300 45,700
Heating capacity
kW
8.0 11.2 14.0 16.0
BTU/h
27,300 38,200 47,800 54,600
Sound pressure level
(Cooling / Heating)
dB(A)
48 / 50 52 / 52 53 / 53 54 / 54
Sound power level
(Cooling / Heating)
dB(A)
65 / 67 69 / 69 70 / 70 71 / 71
Unit dimensions
(H×W×D)
mm 996×940×340 1,416×940×340 1,416×940×340 1,416×940×340
Net weight
kg
68 99 99 99
Europe Model Name
U-71PZH2E8 U-100PZH2E8 U-125PZH2E8 U-140PZH2E8
Power source 380 - 400 - 415 V 3N～50 Hz
Cooling capacity
kW
6.8 9.5 12.1 13.4
BTU/h
23,200 32,400 41,300 45,700
Heating capacity
kW
8.0 11.2 14.0 16.0
BTU/h
27,300 38,200 47,800 54,600
Sound pressure level
(Cooling / Heating)
dB(A)
48 / 50 52 / 52 53 / 53 54 / 54
Sound power level
(Cooling / Heating)
dB(A)
65 / 67 69 / 69 70 / 70 71 / 71
Unit dimensions
(H×W×D)
mm 996×940×340 1,416×940×340 1,416×940×340 1,416×940×340
Net weight
kg
68 99 99 99
Operation condition temperature range
•Coolingmode:-15°C~46°CDB(Type71)
:-15°C(-20°C)*~46°CDB(Type100,125,140)
*Itispossibletooperateat-20°Conlyinthecomputerroomswiththepipinglengthof30morless.
•Heatingmode:-20°C~24°CDB
Rated conditions
Cooling : Indoor intake air temp. 27°C DB / 19°C WB. Outdoor intake air temp. 35°C DB.
Heating : Indoor intake air temp. 20°C DB. Outdoor intake air temp. 7°C DB / 6°C WB.
01_330091_EN.indb 13 2021/1/13 9:49:11

14
Specications
Europe Model Name
U-60PZ2E5 U-71PZ2E5 U-100PZ2E5 U-125PZ2E5 U-140PZ2E5
Power source 220 - 230 - 240 V～50 Hz
Cooling capacity
kW
6.0 7.1 10.0 12.5 14.0
BTU/h
20,500 24,200 34,100 42,700 47,800
Heating capacity
kW
6.0 7.1 10.0 12.5 14.0
BTU/h
20,500 24,200 34,100 42,700 47,800
Sound pressure level
(Cooling / Heating)
dB(A)
46 / 48 49 / 49 52 / 52 55 / 55 56 / 56
Sound power level
(Cooling / Heating)
dB(A)
65 / 68 69 / 69 70 / 70 73 / 73 74 / 74
Unit dimensions
(H×W×D)
mm
695×875×320 695×875×320 996×980×370 996×980×370 996×980×370
Net weight
kg
44 44 90 94 94
Operation condition temperature range
•Coolingmode:-10°C~43°CDB•Heatingmode:-15°C~24°CDB
Europe Model Name
U-100PZ2E8 U-125PZ2E8 U-140PZ2E8
Power source 380 - 400 - 415 V 3N～50 Hz
Cooling capacity
kW
10.0 12.5 14.0
BTU/h
34,100 42,700 47,800
Heating capacity
kW
10.0 12.5 14.0
BTU/h
34,100 42,700 47,800
Sound pressure level
(Cooling / Heating)
dB(A)
52 / 52 55 / 55 56 / 56
Sound power level
(Cooling / Heating)
dB(A)
70 / 70 73 / 73 74 / 74
Unit dimensions
(H×W×D)
mm
996×980×370 996×980×370 996×980×370
Net weight
kg
90 94 94
Operation condition temperature range
•Coolingmode:-10°C~43°CDB•Heatingmode:-15°C~24°CDB
Rated conditions
Cooling : Indoor intake air temp. 27°C DB / 19°C WB. Outdoor intake air temp. 35°C DB.
Heating : Indoor intake air temp. 20°C DB. Outdoor intake air temp. 7°C DB / 6°C WB.
Outdoor unit
Single Split Outdoor Unit (R32)
01_330091_EN.indb 14 2021/1/13 9:49:11

15
Europe Model Name
U-36PZH3E5 U-50PZH3E5 U-60PZH3E5
Power source 220 - 230 - 240 V～50 Hz
Cooling capacity
kW
3.5 5.0 6.0
BTU/h
11,900 17,100 20,500
Heating capacity
kW
4.0 5.6 7.0
BTU/h
13,600 19,100 23,900
Sound pressure level
(Cooling / Heating)
dB(A)
43 / 44 46 / 48 47 / 50
Sound power level
(Cooling / Heating)
dB(A)
62 / 64 64 / 67 65 / 69
Unit dimensions
(H×W×D)
mm
695×875×320 695×875×320 695×875×320
Net weight
kg
42 42 43
Operation condition temperature range
•Coolingmode:-15°C~46°CDB•Heatingmode:-20°C~24°CDB
Europe Model Name
U-71PZH3E5 U-100PZH3E5 U-125PZH3E5 U-140PZH3E5
Power source 220 - 230 - 240 V～50 Hz
Cooling capacity
kW
6.8 9.5 12.1 13.4
BTU/h
23,200 32,400 41,300 45,700
Heating capacity
kW
8.0 11.2 14.0 16.0
BTU/h
27,300 38,200 47,800 54,600
Sound pressure level
(Cooling / Heating)
dB(A)
48 / 50 52 / 52 53 / 53 54 / 54
Sound power level
(Cooling / Heating)
dB(A)
65 / 67 69 / 69 70 / 70 71 / 71
Unit dimensions
(H×W×D)
mm 996×940×340 1,416×940×340 1,416×940×340 1,416×940×340
Net weight
kg
65 98 98 98
Europe Model Name
U-71PZH3E8 U-100PZH3E8 U-125PZH3E8 U-140PZH3E8
Power source 380 - 400 - 415 V 3N～50 Hz
Cooling capacity
kW
6.8 9.5 12.1 13.4
BTU/h
23,200 32,400 41,300 45,700
Heating capacity
kW
8.0 11.2 14.0 16.0
BTU/h
27,300 38,200 47,800 54,600
Sound pressure level
(Cooling / Heating)
dB(A)
48 / 50 52 / 52 53 / 53 54 / 54
Sound power level
(Cooling / Heating)
dB(A)
65 / 67 69 / 69 70 / 70 71 / 71
Unit dimensions
(H×W×D)
mm 996×940×340 1,416×940×340 1,416×940×340 1,416×940×340
Net weight
kg
65 98 98 98
Operation condition temperature range
•Coolingmode:-15°C~48°CDB(Type71)
:-15°C(-20°C)*~48°CDB(Type100,125,140)
*Itispossibletooperateat-20°Conlyinthecomputerroomswiththepipinglengthof30morless.
•Heatingmode:-20°C~24°CDB
Rated conditions
Cooling : Indoor intake air temp. 27°C DB / 19°C WB. Outdoor intake air temp. 35°C DB.
Heating : Indoor intake air temp. 20°C DB. Outdoor intake air temp. 7°C DB / 6°C WB.
Outdoor unit
Single Split Outdoor Unit (R32)
01_330091_EN.indb 15 2021/1/13 9:49:11

16
Specications
Outdoor unit
Single Split Outdoor Unit (R32)
Europe Model Name
U-36PZ3E5 U-50PZ3E5 U-60PZ3E5 U-71PZ3E5
Power source 220 - 230 - 240 V～50 Hz
Cooling capacity
kW
3.5 5.0 6.0 6.8
BTU/h
11,900 17,100 20,500 23,200
Heating capacity
kW
3.5 5.0 6.0 6.8
BTU/h
11,900 17,100 20,500 23,200
Sound pressure level
(Cooling / Heating)
dB(A)
46 / 47 46 / 46 47 / 48 48 / 49
Sound power level
(Cooling / Heating)
dB(A)
64 / 66 64 / 64 64 / 65 66 / 68
Unit dimensions
(H×W×D)
mm
619×824×299 619×824×299 695×875×320 695×875×320
Net weight
kg
32 35 42 50
Operation condition temperature range
•Coolingmode:-10°C~43°CDB•Heatingmode:-15°C~24°CDB
Europe Model Name
U-100PZ3E5 U-125PZ3E5 U-140PZ3E5 U-100PZ3E8 U-125PZ3E8 U-140PZ3E8
Power source 220 - 230 - 240 V～50 Hz 380 - 400 - 415 V 3N～50 Hz
Cooling capacity
kW
10.0 12.5 14.0 10.0 12.5 14.0
BTU/h
34,100 42,700 47,800 34,100 42,700 47,800
Heating capacity
kW
10.0 12.5 14.0 10.0 12.5 14.0
BTU/h
34,100 42,700 47,800 34,100 42,700 47,800
Sound pressure level
(Cooling / Heating)
dB(A)
52 / 52 55 / 55 56 / 56 52 / 52 55 / 55 56 / 56
Sound power level
(Cooling / Heating)
dB(A)
70 / 70 73 / 73 74 / 74 70 / 70 73 / 73 74 / 74
Unit dimensions
(H×W×D)
mm
996 × 980 × 370 996
× 980 × 370 996 × 980 × 370 996
× 980 × 370 996 × 980 × 370 996
× 980 × 370
Net weight
kg
83 87 87 83 87 87
Operation condition temperature range
•Coolingmode:-10°C~43°CDB•Heatingmode:-15°C~24°CDB
Rated conditions
Cooling : Indoor intake air temp. 27°C DB / 19°C WB. Outdoor intake air temp. 35°C DB.
Heating : Indoor intake air temp. 20°C DB. Outdoor intake air temp. 7°C DB / 6°C WB.
01_330091_EN.indb 16 2021/1/13 9:49:11

Panasonic Corporation
http://www.panasonic.com
© Panasonic Corporation 2020-2021 WEB-ACXF55-28660-EN
DC1020-10121
Authorised representative in EU
Panasonic Testing Centre
Panasonic Marketing Europe GmbH
Winsbergring 15, 22525 Hamburg, Germany
01_330091_EN.indb 17 2021/1/13 9:49:11
