Panasonic KX-TG2248S - 2.4 GHz Digital Cordless Phone Answering... User manual

Service Manual
TOP NEXT
ORDER NO. KM40303044C1
F12
Telephone Equipment
 KX-TG2248S
2.4GHz Digital Cordless Answering System
Silver Version
(for U.S.A.)
Page
1
of
2
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s0000000000.html

©
2003 Panasonic Communications Co., Ltd. All rights reserved. Unauthorized copying and distribution
is a violation of law.
TOP
NEXT
Page
2
of
2
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s0000000000.html

Page
1
of
1
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/25_00_01.gif

Page
1
of
1
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/26_00_01.gif

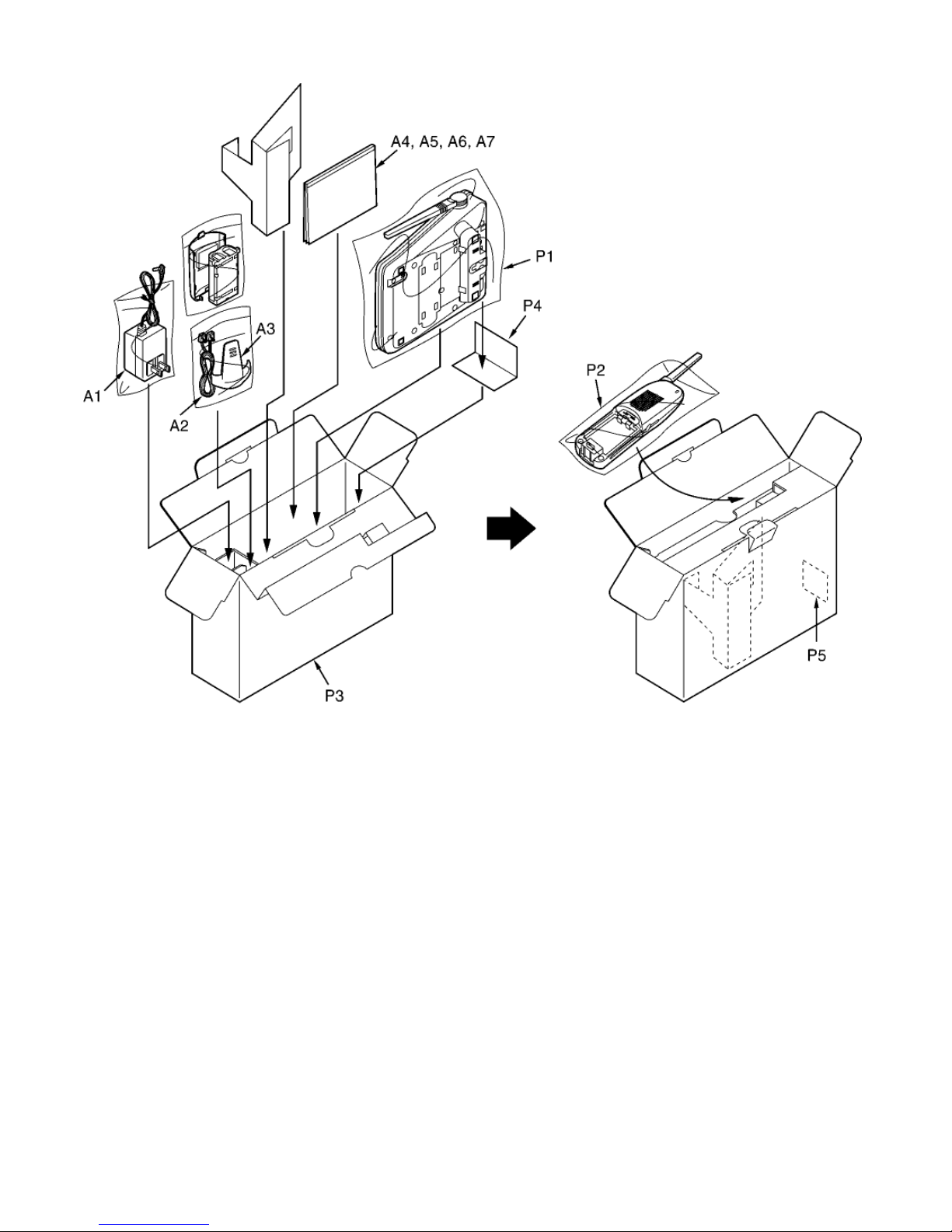

Page
1
of
1
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/27_00_01.gif

29.1.1 Cabinet and Electrical Parts
TOP PREVIOUS NEXT
TOP
PREVIOUS
NEXT
Ref. No. Part No. Part Name & Description Remarks
1PQQT22574Y LABEL, TAM
2PQKE10131Z7 HANGER, LEVER PC+ABS-HB
3PQUS10285Z SPRING, HOOK
4PQKE10134Z1 HANGER, KNOB POM-HB
5PQGP10233Z1 PANEL, LCD AS-HB
6PQHS10569Z TAPE, DOUBLE SIDE
7PQKM10602Z1 CABINET BODY PS-HB
8PQWE10027Z BATTERY TERMINAL, CHARGE
9PQAS5P13Y SPEAKER
10 PQSA10098X ANTENNA
11 PQBX10370Z1 BUTTON, TAM ABS-HB
12 PQBC10382Z1 BUTTON, MESSAGE AS-HB
13 PQHR10981Z GUIDE, LED ABS-HB
14 PQSX10234Z KEYBOARD SWITCH, TAM
15 PQSX10238Z KEYBOARD SWITCH, FUNCTION
16 PQXDZLDRS1 LABEL, SECURITY TAG
17 PQHS10562Z FELT PARTS, TAPE
18 PQHS10610Z FELT PARTS, TAPE
19 PQMG10025Z RUBBER PARTS, MIC COVER
20 PQHS10192Z FELT PARTS, TAPE
21 PQJE10128Z LEAD WIRE, FFC
22 PQKF10592Z1 CABINET COVER PS-HB
23 PQHA10017Z RUBBER PARTS, LEG
24 PQHA10018Z RUBBER PARTS, FOOT
25 PQKL10053Z1 STAND, WALL MOUNT ADAPTOR ABS-HB
26 PQGT15684Z NAME PLATE
Page
1
of
1
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2901010000.html

29.1.2 Main P.C. Board Parts
TOP PREVIOUS NEXT
Ref. No. Part No. Part Name & Description Remarks
PCB1 PQWP1TG2248H MAIN P.C.BOARD ASS´Y (RTL)
(ICs)
IC100 C0CBABD00036 IC
IC101 C0CBABD00017 IC
IC201 C2HBBK000002 IC
IC300 PQWITG2248SH IC
IC331 PQVIPS3436UT IC
IC332 C0EBE0000283 IC
IC801 C1CB00001486 IC
(TRANSISTORS)
Q1 2SD874A TRANSISTOR(SI)
Q3 B1BBAP000011 TRANSISTOR(SI)
Q4 B1BDBP000002 TRANSISTOR(SI)
Q6 2SD1819A TRANSISTOR(SI)
Q50 2SD1819A TRANSISTOR(SI)
Q150 2SD1758Q TRANSISTOR(SI) S
Q151 2SD1819A TRANSISTOR(SI)
Q260 2SC3930C TRANSISTOR(SI)
(DIODES)
D1 PQVDRLZ2R0 DIODE(SI) S
D2 PQVDRLZ20A DIODE(SI) S
D3 MA111 DIODE(SI)
D4 PQVDMD5S DIODE(SI)
D5 B0JCME000035 DIODE(SI)
D101 PQVDHRU0302A DIODE(SI) S
D102 PQVDHRU0302A DIODE(SI) S
D103 PQVDHRU0302A DIODE(SI) S
D152 MA8220 DIODE(SI)
D153 MA8220 DIODE(SI)
D202 MA111 DIODE(SI)
D205 MA111 DIODE(SI)
D801 MA27P0700L DIODE(SI)
D802 MA27P0700L DIODE(SI)
(COILS)
L1 PQLQXF330K COIL S
L2 PQLQXF330K COIL S
L3 PQLQXF3R3K COIL S
L150 G1C6R8MA0072 COIL
L151 G1C6R8MA0072 COIL
Page
1
of
7
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2901020000.html

L200 PQLQR2KA213 COIL S
L801 MQLRF10NJF COIL
L802 MQLRF3N9DF COIL
L803 MQLRF2N7DF COIL
L804 MQLRF10NJF COIL
L805 MQLRF2N2DF2 COIL
L806 MQLRF10NJF COIL
L807 PQLQR4D1R0K COIL S
(JACK AND CONNECTOR)
CN1 PQJJ2H003Z JACK SOCKET S
CN100 PQJS30A12Z CONNECTOR S
(VARISTORS)
SA1 PQVDDSS301L VARISTOR (SURGE ABSORBER) S
SA2 PQVDDSS301L VARISTOR (SURGE ABSORBER) S
(RESISTORS)
R1 ERJ2GEJ122 1.2k
R2 ERJ2GEJ681 680
R3 ERJ2GEJ470 47
R5 ERJ12YJ330 33
R7 ERJ3GEYJ393 39k
R8 ERJ3GEY0R00 0
R10 ERJ3GEYJ102 1k
R13 ERJ3GEYJ473 47k
R14 ERJ3GEYJ394 390k
R15 ERJ3GEYJ394 390k
R17 ERJ3GEYJ473 47k
R18 ERJ3GEYJ103 10k
R19 PQ4R10XJ000 0 S
R20 ERJ3GEYJ104 100k
R21 ERJ3GEYJ103 10k
R23 ERJ3GEYJ106 10M
R24 ERJ3GEYJ105 1M
R25 ERJ3GEYJ106 10M
R26 ERJ3GEYJ472 4.7k
R29 ERJ3GEYJ335 3.3M
R30 ERJ3GEYJ104 100k
R31 ERJ3GEYJ104 100k
R51 ERJ3GEYJ470 47
R52 ERJ3GEYJ394 390k
R55 ERJ2GEJ102 1k
R57 ERJ2GE0R00 0
R70 ERJ3GEYJ392 3.9k
R105 ERJ3GEYJ104 100k
R108 PQ4R10XJ000 0 S
R109 ERJ3GEYJ334 330k
R112 ERJ3GEYJ273 27k
Page
2
of
7
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2901020000.html

R150 ERJ3GEYJ104 100k
R151 ERJ3GEYJ331 330
R152 ERJ3GEYJ391 390
R153 PQ4R10XJ150 15 S
R154 PQ4R10XJ120 12 S
R155 PQ4R10XJ120 12 S
R156 PQ4R10XJ120 12 S
R157 ERJ12YJ221 220
R159 ERJ3GEYJ103 10k
R160 ERJ3GEYJ563 56k
R161 ERJ3GEYJ273 27k
R200 ERJ3GEYJ101 100
R201 ERJ3GEYJ101 100
R202 ERJ2GEJ472X 4.7k
R203 ERJ3GEYJ472 4.7k
R204 ERJ2GEJ121 120
R205 ERJ2GEJ391 390
R206 ERJ2GEJ821 820
R207 ERJ2GEJ680 68
R212 ERJ3GEYJ102 1k
R213 ERJ2GEJ102 1k
R214 ERJ3GEYJ102 1k
R215 ERJ2GEJ122 1.2k
R216 ERJ2GEJ122 1.2k
R217 ERJ3GEYJ394 390k
R218 ERJ3GEYJ123 12k
R219 ERJ3GEYJ103 10k
R220 ERJ2GEJ101 100
R222 ERJ2GEJ333 33k
R223 ERJ2GEJ222 2.2k
R224 ERJ3GEYJ394 390k
R227 ERJ3GEYJ222 2.2k
R230 ERJ2GE0R00 0
R231 ERJ2GE0R00 0
R232 ERJ2GE0R00 0
R234 ERJ2GE0R00 0
R235 ERJ2GEJ102 1k
R236 ERJ2GEJ181 180
R237 ERJ2GEJ181 180
R238 ERJ2GEJ181 180
R245 ERJ2GE0R00 0
R251 ERJ3GEYJ102 1k
R252 ERJ2GEJ102 1k
R260 ERJ2GEJ471 470
R261 ERJ2GEJ471 470
R262 ERJ2GEJ104 100k
R263 ERJ2GEJ101 100
Page
3
of
7
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2901020000.html

R264 ERJ2GEJ182 1.8k
R300 ERJ2GE0R00 0
R400 ERJ2GEJ332 3.3k
R433 ERJ2GEJ102 1k
R801 ERJ2GEJ100 10
R802 ERJ2GEJ100 10
R803 ERJ2GEJ100 10
R804 ERJ2GEJ4R7 4.7
R805 ERJ2GEJ331 330
R810 ERJ3GEYF103 10k
L203 PQ4R10XJ000 0 S
L204 PQ4R10XJ000 0 S
(CAPACITORS)
C1 EEE1CA100SR 10
C3 ECUE1A473KBQ 0.047
C4 ECUV1H101JCV 100p
C6 ECUV1H103KBV 0.01
C8 EEE1HA010SR 1
C9 ECUV1H103KBV 0.01 S
C11 ECUV1H681JCV 680p S
C12 ECUV1H681JCV 680p S
C13 ECUE1H102KBQ 0.001 S
C14 ECUV1H103KBV 0.01
C15 PQCUV1A684KB 0.68
C16 PQCUV1H154KR 0.15
C17 PQCUV1H154KR 0.15
C18 F1K2J681A006 680p
C19 F1K2J681A006 680p
C21 ECUV1H103KBV 0.01
C55 ECUV1H102KBV 0.001 S
C58 ECUE1A104KBQ 0.1
C100 ECUE1C104ZFQ 0.1
C101 EEE0JA101SP 100p
C103 EEE0JA331P 330p
C106 ECUE1C104ZFQ 0.1
C110 ECUV1C104ZFV 0.1
C111 PQCUV1H104ZF 0.1 S
C112 EEE1CA101WP 100p
C114 EEE1CA101WP 100p
C150 ECUV1C104ZFV 0.1
C200 ECUE1C104ZFQ 0.1
Page
4
of
7
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2901020000.html

C201 ECUV1H681JCV 680p S
C207 ECUE1C104ZFQ 0.1
C213 ECUE1C104ZFQ 0.1
C214 ECUE1H101JCQ 100p
C215 ECUE1H101JCQ 100p
C216 ECUE1H101JCQ 100p
C217 ECUV1H101JCV 100p
C218 ECUV1H101JCV 100p
C219 ECUE1H101JCQ 100p
C220 ECUE1H101JCQ 100p
C227 ECUE1H5R0CCQ 5
C228 ECUE1H5R0CCQ 5
C230 ECUV1A106ZF 10 S
C231 ECUE1C104ZFQ 0.1
C232 ECUV1H101JCV 100p
C233 ECUV1H101JCV 100p
C234 ECUE1E103ZFQ 0.01
C235 ECUE1C103KBQ 0.01
C236 ECUV1H103KBV 0.01
C237 EEE1CA100SR 1
C238 ECUE1E103ZFQ 0.01
C239 EEE0JA221WP 220p
C241 ECUV1C104ZFV 0.1
C242 ECUE1H272KBQ 0.0027
C244 ECUE1A104KBQ 0.1
C245 ECUV1H121JCV 120p
C250 ECUV1C473KBV 0.047
C251 ECUE1C104ZFQ 0.1
C252 ECUE1C104ZFQ 0.1
C260 ECUE1C104ZFQ 0.1
C261 ECUE1H3R0CCQ 3
C262 ECUE1A104KBQ 0.1
C263 ECUE1A104KBQ 0.1
C300 ECUE1H101JCQ 100p
C301 ECUE1H101JCQ 100p
C302 ECUE1H101JCQ 100p
C303 ECUE1H101JCQ 100p
C304 ECUE1H101JCQ 100p
C305 ECUE1H101JCQ 100p
C309 ECUE1C104ZFQ 0.1
C401 ECUE1E103ZFQ 0.01
Page
5
of
7
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2901020000.html

C402 ECUE1C104ZFQ 0.1
C404 ECUE1H101JCQ 100p
C405 ECUE1H330JCQ 33p
C406 ECUE1H101JCQ 100p
C410 ECUE1H101JCQ 100p
C411 ECUE1H101JCQ 100p
C412 ECUE1H101JCQ 100p
C415 EEE0JA221WP 100p
C416 ECUE1H100DCQ 10P
C420 ECUE1H101JCQ 100p
C421 ECUE1H101JCQ 100p
C430 ECUE1H471KBQ 470p
C450 EEE0JA101SP 100p
C453 ECUE1H030CCQ 3p
C723 ECUE1A823KBQ 0.082
C801 ECUE1H102KBQ 0.001 S
C802 ECUE1H1R0CCQ 1
C803 ECUE1H100DCQ 10P
C804 ECUE1H1R0CCQ 1
C805 ECUE1H100DCQ 10P
C807 ECUE1H100DCQ 10P
C811 ECUE1H100DCQ 10P
C813 ECUE1H100DCQ 10P
C814 ECUE1H1R5CCQ 1.5
C815 ECUE1H100DCQ 10P
C816 ECUE1H100DCQ 10P
C817 ECUE1C104ZFQ 0.1
C818 ECUE1C104ZFQ 0.1
C819 ECUE1H391KBQ 390p
C820 ECUE1C104ZFQ 0.1
C821 ECUE1H102KBQ 0.001 S
C822 ECUE1H1R0CCQ 1
C823 ECST0JY106 10
C824 ECUE1H102KBQ 0.001 S
C825 ECUE1H681KBQ 680p
C827 ECUE1H102KBQ 0.001 S
Page
6
of
7
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2901020000.html

TOP
PREVIOUS
NEXT
C828 ECUE1H102KBQ 0.001 S
C829 ECUE1H102KBQ 0.001 S
C830 ECUV1A105ZFV 1
C831 ECUV1A105ZFV 1
C833 ECST0JY106 10
C856 ECUE1H2R0CCQ 2
C857 ECUE1H2R0CCQ 2
C858 ECUE1H2R0CCQ 2
C859 ECUE1H2R0CCQ 2
C860 ECUE1H100DCQ 10P
C861 ECUE1H2R0CCQ 2
C862 ECUE1H100DCQ 10P
C863 ECUE1H100DCQ 10P
C865 ECUE1H221JCQ 220p
C866 ECUE1C103KBQ 0.01
C867 ECUE1H2R0CCQ 2
C869 ECUE1H2R0CCQ 2
R806 ECUE1H100DCQ 10P
(OTHERS)
E1 PQMC10471Z MAGNETIC SHIELD, FRAME
E2 PQMC10472Z MAGNETIC SHIELD, COVER
FL801 J0E2457B0008 LCR FILTER
POS1 PQRPAR390N THERMISTOR, POSISTOR S
RA201 EXRV8V472JV RESISTOR ARRAY S
X200 H0J819400004 CRYSTAL OSCILLATOR
Page
7
of
7
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2901020000.html

29.1.3 Operational P.C.Board Part
TOP PREVIOUS NEXT
TOP
PREVIOUS
NEXT
Ref. No. Part No. Part Name & Description Remarks
PCB2 PQWP2TG2248H OPERATIONAL P.C.BOARD ASS´Y (RTL)
(DIODES)
LED900 PQVDSML210MT LED
LED902 PQVDSML210L LED S
LED903 PQVDEL1921SR LED
(RESISTORS)
R900 ERJ3GEYJ104 100k
R901 ERJ3GEYJ104 100k
R902 ERJ3GEYJ104 100k
R903 ERJ3GEYJ104 100k
R904 ERJ3GEY0R00 0
R905 ERJ3GEY0R00 0
(CAPACITORS)
C900 ECUV1H101JCV 100p
C901 ECUV1H101JCV 100p
(OTHERS)
CN901 PQJS30A12Z CONNECTOR S
E3 L0CBAB000044 MICROPHONE
E4 L5DCBCB00012 LIQUID CRYSTAL DISPLAY
E5 PQHS10327Z TAPE, DOUBLE SIDE (LCD)
E6 PQHR10982Z GUIDE, LCD PS-HB
Page
1
of
1
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2901030000.html

29.2.1 Cabinet and Electrical Parts
TOP PREVIOUS NEXT
TOP
PREVIOUS
NEXT
Ref. No. Part No. Part Name & Description Remarks
101 PQGP10235Z1 PANEL, LCD AS-HB
102 PQHS10576Z TAPE, DOUBLE SIDE (PANEL)
103 PQKE10360Z1 SPACER, SP RING AS-HB
104 PQHS10572Z TAPE, DOUBLE SIDE (RING)
105 PQHR10985Z OPTIC CONDUCTIVE PARTS, LED LENS (UPPER) PS-HB
106 PQSA10125Z ANTENNA
107 PQKM10601Z1 CABINET BODY ABS-HB
108 PQGT16043Z NAME PLATE
109 PQBC10383Z1 BUTTON, VOLUME KEY AS-HB
110 PQSX10237Z KEYBOARD SWITCH
111 PQHS10573Z SPACER, CUSHION LCD
112 PQQT22570Y LABEL, BATTERY
113 HHR-P513 BATTERY, NI-MH
114 PQHE10143Z SPACER, BATTERY
115 PQHS10592Z SPACER, SPEAKER
116 L0AD02A00014 SPEAKER
117 PQHR10984Z GUIDE, SPEAKER ABS-HB
118 PQWE10028Z BATTERY TERMINAL, CHARGE
119 PQJT10207Z TERMINAL, CHARGE (L)
120 PQJT10208Z TERMINAL, CHARGE (R)
121 PQHR10778Z GUIDE, SPEAKER ABS-HB
122 PQAS3P07Y SPEAKER
123 PQHG10666Z SPACER, SP RUBBER SHEET
124 PQHS10457Z COVER, SPEAKER
125 PQKF10594Z1 CABINET COVER ABS-HB
126 PQKE10359Z1 COVER, HEADSET
127 PQHR10986Z OPTIC CONDUCTIVE PARTS, LED LENS (LOWER) PS-HB
128 PQKK10138Z1 LID, BATTERY ABS-HB
Page
1
of
1
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2902010000.html

29.2.2 Main P.C. Board Parts
TOP PREVIOUS NEXT
Ref. No. Part No. Part Name & Description Remarks
PCB100 PQWPTG2258SR MAIN P.C.BOARD ASS´Y (RTL)
(ICs)
IC201 C2HBBJ000027 IC
IC202 PQWITG2224WR IC
IC203 C0CBABD00019 IC
IC204 PQVIMM1385HN IC
IC205 C0EBE0000292 IC
IC801 C1CB00001486 IC
(TRANSISTORS)
Q201 PQVTDTC143E TRANSISTOR(SI) S
Q202 PQVTDTC143E TRANSISTOR(SI) S
Q204 2SC3930C TRANSISTOR(SI)
Q205 2SD1819A TRANSISTOR(SI)
Q206 PQVTDTC143E TRANSISTOR(SI) S
Q207 2SD1819A TRANSISTOR(SI)
Q212 PQVTXP151A13 TRANSISTOR(SI) S
(DIODES)
D205 B0JCMD000017 DIODE(SI)
D206 B0JCMD000017 DIODE(SI)
D207 B0JCMD000017 DIODE(SI)
D208 B0JCMD000017 DIODE(SI)
D214 MA111 DIODE(SI)
D216 MA111 DIODE(SI)
D217 PQVDEP10LA03 DIODE(SI) S
D801 MA27P0700L DIODE(SI)
D802 MA27P0700L DIODE(SI)
LED201 PQVDSML310MT LED S
LED202 PQVDSML310MT LED S
LED203 PQVDSML310MT LED S
LED204 PQVDSML310MT LED S
LED205 PQVDSML310MT LED S
LED206 PQVDSML310MT LED S
LED207 PQVDSML310MT LED S
LED210 PQVDEL1921SR LED
LED211 PQVDEL1921SR LED
(COILS)
Page
1
of
5
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2902020000.html

L203 J0JCC0000186 COIL
L205 PQLQR4RB601D COIL
L206 PQLQR4RB601D COIL
L207 PQLQR4RB601D COIL
L208 PQLQR4RB601D COIL
L209 PQLQR4RB601D COIL
L210 PQLE1G5K3220 COIL S
L801 MQLRF10NJF COIL
L802 MQLRF3N9DF COIL
L803 MQLRF2N7DF COIL
L804 MQLRF10NJF COIL
L805 MQLRF2N2DF2 COIL
L806 MQLRF10NJF COIL
L807 PQLQR4D1R0K COIL S
R242 PQLQR4RB601D COIL
R243 PQLQR4RB601D COIL
(CONNECTOR AND JACK)
CN201 PQJS22A12Z CONNECTOR, FFC S
CN203 K2HD103D0001 JACK
(RESISTORS)
R201 ERJ3GEYJ101 100
R202 ERJ3GEYJ101 100
R203 ERJ3GEYJ101 100
R204 ERJ3GEYJ101 100
R205 ERJ3GEYJ820 82
R206 ERJ3GEYJ820 82
R207 ERJ3GEYJ820 82
R209 ERJ2GEJ102 1K
R210 ERJ2GEJ103 10K
R212 ERJ2GEJ101 100
R213 ERJ2GEJ101 100
R215 ERJ2GEJ151 150
R216 ERJ3GEYJ561 560
R217 ERJ3GEYF434 430K S
R218 ERJ3GEYF824 820K S
R222 ERJ2GEJ101 100
R223 ERJ2GEJ102 1K
R224 ERJ3GEYJ103 10K
R228 ERJ2GEJ224 220K
R229 ERJ2GEJ102 1K
R230 ERJ2GEJ102 1K
R231 ERJ2GEJ102 1K
R232 ERJ3GEYJ103 10K
R233 ERJ2GE0R00 0
R234 ERJ2GEYF225 2.2M
R235 ERJ2GEYF225 2.2M
R237 ERJ2GEJ104 100K
Page
2
of
5
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2902020000.html

R240 ERJ3GEY0R00 0
R244 ERJ2GEJ473 47K
R245 ERJ2GEJ103 10K
R246 ERJ2GEJ393X 39K
R247 ERJ2GEJ182 1.8K
R248 ERJ2GEJ393X 39K
R249 ERJ2GEJ122 1.2K
R250 ERJ2GEJ122 1.2K
R253 ERJ2GEJ222 2.2K
R265 ERJ2GEJ103 10K
R270 ERJ2GEJ104 100K
R276 ERJ2GEJ471 470
R277 ERJ2GEJ471 470
R278 ERJ2GEJ104 100K
R279 ERJ2GEJ101 100
R280 ERJ2GEJ182 1.8K
R281 ERJ2GEJ104 100K
R302 ERJ2GEJ470 47
R303 ERJ2GEJ470 47
R306 ERJ2GEJ104 100K
R325 ERJ2GEYF185 1.8M
R326 ERJ2GEYF105 1M
R801 ERJ2GEJ100 10
R802 ERJ2GEJ100 10
R803 ERJ2GEJ100 10
R804 ERJ2GEJ4R7 4.7
R805 ERJ2GEJ331 330
R810 ERJ3GEYF103 10K S
(CAPACITORS)
C203 ECUE1C104ZFQ 0.1
C205 ECUE1H101JCQ 100P
C206 ECUV1C104KBV 0.1
C207 ECUV1C104KBV 0.1
C208 ECUV1C104KBV 0.1
C209 ECUV1C104KBV 0.1
C210 ECUV1C104KBV 0.1
C211 ECUV1A474KBV 0.47
C212 ECUV1A474KBV 0.47
C213 EEE0JA331P 330P
C214 ECUE1C104ZFQ 0.1
C215 ECUV1A474KBV 0.47
C217 ECUE0J105ZFQ 1
C218 ECUE1C104ZFQ 0.1
C220 EEE0JA101SP 100P
C221 ECUE1C104ZFQ 0.1
Page
3
of
5
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2902020000.html

C223 ECST0JY106 10
C224 ECUE1C104ZFQ 0.1
C226 ECUE1C104ZFQ 0.1
C228 ECUE1C104ZFQ 0.1
C229 ECUE1C104ZFQ 0.1
C230 ECUE1A333KBQ 0.033
C231 ECUV1A224KBV 0.22
C232 ECUE1A333KBQ 0.033
C233 ECUV1A105ZFV 1
C236 ECUE1H4R0CCQ 4
C237 ECUE1H4R0CCQ 4
C243 ECUE1C103KBQ 0.01
C244 ECUE1C104ZFQ 0.1
C255 ECUV1A224KBV 0.22
C257 ECST0JY226 22
C267 ECST0JY226 22
C274 ECUE1C104ZFQ 0.1
C277 ECUE1A823KBQ 0.082
C291 ECUE1C104ZFQ 0.1
C293 ECUE1H221JCQ 220P
C294 ECUE1C104ZFQ 0.1
C298 ECUE1H101JCQ 100P
C299 ECUE1H101JCQ 100P
C303 ECUV1A106ZF 10 S
C304 ECUE1C104ZFQ 0.1
C306 ECUE1C104ZFQ 0.1
C307 ECUE1A104KBQ 0.1
C308 ECUE1H3R0CCQ 3
C309 ECUE1A104KBQ 0.1
C318 EEEFK0J331P 330P
C801 ECUE1H102KBQ 0.001 S
C802 ECUE1H1R0CCQ 1
C803 ECUE1H100DCQ 10P
C804 ECUE1H1R0CCQ 1
C805 ECUE1H100DCQ 10P
C807 ECUE1H100DCQ 10P
C811 ECUE1H100DCQ 10P
C813 ECUE1H100DCQ 10P
C814 ECUE1H1R5CCQ 1.5
C815 ECUE1H100DCQ 10P
C816 ECUE1H100DCQ 10P
C817 ECUE1C104ZFQ 0.1
Page
4
of
5
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2902020000.html

TOP
PREVIOUS
NEXT
C818 ECUE1C104ZFQ 0.1
C819 ECUE1H391KBQ 390P
C820 ECUE1C104ZFQ 0.1
C821 ECUE1H102KBQ 0.001 S
C822 ECUE1H1R0CCQ 1
C823 ECST0JY106 10
C824 ECUE1H102KBQ 0.001 S
C825 ECUE1H681KBQ 680P
C827 ECUE1H102KBQ 0.001 S
C828 ECUE1H102KBQ 0.001 S
C829 ECUE1H102KBQ 0.001 S
C830 ECUV1A105ZFV 1
C831 ECUV1A105ZFV 1
C833 ECST0JY106 10
C856 ECUE1H2R0CCQ 2
C857 ECUE1H2R0CCQ 2
C858 ECUE1H2R0CCQ 2
C859 ECUE1H2R0CCQ 2
C860 ECUE1H100DCQ 10P
C861 ECUE1H2R0CCQ 2
C862 ECUE1H100DCQ 10P
C863 ECUE1H100DCQ 10P
C865 ECUE1H221JCQ 220P
C866 ECUE1C103KBQ 0.01
C867 ECUE1H2R0CCQ 2
C869 ECUE1H2R0CCQ 2
L201 ECUE1H100DCQ 10P
R806 ECUE1H100DCQ 10P
(OTHERS)
E101 L0CBAB000044 MICROPHONE
E102 L5DCBDC00009 LIQUID CRYSTAL DISPLAY
E103 PQHX11186Z SPACER, LCD
E104 PQHR10983Z GUIDE, LCD PC+ABS-HB
E105 PQMC10471Z MAGNETIC SHIELD, FRAME
E106 PQMC10472Z MAGNETIC SHIELD, COVER
FL801 J0E2457B0008 LCR FILTER
RA201 EXRV8V104JV RESISTOR ARRAY S
X201 H0J819400004 CRYSTAL OSCILLATOR
Page
5
of
5
5/12/2008
http://tsn.pstc.panasonic.com/viewing/NA/KX
-
TG2248S/SVC/s2902020000.html
