Panasonic NV-DS29EG User manual

ORDERNO. VMD0202007C8
Digital Video Camcorder

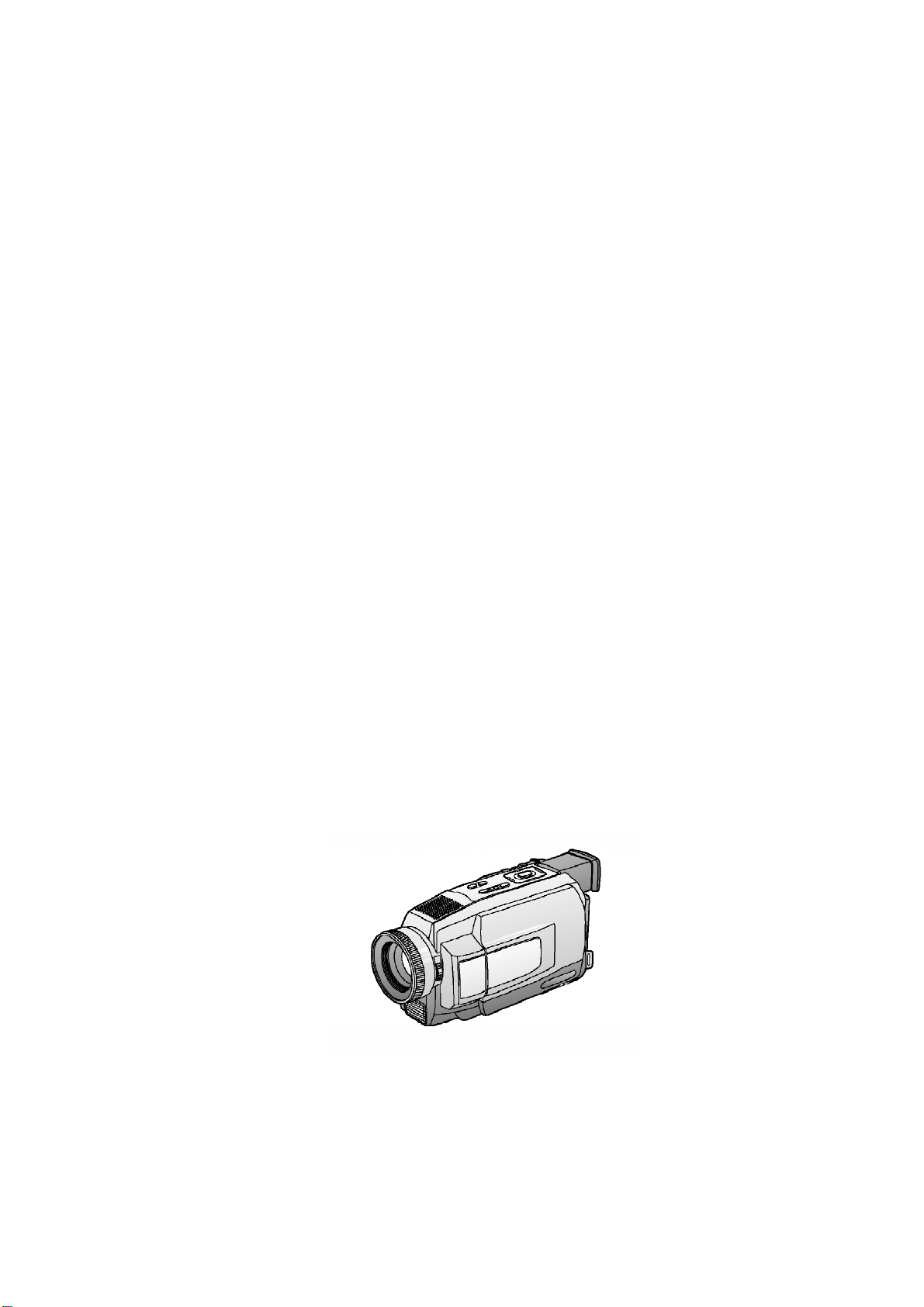

NV-DS29EG
NV-DS29EGM / NV-DS29B/ NV-DS29EGE/ NV-DS30EG / NV-
DS30EGM/ NV-DS30B/ NV-DS30EGE/ NV-DS30EN/ NV-DS30ENT/
NV-DS30ENC / NV-DS30A/ NV-DS50EN/ NV-DS50ENT/ NV-DS50A
VOL.1

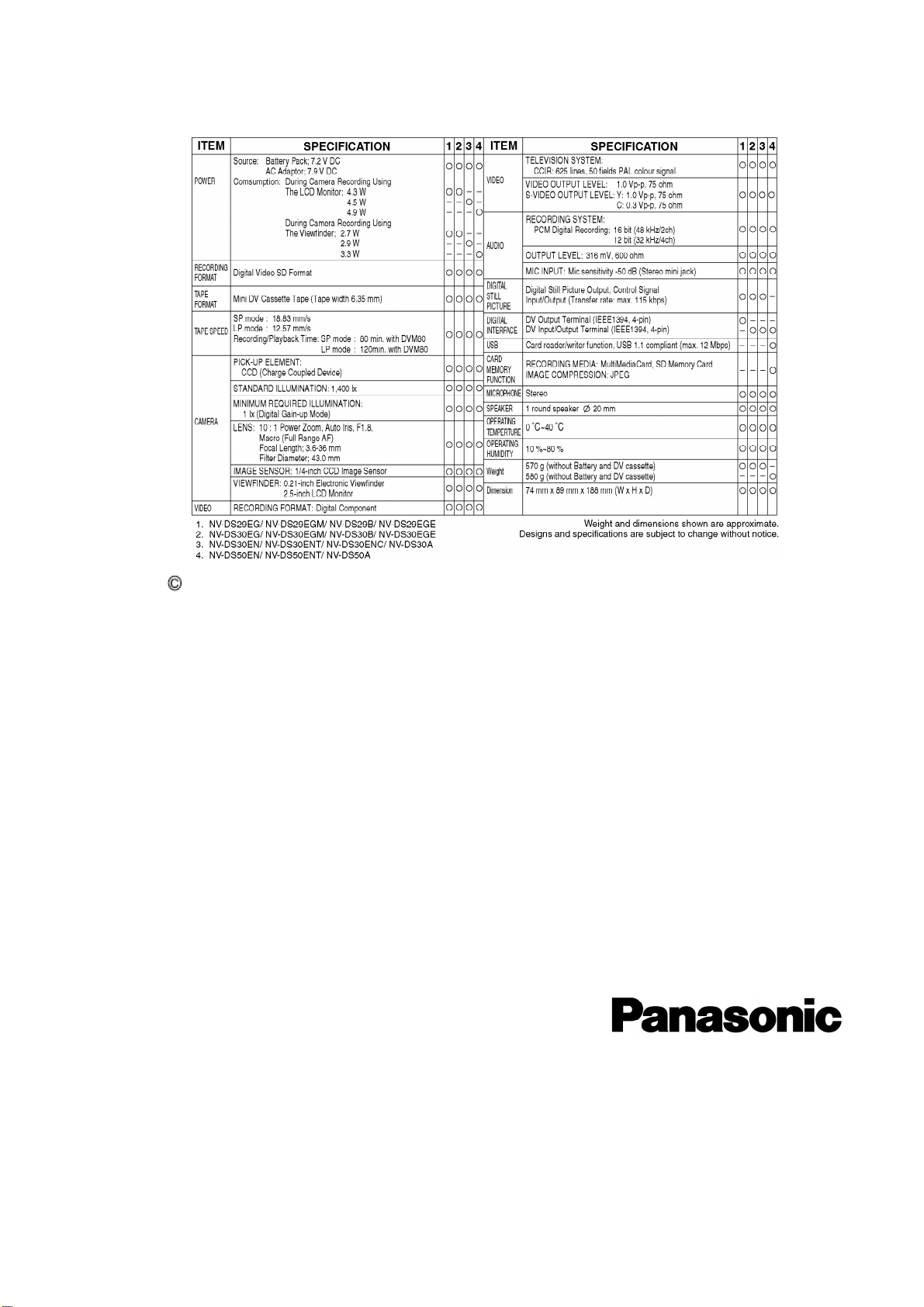

SPECIFICATIONS
1

2002 Matsushita ElectricIndustrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution isaviolation of law.
1. SAFETY PRECAUTIONS
GENERALGUIDELINES
1. IMPORTANTSAFETY NOTICE
There are special components used inthisequipment which are
2

important for safety. These parts are marked byinthe
SchematicDiagrams, CircuitBoard Layout, Exploded Viewsand
Replacement Parts List. Itisessential that these critical parts
shouldbe replaced with manufacturer’sspecified parts to prevent
X-RADIATION, shock, fire, or other hazards. Donot modifythe
original design without permission of manufacturer.
2. AnIsolation Transformer shouldalwaysbe used during the
servicing of AC Adaptor whose chassisisnot isolated from the
AC power line. Use atransformer of adequate power rating as this
protects the technician from accidents resulting inpersonal injury
from electrical shocks. Itwill also protect AC Adaptor from being
damaged byaccidental shorting that mayoccur during servicing.
3. When servicing, observe the original lead dress. Ifashort circuit
isfound, replace all parts which have been overheated or
damaged bythe short circuit.
4. After servicing, see to itthat all the protective devices such as
insulation barriers, insulation papers shields are properly
installed.
5. After servicing, make the following leakage current checks to
prevent the customer from being exposed to shock hazards.
LEAKAGE CURRENTCOLD CHECK
1. Unplug the AC cord and connect ajumper between the two
prongs on the plug.
2. Measure the resistance value, with an ohmmeter, between the
jumpered AC plug and each exposed metalliccabinet part on the
equipment such as screwheads, connectors, control shafts, etc.
When the exposed metallicpart has areturn path to the chassis,
the reading shouldbe between 1M and 5.2M . When the
exposed metal does not have areturn path to the chassis, the
reading must be infinity.
LEAKAGE CURRENTHOTCHECK
(See Figure 1.)
1. Plug the AC cord directlyinto the AC outlet. Donot use an
isolation transformer for thischeck.
2. Connect a1.5k , 10 Wresistor, inparallel with a0.15 F
3

capacitor, between each exposed metallicpart on the set and a
good earth ground, as showninFigure 1.
3. Use an AC voltmeter, with 1k /Vor more sensitivity, to measure
the potential across the resistor.
4. Check each exposed metallicpart, and measure the voltage at
each point.
5. Reverse the AC plug inthe AC outlet and repeat each of the above
measurements.
6. The potential at anypoint shouldnot exceed 0.75 VRMS. A
leakage current tester (Simpson Model 229 or equivalent) maybe
used to make the hot checks, leakage current must not exceed 1/2
mA. Incase ameasurement isoutside of the limits specified,
there isapossibilityof ashock hazard, and the equipment should
be repaired and rechecked before itisreturned to the customer.
Figure. 1
2. PREVENTION OF ELECTRO STATIC DISCHARGE
(ESD) TO ELECTROSTATICALLY SENSITIVE (ES)
DEVICES
Some semiconductor(solidstate) devices canbe damagedeasilybystatic electricity. Such
components commonlyare calledElectrostaticallySensitive (ES) Devices. Examples of typical
ES devices are integratedcircuits and some field-effect transistors and semiconductor"chip"
components. The following techniques shouldbe usedtohelpreduce the incidence of
component damage causedbyelectrostatic discharge (ESD).
1. Immediatelybefore handling anysemiconductor component or
semiconductor-equipped assembly, drainoff anyESDon your
bodybytouching aknownearth ground. Alternatively, obtainand
wear acommerciallyavailabledischarging ESDwrist strap, which
shouldbe removed for potential shock reasons prior to applying
power to the unitunder test.
4

2. After removing an electrical assemblyequipped with ES devices,
place the assemblyon aconductive surface such as aluminum
foil, to prevent electrostaticcharge buildup or exposure of the
assembly.
3. Use onlyagrounded-tipsoldering iron to solder or unsolder ES
devices.
4. Use onlyan antistaticsolder removal device. Some solder
removal devices not classified as "antistatic(ESDprotected)" can
generate electrical charge sufficient to damage ES devices.
5. Donot use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Donot remove areplacement ES device from its protective
package until immediatelybefore you are readyto install it. (Most
replacement ES devices are packaged with leads electrically
shorted together byconductive foam, aluminum foil or
comparableconductive material).
7. Immediatelybefore removing the protective material from the
leads of areplacement ES device, touch the protective material to
the chassisor circuitassemblyinto which the device will be
installed.
CAUTION :
Besure no power isapplied to the chassisor circuit, and observe
all other safetyprecautions.
8. Minimize bodilymotions when handling unpackaged replacement
ES devices. (Otherwise harmless motion such as the brushing
together of your clothes fabricor the lifting of your foot from a
carpeted floor can generate staticelectricity(ESD)sufficient to
damage an ES device).
3. INTRODUCTION
3.1. INTORODUCTION
This service manual contains technical information whichwill allowservice personnel’s to
understand and service this model. Please place orders using the parts list and not the drawing
reference unmbers.
If the circuit is changedormodified, this information will be followedbysupplement service
manual tobe filedwithorginal service manual.
5

Note 1:
These moviecameras use AC Adaptor isDE-855AB ThisAC
Adaptor issupplied as unit.
(See Parts List of thisService)
Note 2:
1. Thisservice manual does not containthe following information,
because of the impossibilityof servicing at component level.
A. SchematicDiagram, Block Diagram and MainC.B.A.
B. Parts List for individual parts of MainC.B.A.
2. The following categoryis/are recyclemodulepart. Please send it/
them to Central RepairCenter.
*MainC.B.A. (LSEP8165P1/Q1/R1/S1)
Whena part replacements is requiredforrepairing eachMainC.B.A., replace the assemblyparts.
The following circuits are containedinMainCircuit.
3.2. CAUTIONFORAC CORD / (VJA0940 TYPE)
3.2.1. INFORMATION FOR YOUR SAFETY
IMPORTANT
Yourattention is drawntothe fact that recording of pre-recordedtapes ordiscs orother
publishedorbroadcast material mayinfringe copyright laws.
WARNING
To reduce the risk of fire orshock hazard, do not expose this equipment torainormoisture.
CAUTION
To reduce the risk of fire orshock hazardand annoying interference, use the recommended
accessories only.
FOR YOUR SAFETY
DO NOTREMOVE THE OUTER COVE
To prevent electric shock, do not remove the cover. Nouserserviceable parts inside. Refer
servicing toqualifiedservice personnel.
3.3. CAUTIONFORAC MAINSLEAD
Foryoursafety, please readthe following text carefully.
This appliance is suppliedwitha mouldedthree-pinmains plug foryoursafetyand convenience.
A 5-ampere fuse is fittedinthis plug.
Shouldthe fuse needtobe replacedplease ensure that the replacement fuse has a rating of 5
amperes and it is approvedbyASTA orBSI toBS1362.
Check forthe ASRA mark orthe BSI mark on the bodyof the fuse.
If the plug contains a removable fuse coveryou must ensure that it is refittedwhenthe fuse is
replaced.
If you lose the fuse cover, the plug must not be useduntil a replacement coveris obtained.
A replacement fuse covercanbe purchasedfromyourlocal Panasonic Dealer.
If the fittedmouldedplug is unsuitable forthe socket outlet inyourhome thenthe fuse should
6

be removedand the plug cut off and disposedof safety.
There is a dangerof severe electrical shock if the cut off plug is insertedintoany13-ampere
socket.
If a newplug is tobe fittedplease observe the wiring code as shownbelow.
If inanydoubt, please consult a qualifiedelectrician.
3.3.1. Important
The wires inthis mains leadare colouredinaccordance withthe following code:
As the colours of the wires inthe mains leadof this appliance maynot correspond withthe
colouredmarkings identifying the terminals inyourplug, proceedas follows:
The wire whichis colouredBLUE must be connectedtothe terminal inthe plug whichis marked
withthe letterN orcolouredBLACK.
The wire whichis colouredBROWN must be connectedtothe terminal inthe plug whichis
markedwiththe letterLorcolouredRED.
Underno circumstances shouldeitherof these wires be connectedtothe earthterminal of the
three pinplug, markedwiththe letterE orthe EarthSymbol.

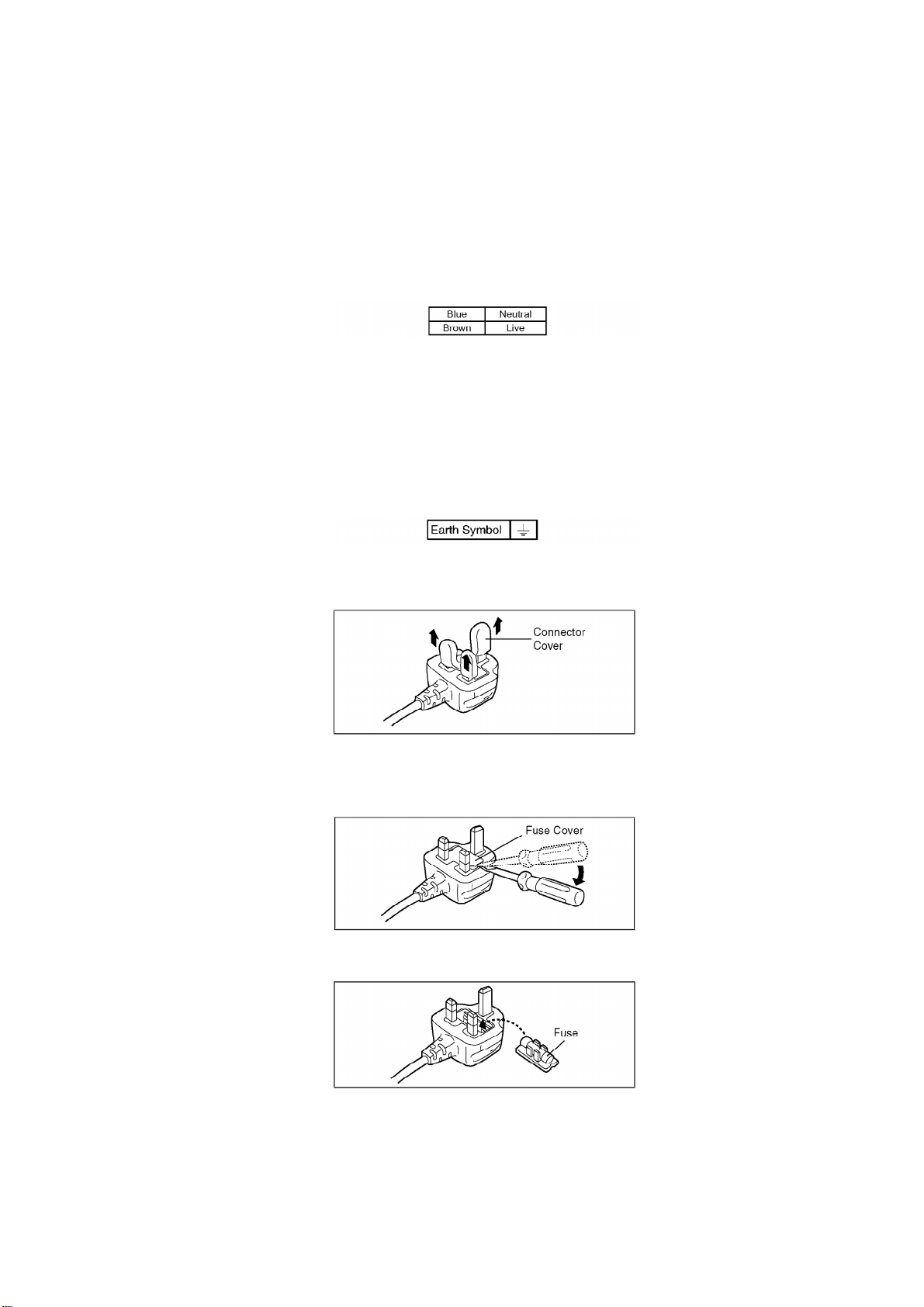

3.3.2. Beforeuse
remove the ConnectorCoveras follows.
3.3.3. Howtoreplace the Fuse
1. Remove the Fuse Cover with ascrewdriver.
2. Replace the fuse and attach the Fuse cover.
4. OPERATION GUIDE
7

5. HOW TO REPLACE THE LITHIUM BATTERY
(PROCEDURE)
1. Remove the Rear C.B.A.. (Refer to DisassemblyProcedures.)
2. Unsolder the Lithium Battery“LSSB0004” and then replace the
new one. (See Fig. B1 .)
Fig. B1
Note:
The lithiumbatteryis a critical component. (Type No.: LSSB0004.)
It must neverbe subjectedtoexcessive heat ordischarge.
It must therefore onlybe fittedinequipment designedspecificallyforits use.
Replacement batteries must be of the same type and manufacture.
Theymust be fittedinthe same mannerand location as the original battery, withthe correct
polaritycontacts observed.
Donot attempt tore-charge the oldbatteryorre-use it foranyotherpurpose.
It shouldbe disposedof inwaste products destinedforburial ratherthanincineration.
8

6. SERVICE NOTES (PLEASE READ)
6.1. SERVICENOTES

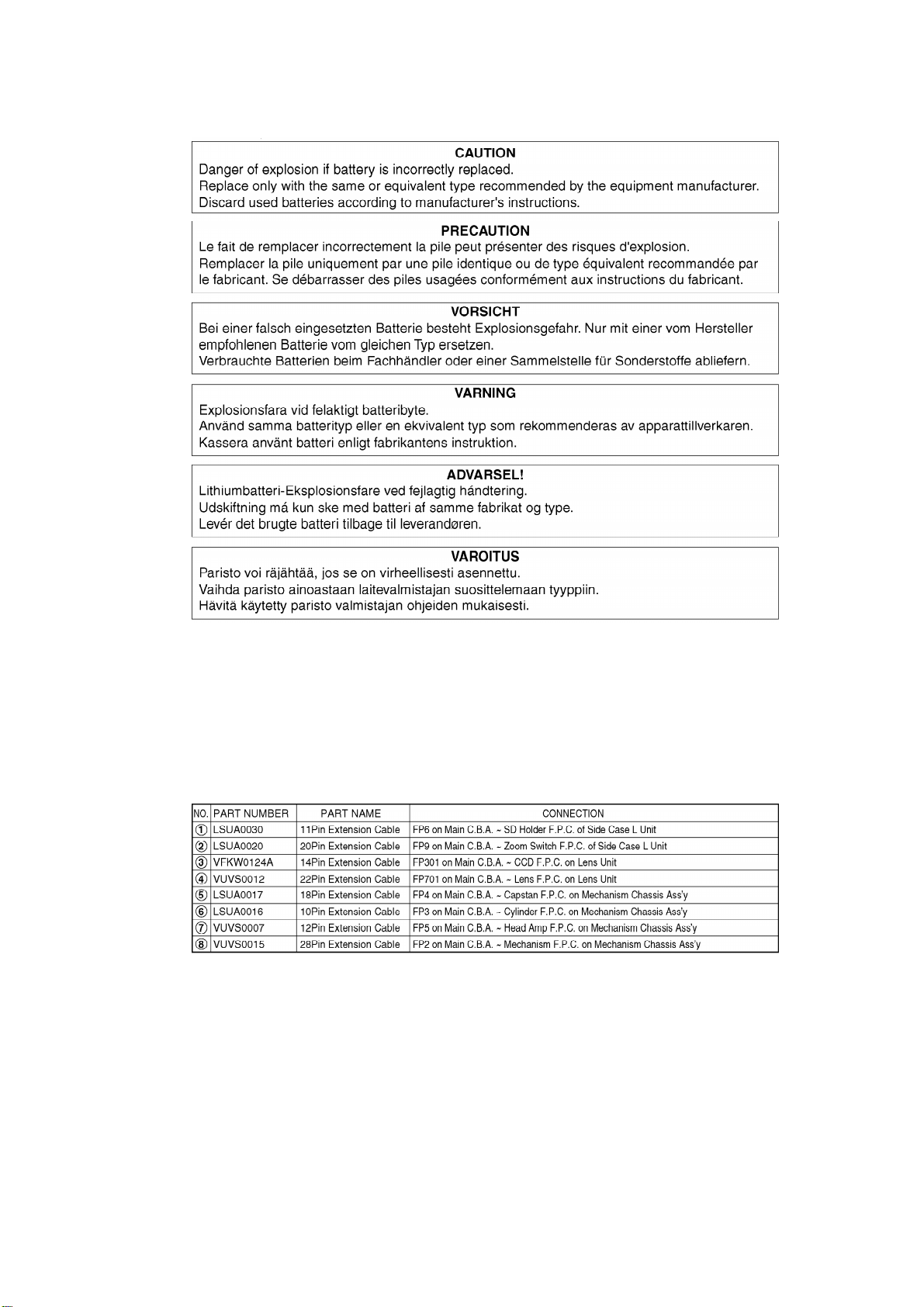

6.1.1. EXTENSION CABLES FOR SERVICE POSITION
Using the following Extension Cables, place the unit as shownforcheck and service.
Extension Cables (No.5 ~ No.8) are usedforimproving serviceability. (Theyare not necessarily
used.)
Note :
1. The LCD open/close SW. isfor changing between LCD Displayor
EVF Display. When turning on LCD Display, place some paper or
tape, etc. on LCD open/close SW. so that thisSW. staysON.
2. Connect the F.P.C.sto the connectors, verifying the direction of
F.P.C. as shown.
3. Use agrounded ESDwrist strap whiledisassembling the Lens
9

portion.
4. Use extreme care when unplugging or plugging inconnectors.
Fig. 1
6.1.2. SIMPLIFIED FAULT FINDING DATA (SELF-DIAGNOSTIC SYSTEM)
When following conditions occur, the Power LEDwill flash
according to the condition. Fig. 2-1
10

(Formodel withSD/MMC Slot)
Ifanyof the following numbers appear on-screen, the palmcorder
mayneed service. Donot remove the battery(ifattached) and write
downthe displayed number. Fig. 2-2
Note:
Whilebatteryremains, the Error No. will be displayed againwhen
11

the power isswitched off and on again. (Once the Batteryis
removed or dead, Error No. will not remaininthe memory.)
6.1.3. REMOVAL/INSTALLATION OFF.P.C. FROM NON ZIF(ZeroInsertion
Force) CONNECTOR
Removal/Installation of F.P.C. fromthe Non ZIF(ZeroInsertion Force) connector:
1. The Non ZIFconnectors and the ZIFconnectors are used on the
unit. And there are 2types (Type A, Type B)of Non ZIF
connectors.
2. To remove the F.P.C. from the Non ZIFconnector, use the Plier for
Non ZIFConnector (LSVQ0028) to pull out the F.P.C. as shown.
The same Plier for Non ZIFConnector (LSVQ0028) shouldalso be
used to install the F.P.C. to the Non ZIFConnector.
Fig. 3-1
3. Connect the F.P.C.sto the Non ZIFconnectors, verifying the
direction of F.P.Cas shown. Fig. 3-2
12

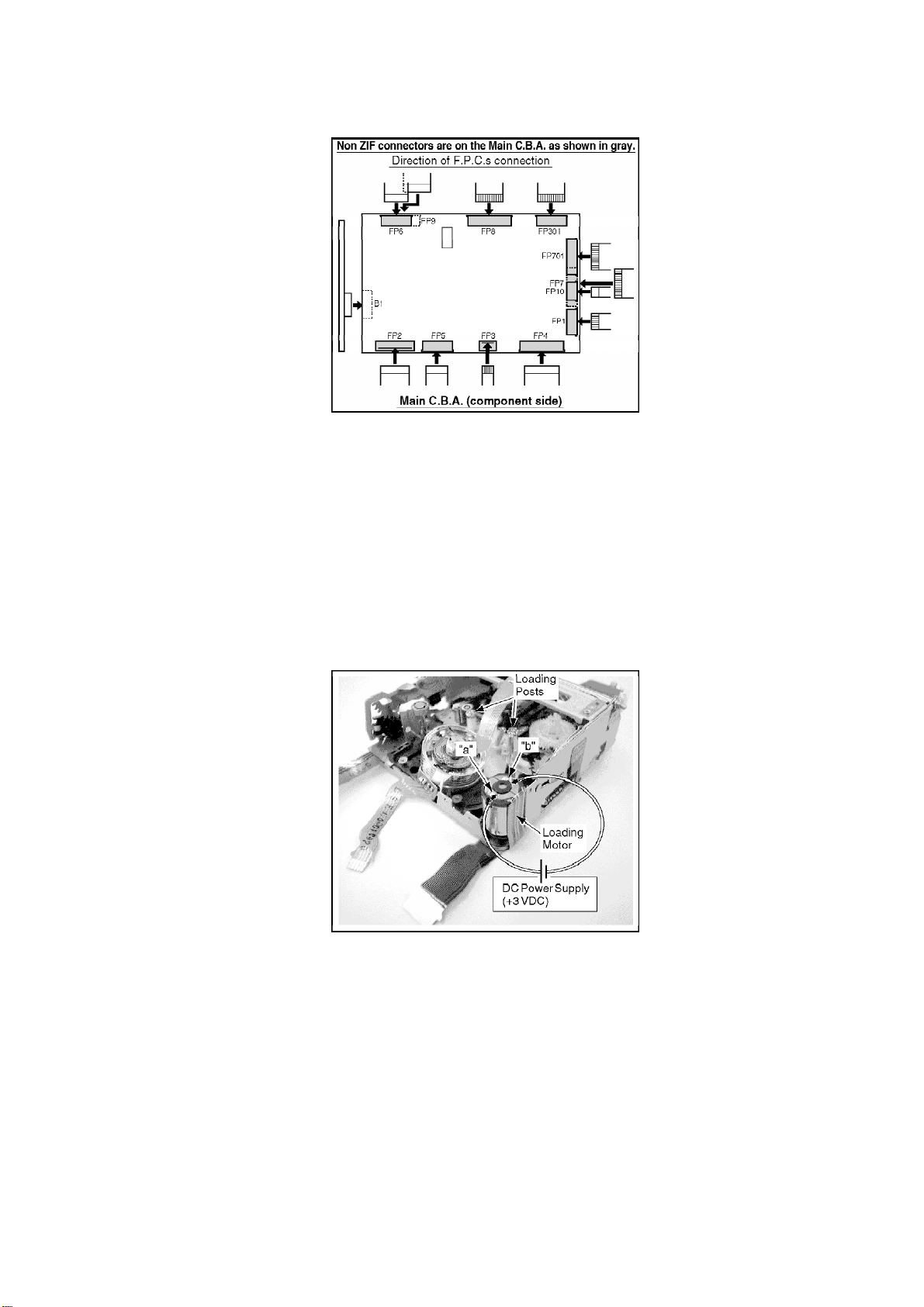

6.1.4. METHOD FOR LOADING/UNLOADING OFMECHANISM
CAUTION:
Ifloading does not start after DC Power Supplyisapplied, DO NOT
continue to applying DC Power Supply.
Apply+3 VDC PowerSupplytothe Loading Motorterminals.
Loading:
DC (-) toPortion "a," DC (+) toPortion "b"
Unloading:
DC (+) toPortion "a," DC (-) toPortion "b"
Fig. 4
6.1.5. METHOD FOR EJECTING WITH POWER OFF
CAUTION:
Make sure that acassette tape isnot inwhen thismethod isused,
or acassette tape will be damaged. When acassette tape is
jammed, DO NOTeject manually. Refer to "HOWTO REMOVE A
JAMMEDTAPE."
1. Insert the Pinor Straightened Paper Clipinto the holeon the
13

Cassette Cover.
2. Slide the Lock Lever of Mechanism ChassisAss'y.
3. The Cassette Cover will open. (Eject)
Fig. 5

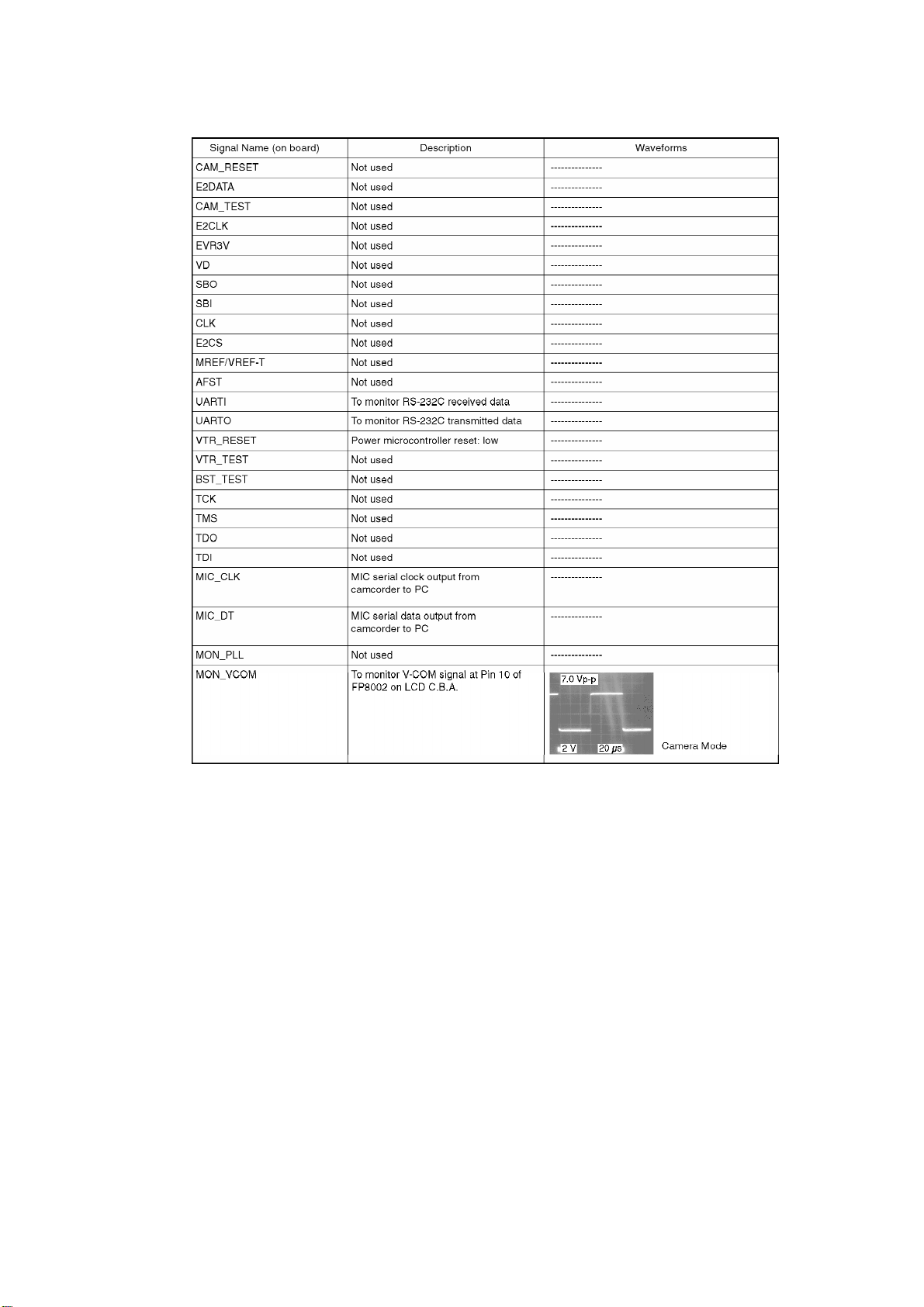

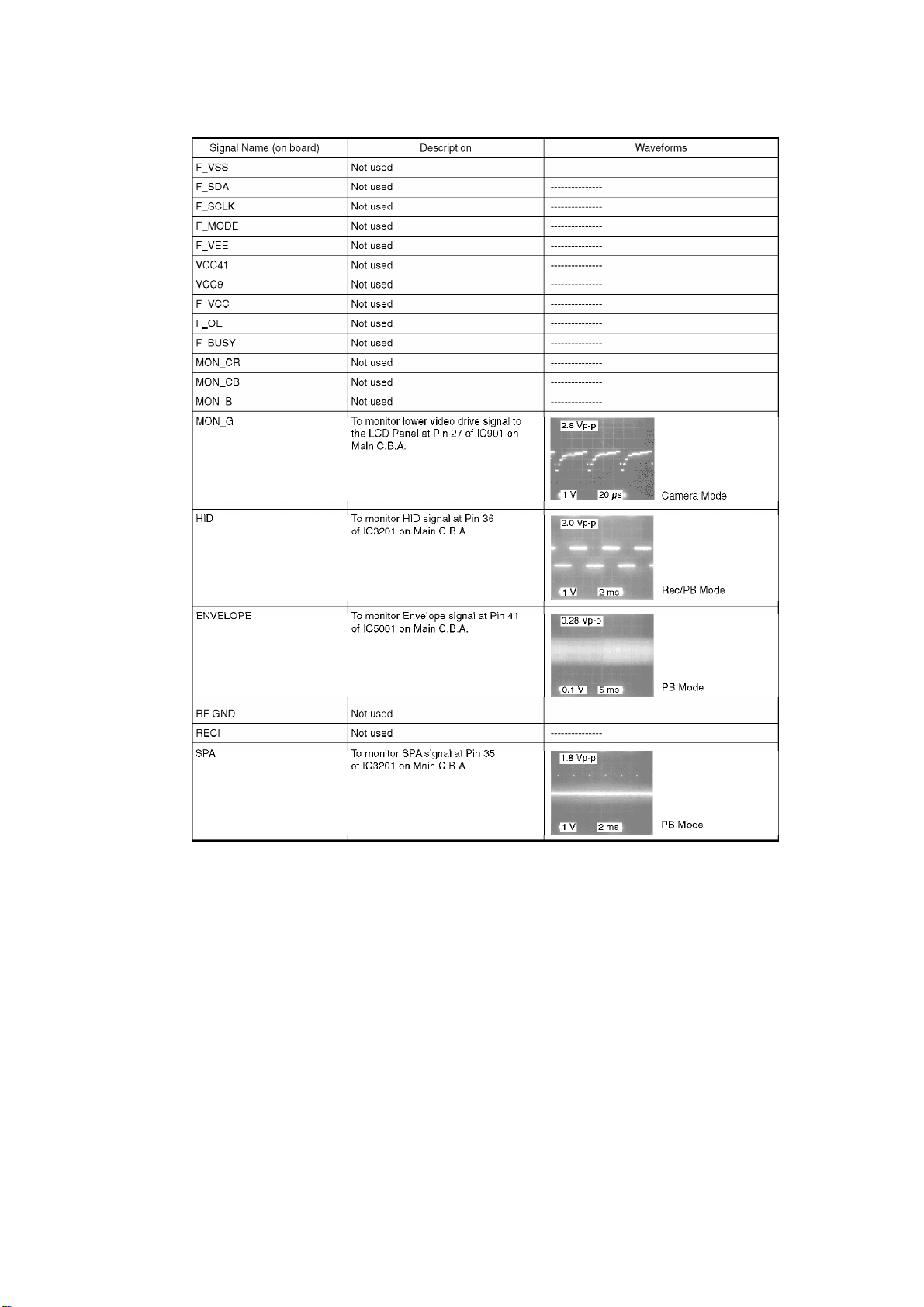

6.1.6. SIGNALDESCRIPTION ON MEASURING BOARD FOR ELECTRICAL
ADJUSTMENT(VFK1308E)
A signal check canbe performedusing the Interface Board.
14

15

16

6.1.7. HOW TO REMOVE A JAMMED TAPE
Remove a jammedtape inElectrical Method as follows:
1. Remove the Cabinet Parts. Then, remove the 3Screwsand the
Mechanism Base Unitfrom the Mechanism ChassisAss'yas
shown. Refer to "CABINET SECTION"&"MECHANISM SECTION"
inDISASSEMBLY/ASSEMBLY PROCEDURES.
2. Apply+3VDC Power Supplyto the Portion "a" and "b" on the
Mechanism F.P.C. Unit.
Note:
DO NOTlet eject the Garage Unitwith grasping the Cassette
Cover. Ifthe Garage Unitisinthe up position, acassette tape may
be damaged.
17

Fig. 6-1
3. When the Mechanism isinEJECTposition (snapped sound),
remove the Power Supplyimmediately.
4. Rewind the tape into acassette tape byturning the Capstan Rotor
clockwise with grasping the Cassette Cover.
Fig. 6-2
5. Take out acassette tape from the Garage Unit.
6.1.8. EEPROM DATA
CAUTION:
Besure to save the EEPROMdata using PC-EVRAdjustment
Program before service and adjustment inorder to make sure to
avoidan accidental data loss, etc. as follows. Refer to "SET UPOF
PC-EVRADJUSTMENTPROGRAM" inELECTRICALADJUSTMENT.
18

1.Howtosave the EEPROM data toyourPC
1. Start up the PC-EVRAdjustment Program.
2. Select "3. Read (Save)/Write All EEPROMdata."inMainmenu,
and then press "Enter" key.
3. Select "5. Save all EEPROMdata."inRead (Save)/Write All
EEPROMdata menu, and then press "Enter" key.
4. Input the filename, and then press the "Enter" key. The data of
EEPROMICwill be stored to your PC.
2.Howtowrite the EEPROM data whichwas storedinyourPC toEEPROM IC
1. Start up the PC-EVRAdjustment Program.
2. Select "3. Read (Save)/Write All EEPROMdata."inMainmenu,
and then press "Enter" key.
3. Select "6. Writing from stored data files."inRead (Save)/Write All
EEPROMdata menu, and then press "Enter" key.
4. Input the saved filename, and then press "Enter" key. The data of
EEPROMICwill be written inEEPROMIC.
3.Howtoinitialize the EEPROM IC
Whenthe MainC.B.A. is replaced, be sure towrite the initial data toEEPROM IC. And adjust the
camcorder.
1. Start up the PC-EVRAdjustment Program.
2. Select "3. Read (Save)/Write All EEPROMdata."inMainmenu,
and then press "Enter" key.
3. Select "6. Writing from stored data files."inRead (Save)/Write All
EEPROMdata menu, and then press "Enter" key.
4. Input the saved filename, and then press "Enter" key. The data of
EEPROMICwill be written inEEPROMIC.
OR;
Select "7. Writing of Initial data."and then press "Enter" key. And
press "Enter" keyonce again.
4.Howtoinput ID Number
The ID numberis inthe EEPROM.
There are twoways towrite the data of EEPROM IC afterreplacing MainC.B.A. as follows:
-Selecting "6. Writing from stored data files,"IDNumber with stored
19

data filewill be written automatically.
-Selecting "7. Writing of initial data,"IDNumber needs to be input.
There are twomethods, "a" or "b,"to input IDNumber as follows.
a Whenwriting ID Numberfromthe saveddata:
1. Select "3. Read (Save)/Write All EEPROMdata."inMainmenu,
and then press "Enter" key.
2. Input the saved filename, and then press "Enter" key. IDNumber
will be written automatically.
bWhenthe original ID information cannot be readbecause of destruction of EEPROM etc.:
1. Select "3. Read (Save)/Write All EEPROMdata."inMainmenu,
and then press "Enter" key.
2. Select "8. Write IDfrom stored file."and then press "Enter" key.
IDNumber will be written automatically.

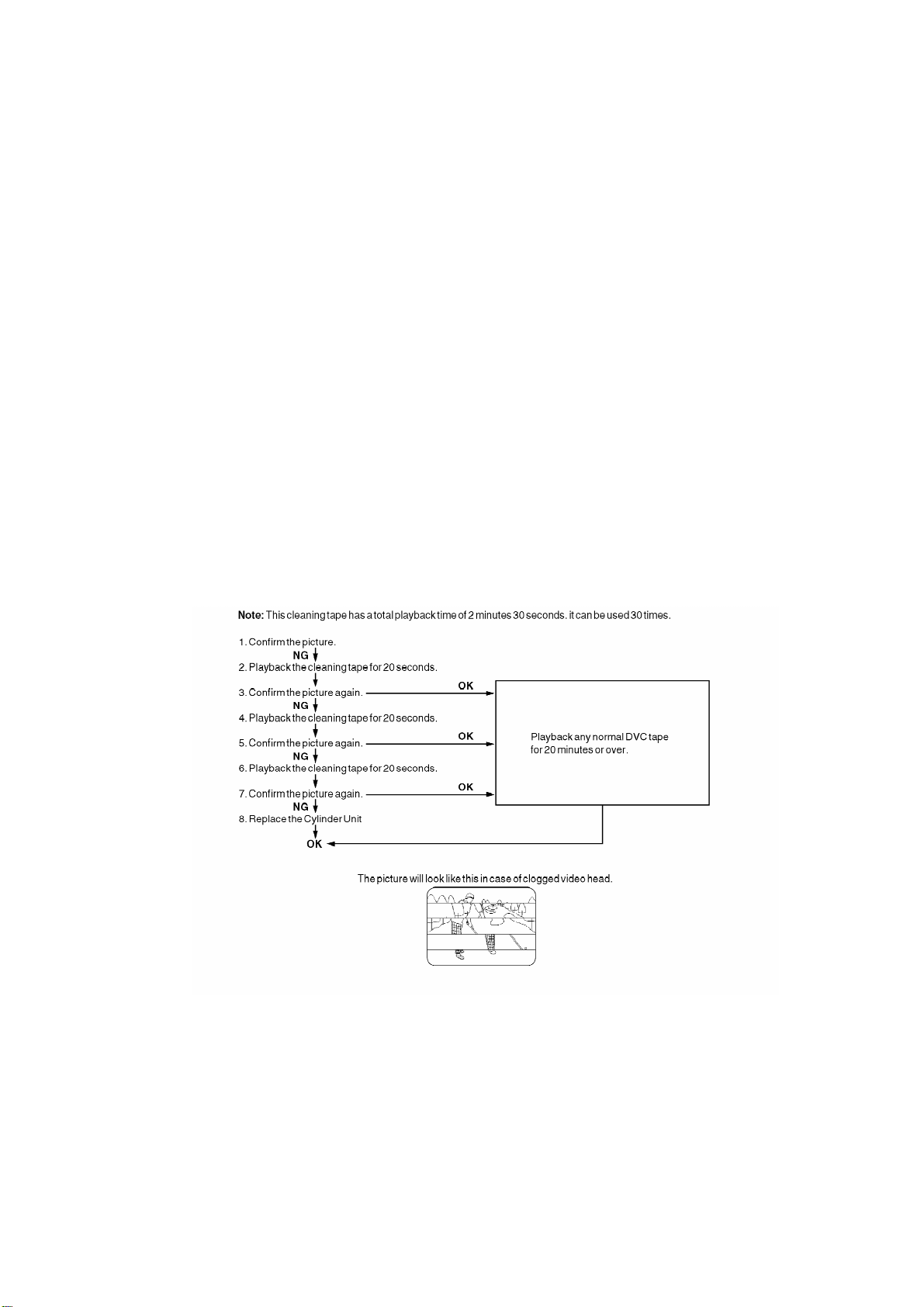

6.1.9. HOW TO USE THE DVC HEAD CLEANING TAPE / VFK1451
Please use the cleaning tape as describedbelow.
6.1.10. HOW TO REPLACE THE LAMP (LSLL0028) OFBUILT-IN LIGHT
Fig. 7
20
