Panasonic PV-GS80P User manual

©2007 Panasonic Shikoku Electronics Co., Ltd. All
rights reserved. Unauthorized copying and
distribution is a violation of law.
PV-GS80P
PV-GS83P
PV-GS85P
PV-GS80PC
PV-GS85PC
Vol. 1
Colours
(S)...................Silver Type
Digital Video Camcorder
ORDER NO. MKE0701401CE
B21

1 Safety Precautions 3
1.1. General Guidelines 3
2 Warning 4
2.1. Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices 4
2.2. How to Recycle the Lithium Battery 4
2.3. How to Replace the Lithium Battery 5
3 Service Navigation 6
3.1. Introduction 6
3.2. About Lead Free Solder (PbF) 6
4 Specifications 7
5 Service Mode 8
5.1. Error Display 8
5.2. Service Menu 8
6 Service Fixture & Tools 10
6.1. Service Fixture and Tools 10
6.2. Service Position 12
6.3. Removal/Installation of F.P.C. From Non ZIF (Zero
Insertion Force) Connector 14
6.4. Method for Loading/Unloading of Mechanism 15
6.5. EEPROM Data 15
6.6. Special Note 16
6.7. Model No. Identification Mark 16
7 Disassembly and Assembly Instructions 17
7.1. Cabinet Section 17
7.2. Mechanism Section 35
8 Measurements and Adjustments 37
8.1. Mechanical Adjustment 37
8.2. Electrical Adjustment 39
9 Maintenance 41
9.1. Cleaning Lens, Viewfinder and LCD Panel 41
9.2. How to use the DVC Head Cleaning Tape / VFK1451 41
10 Block Diagrams 43
11 Schematic Diagrams 45
11.1. SCHEMATIC DIAGRAM & CIRCUIT BOARD LAYOUT
NOTES 45
11.2. FRONT SCHEMATIC DIAGRAM 46
11.3. LCD BACKLIGHT SCHEMATIC DIAGRAM 47
11.4. EVF BACKLIGHT / EVF FPC / BATTERY CASE
SCHEMATIC DIAGRAMS 48
11.5. CCD / SIDE L OPERATION / LCD SW SCHEMATIC
DIAGRAMS 49
11.6. INTERCONNECTION SCHEMATIC DIAGRAM 50
12 Printed Circuit Board 51
12.1. FRONT P.C.B. 51
12.2. LCD BACKLIGHT P.C.B. 52
13 Exploded Views 53
13.1. MAIN PARTS SECTION 53
13.2. FRONT AND BOTTOM CASE SECTION 54
13.3. SIDE R SHAFT UNIT AND LCD SECTION 55
13.4. CCD AND LENS SECTION 56
13.5. EVF SECTION 57
13.6. MECHANISM SECTION 58
13.7. PACKING PARTS AND ACCESSORIES SECTION 59
14 Replacement Parts Lists 60
14.1. REPLACEMENT NOTES 60
14.2. MECHANICAL REPLACEMENT PARTS LIST 61
14.3. ELECTRICAL REPLACEMENT PARTS LIST 62
15 Voltage Chart 65
CONTENTS
Page Page
2
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

1 Safety Precautions
1.1. General Guidelines
1. IMPORTANT SAFETY NOTICE
There are special components used in this equipment
which are important for safety. These parts are marked by
in the Schematic Diagrams, Circuit Board Layout,
Exploded Views and Replacement Parts List. It is essential
that these critical parts should be replaced with
manufacturer’s specified parts to prevent shock, fire, or
other hazards. Do not modify the original design without
permission of manufacturer.
2.An Isolation Transformer should always be used during the
servicing of AC Adaptor whose chassis is not isolated from
the AC power line. Use a transformer of adequate power
rating as this protects the technician from accidents
resulting in personal injury from electrical shocks. It will also
protect AC Adaptor from being damaged by accidental
shorting that may occur during servicing.
3.When servicing, observe the original lead dress. If a short
circuit is found, replace all parts which have been
overheated or damaged by the short circuit.
4.After servicing, see to it that all the protective devices such
as insulation barriers, insulation papers shields are properly
installed.
5.After servicing, make the following leakage current checks
to prevent the customer from being exposed to shock
hazards.
3
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

2 Warning
2.1. Prevention of Electro Static Discharge (ESD) to Electrostatically
Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage
caused by electro static discharge (ESD).
1.Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2.After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge buildup or exposure of the assembly.
3.Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4.Use only an antistatic solder removal device. Some solder removal devices not classified as "antistatic (ESD protected)" can
generate electrical charge sufficient to damage ES devices.
5.Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6.Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil or comparable
conductive material).
7.Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
CAUTION :
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8.Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD)
sufficient to damage an ES device).
2.2. How to Recycle the Lithium Battery
4
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

2.3. How to Replace the Lithium Battery
The lithium battery (CGR-F/202AW) is not supplied as a service part and must be replaced as part of the Side R Shaft Unit. (Refer
to "Disassembly and Assembly Instructions.")
NOTE:
This Lithium battery is a critical component. (Type No.: CGR-F/202AW Manufactured by Panasonic.) (Not supplied)
It must never be subjected to excessive heat or discharge.
It must therefore only be fitted in equipment designed specifically for its use.
Replacement batteries must be of the same type and manufacture.
They must be fitted in the same manner and location as the original battery, with the correct polarity contacts observed.
Do not attempt to re-charge the old battery or re-use it for any other purpose.
It should be disposed of in waste products destined for burial rather than incineration.
5
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

3 Service Navigation
3.1. Introduction
This service manual contains technical information which will allow service personnel´s to understand and service this model.
Please place orders using the parts list and not the drawing reference numbers.
If the circuit is changed or modified, this information will be followed by supplement service manual to be filed with original service
manual.
Note 1:
AC Adaptor used on these movie camera is PV-DAC14D. However, DE-974FB is supplied as a replacement part for PV-
DAC14D. This AC Adaptor is supplied only as a unit.
3.2. About Lead Free Solder (PbF)
6
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

4 Specifications
7
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

5 Service Mode
5.1. Error Display
"PUSH THE RESET SWITCH" is displayed automatically on the EVF or the LCD Monitor when an undesirable condition has
occurred.
Fig. 1
Note:
When "PUSH THE RESET SWITCH" is displayed repeatedly, service is required. Check the Error Code which is listed in the
Service Menu.
5.2. Service Menu
When abnormal detection contents are confirmed, do the following operation. Automatic diagnosis code will be displayed. (Service
Menu)
To enter the Service Menu
Push the [PHOTO SHOT], [JOYSTICK CONTROL LEFT] and [RECORDING START/STOP] simultaneously for 3 seconds (with
no SD Card inserted).
Note:
If a tape or SD Card is inserted, the above operation will not work.
Fig. 2-1
8
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

To perform the factory setting
After repairing, perform this operation to clear the Mechanism lock code and Lens motor lock code.
1.Set to Service Menu.
2.Press [JOYSTICK CONTROL UP/DOWN] to select item [1].
3.Press [JOYSTICK CONTROL RIGHT] to display [NO/YES] screen.
4.Press [JOYSTICK CONTROL UP/DOWN] to select [YES].
5.Press [JOYSTICK CONTROL CENTER] to end.
To reset the Cylinder elapsed time
After replacing the Cylinder unit, perform this operation to clear the Cylinder elapsed time.
1.Set to Service Menu.
2.Press [JOYSTICK CONTROL UP/DOWN] to select item [8].
3.Press [JOYSTICK CONTROL RIGHT] to display [NO/YES] screen.
4.Press [JOYSTICK CONTROL UP/DOWN] to select [YES].
5.Press [JOYSTICK CONTROL CENTER] to end.
To confirm the error, lock code, or elapsed time
1.Set to Service Menu.
2.Press [JOYSTICK CONTROL UP/DOWN] to select item [3].
3.Press [JOYSTICK CONTROL RIGHT] to display [NO/YES] screen.
4.Press [JOYSTICK CONTROL UP/DOWN] to select [YES].
5.Press [JOYSTICK CONTROL CENTER] to end.
Fig. 2-2
To exit the Service Menu
Unplug the AC Cord.
9
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

6 Service Fixture & Tools
6.1. Service Fixture and Tools
10
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

11
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

6.2. Service Position

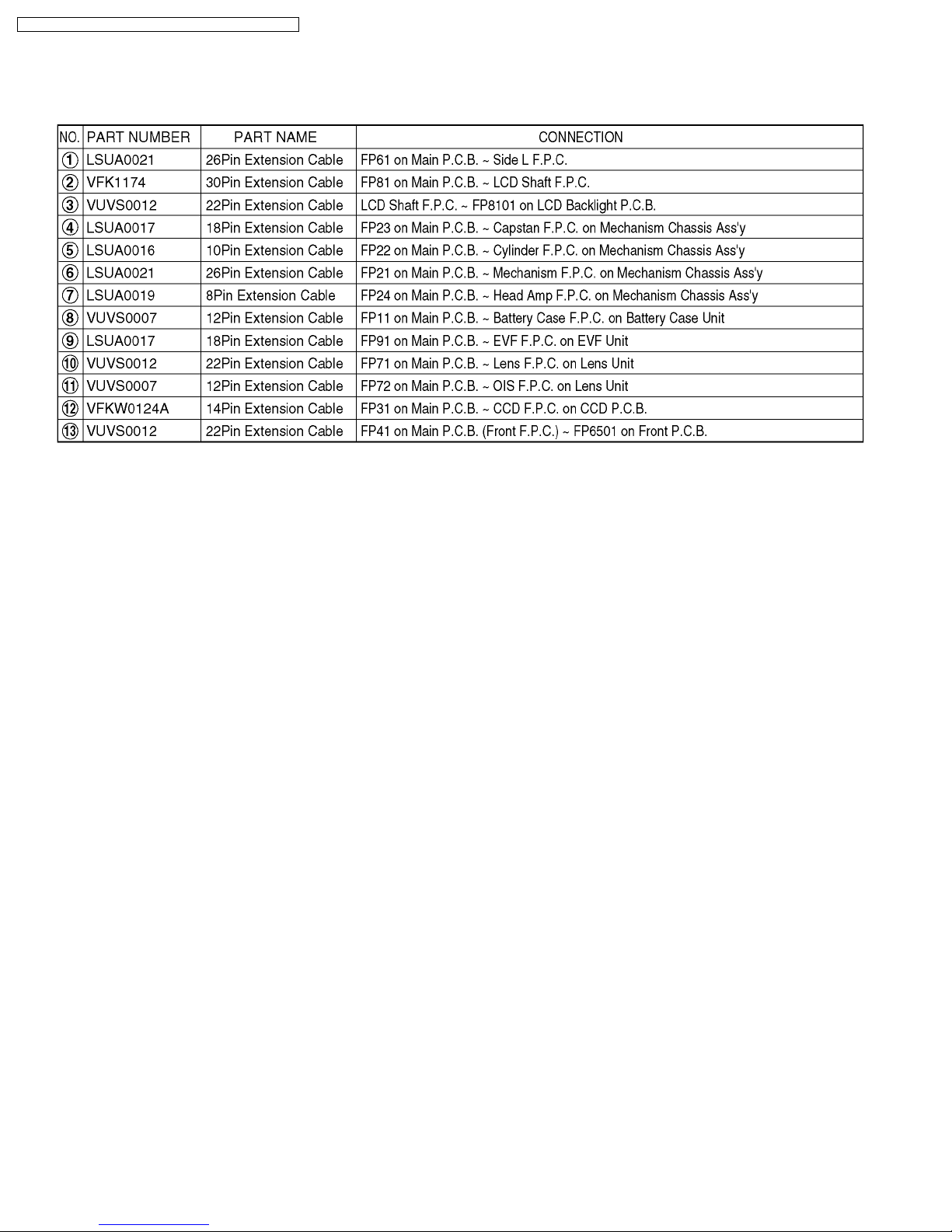

6.2.1. Extension Cables for Service Position
Using the following Extension Cables, place the unit as shown for check and service.
Note:
1.The LCD open/close Switch is for changing between the LCD Display and EVF Display. When turning on EVF Display, close
the LCD Shaft so that LCD open/close Switch stays ON.
2.To eject the Mechanism, hold down the Eject Switch on the Side L Operation Unit for a short time, or open the Cassette Cover
of the Side L Operation Unit.
3.Use a grounded ESD wrist strap while disassembling the Lens portion.
4.Connect the F.P.C.s to the connectors, verifying the direction of F.P.C.s.
5.Use extreme care when plugging in or unplugging connectors.
12
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

Fig. 3
13
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

6.3. Removal/Installation of F.P.C.
From Non ZIF (Zero Insertion
Force) Connector
Removal/Installation of F.P.C. from the Non ZIF (Zero
Insertion Force) connector:
1.The Non ZIF connectors and the ZIF connectors are used
on the unit. And there are 2 types (Type A, Type B) of Non
ZIF connectors.
2.To remove the F.P.C. from the Non ZIF connector, use the
Plier for Non ZIF Connector (LSVQ0028) to pull out the
F.P.C. as shown. The same Plier for Non ZIF Connector
(LSVQ0028) should also be used to install the F.P.C. to the
Non ZIF Connector.
Fig. 4-1
3.Connect the F.P.C.s to the Non ZIF connectors, verifying
the direction of F.P.C as shown.
Fig. 4-2
14
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

6.4. Method for Loading/Unloading
of Mechanism
CAUTION:
If loading does not start after DC Power Supply is applied,
DO NOT continue to apply DC Power.
Apply +3 VDC Power Supply to the Loading Motor terminals.
Loading:
DC (-) to Portion "a," DC (+) to Portion "b"
Unloading:
DC (+) to Portion "a," DC (-) to Portion "b"
Fig. 5
6.5. EEPROM Data
CAUTION:
Be sure to save the EEPROM data using PC-EVR
Adjustment Program before service and adjustment in
order to make sure to avoid an accidental data loss, etc.
using PC-EVR Adjustment Program by first.
15
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

6.6. Special Note
All integrated circuits and many other semiconductor devices
are electrostatically sensitive and therefore require the special
handlings techniques described under the
"ELECTROSTATICALLY SENSITIVE (ES) DEVICES" section
of this service manual.
6.7. Model No. Identification Mark
Use Marks shown in the chart below to distinguish the different
models included in this Service Manual.
16
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

7.1.1. DISASSEMBLY FLOWCHART
This flow chart indicates the disassembly steps of the
cabinet parts and the P.C.Boards in order to gain access to
item (s) to be serviced. When reassembling, perform the
step (s) in the reverse order. Bend, route and dress the
wires as they were originally.
Note:
1.When removing the cabinet, work with care so as not to
break the Locking Tabs.
2.Place a cloth or some other soft material under the P.C.
Boards or Unit to prevent damage.
3.When reinstalling, ensure that the connectors are
connected and electrical components have not been
damaged.
4.Do not supply power to the unit during disassembly and
reassembly.
7 Disassembly and Assembly Instructions
7.1. Cabinet Section
17
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC

15 Voltage Chart
MODE REC
PINNO. MODE REC PINNO. MODE REC PINNO. MODE REC PINNO. MODE REC PINNO. MODE REC PINNO. MODE REC PINNO.
FP11
10
20
30
40
50
60
7 ---
8 8.1
9 8.1
10 8.1
11 8.1
12 8.1
FP21
1 ---
20
3 2.8
40
5 1.4
6 1.5
7 2.4
8 1.4
9 1.4
10 0.4
11 8.1
12 7.4
13 0
14 0
15 2.8
16 2.8
17 2.8
18 0
19 0
20 0
21 0
22 0
23 0
24 0
25 0
26 0
FP22
10
20
3 1.6
4 1.6
5 1.6
6 1.6
7 1.6
8 1.6
9 1.6
10 0
FP23
1 1.3
20
3 1.3
4 2.6
5 0.6
6 0.6
7 2.3
8 2.8
9 2.4
10 1.4
11 0.5
12 1.4
13 0
14 0.5
15 0.6
16 0.6
17 0.5
18 0.5
FP24
10
20
30
4 1.9
5 1.9
6 1.9
7 1.9
80
FP31
1 8.2
20
3 -0.2
4 -0.2
5 -6.1
6 -6.1
70
80
9 11.9
10 5.8
11 6.5
12 1.5
13 1.8
14 6.6
FP41
10
20
3 1.4
4 1.4
5 2.8
6 1.2
7 1.3
80
90
10 0
11 0
12 4.8
13 4.8
14 4.8
15 0.1
16 1.8
17 0.2
18 0.2
19 0
20 0
21 2.6
22 0
FP61
1 2.8
2 ---
30
4 ---
50
6 ---
7 2.8
8 2.8
9 2.8
10 2.0
11 1.8
12 1.8
13 ---
14 0
15 ---
16 0
17 0
18 1.7
19 2.8
20 2.2
21 2.8
22 0
23 1.4
24 1.5
25 ---
26 0
FP71
1 1.4
2 1.4
3 1.4
4 1.4
5 4.5
6 4.8
70
8 4.8
90
10 4.4
11 1.2
12 0
13 1.4
14 1.4
15 1.4
16 1.2
17 2.7
18 0.1
19 2.0
20 1.5
21 0.8
22 1.4
FP72
1 1.6
2 1.3
3 1.4
4 1.4
5 1.0
6 1.4
7 1.8
8 1.4
9 1.8
10 1.4
11 1.0
12 1.4
FP81
10
20
3 1.3
4 1.3
5 0.2
6 8.6
7 2.8
80
90
10 2.5
11 2.5
12 2.5
13 2.5
14 2.8
15 2.8
16 2.2
17 1.2
18 0.1
19 2.2
20 4.8
21 4.8
22 2.3
23 0
24 0
25 1.8
26 0.3
27 0.2
28 0
29 ---
30 3.2
FP91
1 2.8
20
30
40
50
6 2.5
7 -0.7
8 2.5
9 8.6
10 2.5
11 0.2
12 2.5
13 2.1
14 0
15 1.2
16 1.4
17 1.4
18 2.2
MAIN P.C.B.
PV-GS80P / PV-GS83P / PV-GS85P / PV-GS80PC / PV-GS85PC
65
