Panasonic AG-VF5P User manual

ORDERNO. BSD0109M908
D20, D21
1.5"ElectronicView Finder
AG-VF5P/E/MC
1

SAFETYPRECAUTIONS
GENERALGUIDELINES
1. Whenservicing, observetheoriginal leaddress. Ifashort/ circuit
isfound, replace all parts whichhavebeenover-heatedor
damagedbytheshortcircuit.
2. Afterservicing, see toitthat all theprotectivedevices suchas
insulation barriers, insulation papersshieldsareproperlyinstalled.
3. Afterservicing, make thefollowing leakagecurrentchecks to
preventthecustomerfrombeing exposedtoshock hazards.
LEAKAGE CURRENTCOLDCHECK
1. Unplug theACcordand connect ajumperbetweenthetwoprongs
on theplug.
2. Measuretheresistance value, withanohmmeter, betweenthe
jumperedACplug and eachexposedmetalliccabinet parton the
equipmentsuchas screwheads, connectors, control shafts, etc.
2

Theresistance valuemust bemorethan5M .

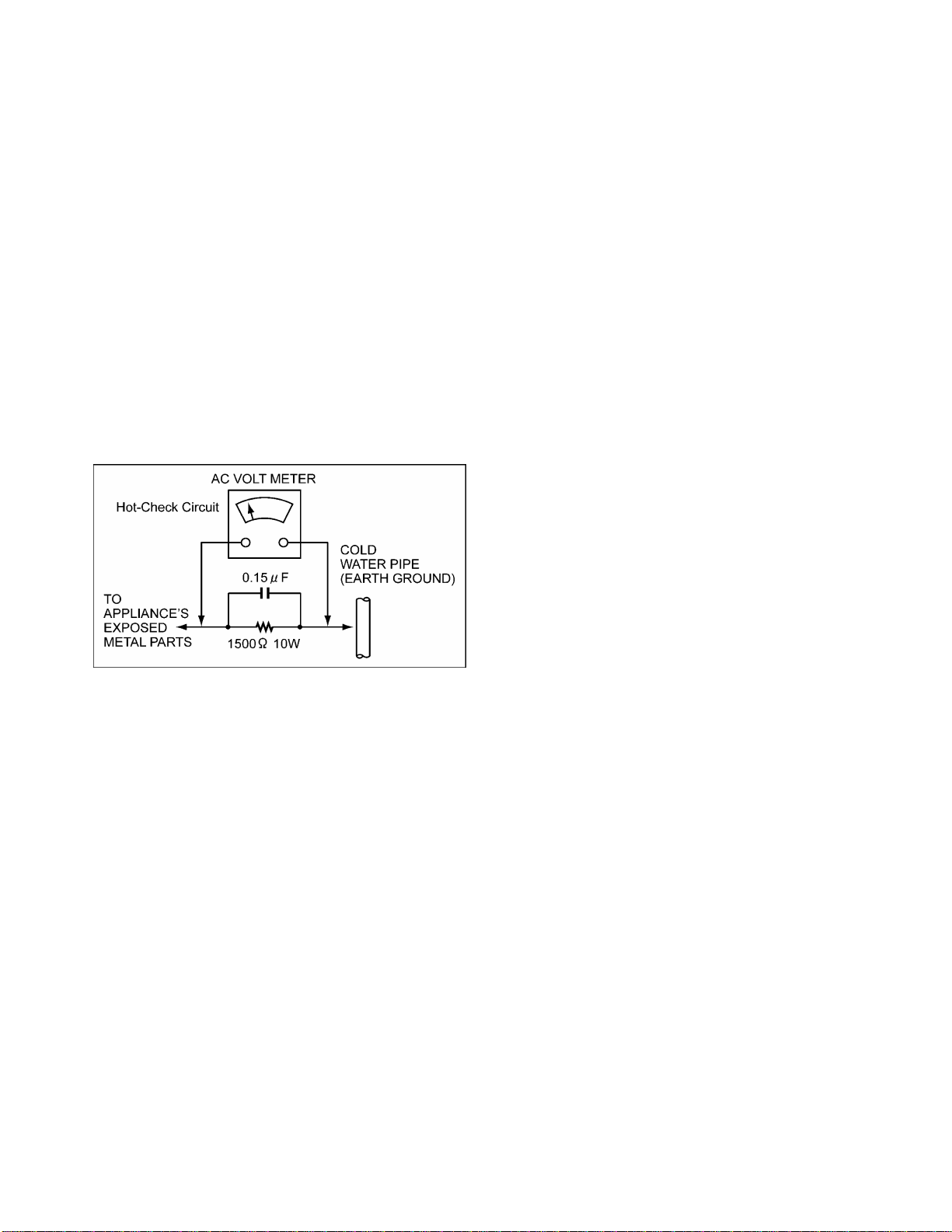

Figure1
LEAKAGE CURRENTHOTCHECK (See Figure1)
1. Plug theACcorddirectlyintotheACoutlet. / Donotuse an
isolation transformerforthischeck.
2. Connect a1.5k , 10Wresistor, inparallel witha0.15 F
capacitor, betweeneachexposedmetallicparton theset ana
good earthground suchas awaterpipe, as showninFigure1.
3. Use anACvoltmeter, with1000 ohms/voltormoresensitivity, to
measurethepotential across theresistor.
4. Check eachexposedmetallicpart, and measurethevoltageat
eachpoint.
5. Reverses theACplug intheACoutlet repeat eachoftheabove
measurements.
6. Thepotential at anypointshouldnotexceed0.15 volts RMS. A
leakagecurrenttester(Simpson Model 229 equivalent) maybe
usedtomake thehotchecks, leakagecurrentmust notexceed0.1
milliamp. Incase ameasurementisoutsideofthelimits specified,
thereisapossibilityofashock hazard, and theequipmentshould
berepairedand checkedbeforeitisreturnedtothecustomer.
ELECTROSTATICALLYSENSITIVE (ES)DEVICES
Somesemiconductor (solidstate)devices canbedamagedeasilybystaticelectricity. Such
componentscommonlyarecalledElectrostaticallysensitive (ED) Devices. Examples oftypical
ES devices areintegratedcircuitsand somefield-effecttransistorsand semiconductor “chip”
components. Thefollowing techniques shouldbeusedtohelpreduce theincidence of
componentdamagecausedbystaticelectricity.
3

1. Immediatelybeforehandling anysemiconductorcomponentor
semiconductor-equippedassembly, drainoff anyelectrostatic
chargeon yourbodybytouching aknownearthground. /
Alternatively, obtainand wearacommerciallyavailable
discharging wrist trapdevice, whichshouldberemovedfor
potential shock reasonspriortoapplying powertotheunitunder
test.
2. Afterremoving anelectrical assemblyequippedwithES devices,
place theassemblyon aconductivesurface suchas aluminum
foil, topreventelectrostaticchargebuildup orexposureofthe
assembly.
3. Use onlyagroundedtipsoldering iron tosolderorunsolderES
devices.
4. Use onlyananti-staticsolderremoval device classifiedas “anti-
static”cangenerate electrical charges sufficienttodamageES
devices.
5. Donotuse freon-propelledchemicals. These cangenerate
electrical charges sufficienttodamageES devices.
6. DonotremoveareplacementES device fromits protective
packageuntil immediatelybeforeyou arereadytoinstall it. / (most
replacementES devices arepackagewithleadselectrically
shortedtogetherbyconductivefoam, aluminumfoil orcomparable
conductivematerial).
7. Immediatelybeforeremoving theprotectivematerial fromthe
leadsofareplacementES device, touchtheprotectivematerial to
thechassisorcircuitassemblyintowhichthedevice will be
installed. / CAUTION:Besureno powerisappliedtothechassis
orcircuit, and observeall othersafetyprecautions.
8. Minimizebodilymotionswhenhandling unpackedreplacementES
devices. (Otherwise harmless motion suchas thebrushing
togetherofyourclothes fabricorthelifting ofyourfootfroma
carpetedfloorcangenerate staticelectricitysufficienttodamage
anES device).
4

X-RADIATION
WARNING
1. Thepotential source ofX-radiation inEVFsets istheHigh Voltage
section and thepicturetube.
2. Whenusing apicturetubetest jigforservice, ensurethat jigis
capableofhandling 10kVwithoutcausing x-radiation.
Note:
Itisimportanttouse anaccurateperiodicallycalibratedhigh voltagemeter.
3. MeasuretheHigh Voltage. Themeter(electrictype) reading should
indicate 2.5kV, 0.15kV. Ifthemeterindication isoutoftolerance,
immediate service and correction isrequiredtopreventthe
possibilityofprematurecomponentfailure. To preventanx-
radiation possibility, itisessential touse thespecifiedpicturetube.
1. DisassemblyProcedures
2. Electrical Adjustments
3. Block Diagrams
4. SchematicDiagrams
5

NOTE
BE SURE TOMAKE YOUR ORDERS OFREPLACEMENTPARTS ACCORDINGTOPARTS LIST.
CAUTION
THE MARK INDICATES THE PRIMARYCIRCUITTODISTINGUISHTHE PRIMARYFROMTHE
SECONDARYCIRCUIT. / PAYATTENTIONNOTTORECEIVE ANELECTRICSHOCK DURING
REPAIR
SERVICE OFTHE PRODUCTS.
IMPORTANTSAFETYNOTICE:
COMPONENTS IDENTIFIEDWITHTHE MARK HAVE THE SPECIALCHARACTERISTICS FOR
SAFETY. / WHENREPLACINGANYOFTHESE COMPONENTS, USE ONLYTHE SAME TYPE.
5. Circuit BoardDiagrams
NOTE
BE SURE TOMAKE YOUR ORDERS OFREPLACEMENTPARTS ACCORDINGTOPARTS LIST,
SECTION6.
CAUTION
THE MARK INDICATES THE PRIMARYCIRCUITTODISTINGUISHTHE PRIMARYFROMTHE
SECONDARYCIRCUIT. / PAYATTENTIONNOTTORECEIVE ANELECTRICSHOCK DURING
REPAIR
SERVICE OFTHE PRODUCTS.
IMPORTANTSAFETYNOTICE:
COMPONENTS IDENTIFIEDWITHTHE MARK HAVE THE SPECIALCHARACTERISTICS FOR
SAFETY. / WHENREPLACINGANYOFTHESE COMPONENTS, USE ONLYTHE SAME TYPE.
6. Exploded View&Replacement PartsList
6

NOTE:
1. Besuretomake your ordersofreplacementpartsaccording tothislist.
2. Unless otherwise specified, all resistorsareinOHMS, K=1,000 OHMS, all capacitorsarein
MICROFARADS
( F), P= F.
3. TheP.C. Board untilsmarkedwith" " shownbelowthemainassembledparts.
4. Thepartsmarkedwith on theexplodedviewshowtheelectricparts.
5. IMPORTANTSAFETYNOTICE
Componentsidentifiedwiththemarkhave thespecial characteristics for safety. When
replacing
anyofthese components, use onlythesametype.
6. Themarking (RTL)indicates theretention timeislimitedfor thisitem. / Afterthe
diacontinuation
assemblyinproduction, itwill no longerbeavailable.
NOTE:
Alist ofparts isstoredindata form intheCD-ROM. Itislocated
withinthefolderAPPENDIX/PARTS. Please use as necessary.
7. PDFforPrinting
ThePDFdocumentsfor printing consistofseveral files persection.Openeverysection (file)
through alink(blueframe)on thecove.
Setting ofAcrobatReader
Toviewalinkinanewwindow, followtheprocedurebelow. Whenyou operatethePDF
documents
printing, you canopenaPDFfileofeachsection whiledisplaying thecoverpage. Thisis
convenient
thePDFfiles inseveral sections.
<Howtoset>Inthe[File]menu, select[Preference]-[General...]and disable[OpenCross-
Document
SameWindow].
7

PRT-1
MECHANICAL COMPONENT ASSEMBLY
Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.
Ref.No. Part No. Part Name & Description Pcs Remarks Ref.No. Part No. Part Name & Description Pcs Remarks
1 M04KYS07WB CRT 1
2 ELY15V114G DEFLECTION YOKE 1
3 VGP5619 ESCUTCHEON 1
4 VYP8308 ESCUTCHEON ASS'Y 1
5 VYK9846 TOP CASE ASS'Y 1
6 VYC0870 MIC HOLDER ASS'Y 1
7 VYK9847 BOTTOM CASE ASS'Y 1
8 VGH4524 FRONT SHEET 1
9 VGF0902 BLIND SHEET 1
10 VMX3152 SPACER SHEET (A) 2
11 VMC1513 PLATE SPRING (A) 2
12 VMP7012 STOPPER PLATE 1
13 VHD1487 STOPPER SCREW 1
14 VGP5615 CRT CASE (UPPER) 1
15 VGP5616 CRT CASE (BOTTOM) 1
16 VMG1410 RUBBER CUSHION 1
17 VMS7089 SHAFT 1
18 VMX3153 SPACER 2
19 XUC15FP E-RING 2
20 VMC1741 PLATE SPRING (B) 1
21 VDL1223 MIRROR 1
22 VMX2886 SLIP RING 1
23 VMG1222 PACKING 1
24 K1EA209D0003 VF CABLE 1
25 VGU3364 SLIDE KNOB 2
26 VMZ3224 PROTECT TAPE 1
27 VWJ15G2055L0 FLAT CABLE 1
28 VEE0R99 CRT CABLE 1
29 VMP6993 P.C.B. HOLDER ANGLE (F) 1
30 VMZ3223 INSULATION SHEET (A) 1
31 VMZ3231 INSULATION SHEET (B) 1
32 VDL1222 LENS 1
33 VMG1414 EYE CAP 1
34 VGQ6366 MOUNT RING 1
35 VDS0162 LENS HOLDER RING 1
36 VDK0168 LENS HOLDER 1
37 VGP5617 EYEPEACE HOLDER 1
38 VGU8954 LOCK KNOB 1
39 VMS7075 SPRING PIN 1
40 VMB3567 SPRING 1
41 VMC1742 PLATE SPRING (C) 1
42 VGM1816 VF BASE 1
43 VDB1641 STEEL BALL 1
44 VMB3570 LOCK SPRING 1
45 VGP5629 VR LOCK RING 1
46 VGM1813 VF ATTACHMENT 1
50 XSB26+10FZ SCREW 4
51 XSB2+12 SCREW 2
52 XNG2E NUT 2
53 XSB4+12FXKS SCREW 2
54 XQN2+B25FZ SCREW 1
55 XTN26+8GFZ SCREW 4
56 XQN2+BJ4FZ SCREW 2
57 XYN26+K5 SCREW 5
58 XVE4B25FZ SCREW 2
E1 VEP20869A CRT MASK C.B.A. 1
E2 VEP20866A MAIN C.B.A. 1
E3 VEP20867A FRONT C.B.A. 1
E4 VEP20868A REAR C.B.A. 1

PRT-2
MECHANICAL COMPONENT ASSEMBLY

PRT-3
PACKING PARTS ASSEMBLY
Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.
PACKING PARTS ASSEMBLY Components identified with the mark have the special characteristics for safety.
When replacing any of these components, use only the same type.
1
2
4
5
3
6
Ref .No. Part No. Part Name & Description Pcs Remarks Ref .No. Part No. Part Name & Description Pcs Remarks
1 VQT9454 OPERATING INSTRUCTIONS 1 FOR AG-VF5P
1 VQT9455 OPERATING INSTRUCTIONS 1 FOR AG-VF5E
1 VQT9456 OPERATING INSTRUCTIONS 1 FOR AG-VF5MC
2 VPN5665 PAD 1
3 VPF0210 POLYETHYLENE BAG 1 FOR AG-VF5P
3 VPF0676 POLYETHYLENE BAG 1 FOR AG-VF5E/MC
4 VPN5667 CUSHION 1
5 VPG0A97 PACKING CASE 1
6 VQL9822 PACKING LABEL 1 FOR AG-VF5P
6 VQL0A24 PACKING LABEL 1 FOR AG-VF5E/MC
