Panasonic CQ-C7703N User manual

ORDER NO. ACED060105C8
AUTOMOTIVE AFTERMARKET
CQ-C7703N / CQ-C7303N
WMA MP3 CD Player/Receiver
SPECIFICATIONS
Specifications*
General
Power Supply DC 12V (11V - 16V),
Test Voltage 14.4V
Negative Ground
Tone Controls (Bass/
Treble)
Bass: ±12dB at 60Hz / Treble: ±
12dB at 16kHz
Equalizer Center Frequency 60, 160, 400, 1k, 3k, 6k, 16k Hz
Variable Range of Equalizer -12dB to 12dB (2dB step)
Current Consumption Less than 2.2A / (CD mode; 0.5W × 4
-speaker)
Maximum Power Output 70W × 4 (CQ-C7703N, at 1kHz)
Maximum Power Output 50W × 4 (CQ-C7303N, at 1kHz)
Power Output 40W × 4 (CQ-C7703N, DIN 45 324, at
4 )
Power Output 23W × 4 (CQ-C7303N, DIN 45 324, at
4 )
Speaker Impedance 4 - 8
Pre-amp Output Voltage 2.5V (CD mode; 1kHz, 0dB)
Subwoofer Output Voltage 2.5V (CD mode; 1kHz, 0dB)
Pre-amp Output Impedance 200
Subwoofer Output
Impedance
200
FM Stereo Radio
Frequency Range 87.5MHz - 108MHz
1

Usable Sensitivity 6 dB/ V (S/N 30dB)
Stereo Separation 35dB (at 1kHz)
AM (MW) Radio
Frequency Range 531kHz - 1,602kHz
Usable Sensitivity 28dB/ V (S/N 20dB)
AM (LW) Radio
Frequency Range 153kHz - 279kHz
Usable Sensitivity 32dB/ V (S/N 20dB)
CD Player
Sampling Frequency 8 Times Oversampling
DA Converter 4 DAC System
Pick-up Type Astigma 3-Beam
Light Source Semiconductor Laser
Wave Length 790 nm
Frequency Response 20 Hz-20kHz (±1dB)
Signal to Noise Ratio 96dB
Total Harmonic Distortion 0.01% (1kHz)
Wow and Flutter Below Measurable Limits
Channel Separation 85dB
Dimensions (W×H×D)** 178×50×155mm
Weight** 1.7 kg (CQ-C7703N)
1.6 kg (CQ-C7303N)
* Specifications and the design are subject to possible
modification without notice due to improvements.
** Dimensions and Weight shown are approximate.
** Above specifications comply with EIA standards.
2006 Matsushita Electric Industrial Co., Ltd. All rights reserved.
Unauthorized copying and distribution is a violation of law.
1. ABOUT LEAD FREE SOLDER (PbF)
Distinction of PbF PCB:
PCBs (manufactured) using lead free solder will have a PbF stamp on the PCB.
Caution :
2

- Pb free solder has a higher melting point than standard solder; Typically
the melting point is 50 - 70°F (30 - 40°C) higher. Please use a soldering
iron with temperature control and adjust it to 700 ± 20°F (370 ± 10°C). In
case of using high temperature soldering iron, please be careful not to
heat too long.
- Pb free solder will tend to splash when heated too high (about 1100°F/
600°C)
- This lead free solder will be used for the products after serial No.
1,000,001.
2. FEATUERS
- Hands Free Phone System. (The optional Bluetooth hands-free kit: CY-
BT100N)
- Expansion Module (The optional Hub unit: CY-EM100N)
- The optional adapter allows you to connect the optional Panasonic DVD
changer unit (CX-DH801N).
- The optional adapter allows you to connect the optional Panasonic CD
changer unit (CX-DP880).
- The optional adapter allows you to connect the optional iPod series.
- SQ (Sound Quality).
- SQ7 (7-Band Sound Quality).
- Customize the Display (Customize Function)
- MP3/WMA Playback from CD-R/RW.
- This manual is for 2 models CQ-C7703N and CQ-C7703N. The following
table describes the differences between 2 models.
3. REPLACEING THE FUSE
Use fuses of the same specified rating 15 amps. Using different substitutes or fuses with higher ratings,
or connecting the unit directly without a fuse, could cause fire or damage to the stereo unit.
4. MAINTENANCE
Your products is designed and manufactured to ensure a minimum of maintenance. Use a soft cloth for
routine exterior cleaning. Never use benzine, thinner or other solvent.
5. NOTES
[RADIO BLOCK]
Do not align the AM/FM package block. When the package block is necessary, it will be supplied already
aligned at the factory.
[CD DECK BLOCK]
3

This model has no servo alignment points because microcomputer controls the servo circuit

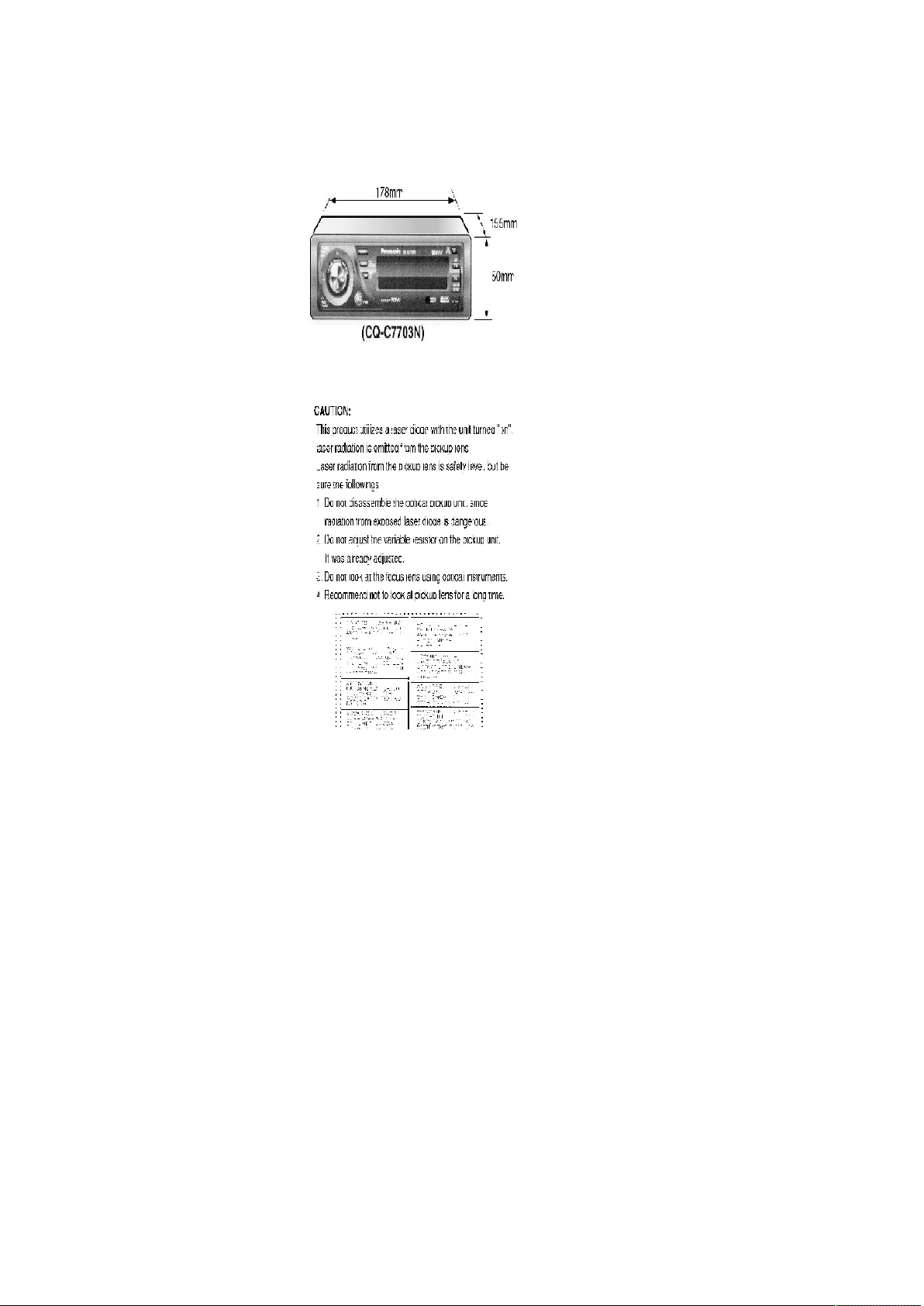

6. DIMENSIONS
7. LASER PRODUCTS

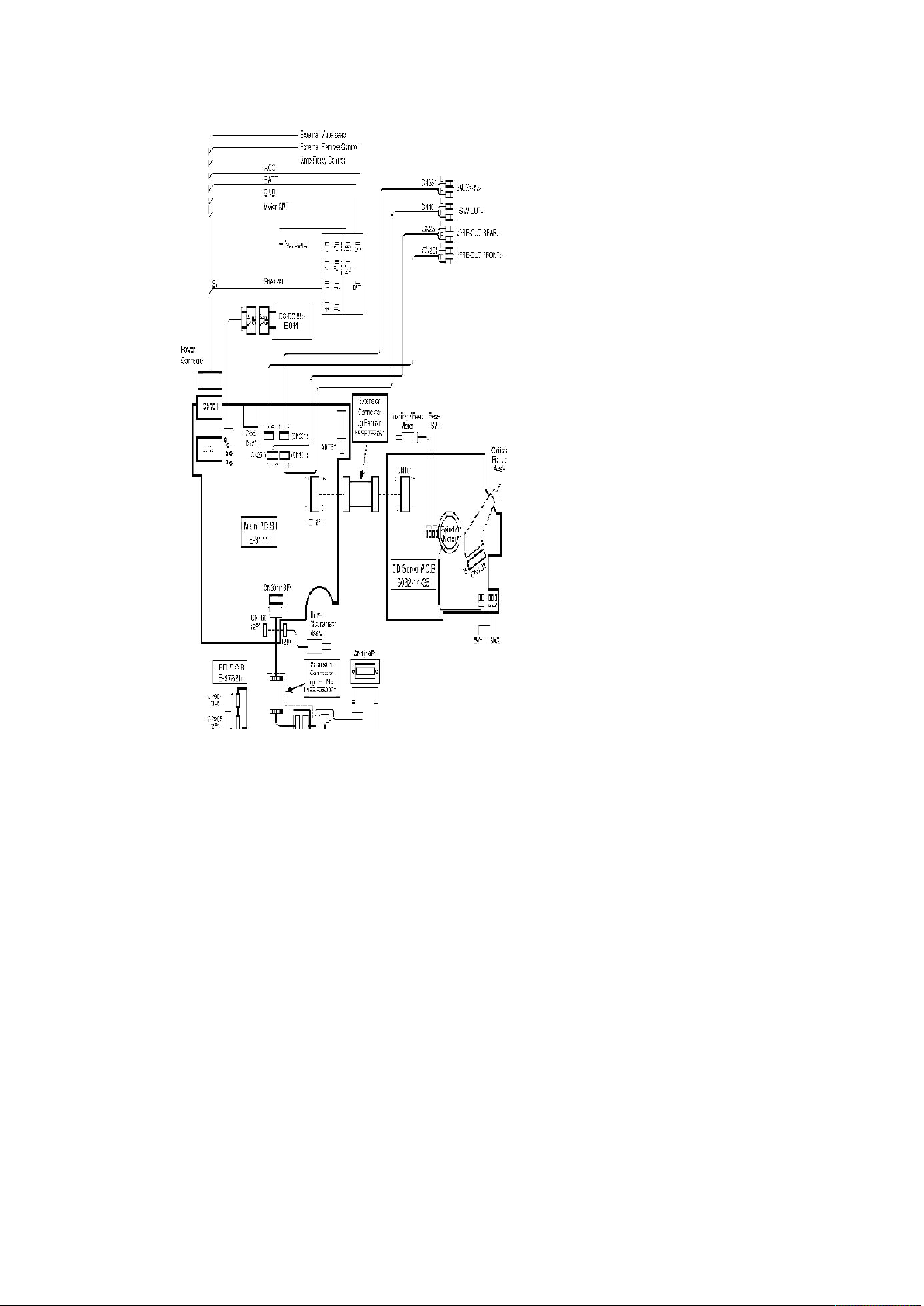

8. WIRING CONNECTION
8.1. CQ-C7703N
4

8.2. CQ-C7303N
5

9. DISASSEMBLY INSTRUCTIONS

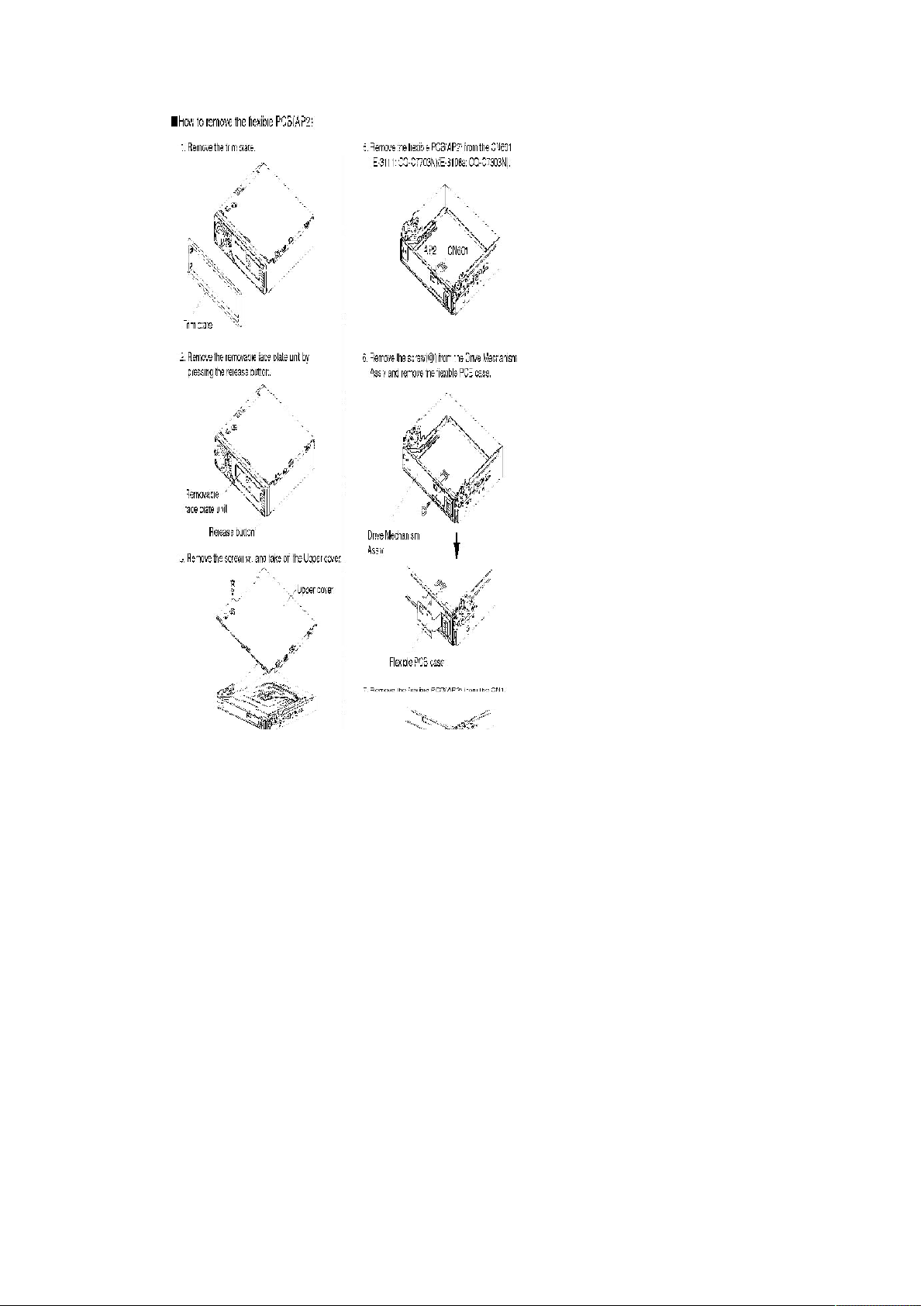

9.1. How to Remove the Flexible PCB(AP2)
6

9.2. How to Install the Main P.C.B. of the Electric Display
10. TERMINALS DESCRIPTION
10.1. Main Block [CQ-C7703N]
IC601 : C2CBKG000037
7

Pin
No.
Port Description I/O (V)
FM AM CD
1 PANEL
OPEN
Panel open
detection
I 0 5.2 5.2
2 PANEL
CLOSE
Panel close
detection
I 0 0 5.2
3 SUBM
CNT
3.3V power control
for Display
O 5.0 - -
4 BATT Battery power
check
I 4.8 5.0 5.0
5 ACC Acc. power check I 4.8 5.0 5.0
6 SDA Serial data for
electronic volume
I/O 4.9 4.9 4.9
7 SCLK Serial clock for
electronic volume
O 4.9 4.9 4.9
8 CD MUTE Signal mute from
CD deck
I 5.0 5.0 5.0
9 Vss GND - 0 0 0
10 ST FM stereo detection I 5.1 5.2 5.2
11 PLL DI Serial data to PLL O 0.6 0 0
12 PLL DO Serial data from PLL I 5.2 5.2 5.2
13 PLL CLK Serial clock for PLL O 4.9 4.9 4.9
14 PLL CE Chip enable for PLL O 0 0 0
15 CD
RESET
Reset for CD deck O 4.9 4.9 4.9
16 SUB SI Serial data to
Display CPU
O 0.6 0.6 0.8
17 CD IN Disc-in detection I 5.0 5.0 5.0
18 SUB SO Serial data from
Display CPU
I 4.4 4.4 4.4
19 CH DATA XM SO/UP SO
Serial data from
Changer
I 1.6 1.6 1.6
20 CH CLK Serial clock for
Changer or Flash
writer
I 4.9 4.9 4.9
21 Vdd +5V power supply - 4.9 4.9 4.9
22 UP SI Serial data to
Satellite or Flash
writer
O 0 0 0
23 CD SI Serial data to CD
deck
O 0 0 0
24 CD SCLK Serial clock for CD
deck
I/O 0 0.4 0
25 CONDENSOR Capacitor
connection for
power
- 3.3 3.3 3.3
26 CD SO Serial data from CD
deck
I 0 0 0
Pin
No.
Port Description I/O (V)
FM AM CD
27 CH STB Strobe from
Changer
I 0 0 0
28 CH REM
OUT
Remote control
codes to Changer
O 4.9 4.9 0.4
29 DECK V
CONT
Power control for
CD deck
O 4.9 4.9 4.9
30 REMO INT Interrupt for remote
control
I 3.7 3.7 3.7
31 CD FS Frame sync. for CD
deck
O - - -
32 Avdd +5V power supply - 5.1 5.1 5.1
33 AVREF +5V power supply - 5.1 5.1 5.1
34 AVGND GND - 0 0 0
35 AVSS GND - 0 0 0
36 SD FM/AM signal level
meter
I 0.2 0 0.3
37 INIT A Model setting A by
voltage level
I 0 0 0
38 INIT B Model setting B by
voltage level
I 0 0 0
39 A IN Spectrum analyzer
data
I 0 0 0
40 Vss GND - 0 0 0
41 SYS ID1 Hub connection
device detection ID
1
I 0 0 0
42 SYS ID2 Hub connection
device detection ID
2
I 5.2 5.2 5.2
43 HUB
EVENT
Bluetooth incoming
detection
I 5.2 5.2 5.2
44 HUB CNT Request of hub
connection check
O 0 0 0
45 CD SW1 Disc detection
switch 1
I 0 0 0
46 CD SW2 Disc detection
switch 2
I 0 0 0
47 MOD0 Operating mode
control 0 from
Flash writer
I 5.1 5.1 5.1
48 MOD1 Operating mode
control 1: pulled up
to H
- 5.1 5.1 5.1
49 MOD2 Operating mode
control 2 from
Flash writer
I 0 0 0
50 H
STANDBY
Standby control
from external
I 5.0 5.0 5.0
8

Pin
No.
Port Description I/O (V)
FM AM CD
51 DCDC
CONT
Not connected - - - -
52 FP
MOTOR1
Open/Close of
Front panel 1
O 4.9 5.0 4.9
53 FP
MOTOR2
Open/Close of
Front panel 2
O 4.9 5.0 4.9
54 V CONT1 Reference voltage
control for motor
driver
O 0 0 5.0
55 REMO 1 Remote control data I 5.0 5.0 5.0
56 SA CLK Spectrum analyzer
clock
O 5.0 5.0 4.9
57 EXT
MUTE
Pulled up to H I 5.3 5.2 5.2
58 AMP
CONT
Power control for
external Amplifier
O 4.9 5.0 4.9
59 BZ OUT Buzzer signal O 0 0 0
60 NC Not connected - - - -
61 WOW
MODE1
SRS WOW mode 1
(C8403U only)
O 0 0 0
62 WOW
MODE2
SRS WOW mode 2
(C8403U only)
O 0 0 0
63 WOW
MODE3
SRS WOW mode 3
(C8403U only)
O 0 0 0
64 DIM1 Not connected - - - -
65 DIM2 Not connected - - - -
66 MAIN
CNT2
Power control for
Hub
O 5.0 5.0 5.0
67 SRC KEY SOURCE key
detection
I 5.0 4.9 5.0
68 PANEL IN Panel attachment
detection
I - - -
69 RDS CLK RDS clock input INT 2.6 0 2.6
70 NC Not connected - - - -
71 RDS
DATA
RDS data input I 2.6 0.2 2.9
72 MAIN
CONT
Main power control O 4.9 4.9 4.9
73 INV CONT Dimmer power
control
O 5.0 5.0 5.0
74 AF MUTE Audio mute O 5.0 5.0 5.0
75 RESET Reset I 5.0 5.0 5.0
76 FOCUS
ELV
Focus elevation for
SRS WOW (C8403U
only)
O - - -
77 X1A Oscillator clock O 2.1 2.1 2.1
78 X0A Oscillator clock I 1.6 1.6 1.6
79 Vss GND - 0 0 0
Pin
No.
Port Description I/O (V)
FM AM CD
80 X1 Crystal oscillator
clock
I 2.0 2.0 2.0
81 X2 Crystal oscillator
clock
O 2.5 2.5 2.5
82 Vdd +5V power supply - 5.0 5.0 5.0
83 P00 Pulled down to L - 0 0 0
84 P01 Pulled up to H - 5.1 5.0 5.1
85 OFFSET
DET
Audio clipping level
detection from
Power amp.
I 0 0 0
86 STBY Standby for Power
amp.
O 5.0 5.0 5.0
87 AMP
MUTE
Mute for Power
amp.
O 0 0 0
88 ILL SENS Pulled up to H - 5.0 5.0 5.0
89 HB AM H-IC analog mode
select
O 5.2 5.2 0
90 EP DO EPROM comuni.
data input
O/I 000
91 EP DI (NC) Not connected - - - -
92 EP SK
(NC)
Not connected - - - -
93 SUB
RESET
Reset for display
CPU
O 4.9 5.0 4.9
94 DISPM
CONT
5V power control
for Display
O 0 0 0
95 NC Not connected - - - -
96 NC Not connected - - - -
97 NC Not connected - - - -
98 S LED Security LED drive O 0 0 5.0
99 ANT
CONT
Power control for
antenna motor
O 5.2 5.2 5.2
100 EP CS EPROM chip select I 0 0 0
9

10.2. Main Block [CQ-C7303N]
IC601 : C2CBKG000037
Pin
No.
Port Description I/O (V)
FM AM CD
1 PANEL
OPEN
Panel open
detection
I 0 5.2 5.2
2 PANEL
CLOSE
Panel close
detection
I 0 0 5.2
3 SUBM CNT 3.3V power control
for Display
O 5.0 - -
4 BATT Battery power
check
I 4.8 5.0 5.0
5 ACC Acc. power check I 4.8 5.0 5.0
6 SDA Serial data for
electronic volume
I/O 4.9 4.9 4.9
7 SCLK Serial clock for
electronic volume
O 4.9 4.9 4.9
8 CD MUTE Signal mute from
CD deck
I 5.0 5.0 5.0
9 Vss GND - 0 0 0
10 ST FM stereo detection I 5.1 5.2 5.2
11 PLL DI Serial data to PLL O 0.6 0 0
12 PLL DO Serial data from PLL I 5.2 5.2 5.2
13 PLL CLK Serial clock for PLL O 4.9 4.9 4.9
14 PLL CE Chip enable for PLL O 0 0 0
15 CD RESET Reset for CD deck O 4.9 4.9 4.9
16 SUB SI Serial data to
Display CPU
O 0.6 0.6 0.8
17 CD IN Disc-in detection I 5.0 5.0 5.0
18 SUB SO Serial data from
Display CPU
I 4.4 4.4 4.4
19 UP SO XM SO/UP SO Serial
data from Changer
I 1.6 1.6 1.6
20 UP CLK Serial clock for
Changer or Flash
writer
I 4.9 4.9 4.9
21 Vdd +5V power supply - 4.9 4.9 4.9
22 XM SI (MO)
/ UP SI
Serial data to
Satellite or Flash
writer
O 0 0 0
23 CD SI Serial data to CD
deck
O 0 0 0
24 CD SCLK Serial clock for CD
deck
I/O 0 0.4 0
25 CONDENSOR Capacitor
connection for
power
- 3.3 3.3 3.3
10

Pin
No.
Port Description I/O (V)
FM AM CD
26 CD DO Serial data from CD
deck
I 0 0 0
27 CH STB Strobe from
Changer
I 0 0 0
28 CH REM Remote control
codes to Changer
O 4.9 4.9 0.4
29 DECK V
CONT
Power control for
CD deck
O 4.9 4.9 4.9
30 REMO INT Interrupt for remote
control
I 3.7 3.7 3.7
31 CD FS Frame sync. for CD
deck
O - - -
32 Avdd +5V power supply - 5.1 5.1 5.1
33 AVREF +5V power supply - 5.1 5.1 5.1
34 AVGND GND - 0 0 0
35 AVSS GND - 0 0 0
36 SD FM/AM signal level
meter
I 0.2 0 0.3
37 INIT A Model setting A by
voltage level
I 0 0 0
38 INIT B Model setting B by
voltage level
I 0 0 0
39 A IN Spectrum analyzer
data
I 0 0 0
40 Vss GND - 0 0 0
41 SYS ID1 Hub connection
device detection ID
1
I 0 0 0
42 SYS ID2 Hub connection
device detection ID
2
I 5.2 5.2 5.2
43 EVENT Bluetooth incoming
detection
I 5.2 5.2 5.2
44 HUB CNT Request of hub
connection check
O 0 0 0
45 CD SW1 Disc detection
switch 1
I 0 0 0
46 CD SW2 Disc detection
switch 2
I 0 0 0
47 MOD0 Operating mode
control 0 from
Flash writer
I 5.1 5.1 5.1
48 MOD1 Operating mode
control 1: pulled up
to H
- 5.1 5.1 5.1
49 MOD2 Operating mode
control 2 from
Flash writer
I 0 0 0
11

Pin
No.
Port Description I/O (V)
FM AM CD
50 H
STANDBY
Standby control
from external
I 5.0 5.0 5.0
51 NC Not connected - - - -
52 FP
MOTOR1
Open/Close of
Front panel 1
O 4.9 5.0 4.9
53 FP
MOTOR2
Open/Close of
Front panel 2
O 4.9 5.0 4.9
54 V CONT1 Reference voltage
control for motor
driver
O 0 0 5.0
55 REMO 1 Remote control data I 5.0 5.0 5.0
56 SA CLK Spectrum analyzer
clock
O 5.0 5.0 4.9
57 EXT MUTE Pulled up to H I 5.3 5.2 5.2
58 AMP CONT Power control for
external Amplifier
O 4.9 5.0 4.9
59 BZ OUT Buzzer signal O 0 0 0
60 OEL
VCONT
Power control for
OEL
O 0 0 0
61 WOW
MODE1
SRS WOW mode 1
(C8403U only)
O 0 0 0
62 WOW
MODE2
SRS WOW mode 2
(C8403U only)
O 0 0 0
63 WOW
MODE3
SRS WOW mode 3
(C8403U only)
O 0 0 0
64 DIM1(NC) Not connected - - - -
65 DIM2(NC) Not connected - - - -
66 MAIN CNT2 Power control for
Hub
O 5.0 5.0 5.0
67 SRC KEY SOURCE key
detection
I 5.0 4.9 5.0
68 PANEL IN Panel attachment
detection
I - - -
69 RDS CLK RDS clock input INT 2.6 0 2.6
70 NC Not connected - - - -
71 RDS DATA RDS data input I 2.6 0.2 2.9
72 MAIN
CONT
Main power control O 4.9 4.9 4.9
73 INV CONT Dimmer power
control
O 5.0 5.0 5.0
74 AF MUTE Audio mute O 5.0 5.0 5.0
75 RESET Reset I 5.0 5.0 5.0
76 ELEV Focus elevation for
SRS WOW (C8403U
only)
O - - -
77 X1A Oscillator clock O 2.1 2.1 2.1
78 X0A Oscillator clock I 1.6 1.6 1.6
79 Vss GND - 0 0 0
12

79 Vss GND - 0 0 0
Pin
No.
Port Description I/O (V)
FM AM CD
80 X1 Crystal oscillator
clock
I 2.0 2.0 2.0
81 X2 Crystal oscillator
clock
O 2.5 2.5 2.5
82 Vdd +5V power supply - 5.0 5.0 5.0
83 P00 Pulled down to L - 0 0 0
84 P01 Pulled up to H - 5.1 5.0 5.1
85 OFFSET
DET
Audio clipping level
detection from
Power amp.
I 0 0 0
86 STBY Standby for Power
amp.
O 5.0 5.0 5.0
87 AMP MUTE Mute for Power
amp.
O 0 0 0
88 ILL SENS Pulled up to H - 5.0 5.0 5.0
89 NC Not connected - - - -
90 EP DO EPROM comuni.
data input
O/I 0 0 0
91 NC Not connected - - - -
92 NC Not connected - - - -
93 SUB
RESET
Reset for display
CPU
O 4.9 5.0 4.9
94 DISPM
CONT
5V power control
for Display
O 0 0 0
95 NC Not connected - - - -
96 NC Not connected - - - -
97 NC Not connected - - - -
98 S LED Security LED drive O 0 0 5.0
99 ANT CONT Power control for
antenna motor
O 5.2 5.2 5.2
100 EP CS(NC) Not connected - - - -
10.3. Display Block
IC900 : C2CBJH000133
13

Pin
No.
Port Part Name & Description I/O (V)
1 A18 A18 in Address bus O 1.5
2 A19 A19 in Address bus O 1.7
3 A20 A20 in Address bus O 1.3
4 NC Not connected - -
5 LED G - - -
6 LED B - - -
7 A0 A0 in address bus for LCD O 1.3
8 A1 A1 in Address bus O 0.3
9 VSS GND - -
10 A2 A2 in Address bus O 0.4
11 A3 A3 in Address bus O 0.4
12 A4 A4 in Address bus O 0.4
13 A5 A5 in Address bus O 1.3
14 A6 A6 in Address bus O 0.4
15 A7 A7 in Address bus O 0
16 A8 A8 in Address bus O 1.3
17 A9 A9 in Address bus O 0
18 A10 A10 in Address bus O 0
19 A11 A11 in Address bus O 1.5
20 A12 A12 in Address bus O 1.7
21 VCC +3.3V Power supply - 3.5
22 A13 A13 in Address bus O 1.4
23 A14 A14 in Address bus O 1.5
24 A15 A15 in Address bus O 1.7
25 SIN0 Serial data from Main CPU
or Flash writer
I 0.5
26 SOT0 Serial data to Main CPU or
Flash writer
O 1.8
27 SCK0 Serial clock for Flash
writer
I 3.5
28 NC Not connected - -
29 FRASH
RESET
Reset for Flash memory O 3.5
30 KS1 Key scan 1 O 0
31 NC Not connected - -
32 NC Not connected - -
33 AVCC +3.3V Power supply - 3.5
34 AVRH +3.3V Power supply - 3.5
35 AVSS/
AVRL
GND - -
36 TH
DETECT
Pulled up to H - 1.3
37 KS2 Key scan 2 O 0
38 KS3 Key scan 3 O 0
39 NC Not connected - -
40 VSS GND - -
41 KI5 Key-in return 5 I 0
14

Pin
No.
Port Part Name & Description I/O (V)
42 KI4 Key-in return 4 I 0
43 KI3 Key-in return 3 I 0
44 KI2 Key-in return 2 I 0
45 NC Pulled down to L - 0
46 NC Pulled up to H - 3.5
47 MD0 Operating mode control 0
from Flash writer
I 3.5
48 MD1 Operating mode control 1:
pulled up to H
- 3.5
49 MD2 Operating mode control 2
from Flash writer
I 0
50 NC Not connected - -
51 ROTARY 1 Volume-up detection from
Rotary encoder
I 2.5
52 ROTARY 2 Volume-down detection
from Rotary encoder
I 2.5
53 NC Not connected - -
54 NC Not connected - -
55 NC Not connected - -
56 NC Not connected - -
57 NC Not connected - -
58 FLASH CE Chip enable for Flash
memory
O 3.4
59 LCD CS LCD chip select O 3.4
60 LED R
61 NC Not connected - -
62 NC Not connected - -
63 NC Not connected - -
64 VLCD
CONT
Power control for LCD O 3.4
65 NC Not connected - -
66 NC Not connected - -
67 NC Not connected - -
68 NC Not connected - -
69 OE/RD Output enable for Flash
memory or Read strobe
for LCD
O 3.4
70 LCD WR Write strobe for LCD O 3.4
71 FLASH
WE
Write enable for Flash
memory
O 3.4
72 NC Not connected - -
73 LCD
RESET
Reset for LCD O 3.4
74 FLASH RY
/BY
Ready/Busy from Flash
memory
I 3.4
75 RST Reset I 3.5
76 NC Not connected - -
77 NC Not connected - -
15

77 NC Not connected - -
Pin
No.
Port Part Name & Description I/O (V)
78 X0A GND - -
79 VSS GND - -
80 X0 System clock (12.5MHz) I 1.3
81 X1 System clock (12.5MHz) O 1.5
82 VCC +3.3V Power supply - 3.5
83 D0 D0 in Data bus I/O 0.9
84 D1 D0 in Data bus I/O 0.9
85 D2 D0 in Data bus I/O 1.1
86 D3 D0 in Data bus I/O 0.9
87 D4 D0 in Data bus I/O 1.0
88 D5 D0 in Data bus I/O 1.1
89 D6 D0 in Data bus I/O 1.1
90 D7 D0 in Data bus I/O 0.9
91 D8 D0 in Data bus I/O 0.9
92 D9 D0 in Data bus I/O 0.9
93 D10 D0 in Data bus I/O 0.9
94 D11 D0 in Data bus I/O 0.5
95 D12 D0 in Data bus I/O 0.9
96 D13 D0 in Data bus I/O 0.7
97 D14 D0 in Data bus I/O 0.7
98 D15 D0 in Data bus I/O 0.7
99 A16 A16 in Address bus O 3.0
100 A17 A17 in Address bus O 1.7
10.4. CD Servo Block
IC101 : YESAM337
16

Pin
No.
Port Descriptions I/O (V)
1 AVSS GND - 0
2 LD-MT Loading Motor drive IC
control 1
O 3.2
3 CNT Loading Motor drive IC
control 2
O 3.2
4 - Not Connected - -
5 LD-EJ Loading Motor drive IC
control (Eject)
O 0
6 AMUTE Mute signal output O 0
7 - Not Connected - -
8 SBSY DSP IC SBSY O 0
9 - Not Connected - -
10 - Not Connected - -
11 TXD0 Serial data output O 0
12 RXD0 Serial data input I 0
13 CLK0 Clock input I 2.9
14 TXD1 Serial data output O 3.2
15 RXD1 Serial data input I 0
17

Pin
No.
Port Descriptions I/O (V)
16 CLK1 Clock input I 0
17 AMD - - 3.2
18 DVCC Power supply (3.3V) - 3.2
19 X2 Crystal oscillator - 1.3
20 DVSS GND - 0
21 X1 Crystal oscillator - 1.3
22 AMI - - 3.2
23 RESET Reset I 3
24 - Not Connected - -
25 - Not Connected - -
26 NMI - - 3.2
27 - Not Connected - -
28 STBY DSP IC STBY O 0
29 RST DSP IC RST O 3.2
30 CCE DSP IC CCE O 2.6
31 BUCK DSP IC CK O 2.8
32 BUS3 DSP IC BUS3 O 2.8
33 BUS2 DSP IC BUS2 O 2.8
34 BUS1 DSP IC BUS1 O 2.8
35 BUS0 DSP IC BUS0 O 2.9
36 RESET
SW
Mechanics deck REST
SW input
I 3.2
37 SW1 Mechanics deck SW1
input
I 0
38 SW2 Mechanics deck SW2
input
I 0
39 CONT
(P13)
DSP IC power control 1 O 3.2
40 - Not Connected - -
41 - Not Connected - -
42 - Not Connected - -
43 CONT
(P17)
DSP IC power control 2 O 3.2
44 PIO0 DSP IC PIO0 O 0
45 ZDET LOAD detect I 0
46-49 - Not Connected - -
50 - - - 3.2
51-58 - Not Connected - -
59 CDFS Serial frame sink signal
input (CD ON)
I 2.3
60 P50/
AN0
Reference voltage I 0.3
61 P51/
AN0
Loading motor detect I 2.1
62 P52/
AN2
- - 0
18

Pin
No.
Port Descriptions I/O (V)
63 P53/
AN3
- - 0
64 AVCC Power supply (3.3V) - 3.2
11. IC BLOCK DIAGRAM
11.1. Main Block
IC201 : C1BB00000796
IC211 : C0JBAS000008 [CQ-C7703N]
19

IC231 : C0JBZS000003 [CQ-C7303N]
IC251,252 : C0ABBB000184 [CQ-C7703N]
IC670 : YEAMC14584BE
20
