Panasonic CQ4300U - AUTO RADIO/CD TRUCK User manual

R
Heavy Duty Cassette/ Weather Band Receiver with Changer Control
CQ-4500U/CQ-4300U
Operating Instructions
Please read these instructions carefully before using this product and save this manual for future use.

2
Panasonic welcomes you to our ever growing family of electronic product owners. We know that this
product will bring you many hours of enjoyment. Our reputation is built on precise electronic and
mechanical engineering, manufactured with carefully selected components and assembled by people
who take pride in their work. Once you discover the quality, reliability, and value we have built into this
product, you too will be proud to be a member of our family.
❏Use This Equipment Safely
When Driving
Keep the volume level low enough to be aware of road and traffic conditions.
When Washing Vehicle
Do not expose the equipment, including the speakers and tapes, to water or excessive moisture. This
could cause electrical shorts, fire, or other damage.
When Parked
Parking in direct sunlight can produce very high temperatures inside your vehicle. Give the interior a
chance to cool down before switching the unit on.
Use the Proper Power Supply
This equipment is designed to operate off a 12 volt, negative ground battery system (the normal system
in a North American vehicle.)
Protect the Tape Mechanism
Keep magnets, screwdrivers, or other metallic objects away from the tape mechanism and tape head to
prevent poor performance or malfunctions.
Use Authorized Service Centers
Do not attempt to disassemble or adjust this precision equipment. Please refer to the Servicenter list
included with this product for service assistance.
Notes:
• The two units can be connected to an optional CD changer (CX-DP801EUC, etc.), CQ-4500U can
be connected to an optional wired remote control unit (CA-RC300U).
• For connection and operation of CD changer (CX-DP801EUC, etc.) and wired remote control unit
(CA-RC300U), refer to the operating instructions of that unit.
• A wireless remote control unit (CA-RC500U) is optional for CQ-4500U.
• Optional wired remote control unit CA-RC300U can be connected to CQ-4500U.
Find the model number and serial number on either the back or bottom of the unit. Please record them
in the space below and retain this booklet as a permanent record of your purchase to aid in
identification in case of theft.
MODEL NUMBER SERIAL NUMBER
DATE PURCHASED FROM
CQ-4500U/CQ-4300U
Note: This operating instruction manual is for two models CQ-4500U and CQ-4300U.
The differences between these models are mentioned below. All illustrations throughout this manual
represent model CQ-4500U unless otherwise specified.
Model
Features
Wired remote control
Wireless remote control
AUX-IN
Temperture readout
S.HDB/LOUD
preamp-out
CQ-4500U
Yes
Yes
Yes
Yes
S•HDB
Yes
CQ-4300U
None
None
None
None
LOUD
None

3
Contents
Use This Equipment Safely ...................................................................Page 2
❏Power and Sound Controls......................................................................4
How to adjust the volume, mute, balance, and tone for best listening
❏Radio Basics..............................................................................................6
Mode selection, manual and automatic tuning, band selection,
preset stations
❏Cassette Tape Player Basice....................................................................9
How to load, wind, play, and eject a cassette tape
❏CD Changer Basics.................................................................................13
Play, repeat, random and scan, error messages.
Note: CD changer controls are applicable to units with optional CD changer
unit (sold separeately).
❏Clock Basics............................................................................................15
Setting the time, selecting the clock display, alarm operation
❏Temperature Reading .............................................................................17
❏Casette Head Cleaning Warning............................................................17
❏In Case of Malfunction............................................................................18
❏Installation Guide....................................................................................19
Step-by-step procedures, electrical connections
❏Troubleshooting......................................................................................28
Troubleshooting tips, where to get service help
Specifications .............................................................................................30
Part 15 of the FCC Rules............................................................................30

4

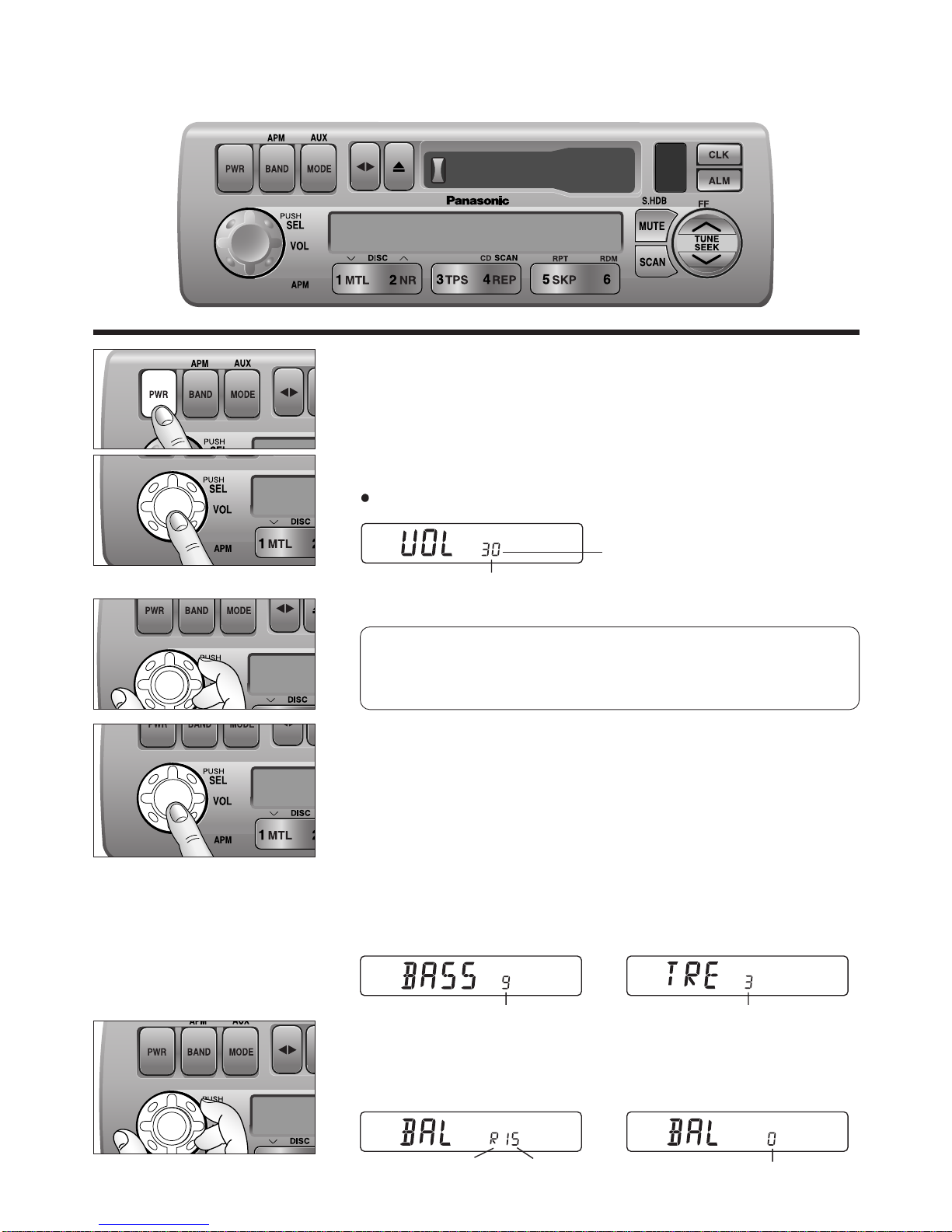

Power and Sound Controls
BASS/FAD
BAL/FADER
BASS/FAD
BAL/FADER
Power
If the vehicle is not running yet, turn the key in the ignition until the
accessory indicator lights.
Press [PWR] to switch on the power.
Changing Audio Modes
Press this knob [SEL] to change the audio mode as follows.
VOL aBASS aTRE
(Volume) (Treble)
cd
FADE bBAL
(Fader) (Balance)
Volume
Press the knob to select the volume mode and then turn it
clockwise or counterclockwise to adjust the volume level.
Bass and Treble
Press the knob to select the BASS or TREBLE mode and then turn
it clockwise or counterclockwise to increase or decrease the
bass/treble level.
d
d
0 to 40
-12 to 12 -12 to 12
Volume Level
4500U
BASS/FAD
BAL/FADER
FEW
l
k
Anti-Volume-Blast Circuit
At power on, the volume returns to the previous level slowly if
the level was at 20 or higher.
Balance
Press the knob to select the BALANCE mode and then turn it
clockwise or counterclockwise to shift the sound volume to the right
or left speakers.
or L 1 to 15 Balance Center
(R: Right, L: Left)

5

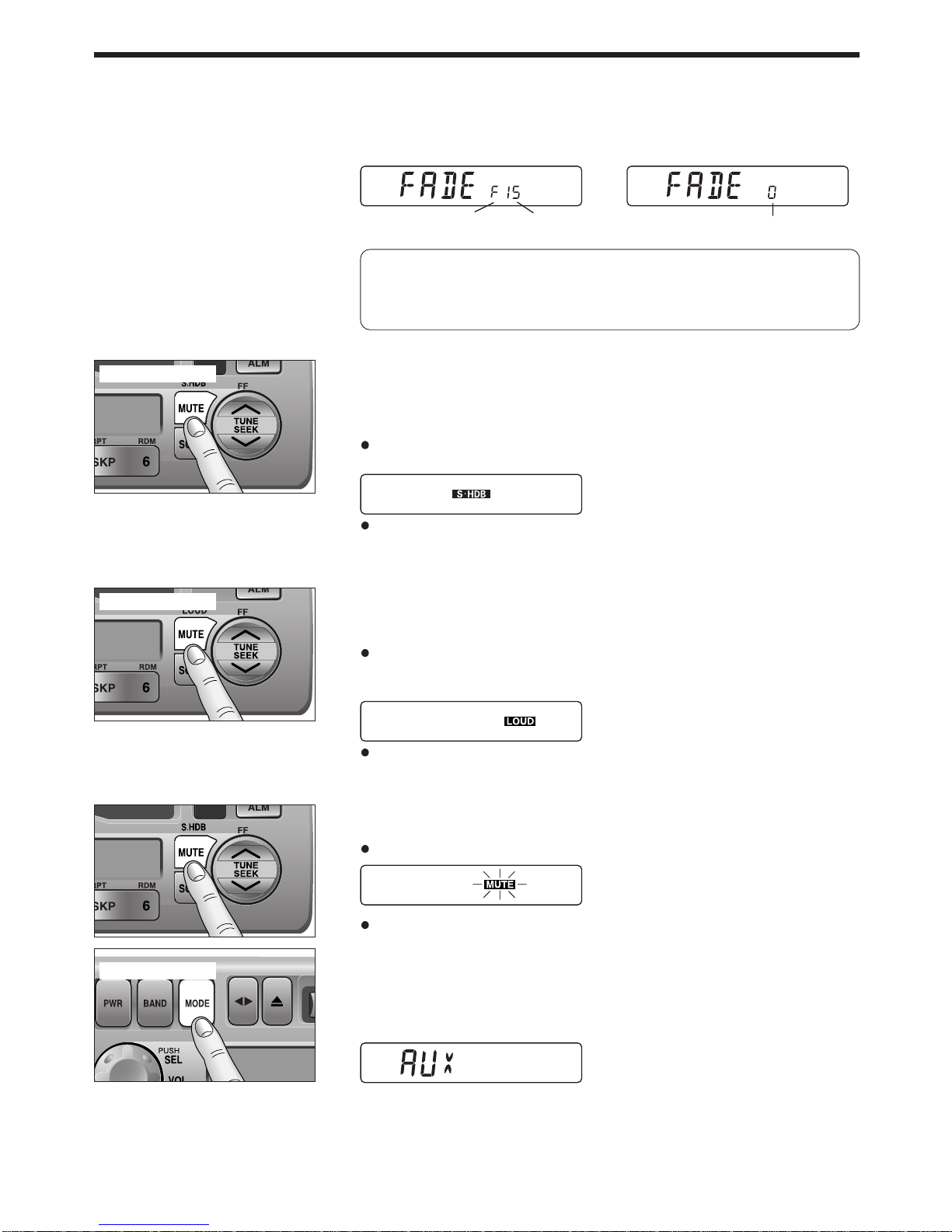

Fader
Press the knob to select the FADER mode and then turn it
clockwise or counterclockwise to shift the sound volume to the front
or rear speakers.
S•HDB (Super High Definition Bass)
(Only for CQ-4500U)
This featare enhances bass definition.
Press and hold [MUTE] (S•HDB) for more than 2 seconds to
activate high-defintion bass.
Press and hold [MUTE] (S•HDB) for more than 2 seconds to
cancel.
Tone Enhancement (Loudness)
(Only for CQ-4300U)
Press and hold [MUTE] (LOUD) for more than 2 seconds to
enhance bass and treble tones when listening at low or medium
volume.
Press and hold [MUTE] (LOUD) for more than 2 seconds again to
deactivate when listening at higher volumes.
Mute
Press [MUTE] to mute the sound completely.
Press [MUTE] again to cancel.
Selecting Auxiliary Source
(Only for CQ-4500U)
Press and hold [MODE] (AUX) for more than 2 seconds to select
AUX Input mode.
Connect the auxiliary equipment (any other appropriate
equipment) to the AUX IN Connector.
Canceling AUX Input mode
Press [MODE] (AUX) to resume the previous mode.
4500U
FEW
l
k
4500U
FEW
l
k
or R
(F: Front, R: Rear) 1 to 15 Fader Center
Press and hold
Press and hold
4300U
FEW
l
k
Note: In the audio mode (BASS/TRE/BAL/FADE), the display
will returm to regular operation mode when there is no input for
more than 5 seconds (2 seconds in the VOL mode).
Press and hold

6

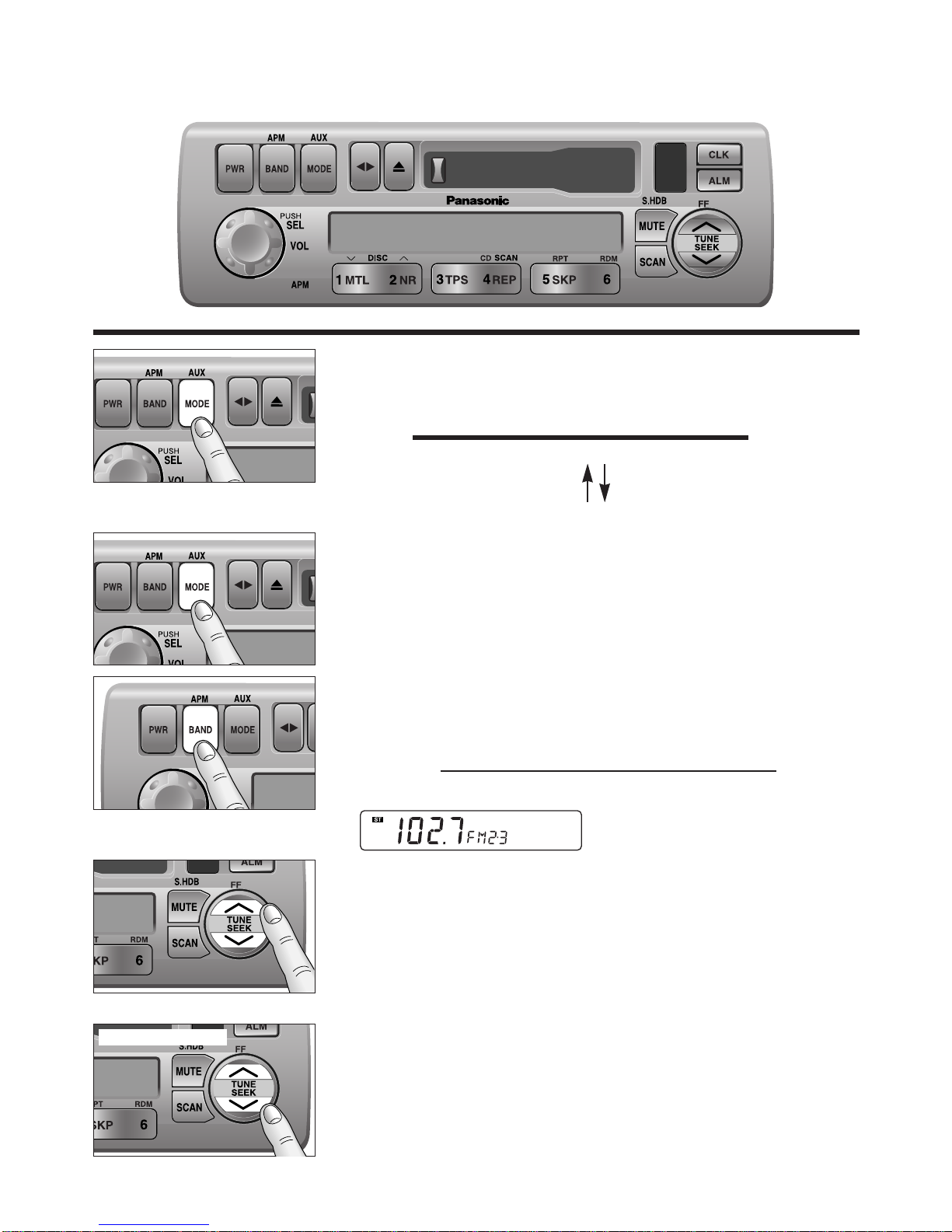

Radio Basics
Mode Selection
Press [MODE] to change the operation mode as follows.
Radio aCassette aCD Changer (when connected)
cd
Press and hold [MODE] for more
than 2 seconds.
(AUX is only for CQ-4500U)
AUX
To change to the tuner mode
In case of CD changer mode or Tape mode, press [MODE].
Selecting a Band
Press [BAND] to change the band setting as follows.
FM1 aFM2 aW/B aAM
(Weather Band)
cd
"ST" indicator lights when FM stereo broadcast is available.
4500U
FEW
l
k
Manual Tuning
Press [TUNE jj]or [TUNE ii]to tune in a higher or lower
frequency.
Seek Tuning
Press and hold [SEEK jj]or [SEEK ii]for more than 0.5
seconds, then release it.
Seek tuning will automatically stop when a signal of the next
broadcast station is received.
4500U
FEW
l
k
Hold and release
4500U
BASS/FAD
BAL/FADER
FEW
l
k

7

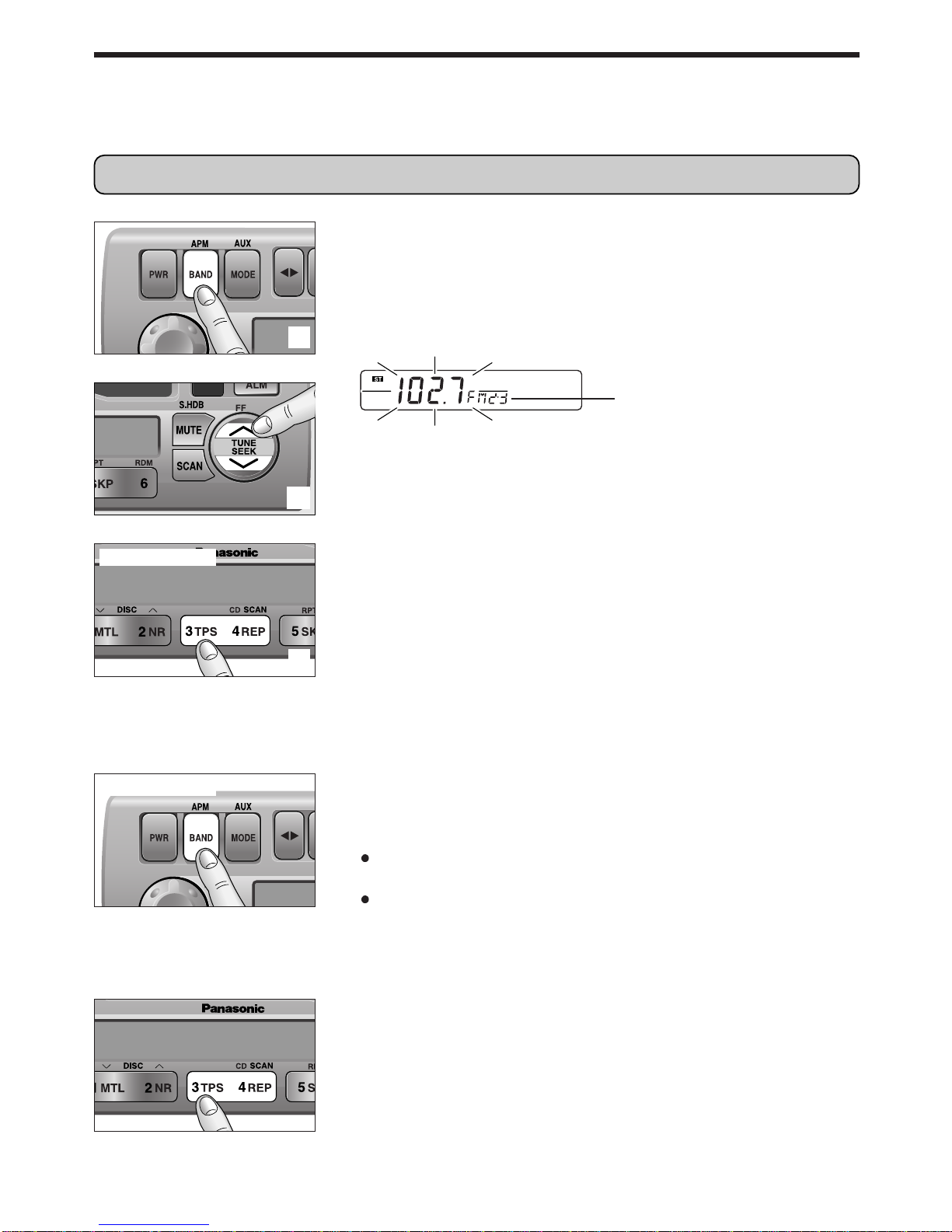

Station Preset
FM1, FM2, and AM can save maximum 6 stations each in their preset station memories.
Manual Station Preset
Press [BAND] to select a desired band.
Use manual or seek tuning to find a station to be stored in the
preset memory.
Press and hold one of the preset buttons [1] to [6] until the
display blinks once.
Note: You can change the memory setting by repeating the above
procedure.
Tuning in a Preset Station
Press any of the buttons [1] to [6] to tune in the station preset by
the above.
Auto Station Preset
Select a band and press and hold [BAND] (APM: Auto Preset
Memory) for more than 2 seconds.
The 6 strongest available stations will be automatically saved in
the memory on preset buttons [1] to [6].
Once set, the preset stations are sequentially scanned for 5
seconds each.
Note: Any stations preset previously on the selected band will be
erased.
4500U
FEW
l
k
d
d



Press and hold
Press and hold
Preset Number
Caution: To ensure safety, never attempt to preset stations while you are driving.

8
Radio Basics (continued)

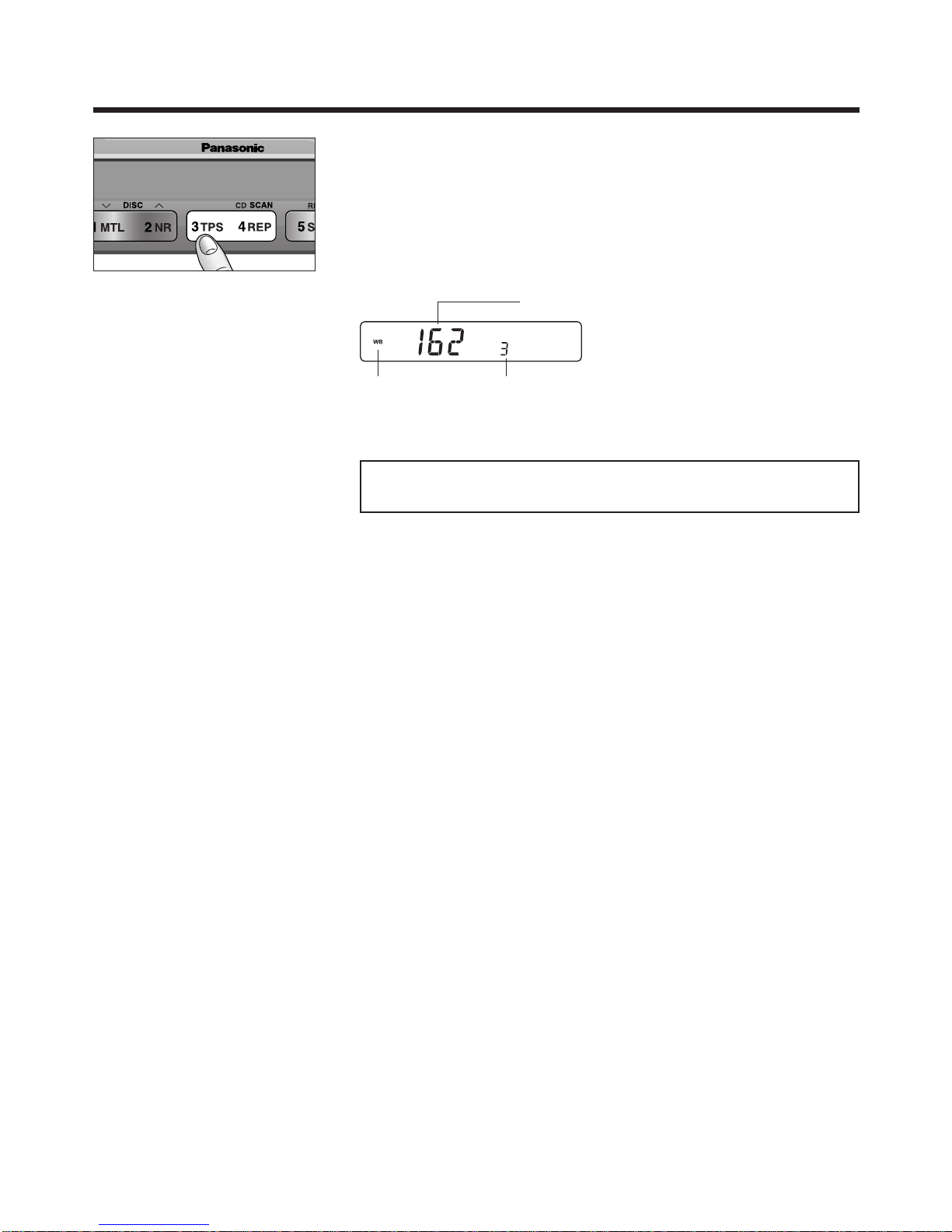

Tuning in a Weather Band
Station
Press any of the buttons [1] to [6] to monitor the preset station.
Weather Band Stations
National Weather Radio Broadcasts from over 380 locations
throughout the U.S. on seven VHF/FM frequencies.
Tune to weather band to receive continuous weather information 24
hours a day on one of the following frequencies.
1. 162.550 MHz
2. 162.400 MHz
3. 162.475 MHz
4. 162.425 MHz
5. 162.450 MHz
6. 162.500 MHz
7. 162.525 MHz
Occasionally the frequency of an existing or planned station must
be changed because of unexpected radio frequency interference
with adjacent NOAA Weather Radio Stations and/or with other
Government or Commercial Operations within the area. If you have
a question concerning NOAA Weather Radio, please contact your
nearest National Weather Service Office.
Note: The weather band (CH1-6) has been preset. CH7 is
selected by pressing [jj]or [ii].
WB Weather Band Frequency (channel) Number
The frequency (162) remains unchanged.

9
Cassette Tape Player Basics
Playing a Cassette
Insert the cassette with the exposed tape side facing to the right.
Play will start automatically.
Rewind and Fast Forward
Press [ii](REW) or [jj](FF) to rewind or fast forward the tape.
Press []to stop.
The tape will resume playing from that position.
Changing Sides
Press []to reverse.
4500U
BASS/FAD
BAL/FADER
FEW
l
k
FEW
l
k
Exposed Tape side
Playing Side Indicator
Top Side Playing Bottom Side Playing
4500U
FEW
l
k
Rewind
Fast Forward

10
Cassette Tape Player Basics
(continued)
Tape Eject
Press [u]to eject the tape, and the previous mode of operation will
be resumed.
Notes:
Always remove the cassette tape from the unit when the cassette
tape player is not being used.
If power is switched off before [u]is pressed, the cassette will not
be ejected. Switch on the power again and press [u]to eject the
cassette.
Metal Tape Mode
Press [1 MTL] when playing metal or chromium dioxide (CrO2)
position tapes.
Press [1 MTL] again to cancel.
Note: Playing non-metal position tapes in MTL mode causes high
frequency imbalance, which affects tone quality.
Dolby Noise Reduction
Press [2 NR] to set the Dolby B NR mode.
Press [2 NR] again to cancel.
Note: Set the Dolby B NR mode when playing back a tape recorded
with Dolby B Noise Reduction.
BASS/FAD
BAL/FADER
BASS/FAD
BAL/FADER

11
TPS Operation (Tape Program
Search)
Press [3 TPS] to activate the tape program search mode.
To select a desired program, press [ii] or [jj]corresponding
times to go backward (up to 8) or forward (up to 9).
(Rewind:) (Fast forward:)
8019
cc
Ex1. To select the current program
again, press [3 TPS], and
press [ii].
Ex2. To select the previous
program, press [3 TPS], and
press [ii]twice.
Ex3. To select the next program,
press [3 TPS] and press [jj].
Ex4. To select the 3rd next
program , press [3 TPS], and
press [jj]three times.
Press [3 TPS] again to cancel.
Notes: The TPS mode may not work correctly in the following
cases. This, however, does not mean that the unit is defective.
There is an interval of less than 4 seconds or having a high level
of noise or hum between programs.
There is particularly low-level passage during the program.
Notes:
To maintain your cassette player in top condition, avoid using tapes that are longer than 90
minutes (C-90).
If you insert into the unit a cassette with a loose tape caused by forcing it into cassette with a
finger or the like, the cassette may not be properly reproduced. In such a case, eject the cassette,
make the tape tight, then insert it back into the deck.
4500U
FEW
l
k
d
or




4500U
FEW
l
k

12
Cassette Tape Player Basics
(continued)
Repeat Play
Press [4 REP] to repeat the current program.
Press [4 REP] again to cancel.
Blank Skip
Press [5 SKP] to skip unrecorded portions on the tape.
Press [5 SKP] again to cancel.
Notes:
When repeat is on, the blank skip does not work because the
repeat has priority over the blank skip.
The blank skip does not work when the unrecorded portion of the
tape is less than 15 seconds.
REPEAT
B•SKIP

13
CD Changer Basics
To Start the CD Changer
Once the CD changer has been connected, press [MODE] to
change to the CD changer mode. When a disc magazine is
inserted, CD play starts automatically.
Selecting a Disc
Press [1] (iDISC) or [2] (DISC j) to select a disc in descending
or ascending order.
Then, the selected disc will start to play from the first track.
Note: The number of discs you can load the CD changer with is
specific to each model.
Selecting a Track
Press [jj]to advance to the next track.
Press [ii]to start play from the beginning of the current track.
Press [ii]or [jj]repeatedly to skip the desired number of tracks.
Searching a Track
Press and hold [jj]or [ii]for more than 0.5 seconds to activate
fast forward or reverse.
Release [jj]or [ii]to resume regular CD changer play.
Note: CD changer functions are designed for an optional CD changer unit.
4500U
BASS/FAD
BAL/FADER
FEW
l
k
BASS/FAD
BAL/FADER
4500U
FEW
l
k
4500U
FEW
l
k
Hold and release
Play
Time Disc Number Track Number

0000
E 3E 1
E 2
14
Repeat a Track
Press [5] (RPT: REPEAT) to repeat the current selection.
"REPEAT" indicator lights.
Press [5] (RPT: REPEAT) again to cancel.
Random Selection
Press [6] (RDM: RANDOM). All the available tracks on all discs in
the magazine will be played in a random sequence.
Press [6] (RDM: RANDOM) again to cancel.
Note: The Random mode will stop and the disc select function will
operate once the [1] (iDISC) or [2] (DISC j) is pressed.
Scanning Track
Press [4] (CD SCAN). The display blinks and the first 10 seconds
of each track on the discs play in sequence.
Press [4] (CD SCAN) again to cancel.
❏Error Display Messages
Appears on the display when the
compact disc is dirty or inverted.
Selects the next available compact
disc.
Appears on the display when
compact disc is scratched. Selects
the next available compact disc.
Appears on the display when there
is no disc in the magazine.
Appears on the display when the CD
changer stops operating for some
reason. Please turn off the vehicle
engine (ACC off), discomnect radio
harness for 1 minute then reconnect.
CD Changer Basics (continued)
REPEAT
RANDOM
Disc

15
Clock Basics (The clock system is 12-hours.)
Initial Time
Press and hold [CLK] to set time display. "AM 12:00" blinks, and
the time setting mode is activated.
Press [ii]to set the hour.
Press [jj]to set the minute.
(Hold [ii]or [jj]to change numbers rapidly.)
Once the time has been set, release [CLK].
Note: When the clock is not set yet, "SET" is displayed.
Resetting the Time
When you want to reset the time, repeat step and above.
Selecting the Clock Display
Press [CLK] to display the current time.
Press [CLK] again to returns display.
Note: The current time will be displayed at all the time even the
power of the radio is turned off.
4500U
BASS/FAD
BAL/FADER
FEW
l
k
l
k
l
k
FEW
l
k
l
k
l
k
d
or
Press and hold




16

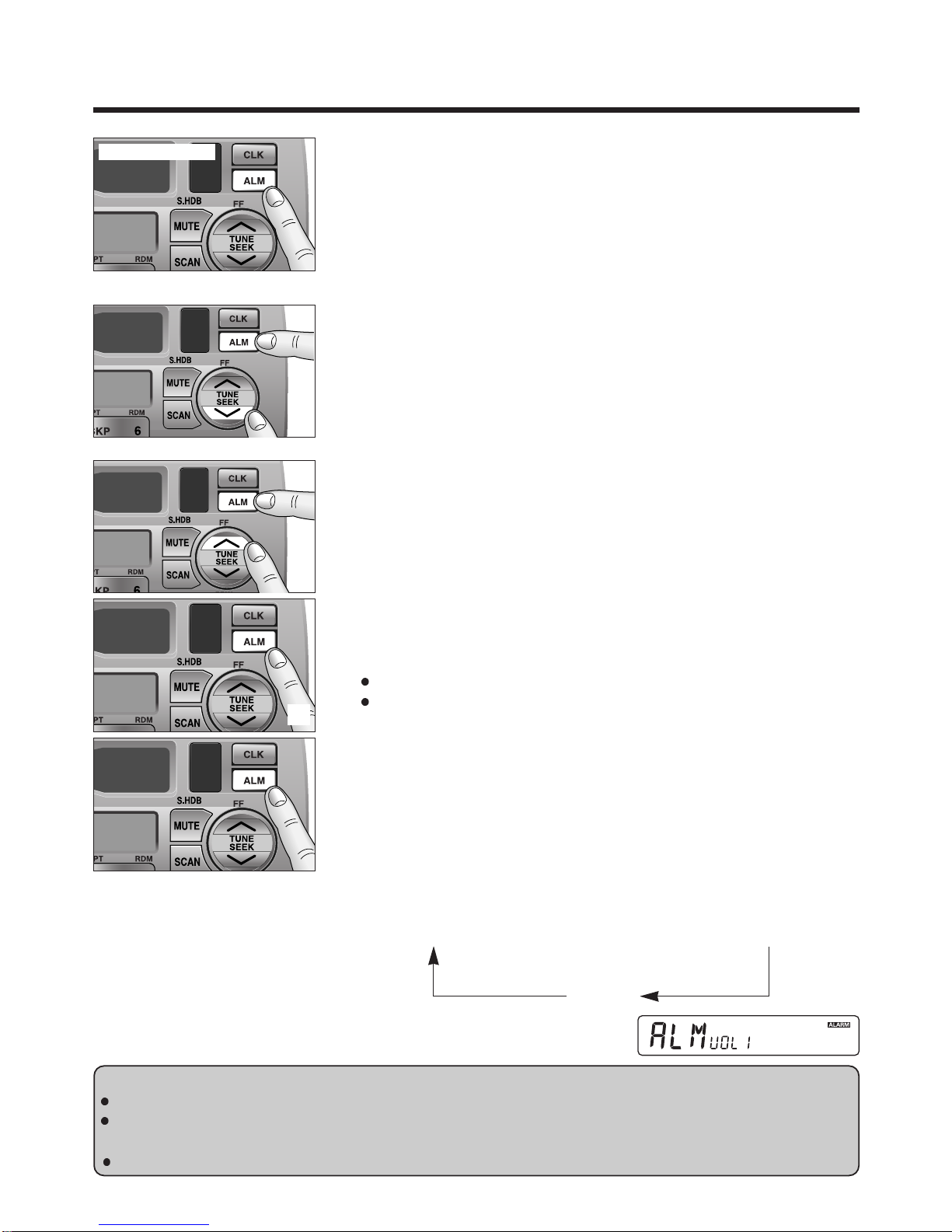

Alarm Time Setting
Press and hold [ALM] to set alarm time Display blinks, and the
alarm time setting mode is activated.
Press [ii]to set the hour.
Press [jj]to set the minutes.
(Hold [ii]or [jj]to change numbers rapidly.)
When you have set the alarm time, release [ALM].
Note: When the alarm is not set yet, "AM 12:00" is displayed.
Resetting the Alarm Time
When you want to reset the alarm time, repeat steps and 
above.
Alarm Operation
Alarm is switched to ON or OFF each time [ALM] is pressed.
When the alarm is switched to ON, the alarm will sound at the set
alarm time.
Turning off the Alarm Sound
The alarm will turn off automatically after 90 seconds. Otherwise,
press [ALM] once.
Alarm output Volume Selection
You can select ALARM VOL 1 (or VOL 2) by pressing [ALM] in
sequence and the display will show as follows.
ALARM TIME aALM VOL 1 aALM VOL 2
(display 3 seconds) (display 2 seconds) (display 2 seconds)
OFF
Cautions:
Be careful not to set wrong alarm time, otherwise, the alarm may sound while driving.
If the alarm is set, be sure to check the set alarm time by pressing and holding [ALM] for more than
2 seconds.
If volume is set at "0" level, the output volume will be muted. (Even when ALARM is acting.)
l
k
l
k
l
k
FEW
l
k
FEW
l
k
d
or
Clock Basics (continued)
Press and hold




BASS/FAD
BAL/FADER
17

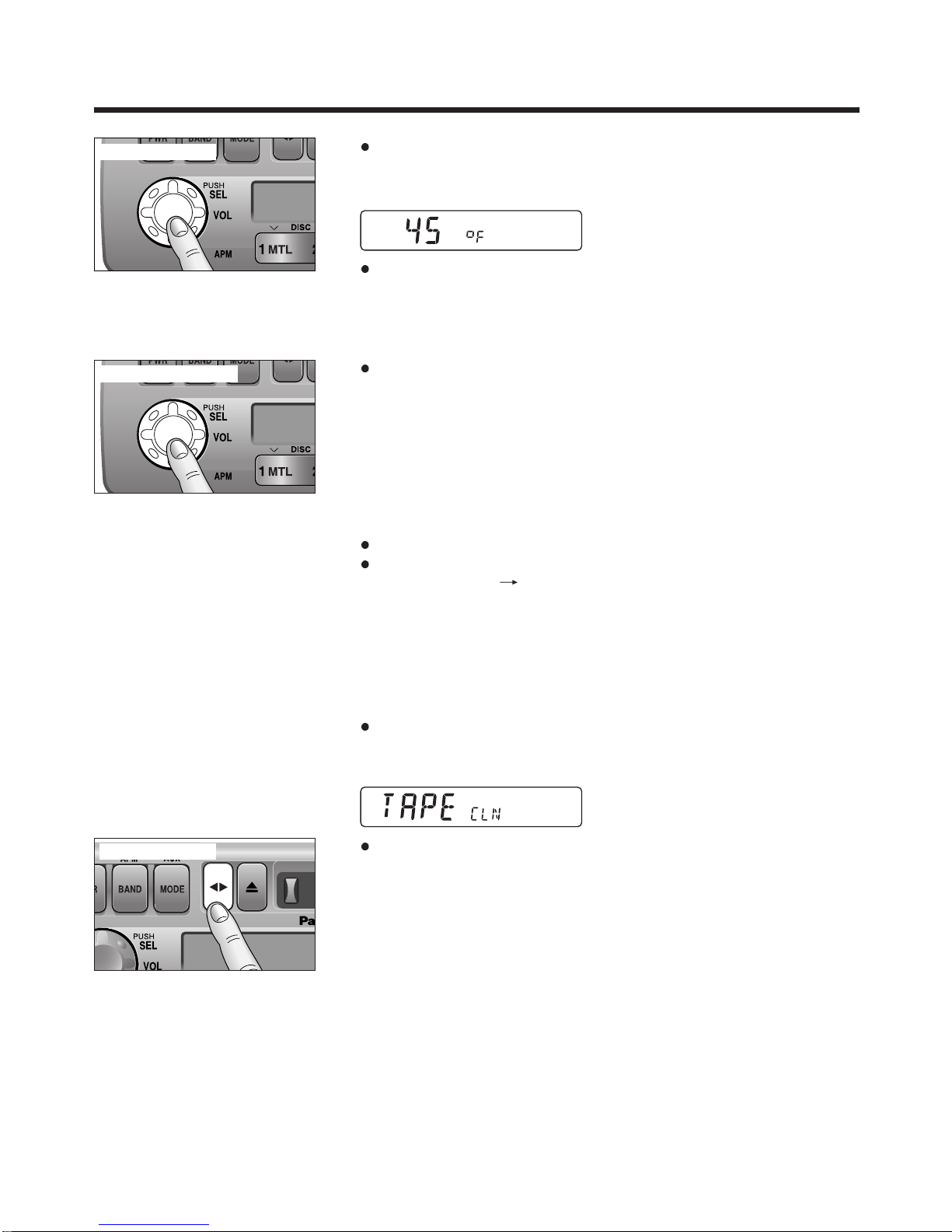

Temperature Reading
(Only for CQ-4500U)
To read the temperatare outside the vehicle, press and hold the
knob [SEL] for more than 2 seconds. The current temperature in
Fahrenheit is displayed on the display.
Press and release the knob [SEL] to shift the temperature display
to the current operating mode.
Press and hold the knob [SEL] for more then 2 seconds again to
cancel the temperature reading mode.
The display will show "TAPE CLN" to warn you to clean the
cassette head for maintaining its top condition after accumulated
100 hours tape playing.
Press and hold []for more than 2 seconds to clear the "TAPE
CLN" display and the TAPE mode display will be resumed. (It is
valid only in TAPE mode.)
Notes:
The temperature Sensor Lead must be connected (option).
If you switch the temperature reading mode to the other mode
(EX. Tape mode CD changer mode), the display will show that
mode for 5 seconds and then resume the temperature reading.
Cassette Head Cleaning Warning
Press and hold
BASS/FAD
BAL/FADER
Press and release
Press and hold

18
BASS/FAD
BAL/FADER
l
k
In Case of Malfunction
Reset Switch
If the unit does not respond when the function buttons are
pressed, press the reset switch with a small pointed object,
such as a pencil point. This will restore the unit to its default
settings. All previously stored memory settings will be
erased. Repeat the necessary steps in the previous pages to
reprogram the clock and memory settings. If pressing the
reset switch does not restore normal operation, please
return the radio to the nearest authorized service center for
service.

19

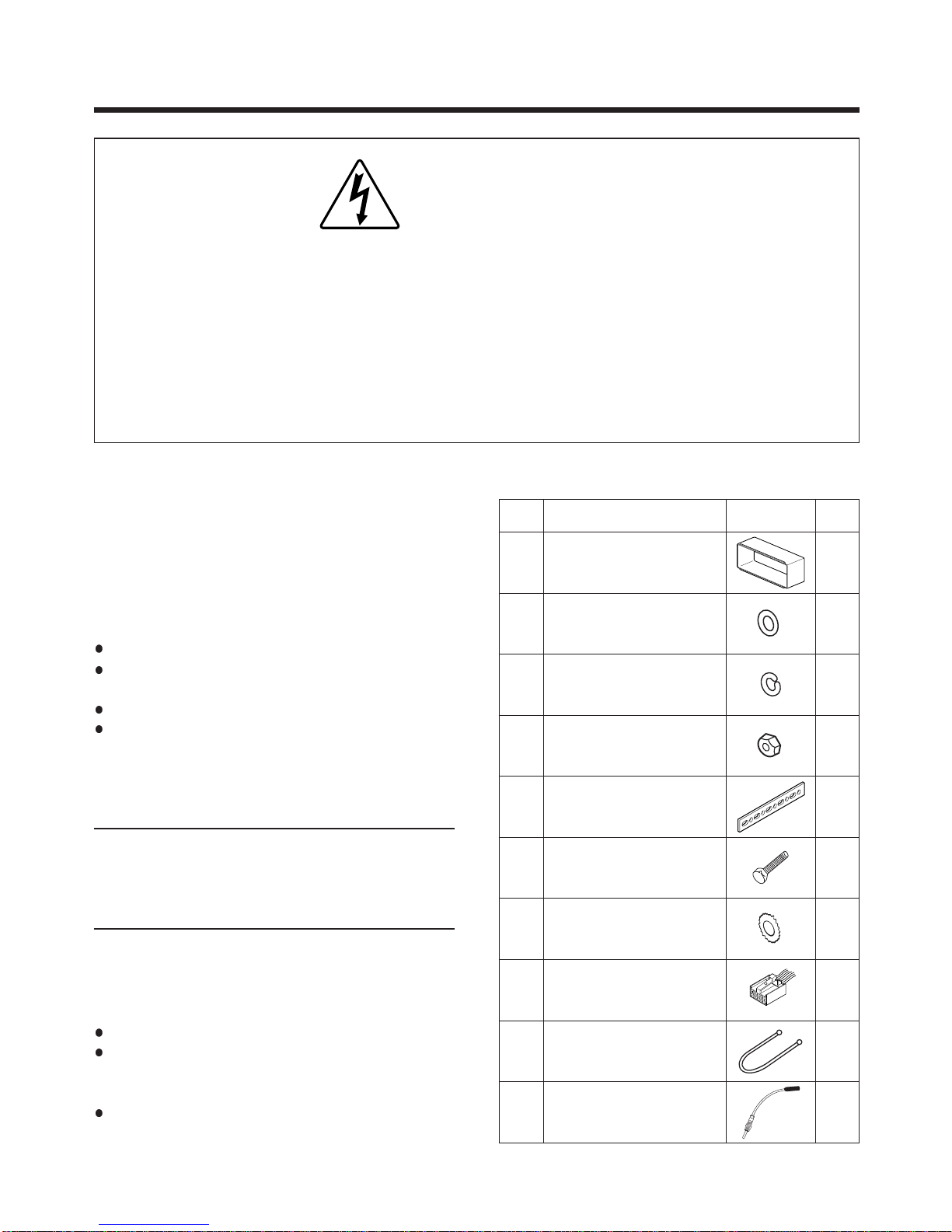

Installation Guide
This installation information is designed for experienced installers
and is not intended for non-technical individuals. It does not
contain warnings or cautions of potential dangers in attempting to
install this product.
Any attempt to install this product in a motor vehicle by anyone
other than qualified installer could cause damage to the electrical
system and could result in serious personal injury or death.
WARNING
❏Overview
This equipment should be installed by a
professional. However, if you plan to install this
unit yourself, your first step is to decide where to
install it. The instructions in these pages will
guide you through the remaining steps: (Please
refer to "WARNING" statement above).
Identify and label the vehicle wires
Connect the vehicle wires to the wires of the
power connector
Install the unit in the dash
Check the operation of the unit
If you do encounter problems, please consult
your nearest authorized dealer.
Caution: This unit will operate with a 12 volt DC
negative ground auto battery system only. Do
not attempt to use it in any other system. Doing
so could cause serious damage.
Before you begin installation, look for the following
items included in the packing with your unit.
Warranty Card ...... Fill this out promptly
Panasonic Servicenter for service Directory
...... Keep this for future reference in case the
unit needs servicing
Installation Hardware ...... Needed for in-dash
installation
❏Installation Hardware
No.
1
2
2
2
1
1
1
1
2








Item
Mounting Collar
Plain Washer (5 mmφ)
Spring Washer (5 mmφ)
Hex. Nut (5 mmφ)
Rear Support Strap
Hex. Bolt
(5 mmφ×25 mm)
Toothed Lock Washer
(5 mmφ)
Power Connector
Removal Tool
(U-shaped)
Diagram Qty
1
Antenna Connector

20
❏Required Tools
You'll need a screwdriver, a 1.5 volt AA battery
and the following:
12 V DC ELECTRICAL SIDE-CUT
TEST BULB TAPE PLIERS
❏Dashboard Specifications
❏Identify All Leads
The first step in installation is to identify all the
vehicle wires you'll use when hooking up your
sound system.
As you identify each wire, we suggest that you
label it using masking tape and a permanent
marker. This will help avoid confusion when
making connections later.
Note: Do not connect the power connector to the
stereo unit until you have made all connections.
If there are no plastic caps on the stereo hooking
wires, insulate all exposed leads with electrical
tape until you are ready to use them. Identify the
leads in the following order.
Power Lead
If your vehicle has a radio or is pre-wired for one:
Cut the connector wires one at a time from the
plug (leaving the leads as long as possible) so
that you can work with individual leads.
Turn the ignition on to the accessory position, and
ground one lead of the test bulb to the chassis.
Touch the other lead of the test bulb to each of
the exposed wires from the cut radio connector
plug. Touch one wire at a time until you find the
outlet that causes the test bulb to light.
Now turn the ignition off and then on. If the bulb
also turns off and on, that outlet is the vehicle
power lead.
If your vehicle is not wired for an audio unit:
Go to the fuse block and find the fuse port for
radio (RADIO), accessory (ACC), or ignition
(IGN).
Battery Lead
If your stereo unit has a yellow lead, you will
need to locate the vehicle's battery lead.
Otherwise you may ignore this procedure. (The
yellow battery lead provides continuous power to
maintain a clock, memory storage or other
function.)
If your vehicle has a radio or is pre-wired for one:
With the ignition and headlights off, identify the
vehicle battery lead by grounding one lead of the
test bulb to the chassis and checking the
remaining exposed wires from the cut radio
connector plug.
If your vehicle is not wired for an audio unit:
Go to the fuse block and find the fuse port for the
battery, usually marked BAT.
Speakers
Identify the vehicle speaker leads. There will be
two leads for each speaker, usually color coded.
THICKNESS
MIN. 3/16" (4.75 mm)
MAX. 7/32" (5.56 mm)
7-5/32" (182mm)
2-3/32" (53 mm)
