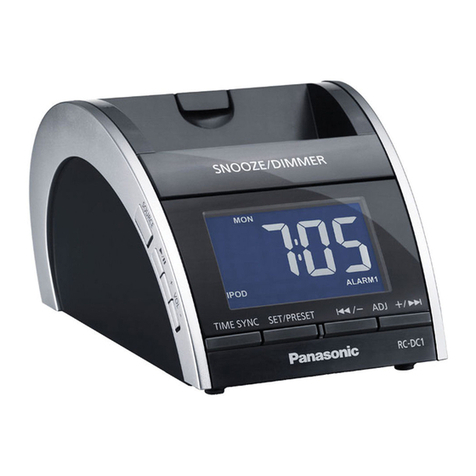

Panasonic RCDC1 - IPOD/IPHONE ALARM CLOCK User manual

Placement
Set the unit up on an even surface away from direct sunlight, high temperatures,
high humidity, and excessive vibration. These conditions can damage the cabinet
and other components, thereby shortening the unit’s service life.
Place it at least 15 cm away from wall surfaces to avoid distortion and unwanted
acoustical effects.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit and cause a fire.
Do not use a DC power source. Check the source carefully when setting the unit up
on a ship or other places where DC is used.
AC adaptor protection
Ensure the AC adaptor is connected correctly and not damaged. Poor connection
and lead damage can cause fire or electric shock. Do not pull, bend, or place heavy
items on the lead.
Grasp the plug firmly when unplugging the adaptor. Pulling the AC adaptor can
cause electric shock.
Do not handle the plug with wet hands. This can cause electric shock.
Foreign matter
Do not let metal objects fall inside the unit. This can cause electric shock or
malfunction.
Do not let liquids get into the unit. This can cause electric shock or malfunction. If
this occurs, immediately disconnect the unit from the power supply and contact your
dealer.
Do not spray insecticides onto or into the unit. They contain flammable gases which
can ignite if sprayed into the unit.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted, indicators fail to
light, smoke appears, or any other problem that is not covered in these instructions
occurs, disconnect the AC adaptor and contact your dealer or an authorised
service centre. Electric shock or damage to the unit can occur if the unit is repaired,
disassembled or reconstructed by unqualified persons.
Extend operating life by disconnecting the unit from the power source if it is not to
be used for a long time.
Please check and identify the supplied accessories.
1 AC adaptor
For Australia and N.Z.
For Hong Kong, Saudi Arabia and Kuwait
For others
1 AM loop antenna
Safety precautions
Supplied accessories
Before requesting service, make the following checks. If you are in doubt about
some of the check points, or if the solutions indicated do not solve the problem,
consult your dealer for instructions.
Clock
Clock cannot be synchronised to iPod or iPhone’s time.
• Make sure the iPod or iPhone is securely connected and turned on.
• Update your iPod or iPhone with the latest software.
Daylight saving time does not work.
• Make sure the clock has been set correctly.
• Press and hold [SLEEP] in clock mode to activate daylight saving time.
Alarm
The iPod, radio or buzzer alarm does not sound at the preset time.
• Check that “ALARM 1” or “ALARM 2” has been correctly activated.
The iPod or radio alarm is activated but there is no sound at the preset time.
• Check the alarm’s volume setting.
iPod or iPhone
The iPod or iPhone cannot be operated with this unit.
• Make sure the iPod or iPhone has been securely connected and turned on.
• Update your iPod or iPhone with the latest software.
There is no sound from the iPod or iPhone.
• Make sure the iPod or iPhone has been securely connected.
• Adjust the volume.
The iPod or iPhone does not charge.
• Check the connections. Turn off and remove the iPod or iPhone from the dock
connector. Reinsert and turn it on again.
Radio
A noise or sound distortion is heard.
• Distance the unit away from any television, personal computer or device easily
influenced by magnetism.
A low hum is heard during AM broadcast.
• Separate the antenna from other cables and cords.
Reset
This function enables you to restore the main unit to the original factory settings or
when it is behaving abnormally.
Rear view
Press [RESET] with a paper clip or a pointed object.
Troubleshooting guide
AMPLIFIER SECTION
RMS Output Power (Mono)
Front channel 2.6 W per channel (8 ), 1 kHz, 10% THD
TUNER SECTION
Preset memory FM 5 stations
AM 5 stations
Frequency modulation (FM)
Frequency range 87.50 MHz to 108.00 MHz (50 kHz step)
Antenna terminals 75 (unbalanced)
Amplitude modulation (AM)
Frequency range
For Australia and N.Z . 522 kHz to 1629 kHz (9 kHz step)
For others 522 kHz to 1629 kHz (9 kHz step)
520 kHz to 1630 kHz (10 kHz step)
SPEAKER SECTION
Type 1 way, 1 speaker system (Bass reflex)
Speaker unit(s) Impedance 8
Full range 2.5 cm cone type
GENERAL
Power supply (AC adaptor) AC 100 to 240 V, 50/60 Hz
DC Output 7.5 V
Power consumption (with iPod or iPhone charging)
Main unit 7 W
Dimensions (W x H x D) 112 mm x 80 mm x 150 mm
Mass
Main unit 0.37 kg
AC adaptor 0.14 kg
Operating temperature range 0°C to +35°C
Operating humidity range 20% to 80% RH (no condensation)
Power consumption in standby mode:
Main unit 0.3 W (approximate)
AC adaptor 0.3 W (approximate)
Note:
1) Specifications are subject to change without notice.
Mass and dimensions are approximate.
2) Total harmonic distortion is measured by the digital spectrum analyser.
Specifications
The back-up battery (CR2032, not included) saves the clock and alarm settings in
the event of a power interruption.
Inserting the battery
When there is no battery, the battery-weak indicator will be displayed until a battery
is inserted.
Bottom view
1 Keep the AC adaptor connected to the household mains socket when
unscrewing the screw on the cover of the battery holder using a
screwdriver.
2 Open the cover of the battery holder.
3 Insert a new battery with the (+) side facing up.
4 Close the cover of the battery holder and secure it with the screw.
Replacing the battery
The service life of this battery is approximately 1 month.
When the battery is weak, the battery-weak indicator will blink constantly on the
display.
Note:
• Do not heat or expose to flame.
• Do not leave the battery(ies) in an automobile exposed to direct sunlight for a long
period of time with doors and windows closed.
• Remove the battery if the clock radio is not going to be used for a long period of
time. Store in a cool, dark place.
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the manufacturer. Dispose of used
batteries according to the manufacturer’s instructions.
Warning
Keep the Button-Type battery out of the reach of children. Never put Button-
Type battery in mouth. If swallowed call your doctor.
Warning
Risk of fire, explosion and burns. Do not recharge, disassemble, heat above
60°C or incinerate.
Memory back-up battery
Dear Customer
Thank you for purchasing this product.
For optimum performance and safety, please read these instructions thoroughly before
connecting, operating or adjusting this product.
Keep this manual for future reference.
WARNING:
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PRODUCT DAMAGE,
• DO NOT EXPOSE THIS APPARATUS TO RAIN, MOISTURE, DRIPPING OR
SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS
VASES, SHALL BE PLACED ON THE APPARATUS.
• USE ONLY THE RECOMMENDED ACCESSORIES.
• DO NOT REMOVE THE COVER (OR BACK); THERE ARE NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
CAUTION!
• DO NOT INSTALL OR PLACE THIS UNIT IN A BOOKCASE, BUILT-IN
CABINET OR IN ANOTHER CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC SHOCK OR FIRE HAZARD
DUE TO OVERHEATING, ENSURE THAT CURTAINS AND ANY OTHER
MATERIALS DO NOT OBSTRUCT THE VENTILATION VENTS.
• DO NOT OBSTRUCT THE UNIT’S VENTILATION OPENINGS WITH
NEWSPAPERS, TABLECLOTHS, CURTAINS, AND SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES, SUCH AS LIGHTED
CANDLES, ON THE UNIT.
• DISPOSE OF BATTERIES IN AN ENVIRONMENTALLY FRIENDLY MANNER.
For Australia and N.Z.
THIS UNIT IS INTENDED FOR USE IN MODERATE CLIMATES.
For others
THIS UNIT IS INTENDED FOR USE IN TROPICAL CLIMATES.
The socket outlet shall be installed near the equipment and easily accessible.
The mains plug of the power supply cord shall remain readily operable.
To completely disconnect this apparatus from the AC Mains, disconnect the power
supply cord plug from AC receptacle.
This product may receive radio interference caused by mobile telephones during use. If
such interference is apparent, please increase separation between the product and the
mobile telephone.
Product identification marking
Product Location
Main unit Bottom
AC adaptor Bottom
–If you see this symbol–
Information on Disposal in other Countries outside the European Union
This symbol is only valid in the European Union.
If you wish to discard this product, please contact your local authorities or
dealer and ask for the correct method of disposal.
• iPod nano 5th generation (video camera) (8GB, 16GB)
• iPod touch 2nd generation (8GB, 16GB, 32GB, 64GB)
• iPod classic [120GB, 160GB (2009)]
• iPod nano 4th generation (video) (8GB, 16GB)
• iPod classic (160GB) (2007)
• iPod touch 1st generation (8GB, 16GB, 32GB)
• iPod nano 3rd generation (video) (4GB, 8GB)
• iPod classic (80GB)
• iPod nano 2nd generation (aluminum) (2GB, 4GB, 8GB)
• iPod 5th generation (video) (60GB, 80GB)
• iPod 5th generation (video) (30GB)
• iPod nano 1st generation (1GB, 2GB, 4GB)
• iPod 4th generation (colour display) (40GB, 60GB)
• iPod 4th generation (colour display) (20GB, 30GB)
• iPod 4th generation (40GB)
• iPod 4th generation (20GB)
• iPod mini (4GB, 6GB)
• iPhone 3GS (16GB, 32GB)
• iPhone 3G (8GB, 16GB)
• iPhone (4GB, 8GB, 16GB)
Compatibility depends on the software version of your iPod or iPhone.
“Made for iPod” and “Made for iPhone” mean that an electronic accessory has
been designed to connect specifically to iPod, or iPhone, respectively, and has
been certified by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its compliance with
safety and regulatory standards.
iPhone, iPod, iPod classic, iPod nano, and iPod touch are trademarks of Apple
Inc., registered in the U.S. and other countries.
Compatible iPod and iPhone
Operating Instructions
Clock Radio
Model No. RC-DC1
Panasonic Corporation
Web Site: http://panasonic.net
En
RQTX1211-1B
L0610HH1060
GA GN GS
RQTX1211-1B_gb.indd 1RQTX1211-1B_gb.indd 1 6/22/2010 5:39:03 PM6/22/2010 5:39:03 PM

You can set two different alarm times. Before setting the alarm, make sure to set the
clock ( Zsee “Setting the clock”).
Setting the alarm
1 Press and hold [ALARM 1] or [ALARM 2] until the hour display blinks.
2 Within 10 seconds, press [2/–, ADJ] or [+ /6, ADJ] to set the hour.
3 Press [ALARM 1] or [ALARM 2] to confirm.
4 Repeat steps 2 and 3 to set the minutes.
5 Press [2/–, ADJ] or [+/6, ADJ] to select the days of the week:
MON-SUN (everyday) ]MON-FRI (weekdays)
SAT-SUN (weekend)SAT-SUN (weekend)
6 Press [ALARM 1] or [ALARM 2] to confirm.
7 Press [2/–, ADJ] or [+/6, ADJ] to select the desired alarm mode:
“IPOD”, “RADIO” or “BUZZER”.
8 Press [ALARM 1] or [ALARM 2] to confirm.
“IPOD” selection: Continue with steps 9 and 10.
“RADIO” selection: Continue from steps 11 to 16.
Setting iPod alarm
9 Press [2/–, ADJ] or [+/6, ADJ] to adjust the volume level.
10 Press [ALARM 1] or [ALARM 2] to confirm the setting.
Note:
• The buzzer will sound if no iPod or iPhone is detected at the set alarm time.
• Music will be played from the iPod or iPhone’s library when the alarm sounds.
Setting radio alarm
11 Press [2/–, ADJ] or [+/6, ADJ] to adjust the volume level.
12 Press [ALARM 1] or [ALARM 2] to confirm.
13 Press [2/–, ADJ] or [+/6, ADJ] to select “FM” or “AM”.
14 Press [ALARM 1] or [ALARM 2] to confirm.
15 Press [2/–, ADJ] or [+/6, ADJ] to select the desired preset channel.
16 Press [ALARM 1] or [ALARM 2] to confirm the setting.
Note:
• Alarm will function only when powered by AC power.
• To activate or display the alarm setting, press [ALARM 1] or [ALARM 2] once.
• Press [ALARM 1] or [ALARM 2] again to deactivate the alarm function.
Turning off the alarm
Press [ALARM OFF] to turn off the alarm.
The alarm will sound at the same time on the next day.
Note:
If the alarm is not turned off, it will sound continuously for 59 minutes before turning
off by itself.
Snoozing the alarm
Press [SNOOZE] when the alarm sounds to stop it for a few minutes.
The alarm will sound again after 9 minutes.
Tip:
For iPod touch and iPhone users, use the Memory Loader application to unlock
custom alarm settings (Zsee “Using the Memory Loader application”).
The clock is displayed once the main unit is connected to the household mains
socket.
Reset the clock regularly to maintain accuracy (monthly accuracy +/– 60 seconds).
1 Press and hold [SET/PRESET] for 2 seconds.
2 Press [2/–, ADJ] or [+/6, ADJ] to select the day.
3 Press [SET/PRESET] again to confirm.
4 Repeat steps 2 and 3 to set the hour and minute.
Example:
To change the clock display
In clock mode, press and hold [+, VOL] and [–, VOL] at the same time for 2 seconds
to select between a 12-hour or 24-hour display.
For 12-hour display:
AM : “PM” is not displayed.
PM : “PM” is displayed.
Daylight saving time (summer time)
In clock mode, press and hold [SLEEP] to activate or cancel daylight saving time
(summer time) function.
“DST” is displayed when the function is activated.
Synchronising clock with iPod or iPhone time
This function allows you to set the clock’s time to be the same time as your iPod or
iPhone’s time ( Zsee “Compatible iPod or iPhone”).
Press [TIME SYNC] while an iPod or iPhone is docked unto the main unit.
Note:
• Exact synchronisation of an iPod or iPhone with the main unit is not possible.
There could be a difference of up to 59 seconds between them.
• Compatibility depends on the software version of your iPod or iPhone.
Manual tuning
1 Press [SOURCE] to select “RADIO FM” or “RADIO AM”.
2 Press [2/–, ADJ] or [+/6, ADJ] to select the desired frequency.
To tune automatically
Press and hold [2/–, ADJ] or [+/6, ADJ] until the frequency starts changing
rapidly. Automatic tuning stops when it finds a station or when [2/–, ADJ] or
[+/6, ADJ] is pressed again.
Note:
For better reception, extend and change the direction of the FM or AM antenna.
Memory preset
You may store your favourite channels in 5 FM or 5 AM preset channels.
Preparation
Press [SOURCE] to select “RADIO FM” or “RADIO AM”.
Automatic presetting (AP)
Press and hold [SOURCE] until “AP” is displayed.
Note:
• Automatic presetting begins from the current frequency.
• Only the first 5 stations detected will be stored.
• “AP” will blink continuously until all 5 channels have been set.
Manual presetting
1 Press [2/–, ADJ] or [+/6, ADJ] to select the desired frequency.
2 Press and hold [SET/PRESET] for 2 seconds to display the preset number.
3 Press [2/–, ADJ] or [+/6, ADJ] to select a preset number.
4 Press [SET/PRESET] again to confirm.
Tuning in to a preset channel
Press [SET/PRESET] to switch between preset channels.
Except for Australia and N.Z.
AM allocation setting
This system can also receive AM broadcasts allocated in 10 kHz steps.
1 Press [SOURCE] to select “RADIO AM”.
2 Press and hold [4/9].
After a few seconds the display changes to a flashing display of the current
minimum frequency. Release the button when the minimum frequency changes.
• To return to the original step, repeat the above steps.
• After changing the setting, previously preset frequency will be cleared.
1 Pull out the iPod or iPhone
support.
Adjust the support according
to the height of your iPod or
iPhone.
2 Connecting an iPod or
iPhone.
Hold the main unit when
connecting or disconnecting
the iPod or iPhone.
iPodclassic
iPhone
iPodtouch
iPodnano
Gently pull out the
iPod or iPhone
support.
iPod
(not included)
Note:
When docking an iPod touch or iPhone for the first time, a message will be
displayed on your iPod touch or iPhone if the Memory Loader application has not
been installed (Zsee “Using the Memory Loader application”).
Charging an iPod or iPhone
The iPod or iPhone charges automatically when connected to the main unit.
• See iPod or iPhone display to check its charging status.
• If the iPod or iPhone is not being used for an extended period of time after
charging has completed, disconnect it from the main unit, as the battery will be
depleted naturally. (Once fully charged, additional charging will not occur.)
Playing an iPod or iPhone
1 Place an iPod or iPhone in the dock and turn it on.
2 Press [SOURCE] to select “IPOD”.
3 Press [ 4/9 ] once to start music playback from the iPod or iPhone. Press
again to pause playback.
4 Press [2/–, ADJ] or [+/6, ADJ] to skip to the previous or next track.
5 Press and hold [2/ –, ADJ] or [+/6, ADJ] to backward or forward
search through a track.
Note:
• If the iPod or iPhone automatically shuffles or skip a track;
– Turn off its “Shake” feature (if there is any).
– Play the iPod or iPhone using an iPod or iPhone dock adaptor (not included).
• For iPod or iPhone operation details, refer to iPod or iPhone’s User Guide.
This function enables you to turn off the unit automatically after the set time (only in
iPod and radio mode).
1 Press [SLEEP] to activate the timer.
2 Press [SLEEP] again to select your desired time (in minutes).
OFF (default)
] 30 ] 60 ] 90 ] 120
Note:
Press [SLEEP] once to check the remaining time.
This main unit is designed to operate with the Memory Loader application which can
be downloaded from the App Store (search for MemoryLoader).
If you have not already downloaded the free Memory Loader application, you will
see the following message on your iPod touch or iPhone display:
Application Not Installed
This accessory requires an
application you do not have
installed. Would you like to install it
from the App store?
This message is a reminder for you to download the application in order to enjoy the
enhanced features of this main unit. However, your iPod touch and iPhone will work
properly with this main unit even without the Memory Loader application installed.
The Memory Loader application only works with iPod touch and iPhone running on
OS 3.0 or later.
Once the Memory Loader application is installed into your iPod touch or iPhone,
the following functions can be easily accessible and controlled directly through the
application’s platform.
Alarm
• Adjust alarm 1 and alarm 2 settings easily.
• You may select any combination of days for the alarm to sound.
• You can choose your desired snooze settings from a choice of 1 to 30 minutes.
Radio
• Preset 5 FM or 5 AM channels by scrolling through your desired frequencies by
using the selector.
Events
• You can be alerted of dates stored on your iPod touch or iPhone contacts (if the
alarm is set to sound on that day).
Nap
• You can set a short nap timer or countdown on your iPod touch or iPhone.
Daylight saving time (DST)
• Activate or deactivate the daylight saving time function with one simple step.
For more information, visit: www.memoryloader.com
Setting the clock
Using the alarm
Using an iPod or iPhone
Using the Memory Loader application
Using the sleep timerUsing the radio
Rear view
12
To household
mains socket FM indoor
antenna
Click!
AM loop antenna
1 Connect the AM antenna.
Stand the antenna up on its base.
2 Connect the AC adaptor.
• Do not use an AC adaptor from other equipment.
• Do not use any other AC adaptors except the supplied one.
• The unit is in the standby condition when the AC adaptor is connected. The
primary circuit is always “live” as long as the AC adaptor is connected to an
electrical outlet.
A
B
C
D
E
F
G
HIJ
A [SNOOZE/DIMMER]
Snooze: To stop the alarm for 9 minutes.
Dimmer: To adjust the display panel’s brightness (High (default), Medium or
Low).
B [ALARM OFF]
To turn off the alarm.
C [ALARM 1], [ALARM 2]
To activate either alarm 1 or alarm 2 function.
To display alarm 1 or alarm 2 setting.
D [SLEEP]
To activate sleep function.
To activate daylight saving time (summer time) in clock mode.
E [2/–, ADJ], [+/6, ADJ]
To adjust clock, radio and alarm settings.
To skip to previous or next track.
To backward or forward search through a track.
F [SET/PRESET]
To set the clock.
To perform automatic presetting or to view preset channels in radio mode.
G [TIME SYNC]
To synchronise the main unit with an iPod or iPhone’s time.
H [+, VOL], [–, VOL]
To adjust the volume.
To select a 12-hour or 24-hour clock display.
I [ 4/9 ]
To start music playback from an iPod or iPhone and to pause during playback.
J [SOURCE]
To select clock, “IPOD”, “RADIO FM” or “RADIO AM” mode.
Overview of controls
Making the connections
To clean this unit, wipe with a soft, dry cloth.
• Never use alcohol, paint thinner or benzine to clean this unit.
• Before using chemically treated cloth, read the instructions that came with the
cloth carefully.
Maintenance
RQTX1211-1B_gb.indd 2RQTX1211-1B_gb.indd 2 6/22/2010 5:39:04 PM6/22/2010 5:39:04 PM
