Panasonic CF-07 Series User manual

Model No. CF-07 Series
Reference Manual
Personal Computer
®
Contents
We recommend that this Reference Manual be printed.
LED Indicators ................................................... 2
Standby/Hibernation Functions ....................... 3
Security Measures............................................. 7
Computing on the Road ................................. 11
Battery Power ................................................. 12
CD-ROM Drive* ............................................... 17
PC Cards ......................................................... 19
Port Replicator* .............................................. 21
Printer* ............................................................ 22
External Display * ........................................... 23
USB Devices ................................................... 24
LAN * ................................................................ 26
Setup Utility* ................................................... 28
Technical Information .................................... 34
DMI Viewer ...................................................... 35
List of Error Codes* ....................................... 36
Dealing with Problems (Advanced) ...................... 38
NOTE:NOTE provides a useful fact or helpful information
CAUTION:CAUTION indicates a condition that may result in minor or moderate injury.
WARNING:WARNING indicates a hazard that may result in moderate or serious injury.
[Start]-[Run]: This illustration means to click [Start], then to click [Run].
(For some applications, you may need to double-click.)
Enter : This illustration means to press the [Enter] key.
Ctrl + Alt : This illustration means to press and hold the [Ctrl] key, then press the [Alt] key.
page: When the cursor is moved to an item under [Contents] or to page (green display), the
shape of the cursor will change to . Under this condition, if characters are tapped (or a click
is made), the corresponding page in the Reference Manual will be displayed.
: This illustration means to refer to the Operating Instructions.
Some of the illustrations in this manual may differ slightly in shape from the actual items in order to make the
explanation easier to understand.
If the user has logged on without the administrator authority, some functions may not be executable, and some
screens may not be displayed as shown in this manual. If this happens, log on with the administrator authority to
enable these functions.
Confirm the latest information on optional products in catalogs, etc.
Illustrations and Terminology in this Reference Manual
* Only when the port replicator is connected
In this manual, the term “external display” indi-
cates a “wired” display with an RGB analog 15-
pin interface.
XP

2
This indicator lights when the hard disk drive is accessed.
Not lit : Battery pack is not connected or charging not
being performed.
Orange* : Charging in progress.
Green* : Fully-charged.
Blinking green : Battery is discharging to prescribed charging level
in high temperature mode.
Red : The battery level is very low (the charge is less
than approx. 9% capacity).
Connect the AC adaptor. You can use the com-
puter when the indicator light is orange. If you do
not have an AC adaptor, save your data and power
off your computer. After replacing the battery pack
with a fully charged one, turn your computer on.
Blinking red* : Battery pack or charging may not be working prop-
erly. Quickly save your data and power off your
computer. Remove the battery pack and discon-
nect the AC adaptor, then connect them again.
If the problem persists, contact Panasonic Tech-
nical Support.
Blinking orange* : Battery cannot be recharged because the inter-
nal temperature of the battery pack is outside of
the acceptable temperature range for recharging.
Once the allowable range requirement is satis-
fied, charging begins automatically.
Not lit : Power off / Hibernation mode
Green : Power on
Blinking green : Standby mode
Not lit : Not ready / Connected with the wireless display
Green : Ready
Hard disk drive sta-
tus
Battery pack status
Power status
Wireless display
status
LED Indicators
* When the AC adaptor is connected.

3
Standby/Hibernation Functions
Starting Up Your Computer Quickly
We recommend plugging in the AC adaptor if the standby function is to be
used for a long period of time. If the AC adaptor cannot be connected, we
recommend that hibernation mode be used instead of the standby mode.
If the standby or hibernation function is used repeatedly, the computer may
not work properly. To stabilize computer operations, we recommend shutting
down Windows on a regular basis (about once a week) without using the
standby or hibernation function.
NOTE
Use any of the following methods to enter the standby or hibernation mode.
To use the hibernation mode, make the setting below in advance. (Enabled in factory
preset.)
Using the power switch ( page 5)
From the shut down screen:
• Standby
In [Start] - [Turn Off Computer], select [Stand By].
• Hibernation
In [Start] - [Turn Off Computer], select [Hibernate].
To perform this operation, make the setting as follows in advance;
Select [Start] - [Control Panel] - [User Accounts] - [Change the way users log on or
off] and delete the check mark for [Use the Welcome screen].
Setting for using the hibernation mode
1Select [Start] - [Control Panel] - [Performance and Maintenance] - [Power Op-
tions].
2In [Hibernate], add the check mark for [Enable hibernation] and select [OK].
(To next page)
Entering the Standby or Hibernation mode
Differences between the standby and hibernation functions
Function Where data is saved to Speed Requires power supply
Standby Memory Fast Yes (if power is cut, all data is lost)
function
Hibernation Hard disk Somewhat Power is not required to maintain data
function slow
If you want to immediately start up and continue an application after shutting down your
computer, you can do so by using either the standby or hibernation function.

4
Standby/Hibernation Functions
Precautions
Before entering the standby or hibernation mode
Save all data.
When a file in an external device such as a CD drive, external hard disk, or ATA
card is opened, close the file.
Do not enter either the standby or hibernation mode under the following condi-
tions. You may corrupt your data or file, the standby or hibernation function may
not work, or the computer (or peripherals) may fail to work properly.
• When the hard disk drive indicator ( ) ( page 2) or access lamp on the CD
drive is on.
• When playing/recording audio files and displaying images (such as MPEG files).
• When using the communications software and the network function.
• When using LAN port (cards), SCSI cards and modem port (cards) etc. (If these
cards fail to work properly, restart the computer.)
When entering the standby or hibernation mode*
Avoid the following:
• Touching the external keyboard, touchscreen or power switch.
• Connecting or disconnecting the AC adaptor.
* Standby mode: until the power indicator blinks green
Hibernation mode: until the power indicator goes off
When [PC in standby] is displayed on the wireless display, select [OK]. The wire-
less display will power off.
In standby or hibernation mode
Do not insert or remove peripherals; abnormal operation may result.
In standby mode, power is consumed. If PC Cards are inserted, more of that
power is consumed. When all power has been consumed, all data saved at standby
is lost since it is retained in memory. We therefore recommend plugging in the AC
adaptor when using the standby function.

5
After releasing your finger from the power switch, do not touch the power switch
until the power indicator goes off or blinks.
At the “beep” sound, release your finger from the power switch. If you continue
to press down on the switch and hold it for more than four seconds, the unit will
emit a second “beep” then power off. Data not previously saved will be lost.
Even when [When I press the power button on my computer] is set to [Shut
down] with [Start] - [Control Panel] - [Performance and Maintenance] - [Power
Options] - [Advanced], if you press the power switch for more than four sec-
onds and do not release it, a second “beep” will sound and the computer will
be turned off forcibly. Data not previously saved will be lost.
CAUTION
Shutting down
Using the Power Switch
Setting
1Select [Start] - [Control Panel] - [Performance and Maintenance] - [Power Op-
tions] - [Advanced].
2Select [Stand by] or [Hibernate] for [When I press the power button on my com-
puter], then select [OK].
Press the power switch; at the “beep”sound, release
your finger
The computer will enter either the standby or hibernation mode,
depending on the setting.
When [PC in standby] is displayed on the wireless display, select
[OK]. The wireless display will power off.
Standby/Hibernation Functions

6
Standby/Hibernation Functions
Resuming Operation
Until resuming is complete (requires about 30 seconds), avoid the following:
• Touching the external keyboard (except for password input), touchscreen, or
power switch.
• Using external mouse or other peripheral devices
• Connecting or disconnecting the AC adaptor.
• Shutting down or restarting Windows.
• Entering the standby or hibernation mode again.
When resuming from the hibernation mode, it may take one or two minutes until
the DISPLAY READY indicator turns on after the HDD indicator turns off.
To use the security function when using the standby or hibernation mode:
• Use the password of the wireless display. ( Operating Instructions of
the wireless display)
• Use the Windows password as the following.
Select the account to change in [Control Panel] - [User Accounts] and set the
password, then add the check mark for [Prompt for password when computer
resumes from standby] in [Control Panel] - [Performance and Maintenance] -
[Power Options] - [Advanced].
CAUTION
Press the power switch
After confirming that the DISPLAY READY
indicator is lit, and then waiting for about 30
seconds, turn on the wireless display.

7
Security Measures
To prevent unauthorized access of your computer, the various security measures are provided below.
You should set your “Supervisor Password” and “User Password” (The User Password
can only be set when the Supervisor Password has been set).
Without the password, access to your computer is impossible.
Starting up when the password is set
When [Password on boot] of [Security] menu is set to [Enable], enter your pass-
word*1and press Enter .
When you do not want your computer to be used without permission
When the Setup Utility is started with the Supervisor Password
You can register all items of the Setup Utility ( page 28).
When the Setup Utility is started with the User Password
You can not register [Advanced] and [Boot] menu.
The User Password can be changed only when [Password Protection] has been
set to [No Protection]. The User Password cannot be deleted.
F9 does not work.
ReferenceSituation
You do not want your computer to be used without permission
You do not want the data on the hard disk to be read, or data to
be written to the hard disk, in cases including theft
You want to prevent theft of your computer
You want to prevent wireless data tapping
Function to use
Password of the computer
Password of the wireless
display
Hard Disk Lock
Security Lock
Wireless data encryp-
tion
below
Operating Instructions of the
wireless display
page 10
Operating Instructions of the
wireless display
“Names and Func-
tions of Parts”
When [Password on boot] in Setup Utility is set to [Disable], the password is not
necessary when the computer is started up, but the password becomes necessary
when the Setup Utility is started up. This alternative makes it possible to prevent the
contents of the Setup Utility from being changed.
NOTE
When the port replicator is not connected, the computer will be start up without the
password. Set the password of the wireless display. ( Operating Instructions of
the wireless display)
CAUTION
<Only when the port replicator is connected>
The computer
will start
The computer
will not start*
(Power off)
*1Supervisor Password or User Password set in the Setup Utility (not the Windows password).
*2Even if no password is entered for about a minute when starting up the Setup Utility, the
power will not be turned off.
Three incorrect attempts
or
No password for about a minute*2
The correct password
Enter Password [ ]

8
Security Measures
<Only when the port replicator is connected>
Setting the Supervisor Password (enabling, changing, disabling)
1Run the Setup Utility ( page 28)
2Using either or , select [Security]
3Using either or , select [Set Supervisor Password] and
press Enter
4<Only when the Supervisor Password has been set>
Enter your password at [Enter Current Password] and press
Enter
5Enter your password at [Enter New Password] and press
Enter
To disable the Supervisor Password
Press only Enter
6Re-enter your password at [Confirm New Password] and press
Enter
To disable the Supervisor Password
Press only Enter
7At [Setup Notice], press Enter
8Press F10 and select [Yes], then press Enter
Do not forget your password. If your Supervisor Password is forgotten you will
be unable to use your computer. Contact Panasonic Technical Support.
When running the Setup Utility, do not leave your computer even for a short
time, as the possibility exists for the password to be set/changed by another
person.
CAUTION
Your password will not be displayed on the screen.
Only up to seven alphanumeric characters can be used.
• There is no distinction between upper and lower case letters.
• Use only the upper horizontal row of numeric keys to input your password.
• Do not input your password while holding down Shift or Ctrl .
Disabling the Supervisor Password also disables the User Password.
NOTE

9
Security Measures
<Only when the port replicator is connected>
Setting the User Password (enabling, changing, disabling)
1Run the Setup Utility ( page 28)
2Using either or , select [Security]
3Using either or , select [Set User Password] and press
Enter
4<Only when the User Password has been set>
Enter your password at [Enter Current Password] and press
Enter
5Enter your password at [Enter New Password] and press
Enter
<When the Setup Utility is started up with the Supervisor Password>
To disable the User Password
Press only Enter
6Re-enter your password at [Confirm New Password] and press
Enter
<When the Setup Utility is started up with the Supervisor Password>
To disable the User Password
Press only Enter
7At [Setup Notice], press Enter
8Press F10 and select [Yes], then press Enter
When the Supervisor Password has not been set, the User Password can not be
set. Set the Supervisor Password if you have not done so. ( page 8)
NOTE
Do not forget your password. If a password is forgotten, you will be unable to use
your computer. If this happens, log on with the Supervisor Password, or ask a
person who knows the Supervisor Password.
When running the Setup Utility, do not leave your computer even for a short time,
as the possibility exists for the password to be set/changed by another person.
CAUTION
Your password will not be displayed on the screen.
Only up to seven alphanumeric characters can be used.
• There is no distinction between upper and lower case letters.
• Use only the upper horizontal row of numeric keys to input your password.
• Do not input your password while holding down Shift or Ctrl .
When you do not want the User Password enabled or changed without
permission:
1Run the Setup Utility and enter the Supervisor Password.
2Using and , select [User Password Protection] in [Security] menu and
press Enter .
3Using and , select [Protected] and press Enter .
NOTE

10
Security Measures
1Run the Setup Utility (page 28)
2Using either or , select [Security]
3Using either or , select [Hard Disk Lock] and press
Enter
4To enable the Hard Disk Lock
Select [Enable] and press Enter
At [Caution], press Enter .
To disable the Hard Disk Lock
Select [Disable] and press Enter
5Press F10 and select [Yes], then press Enter
If your computer requires repair
Contact Panasonic Technical Support.
Be sure to set [Hard Disk Lock] to [Disable].
In the default setting, [Hard Disk Lock] is set to [Disable].
You cannot set [Hard Disk Lock] without setting the Supervisor Password. Set
the Supervisor Password if you have not done so. ( page 8)
The hard disk protection function only works with the internal hard disk. This
function does not work with the external hard disk.
NOTE
CAUTION
When the Hard Disk Lock is set to [Enable], it is impossible to read/write data from/to
the hard disk when the hard disk is inserted in a different computer, since a password is
also set for the hard disk. When the hard disk is returned to the original computer, you
can read and write data as before. In this case, however, make the settings in the Setup
Utility exactly the same as they were before the hard disk was removed.
It is possible to set the Hard Disk Lock even if [Password on boot] is set to [Disable], but
we recommend that [Password on boot] be set to [Enable] for security reasons.
(Note that this Hard Disk Lock does not guarantee complete protection of data.)
When you do not want the data on the hard disk to be read/written
Procedure
The [Hard Disk Lock] setting can only be changed when the port replicator is con-
nected.
NOTE

11
Computing on the Road
One of the main features of portable computers is that you have the power of computing
away from your home or office. In the following, information is provided on how to
maximize use of the battery pack which is necessary for such computing. Select
to view important tips for using the battery pack.
You can also view important tips using the following procedure.
Select [Important Tips] in [Start] - [All Programs] - [Panasonic] - [On-Line Manuals].
Four Important Points
Saving Power
Be sure to charge your battery before and after use.
To get the maximum use of your battery, set the power man-
agement mode.
Check to see that you have your AC adaptor with you before
leaving your home or office.
Purchasing a spare battery (CF-VZSU21) is highly recom-
mended.
Always watch your battery level!
Leave your computer off when it is not in use
( “Starting Up/Shutting Down”)
Before stepping away from your computer, put your computer
in the standby or hibernation mode
In [Control Panel] - [Performance and Maintenance] - [Power Op-
tions], make settings in detail
By making settings in detail for the timeout, alarm, etc., it is possible to control
the consumption of power.
We recommend setting [Never] since the operating time of the computer is not
extended even when [Turn off monitor] is set.
POINT 4
POINT 2
POINT 1
POINT 3
Things to Remember
CAUTION
When installed in a network environment (except when the Wake up from
LAN function is in use).
Do not use the standby or hibernation mode.
After resuming operation from the standby or hibernation mode, the network
connection may be severed or the computer may not work properly.
NOTE
A slight time deviation may occur for the timeout set in [Power Options].
To extend the operating time of the wireless display, enable the wireless
display’s timer. For details on how to do this, see the Operating Instructions
of the wireless display.

12
Battery Status
Charging in progress
Fully-charged
The battery level is very low (the charge is less than approx.
9% capacity).
Connect the AC adaptor. You can use the computer when
the battery indicator light is orange. If you do not have an
AC adaptor, save your data and power off your computer.
After replacing the battery pack with a fully charged one,
turn your computer on.
Battery pack or charging may not be working properly.
Quickly save your data and power off your computer.
Remove the battery pack and disconnect the AC adaptor,
then connect them again.
If the problem persists, contact Panasonic Technical Sup-
port. Possible failure in the battery pack or charging circuit.
Battery cannot be recharged temporarily because the inter-
nal temperature of the battery pack is outside of the accept-
able temperature range for recharging. Once the allowable
range requirement is satisfied, charging begins automati-
cally. Your computer can be used normally in this state.
Battery is discharging to prescribed charging level in high
temperature mode.
Battery pack is not connected or charging not being per-
formed.
Battery Power
Battery Status
Battery Indicator
Orange*1
Green*1
Red
Blinking red*1
Blinking orange*1
Blinking green
Not lit
*1When the AC adaptor is connected.
Use the Battery Indicator to Check on the Battery Status
This computer prevents overcharging of the battery by recharging only when
the remaining power is less than approx. 95% of capacity after the battery is
fully charged.
When the remaining battery charge of the computer is between 20-80%, re-
charging starts from the battery pack inserted into the second battery pack
slot, and discharging starts from the battery pack inserted into the main bat-
tery pack slot. When the remaining battery charge of the computer is 0-20%
or 80-100%, both the main battery pack and the secondary battery pack are
recharged/discharged almost equally.
NOTE

13
Getting a detailed reading
Select [Start] - [Control Panel] - [Performance and Maintenance]
- [Power Options] - [Power Meter]
NOTE
In the following cases, there may be a difference between the remaining bat-
tery capacity displayed on the indicator and the actual remaining battery ca-
pacity. To correct this, execute the “Refresh Battery” utility. ( page 15)
• The battery indicator light remains red.
• The battery remaining displays 99% and the indicator light is orange for a
long period of time.
• Low battery warning appears after a short period of time. This may be
caused by the use of standby mode for long periods of time. The battery is
discharging while the computer is in standby mode when the AC adaptor is
not connected.
Battery Power

14
Battery Power
About High Temperature Mode
This computer has a high temperature mode function that prevents the degradation of
the battery in high temperature environments.
We recommend setting the high temperature mode function when installing the com-
puter in a car, etc. To do this, set [Environment] in the [Main] menu of the Setup Utility to
[High temperature]. Note that a 100% remaining battery reading in the [High Tempera-
ture] mode is about an 80% reading in the [Normal Temperature] mode.
When using the wireless display in a high-temperature environment, be sure to set
the wireless display in the [High temperature] mode.
In this case, be sure to set [High Temperature] in the Setup Utility (computer side
setting) too. If this setting is not made, the following message will be displayed:
"Thermal environment option has been changed. - Need to restart the system now."
Press [OK] and restart the computer.
NOTE

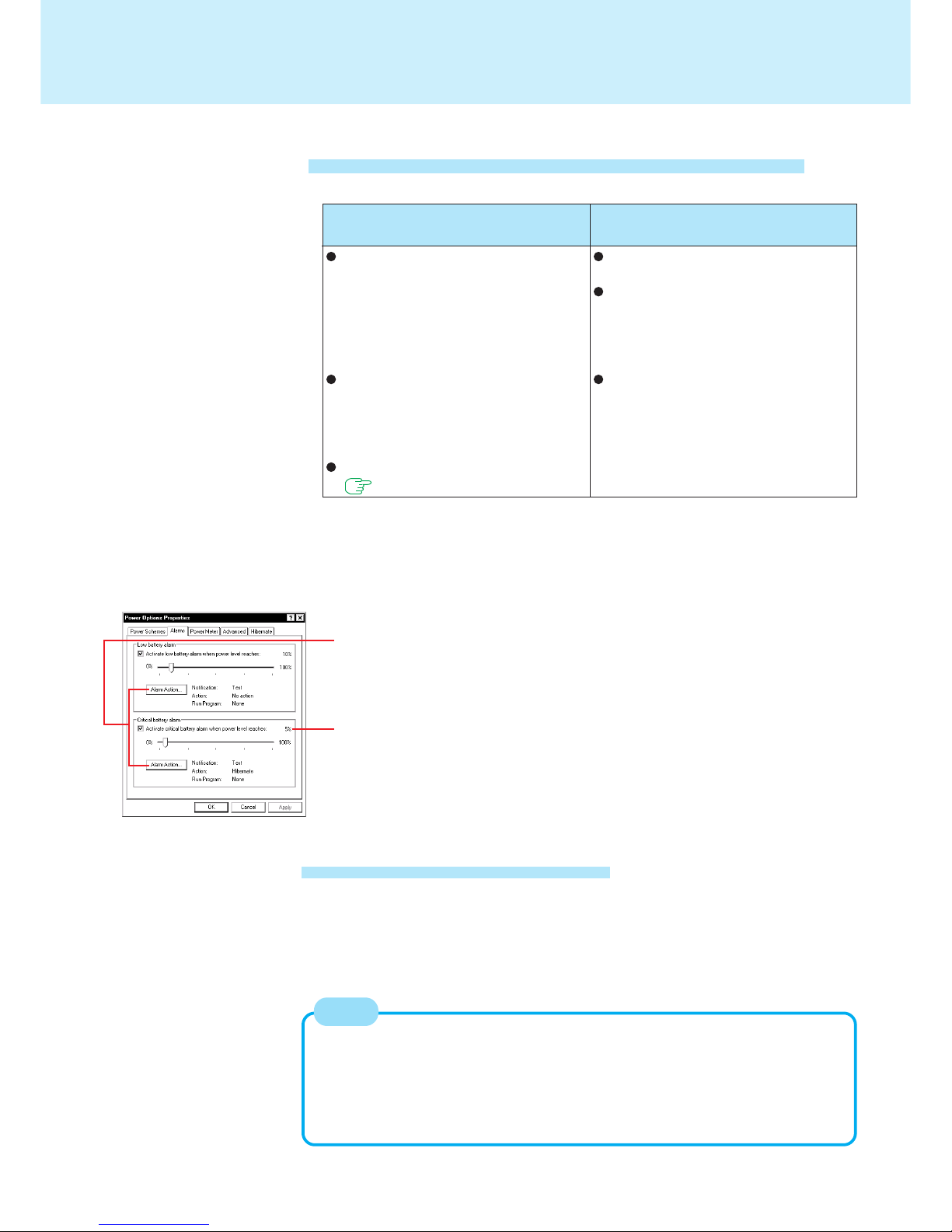

When remaining battery capacity falls to 5%
[Critical battery alarm]
When remaining battery capacity falls to 10%
[Low battery alarm]
Displays a message indicating the low
battery level.
The computer will enter hibernation
mode.
Ð
Connect the AC adaptor before start-
ing up the computer next time.
If the computer starts up or resumes
while the AC adaptor is not connected,
Windows may not operate properly or
alarm operations may not work properly.
Displays a message indicating the low
battery level.
Ð
Charge your battery.
Connect the AC adaptor immediately.
If you do not have the AC adaptor with
you, exit any programs currently run-
ning, then shut down Windows, and
confirm that the power indicator is off.
Use a spare battery if you have one.
(page 16)
The following is factory default setting.
Above settings can be changed.
1Select [Start] - [Control Panel] - [Performance and Maintenance] - [Power
Options] - [Alarms].
2Set alarm operations and remaining battery level for operating alarm func-
tions.
Set the value for [Critical battery alarm] to 5% or more. This is necessary for the
standby or hibernation function to be completed (assuring data is saved) when
the battery level is low.
When making a setting for [When the alarm goes off, the computer will] in [Alarms]
- [Alarm Action], add a check mark for [Force stand by or shutdown even if a
program stops responding]
When the Remaining Battery Charge Becomes Low

15
The battery pack has a function for measuring, storing and learning about battery ca-
pacity. Using this function properly to accurately display remaining battery capacity re-
quires that the battery pack be fully charged (charged to 100%), then fully discharged,
and then fully charged again.
This procedure should be performed once after you purchase the computer. As you use
the battery pack over a long period of time, the remaining capacity display may become
inaccurate due to aging of the battery pack and other factors. The procedure described
below should be repeated.
1Power off your computer ( “Starting Up/Shutting Down”)
Do not shut down using the standby or hibernation mode.
2Connect your computer to the optional port replicator, external
display and external keyboard.
(Operating Instructions of the port replicator, page 21)
3Attach the battery pack and connect the AC adaptor
Remove all peripherals (except for the battery pack and AC adaptor).
4Use the “Refresh Battery” utility to fully discharge the battery
pack
1Run the Setup Utility. ( page 28)
2Select [Refresh Battery] from [Main] menu and press Enter .
3At the confirmation message, select [Yes] and press Enter .
Once the battery indicator turns green, the battery pack will be completely dis-
charged. It takes approximately 1.5 hours (when one battery is set) or 3 hours
(when two batteries are set) until the power automatically goes off through the
complete discharge of the battery from the fully charged state.
5Allow the battery pack to charge until the battery indicator turns
green
<Charging Time>
One battery: approximately 2 hours
Two batteries: approximately 4 hours
Accurately Displaying Battery Capacity
Battery Power

16
When the charge provided by your battery pack is supplied for only a short period of
time, even after fully charging according to the instructions, it may be time to replace
your battery pack. The battery pack is a consumable item and therefore will require
replacement (CF-VZSU21).
Replacing the Battery Pack
1Power off your computer ( “Starting Up/Shutting Down”)
Do not shut down using the standby or hibernation mode.
Battery Power
Do not touch the terminals on the battery pack. The battery pack may no longer
function properly if the contacts are dirty or damaged.
The battery pack is not charged when the computer is first purchased. Be sure to
charge it before using it for the first time. When the AC adaptor is connected to
the computer, charging begins automatically.
Use only the specified battery pack (CF-VZSU21) with your computer.
In the standby mode, do not remove/change the battery pack. Removing the
pack in the standby mode will erase your data and may damage the computer.
CAUTION
Main battery slot
Second battery slot
Be sure to insert the battery pack as illustrated.
Be sure the battery pack is properly connected to the connector.
For an improperly attached cover, your battery pack may fall out while
you are carrying around your computer.
Be sure the tab does not get caught when closing the cover.
CAUTION
CAUTION
2Taking out the battery pack
Turn over the computer, then unlock the cover by sliding the latch to the right.
Slide the latch down, and then without releasing it, open the cover as illus-
trated.
Pull the tab on the battery pack and remove it from the computer.
Close the cover, then lock it by sliding the latch to the left.
Latch
Bottom
Inserting a battery pack
Firmly attach the battery pack to the connector as illustrated.
Tab Battery Pack
Tab

17
CD-ROM Drive <Only when the port replicator is connected>
If the disc gets dirty
After wiping the disc with a moist, soft
cloth, wipe it with a dry cloth. Always wipe
from the center toward the edge.
Do not leave the tray in the open position or touch the lens.
Under some conditions, dust may build up on the lens, or on a disc. This may result in
a read or write malfunction.
Do not apply excessive force to the tray in the open position, doing so could damage
the tray.
Do not place items other than discs on the tray.
Do not expose the CD-ROM drive to excessive smoke that may leave a residue, i.e.
oil smoke, or tobacco smoke. Doing so could shorten the life of the drive lens.
Do not use discs that have become deformed (warped, not completely round, etc.).
Never insert foreign objects such as paper clips into the slot in the CD-ROM drive.
Do not open the CD-ROM drive or move the computer while the CD-ROM drive is
being accessed. Doing so could cause the disc to shift position and this may damage
the disc, or cause the CD-ROM drive to malfunction. In addition, after running an
application involving access to a disc, do not open the CD-ROM drive or remove the
disc until after the application has been closed.
After closing the tray, do not attempt to access a disc until the CD-ROM drive indica-
tor goes off.
We recommend cleaning the CD-ROM drive with an air puffer used for camera lenses.
(Do not use any spray-type of lens cleaning products.)
To avoid damaging discs:
Do not allow discs to become dirty or scratched.
Do not place or store discs in locations exposed to heat, direct sunlight, humidity or
dust.
If the disc is brought from a cold into a warm environment, moisture may form on the
disc. Wipe this moisture off with a soft, dry, lint-free cloth before using the disc.
Do not touch the data surface (the side opposite the side with the title printed on it) as
it can cause the disc to become dirty or scratched.
Do not write on the surface of the disc with a ballpoint pen or other writing instrument
nor paste any paper to it.
Do not drop, bend, or place heavy objects on top of discs.
Cleaning the disc using a disc cleaner is recommended once every 2 or 3 months.
Usage Precautions

18
1Turn on your computer
2Press the disc eject button and slowly pull out the tray
3Place the disc securely on the center holder
4Close the tray
Setting a Disc
Title-side up
Do not apply excessive force to the tray in the open position, doing so could
damage the tray.
Center Holder
Eject Button
CAUTION
CD-ROM Drive <Only when the port replicator is connected>
If the vibration of the CD-ROM drive is excessive, check to see if disc is inserted
correctly, and check that the disc is in good condition. If the disc is good and
inserted correctly, set [CD Drive Speed] to [Low] in the Setup Utility.
For AutoPlay CDs:
• If an AutoPlay CD does not start after the computer resumes from the standby
or hibernation modes, remove the disc from the drive, then reinsert the disc
again after a 15 second wait.
• An AutoPlay CD may start during file access, depending on the status of the
disc.
When playing back movies from a disc, note that smooth playback may not be
possible in some cases.
If the CD-ROM drive has not been accessed within 30 seconds, the drive motor will
automatically shut down to reduce the power consumption. When the CD-ROM drive is
accessed once again, the power of the drive motor is turned on. However, approxi-
mately 30 seconds are required until data is actually read from the disc.
Power-saving Mode
NOTE

19
PC Cards
1Open the cover, then slide the PC Card in until it snaps
into place
Refer to the manual for each card on how to install the card (insertion
is typically label-side up).
2Close the cover by pressing down the bottom part of
the cover firmly from one end to the other
If the cover is pressed down by force, it may deform and you will not
be able to close it.
Your computer has one PC Card slot. This slot conforms to the PC Card Standard;
therefore, communications or SCSI devices, etc., may be utilized. The slots allow you to
use one Type I or Type II card.
Check the PC Cards’ specifications. Be sure the total operating current does not
exceed the specified limit. Damage may result otherwise.
Allowable Current : 3.3 V: 400 mA, 5 V: 400 mA
ZV card, SRAM card, FLASH ROM card (except for an ATA interface) and card
requiring 12V are not supported.
With the repeated insertion/removal of a PC Card, the computer may no longer
recognize the PC Card (depending on the type of card).
In such cases, restart the computer.
If the computer freezes after resuming from the standby or hibernation mode, try
removing and then reinserting the PC Card. If this does not correct the problem,
reboot the computer.
There may be insufficient resources for some cards and some cards may not
operate at all. In such cases, we recommend disabling unnecessary devices in
the Setup Utility or [Device Manager]. For example: Try disabling serial devices
when using a modem card.
Label-side up
CAUTION
(To next page)
CAUTION
When using a PC Card to connect a peripheral device (SCSI, IEEE
1394, etc.):
1Connect the peripheral device to the card.
2Turn the device on.
3Slide the card in until it snaps into place.
When inserting a card, do not force the card in if difficulty is en-
countered. Depending on the shape of the card, a segment may
remain protruding from the slot after insertion. Do not try to force
the card all the way in. You may damage the slot, making it impos-
sible to remove the card.
When inserting a PC card for the first time, the card will only work
after being recognized by the computer. Insert the card after pow-
ering off the computer and wireless display, and then connecting
the port replicator, optional USB floppy disk drive, external key-
board and external display. Once the driver of the card is installed,
you can insert the card anytime.
Inserting/Removing the PC Card
Inserting a PC Card

20
Do not remove a PC Card while your computer is in the standby or
hibernation mode.
Note that the operation of removing the PC Card may not be com-
plete, depending on the status of the PC Card or device connected
to the PC Card, such as when a SCSI card is used to connect an
external hard disk to the computer. In such cases, turn off the power
from [Start] menu, then remove the card.
Button
CAUTION
PC Cards
After selecting , do not press [Stop] for [PRISM2 IEEE 802.11
PC CARD Adaptor].
CAUTION
1Select on the taskbar, select the PC Card, then
select [Stop]
Follow the on-screen instructions.
(When the PC Card has been removed after the computer is turned
off, this step is not necessary.)
2Open the cover, then press the button out, then press
the button again.
3Slide the PC Card out.
4Close the cover.
Removing a PC Card
