Panasonic AU-VREC1 Use and care manual

Firmware update procedure
Recording module: AU-VREC1,
Camera module: AU-V23HS1, AU-V35C1
NOTE:
Ver. 2.03: After AU-V35C1 is updated, please perform ABB with the lens cap
fitted on according to the procedure stated in this update manual.
This is for the sensor adjustment needed after 120p mode is newly equipped.
Only the first ABB adjustment after the update is definitive. It cannot be
done over again.
Please be careful because, if it is not successfully completed, the product
will not work correctly when you use it.
1. How to check firmware version
1. Connect Camera module to Recording module. Switch ON the power of the camera recorder.
2. Press MENU button. Select “> SYSTEM SETTINGS >INFORMATION >VERSION” to display the current
version with the Jog Dial button.
Camera module
Recording module
Version display
example
NOTE: The firmware versions of the camera module and the recording module must match to operate this unit.
Firmware of the camera module can be updated only when the recording module is connected.
CAMERA
: AU
-
V23HS1
SERIAL NO : H4TAA0003
PRODUCT VERSION : 0.35-06-9.18
RECORDER : AU-VREC1
SERIAL NO : L4TAA0004
PRODUCT VERSION : 0.35-06-9.18
Jog Dial button
MENU
button

Firmware update procedure for Varicam series
January 2015
Page2/5
2. Preparation
Prepare following equipment and a firmware package prior to update.
Name Qty Remark
SD memory card 1
MAX 64GB MIN 256MB
Note: microP2 card can also be used as substitution for SD cards but the
card has to be formatted as SD CARD in the SD card slot in advance.
Firmware package
(VSI****.zip) 1 Can be downloaded at: http://panasonic.biz/sav/pass_e
AC adaptor 1
Computer (PC/Mac) 1 Needed for downloading, unzipping, copying firmware package
! Important: Please read before performing update:
For updating, it is necessary to connect Camera module to Recording module.
Update work may take approximately 60 minutes, use secure power supply (AC
adaptor), unexpected shutdown while in update may cause an
unrecoverable failure.
Do NOT eject SD memory card while update is in progress (while access
LED blinks), interrupting communication between SD card and equipment
may cause unrecoverable failure.
3. Updating firmware
[Preparation]

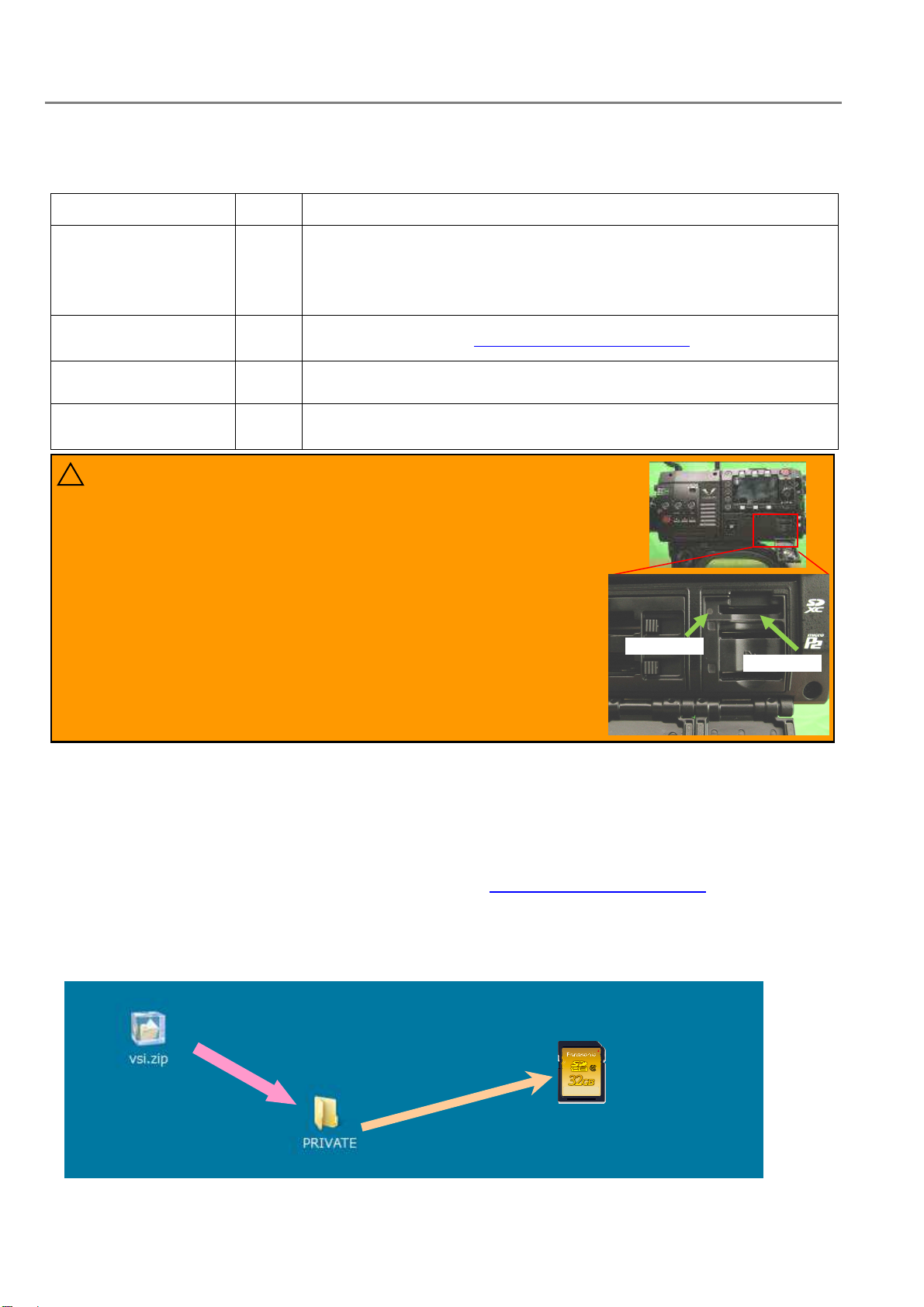

1. Insert an SD memory card into the SD card slot ( NOT microP2 card slot ) on the unit.
2. Format the SD card (MENU : SYSTEM SETTINGS > CARDS/MEDIA > FORMAT CARD > SD CARD)
Visit Panasonic professional video support website <http://panasonic.biz/sav/pass_e> and download
"vsi*****.zip" firmware package.
3. Extract the ZIP package (you will see "PRIVATE" folder).
4. Mount the formatted SD card to the computer then copy the "PRIVATE" folder to the SD card.
Extract
Copy to
ROOT
directory
SD card slot
Access LED

Firmware update procedure for Varicam series
January 2015
Page3/5
[Perform update]

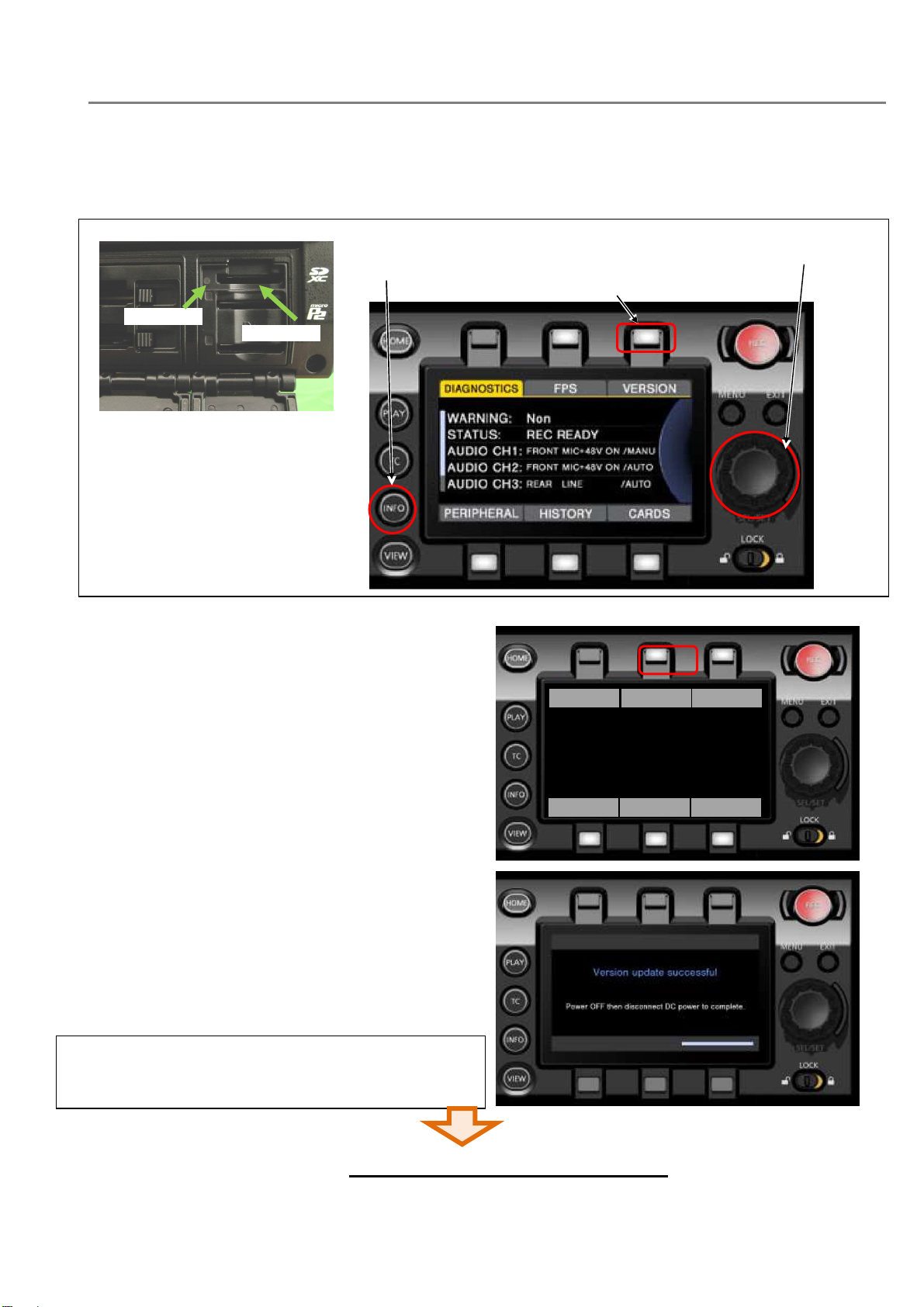

5. Insert the SD card into the SD card slot (NOT microP2 card slot) on the unit.
6. Disconnect the cable between the viewfinder and the camera body.
7. Press INFO button to display INFO screen. Press the operation button of VERSION and press the Jog Dial..
8. When “UPDATE” menu item appears, press the
operation button of UPDATE > OK
9. Wait until the “Version update successful” dialog is
displayed. It may take approximately 60 minutes
(Maximum).
10.Remove the SD card.
11.Switch OFF the power, and disconnect and connect
DC power > switch ON the power to complete.
12.Make sure the firmware version.
MENU:
SYSTEM SETTINGS >INFORMATION >VERSION
Please refer to the next page
SD card slot
Access LED
UPDATE
EXIT
Jog Dial button
INFO button
VERSION operation button

Firmware update procedure for Varicam series
January 2015
Page4/5
Never fail to perform this after the update
After AU-V35C1 is updated, please perform ABB with the lens cap fitted on
according to the procedure. This is for the sensor adjustment needed after
120p mode is newly equipped.
Only the first ABB adjustment after the update is definitive. It cannot be
done over again.
Please be careful because, if it is not successfully completed, the product
will not work correctly when you use it.
MENU ：SYSTEM SETTINGS > SYSTEM MODE
FREQUENCY 59.94p
PIXCEL 4096 x 2160
MAIN CODEC AVC-Intra4K-LT
HIGH SPEED ON (60-120fps)
Reboot the camera and wait for 15 minutes or longer with the power on.
Check SENSOR TEMP and, if it is not between 38℃and 43℃, wait for a further 15 minutes or so.
MENU: SYSTEM SETTINGS > INFORMATION > SENSOR TEMP between 38℃and 43℃
(Temperature readings can be updated by pushing the jog dial button two times.)
Be sure to put the lens cap or mount cap to block out the light completely.
(If you proceed to the next step without blocking the light, you cannot perform
ABB again by MENU even after it is not completed.)
MENU: SYSTEM SETTINGS > COLOR SETTING
MAIN V-709
MENU: CAMERA SETTINGS > Enhanced > Enhanced SW > ON
MENU: CAMERA SETTINGS > BLACK > ABB
[EXECUTE]
After about a minute, “ABB ACTIVE” is displayed on the panel.
When “ABB OK” is displayed, ABB is completed.
However software cannot be updated, please contact Panasonic Service Engineering.

Firmware update procedure for Varicam series
January 2015
Page5/5
4. Troubleshoot
1. “UPDATE” menu item does not appear.
It may happen in following cases;
- When package file or copied location are NOT correct (“PRIVATE” folder was not copied to the upper directory
of the SD card).

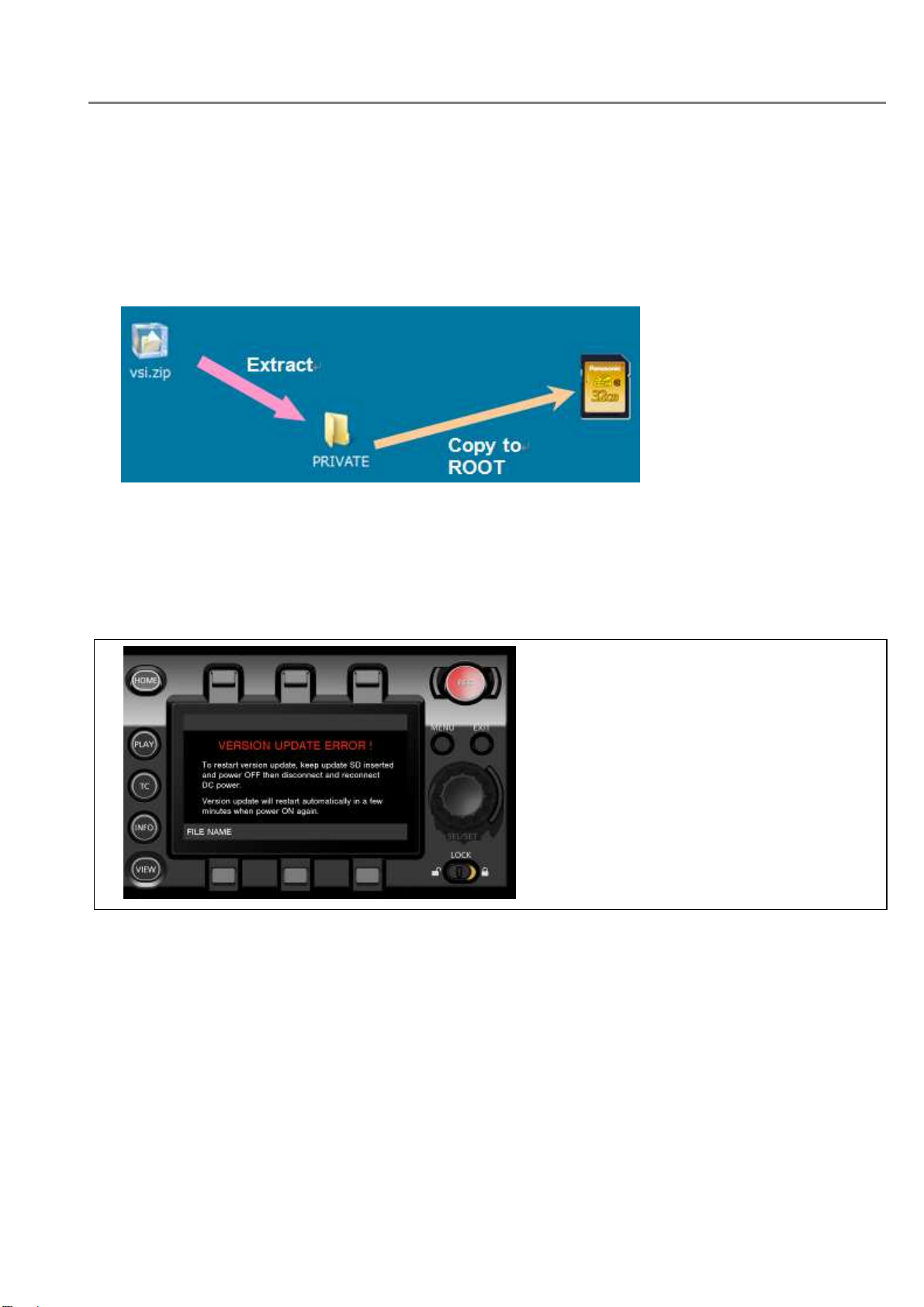

2. VERSION UPDATE ERROR! Screen is displayed!
This error will be happened in following case;
- When firmware package used is for other products. Check if the package is for the right product.
- When firmware package is corrupted. Download the firmware package and try again.
