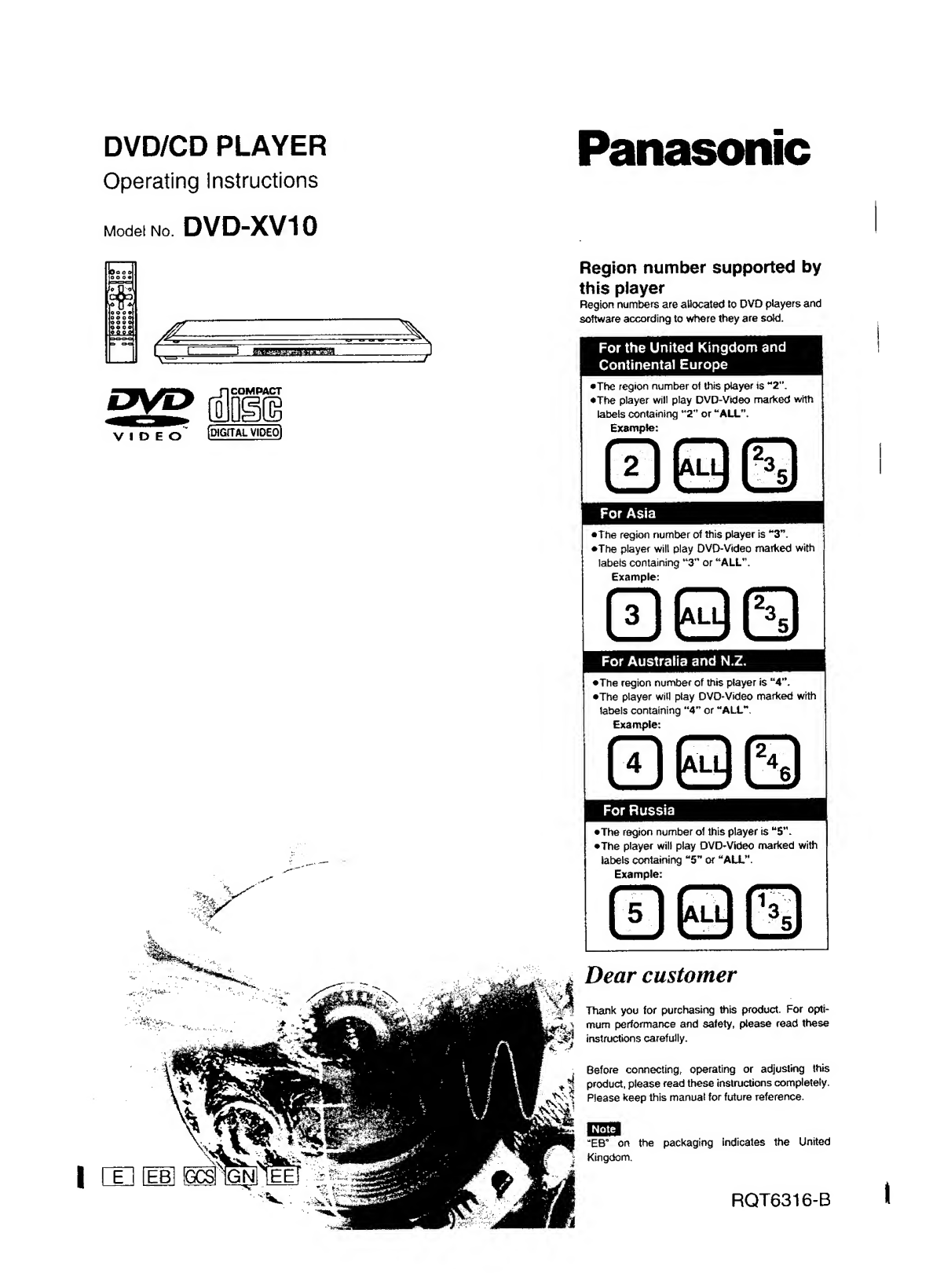

Operating instructions
Model No. DVD-XV10
video' [DIGITAL VIDEO)
Region number supported by
this player
Region numbers are allocated to DVD players and
software according to where they are sold.
For the United Kingdom and
Continental Europe
• The region number of this player is “2”.
•The player will play DVD-Video marked with
labels containing “2” or “ALL”.
Example:
• The region number of this player is “3”.
•The player will play DVD-Video marked with
labels containing “3” or “ALL”.
Example:
•The region number of this player is “4”.
•The player will play DVD-Video marked with
labels containing “4” or “ALL”.
Example:
•The region number of this player is “5”.
•The player will play DVD-Video marked with
labels containing “5” or “ALL”.
Example:
Dear customer
Thank you for purchasing this product. For opti¬
mum performance and safety, please read these
instructions carefully.
Before connecting, operating or adjusting this
product, please read these instructions completely.
Please keep this manual for future reference.
EQ23
“EB” on the packaging indicates the United
Kingdom.
RQT6316-B
I

CAUTION!
• DO NOT INSTALL, OR PLACE THIS UNIT, IN A
BOOKCASE, BUILT-IN CABINET OR IN ANOTHER
CONFINED SPACE. ENSURE THE UNIT IS WELL
VENTILATED. TO PREVENT RISK OF ELECTRIC
SHOCK OR FIRE HAZARD DUE TO OVERHEATING,
ENSURE THAT CURTAINS AND ANY OTHER MATE¬
RIALS DO NOT OBSTRUCT THE VENTILATION
VENTS.
•DO NOT OBSTRUCT THE UNIT’S VENTILATION
OPENINGS WITH NEWSPAPERS, TABLECLOTHS,
CURTAINS, AND SIMILAR ITEMS.
• DO NOT PLACE SOURCES OF NAKED FLAMES,
SUCH AS LIGHTED CANDLES, ON THE UNIT.
•DISPOSE OF BATTERIES IN AN ENVIRONMENTAL¬
LY FRIENDLY MANNER.
For Asia
THIS UNIT IS INTENDED FOR USE IN TROPICAL
CLIMATES.
For others
THIS UNIT IS INTENDED FOR USE IN MODER¬
ATE CLIMATES.
NORSK
ADVARSEL!
DETTE PRODUKTET ANVENDER EN LASER.
BETJENING AV KONTROLLER, JUSTERINGER
ELLER ANDRE INNGREP ENN DE SOM ER BE-
SKREVENT I DENNE BRUKSANVISNING, KAN FORE
TIL FARLIG BESTRALING.
DEKSLER MA IKKE APNES, OG FORS0K ALDRI A
REPARERE APPARATET PA EGENHAND. ALT SER¬
VICE OG REPARASJONSARBEID mA UTFORES AV
KVAL1FISERT PERSONELL.
ADVARSEL:
FOR A REDUSERE FAREN FOR BRANN, ELEKTRISK
ST0T ELLER SKADER PA PRODUKTET, MA DETTE
APPARATET IKKE UTSETTES FOR REGN, FUK-
TIGHET, VANNDRAPER ELLER VANNSPRUT. DET mA
HELLER IKKE PLASSERES GJENSTANDER FYLT
MED VANN, SLIK SOM BLOMSTERVASER, OPPA AP¬
PARATET.
ADVARSEL!
•APPARATET MA IKKE PLASSERES I EN
BOKHYLLE, ETINNEBYGGET KABINETT ELLER ET
ANNET LUKKET STED HVOR VENTILASJONSFOR-
HOLDENE ER UTILSTREKKELIGE. S0RG FOR AT
GARDINER ELLER LIGNENOE IKKE FORVERRER
VENTILASJONSFORHOLDENE, SA RISIKO FOR
ELEKTRISK SJOKK ELLER BRANN FORARSAKET
AV OVERHETING UNNGAS.
• APPARATETS VENTILASJONSAPNINGER MA IKKE
DEKKES TIL MED AVISER, BORDDUKER , GARDI¬
NER OG LIGNENDE.
• PLASSER IKKE APEN ILD, SLIK SOM LEVENDE LYS,
OPPA APPARATET.
• BRUKTE BATTERIER MA KASSERES UTEN FARE
FOR MILJ0ET.
DETTE APPARATET ER BEREGNET TIL BRUK UNDER
MODERATE KLIMAFORHOLD.

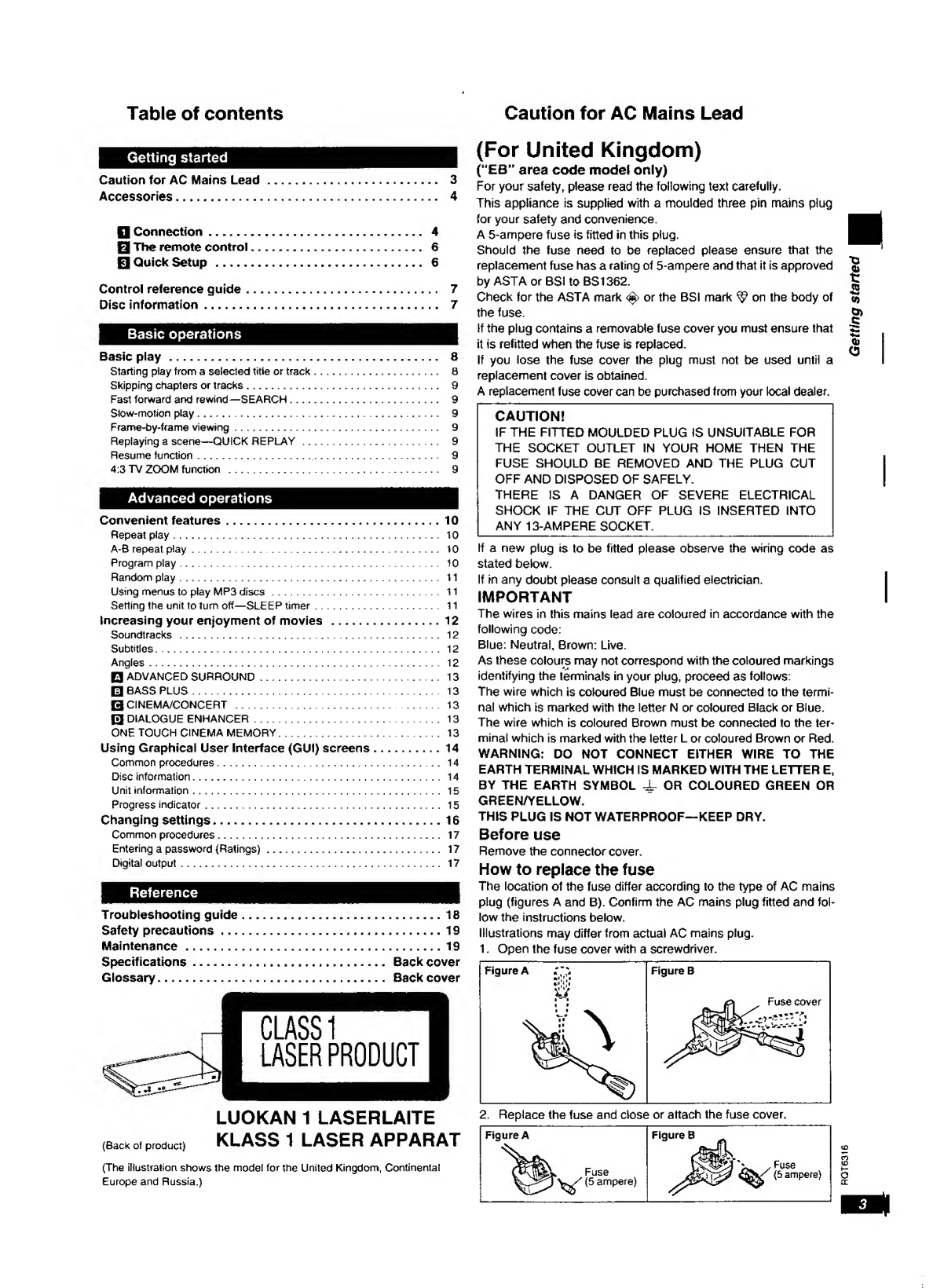

Table of contents
Caution for AC Mains Lead
Getting started
Caution for AC Mains Lead. 3
Accessories. 4
Q Connection. 4
E3 The remote control. 6
□ Quick Setup. 6
Control reference guide. 7
Disc information. 7
Basic operations
Basic play. 8
Starting play from a selected title or track. 8
Skipping chapters or tracks. 9
Fast forward and rewind—SEARCH. 9
Slow-motion play.. 9
Frame-by-frame viewing. 9
Replaying a scene—QUICK REPLAY . 9
Resume function. 9
4:3 TV ZOOM function . 9
Advanced operations
Convenient features.10
Repeat play. 10
A-B repeat play. 10
Program play. 10
Random play. 11
Using menus to play MP3 discs . 11
Setting the unit to turn off—SLEEP timer. 11
Increasing your enjoyment of movies .12
Soundtracks . 12
Subtitles. 12
Angles. 12
Q ADVANCED SURROUND. 13
QBASS PLUS. 13
□ CINEMA/CONCERT . 13
0 DIALOGUE ENHANCER. 13
ONE TOUCH CINEMA MEMORY. 13
Using Graphical User Interface (GUI) screens . 1 4
Common procedures. 14
Disc information. 14
Unit information. 15
Progress indicator.. 15
Changing settings.16
Common procedures. 17
Entering a password (Ratings). 17
Digital output. 17
Reference
Troubleshooting guide.18
Safety precautions.19
Maintenance.19
Specifications.Back cover
Glossary. Back cover
(Back of product)
LUOKAN 1 LASERLAITE
KLASS 1 LASER APPARAT
(The illustration shows the model for the United Kingdom, Continental
Europe and Russia.)
(For United Kingdom)
(“EB” area code model only)
For your safety, please read the following text carefully.
This appliance is supplied with a moulded three pin mains plug
for your safety and convenience.
A 5-ampere fuse is fitted in this plug.
Should the fuse need to be replaced please ensure that the
replacement fuse has a rating of 5-ampere and that it is approved
by ASTA or BSI to BS1362.
Check for the ASTA mark <$> or the BSI mark ^ on the body of
the fuse.
If the plug contains a removable fuse cover you must ensure that
it is refitted when the fuse is replaced.
If you lose the fuse cover the plug must not be used until a
replacement cover is obtained.
A replacement fuse cover can be purchased from your local dealer.
CAUTION!
IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR
THE SOCKET OUTLET IN YOUR HOME THEN THE
FUSE SHOULD BE REMOVED AND THE PLUG CUT
OFF AND DISPOSED OF SAFELY.
THERE IS A DANGER OF SEVERE ELECTRICAL
SHOCK IF THE CUT OFF PLUG IS INSERTED INTO
ANY 13-AMPERE SOCKET. _
If a new plug is to be fitted please observe the wiring code as
stated below.
If in any doubt please consult a qualified electrician.
IMPORTANT
The wires in this mains lead are coloured in accordance with the
following code:
Blue: Neutral, Brown: Live.
As these colours may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured Blue must be connected to the termi¬
nal which is marked with the letter N or coloured Black or Blue.
The wire which is coloured Brown must be connected to the ter¬
minal which is marked with the letter L or coloured Brown or Red.
WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE LETTER E,
BY THE EARTH SYMBOL 4- OR COLOURED GREEN OR
GREEN/YELLOW.
THIS PLUG IS NOT WATERPROOF—KEEP DRY.
Before use
Remove the connector cover.
How to replace the fuse
The location of the fuse differ according to the type of AC mains
plug (figures A and B). Confirm the AC mains plug fitted and fol¬
low the instructions below.
Illustrations may differ from actual AC mains plug.
1. Open the fuse cover with a screwdriver.
2. Replace the fuse and close or attach the fuse cover.
Getting
started

Getting
started

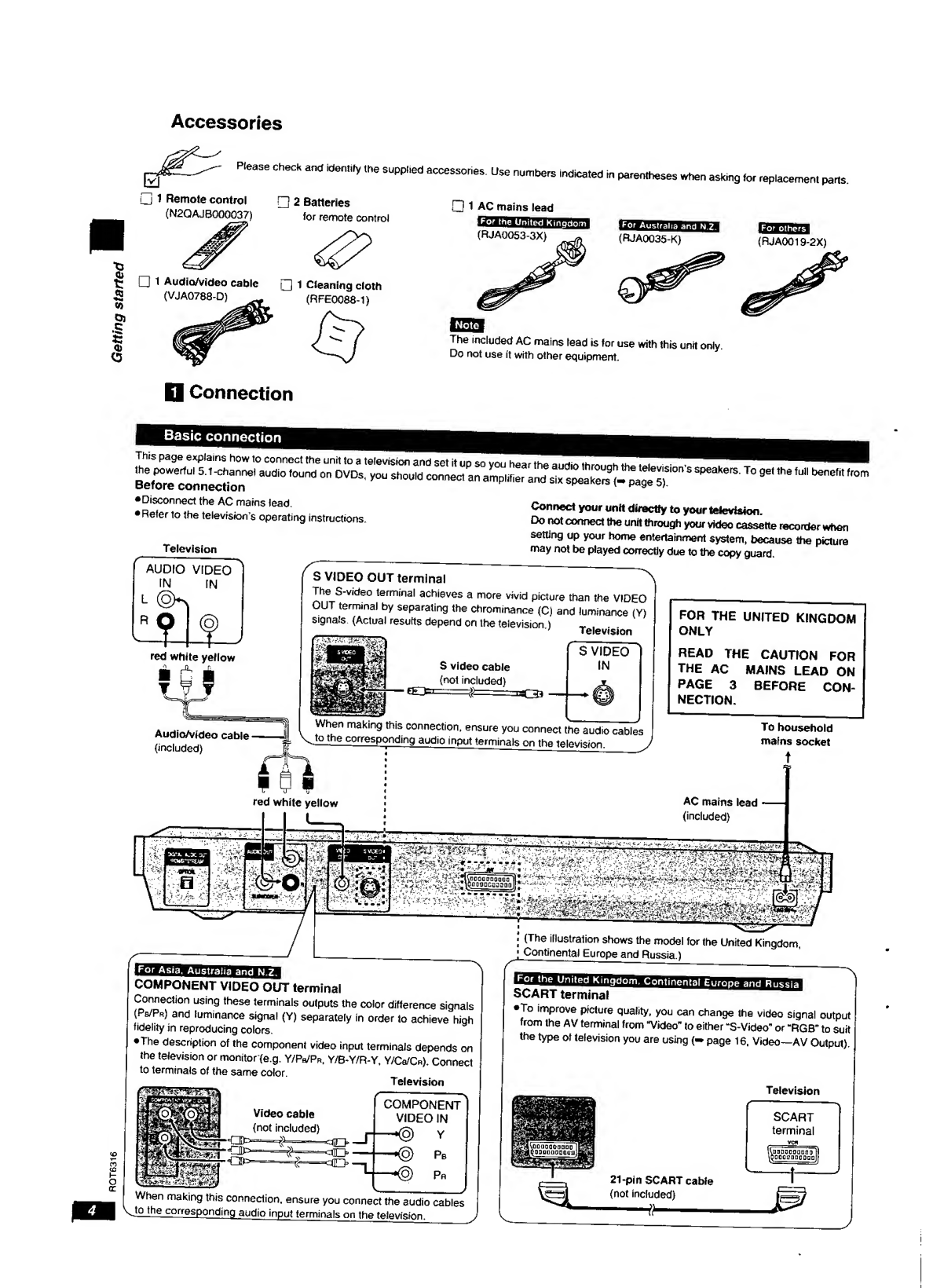

Accessories
El
□ 1 Remote control
(N2QAJB000037)
Please check and identify the supplied accessories. Use numbers indicated
In parentheses when asking for replacement parts.
j 2 Batteries
for remote control
□ 1 Audio/video cable
(VJA0788-D)
□ 1 Cleaning cloth
(RFE0088-1)
. □ 1 AC mains lead
(RJA0053-3X)
(RJA0035-K)
2H
(RJA0019-2X)
Egg
The included AC mains lead is for use with this unit only.
Do not use it with other equipment.
Connection
Basic connection
Television
Connect your untt directly to your television.
Do not connect the unit through your video cassette recorder when
setting up your home entertainment system, because the picture
may not be played correctly due to the copy guard.
S VIDEO OUT terminal
The S-video terminal achieves a more vivid picture than the VIDEO
OUT terminal by separating the chrominance (C) and luminance (Y)
signals. {Actual results depend on the television )
’ } Television
Audio/video cable
{included)
When making this connection, ensure you connect the audio cables
V to the corresponding audio input terminals on the television.
FOR THE UNITED KINGDOM
ONLY
READ THE CAUTION FOR
THE AC MAINS LEAD ON
PAGE 3 BEFORE CON¬
NECTION.
To household
mains socket
t
COMPONENT VIDEO OUT terminal
Connection using these terminals outputs the color difference signals
(Pb/Pr) and luminance signal (Y) separately in order to achieve high
fidelity in reproducing colors.
•The description of the component video input terminals depends on
the television or monitor{e.g. Y/Pb/Pr, Y/B-Y/R-Y, Y/Cb/Cr). Connect
to terminals of the same color.
Television
COMPONENT
VIDEO IN
<§> Y
" ■ © Pb
<5) Pn
When making this connection, ensure you connect the audio cables
\Jo th e corresponding audio input terminals on the television.
•To improve picture quality, you can change the video signal output
from the A V terminal from “Video” to either “S-Video" or “RGB" to suit
the type of television you are using (- page 16, Video—AV Output).
Television
SCART
terminal
yew
KnnoocoDDoijl)
^Qoccngaconnl
21-pin SCART cable
(not included)

Connection
This model can play Dolby Digital, but only in two channels. This model does not have a DTS decoder. You must connect a unit with a Dolby Digital or
DTS decoder to enjoy surround sound.
•The equipment connections described are examples.
• Peripheral equipment and optional cables sold separately unless otherwise indicated.
• Before connection, turn off all equipment and read the appropriate operating instructions.
Digital connection
HI Analogue connection
To enjoy 5-1 -ch surround sound
Connect an amplifier with a built-in
decoder or a decoder-amplifier
combination.
•Change the settings in “Digital output" to
suit the equipment you connect
(~ page 17).
You cannot use DTS Digital Surround
decoders not suited to DVD.
To enjoy stereo or Dolby Pro Logic
Connect a digital amplifier or system
component.
•Change the settings in “Digital output"
(• page 17).
To enjoy stereo or Dolby Pro Logic
Connect an analogue amplifier or system
component.
r i'- -~--Tl | Amplifier or system |j v — ' j j
component
(©<© r
O-VT-
Connecting an active subwoofer
You can enjoy more powerful bass by connecting an active subwoofer.
•Place the subwoofer as close as possible to the front center.
•Turn BASS PLUS on to boost the output from the subwoofer (• page 13).
•Adjust the volume on the subwoofer to suit your preference.
Audio cable
To the subwoofer's input terminal
■ Recording to digital recording equipment or cassette tapes
•Digital recording
You can record the digital signal directly to digital recording equipment.
Connect the recording equipment with an optical digital audio cable
{• D above).
•Analogue recording
You can record to a cassette deck or other recording equipment. Connect
the recording equipment with an audio cable (• Q above). There are no
limitations on recording analogue signals as there are with digital signals.
•With DVD, the following conditions must be met: ® the disc doesn’t have
protection preventing digital recording, and ® the recording equipment
can handle signals with a sampling frequency of 48 kHz.
•You cannot record DTS signals.
•You cannot record MP3.
When recording DVDs, make the following settings.
ADVANCED SURROUND: OFF (- page 13)
PCM Down Conversion: Yes {• page 17)
Dolby Digital: PCM (• page 17)
DTS Digital Surround: Off (• page 17)
MPEG© PCM {•page 17)
-Not available in Asia.
Getting
started

RQT6316
Getting
started
B The remote control
Do not:
• mix old and new batteries.
•use different types at the same time.
• heat or expose to flame.
•take apart or short circuit.
•attempt to recharge alkaline or manganese batteries.
•use batteries if the covering has been peeled off.
Mishandling of batteries can cause electrolyte leakage which can damage
items the fluid contacts and may cause a fire.
Remove if the remote control is not going to be used for a long period of
time. Store in a cool, dark place.
■ Use
Aim at the sensor, avoiding obstacles, at a maximum range of 7 m directly
in front of the unit.
1 Press [ 6 ] to turn on the unit.
2 Press [SETUP] to show the QUICK SETUP screen.
e.g. Units for the United Kingdom, Continental Europe, Russia,
Australia and N.Z.
3 Press [A, ▼ , ► ] to select the menu language
and press [ENTER].
4 Press [A, ▼ ] to select “Yes” to continue and
press [ENTER].
5 Press [A, ▼ , ► ] to select the item and press
[ENTER],
•Audio Language (For setting details - page 16)
• Subtitle Language (For setting details page 16)
•TV Aspect (For setting details - TV Aspect” below)
6 Press [ENTER] and then [SETUP] to end the
settings.
The QUICK SETUP screen appears when you press [SETUP] the first
time after purchase and assists you to make necessary settings.
You can access this screen again later if you need to paqe 16 Others—
QUICK SETUP).
Preparation
Turn on the television and select the appropriate video input on the televi¬
sion to suit the connections for the player.
To return to the previous screen
Press [RETURN],
■ TV Aspect
Select 4:3’ (regular) or “'16:9” (widescreen) to suit your television.
If you have a regular 4:3 television, you can also select how video on some
discs is shown page 16, Video—TV Aspect).
•4:3 Pan&Scan (Factory preset)
The pan and scan (the original widescreen images
are converted for viewing on a regular television)
version of the video is automatically selected if
recorded on the disc.
•4:3 Letterbox
The letterbox (the original widescreen images
appear with black bands above and below) version
of the video is automatically selected if recorded on
the disc.
•Insert so the poles (+ and —) match those in the remote control.
•Do not use rechargeable type batteries.

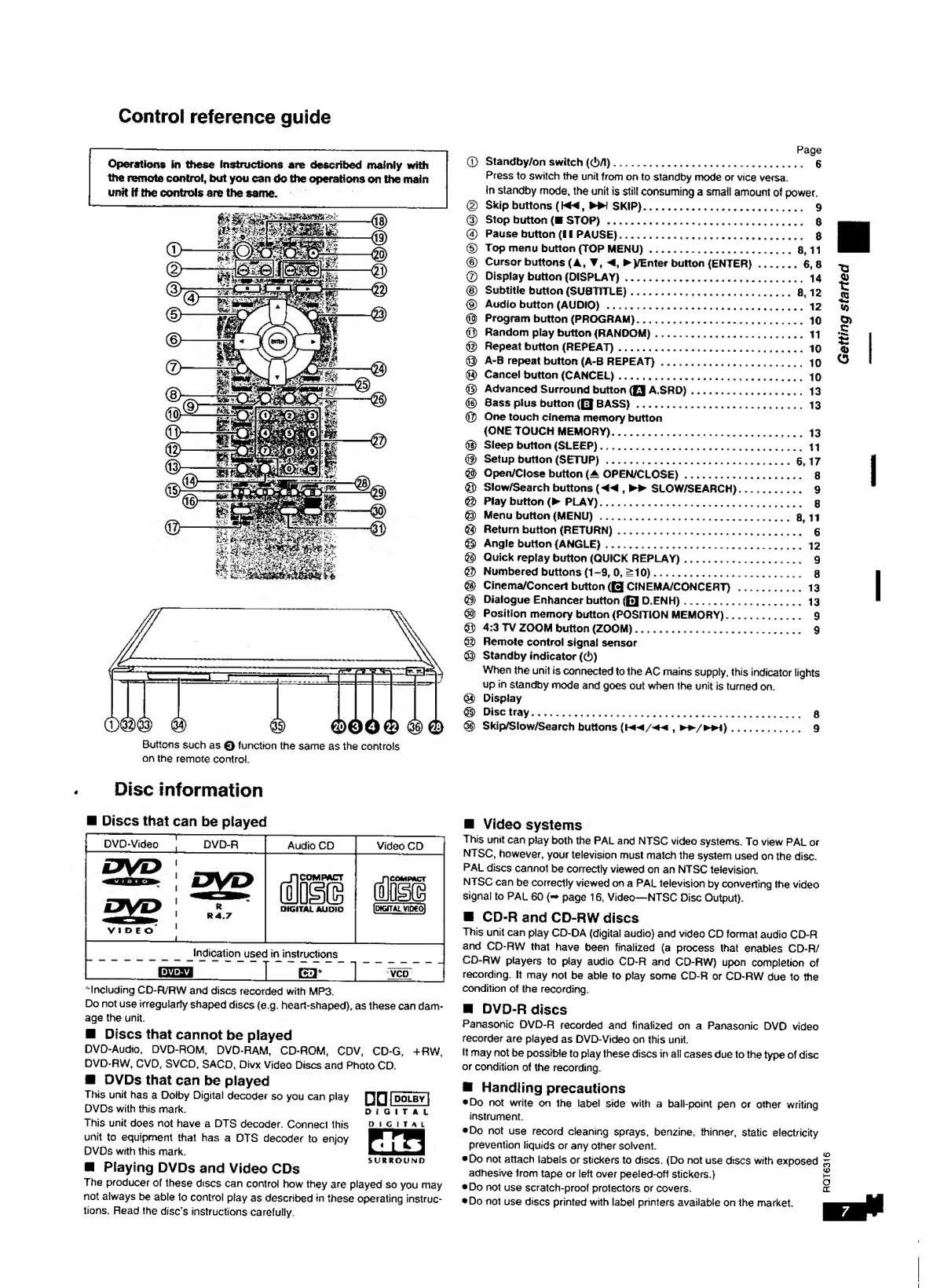

Control reference guide
Operations in these instructions are described mainly with
the remote control, but you can do the operations on the main
unit if the controls are the same.
Buttons such as 0 function the same as the controls
on the remote control.
Disc information
■ Discs that can be played
DVD-Video \ DVD-R
Audio CD
Video CD
'< -I- '
video” 1
_ i _
n COM PACT
(Dims
DIGITAL AUDIO
nCOMfWCT
i®s
1WGTTW. VIDEO]
Indication used in instructions
rrrai I ed VCP
'Including CD-R/RW and discs recorded with MP3.
Do not use irregularly shaped discs (e.g. heart-shaped), as these can dam¬
age the unit.
■ Discs that cannot be played
DVD-Audio, DVD-ROM, DVD-RAM, CD-ROM, CDV, CD-G, +RW,
DVD-RW, CVD, SVCD, SACD, Divx Video Discs and Photo CD.
■ DVDs that can be played
This unit has a Dolby Digital decoder so you can play
DVDs with this mark.
This unit does not have a DTS decoder. Connect this
unit to equipment that has a DTS decoder to enjoy
DVDs with this mark.
■ Playing DVDs and Video CDs
The producer of these discs can control how they are played so you may
not always be able to control play as described in these operating instruc¬
tions. Read the disc's instructions carefully.
DIGITAL
DIGITAL
SURROUND
Page
(D Standby/on switch ((!)/l). 6
Press to switch the unit from on to standby mode or vice versa.
In standby mode, the unit is still consuming a small amount of power.
<D Skip buttons (! ◄◄ , ► ► ) SKIP). 9
(3) Stop button ( ■ STOP) . 8
@ Pause button (I I PAUSE). 8
© Top menu button (TOP MENU).8,11
<D Cursor buttons (A, ▼ , ► y Enter button (ENTER).6, 8
® Display button (DISPLAY). 14
<D Subtitle button (SUBTITLE).8,12
<§) Audio button (AUDIO) .12
® Program button (PROGRAM).10
(0) Random play button (RANDOM). 1 1
<$ Repeat button (REPEAT).10
® A-B repeat button (A-B REPEAT). 10
® Cancel button (CANCEL). 10
© Advanced Surround button (fj A.SRD). 13
Bass plus button (Q BASS). 13
(0) One touch cinema memory button
(ONE TOUCH MEMORY). 13
© Sleep button (SLEEP). 1 1
<§) Setup button (SETUP).6,17
© Open/Close button (± OPEN/CLOSE). 8
@ Slow/Search buttons ( ◄ ◄ , ►► SLOW/SEARCH). 9
© Play button ( ► PLAY). 6
© Menu button (MENU).8,11
<8) Return button (RETURN). 6
© Angle button (ANGLE). 1 2
@ Quick replay button (QUICK REPLAY). 9
@ Numbered buttons (1-9, 0,^10). 8
© Cinema/Concert button (Q CINEMA/CONCERT) .13
© Dialogue Enhancer button (Q D.ENH). 13
© Position memory button (POSITION MEMORY). 9
© 4:3 TV ZOOM button (ZOOM). 9
© Remote control signal sensor
© Standby indicator ((!))
When the unit is connected to the AC mains supply, this indicator lights
up in standby mode and goes out when the unit is turned on.
@ Display
© Disc tray. 8
© Skip/Slow/Search buttons {KM/MM , ►► /). 9
I
■ Video systems
This unit can play both the PAL and NTSC video systems. To view PAL or
NTSC, however, your television must match the system used on the disc.
PAL discs cannot be correctly viewed on an NTSC television.
NTSC can be correctly viewed on a PAL television by converting the video
signal to PAL 60 {-* page 16, Video—NTSC Disc Output).
■ CD-R and CD-RW discs
This unit can play CD-DA (digital audio) and video CD format audio CD-R
and CD-RW that have been finalized (a process that enables CD-R/
CD-RW players to play audio CD-R and CD-RW) upon completion of
recording. It may not be able to play some CD-R or CD-RW due to the
condition of the recording.
■ DVD-R discs
Panasonic DVD-R recorded and finalized on a Panasonic DVD video
recorder are played as DVD-Video on this unit.
It may not be possible to play these discs in all cases due to the type of disc
or condition of the recording.
■ Handling precautions
• Do not write on the label side with a ball-point pen or other writing
instrument.
• Do not use record cleaning sprays, benzine, thinner, static electricity
prevention liquids or any other solvent.
• Do not attach labels or stickers to discs. (Do not use discs with exposed ^
adhesive from tape or left over peeled-off stickers.)
• Do not use scratch-proof protectors or covers.
• Do not use discs printed with label printers available on the market.
Getting
started

Basic
operations
Basic play
r (9^0. iO:
-2
Hi i fl i lESf lit® i ssM r-i
— «, ►►
— 4
r *:r • —— - - .--r-
-II
- 1-1- M E NU
-1 ■
- M&BW jm
HtBWBB \ rMlVi l !
- RETURN
■ WKWHH-. i fl
-VQ-. -•.-j
- Q UICK REPLAY
n n 1 |
- N u mbered
— 0 .0 0 of I
jrjrT I fl
buttons
wteimmSfiTl
- P OSITION
. r~ 1 I
MEMORY
i
- Z OOM
. I
1 3
/ /
2 , 4
jy
•* / k
Cl t 3
►► / ► ah'
itfJ.ffl £22 vcb
Preparation
Turn on the television and select the appropriate video input on the televi¬
sion to suit the connections for the player.
1 Press [(!)] to turn on the unit.
2 Press [^] to open the disc tray.
3 Place the disc on the disc tray.
Label must face upward.
(With double-sided discs, load so
the label for the side you want to
play is facing up.)
E3g
•If “Q” appears on the television
The operation is prohibited by the unit or disc.
•The disc continues to rotate while the menu is displayed even after you
finish playing an item. Press ( ■ ] when you finish to preserve the unit’s
motor and your television screen.
•Volume may be lower when playing DVDs than when playing other discs
or during television broadcasts.
If you turn the volume up on the television or amplifier, be sure to reduce
the volume again before playing other sources so that a sudden increase
in output does not occur.
When a menu screen appears on the television
EEGfil W
Remote control only
Press the numbered buttons to select an item.
To select a 2-digit number
Example: To select item 23, press {^10] [2] ~ [3].
• When playing DVDs, you can also use [A, ▼ , ◄ , ► ] to select items.
Press [ENTER] to confirm your selection.
Play of the selected item now begins.
Other buttons used to operate menus
Read the disc’s instructions for further details about operation.
[ ► N].[ ► ► / ► ► I]: Shows the next menu.
W(HN/ '«]: Shows the previous menu.
[RETURN]: Shows the menu screen. !~VCDj
[TOP MENU]: Shows the first menu screen.
[MENU]: Shows the menu screen. I'WM
Starting play from a selected title or track
ran vco
Remote control only
Press the numbered buttons to select the item.
To select a 2-digit number
Example: To select track 23, press [^10] ^ [2) • [3].
E3 (MP3 discs)
Press [ENTER] after pressing the numbered buttons.
(You do not have to press [^10].)
Play starts from the selected item.
This works only when stopped with some discs.
4 P r ess [ ► ] (PLAY).
The disc tray closes and play begins.
E3 (MP3 discs)
Group and track names are displayed on the television.
Press [SUBTITLE] to turn the display on or off.
To stop play
Press [ ■ ] (~ page 9, Resume function).
£ To pause play
Press [I I] during play.
§ Press [ ► ] (PLAY) to restart play.

Skipping chapters or tracks
Resume function
eej vco
During play or while paused
Press [! ◄◄ ] or [ ► ► !].
•Each press increases the number of skips.
• Press [**</+*] or [ ► *-/ ► ► !] 0n the main unit.
Fast forward and rewind—SEARCH
ia+J»a T J I?»1; vco
During play
Press [ ◄ ◄ ] or [ ► ► ] .
• Press and hold [t -**/*+<} or [ ► ► / ► **] on the main unit.
•Audio will be heard during search. You can turn this audio off if you want
to page 16, Audio—Audio during Search).
Slow-motion play
ln'jnyi vco
While paused
Press [<M] or [ ►► ] .
• Press and hold or [ ► ► / ► ► #] on the main unit.
JS3 vcd
(When the elapsed play time is displayed)
The position you stopped play at is recorded by the unit when is flash*
ing on the display.
W» ME OUT i
in n-n
hjijli
ID
ASS
While is flashing, press [ ► ] (PLAY) to start pfay from where you
stopped it. (When playing DVD - Chapter Review below)
•The position is cleared when the disc tray is opened or the unit is
switched to standby.
• Press { ■ ] to clear the position.
Position Memory function
Remote control only
This function allows you to memorize a position to start from even after
switching the unit to standby or changing discs.
1. During play, press [POSITION
MEMORY].
2. Press ft!)] to switch the unit to standby,
or press [±] to remove the disc.
3. When you are ready to play the disc again, press [ ► ] (PLAY). Play
starts from the memorized position and the position is cleared.
(When playing DVD — Chapter Review below)
To clear the position before play
Press [ ■ ] before recalling the memorized position.
I
Frame-by-frame viewing
•You can memorize positions on up to five different discs at a time. When
you memorize another position, the earliest position is replaced.
vcd
Remote control only
While paused
Press [ ◄ ] or [ ► ] .
The frame changes each time you press the button.
•The frames change in succession if you press and hold the button.
• Pressing [II] also activates forward frame-by-frame.
Notes
•The speed of search and slow-motion increases up to 5 steps.
• Press [ ► j (PLAY) to restart play.
•You cannot move backwards with Video CD during slow-motion
and frame-by-frame.
When playing Video CDs with playback control
Pressing buttons to perform skip, search or slow-motion may take
you to a menu screen.
Replaying a scene—QUICK REPLAY
VCD
Skip back a few seconds within the current item (track or title).
Remote control only
During play
Press [QUICK REPLAY].
This feature may not work while playing some parts of a disc or at alf with
some discs.
[ Chapter Review
One of these messages appears immediately after you press [ ► ] (PLAY).
Press [ ► ] (PLAY) while the message is displayed and the beginning por¬
tions of each chapter up to the current one are played. Full play resumes
from the point where you pressed [ ■ ] or [POSITION MEMORY].
(This feature works only within a title.)
If you do not press [ ► ] (PLAY), the message disappears and play starts
from where you pressed ( ■ ] or [POSITION MEMORY].
4:3 TV ZOOM function
Remote controf only
Widescreen software often appears as a letterbox picture when shown on
a regular 4:3 aspect television. Use 4:3 TV ZOOM to expand these
pictures to fill more of the television.
(The sides of the picture are cut off when you do this.)
During play
Press [ZOOM],
• Press again to cancef.
•4:3 TV ZOOM is also canceled when you open the disc tray or switch the
unit to standby.
KffiEl
• Depending on the video format of the disc and current play status, this
feature may not work as described.
•Menus may act or appear differently while 4:3 TV ZOOM is on.
i
i
Basic
operations

Convenient features
mm
Ossiig
►
TOP MENU -
A,
ENTER
PROGRAM
RANDOM
REPEAT
A-B REPEAT
CANCEL
B j
RETURN
* Numbered
buttons
ETE53 E2 Vcd
(When the elapsed
play time is displayed)

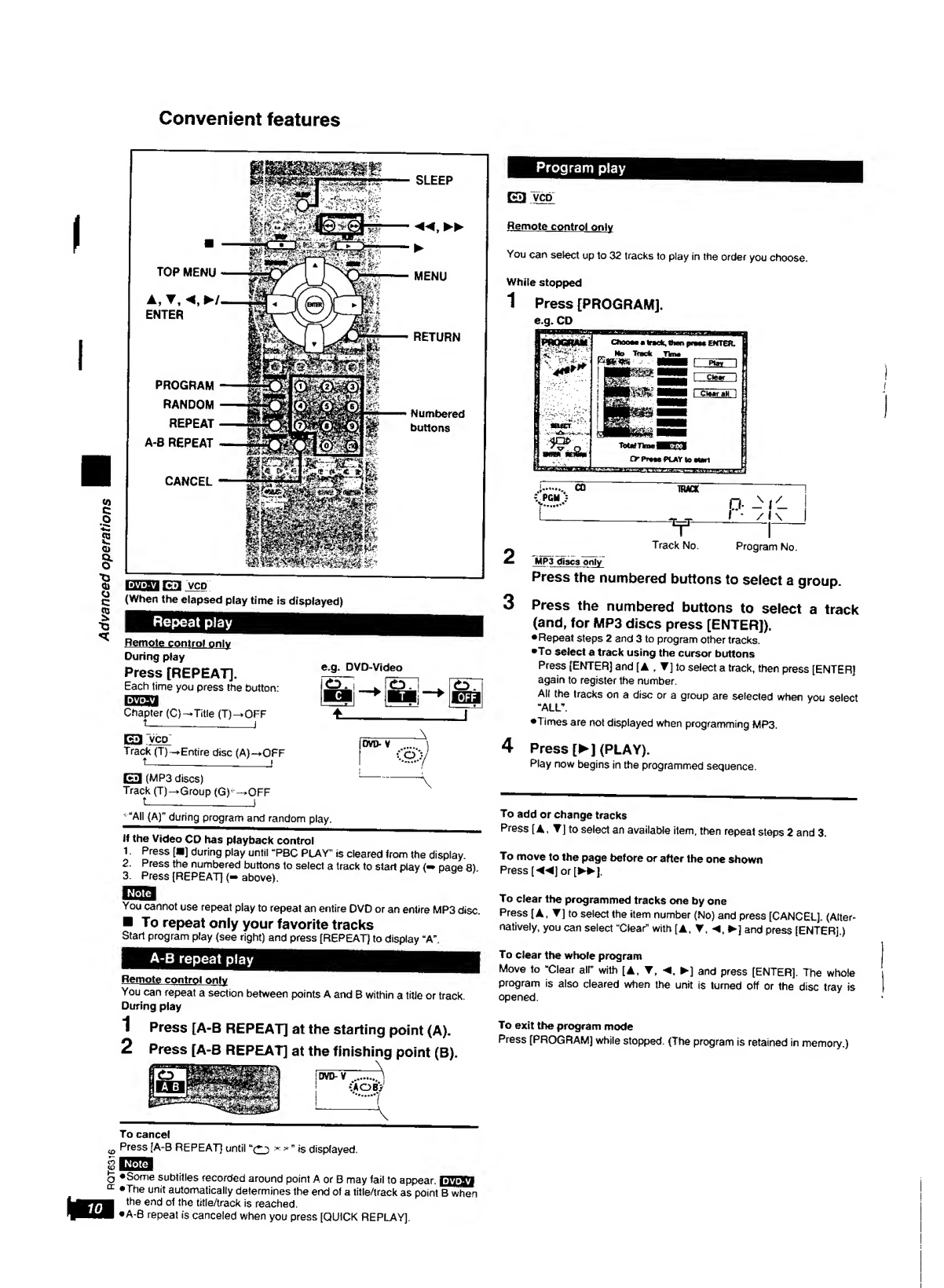

Repeat play
Remote control only
During play
Press [REPEAT]. e^jDVD-Video ^
Each time you press the button: ' w ^ *
raroi i® E3
Chapter (C>—Title (T)—OFF ± ___I '
t—-—___J
E3 yep [DVD* V ^\
Tra ck (T)—Entire disc ( A)-+OFF j
ED (MP3 discs) 1 -\
Track (T)-»Group (G)' ->OFF
t--J
s “All (A)" during program a nd random play.
If the Video CD has playback control
1. Press [ ■ ] during play until “PBC PLAY" is cleared from the display.
2. Press the numbered buttons to select a track to start play paae 8)
3. Pre s s [REPEAT] <- above).
1JBE1
You cannot use repeat play to repeat an entire DVD or an entire MP3 disc.
■ To repeat only your favorite tracks
Start program play (see right) and press [REPEAT] to display “A”.
A-B repeat play
Remote control only
You can repeat a section between points A and B within a title or track.
During play
1 Press [A-B REPEAT] at the starting point (A).
2 Press [A-B REPEAT] at the finishing point (B).
DVD- V ...)
**AOB>
El VCD
Remote control only
You can select up to 32 tracks to play in the order you choose.
While stopped
1 Press [PROGRAM],
e.g. CD
|fWGRAM CIkk*** m track, then press ENTER. |
„ Mo Track Time
I s- wmm r - psj — i i
I IHPntss [=»->;
CO
TRACK
i
: PGM>
SmU**
P ->- i
[
-r t
i • /i\
V
1
Track No.
Program No.
^ MP 3 discs on ly
Press the numbered buttons to select a group.
3 Press the numbered buttons to select a track
(and, for MP3 discs press [ENTER]).
• Repeat steps 2 and 3 to program other tracks.
•To select a track using the cursor buttons
Press [ENTER] and [A , T] to select a track, then press [ENTER]
again to register the number.
All the tracks on a disc or a group are selected when you select
“ALL”.
•Times are not displayed when programming MP3.
4 Press [ ► ] (PLAY).
Play now begins in the programmed sequence.
To add or change tracks
Press [ A, T] to select an available item, then repeat steps 2 and 3.
To move to the page before or after the one shown
Press [ ◄ ◄ ] or [ ►► ] .
To clear the programmed tracks one by one
Press [A. ▼ ] to select the item number (No) and press [CANCEL]. (Alter¬
natively, you can select “Clear” with [A, ¥, ◄, ► ] and press [ENTER].)
To dear the whole program
Move to “Clear air with [A, Y, ► ] and press [ENTER], The whole
program is also cleared when the unit is turned off or the disc tray is
opened.
To exit the program mode
Press [PROGRAM] while stopped. (The program is retained in memory.)
To cancel
to Press {A-B REPEAT] until u Cj * *" is displayed.
§EE3
O •Some subtitles recorded around point A or B may fail to appear. l*M»yi
*The unit automatically determines the end of a title/track as point B when
the end of the title/track is reached.
«A-B repeat is canceled when you press [QUICK REPLAY].

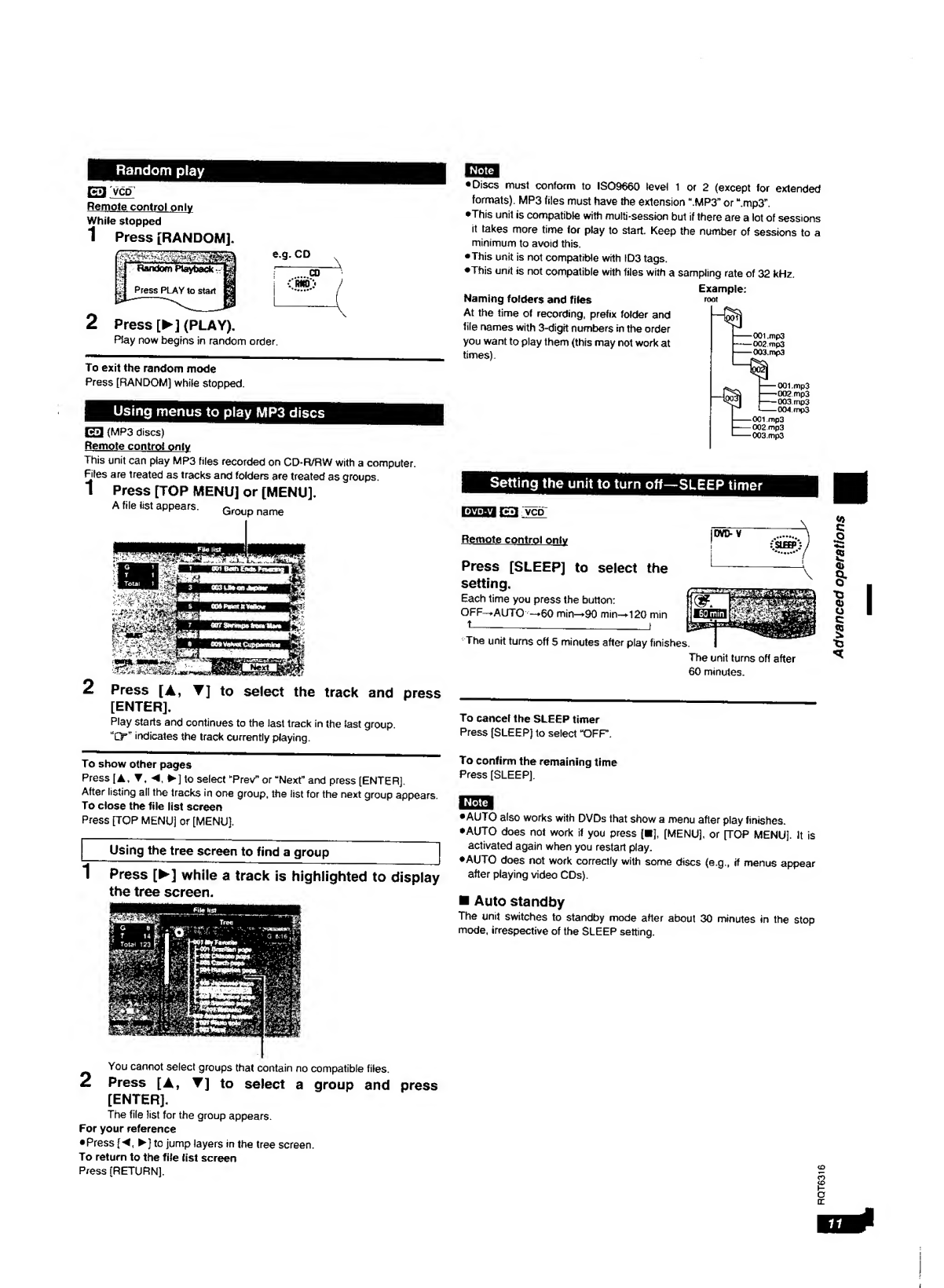

Random play
E3 vco
Remote control only
While stopped
1 Press [RANDOM].
e.g. CD
\
§j Random Playback d
r co
|j Press PLAY to start 1
i ® (
2 Press [ ► ] (PLAY).
Play now begins in random order.
To exit the random mode
Press [RANDOM] while stopped.
Using menus to play MP3 discs
E3 (MP3 discs)
Remote control only
This unit can piay MP3 files recorded on CD-R/RW with a computer.
Res are treated as tracks and folders are treated as groups.
1 Press [TOP MENU] or [MENU].
A file list appears. Group name
2 Press [A, ▼ ] to select the track and press
[ENTER].
Play starts and continues to the last track in the last group,
indicates the track currently playing.
E33
• Discs must conform to ISO9660 level 1 or 2 (except for extended
formats). MP3 files must have the extension “.MP3” or “.mp3”.
•This unit is compatible with multisession but if there are a lot of sessions
it takes more time for play to start. Keep the number of sessions to a
minimum to avoid this.
• This unit is not compatible with ID3 tags.
•This unit is not compatible with files with a sampling rate of 32 kHz.
Naming folders and files
At the time of recording, prefix folder and
file names with 3-digit numbers in the order
you want to play them (this may not work at
times)-
Example:
root
Setting the unit to turn off—SLEEP timer
rrm yep
Remote control only
Press [SLEEP] to select the
setting.
Each time you press the button:
OFF—* AUTO'''—*60 min—>90 min-*-120 min
The unit turns off 5 minutes after play finishes,
j DVD- V
The unit turns off after
60 minutes.
To cancel the SLEEP timer
Press (SLEEP) to select “OFP.
To show other pages
Press | A, T t ◄ , ► ] to select “Prev” or “Next” and press [ENTER],
After listing all the tracks in one group, the list for the next group appears.
To close the file list screen
Press [TOP MENU] or [MENU].
| Using the tree screen to find a group
1 Press [ ► ] while a track is highlighted to display
the tree screen.
To confirm the remaining time
Press [SLEEP],
• AUTO also works with DVDs that show a menu after play finishes.
•AUTO does not work if you press [ ■ ] , [MENU], or [TOP MENU]. It is
activated again when you restart play.
•AUTO does not work correctly with some discs (e.g., if menus appear
after playing video CDs).
■ Auto standby
The unit switches to standby mode after about 30 minutes in the stop
mode, irrespective of the SLEEP setting.
You cannot select groups that contain no compatible files.
2 Press [A. ▼ ] to select a group and press
[ENTER].
The file list for the group appears.
For your reference
•Press [ ◄ , ► ] to jump layers in the tree screen.
To return to the file fist screen
Press [RETURN], £
H
O
oc
Advanced
operations

Advanced
operations

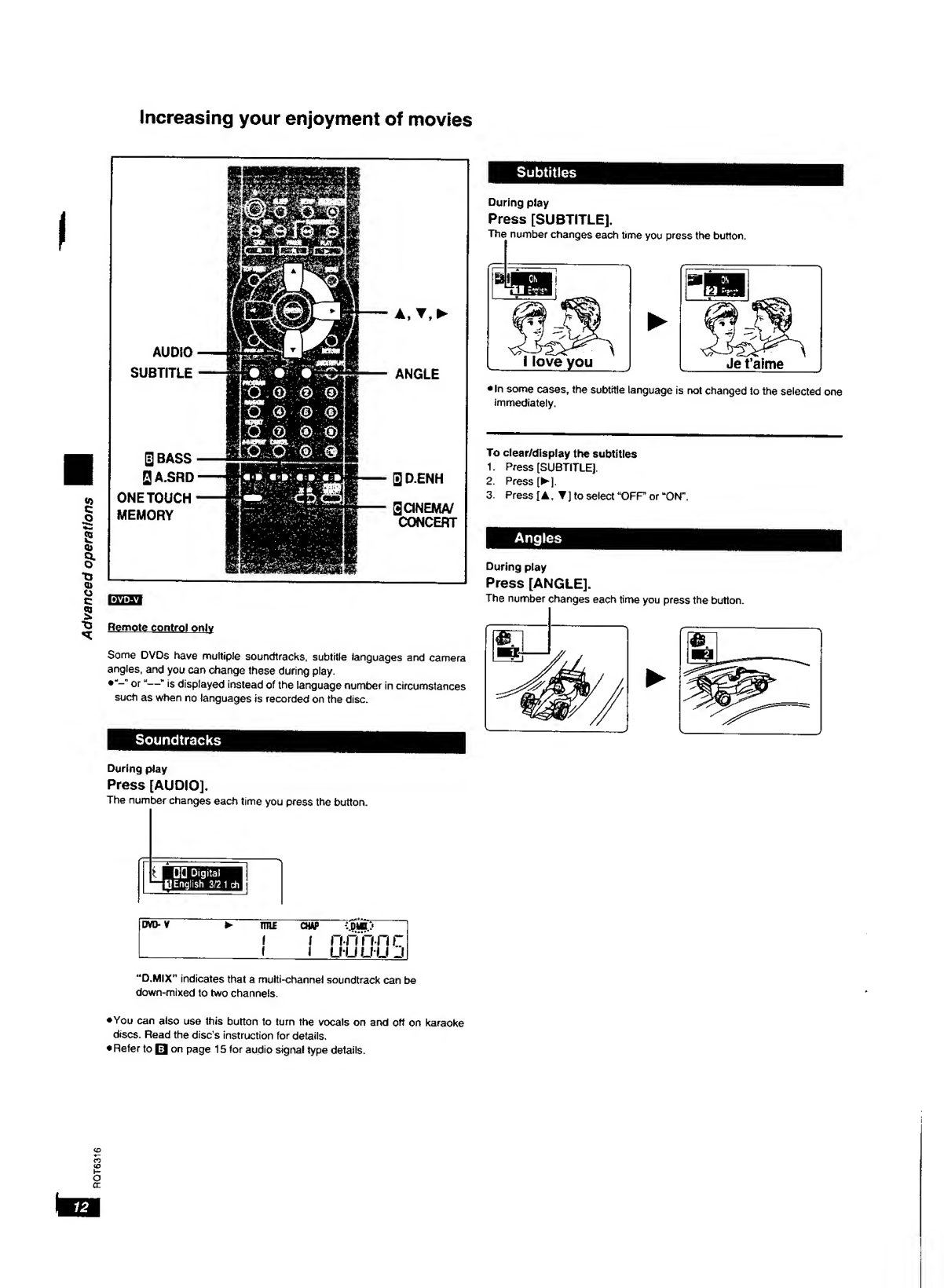

Increasing your enjoyment of movies
Soundtracks
During play
Press [AUDIO].
The number changes each time you press the button.
I* ■ M L Mgj
DVD- V
► TITLE
chap -:;dw : ■
1
f nrinnr
1
1 LI U LI U J
“D.MIX” indicates that a multi-channel soundtrack can be
down-mixed to two channels.
•You can also use this button to turn the vocals on and oft on karaoke
discs. Read the disc’s instruction for details.
• Refer to Q on page 15 for audio signal type details.

Use the buttons to control the following features, used to
enhance your enjoyment of movies. ONE TOUCH CINEMA MEMORY
then allows you to store the settings and recall them at a touch of a button.
csa
Turn ADVANCED SURROUND and BASS PLUS off when using Dolby Pro
Logic. Dolby Pro Logic will not work correctly if they are on.
A ADVANCED SURROUND
|>HJtjy| (Dolby Digital, 2-channel or over only)
Remote control only
Use ADVANCED SURROUND V.S.S. (Virtual Surround Sound) to enjoy a
surround-like effect if you are using 2 front speakers.
If you are playing a disc with surround effects recorded on it, the effect is
broadened and sound seems to come from virtual speakers on either side.
During play
Press [Q A.SRDJ.
DVD-V
(§>
► ME CHAP
C CINEMA/CONCERT
EEHEI veo
You can change the quality of the picture and audio to suit the material you
are watching.
Press [H CINEMA/CONCERT].
jDVO- V
TITLE
CHAP
0
nnnnri
IJU LIU J!
Each time you press the button:
p»Cin.: l»Vi.yi r vco
Use when watching movies to
mellow images and enhance
detail in dark scenes.
Con,: 1771 r VCtT
Use when watching recordings
of live performances to
enhance detail in dark scenes,
suppress brightness in bright
parts, and add power to the
sound.
4 —Nor.: Normal mode (Factory preset)
Each time you press the button:
P>1: Natural effect
1
2: Emphasized effect
i
-OFF: Cancel (Factory preset)
Optimum seating position
<When using the
television's speakers>
Distance A=
Television’s width
Speaker Speaker
3 to 4 times distance A
Seating positon
•ADVANCED SURROUND will not work, or will have less effect with some
discs.
•Turn off the surround sound effects on the equipment you have
connected when using this effect.
♦ T urn ADVANCED SURROUND off if it causes distortion.
B BASS PLUS
l.yij.yi raa [vcdl
Remote control only
Turn BASS PLUS on when you have connected an active subwoofer to the
SUBWOOFER terminal on the rear of the unit (- page 5).
Press [ □ BASS].
DVD- V
:G3
V ASS
ME
I
I
CHAP
Each time you press the button:
j—*OFF
1
1: Natural bass effect (Factory preset)
1
—2: Emphasized bass effect
-
For your reference
•You can make finer adjustments to the picture if desired (~ page 15,
Video menu, Digital picture/audio mode—User mode).
•Turn on the attenuator if sound output from your television’s speakers is
distorted while “Con." is on page 15, Audio menu).
D DIALOGUE ENHANCER
UX2AJ (Dolby Digital, 3-channel or over, where the dialogue is
recorded in the center channel)
Remote control only
This mode makes the dialogue in movies easier to hear.
Press [Q D.ENH].
tDVD- V
jC
TITLE
I
CHAP
nn nn c
UU UU J
Each time you press the button:
ON <-»OFF (Factory preset)
BB3
DIALOGUE ENHANCER will not work, or will have less effect with some
discs.
ONE TOUCH CINEMA MEMORY
Remote control only
This feature allows you to reselect the settings you made for ADVANCED
SURROUND, BASS PLUS, CINEMA/CONCERT and DIALOGUE
ENHANCER with one button press. ^
[ Putting the settings Into memory ] OVD- V j
After making the settings .. j
Press and hold [ONE TOUCH MEMORY]. _'
“ mT lights. v
The settings remain in the memory even if you turn the unit off.
Recalling the settings 1
Press [ONE TOUCH MEMORY].
“W lights.
To cancel
Press [ONE TOUCH MEMORY] to turn it off and return the settings for the
features to the factory preset.
• □ ADVANCED SURROUND: OFF
•13 BASS PLUS: 1
•Q CINEMA/CONCERT: Nor.
• □ DIALOGUE ENHANCER: OFF
“jMj" goes out if you press any of the other buttons to change the settings.
Advanced
operations

rqt
6316
Advanced
operations
Using Graphical User Interface (GUI) screens
For your reference
,he condi,i °" «» un 't (Playing, stopped, etc.) and the
S0 * Ware you are P la ' ,,n 9. , here are some items that you cannot
select or change.
•1^“? ar ® diSp ' ayed (e ' 9 ' ,i,le No >' ,he "umbered buttons are
e active tor setting. After entering numbers, press (ENTER) to req-
ister the setting. *
To clear the icons
Press [RETURN] untif the menus disappear.
1. Press [ ◄ , ► ] to select the rightmost icon.
2. Press [A, T] to move the icons.
(There are 5 positions.)
e
GUI screens are menus that contain information
These menus allow you to perform operations
mation.
about the disc or unit,
by changing this infor-
Common procedures
»n’i rrn vcd
Re mote control only
1
Press [DISPLAY],
Each time you press the button:
Disc information-.Progress indicator
f ]
Original display.-Unit information ( ■ » step 2)
!Unit information only
While the leftmost icon is highlighted
Press [A, T] to select the menu.
Each time you press the button:
Play menu*->Video menu
Display menu * Audio menu
3 Press ► ] to select the item.
4 Press [A, ▼ ] to select the setting.
• Items with “A" or above and below can be changed by [A 1
•P^s^JENTERj if the setting does not change after pressi
•Some items require different operations. Read the following exp]
nations. F
e.g. Video CD
® T: Title number J353JI
T: Track number vcd
G: Group number ED (MP3 discs)
® C: Chapter number
T: Tr ack num b er in group ED (MP3 discs)
© Time l>W»yi
• Press [A, T] to show the elapsed play time or remaining time for the
©
©
a position to start play by specifying a time with the numbered
buttons and press [ENTER].
Changing the time display ED VCD~
Press [A, ▼ ] to show the elapsed play time, remaining time for the
track, or remaining time for the disc.
Elapsed play time ED (MP3 discs)
(display only, cannot be changed)
Soundtrack language ( ■ * page 12)
(See Q on page 1 5 for lan guage abbreviations.)
Audio signal type ITOOT ( ■ * page 12)
(See Q on page 15 for details.)
Karaoke vocal on/off (Karaoke DVO only) F 1V.W
Solo: OFF or ON
Duet: OFF, V1+V2, VI or V2
(t) Subtitle language FP1»M ( ■ * page 12)
(See Q on page 15 for language abbreviations.)
Subtitles on/off
ON-OFF
Group/Track name display on/off ED (MP3 discs)
ON*—*OFF
® Angle number l»PJ«M page 12)
© Track number in disc ED (MP3 discs)
Q Total number of tracks on disc ED (MP3 discs)
® Audio mode vcd
LR *—* L <—*• R
t-1
® Menu play ivco (with playback control only)
Indicates whether menu play (playback control) is on or off.
14

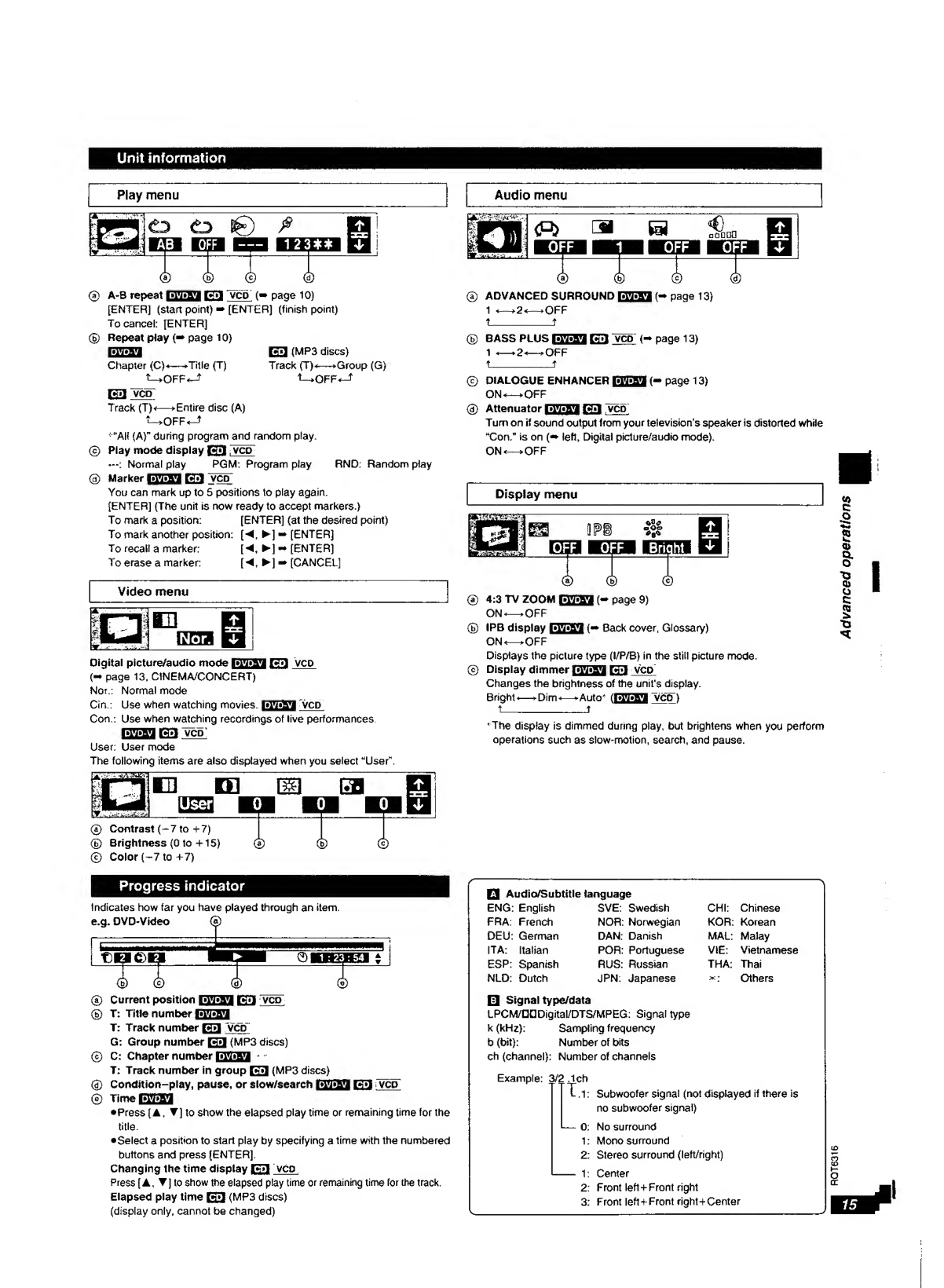

Unit information
Play menu
(a) A-B repeat EJ 'vcd (• page 10)
[ENTER] (start point) — [ENTER] (finish point)
To cancel: [ENTER]
® Repeat play (~ page 10)
■ « m*m E3 (MP3 discs)
Chapter (C)*— ► Title (T) Track (T)-*—*Group (G)
ti^OFF^ t_»OFF*-^
ISO VCD
Track (T)*—> Entire disc (A)
il^qff^
< “All (A)” during program and random play.
© Play mode display VCD
—: Normal play PGM: Program play RND: Random play
@ Marker ■ » m»m E3 vcd
You can mark up to 5 positions to play again.
[ENTER] (The unit is now ready to accept markers.)
To mark a position: [ENTER] (at the desired point)
To mark another position: [ ◄ , ► ] — [ENTER]
To recall a marker: [ ◄ , ► ] - [ENTER]
To erase a marker: [ ◄ , ► ] — (CANCEL]
Video menu
Digital picture/audio mode vcd
(- page 13, CINEMA/CONCERT)
Nor,: Normal mode
Cin.: Use when watching movies. BEH vcd
Con.; Use when watching recordings of live performances.
I»W»M E3 vcd
User: User mode
The following items are also displayed when you select “User".
© ADVANCED SURROUND EJjSK- p age 13)
1 *—>2*—>OFF
t_ f
© BASS PLUS liWilfl VCD (— page 13)
1 *—>2*—*OFF
t_ js
© DIALOGUE ENHANCER IMI (- page 13)
ON*— ► O FF
© Attenuator ■ » wa T | PH VCD
Turn on if sound output from your television’s speaker is distorted while
“Con." is on {«* left, Digital picture/audio mode).
ON*— ► O FF
Display menu
i
© 4:3 TV ZOOM f»W»tl T J (— page 9)
ON*—*OFF
© IPB display ■ » i T i»yi (— Back cover, Glossary)
ON*—OFF
Displays the picture type (l/P/B) in the still picture mode.
© Display dimmer flWTgl m vcd
Changes the brightness of the unit's display.
Bright *— ► D i m * —*Auto' VCD \
t_ i
' The display is dimmed during play, but brightens when you perform
operations such as slow-motion, search, and pause.
Progress indicator
Indicates how far you have played through an item,
e.g. DVD-Video
¥
jgcg
® ©
0
© Current position P?T| vcd;
® T: Title number EE53
T: Track number E3 Vcb
G: Group number E3 (MP3 discs)
© C: Chapter number
T: Track number in group E3 (MP3 discs)
© Condition-play, pause, or slow/search ItVjM E3 VcrT
© Time fRREfl
•Press [A, V] to show the elapsed play time or remaining time for the
title.
•Select a position to start play by specifying a time with the numbered
buttons and press [ENTER].
Changing the time display EjJ vco
Press [ ▲ , V] to show the elapsed play time or remaining time for the track.
Elapsed play time E3 (MP3 discs)
(display only, cannot be changed)
□ Audio/Subtitle language
ENG: English SVE: Swedish
CHI:
Chinese
FRA: French
NOR: Norwegian
KOR: Korean
DEU: German
DAN: Danish
MAL: Malay
ITA: Italian
POR: Portuguese VIE: Vietnamese
ESP: Spanish
RUS: Russian
THA:
Thai
NLD: Dutch JPN: Japanese
>£;
Others
□ Signal type/data
LPCM/DDDigital/DTS/MPEG: Signal type
k (kHz): Sampling frequency
b (bit): Number of bits
ch (channel): Number of channels
Example: 3/2 .Ich
T .1: Subwoofer signal (not displayed if there is
no subwoofer signal)
I— 0: No surround
1: Mono surround
2: Stereo surround (left/right)
'- 1: Center
2: Front left+Front right
3: Front left+Front right+Center
il
Advanced
operations

Advanced
operations

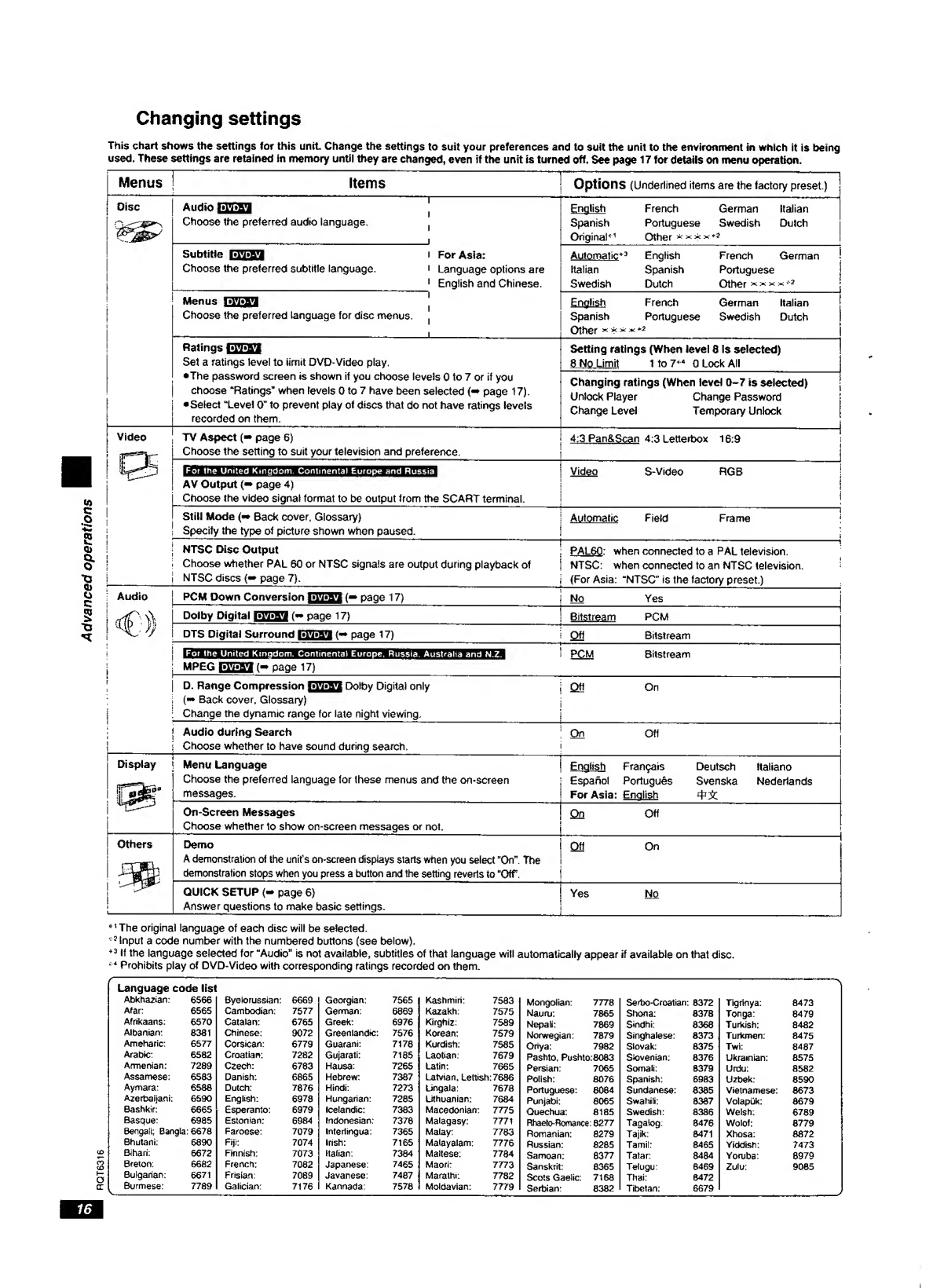

Changing settings
This chart shows the settings for this unit Change the settings to suit your preferences and to suit the unit to the environment in which it is being
used. These settings are retained in memory until they are changed, even if the unit is turned off. See page 17 for details on menu operation.
Menus
Options (Underlined items are the factory preset)
€>)
Audio EQS3
Choose the preferred audio language.
Subtitle
Choose the preferred subtitle language.
Menus
Choose the preferred language for disc menus.
Ratings iTi»a*i
Set a ratings level to limit DVD-Video play.
•The password screen is shown if you choose levels 0 to 7 or if you
choose “Ratings” when levels 0 to 7 have been selected (~ page 17).
• Select “Level 0” to prevent play of discs that do not have ratings levels
recorded on them.
TV Aspect page 6)
Choose the setting to suit your television and preference.
I For the United Kingdom. Continental Europe and Russia I
AV Output page 4)
Choose the video signal format to be output from the SCART terminal.
Still Mode (« ► Back cover, Glossary)
Specify the type of picture shown when paused. _
NTSC Disc Output
Choose whether PAL 60 or NTSC signals are output during playback of
NTSC discs (— page 7). _
PCM Down Conversion i ( ^ page 17) _
Dolby Digital (— page 17) _
DTS Digital Surround { ■ » page 17)_
|For the United Kingdom. Continental Europe, Russia. Australia and N.Z.
English
Spanish
Original 4 1
French
Portuguese
Other * x * *
German
Swedish
Italian
Dutch
For Asia:
Automatic 4 3
English
French German
Language options are Italian Spanish
Portuguese
English and Chinese.
Swedish
Dutch
Other * * * * 4 2
English French
German Italian
Spanish
Portuguese Swedish Dutch
Other ***
*c*2
Setting ratings (When level 8 is selected)
8 No Limit 1 to 7* 4 0 Lock All
Changing ratings (When fevei 0-7 is selected)
Unlock Player Change Password
Change Level Temporary Unlock
4:3 Pan&Scan 4:3 Letterbox 16:9
j PAL60 : when connected to a PAL television,
i NTSC: when connected to an NTSC television.
j (For Asia: “NTSC” is the factory preset.) _
j No _Yes_
j Bitstream PCM
j Off _ Bitstream _
’ PCM Bitstream
| j MPEG [iM'i oaoe 17) _
j D. Range Compression EQ23 Dolby Digital only j Qff On
; i ("* Back cover. Glossary)
! ! Change the dynamic range for late night viewing. j
| Audio during Search | On Off
_ : Choose whether to have sound during search. _ i
Display j Menu Language | English Francis Deutsch
_ Choose the preferred language for these menus and the on-screen j Espanol Portugues Svenska
messages. _ I For Asia: English _
On-Screen Messages | On Off
_ Choose whether to show on-screen messages or not. _j_
Others Demo | Qff On
A demonstration of the unit’s on-screen displays starts when you select “On” The
demonstration stops when you press a button and the setting reverts to “Off, _j_
j QUICK SETUP (- page 6) I Yes Me
;_ Answer questions to make basic settings. __
41 The original language of each disc will be selected.
2 Input a code number with the numbered buttons (see below).
43 If the language selected for “Audio” is not available, subtitles of that language will automatically appear if available on that disc.
£ ' 4 Prohibits play of DVD-Video with corresponding ratings recorded on them.
Italiano
Nederiands
Language code list
Abkhazian: 6566 Byelorussian:
Afar: 6565 Cambodian:
Afrikaans: 6570 Catalan:
Albanian: 8331 Chinese:
Ameharic: 6577 Corsican:
Arabic: 6582 Croatian:
Armenian: 7289 Czech:
Assamese: 6583 Danish:
Aymara: 6588 Dutch:
Azerbaijani: 6590 English:
Bashkir: 6665 Esperanto:
Basque: 6985 Estonian:
Bengal;; Bangla:6678 Faroese:
Bhutani: 6890 Fiji:
£ Bihari: 6672 Finnish:
2 Breton: 6682 French:
^ Bulgarian: 6671 Frisian:
cc Burmese: 7789 Galician:
Georgian:
German;
Greek:
Green landic:
Guarani:
Gujarati:
Hausa;
Hebrew:
Hindi:
Hungarian:
Icelandic:
Indonesian:
Interlingua:
Irish:
Italian:
Japanese:
Javanese:
Kannada:
Kashmiri:
Kazakh:
Kirghiz:
Korean:
Kurdish:
Laotian:
Latin:
Latvian, Lettish:
Ungala:
Lithuanian:
Macedonian:
Malagasy:
Malay:
Malayalam:
Maltese:
Maori:
Marathi:
Moldavian:
Mongolian:
Nauru:
Nepali:
Norwegian:
Oriya:
Pashto. Pushto:
Persian:
Polish:
Portuguese:
Punjabi:
Quechua:
Rhaeto-Romance:
Romanian:
Russian:
Samoan:
Sanskrit:
Scots Gaelic:
Serbian:
Serbo-Croatian:
Shona:
Sindh i:
Singhalese:
Slovak:
Slovenian;
Somali:
Spanish:
Sundanese:
Swahili:
Swedish:
Tagatog:
Tajik:
Tamil:
Tatar:
Telugu:
Thai:
Tibetan:
Tigrinya:
Tonga:
Turkish:
Turkmen:
Twi:
Ukrainian:
Urdu:
Uzbek:
Vietnamese:
Volapuk:
Welsh:
Wolof:
Xhosa:
Yiddish:
Yoruba:
Zulu:

mm
?i ***** f «T7^ •!

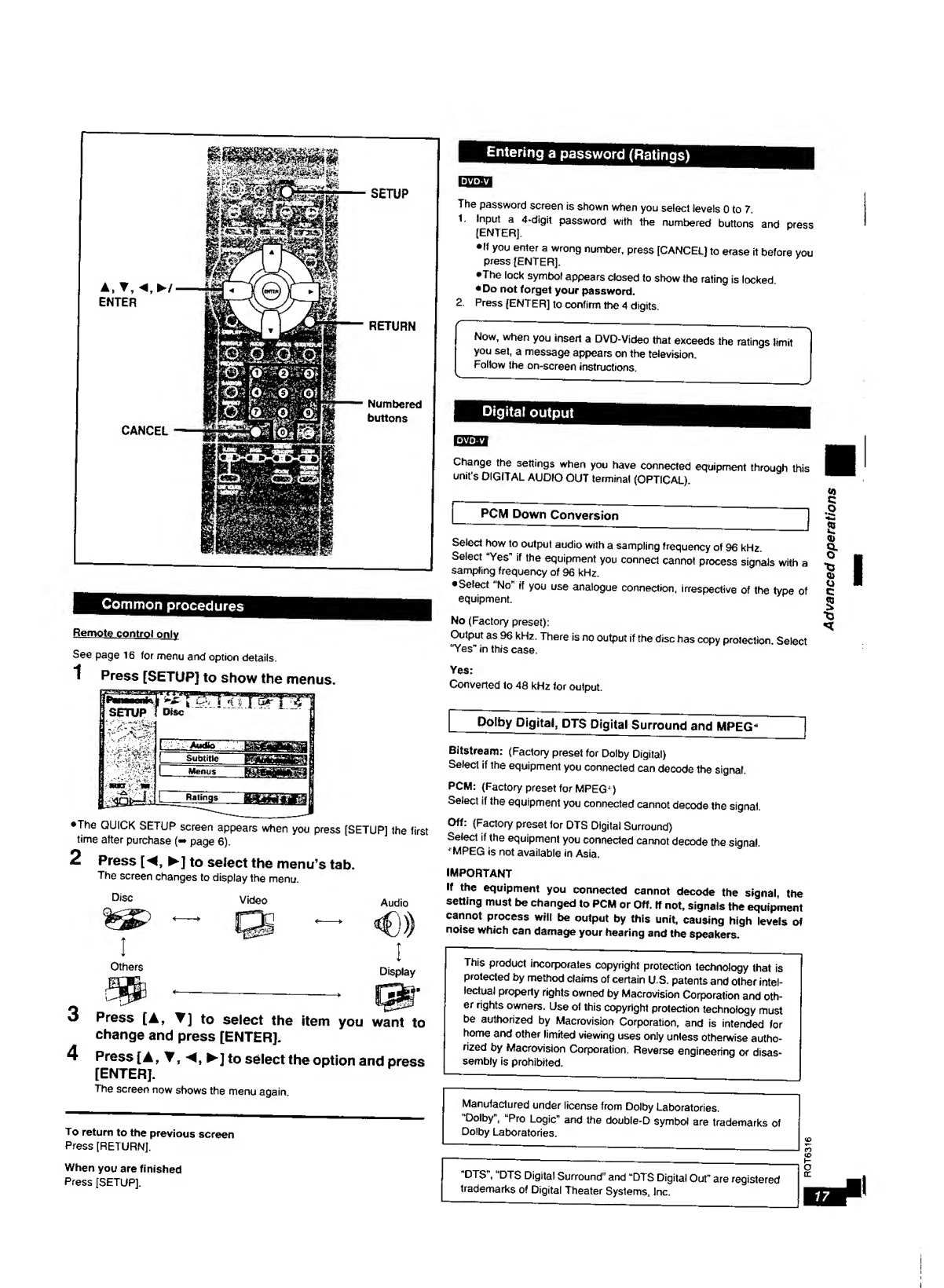

RETURN
The password screen is shown when you se(ect levels 0 to 7.
1- Input a 4-digit password with the numbered buttons and Dress
[ENTER] M
•If you enter a wrong number, press (CANCEL) to erase it before you
press [ENTER].
•The lock symbol appears closed to show the rating is locked.
• Do not forget your password.
2. Press [ENTER] to confirm the 4 digits.
/ ------
Now, when you insert a DVD-Video that exceeds the ratings limit
you set, a message appears on the television.
Follow the on-screen instructions.
CANCEL
' Numbered
buttons
Common procedures
Remote control only
See page 16 for menu and option details.
1 P r ess [SETUP] to show the menus.
SETUP f Disc
r~
•The QUICK SETUP screen appears when you press [SETUP] the first
time after purchase (- ► page 6).
2 P r ess [ ◄ , ► ] to select the menu’s tab.
The screen changes to display the menu.
3 Press [A, T] to select the item you want to
change and press [ENTER].
4 Press [A , ▼ , ◄ , ► ] to select the option and press
[ENTER].
The screen now shows the menu again.
To return to the previous screen
Press [RETURN],
When you are finished
Press [SETUP].
Digital output
Change the settings when you have connected equipment through this
unit s DIGITAL AUDIO OUT terminal (OPTICAL).
PCM Down Conversion
Select how to output audio with a sampling frequency of 96 kHz.
Select ‘'Yes” if the equipment you connect cannot process signals with a
sampling frequency of 96 kHz.
• Select No if you use analogue connection, irrespective of the type of
equipment.
No (Factor/ preset):
Output as 96 kHz. There is no output if the disc has copy protection. Select
"Yes" in this case.
Yes:
Converted to 48 kHz for output.
Dolby Digital, DTS Digital Surround and MPEG*
Bitstream: (Factory preset for Dolby Digital)
Select if the equipment you connected can decode the signaf.
PCM: (Factory preset for MPEG*)
Select if the equipment you connected cannot decode the signal.
Off: (Factory preset for DTS Digital Surround)
Select if the equipment you connected cannot decode the signal.
’‘‘MPEG is not available in Asia.
IMPORTANT
If the equipment you connected cannot decode the signal, the
setting must be changed to PCM or Off. If not, signals the equipment
cannot process will be output by this unit, causing high levels of
noise which can damage your hearing and the speakers.
This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other intel¬
lectual property rights owned by Macrovision Corporation and oth¬
er rights owners. Use of this copyright protection technology must
be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only unless otherwise autho¬
rized by Macrovision Corporation. Reverse engineering or disas¬
sembly is prohibited.
Manufactured under license from Dolby Laboratories.
Dolby , Pro Logic” and the double-D symbol are trademarks of
Dolby Laboratories.
“DTS", "DTS Digital Surround 1 ’ and “DTS Digital Out" are registered
trademarks of Digital Theater Systems, Jnc.
Advanced
operations

Reference

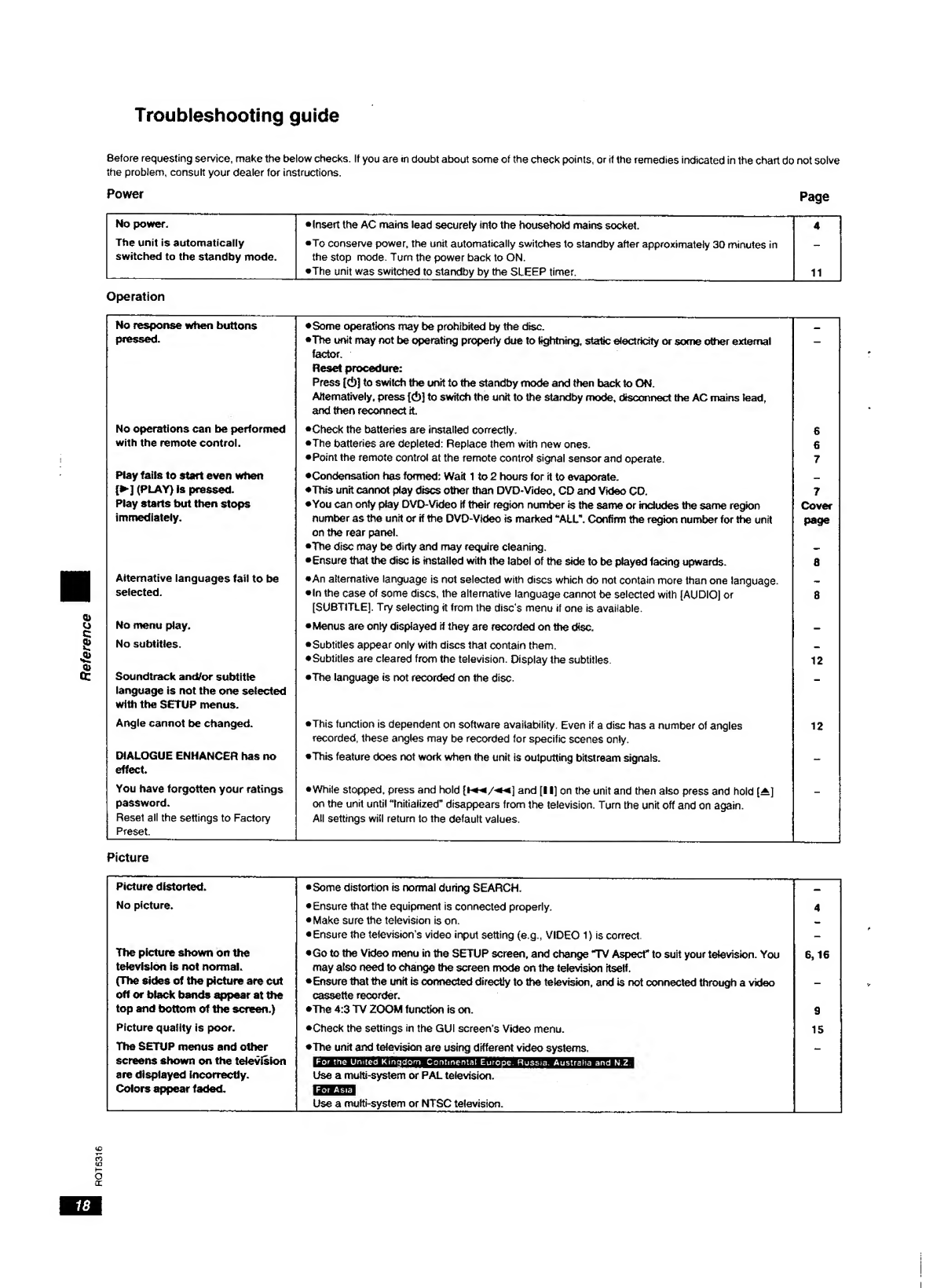

Troubleshooting guide
Before requesting service, make the below checks. If you are in doubt about some of the check points, or if the remedies indicated in the chart do not solve
the problem, consult your dealer for instructions.
Power Page
No power.
•Insert the AC mains lead securely into the household mains socket.
4
The unit is automatically
•To conserve power, the unit automatically switches to standby after approximately 30 minutes in
_
switched to the standby mode.
the stop mode. Turn the power back to ON.
•The unit was switched to standby by the SLEEP timer.
11
Operation
No response when buttons
• Some operations may be prohibited by the disc.
_
pressed.
•The unit may not be operating properly due to lightning, static electricity or some other external
factor.
Reset procedure:
Press [<!)] to switch the unit to the standby mode and then back to ON.
Alternatively, press [<!)} to switch the unit to the standby mode, disconnect the AC mains lead,
and then reconnect it.
No operations can be performed
•Check the batteries are installed correctly.
6
with the remote control.
♦ T he batteries are depleted: Replace them with new ones.
6
•Point the remote control at the remote control signal sensor and operate.
7
Play fails to start even when
•Condensation has formed: Wait 1 to 2 hours for it to evaporate.
_
[ ► ] (PLAY) is pressed.
♦ T his unit cannot play discs other than DVD-Video, CD and Video CD.
7
Play starts but then stops
♦ Y ou can only play DVD-Video if their region number is the same or includes the same region
Cover
immediately.
number as the unit or if the DVD-Video is marked “ALL". Confirm the region number for the unit
on the rear panel.
page
•The disc may be dirty and may require cleaning.
-
• Ensure that the disc is installed with the label of the side to be played facing upwards.
8
Alternative languages fail to be
•An alternative language is not selected with discs which do not contain more than one language.
_
selected.
•In the case of some discs, the alternative language cannot be selected with [AUDIO] or
[SUBTITLE], Try selecting it from the disc's menu if one is available. 8
No menu play.
• Menus are only displayed if they are recorded on the disc. -
No subtitles.
• Subtitles appear only with discs that contain them.
_
♦ S ubtitles are cleared from the television. Display the subtitles
12
Soundtrack and/or subtitle
language is not the one selected
with the SETUP menus.
•The language is not recorded on the disc.
-
Angle cannot be changed.
•This function is dependent on software availability. Even if a disc has a number of angles
recorded, these angles may be recorded for specific scenes only.
12
DIALOGUE ENHANCER has no
effect.
•This feature does not work when the unit is outputting bitstream signals.
You have forgotten your ratings
• While stopped, press and hold [L**/-«-<] and [11] on the unit and then also press and hold [*]
_
password.
on the unit until “Initialized” disappears from the television. Turn the unit off and on again.
Reset all the settings to Factory
Preset.
All settings will return to the default values.
Picture distorted.
• Some distortion is normal during SEARCH.
-
No picture.
• Ensure that the equipment is connected properly.
4
• Make sure the television is on.
_
• Ensure the television’s video input setting (e.g., VIDEO 1) is correct.
-
The picture shown on the
•Go to the Video menu in the SETUP screen, and change “TV Aspect” to suit your television. You
6,16
television is not normal.
may also need to change the screen mode on the television itself.
(The sides of the picture are cut
•Ensure that the unit is connected directly to the television, and is not connected through a video
-
off or black bands appear at the
cassette recorder.
top and bottom of the screen.)
•The 4:3 TV ZOOM function is on.
9
Picture quality is poor.
•Check the settings in the GUI screen’s Video menu.
15
The SETUP menus and other
•The unit and television are using different video systems.
screens shown on the television
SMeot the United Kingdom Continental Europe. Russia. Australia
are displayed incorrectly.
Use a multi-system or PAL television.
Colors appear faded.
Use a multi-system or NTSC television.
o
CL
18
i

Sound
Page
No sound.
Distorted sound.
Piercing noise comes from the
speakers.
•Check the connections.
•Check the volume on the equipment you have connected.
• Ensure that the input settings for the television and stereo system are correct.
•Turn ADVANCED SURROUND off if it causes distortion.
• ff you have connected this unit to other equipment through the DIGITAL AUDIO OUT terminal,
ensure you have selected the correct settings for “Dolby Digital”. “DTS Digital Surround” and
“MPEG’”' in the SETUP menu’s Audio menu.
•Not available in Asia.
4,5
13
17
Unit displays
“NO PLAY”
• You inserted a disc the unit cannot play; insert one it can.
7
“CHECK DISC"
•Disc is dirty. Wipe the disc clean.
“HljlT
•Trouble is likely to have occurred. The number following “H” depends on the status of the unit.
□ 1] stands for a number.
Reset procedure:
Press [(b) to switch the unit to the standby mode and then back to ON. Alternatively, press
[(b) to switch the unit to the standby mode, disconnect the AC mains lead, and then reconnect it.
• If the service numbers fail to clear, note the service number and contact a qualified service
person.
-
“NO DISC”
•You haven’t inserted a disc; insert one.
•You haven’t inserted the disc correctly; insert it correctly.
8
Television displays
No on-screen display.
•Go to Display in the SETUP menus, and select “On” for “On-Screen Messages".
16
GUI screens not displayed or
only partially displayed on the
television.
•Press [A, ▼ ] while the rightmost icon is highlighted to move them.
14
The disc's menu is displayed in
a different language.
•Go to Disc in the SETUP menus, and select the preferred language for “Menus”.
16
Safety precautions
Placement
Set the unit up on an even surface away from direct sunlight, high tem¬
peratures, high humidity, and excessive vibration. These conditions can
damage the cabinet and other components, thereby shortening the unit’s
service life.
Do not place heavy items on the unit.
Voltage
Do not use high voltage power sources. This can overload the unit and
cause a fire.
Do not use a DC power source. Check the source carefully when setting
the unit up on a ship or other place where DC is used.
Service
Do not attempt to repair this unit by yourself. If sound is interrupted, indi¬
cators fail to light, smoke appears, or any other problem that is not covered
in these instructions occurs, disconnect the AC mains lead and contact
your dealer or an authorized service center. Electric shock or damage to
the unit can occur if the unit is repaired, disassembled or reconstructed by
unqualified persons.
Extend operating life by disconnecting the unit from the power source if it
is not to be used for a long time.
AC mains lead protection
Ensure the AC mains lead is connected correctly and not damaged.
Poor connection and lead damage can cause fire or electric shock. Do not
pull, bend, or place heavy items on the lead.
Grasp the plug firmly when unplugging the lead. Pulling the AC mains
lead can cause electric shock.
Do not handle the plug with we,t hands. This can cause electric shock.
Foreign matter
Do not Jet metal objects fall inside the unit. This can cause electric shock
or malfunction.
Do not let liquids get into the unit. This can cause electric shock or mal¬
function. If this occurs, immediately disconnect the unit from the power
supply and contact your dealer.
Do not spray insecticides onto or into the unit. They contain flammable
gases which can ignite if sprayed into the unit.
Do not place the unit
on amplifiers or equip¬
ment that may become
hot
The heat can damage the unit.
Maintenance
Clean this unit with the included cleaning cloth.
• Never use alcohol, paint thinner or benzine to clean this unit.
19
Reference

Specifications
PAL 625/50, PAL 525/60, NTSC
+ 5 to+35 °C
5 to 90 % RH {no condensation)
Signal system:
Operating temperature range:
Operating humidity range:
Discs played [a cm or 12 cm]:
(1) DVD-Video, DVD-R (DVD-Video compatible)
(2) CD-Audio (CD-DA)
(3) Video CD
(4) CD-R/CD-RW (CD-DA, Video CD formatted discs)
(5) MP3
•Maximum number of tracks and groups recognizable: 999 tracks
and 99 groups
•Compatible compression rate: between 32 kbps and 320 kbps
Video output:
Output level: 1 vp-p (75 Q)
Output terminal
For the United Kingdom. Continental Europe and Russia
For Asia. Australia and N.Z.
S video output:
Y output level:
C output level:
Output terminal:
Pinjack (1 system}/AV
Pin jack (1 system)
1 Vp-p (75 Q)
NTSC; 0.286 Vp-p (75 Q)
PAL; 0.300 Vp-p (75 Q)
For the United Kingdom. Continental Europe and Russia
For Asia. Australia and N.Z.
Component video output:
Y output level:
Pa output level:
Pr output level:
Output terminal:
S terminal (1 system)/AV
S terminal (1 system)
For Asia. Australia and N.Z.
RGB video output:
R output level:
G output level:
B output level:
Output terminal:
1 Vp-p (75 Q)
0.7 Vp-p (75 Q)
0.7 Vp-p (75 O)
Pin jack (1 system)
(Y: green, Ps: blue, Pr:
red)
For the United Kingdom, Continental Europe and fiussra
0.7 Vp-p (75 O)
0.7 Vp-p (75 Q)
0.7 Vp-p (75 O)
AV (1 system)
Glossary
Bitstream
This is the digital form of multiple channel audio data (e.g., 5.1 channel)
before it is decoded into its various channels.
Decoder
A decoder restores the coded audio signals on DVDs to normal. This is
called decoding.
DoJby Digital
This is a method of coding digital signals developed by Dolby Laboratories.
Apart from stereo (2-channel) audio, these signals can also be 5.1-channel
audio. A large amount of audio information can be recorded on one disc
using this method.
Dolby Pro Logic
A surround system where a 4-channel audio track is recorded as 2 chan¬
nels and then is restored to 4 channels for play. The surround channel is
monaural and can reproduce up to 7 kHz.
DTS (Digital Theater Systems)
This surround system is used in many movie theaters around the world.
There is good separation between the channels, so realistic sound effects
are possible.
Dynamic range
Dynamic range is the difference between the lowest level of sound that can
be heard above the noise of the equipment and the highest level of sound
before distortion occurs.
Audio output:
Output level: 2 Vrms (1 kHz. 0 dB)
Output terminals:
0 r tta| Europe and Russia
Number of terminals:
2ch:
Subwoofer output (O.lch):
Audio performance:
(1) Frequency response:
• DVD (linear audio):
•CD audio:
(2) S/N ratio:
• CD audio:
(3) Dynamic range:
• DVD (linear audio):
• CD audio:
(4) Total harmonic distortion:
• CD audio:
Digital audio output:
Optical digital output:
Pickup; Wave length:
Laser power:
NORSK
Pin jack/AV
Pin jack
1 system
1 system
4 Hz-22 kHz (48 kHz sampling)
4 Hz-44 kHz (96 kHz sampling)
4 Hz-20 kHz
115 dB
102 dB
98 dB
0.0025 %
Optical terminal
658 nm/790 nm
CLASS 2/CLASS 1
Pickup:
Power supply:
BoIgelengde: 658 nm/790 nm
Laser-styrke: Ingen fa dig straining sendes ut
KLASSE 2/KLASSE 1
For the United Kingdom. Continental Europe Russia. Australia and N.Z.
Power consumption:
Dimensions:
Mass:
AC 220-240 V, 50 Hz
AC 220-240 V, 50/60 Hz
14 W
430 (W)x300 (D)x52 (H) mm
(excluding protrusions)
2.9 kg
Power consumption in standby mode:
For the United Kingdom. Continental Europe and Russia
For Asia. Australia and N.Z.
approx. 3 W
approx. 2.5 W
I3BEI
Specifications are subject to change without notice.
Mass and dimensions are approximate.
Frame stiff and field still
Frames are the still pictures that go together to make a moving picture.
There are about 30 frames shown each second.
One frame is made up of two fields. A regular television shows these fields
one after the other to create frames.
A still is shown when you pause a moving picture. A frame still is made up
of two alternating fields, so the picture may appear blurred, but overall
quality is high. A field still is not blurred, but it has only half the information
of a frame still so picture quality is lower.
I/P/B
MPEG 2, the video compression standard adopted for use with
DVD-Video, codes frames using these 3 picture types.
I: Intra coded picture (l-picture)
This is the standard picture and is a complete picture in itself. This
means it has the best picture quality and is the best to use when
adjusting the picture.
P: Predictive coded picture (P-picture)
This picture is calculated based on past I or P-pictures.
B: Bidirectionally-predictive coded picture (B-picture)
This picture is calculated by comparing past and future I and P-pictures
so it has the lowest volume of information.
Linear PCM (pulse code modulation)
These are uncompressed digital signals, similar to those found on CDs.
Playback control (PBC)
If a Video CD has playback control, you can select scenes and information
with menus (called menu play in these instructions).
dn)
Matsushita Electric Industrial Co., Ltd.
Web Site: http://www.panasonic.co.jp/gfobal/
RQT6316-B
F0102YU0
