Panasonic NV-VP33EB User manual

Before connecting the device, operating it or adjusting settings please read these operating instructions
completely; especially the safety precautions on pages 2 and 3.
Safety Precautions 2-3
Included Assessories / Sales and Support Information 4
5
Front Panel / Sockets 6-7
Remote control functions 8-10
Connecting with 21-pin Scart cable 11
Connecting with Audio-Videocable 12
Connecting with RF cable 14-15
15
Connecting to Satellite Receiver, Set Top Box 16-17
DVD-Connectors 18-19
Checking the Settings after Auto Setup 20
VCR menu control 22
VCR Playback / Tracking control 23-24
General convenient functions / Tape Care 25-26
Recording 27-32
Timer recording 28-29
Recording with INTELLIGENT TIMER 30
Recording with VIDEO Plus+ 31-32
Recording with external recording controls 33
Manual Functions 34-39
Manual Tuning / Changing the name of TV stations 34
Changing the order of TV stations or deleting a station 35
Creating a new station table 35
Shipping condition / factory defaults 35
Others menu / Owner ID /QUICK ERASE 36-37
Clock setting / NICAM sound system 38-39
DVD-QUICK SETUP 40
DVD Playback functions 41-44
VCR-DVD functions 45
Navigation Menu 46-47
HighMAT / CD Text 48
Functions menu 49-53
SETUP menus 54-55
Information 56-57
Country codes 58
Before requesting service 59-61
Specifications 63
Index last page
Remote Remote Control - Codes / Inserting batteries
VCR Auto Setup 13
VCR Auto Setup with RF cable
Removing Interference / Changing RF-output channel 21
21-pin Scart Socket 62
DVD/CD Player / Video Cassette Recorder
Operating Instructions
NV-VP33EB/EBL
(Model suffix: 'EB' for UK model, 'EBL' for Ireland model)
Contents Page
DUBBING

2
Important Safety Warnings
!The moulded three pin mains plug is supplied for your safety and convenience and must
NOT be cut off.
!A 5 amp fuse is fitted in the mains
plug. If the fuse has to be replaced,
it must be of the same rating and
approved by ASTA or BSI to BS1362.
Check for the ASTA mark or the
BSI mark on the body of the fuse.
!To prevent electric shock, do not remove cover. No user serviceable parts inside.
Refer servicing to qualified service engineer only.
!Do not insert metal object into the slots or openings of the unit.
!This unit is not disconnected from a.c. mains while it remains connected
to a live mains outlet, even if it has been turned off.
1.Open the fuse
cover with a
screwdriver.
Fuse cover
Fuse
(5 ampere)
2.Replace the
fuse and close
or attach the
fuse cover.
To replace the fuse, open the fuse
compartment with a screwdriver as
shown and replace the fuse and the
cover securely.
!WARNING: To reduce the risk of fire, electric shock or product damage, do not expose
this apparatus to rain, moisture, dripping or splashing and that no objects filled with
liquids, such as vases, shall be placed on the apparatus.
!The socket outlet shall be installed near the equipment and easily accessible or the mains
plug or an appliance coupler shall remain readily operable.
!This unit is intended for use in moderate climates.

3
Caution
!Avoid exposing the unit to direct sunlight or other heat sources.
!Avoid sudden change in temperature or humidity, dew or condensation may
form, causing malfunction.
!Dispose of batteries in accordance with the instructions given in this book.
!Place the unit on a flat, stable surface. Do not place heavy object on top of the unit.
!Your attention is drawn to the fact that recording of pre-recorded tapes or discs
or other published or broadcast materials may infringe copyright laws.
!This unit is designed for indoor use only.
!Do not use in area with strong magnetic fields, e.g. near transmitting antenna.
!This product may receive radio interference caused by mobile telephones during
use. If such interference is apparent, please increase separation between the
product and the mobile telephone.
!Do not install or place this unit in a bookcase, built-in cabinet or in another
confined space. Ensure the unit is well ventilated. To prevent risk of electric
shock or fire hazard due to overheating, ensure that curtains and any other
materials do not obstruct the ventilation vents.
!Do not obstruct the unit’s ventilation openings with newspapers, tablecloths,
curtains, and similar items.
!Do not place sources of naked flames, such as lighted candles, on the unit.
!Dispose of batteries in an environmentally friendly manner.
!This product utilizes a laser. Use of controls or
adjustments or performance of procedures
other than those specified herein may result in
hazardous radiation exposure. Do not open
covers and do not repair yourself.
Refer servicing to qualified personnel.
Care and Maintenance
!The cabinet can be wiped clean with a damp cloth, disconnect from mains before
cleaning. Do not use detergent or solution containing benzol or petroleum.
!Video heads clogging can occur with use, when this happens picture and sound
will become distorted during playback. Purchase a head cleaning tape or consult
your dealer. Note that video head cleaning is not covered by the warranty.
Inside of product
Back of product, see page 7.

4
Included Accessories
Check that you have
the accessories and
items shown
Quick Start Guide
RQCAD0018
AC Mains Lead
RJA0044-3C
RF cable
Batteries for the
Remote Control
R6 size
Operating Instructions
RQTD0144-B
Guarantee Card
A
ccessories
Included
Remote control
EUR7720X60
K2KF2BA00001, VJA0728-A
or K1TWACC00001
Direct Sales at Panasonic UK
!Order accessory and consumable items for your product with ease and
confidence by phoning our Customer Care Centre
Monday - Thursday 9:00am - 5:30pm; Friday 9:30am - 5:30pm (Excluding
public holidays).
!Or go on line through our Internet Accessory ordering application at
www.panasonic.co.uk
!Most major credit and debit cards accepted.
!All enquiries, transactions and distribution facilities are provided directly by
Panasonic UK Ltd.
!It couldn´t be simpler!
!Also available through our internet is direct shopping for a wide range of
finished products, take a browse on our website for further details.
Sales and Support Information
Customer Care Centre
!For customers within the UK:
08705 357357
!For customers within the
Republic of Ireland:
01 289 8333
!Visit our website for product
information: www.panasonic.co.uk
!E-mail:
[e-mail]

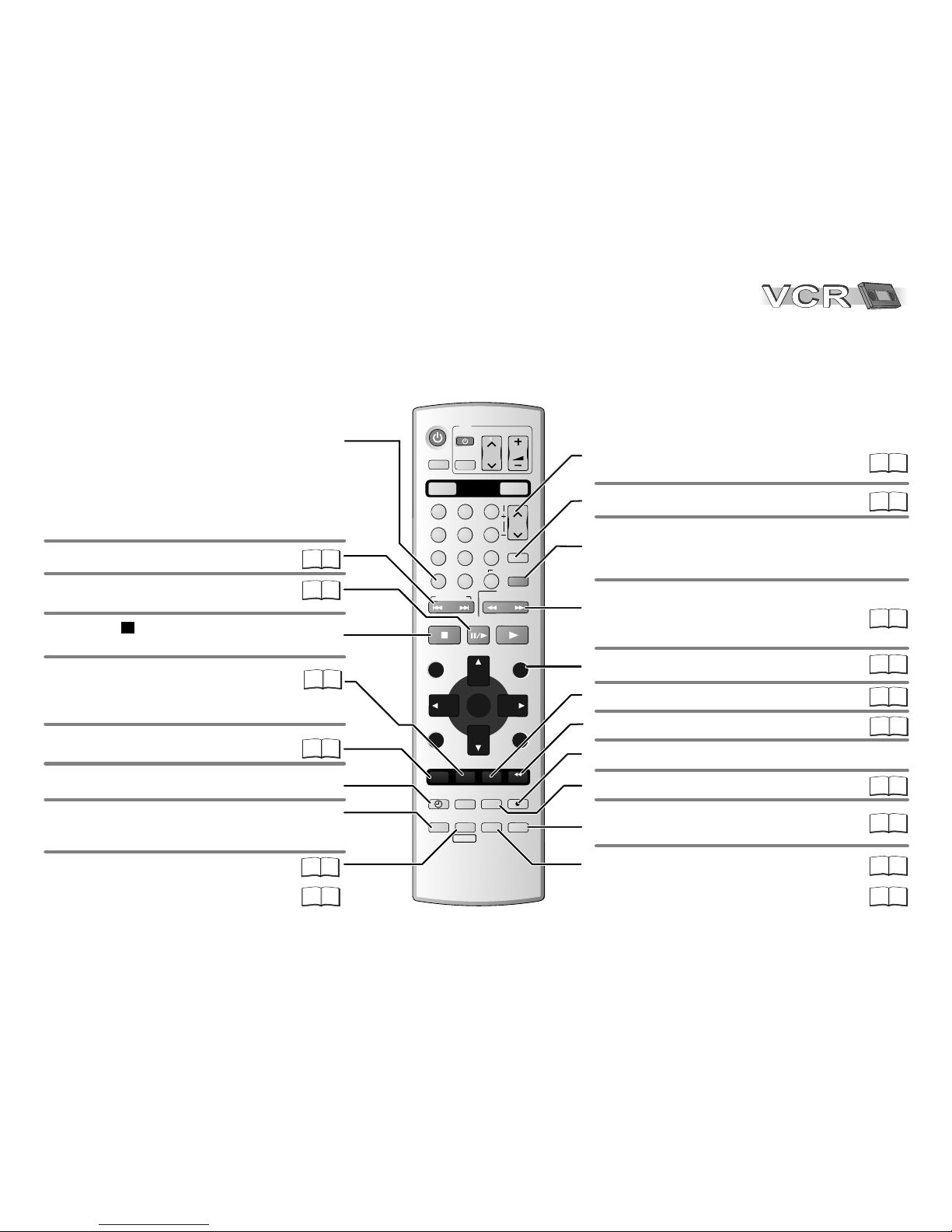

ENTER
123
456
789
0-/--
CH
AV
VHS/DVD TV
AUDIO
VOLUME
OPERATION
SELECT
CH
DVD
VHS
TRACKING/V-LOCK
VIDEO Plus+
INPUT
REPEAT
CANCEL/RESET
INDEX/SKIP SLOW/
SEARCH
REW FF
PLAY
STOP
PAUSE
DIRECT NAVIGATOR
MENU
PLAYLIST
TOP MENU
FUNCTIONS EXIT
RETURN
PROG/CHECK
I-TIMER
PLAY MODE
SETUP
TIMER DVD-RAM
DUBBING
REC MODE
REC
EXT LINK
OFF TIMER
CINEMA MODE
VHS STATUS
DVD STATUS QUICK OSD QUICK REPLAY MANUAL SKIP
Panasonic
VHS/DVD/TV
EUR7720X60
PROG
PLAY JETREW
A B
SLOW
>
=
10

5
Remote
Brand Code Brand Code Brand Code Brand Code
Panasonic 01-04,45 GOODMANS 05,06,31 NOKIA 25-27 SANYO 21
AIWA 35 GRUNDIG 09 NORDMENDE 10 SBR 06
AKAI 27,30 HITACHI 22,23,31,40-42 ORION 37 SCHNEIDER 05,06,29-31
BLAUPUNKT 09 INNO HIT 34 PHILIPS 05,06 SELECO 06,25
BRANDT 10,15 IRRADIO 30 PHONOLA 31,33 SHARP 18
BUSH 05,06 ITT 25 PIONEER 38 SIEMENS 09
CURTIS 31 JVC 17,39 PYE 05,06 SINUDYNE 05,06,33
DESMET 05,31,33 LOEWE 07 RADIOLA 05,06 SONY 08
DUAL 05,06 METZ 28,31 SABA 10 TELEFUNKEN 10-14
ELEMIS 31 MITSUBISHI 06,19,20 SALORA 26 THOMSON 44
FERGUSON 10 MIVAR 24 SAMSUNG 31,32,43 TOSHIBA 16
GOLDSTAR/LG 31 NEC 36 SANSUI 05,31,33 WHITE WESTINGHOUSE 05,06

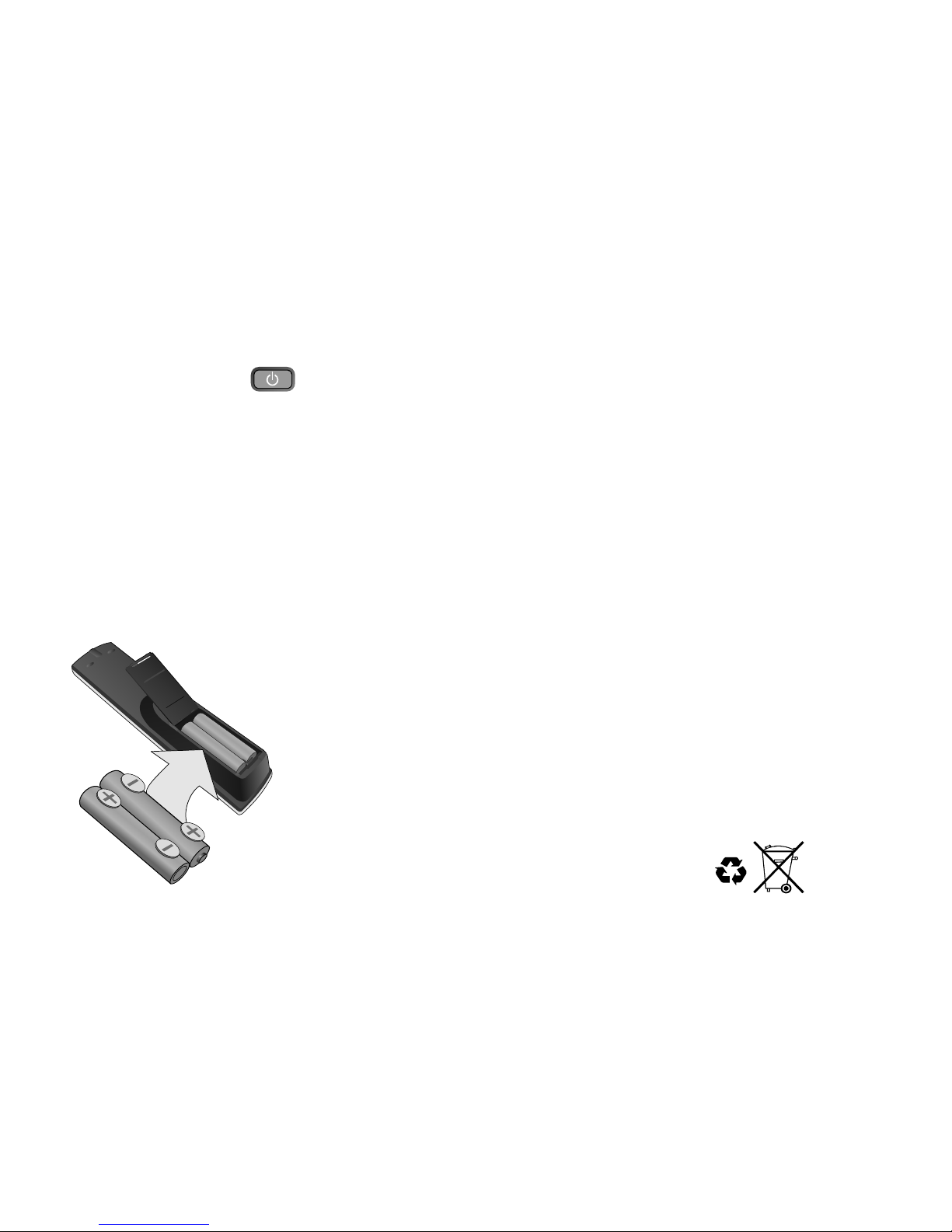

Inserting batteries into the remote control unit:
The batteries last for about a year, depending on how often you use the RC unit.
!Do not mix old with new batteries or batteries of different types.
!Only use batteries without any harmful substances (such as lead, cadmium, mercury).
!Do not use rechargeable type batteries.
!Remove the batteries if the remote control unit will remain unused for longer
periods of time.
!Do not heat or short-circuit the batteries.
!Immediately remove used-up batteries and replace with batteries
of type AA, UM3 or R6.
!Be sure to put in the batteries the right way round (+and -).
Dispose of batteries, packaging material and the unit
according to statutory regulations. They must not
be thrown into the household refuse.
!Some television set models of the
listed manufacturers can not be
operated using this remote
control.
Remote Control - Codes
You may operate television sets with this remote control, by changing its code.
!Press and hold TV Stand-by/on switch.
!Enter your television set’s two-digit code. If the television set does not operate
correctly, try entering an alternative code.
This set up must be repeated after changing batteries.

DUBBING
6
VCR Display DVD Display

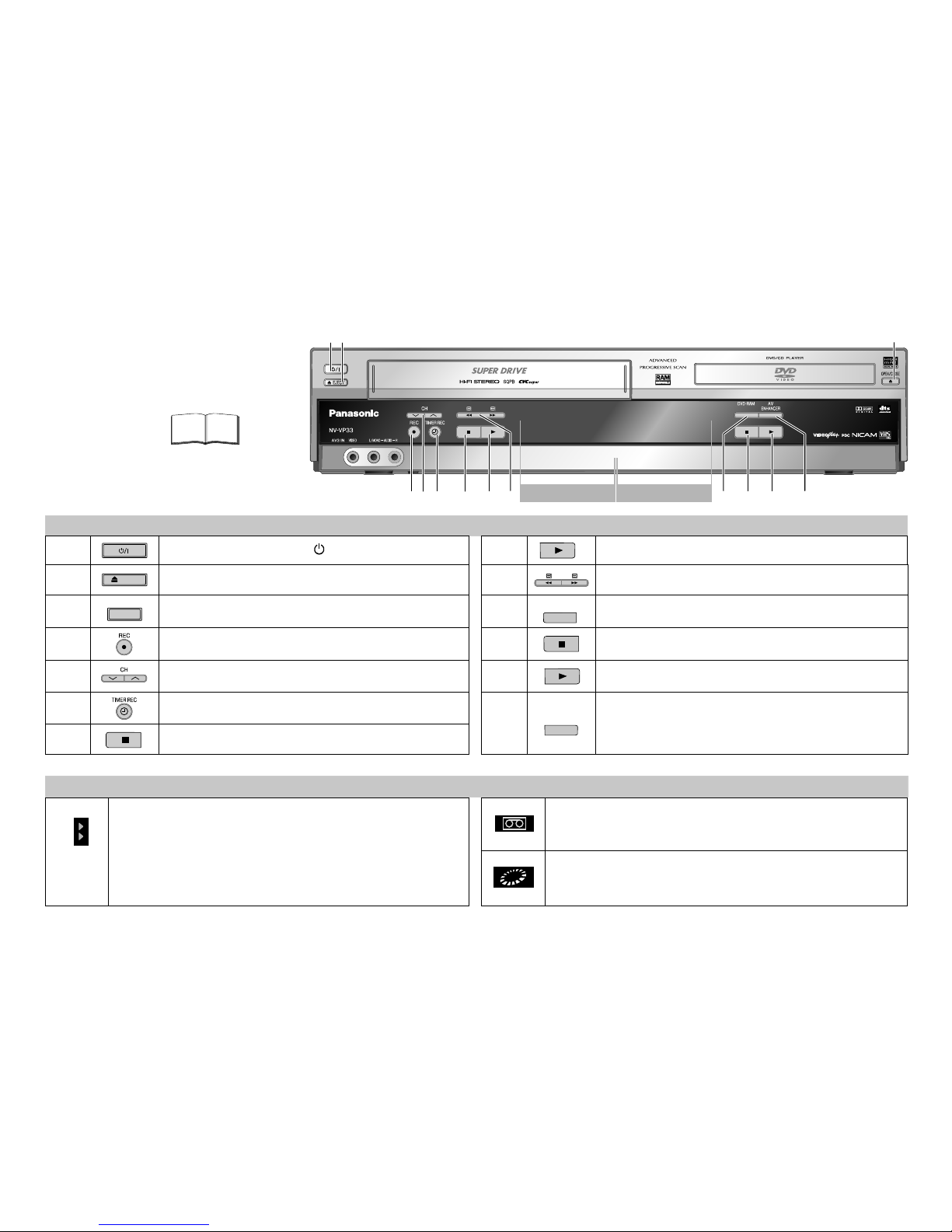

Front Panel
10
11
12
13
1 2 3
4567910 11 13
Device control
1
2
3
4
5
6
7
8
9
Standby/on switch /I
Selects a channel.
To eject a video cassette.
Fast winding / JET SEARCH
VCR Stop button
VCR Playback button
Record button
Activates the recording timer.
DVD Stop button
DVD Playback button
Opens and closes the disc tray.
812
OPEN / CLOSE
EJECT
Automatically optimises and adapts the audio and video
settings to the disc used. The Picture and Audio menus
are not available when this function is enabled.
VCR= Video Cassette Recorder
Page
Detailed information
is available on the
specified pages.
Display
DVD-RAM
DUBBING
AV
ENHANCER
To copy a DVD RAM to VHS cassette.
Active picture signal.
This symbol appears next to the symbol for video cassette
or disc in the VCR or DVD display.
The picture signal is toggled using the VHS / DVD toggle
switches.
A disc is in. The logo is animated when a function such as
playback or picture search is being performed.
A video cassette is in. The logo is animated when a function
such as playback or forward/rewind is being performed.

DVD OUT
COMPONENT VIDEO OUT
(PROGRESSIVE/
INTERLACE)
DVD/VHS
COMMON OUT
COAXIAL
DIGITAL AUDIO OUT
AUDIO
VIDEO
L
R
YPB
PR
AV1
(TV)
AV2
(EXT)
AUDIO
L
R
RF IN
RF OUT
7
VIDEO
OUT AUDIO OUT
LR
External equipment
(e.g. Video movie camera)
Sockets
AC Input socket (Power supply)
L = AUDIO output left channel
R = AUDIO output right channel
DVD/VHS COMMON OUT socket
AV2 21-pin Scart socket
AV1 21-pin Scart socket
RF IN socket (Aerial input)
RF OUT socket (Aerial output)
DVD AUDIO OUT socket
COAXIAL DIGITAL AUDIO OUT socket
AV3 VIDEO IN socket
AV3 AUDIO IN socket L = AUDIO input left channel (Mono)
R = AUDIO input right channel
1
2
3
4
5
6
7
8
9
10
11
123456789
1110
AudioVideo
!
!
Connect your external unit (e.g. a video
camcorder) with the front panel input.
Just seize the L/Mono port for mono
recording of the audio signal.
Use INPUT to select A3.
Connection to AV3 (front panel)
INPUT
REPEAT
L = AUDIO output left channel
R = AUDIO output right channel
COMPONENT VIDEO OUT socket (Progressive / Interlace)

ENTER
123
456
789
0-/--
CH
AV
VHS/DVD TV
AUDIO
VOLUME
OPERATION
SELECT
CH
DVD
VHS
TRACKING/V-LOCK
VIDEO Plus+
INPUT
REPEAT
CANCEL/RESET
INDEX/SKIP SLOW/
SEARCH
REW FF
PLAY
STOP
PAUSE
DIRECT NAVIGATOR
MENU
PLAYLIST
TOP MENU
FUNCTIONS EXIT
RETURN
PROG/CHECK
I-TIMER
PLAY MODE
SETUP
TIMER DVD-RAM
DUBBING
REC MODE
REC
EXT LINK
OFF TIMER
CINEMA MODE
VHS STATUS
DVD STATUS QUICK OSD QUICK REPLAY MANUAL SKIP
Panasonic
VHS/DVD/TV
EUR7720X60
PROG
PLAY JET REW
A B
SLOW
>
=
10
Stand-by/on switch
Press to switch the unit from on to stand-by mode
or vice versa. In stand-by mode, the unit is still
consuming a small amount of power.
Remote control
VHS DVD
VHS DVD
Switching this appliance into stand-by mode does
not disconnect it from the mains.
Direct input via numeric key pad (18= )
18
DVD functions (blue labels) are enabled.
TV set AV input selection.
TV set Stand-by/on switch.
To select the respective TV program memory location.
TV set volume control.
Quits a menu.
CANCEL/RESET: Undoes entries or selections
To eject cassette or disc
Press STOP for more than 3 seconds.
Channel selector
Numeric keypad
Press PLAY to start playback.
General functions
To copy a DVD RAM to VHS cassette.
VCR functions are enabled.
Press the button a couple of times to select
Sound mode.
VCR: stereo (L R), left channel (L -),
right channel (- R), mono (- -) playback
DVD: Select the appropriate audio channel (L R) or
track, which depends on the disc you use
TV functions
OSD menu selection buttons.
DVD: to select JPEG, WMA or MP3 groups
( ) or titles
!ENTER: Selects or saves a setting.
!
().
8
45
5
Remote control's VHS/DVD toggle switches to toggle
between VCR and DVD functions and to switch
between VCR and DVD picture.

ENTER
123
456
789
0-/--
CH
AV
VHS/DVD TV
AUDIO
VOLUME
OPERATION
SELECT
CH
DVD
VHS
TRACKING/V-LOCK
VIDEO Plus+
INPUT
REPEAT
CANCEL/RESET
INDEX/SKIP SLOW/
SEARCH
REW FF
PLAY
STOP
PAUSE
DIRECT NAVIGATOR
MENU
PLAYLIST
TOP MENU
FUNCTIONS EXIT
RETURN
PROG/CHECK
I-TIMER
PLAY MODE
SETUP
TIMER DVD-RAM
DUBBING
REC MODE
REC
EXT LINK
OFF TIMER
CINEMA MODE
VHS STATUS
DVD STATUS QUICK OSD QUICK REPLAY MANUAL SKIP
Panasonic
VHS/DVD/TV
EUR7720X60
PROG
PLAY JET REW
A B
SLOW
>
=
10
25
31
27
35
26
28
25
23
30
24
22
25
29
25
Remote control
Video Plus+ menu
Video recording
Displays the VCR menu.
Sets the tape speed.
Switches the unit into stand-by mode after the
set time.
B: Move tagged station.
To record using the external recording
level control.
Goes from Stop into Fast Forward or Fast
Rewind mode. Forward and backward search
during playback.
Tracking control of disturbed
images during playback
AV input select button
Pressing the INPUT button a couple of times will
select A1, A2, A3 (front) or dc (DVD internal).
For fast rewinding to the beginning of the tape.
Cinema Mode
A: To delete tagged station.
VCR functions
Press STOP to stop recording,
playing back or winding.
Finding the start of a recording.
Plays back programmed recordings.
Defines programmes transmitted to
the same program memory location
at the same time.
To display the Timer recording menu.
Activates the recording timer.
Pause a recording session.
Still or slow motion playback.
Tape counter
The tape counter will be automatically reset to
[0:00:00] when you insert a video cassette.
!Or you can press the CANCEL/RESET button on
the remote control unit to manually reset the tape
counter to [0:00:00].
9
Press the button repeatedly to display
the time, tape counter or remaining tape.
35
33

ENTER
123
456
789
0-/--
CH
AV
VHS/DVD TV
AUDIO
VOLUME
OPERATION
SELECT
CH
DVD
VHS
TRACKING/V-LOCK
VIDEO Plus+
INPUT
REPEAT
CANCEL/RESET
INDEX/SKIP SLOW/
SEARCH
REW FF
PLAY
STOP
PAUSE
DIRECT NAVIGATOR
MENU
PLAYLIST
TOP MENU
FUNCTIONS EXIT
RETURN
PROG/CHECK
I-TIMER
PLAY MODE
SETUP
TIMER DVD-RAM
DUBBING
REC MODE
REC
EXT LINK
OFF TIMER
CINEMA MODE
VHS STATUS
DVD STATUS QUICK OSD QUICK REPLAY MANUAL SKIP
Panasonic
VHS/DVD/TV
EUR7720X60
PROG
PLAY JET REW
A B
SLOW
>
=
10
Random Playback/Program Playback
49
49
54
43
Remote control
Scene replay (not with +R/+RW media)
!Press QUICK REPLAY during playback.
Every push of the button replays a couple of
seconds of the current track or programme.
However, you cannot go back to before the
beginning of a title.
DQUICK REPLAY is not supported by all discs.
Displays the SETUP menu.
Displays the menu.
Displays a Playlist
Pause playback (still image)
!Press PAUSE during playback.
Playback stops at the current picture frame.
!Press PLAY to resume playback.
Slow motion (backwards/forwards)
!Press SLOW in Pause mode.
Keeping the button pressed increases the speed of
search at 5 steps.
!Press PLAY to resume normal playback.
Search
!Press SEARCH during playback.
Keeping the button pressed increases the speed
of search at 5 steps.
DVCDs do not support reverse slow motion playback.
Repeat
!Press REPEAT during playback.
There is no mode for repeatedly playing back
entire discs.
For some disc formats
not all of the described
DVD functions are
available.
Displays the main menu.
Displays the DVD-RAM menu.
Stop playback
!Press STOP twice.
Resume
!Press STOP during playback
to store the current position on the disc.
DOpening the disc tray or the unit going into
stand-by mode also clears the stored position
on the disc.
Skip chapters, titles or frames
!Press SKIP during playback or in pause mode.
DVD functions
10
46
44
42
To display the Functions menu
Manual Skip
Playback jumps forward 30 seconds each time this
button is pressed.
(not with +R/+RW media)
Displays time or chapter/title or content/group
when pressed again.
Hides the playback status display.
Cancel the Resume function
!Press STOP until the disc logo in the
display is no longer blinking.
!Press PLAY while the disc logo in the display
is blinking. Playback will be resumed at the
point where you stopped it.

DD
VUOT
MI
O
C
ND
NT
P
O
O
TV
E
E
OU
S(RE
O S
P/ EI G R V
LIE E
NA R) C
T
D/S
V
V
DH
NU
O
M
MOO
T
C
XC OA L A I
OTL
DI A UDIU
A O T
GI
AO
UDI
IVD O
E
L
R
Y
B
P
R
P
1A V
)( V T
AV2
T)
X(E
U
ADIO
L
R
NI
R F
UT
F O
R
AC mains socket
1
11

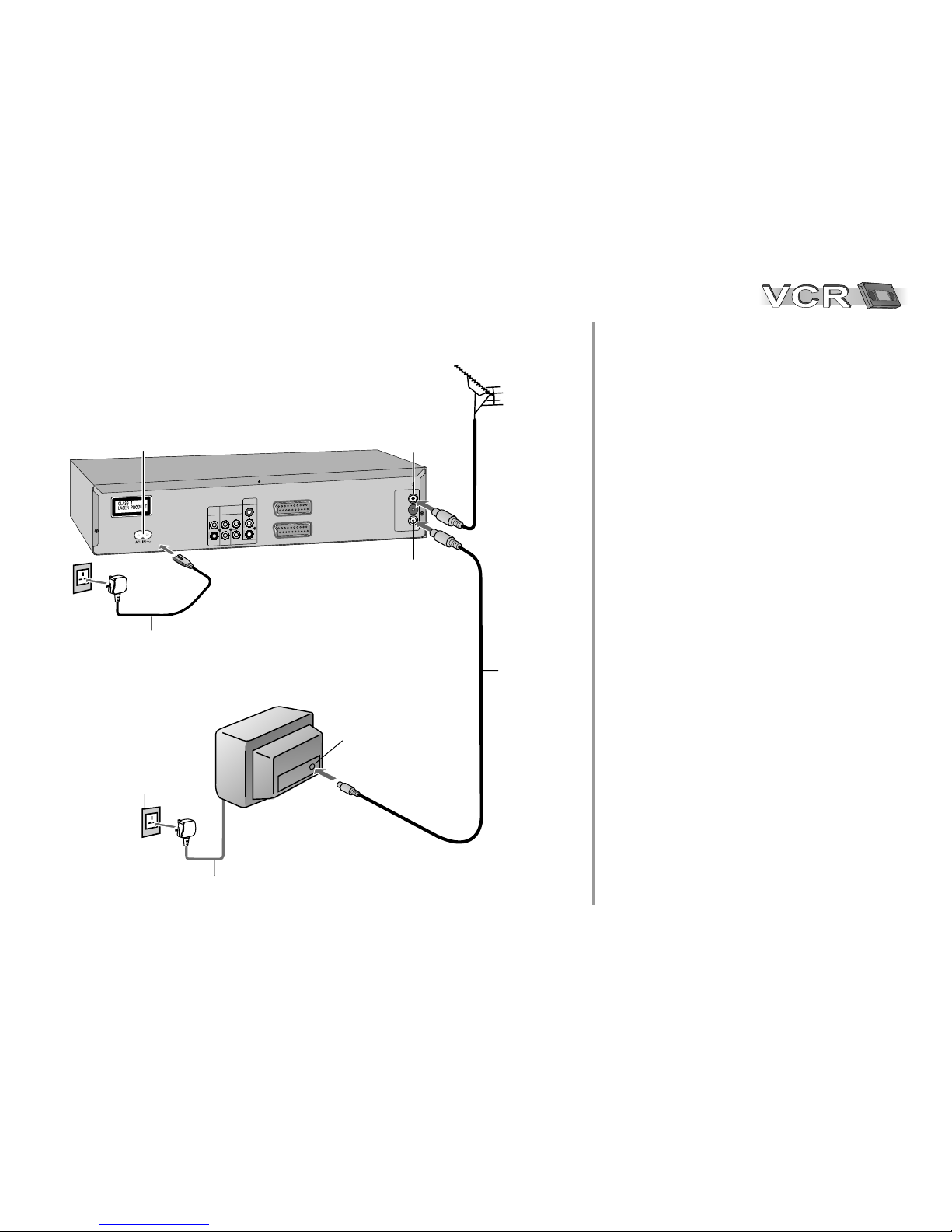

Connecting with 21-pin Scart cable (Fully wired)
Connect the VCR/DVD’s AV1 socket
(21-pin Scart socket) to the TV set’s
Scart In socket.
Connect VCR/DVD and TV set to
the AC mains socket.
4
2Connect aerial to the RF IN (Aerial
input) connector of the VCR/DVD.
Follow the steps described below.
3Connect the VCR/DVD´s RF OUT
(Aerial output) to the TV set’s
Aerial in connector.
Ensure TV Power is disconnected
from AC Mains socket.
1
Follow the steps for VCR Auto Setup
on page 13.
VCR / DVD
5
5
4
3
2
AC IN
RF IN
Aerial input
AV1
21-pin Scart socket
RF OUT
Aerial output
AC mains lead
Aerial input
TV
AC mains lead
AC IN~
21-pin Scart cable
RF coaxial cable
Aerial
5

DD UV TO
NOP E U
TI D O
N V TC MOO E
RE/
IV
PRGSS
E
O
(
IN EC
TLAE)
R
H / VDSD V
OM U
OOT
CMN
OXAA
CLI
UT L G AD
AI U
D
IOT
IO
OU D AI
OVD E I
L
R
Y
P B
P R
1VA
)V
T(
2VA
E(T )
X
IO
UD
A
L
R
RFIN
FUO
T
R
AC mains socket
1
5AC mains lead
VCR/DVD
5
4
3
2
AC IN
Aerial
RF IN
input
Audio / Videooutput
Aerial
RF OUT
output
AC mains lead
Aerial input
RF coaxial
cable
Audio (L/R) / Videocable
TV
AC IN~
AUDIO (R/L) / VIDEO
Connecting with Audio-Videocable
Aerial
Connect the VCR/DVD OUT
(AUDIO R/L, VIDEO) sockets of the
VCR/DVD to the TV input.
12
Follow the steps for VCR Auto Setup
on page 13.
4
2
Follow the steps described below.
3
1
5
Connect aerial to the RF IN (Aerial
input) connector of the VCR/DVD.
Connect the VCR/DVD´s RF OUT
(Aerial output) to the TV set’s
Aerial in connector.
Ensure TV Power is disconnected
from AC Mains socket.
Connect VCR/DVD and TV set to
the AC mains socket.

DIf Auto Setup has previously been completed the VCR will not start Auto Setup
automatically. In this case you can re-start Auto Setup again. See page 35.
DIf you want to cancel Auto Setup before it has finished, press the EXIT button.
You can restart Auto Setup again. See page 35.
VCR Auto Setup with 21-pin Scart cable / Audio-Videocable
(Automatic tuning)
Datum / ZeitClock set
Time : 12 : 00 : 00
Date : 11. 6. 05
MANUAL
!Press to set the correct time and date.
!Press the ENTER button to finish this setting.
If the clock setting menu appears
(Auto clock set was not possible due to a weak signal)
DMind that a wrong date or time will influence the programmed recording of TV
programmes (don't forget to change summer time and winter time).
You can complete the Owner ID now or skip this step and do it later. To do it
later, press the EXIT button. Your VCR is now ready to use. Optionally, you can
have a QUICK SETUP following VCR Auto Setup for the DVD player (page 40).
!To set the Owner ID now, press the Numeric buttons or to enter a four-
digit PIN number.
!Press , to correct the digit.
!Make sure that you will remember the PIN number (make a note of it).
!Press the ENTER button twice to confirm.
!Enter the [Name], [House No] and [Postcode] in the same way.
!Press the ENTER button to confirm each entry.
!Press the EXIT button to leave the Owner ID screen.
!You will now see the TV picture. Your VCR/DVD is now ready to use.
Optionally, you can have a QUICK SETUP following VCR Auto Setup for the
DVD player (page 40).
Owner ID
!Turn on your television set.
!With the Stand-by/on switch turn on the VCR/DVD.
Automatic tuning for all available TV stations begins.
Approximate duration is 5 minutes.
!After Automatic tuning has finished, press EXIT.
The Owner ID screen will appear.
Owner ID
PIN number : ****
Name : **************
House No : ***********
Postcode : ***********
:select : store
: return : exit
ENTER
MENU EXIT
You now have the opportunity
to enter your details and
help the police crack crime
see instruction book.
VCR Display
Auto Setup
: exit
EXIT
Tuning : Ch 21
13

14
DDU
V TO
PEN
OU
TVID O
C N T
MOEO
/
RE
R SIV
P G ES
(O
IN E C
T LA)
E
R
/VH
DS
VD
M U
OOOT
CMN
OXA
A
CIL
U
GTLDA
A I U
D OT
IIO
OU D AI
O
DVEI
L
R
Y
P B
P R
1VA
)TV(
2VA
E(T )
X
IO
U
AD
L
R
RF
I
N
FO
U
T
R
VCR/DVD
4
2
AC IN
Aerial
RF IN
input
Aerial
RF OUT
output
AC mains lead
AC IN~
Aerial
AC mains socket
1
4AC mains lead
4
Connecting with RF cable
Connect VCR/DVD and TV set to
the AC mains socket.
You can connect the VCR/DVD to your
TV set by using a RF cable.
Aerial input
RF coaxial cable
TV
2
Follow the steps described below.
3
1
Connect aerial to the RF IN (Aerial
input) connector of the VCR/DVD.
Connect the VCR/DVD´s RF OUT
(Aerial output) to the TV set’s Aerial
in connector.
Ensure TV Power is disconnected
from AC Mains socket.
Follow the steps for VCR Auto Setup
on page 15.
3

15
VCR Auto Setup with RF cable (Automatic tuning)
!Turn on your television set.
!With the Stand-by/on switch turn on the VCR/DVD. Automatic tuning for all
available TV stations begins. Approximate duration is 5 minutes.
!After Automatic tuning has finished, press EXIT. The Owner ID screen will appear.
- While Auto Setup is running the first digit of the VCR display will flash. After a
while it will stop flashing and the RF output channel number will be displayed.
- Select an unused channel pre-set on your TV and tune it to the RF output
channel number shown on the VCR display (or until you can clearly see the
Auto Setup screen). Store the new video playback channel (refer to the
instructions for your TV).
VCR Display
You can complete the Owner ID now or skip this step and do it later. To do it
later, press the EXIT button. Your VCR is now ready to use. Optionally, you can
have a QUICK SETUP following VCR Auto Setup for the DVD player (page 40).
!To set the Owner ID now, press the Numeric buttons or to enter a four-
digit PIN number.
!Press to correct the digit.
!Make sure that you will remember the PIN number (make a note of it).
!Press the ENTER button twice to confirm.
!Enter the [Name], [House No] and [Postcode] in the same way.
!Press the ENTER button to confirm each entry.
!Press the EXIT button to leave the Owner ID screen.
!You will now see the TV picture. Your VCR is now ready to use. Optionally, you can
have a QUICK SETUP following VCR Auto Setup for the DVD player (page 40).
Owner ID
PIN number : ****
Name : **************
House No : ***********
Postcode : ***********
:select : store
: return : exit
ENTER
MENU EXIT
You now have the opportunity
to enter your details and
help the police crack crime
see instruction book.
Owner ID
Datum / ZeitClock set
Time : 12 : 00 : 00
Date : 11. 6. 05
MANUAL !Press to set the correct time and date.
!Press the ENTER button to finish this setting.
If the clock setting menu appears
(Auto clock set was not possible due to a weak signal)
DMind that a wrong date or time will influence the programmed recording of TV
programmes (don't forget to change summer time and winter time).
DIn some cases, the RF output channel may interfere with the TV stations
transmitted in your area. This may prevent you from seeing the On-Screen
Display clearly. Please see page 21 for removing the interference before
restarting Auto Setup (page 35).
Auto Setup
: exit
EXIT
Tuning : Ch 21

D
D
V U
OT
MI
O
C
ND
NP T
O O
T
V
E
E
O U
S(RE
OS
P/ E I G RV
LI E E
NA R ) C
T
D/S
V
V
D
H
NU
O
M
MOO
T
C
XL
C
OAA
I
OT L
DIAUDIU
AO T
GI
AO
UDI
IVD O
E
L
R
Y
B
P
R
P
1A V
)
(TV
AV2
DE
C( E OD R/
T)
X
E
UDA IO
L
R
NI
R F
TU
O
FR

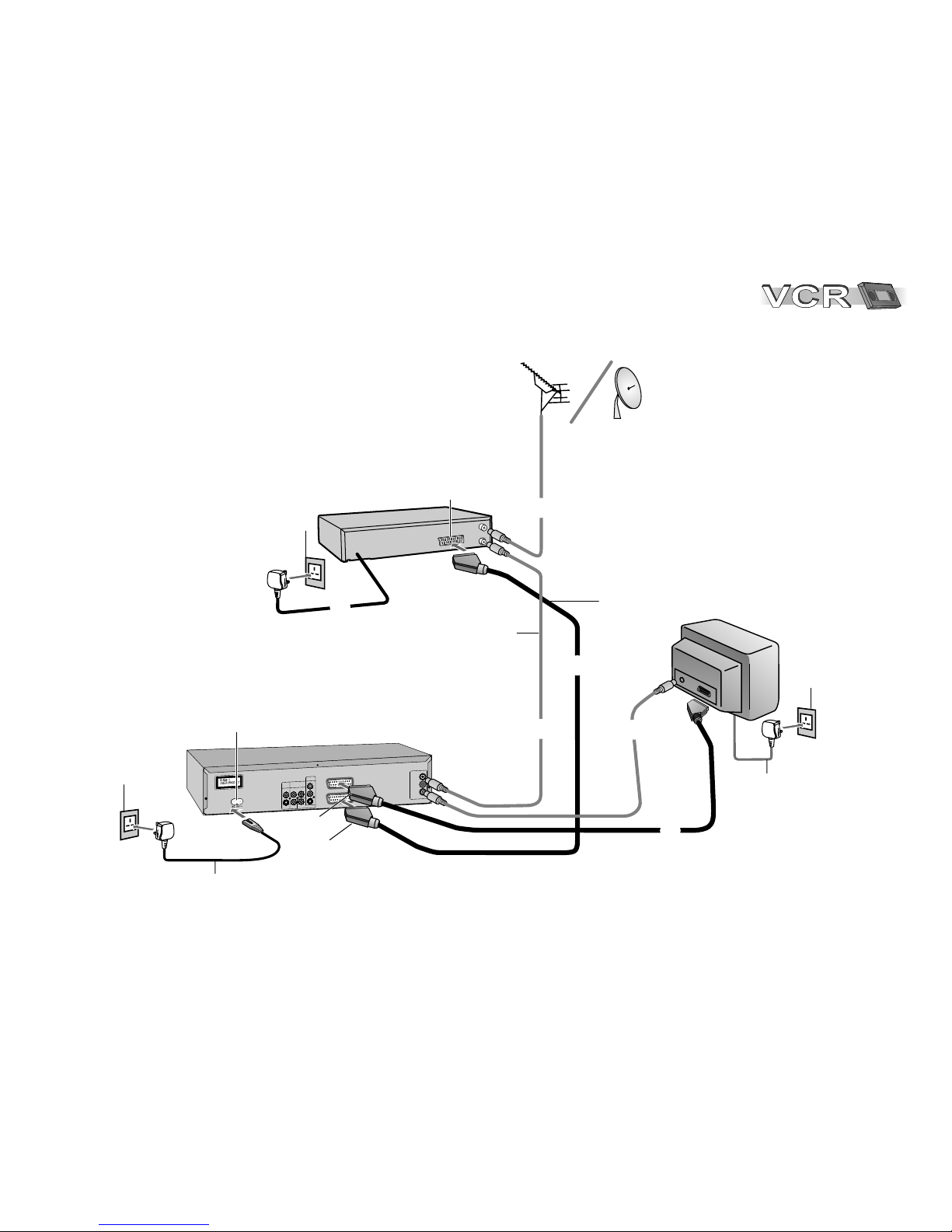

Connecting to Satellite Receiver, Set Top Box
16
VCR / DVD
AC IN~
Connecting to Satellite Receiver, Set Top Box
You can connect a Set Top Box to receive digital broadcast by
aerial (DVB-T) signals or a satellite receiver (digital/analogue).
4
21-pin Scart cable
21-pin Scart socket
To AC Mains socket
(AV2)
External unit
TV
Aerial
4AC mains lead
(supplied)
RF coaxial
cable
(supplied)
4AC mains lead
AC mains socket
1
AC mains socket
1
3
33
AC mains socket
1
2
(AV1)
2

17
D[RGB] means separate Red/Green/Blue colour signals. If you connect a TV equipped with RGB
input capability to the AV1 socket on this VCR/DVD, and a decoder equipped with RGB output
capability to the AV2 socket, RGB signals will pass through the VCR/DVD to the TV when the
VCR/DVD is in stand-by mode. The RGB signals cannot be recorded or produced by this
VCR/DVD.
Connect a 21-pin scart cable (fully wired) to the AV2 21-pin scart socket on the
VCR/DVD and to the 21-pin scart socket on the External unit.
Connect a 21-pin scart cable (fully wired) to the AV1 21-pin scart socket on the
VCR/DVD and to the 21-pin scart socket on the TV set.
Connect the External unit, VCR/DVD and TV set to the AC mains supply.
Switch on the TV set and VCR/DVD.
Set the VCR menu settings for AV2 according the connected External unit (See page 33).
Follow the steps described below.
2
3
5
Ensure TV Power, External unit Power and VCR/DVD Power are disconnected
from AC Mains socket.
1
Switch on the External unit. Then follow page 13 for VCR Auto Setup with 21-pin
Scart cable.
6
Connect aerial to the Aerial in connector of the External unit.
Connect the External unit´s Aerial out connector to the VCR/DVD’s RF IN (Aerial input).
Connect the VCR/DVD´s RF OUT (Aerial output) to the TV set’s Aerial in connector.
4

DVD OUT
COMPONENT VIDEO OUT
(PROGRESSIVE/
INTERLACE)
DVD/VHS
COMMON OUT
COAXIAL
DIGITAL AUDIO OUT
AUDIO
VIDEO
L
R
YPB
PR
AV1
(TV)
AV2
(EXT)
AUDIO
L
R
RF IN
RF OUT
AUDIO IN
L
R
COMPONENT VIDEO IN terminal
P
B
R
P
Red White
Y
DVD ports
Connection to a TV set without a scart socket or to an
amplifier component (home cinema):
To be able to hear sound in stereo or Dolby Pro Logic quality,
attach an amplifier or an analogue audio component supporting
these features.
!To avoid sound quality problems deactivate function Advanced
Surround when you attach an amplifier with Dolby Pro Logic
functionality.
Before connecting
!Verify that all devices to be
connected up are unplugged from
the AC mains.
DVD-Connectors
54
52
53
18
The COMPONENT VIDEO OUT connection outputs the color-difference signals ( P /P ) and the
BR
luminance-difference signal Y separately, thereby enabling a higher resolution and color trueness.
!The description of the COMPONENT VIDEO IN connection can be different depending on the
television set or monitor ( e.g. Y/P /P ,Y/B-Y/R-Y, Y/C /C ).
BR BR
Please refer to the instruction manual for your television.
!Connect the cables as shown in the figure according to the colors and markings on the
connection sockets.
DThe COMPONENT VIDEO OUT connection cannot be used if the AV1 Output in the Menu Video is set to [RGB].
DWith a normal television, the progressive scan process can lead to flickering even if the television is
progressive-compatible. Set the Video Output Mode setting to [625i].
COMPONENT VIDEO OUT - Connection
Back of television set (example)

19
DVD-Connectors
DVD OUT
COMPONENT VIDEO OUT
(PROGRESSIVE/
INTERLACE)
DVD/VHS
COMMON OUT
COAXIAL
DIGITAL AUDIO OUT
AUDIO
VIDEO
L
R
Y
PB
PR
AUDIO
L
R
COAXIAL
Digital connectors (COAXIAL)
To play programmes with a 5.1-channel surround sound, connect the
digital audio output ( COAXIAL ) with an external Multi-channel Dolby
Digital Decoder, for example.
Prerequisites for making recordings with an external digital
recorder
- The original disc must not be copy-protected.
-The recorder must be able to process signals with a scanning
frequency of 48 kHz/16 bit.
- You cannot make MP3/WMA recordings.
DAdapt the Audio SETUP menu settings to the following:
PCM Digital Output: [up to 48 kHz]
Dolby Digital / DTS Digital Surround / MPEG: [PCM]
DDeactivate function Advanced Surround.
55
53
Amplifier (example)

PLAY LIST
MENU
!Press the MENU button to display the OSD Main menu on the TV screen.
!Press to select Tuning then press the ENTER button.
!Press to select Manual then press the ENTER button to display the list of
tuned TV stations and confirm that all available TV stations have been set
correctly.
!Press the EXIT button to exit the On Screen Display.
When the station names and/or channel numbers have not been set correctly,
see page 34 for details.
When no station has been found, confirm all connections of the VCR again and
restart the Auto Setup. See page 35 for details.
Checking the Settings
after Auto Setup
Menu
Timer recording
QUICK ERASE
Tuning
Clock set
Others
:select : access
: exit
ENTER
EXIT
Tuning
Manual
Auto Setup
Shipping condition
Owner ID
: select : access
: return : exit
ENTER
MENU EXIT
The reception
channels are
different for UK
and Ireland.
Tuning
Pos Name Ch Pos Name Ch
6 30
7 - - - - - - -
8 - - - - - - -
9 - - - - - - -
10 - - - - - - -
1 BBC1 22
2 BBC2 23
3 ITV 24
4 CH4 25
5 CH5 26
Tuning
Pos Name Ch Pos Name Ch
6 ITV 24
7 CH4 25
8 CH5 26
9 - - - - - - -
10 - - - - - - -
1 RTE1 2
2 NET2 4
3 TNG 6
4 BBC1 22
5 BBC2 23
TV Reception Channels
Example of UK model Example of Ireland model
DIf station name is [ ]:
The asterisks indicate that a station was found during Auto Setup but has not
been named (due to weak signal).
The stations in the list with asterisk will need to be named manually see page 34.
DIf station name is [- - - -]:
The dashes represent unused channel positions.
The stations in the list with dashes will need to be set manually. See page 34.
20
RETURN
EXIT
