Panasonic ES-LS9A-K803 User manual
Operating Instructions
(Household use) Rechargeable Shaver
Model No. ES‑LS6A
2
GB English����������������� 5
DDeutsch ������������� 25
FFrançais������������� 45
IItaliano��������������� 65
NL Nederlands�������� 85
EEspañol������������ 105
DK Dansk��������������� 125
PPortuguês�������� 143
NNorsk ��������������� 163
SSvenska����������� 181
FIN Suomi��������������� 199
PL Polski��������������� 217
CZ ��������������� 237
SK �������� 255
H������������� 273
RO ����������� 293
TR Türkçe�������������� 313
3
a
b
c
Back
4
5
TR RO H SK CZ PL FIN S N P DK E NL I F D GB
Thank you for purchasing this Panasonic product.
Operating Instructions
(Household use) Rechargeable Shaver
Model No. ES‑LS6A
Safety precautions..................... 8
Important information �����������������������11
����������������������������12
Preparation�����������������������������������������13
How to use �����������������������������������������14
Cleaning the shaver ��������������������������16
�������18
FAQ �����������������������������������������������������18
Troubleshooting ��������������������������������19
Service������������������������������������������������21
For environmental protection
����������������22
������������������������������������23
Contents
6
WARNING
•
This appliance can be used by children aged from
8 years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way
and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance
shall not be made by children without supervision.
•The supply cord cannot be replaced. If the cord is
damaged, the AC adaptor should be scrapped.
7
TR RO H SK CZ PL FIN S N P DK E NL I F D GB
•This WET/DRY shaver can be used for wet shaving
using shaving lather or for dry shaving. You can use this
watertight shaver in the shower and clean with water.

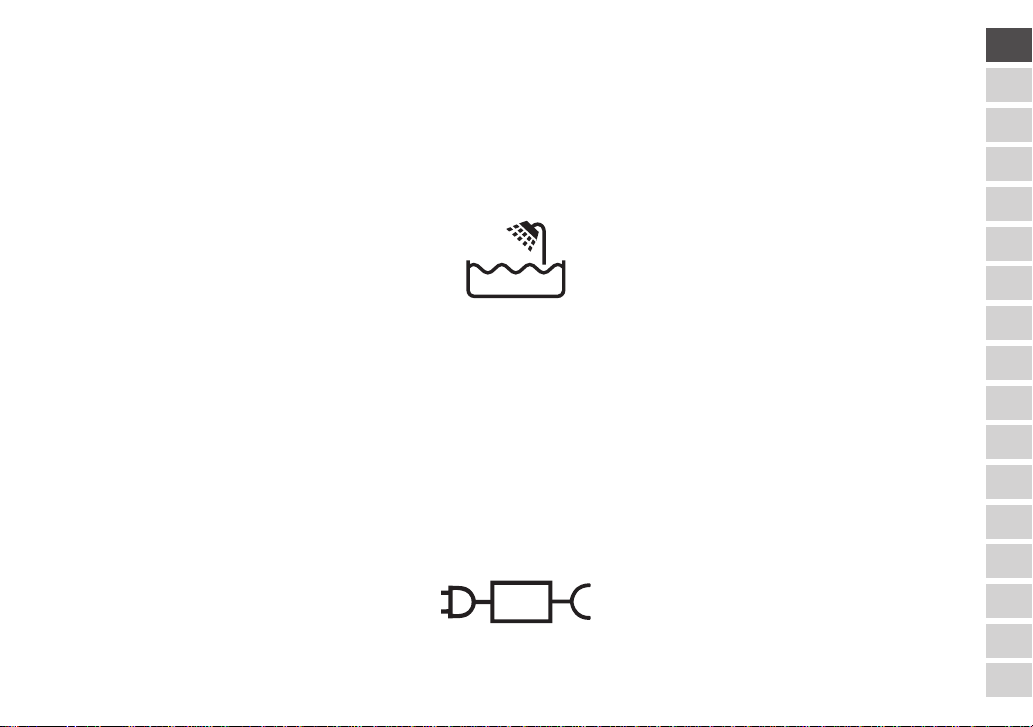

The following symbol means suitable for use in a bath
or shower.
•Do not use anything other than the supplied AC adaptor
for any purpose. Also, do not use any other product with
the supplied AC adaptor. (See page 12.)
•
power supply unit is required for connecting the electrical
appliance to the supply mains. The type reference of
power supply unit is marked near the symbol.
8
Make sure to follow these instructions.
To prevent accidents, injuries or damage to property,
please follow the instructions below.
The following chart indicates the degree of
DANGER
Indicates a potential hazard that
will result in serious injury or death.
WARNING Indicates a potential hazard that
could result in serious injury or
death.
CAUTION Indicates a potential hazard that
could result in minor injury or
property damage.
follows�
This symbol indicates prohibition.
This symbol indicates requirement that must be
followed.
WARNING
This product
This product has a built-in rechargeable
charge, use, or leave in a high temperature
environment�
‑ Doing so may cause overheating, ignition, or
explosion.
‑
injury.
Contact an authorized service centre for repair
(replacement of battery etc).
the product�
‑
9
TR RO H SK CZ PL FIN S N P DK E NL I F D GB
WARNING
malfunction�
‑
or injury.
•The main unit, AC adaptor or cord is
•The main unit, adaptor or cord smells of
burning�
•There is an abnormal sound during use or
charging of the main unit�
‑ Immediately request inspection or repair at an
authorized service centre.
Do not connect or disconnect the adaptor to
a household outlet with a wet hand�
‑ Doing so may cause electric shock or injury.
Do not immerse the AC adaptor in water or
wash with water�
Do not place the AC adaptor over or near
Never use the appliance if the AC adaptor is
household outlet�
Do not damage the cord or the power plug�
•
pull the cord or the power plug� Also, do
the cord�
‑
to a short circuit.
rating of the household outlet or the wiring�
‑ Exceeding the rating by connecting too many
due to overheating.
‑
Disconnect the AC adaptor when cleaning the
‑
Failure to do so may cause electric shock or injury.
appliance plug to prevent dust from
accumulating�
‑
failure caused by humidity.
10
WARNING
Preventing accidents
Do not place within reach of children or
infants� Do not let them use it�
‑ Putting parts or accessories in the mouth may
cause an accident or injury.
vomiting, drink a large amount of water and
‑ Failure to follow these instructions may result in
physical problems.
CAUTION
Protecting the skin
blemishes or injured skin�
‑ Doing so may cause injury to skin.
Do not use this product for hair on head or
‑ Doing so may cause injury to skin or reduce the
life of the system outer foil.
deformations before use�
‑ Failure to do so may cause injury to the skin.
Note the following precautions
Do not allow metal objects or trash to adhere
to the power plug or the appliance plug�
‑
to a short circuit.
other people�
‑
Disconnect the adaptor from the household
outlet when not charging�
‑
due to electrical leakage resulting from
insulation deterioration.
11
TR RO H SK CZ PL FIN S N P DK E NL I F D GB
disposing
DANGER
•
use with this appliance� Do not use the
•
removed from the product�
•
•
with a nail�
•Do not let the positive and negative
each other through metallic objects�
•
and hairpins�
•
under direct sunlight or near other sources
of heat�
•Never peel off the tube�
‑ Doing so may cause overheating, ignition, or
explosion.
WARNING
not keep it within reach of children and infants�
‑
The battery will harm the body if accidentally
swallowed.
If this happens, consult a physician immediately.
as tap water�
‑ Failure to do so may cause eye injury.
Consult a physician immediately.
CAUTION
contact with the skin or clothes, rinse off with
clean water, such as tap water�
‑
Important information
• Treat yourself to wet lather shaves for at least three
weeks and notice the difference. Your Panasonic
WET/DRY shaver requires a little time to get used to
because your skin and beard need about a month to
adjust to any new shaving method.
• If you clean the shaver with water, do not use salt
water or hot water. Do not soak the shaver in water for
a long period of time.
12
• Charge the appliance correctly according to these
Operating Instructions. (See page 13 “Charging the
shaver”.)
• This appliance contains battery that is only
replaceable by skilled persons. Please contact an
authorized service centre for the details of repair.
Note the following precautions
When using
• Do not bring the system outer foil into contact with
hard objects.
Doing so may damage the system outer foil as it is
very thin and deforms easily.
• Do not drop or hit against other objects.
Doing so may cause injury.
When storing
• Store the shaver in a place with low humidity after
use.
Failure to do so may cause malfunction due to
condensation or rust.
• Be sure to place the protective cap on the shaver
when carrying around or storing.
Failure to do so may cause injury to skin or reduce the
life of the system outer foil.
When cleaning
• Do not dry the main unit with a dryer or a fan heater.
Doing so may cause malfunction or deformation of the
parts.
• Do not leave the shaver exposed to direct sunlight
with the foil frame detached.
Doing so may deteriorate the waterproof rubber and
degrade waterproof function, which may cause to
malfunction.
A
1Protective cap
2System outer foil
3Foil frame
4Smooth rollers
• They help to glide
over the skin more
easily.
5Foil frame release
buttons
6Power switch
7Lamp display
a. Battery capacity
lamp
b. Charge status
lamp ( )
c. Switch lock lamp
()
Appliance socket
Outer foil section
System outer foil
release buttons
Trimmer
Trimmer handle
BAC adaptor (RE7-87)
Adaptor
Power plug
Cord
Appliance plug
Accessories
CTravel case
DCleaning brush
EOil
F
Operating Instructions
GGuarantee Card
13
TR RO H SK CZ PL FIN S N P DK E NL I F D GB
Preparation
Charging the shaver
• Turn the shaver off.
• Wipe off any water droplets on the appliance socket.
1 Insert the appliance plug
[B] into the shaver�
2 Plug the adaptor [B] into
a household outlet�
• Check that the charge status
lamp ( ) is glowing.
• Charging is completed after
approx. 1 hour.
3
Disconnect the adaptor
after charging is completed�
1
2
Note
You cannot operate the shaver while charging.
Quick charge
Even though the battery runs out, you can shave
once after 3‑minute charge.
(This will differ depending on usage.)
While charging After charging is
completed
glows.
The battery capacity
lamp will increase as
charging progresses.
All the battery capacity
lamp and will glow and
then turn off after
5 seconds.
Notes
•
has not been in use for more than 6 months, the
charging time may change or the charge status lamp
() may not glow for a few minutes. It will eventually
glow if kept connected.
• Recommended ambient temperature for charging is
10 °C – 35 °C. It may take longer to charge, or the
charge status lamp ( ) will blink quickly and the
battery may fail to charge properly in extremely high
or low temperatures.
• The shaver can be used for approximately 2 weeks
with a full charge.
(Based on one 3‑minute dry‑shave usage per day in
an ambient temperature range of 20 °C – 30 °C.)
The number of usable days varies depending on the
following conditions.
‑ Beard thickness
‑ Pressure applied to the skin
‑
Usage frequency of the sonic vibration cleaning mode
14
• If there is noise from the radio or other sources while
using or charging the appliance, move to a different
location to use the appliance.
How to use
Shaving beard
1 Press and shave�
• The “shaving sensor”, which
automatically adjusts the power
depending on the beard thickness,
will operate.
It will shave with high power on areas
where the beard is heavy, and reduce
the power on areas where the beard
is thin, to reduce burden on the skin.
Tips for better shaving
Apply the whole system outer foil
perpendicularly against the skin
and shave by slowly gliding the
shaver over the face against the
grain of the beard.
• The beard under the chin and
around the throat can be shaved
better by stretching the skin so
the beard will stand.
• To prevent damaging the system
outer foil, do not shave with only
a part of the system outer foil.
2 Press
15
TR RO H SK CZ PL FIN S N P DK E NL I F D GB
While using After use
The remaining battery
capacity are shown and
then turn off after
5 seconds.
• Approximate amount of
battery capacity is
displayed.
The remaining battery
capacity blink and then
turn off after 5 seconds.
When the battery capacity is low
The lowest battery capacity lamp glows when
operating the shaver.
The appliance beeps twice after switched off.
• You can shave 2 to 3 times. (This will differ
depending on usage.)
Notes
• The appliance may not operate in an ambient
temperature lower than approximately 5 °C.
• The shaving sensor may not respond depending on
the type and quantity of the shaving gel. This is not
abnormal.
• Depending on the beard thickness or the amount of
beard trimmings in the shaver head, the shaving
sensor may not react and the driving sound may not
change. This is not abnormal.
•
• The sonic vibration cleaning mode is activated when
the power switch is pressed for more than 2 seconds
while the shaver is not operating. (See page 16.)
You cannot shave in this mode.
Locking the power switch
1.Press once
and then
release.
• The shaver
starts
operating.
2.Press for
more than
2 seconds until
the switch lock
lamp ( ) turns
on.
• The shaver will
stop operating.
3.
Release .
• The switch
lock lamp
() will
light up for
5 seconds
and turn
off.
Unlocking the power switch
1.Press for more than
2 seconds until the
switch lock lamp ( )
turns off.
2.Once the shaver starts
operating, release .
• The switch lock lamp
() will turn off.
16
• The power switch is locked when the switch lock lamp
() blinks for 5 seconds and the shaver does not
operate even though the power switch is pressed.
Using the trimmer
1.Slide the trimmer handle up to
the “ ” position so that the
trimmer stands upright.
2.Press and use.
Press and hold the top knob (
a
)
and slide the trimmer handle
down to lower the trimmer.
Tips for better usage
Apply the trimmer edge perpendicular to skin gently
and move downward slowly.
Trimming sideburns Pre‑shave of long beards
Switching the shaver head
You can change the pivot action.
“”
The shaver head is moved to
prevent missed spots.
“ ”
You can lock the shaver head.
Cleaning the shaver
We recommend cleaning the shaver after each use.
Cleaning with water
• Turn the shaver off and disconnect the AC adaptor.
1
outer foil [A2]�
2 Press for more than
2 seconds to activate the
sonic vibration cleaning
mode�
• Splashing of foam is
suppressed.
17
TR RO H SK CZ PL FIN S N P DK E NL I F D GB
• The lamps blink alternately.
• After about 20 seconds, it will be automatically
turned off, or you can turn it off by pressing the
power switch.
3 Remove the outer foil
section [A] and clean
with running water�
• See page 18 for removing
the outer foil section.
• Splashing is reduced by rinsing the shaver in sonic
vibration cleaning mode.
•
After rinsing with water, shake the shaver up and
down for a few times to remove excess moisture and
then wipe off any drops of water with a dry cloth.
4
section, the shaver, and
the trimmer [A]
• Allow the shaver to dry in
the shade, avoid direct
sunlight.
5 Lubricate the shaver�
It will keep the movement of the
blades smooth and maintain a
comfort shave.
1.Apply one drop of oil to each of
the system outer foils.
2.Raise the trimmer and apply a drop of oil.
3.Switch the shaver on, and run it for approximately
4.Switch off the shaver, and wipe off any excess oil
from the system outer foil with a soft cloth.
Notes
• Do not use any kitchen or bathroom detergents other
than hand soap.
Doing so may cause malfunction.
• Be careful not to hit the main body on the sink or any
other object while draining the water. Failure to do so
may cause malfunction.
• Do not wipe with thinners, benzine, alcohol etc.
Doing so may cause malfunction, cracking or
discoloration of the parts.
Wipe with diluted soapy water.
Cleaning with the brush
Remove the outer foil section.
(See page 18.)
Clean the system outer foil in the areas
indicated by the circles every time you
use the shaver. Otherwise, abnormal
sound may be generated.
Cleaning with the long brush
Clean the foil frame [A3],
system outer foil [A2], the
main body [A] and the
trimmer [A] using the
long brush.
18
system outer foil once every 18 months
Removing the outer foil section
Press the foil frame release buttons [
A5
]
and lift the outer foil section [
A
] upwards.
Attaching the outer foil section
After turning the foil frame mark ( ) to the
front, securely attach the outer foil section
[A] to the shaver until it clicks.
1.Press the system outer foil release
buttons [A] and pull down the
system outer foil [A2].
• Do not press the system outer foil
release buttons with excessive
force.
Doing so may bend the system outer foil, preventing
complete attachment to the foil frame.
2.
Align the foil frame mark ( ) and the system outer foil
mark ( ) and securely attach together until it clicks.
Note
Do not throw away the foil frame.
FAQ
Question Answer
Does this product
require inner blades?
Outer foils and inner blades
are integrated into the
system outer foil.
Will the battery
deteriorate if not used
for an extended
period of time?
The battery will deteriorate if
not used for over 6 months,
so make sure to perform a
full charge at least once
every 6 months.
Can I charge the
shaver after every
use?
The battery used is a
lithium‑ion, so charging after
every use will have no effect
on battery life.
Why should the
adaptor be
disconnected after
charge?
Charging the battery for more
than 1 hour will not affect
battery performance, but
disconnect the adaptor for
safety and to save energy.
What is the
constituent of the
dedicated oil?
Constituent of the oil is
Why does the
appliance beep twice
after switched off?
The sound indicates that the
battery capacity is running
low. Please charge the
appliance.
19
TR RO H SK CZ PL FIN S N P DK E NL I F D GB
Troubleshooting
Perform the following actions.
If the problems still cannot be solved, contact the
store where you purchased the unit or a service
centre authorized by Panasonic for repair.
Problem Action
The power switch
does not turn ON.
Unlock the switch lock. (See
page 15.)
Problem Action
The shaving sensor
does not respond.
Depending on the beard
thickness or the amount of
beard trimmings in the
shaver head, the shaving
sensor may not react and the
driving sound may not
change. This is not abnormal.
The shaving sensor may not
respond depending on the
type and quantity of the
shaving gel. This is not
abnormal.
The shaving sensor may not
respond when the remaining
battery capacity is low. If
this happens, recharge the
shaver.
Apply oil. (See page 17.)
The shaving sensor may not
respond when there is not
enough oil on the system
outer foil.
20
Problem Action
The shaving sensor
responds even though
the shaver is not in
contact with the skin.
Clean the beard trimmings
from the shaver.
Clean the system outer foil
with the brush. (See
page 17.)
When the shaver is
extremely dirty, remove the
foil frame and wash with
water.
(See page 16.)
Replace the system outer foil.
Expected life of system
outer foil:
Approximately 18 months
Problem Action
Operating time is
short even after a full
charge.
Although the shaver can be
used for about 2 weeks after
a full charge (assuming
dry‑shave usages for 3
minutes per day), the usable
number of days might be
lower depending on how the
shaver is used (for example,
when used for wet shaving).
Apply oil.
Clean the shaver.
When the number of
operations per charge starts
to decrease, the battery is
nearing the end of its life.
Shaver does not
operate even after
charging.
Use the appliance in an
ambient temperature
approximately 5 °C or higher.
The battery has reached the
end of its life.
The shaver will not operate
with the AC adaptor
connected. Please use the
shaver after it has been
AC adaptor disconnected.
This manual suits for next models
1
Table of contents
Languages:
Other Panasonic Electric Shaver manuals
Panasonic
Panasonic ER-2403 User manual
Panasonic
Panasonic ES-2216 User manual
Panasonic
Panasonic ER217 User manual
Panasonic
Panasonic ES-LS9AX User manual
Panasonic
Panasonic ES8116 User manual
Panasonic
Panasonic ES-2113 User manual
Panasonic
Panasonic ER-CSF1 User manual
Panasonic
Panasonic ES7003S Operating User manual
Panasonic
Panasonic es-wd94 User manual
Panasonic
Panasonic ES8026-E2 User manual
Panasonic
Panasonic ES6003 User manual
Panasonic
Panasonic ES-LV9Q User manual
Panasonic
Panasonic ES-RS10 User manual
Panasonic
Panasonic ER-GB96 User manual
Panasonic
Panasonic ES?LT50 User manual
Panasonic
Panasonic ER-GK81 User manual
Panasonic
Panasonic ES4011K Operating User manual
Panasonic
Panasonic ES6510 User manual
Panasonic
Panasonic ES-364 User manual
Panasonic
Panasonic ES-8163 User manual
