Panasonic ES-RC40 User manual

中文 2
English 8
使用说明书
Operating Instructions
( 家用 )电动剃须刀
(Household) Rechargeable Shaver
型号
Model No. ES‑RC40/ES‑RC30
在使用本产品前，请仔细阅读本说明书并妥善保管，以备将来参考。
Before operating this unit, please read these instructions completely and save them for future use.
ES-RC40-30_CH.indb 1 2010/09/27 17:46:56

2
中文
感谢您选购 Panasonic 剃须刀。请在使用前阅读所有
说明。
重要事项
本剃须刀内置充电电池。不要将其丢入火中，加热或在
高温环境中充电、使用或保管。
使用前
ES‑RC40/ES‑RC30 干 / 湿两用剃须刀，可以使用刮胡
泡湿剃，也可以干剃。此剃须刀具有防水功能。可放
入水中清洗，也可在淋浴时使用。下图标志表示适合
用在洗澡或淋浴中。
使用刮胡泡湿剃三周后，您能体会到一些变化。由于
您的皮肤和胡须约需一个月时间才能适应新的剃须方
式。因此您可能需要一点时间来适应 Panasonic 干 /
湿两用剃须刀。
使用剃须刀
注意
因外刀网很薄，若使用不当就可能造成损坏。使用
剃须刀前，请确认外刀网是否损坏。如果外刀网已
损坏，请不要使用该剃须刀，因为这样会割伤皮肤。
请在出现异常或故障时终止使用。
不要与您的家人或其他人员共用。
本产品不宜供肢体、感官或精神上有残疾者、或缺


•
•
•
乏经验和知识者（包括儿童）使用，必须有监护者
从旁监督并对本产品的使用加以指导，且对使用者
的安全能承担责任。请避免儿童将本产品视为玩具，
从而引发危险。
充电
切勿在浴室或淋浴房使用电源适配器。
请不要使用除 RE7‑62 电源适配器以外的任何电源线
或电源适配器进行充电。
将电源适配器插入家用电源插座内进行充电，操作
时双手应保持干燥。
从家用电源插座上拔出电源适配器时，不要用力拉
电源线，因为可能会损坏电源线，应抓紧电源适配
器的插头部位。
电源线不能更换，如果电源线损坏，此电源适配器
应废弃。
清洗剃须刀
可用清水清洗剃须刀，不要使用盐水或热水。不要
将剃须刀长时间浸泡在水中。
仅限使用稍稍蘸有自来水或肥皂水的软布清洁外壳。
不要使用稀释剂、汽油、酒精或其他化学物品。
不要用水清洗电源适配器。
存放剃须刀
请在使用后将剃须刀存放在低湿度的地方。
不要将剃须刀存放在阳光直射或有其他热源的地方。
存放剃须刀时，请将其从电源适配器中取出。
请妥善处理本产品的包装袋，避免婴幼儿窒息等意
外发生。请置于儿童触摸不到的地方。

•
•
•
•
•

•
•
•

•
•
•
•
ES-RC40-30_CH.indb 2 2010/09/27 17:46:56

3
 中文
各部分名称
A保护盖
B外刀部
1外刃架
2外刀网
C内刀头
D机身
3外刃架释放按钮
4电源开关[0/1]
5电源指示灯
ES‑RC40
6充电插孔
7修剪刀 ES‑RC40
8修剪刀操纵杆
ES‑RC40
E电源适配器(RE7‑62)
9电源线
:充电状态指示灯
F旅行携带小包
G清洁刷
充电
充电
如果感觉剃须刀速度下降，请按下列步骤给剃须刀充电。
1
1关闭剃须刀并如图示将其插入电源
适配器插孔，直到听到“咔嗒”一
声为止。
2
2将电源适配器插头插入家用电源插
座里。
充电状态指示灯红灯亮。
约 8 小时，即可完成充电。
充电状态指示灯在电源适配器接通电源后始终保持灯
亮，直至断开电源后灯灭。
充电的推荐环境温度为 0 至 40 摄氏度。在温度过低或
过高的条件下，电池性能可能会下降或无法充电。
购买后初次使用或半年以上未使用过，充电状态指示灯
可能不会立即亮，继续充电几分钟后即正常。
•
•
•
•
ES-RC40-30_CH.indb 3 2010/09/27 17:46:56

4
中文
修剪下巴长须 ES‑RC40
将修剪刀操纵杆推动到“ ”位置，
修剪刀与外刀刃齐平并使修剪刀方向
朝外移动，可同时剃除长须和短须。
修剪鬓角 ES‑RC40
将修剪刀操纵杆推动到“ ”位置，
使修剪刀与皮肤成直角位置后，向下
移动可修剪鬓角。
剃须
使用剃须刀
1
1将电源开关向上推
动。
此时，电源指示灯蓝灯
亮。 ES‑RC40
•
2
2如上图所示握住剃须
刀剃须。
使用的最佳环境温度为 0 至 40 摄氏度。如果在推荐范
围以外的温度下使用本产品，本产品可能停止工作。
轻轻地压向面部开始剃须。用另一只手绷紧脸上皮肤，
逆着胡须生长方向前后移动剃须刀。当皮肤适应剃须
刀之后您可以稍稍加大压力，但施加压力过大就可能
会造成皮肤伤害。
•
ES-RC40-30_CH.indb 4 2010/09/27 17:46:56

5
 中文
清洁
清洗剃须刀
1.从电源适配器插孔中取出剃须刀。
2.在外刀网上涂抹少量洗手液和水。
3.启动剃须刀并向外刀网撒些水。
4.10 至 20 秒后关闭剃须刀。
5.取出外刀部并打开剃须刀。
6.用流动的水清洗剃须刀和外刀部。
7.用干布拭去水珠。
8.将外刀部和剃须刀完全擦干。
9.将外刀部安装至剃须刀上。
剃须刀用水洗后，如果电源指示灯附着有水分，灯的
亮度可能降低，此现象并非异常。 ES‑RC40
使用清洁刷清洁
使用短刷，沿右图所示 (A) 的移动方向
移动，清洁内刀头。
使用长刷，清洁外刀网，剃须刀机身和
修剪刀。
请勿沿 (B) 方向移动短刷，因为这样
将损坏内刀头而影响刀片的锋利度。
请勿使用短刷清洁外刀网。
•
•
更换外刀网和内刀头
外刀网 每年一次
内刀头 每两年一次
更换外刀网
1.按下外刃架释放按钮并向上提起取出
外刀部。
1

ES-RC40-30_CH.indb 5 2010/09/27 17:46:57

6
中文
内置式充电电池的取出方式
本产品内藏有充电电池，在消费者决定废弃本产品前，
请务必将电池从本产品中取出。
分解本产品，取出电池前，一定要断开电源。
鼓励消费者在决定废弃本产品前，事先征求经销商或
Panasonic 认定维修店的意见，尽量延长本产品的使用
寿命。
当消费者决定废弃本产品又不想自行分解本产品取出电
池时，鼓励消费者将本产品送往 Panasonic 认定维修店，
由维修店对电池进行分解和回收。
电池务必废弃于政府规定的地方或回收处理单位。
按下图所示的 1～3的顺序拆开本产品，卸下电池。
环境保护与资源回收
此剃须刀使用镍氢电池。
如果您的国家有相关规定，请务必在指定处对旧电池
进行统一处理。
•
•
•
•
•
2.如图示：轻轻按下外刀网。外刀网随
后会从外刃架上弹起。
2
3.新的外刀网应当稍稍弯曲并按入，直
至扣到外刃架中为止。
3
更换内刀头
1.按下外刃架释放按钮并向上提起取出
外刀部。
1
2.取出内刀头。
不要触摸内刀头的边沿 ( 金属部分 )，
以防止您的手受到损伤。
3.插入内刀头，直至咔嗒一声为止。
•
更换部件
更换部件在经销商或 Panasonic 认定维修店有售。
ES‑RC40/ES‑RC30 的
更换部件
外刀网 WES9943
内刀头 WES9942


ES-RC40-30_CH.indb 6 2010/09/27 17:46:57

7
 中文
规格
产品名称 电动剃须刀
产品型号 ES‑RC40/ES‑RC30
电源适配器额定输入 220V 50‑60Hz
10mA
电源适配器额定输出 1.3V 0.11A
马达电压 1.2V
充电时间 约 8 小时
原产地 中国
生产日期 请见商品上刻印
执行标准
中国国家
标准
GB4706.1 附录 B
GB4706.9
企业标准 Q/SXDGWB6
本产品仅适合家庭使用。
ES-RC40-30_CH.indb 7 2010/09/27 17:46:57

8
English
Thank you for choosing a Panasonic shaver.
Please read all instructions before use.
Important
This shaver has a built‑in rechargeable battery. Do not
throw into fire, apply heat, or charge, use, or leave in a
high temperature environment.
Before use
This WET/DRY shaver can be used for wet shaving
with shaving lather or for dry shaving.You can use
this watertight shaver in the shower and clean it in
water. The following is the symbol of Wet shaver. The
symbol means that the hand‑held part may be used
in a bath or shower.
Treat yourself to wet lather shaves for at least three
weeks and notice the difference. Your Panasonic
WET/DRY shaver requires a little time to get used to
because your skin and beard need about a month to
adjust to any new shaving method.

Using the shaver
Caution
The outer foil is very thin and can be damaged
if not used correctly. Check that the foil is not
damaged before using the shaver. Do not use
the shaver if the foil etc. is damaged as you will
cut your skin.
Terminate the usage when there is abnormality or
failure.
Do not share with your family or other people.
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
Children should be supervised to ensure that they
do not play with the appliance.
Charging the shaver
Never use the AC adaptor in the bathroom or
shower room.
Do not use any AC adaptor other than this AC
adaptor (RE7‑62).
Plug in the adaptor into a household outlet where
there is no moisture and handle it with dry hands.
Hold the adaptor when disconnecting it from the
household outlet. If you tug on the power cord, you
may damage it.

•
•
•

•
•
•
•
ES-RC40-30_CH.indb 8 2010/09/27 17:46:57

9
English
The supply cord cannot be replaced. If the cord is
damaged, the AC adaptor should be scrapped.
Cleaning the shaver
If you clean the shaver with water, do not use salt
water or hot water. Do not soak the shaver in water
for a long period of time.
Clean the housing only with a soft cloth slightly
dampened with tap water or soapy tap water. Do not
use thinner, benzine, alcohol or other chemicals.
Do not wash the AC adaptor with water.
Storing the shaver
Store the shaver in a place with low humidity after
use.
Do not store the shaver where it will be exposed to
direct sunlight or other heat sources.
Remove the shaver from the AC adaptor when
storing it.
Please properly store or dispose the plastic bag of
the appliance to avoid any accidents, such as
infants suffocation, etc. Keep the plastic bag away
from infants.
•

•
•
•

•
•
•
•
Parts identification
AProtective cap
BOuter foil section
1Foil frame
2Outer foil
CInner blade
DMain body
3Foil frame release
button
4Power switch [0/1]
5Switch on lamp
ES‑RC40
6Appliance socket
7Trimmer ES‑RC40
8Trimmer handle
ES‑RC40
EAC adaptor (RE7‑62)
9Power cord
:Charge indicator
lamp
FTravel pouch
GCleaning brush
ES-RC40-30_CH.indb 9 2010/09/27 17:46:57

10
English
Shave
Using the shaver
1
1Slide the power
switch upwards.
The switch on lamp
glows blue. ES‑RC40
•
2
2Hold the shaver as
illustrated above
and shave.
Adequate ambient temperature for using is 0‑40 °C. If
you use the appliance in temperature outside of the
recommended range, it may stop functioning.
Start out shaving by applying gentle pressure to your
face. Stretch your skin with your free hand and move
the shaver back and forth in the direction of your
beard. You may gently increase the amount of
pressure as your skin becomes accustomed to this
shaver. Applying excessive pressure does not provide
a closer shave.
•
Charge
Charging the shaver
Perform the following steps to charge the shaver if it
seems to lose the speed.
1
1Turn off the shaver and insert it
in the AC adaptor until it clicks
as illustrated.
2
2Plug in the adaptor into a
household outlet.
The charge indicator lamp glows red.
Charging is completed after approx. 8 hours.
The charge indicator lamp glows and stays on until
the adaptor is disconnected from a household outlet.
Recommended ambient temperature for charging is
0‑40 °C. The battery may not charge under extreme
low or high temperatures.
When charging the shaver for the first time or when it
has not been in use for more than 6 months, the
charge indicator lamp may not glow. It will eventually
glow if kept connected.
•
•
•
•
ES-RC40-30_CH.indb 10 2010/09/27 17:46:57

11
English
Shaving longer, curly hairs under the chin
ES‑RC40
Slide the trimmer handle up to the
“ ” position. This position makes
the trimmer an intercept cutter,
cutting long hairs while the outer foil
shaves shorter hairs. Make sure that
the trimmer is facing outward away
from the neck.
Trimming sideburns ES‑RC40
Slide the trimer handle up to the
“ ” position. Place at a right
angle to your skin and move
downwards to trim your sideburns.
Clean
Cleaning the shaver
1.Remove the shaver from the AC
adaptor.
2.Apply some hand soap and some
water to the outer foil.
3.Turn the shaver on.
4.Turn the shaver off after 10‑20
seconds.
5.Remove the outer foil section and
turn the shaver on.
6.Clean the shaver and the outer foil
section with running water.
7.Wipe off any drops of water with a
dry cloth.
8.Dry the outer foil section and the
shaver completely.
9.Attach the outer foil section to the
shaver.
ES-RC40-30_CH.indb 11 2010/09/27 17:46:58

12
English
2.Gently push the outer foil in the way
as illustrated. Then it will pop up from
the foil frame.
2
3.The new outer foil should be slightly
bent and pushed in until it is hooked
in the foil frame.
3
Replacing the inner blade
1.Press the foil frame release button
and lift the outer foil section upwards.
1
2.Remove the inner blade.
Do not touch the edges (metal parts)
of the inner blade to prevent injury to
your hand.
3.Insert the inner blade until it clicks.
•
Replacement parts
Replacement parts are available at your dealer or
Service Center.
Replacement parts
for ES‑RC40/
ES‑RC30
Outer foil WES9943
Inner blade WES9942


After washing, water remaining on the switch on lamp
may reduce the lamp brightness, but this is not a
malfunction. ES‑RC40
Cleaning with the brush
Clean the inner blade using the short
brush by moving it in direction (A).
Clean the outer foil, the shaver body
and the trimmer using the long brush.
Do not move the short brush in
direction (B) as it will damage the
inner blade and affect its sharpness.
Do not use the short brush to clean
the outer foils.
•
•
Replacing the outer foil and the inner blade
outer foil once every year
inner blade once every two years
Replacing the outer foil
1.Press the foil frame release button
and lift the outer foil section upwards.
1

ES-RC40-30_CH.indb 12 2010/09/27 17:46:58

13
English
Removing the built‑in rechargeable battery
Remove the built‑in rechargeable battery before
disposing of the shaver. Please make sure that the
battery is disposed of at an officially designated
location if there is one. Do not dismantle or replace the
battery so that you can use the shaver again. This
could cause fire or an electric shock. Replace it at an
authorized service center.
Remove the shaver from the AC adaptor when
removing the battery.
Perform steps 1to 3and lift the battery, and then
remove it.
For environmental protection and recycling of
materials
This shaver contains a Nickel‑Metal Hydride battery.
Please make sure that the battery is disposed of at an
officially assigned location, if there is one in your
country.
•
•
Specifications
Product name Rechargeable Shaver
Product model ES‑RC40/ES‑RC30
Rated input 220V 50‑60Hz
10mA
Rated output 1.3V 0.11A
Motor voltage 1.2V
Charging time Approx. 8 hours
Place of origin China
Date of production See engraving on the
commodity.
Execution
standard
Chinese
standard
GB4706.1 appendix B
GB4706.9
Company
standard Q/SXDGWB 6
This product is intended for household use only.
ES-RC40-30_CH.indb 13 2010/09/27 17:46:58

14
MEMO
ES-RC40/ES-RC30 ES-RC40/ES-RC30 ES-RC40/ES-RC30 ES-RC40/ES-RC30 ES-RC40/ES-RC30
电动剃须刀
ES-RC40/ES-RC30
中国
ES-RC40-30_CH.indb 14 2010/09/27 17:46:58

ES-RC40/ES-RC30 ES-RC40/ES-RC30 ES-RC40/ES-RC30 ES-RC40/ES-RC30 ES-RC40/ES-RC30
电动剃须刀
ES-RC40/ES-RC30
中国
ES-RC40-30_CH.indb 15 2010/09/27 17:46:59

ES-RC40-30_CH.indb 16 2010/09/27 17:46:59

17

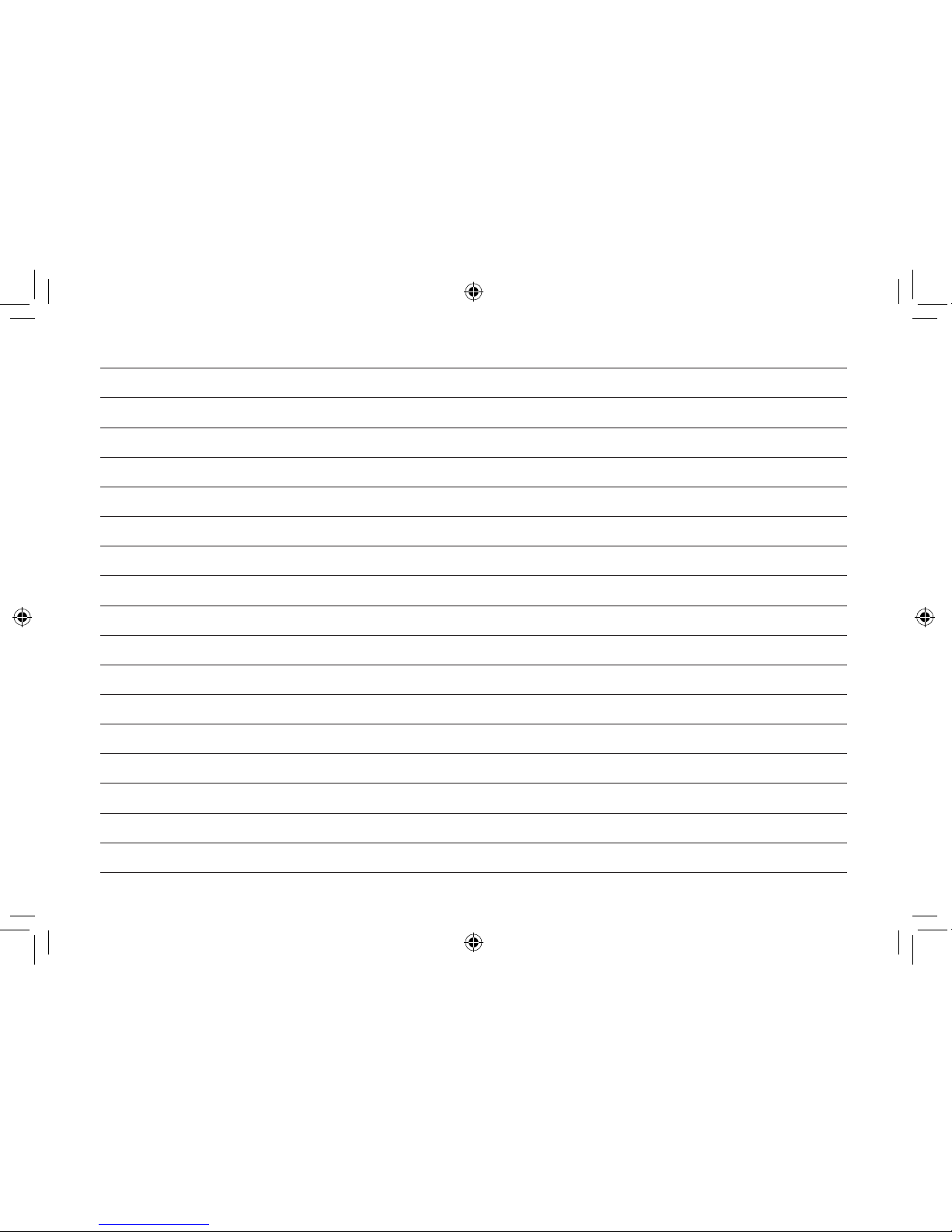

MEMO
ES-RC40-30_CH.indb 17 2010/09/27 17:46:59

18
MEMO
ES-RC40-30_CH.indb 18 2010/09/27 17:46:59

19
MEMO
ES-RC40-30_CH.indb 19 2010/09/27 17:46:59

FCH, EN
中国印刷
Printed in China
00000000 X0009‑0
发行：2010年0月
松下电工·万宝电器（广州）有限公司(PEWWBG)
Panasonic Electric Works Wanbao (Guangzhou) Co., Ltd.
工厂地址： 广州市番禺区市广路万宝基地
(Address)： Wanbao Base, Shiguang Road,
Panyu District, Guangzhou
电话 (Tel)： [phone]
传真 (Fax)：[phone]
邮政编码 (Post Code)：511495
原产地： 中国
ES-RC40-30_CH.indb 20 2010/09/27 17:46:59
