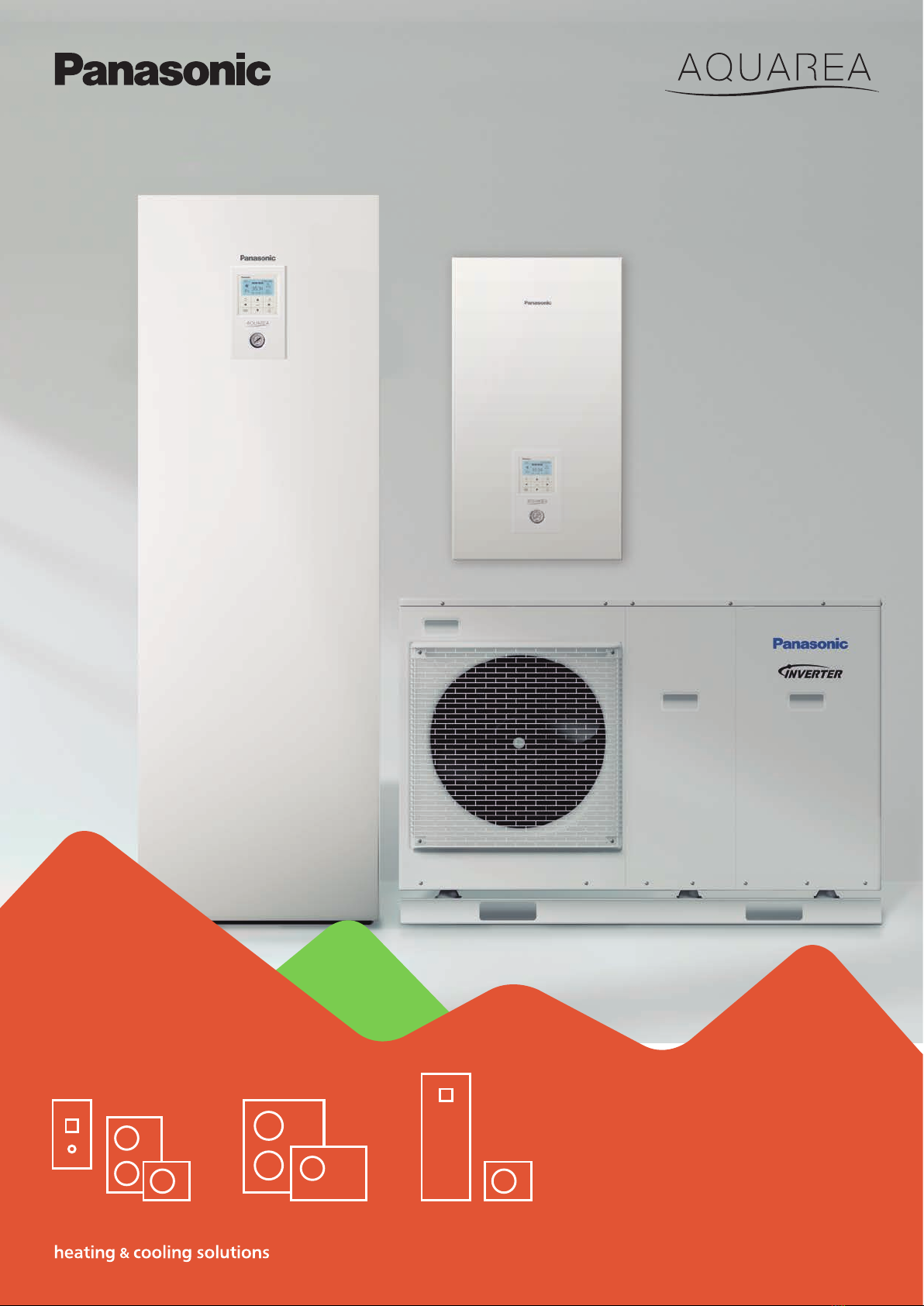

Panasonic AQUAREA WH-ADC H Series User manual

AQUAREA USER GUIDE
FOR BI-BLOC, MONOBLOC
& ALL IN ONE
WH-ADC_ _ _ _H_ _ _
WH-AXC_ _ _ _H_ _ _
WH-SDC_ _ _ _H_ _ _
WH-SXC_ _H_ _ _
WH-MDC_ _H_ _ _
WH-MXC_ _H_ _ _
WH-ADC_ _ _ _J_ _ _
WH-ADC_ _ _ _J_ _ _C
WH-SDC_ _ _ _J_ _ _
WH-MDC_ _J_ _ _
WH-MXC_ _J_ _ _

Summary
Model (Outdoor Unit)
Serial number (Outdoor Unit)
DHW Cylinder Model
Safety precautions
Indoor/outdoor unit
· Do not sit or step on the unit
· Do not place anything on top or beneath the units
· Do not insert fingers into unit, rotating parts may cause injury
· Do not touch the sharp aluminium fins on outdoor unit, sharps parts may cause injury
· Do not wash the indoor unit with water, benzene, thinners or scouring powder
· Service to units should be carried out by Qualified Personnel only.

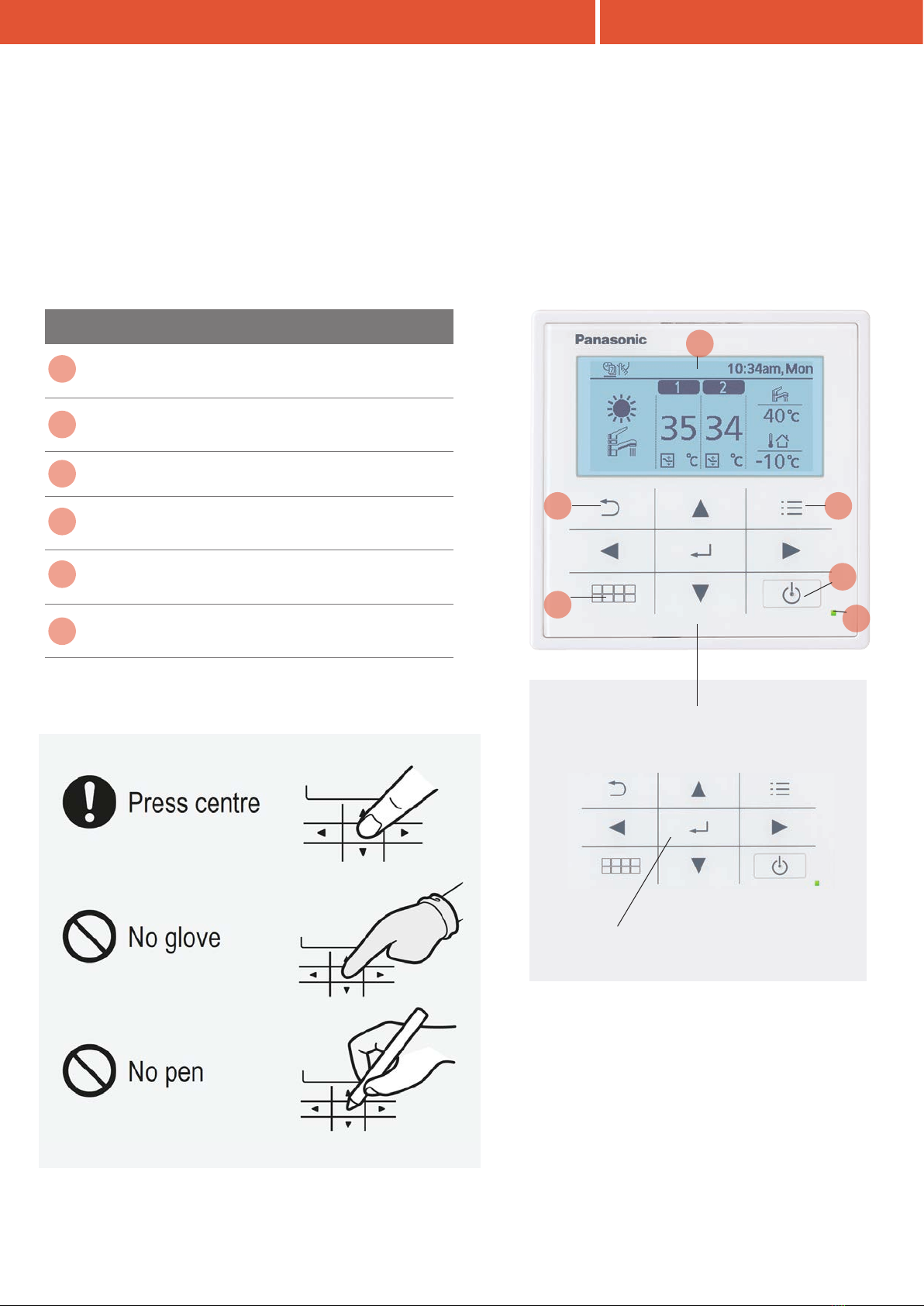

Control Panel
· Do not let the control panel get wet,
· Do not press the buttons on the control panel with hard, pointed objects. Otherwise it may cause damage
Safety precautions ........................................2
Welcome .........................................................3
Overview of ASHP system supplied...............4
Aquarea Smart Cloud.....................................5
Control panel function ...................................7
Operating Instructions of System ................10
Cleaning and Maintenance Instructions......17
Troubleshooting ...........................................18
Error Fault Codes ........................................19
Information and Recycling of Units ............20
Model (Indoor Unit - Bi-bloc and AIO only)
Serial number (Indoor Unit - Bi-bloc and AIO only)
DHW serial number
2

Welcome to your Aquarea air to water heat pump
At the forefront of energy innovation, Aquarea is resolutely positioned as a “green” heating and air
conditioning solution.
Adapts to your needs.
Energy savings, comfort and control from
anywhere with the Aquarea Smart Cloud.
Increased efficiency and resources
management, operating costs savings and satisfaction.
Optimum solutions for premium
comfort.
Panasonic Aquarea Heat Pumps warm your home
effectively and efficiently, they precisely control the indoor
temperature thanks to reliable Panasonic Inverter
Compressors.
Panasonic has created a quiet mode to reduce the noise
when it’s needed and Aquarea offers enhanced
connectivity to improve your comfort.
Energy saving means money savings.
Panasonic Aquarea heat pumps are a smart
choice for saving in heating, as they provide
savings of up to 80% on heating expenses
compared to electrical heaters.
Aquarea units reach A+++ within the range of A+++ to D in
heating and A+ in the range of A+ to F in domestic hot
water, all leading to large savings in your electricity bills.
Compared to an electric heater, your Air to Water Heat
Pump offers up to five times the output in kilowatts per
every input in kilowatts.
Contributing to a descarbonised society.
Your Air to Water Heat Pump is powerful
technology designed with the future in mind. It
is considered a ‘green’ choice as the heat energy
is taken from the environment, making it a sustainable
option. It maintains a comfortable indoor temperature
while significantly reducing environmental burden.
Key benefits
Panasonic Aquarea key features
· Most of the Aquarea heat pumps have a 10L expansion
vessel fitted internally
· Inverter compressor which can regulate the output
capacity depending on demand
· Panasonic Aquarea T-CAP heat pumps can work in
outdoor temperatures as low as -28°C (for All in One and
Bi-bloc, -20°C for Mono-bloc) and guarantee the capacity
without backup heating down to -20°C
· Panasonic heat pumps are very quiet and have a noise
reduction setting for night time.
Thank you for purchasing Panasonic Aquarea air source heat pump, we really appreciate you placing your trust in us.
At Panasonic, we’ve been designing our products with our customers needs in mind for over 100 years and we hope your
new heat pump lives up to your expectations.
Please read this manual carefully before using this product, and save this manual for future use.
In this manual, you will find useful information that will allow you to operate your Panasonic Aquarea system to provide
heating & hot water in the most efficient and cost effective way.
5,00
4,00
3,00
2,00
1,00
0
0,80 1,00
Comparison:1 kW input versus output in kW.
Energy (kW)
Free
energy
Power input
Electric
heating
Oil / gas
boiler
5 TIMES
THE OUTPUT
ENERGY!
Model (Indoor Unit - Bi-bloc and AIO only)
Serial number (Indoor Unit - Bi-bloc and AIO only)
DHW serial number
3
AQUAREA USER GUIDE

Panasonic Aquarea heat pump
Overview of System
The centre of your system is the market leading high performance
“Panasonic Aquarea” air source heat pump. This heat pump can
provide all your heating and hot water, heating will be delivered using
underfloor, traditional radiators or fan assisted radiators, Hot water
will be supplied from a cylinder, Delivery of heat is usually controlled
by the Panasonic controller, which will automatically operate your
heat pump when heating is required during the heating season and
hot water all year round. Room heating control will be from room
wall mounted thermostats or on the radiators (TRV’s).
Monobloc option New All in One option
1b 1c
3
1a
2

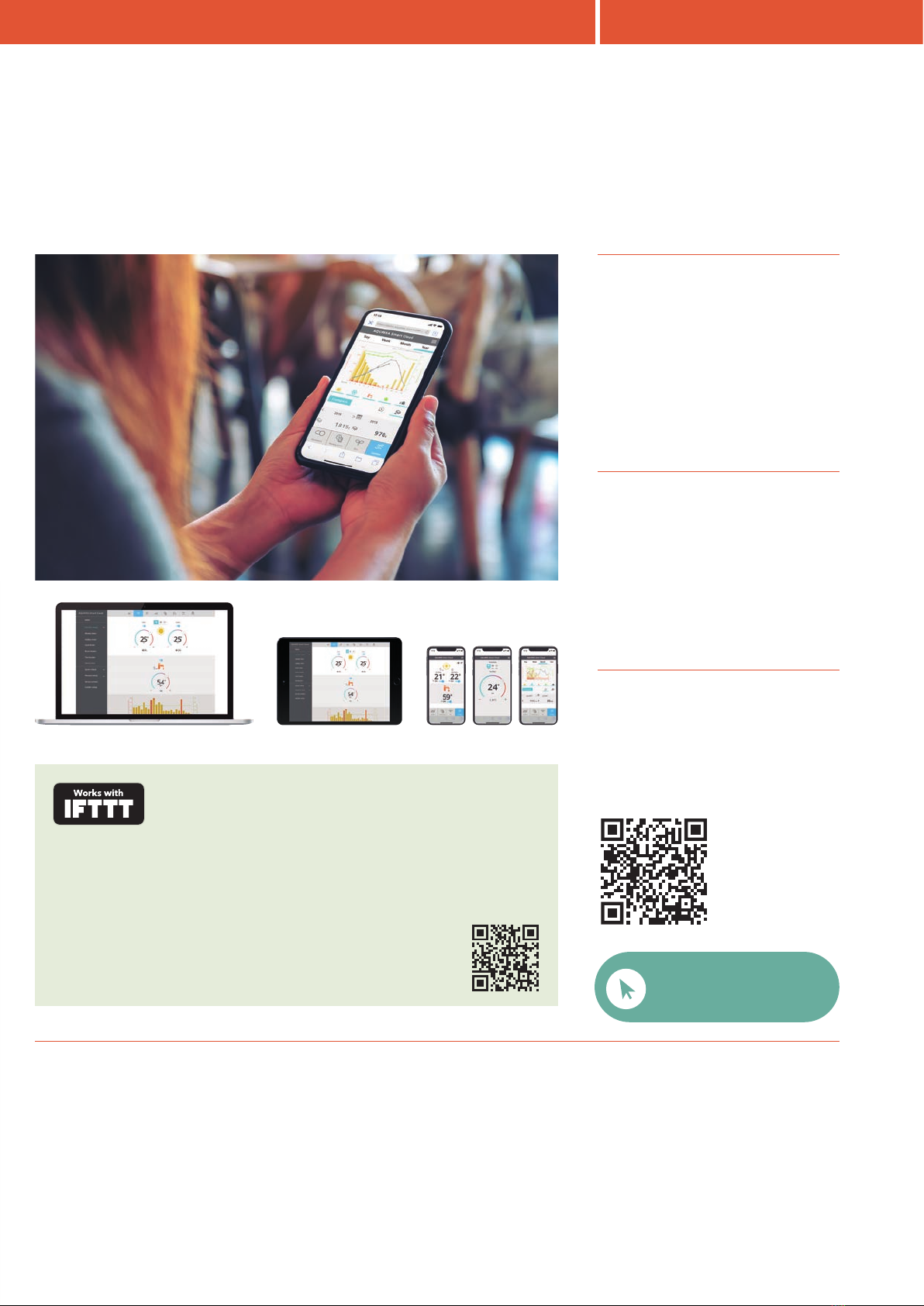

Aquarea Smart Cloud
Easy and powerful energy management. The Aquarea Smart
Cloud is much more than a simple thermostat for switching a
heating device on or off.
It is a powerful and intuitive service for remotely controlling the
full range of heating and hot water functions, including
monitoring energy consumption.
2
Aquarea Air. Highly efficient radiators for heating and cooling
(Optional)
· Highly efficient radiators working with water at 35°C.
· No need for two systems if both floor heating and radiators are
required.
· As the product is efficient, it opens the possibility to also
provide cooling while still meeting construction requirements.
Panasonic offers a cooling mode within its heat pump range for
low consumption homes.
3
Domestic Hot Water Cylinders (Optional)
· Highly efficient tank solution: specially designed to improve
the efficiency of the domestic hot water production.
· Low energy losses
· High exchange surface for high efficiency and to shorten the
time to heat up the water.
4
Overview of ASHP System Supplied
Aquarea air to water heat pumps
Panasonic has developed an extensive range of air-to-water
heat pumps designed to efficiently convert free air into
sustainable heating and hot water. Fitted externally to your
home and designed to operate in all year round weather
conditions (-20ºC), it’s the smart efficient alternative to oil, gas
and electric heating systems.
1a 1b 1c
4
4

More possibilities with IFTTT.
IF This Then That: IFTTT service enables user to
automatically trigger actions for Aquarea system
based on other apps, web services or devices.
Connect your Aquarea to your voice assistant, get an e-mail if your Aquarea
gets an error or automatically turn on your Aquarea on Heat Mode when
outdoor temperature drops below specified level.
https://ifttt.com/aquarea_smart_cloud
Advantages
If your Aquarea heat pump is fitted with the Cloud module, you
will have the power to control your heat pump whenever and
wherever you are, using our Smart Cloud App!
Enhancing your comfort and energy management, the
advanced control is an intelligent and sophisticated service
to fully manage the Aquarea heat pump range of heating,
cooling and domestic hot water settings within the home,
including monitoring of household energy consumption using a
smartphone, tablet, or mobile device.
Easy and powerful energy
management
The Aquarea Smart Cloud is much
more than a simple thermostat for
switching a heating device ON or OFF.
It is a powerful and intuitive service
for remotely controlling the full range
of heating and hot water functions,
including monitoring energy
consumption.
How does it work?
After connecting an Aquarea J or H
generation to the cloud by wireless
LAN or by wired LAN, the user
accesses the Cloud portal to remotely
operate all functions of his units. He
can also permit service partners to
access customised functions for
remote maintenance and monitoring.
Requirements
1. Aquarea J or HGeneration
2. In-house internet connection with
router wireless LAN or wired LAN
3. Get a Panasonic ID in
https://aquarea-smart.panasonic.com/
Aquarea Smart Cloud
The most advanced heating control for today and for the future. Aquarea
can be connected to the Cloud, enabling control and remote maintenance
by service partners.
* User interface image may change without notification.
With the Smart Cloud function activated, users can further
benefit from the extended support provided by the Aquarea
Service Cloud. This advanced service provides an additional
benefit, allowing your service provider to take care of your
heating system remotely! It saves time and money, and offers
the quickest service and solutions for your heat pump. Real
remote maintenance made easy!*
*The service provider must be registered by the homeowner
for the service cloud to enable this function. Registration is
both free and easy!
Register Now for FREE
5
AQUAREA USER GUIDE

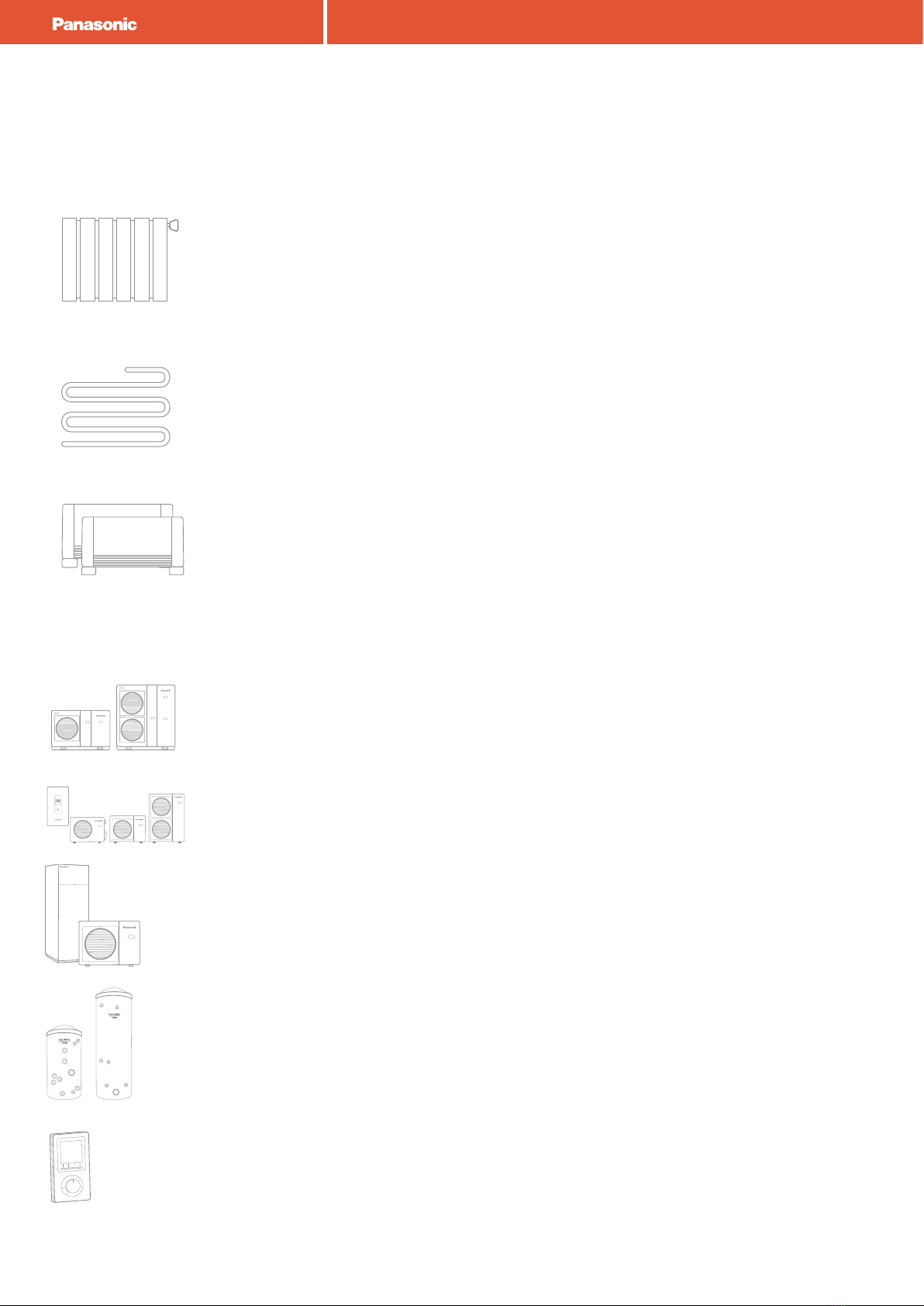

The Panasonic Aquarea System Main Components
Outdoor Unit
The outdoor unit extracts temperature from the air when the fan is turning to start the process of changing this low temperature
to a high temperature using a compression cycle, once the compression cycle is carried out the heat is transferred to the heating
or hot water depending on requirements.
Radiators
To optimise the maximum efficiency and lowest flow rate from the heat pump to heat the room,
radiators can be wider or deeper than radiators you expect to see when connected to a boiler system.
For maximum efficiency and individual room temperature control, Thermostatic Radiator Valves
(TRV’s) are fitted.
Most radiator thermostats will either have numbers or Roman numerals marked on them when they
are adjusted, the higher the number, the warmer the room target set will be.
Underfloor Heating (UFH)
Where underfloor heating is installed you will see a manifold in a cupboard with pipes coming off
them and going into the floor, these pipes heat the floor and therefore the room, the room
temperature will be controlled by a room thermostat connected.
Do not use a high insulated product in floor finishing as this will inhibit the heat being transferred
from floor to air, and in turn increase the flow temperature to achieve target air temperature, with
increased running costs.
Fan Coil (fan Assisted Radiators)
Designed to operate at a lower flow temperatures than traditional radiators to heat the room and
ideal to be used with heat pumps where underfloor is not an option. These smart fan coils also have a
reduced footprint so take up less space than traditional radiators.
Monobloc
Panasonic supply 2 types of heat pumps, firstly a Monobloc system, in this system the hot water
produced to feed the heating and hot water is produced externally from the property inside the
outdoor unit.
Bi-Bloc
The other Panasonic unit is called a Bi-Bloc system this unit generates hot water from an internal
unit (Hydro module) connected to an outdoor unit.
All in one*
New All in One hydromodule + 200L tank
Panasonic has developed a highly efficient solution, easy to install.
Based on the Bi-Bloc system, you have an outdoor unit, with the Hydro Module and DHW Cylinder all
in one cabinet indoors.
Cylinder
Where a system is installed to supply hot water there will be a cylinder with ready to use stored hot
water at approximately 50°C, this water is lower than you would expect from a boiler system but
hotter than you require for washing/showering 39-44°C, more volume is stored to compensate for
less cold water mixing for use, therefore saving money on not heating water to a higher stored
temperature.
Room Thermostat (Optional)
This allows a simple adjustment to the room temperature, the higher the room target set the higher
the running cost. It can be supplied as an option by Panasonic (PAW-A2W-RTWIRED or
PAW-A2W-RTWIRELESS) or another one can be used.
6

Panasonic Controller
Control Panel Function
The Monobloc controller will be sited within the property, On the All In One & Bi-Bloc models, the controller can be found on the
front of the indoor unit, or removed and sited within the property separate from the indoor unit.
4
3
2
1
5
6
Cross key buttons
Selects an item.
Enter button
Fixes the selected content.
RightLeft
Down
Up
Remote Controller buttons and display
Buttons / Indicator
Quick Menu Button
(For more details, refer to the separate Quick Menu
Guide.)
Back button
Returns to the previous screen
LCD Display
Main Menu button
For function setup
ON/OFF button
Starts/Stops operation
Operation indicator
Illuminates during operation, blinks during alarm.
1
2
3
4
5
6
* Note: As the same operator control panel is used for different devices, some functions may not apply for your device.
7
AQUAREA USER GUIDE

Remote Controller buttons and display
4
3
2
1 5
6
7

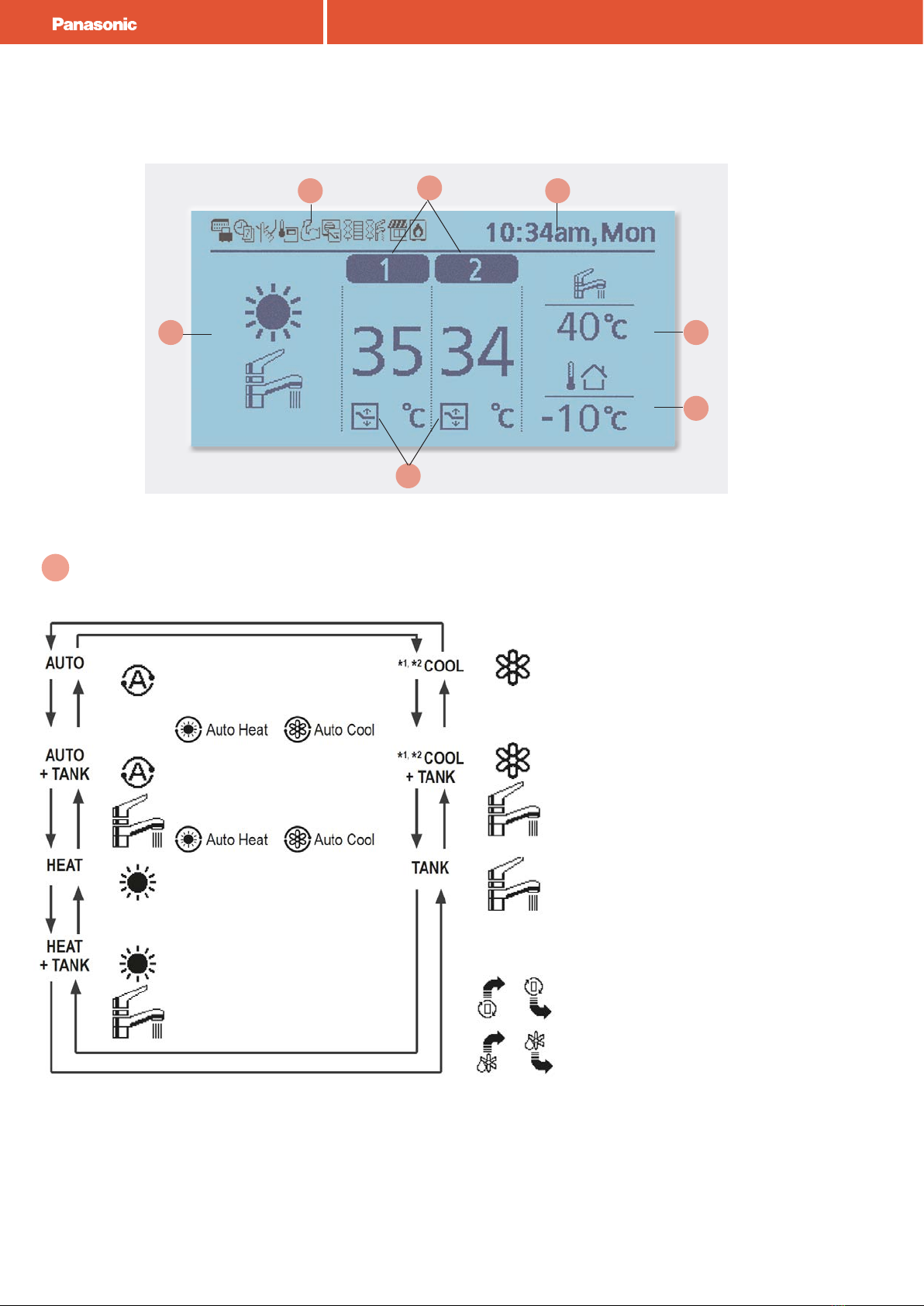

1Mode selection
Depending on the pre-set outdoor
temperature, the system selects
HEAT or *1 COOL operation mode.
Depending on the pre-set outdoor
temperature, the system selects
HEAT + TANK or *1 COOL + TANK
operation mode.
The panel/floor HEAT operation is
either turned ON or OFF. The
outdoor unit provides heat to the
system.
The outdoor unit provides heat to the
water tank and the system.
This mode can be selected only
when the water tank is installed.
The fan coil unit is either turned ON or OFF.
The outdoor unit provides cooling to the system.
The outdoor unit provides cooling to the system.
The system controls the booster heater in the water
tank.
The water tank is either turned ON or OFF.
The outdoor unit provides heat to the water tank.
* The direction icons point to the currently active mode.
Room operation / Tank operation.
Deice operation.
*1 The system is locked to operate without COOL mode. It can be unlocked only by authorised installers or our authorised service partners.
*2 Only displayed when COOL mode is unlocked (This means when COOL mode is available).
8

Water Temperature
-> Compensation curve
Room Thermostat
-> External
Water Temperature
-> Direct
Room Thermostat
->Internal
Pool only
Room Thermistor
2Operations icons
The status of operation is displayed. These icons will not display (under operation OFF screen) whenever the operation is OFF
except weekly timer.
3Temperature of each zone
4Time and Day
5Water tank temperature
6Outdoor temperature
7Sensor type/Set temperature type icons
Holiday operation status
Quiet operation status
Zone: Room Thermostat
> Internal sensor status
Room Heater status
Weekly Timer operation status
Powerful operation status
Tank Heater status
Demand Control or SG ready or
SHP status
Solar status
Bivalent status
(Boiler)
Checking your Warranty
All of our Aquarea heat pumps come with a 3 year warranty as standard, covering your Aquarea unit
in the event that any issues with the system arise. Your level of warranty could increase up to 5 or
7 years depending upon the status of your installer on our preferred partner scheme. Check your
warranty using your postcode and the serial number on your unit using this QR code:
9
AQUAREA USER GUIDE

Press the ENTER button
Press the RIGHT button
The tank set temperature will be displayed.
Use the UP or DOWN button to change the tank set temperature.
Press the ENTER button to lock the new temperature and exit.
How to Change DHW Water Temperature in Cylinder*
To change the hot water set point, please use the following optons:
Maximum Target set temperature for Domestic Hot Water is 50C lower than the maximum flow temperature of heat pump
model installed to be delivered by compressor ONLY, if set higher then direct electric will be used to achieve and incur higher
running cost.
*This option is only available if TANK or HEAT+TANK mode are active
10

Force
DHW
Weekly
Timer
Powerful
Force
Defrost
Quiet
Error
Reset
Force
Heater
R/C Lock
Use to select menu.
Press to turn on/off the select menu.

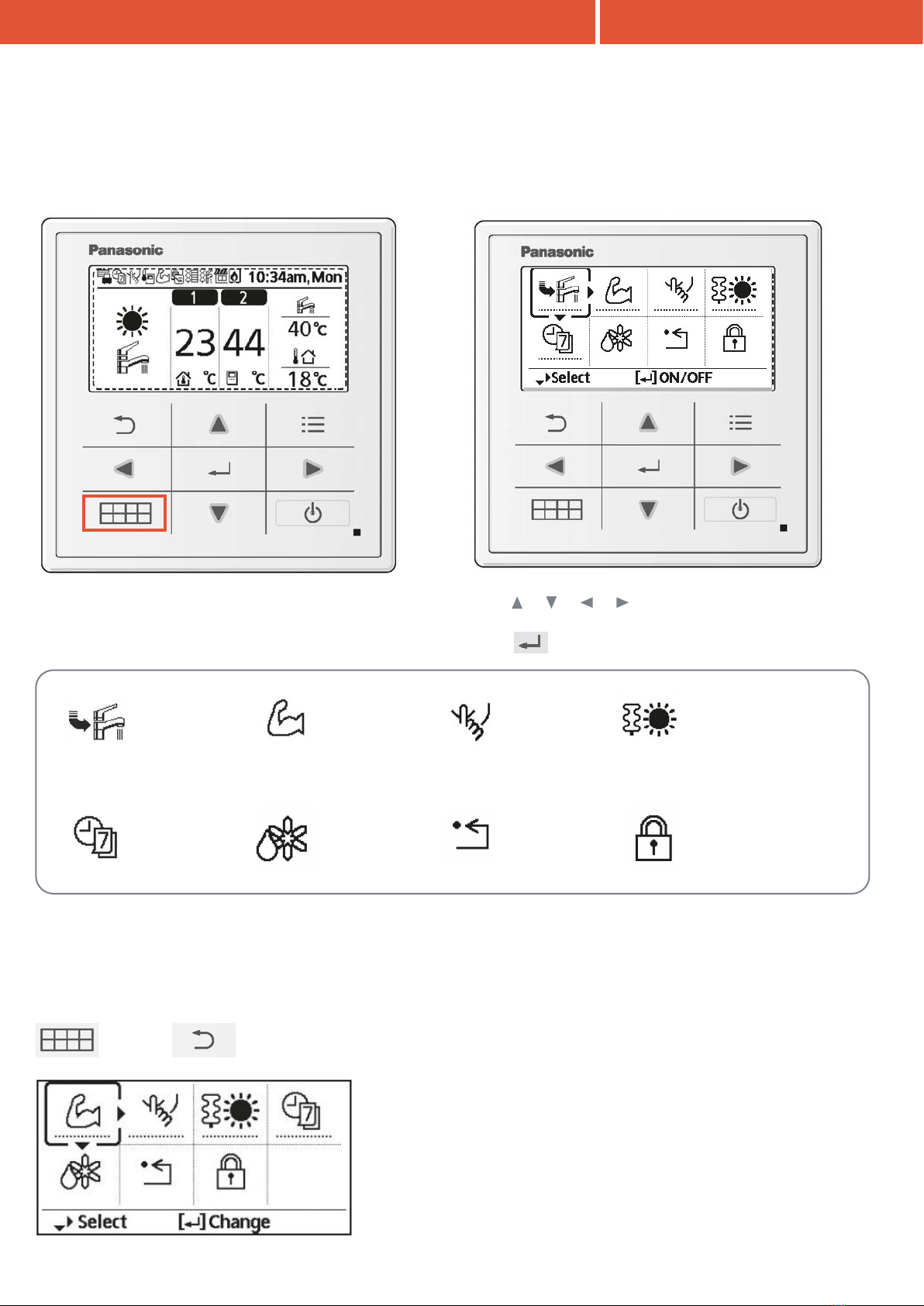

How to use the Quick Menu
After the initial settings have been completed, you can select a quick menu from the following options and edit the setting.
Select each setting and confirm the setting according to the instructions displayed at the bottom of the screen. (The icons refer to
each selection key.)
Note: If the system is not connected to the tank (Tank Connection is OFF), the
Quick Menu screen will be displayed as left. Make sure the Tank Connection is
ON.
To return to main screen press:
or
11
AQUAREA USER GUIDE

Notes on operation icons
Example:
Operation icon indicate with “.......... ” = OFF
Operation icon indicate with “_____ ” = ON
Select this icon to turn the Tank DHW on or off.
• Force DHW is turned off.
• Force DHW is turned on.
Force DHW
Press to confirm your selection.
Note:
• Force DHW is disabled when Force Heater is turned on.
• When Force DHW is turned off, operation & mode should change back to the previous memorised status
Select this icon to operate the heating/cooling system powerfully.
Powerful Mode
Powerful mode activates the highest flow temperature set on the weather compensation mode for a period of
30, 60 or 90 minutes, depending on the time selected when activated.
Note:
• Powerful is disabled when operation is turned OFF.
• Powerful mode is set off.
• The Powerful mode operates for 30 minutes.
• The Powerful mode operates for 60 minutes.
• The Powerful mode operates for 90 minutes.
Press to confirm your selection.
12

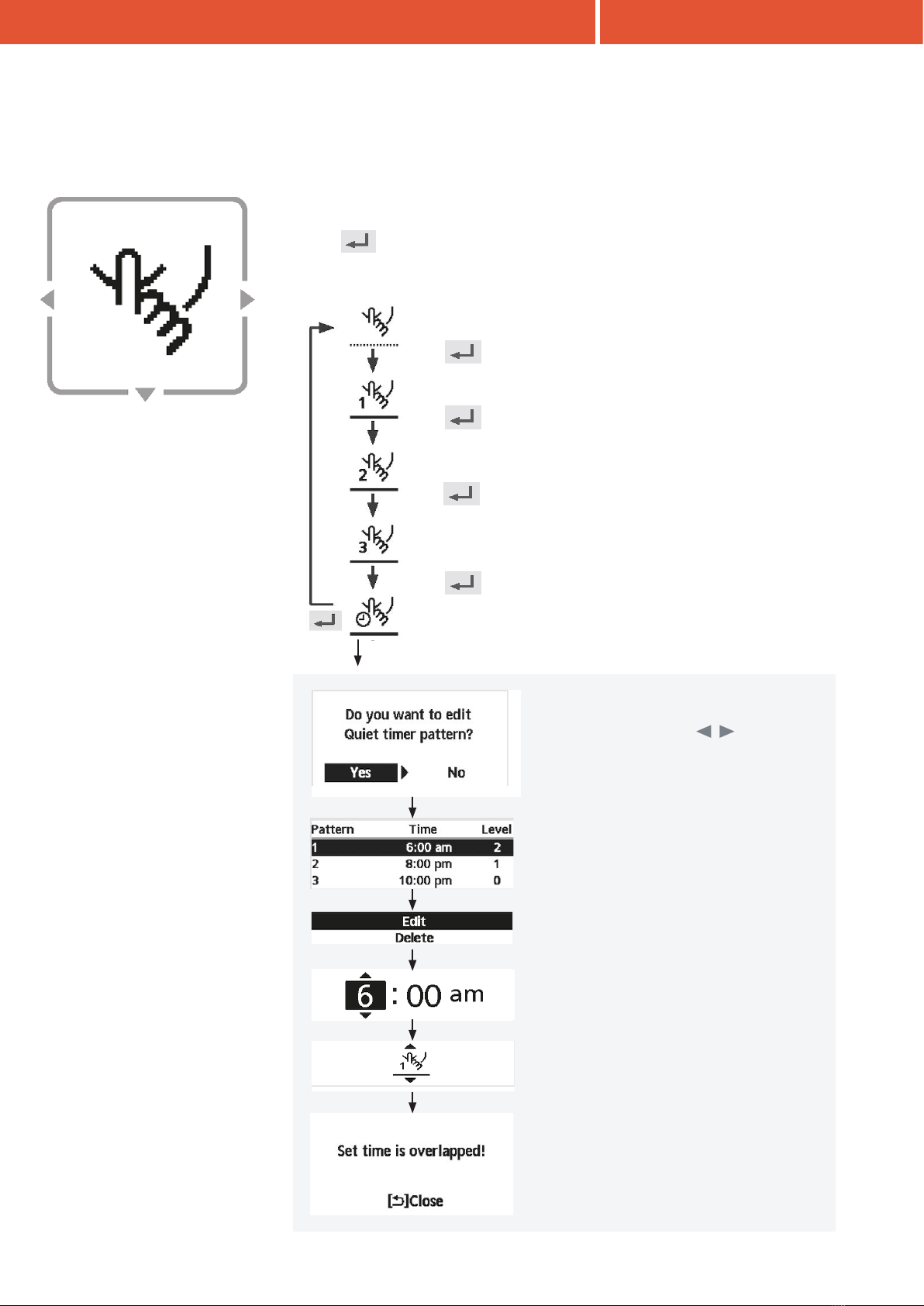

Select this icon to operate quietly.
• Quiet mode is set off.
• The Quiet mode operates at level 1.
• The Quiet mode operates at level 2.
• The Quiet mode operates at level 3.
Level 3 is the most quiet mode.
• Select this to set a timer for the Quiet mode operation.
Select “Yes”.
• Select “Yes” using buttons.
Select pattern “1” ~ “6”.
Select “Edit”.
• If you select “Delete”, the timer
setting of
the selected pattern will be deleted.
Set the hour and minutes.
Select the level of Quiet.
Note:
• If the time overlaps with another
pattern,
"Set time is overlapped!" will appear on
the screen.
After 1 sec delay.
Quiet Mode
In Quiet mode operation, noise levels can be reduced between 4 – 6dB(A), depending on the operating
conditions.
Press to confirm your selection.
13
AQUAREA USER GUIDE

Force Heater
Select this icon to force the Heater on.
• Force Heater is turned off.
• Force Heater is turned on.
Note:
• It is not possible to switch on the Force Heater during operation of the heat pump. If you try to enable the force heater during
operation, you will seethe following display.
Press to confirm your selection.
14

Select this icon to delete (cancel) or change the pre-set
Weekly Timer.
• Timer is turned OFF.
• Timer is set.

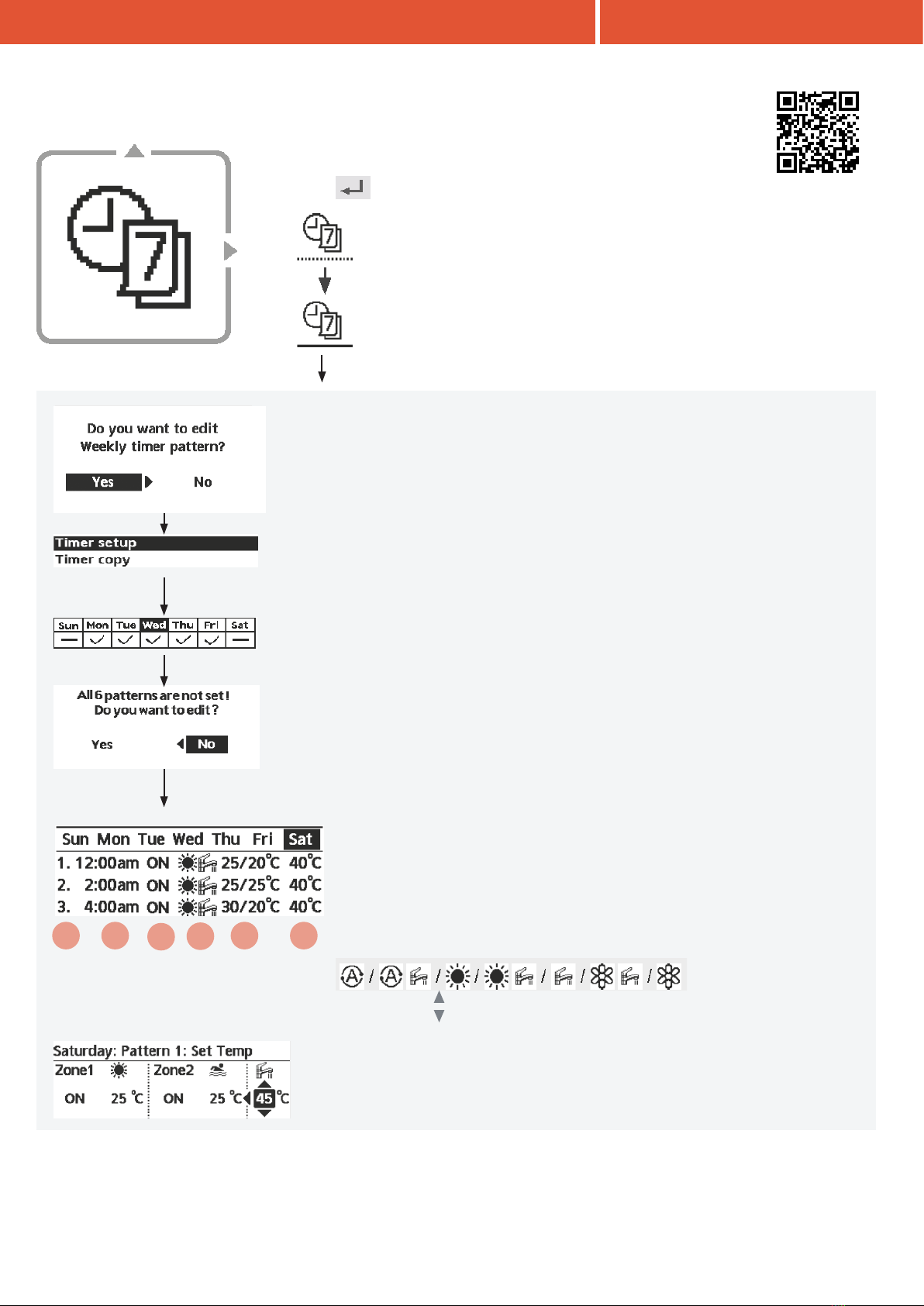

Weekly Timer
Note:
• Timer is disabled when Force Heater is turned on or Heat-Cool SW is enabled.
• If you have pre-set the Weekly Timer on 2 zones, you must repeat the same procedure with Zone 2.
Select “Yes”.
• If you select “No”, the screen will return to the Main Screen.
• Timer setup: Select Timer setup to edit the Weekly Timer.
• Timer copy: Select to copy a timer setting.
[Example of a Timer setup]
Select the day(s) which you wish to edit using buttons.
If all 6 patterns are not pre-set, this screen will be displayed.
After 1 sec delay.
1. Select pattern “1” ~ “6”.
2. Set the hour and minutes of the Timer.
3. Select ON/OFF of the Timer.
4. Select the operation mode.
• Select mode using buttons.
5. Set the temperature for both Zone 1 and 2 (if your system has the
2-Zone setting).
6. Set the Tank temperature.
1235 6
Force Heater
Press to confirm your selection.
4
Scan to view our
video tutorial on
setting your weekly
timer.
15
AQUAREA USER GUIDE

Press and continuously
for 5 seconds.
(When the mode has been accepted, below screen
will be displayed.) Select “Reset”. (The screen will
be off after 3 seconds.)
Force Defrost
Select to force a refrigeration defrost
Error Reset
Select to restore the previous settings when error has occurred.
• Make sure all units are turned off before selecting
this mode which restores the whole system to the
previous settings.
Remote Control Lock
Select to lock the Remote Controller.
Select “Yes”.
(The Main Screen will be locked.)
If “No” is selected, the screen will return to the
Main Screen.
To unlock the Remote Controller, press any key.
(When the mode has been accepted, below screen
will be displayed.)
Enter any 4 digits of number (if the number is correct,
the screen will be unlocked).
To reset forgotten password (under operation OFF
screen)
Press to confirm your selection.
(When the mode is accepted, the below screen will be displayed.)
Press to confirm your selection.
(When the mode is accepted, the below screen will be displayed.)
Press to confirm your selection.
(When the mode is accepted, the below screen will be displayed.)
16

Cleaning and Maintenance Instructions
RECOMMENDATIONS
Cleaning Instructions
To ensure optimal performance of the system, cleaning has to be carried out at regular intervals. Consult an authorised dealer.
• Disconnect the power supply before cleaning.
• Do not use benzine, thinner or scouring powder.
• Use only soap (pH7) or neutral household detergent.
• Do not use water hotter than 40°C.
Indoor Unit
• Do not splash with water directly.
• Wipe the unit gently with a soft dry cloth.
Water Filter
• Clean the water filter at least once a year.
Failure to do so may cause the filter to clog up, which
may lead to system breakdown.
Consult an authorised dealer.
Outdoor Unit
• Do not obstruct the air inlet and outlet vents. Failure to
do so may result in low performance or system
breakdown. Remove any obstruction to assure the
ventilation.
• When it snows, clean and remove snow around the
outdoor unit to prevent the air inlet and outlet vents from
being covered with snow.
For extended non-use
• The water inside the Domestic Hot Water Tank should be
drained.
• Disconnect the power supply.
Non serviceable criteria
Switch off power supply then please consult an authorised
dealer under the following conditions:
• Abnormal noise during operation.
• Water/foreign particles have entered the Remote
Controller.
• Water leaks from the indoor unit.
• Circuit breaker switches off frequently.
• Power cord becomes excessively warm.
Maintenance
User
In order to ensure optimal performance of the units, user may inspect and clear any obstruction on the air inlet and outlet
vents of the outdoor unit.
Installer/Engineer
• In order to ensure safety and optimal performance of the units, seasonal inspections on the units, functional check of
RCCB/ELCB, field wiring and piping have to be carried out at regular intervals by authorised installer/engineer
• Specific to the Domestic Hot Water Tank, it is important to service the Water Filter Set periodically and inspect the Anode
Bar annually. The Anode Bar* which protects the tank body will corrode, depending on water quality. When diameter is
approximate 8mm, the Anode Bar must be replaced.
• Users should not try to service or replace parts of the unit.
• Contact authorised dealer for scheduled inspection.
*Anode Bar is fitted to only certain cylinders in Ireland, NOT used in the UK.
Do not press or hit the glass cover using
hard and sharp objects. Failure to do so
may cause damage to the unit.
Ensure that the water pressure is between
0.05 and 0.3 MPa (0.1 MPa = 1 bar).
In case the water pressure is out of the
above range, consult an authorised dealer.
Water pressure gauge
All in one
- Inside indoor unit
Bi-Bloc
- Inside indoor unit
Monobloc
- Inside outdoor unit
17
AQUAREA USER GUIDE

Symptom Cause
Water flowing sound during operation. Refrigerant flow inside the unit
Operation is delayed a few minutes after restarting The delay is a protection for the compressor.
Outdoor unit emits water/steam. Condensation or evaporation occurring in the pipes.
Steam comes out of the outdoor unit in the heating mode. It is caused by defrost operation in the heat exchanger.
Outdoor unit does not operate. It is caused by the protection control of the system when outdoor
temperature is out of the operating range.
System operation switches off. It is caused by the protection control of the system. When the
water inlet temperature is lower than 10°C, the compressor stops
and the backup heater power turns on.
System is hard to heat up. When the panel and the floor are heated simultaneously, warm
water temperature may decrease, which may reduce the heating
ability of the system.
When the outdoor air temperature is low, the system may need
longer time to heat up.
Discharge outlet or intake inlet in the outdoor unit is blocked by
some obstacle, such as a pile of snow.
When the pre-set water outlet temperature is low, the system may
need longer time to heat up.
System does not heat up instantly. System will take some time to heat up the water if it starts to
operate at cold water temperature.
Backup heater is automatically turned ON when it is
disabled.
It is caused by the protection control of the indoor unit heat
exchanger.
Operation starts automatically when the timer is not set. Sterilisation timer has been set.
Loud refrigerant noise continues for several minutes. It is caused by protection control during device operation at
outdoor ambient temperature lower than -10°C.
*1 COOL mode is unavailable System has locked to operate in HEAT mode only.
Symptom Check
Operation in HEAT/*1 COOL mode is not working efficiently. Set the temperature correctly.
Close the panel heater/cooler valve.
Clear any obstruction in the air inlet and air outlet vents of the
outdoor unit.
Noisy during operation. Outdoor unit or indoor unit has been installed at an incline.
Close the cover properly.
System does not work. Circuit breaker has tripped/activated.
Operation LED is not lit or nothing is displayed on the
Remote Controller
Power supply is working correctly, or a power failure has occurred.
*1 The system is locked to operate without COOL mode. It can be unlocked only by authorised installers or our authorised service
partners.
*2 Only displayed when COOL mode is unlocked (This means when COOL mode is available).
Check the following before calling for servicing.
Troubleshooting
18

Below is a list of error codes that may appear on the display
when there is some trouble with the system setting or
operation.
When the display shows an error code as indicated below,
contact the number registered in the Remote Controller or a
nearest authorised installer.
All switches are disabled except and
Should you require any assistance please call your installer
as the first point of call, indicating the fault or fault code,
otherwise please call Panasonic Technical Support 0808
2082 115 for assistance. (Your warranty card details will be
required).
Error Code Error Explanation
H12 Capacity mismatch
H15 Compressor sensor error
H20 Pump error
H23 Refrigerant sensor error
H27 Service valve error
H28 Solar sensor error
H31 Pool sensor error
H36 Buffer tank sensor error
H38 Brand mismatch error
H42 Low pressure protection
H43 Zone 1 sensor error
H44 Zone 2 sensor error
H62 Water flow error
H63 Low pressure sensor error
H64 High pressure sensor error
H65 Deice water circulation error
H67 External thermistor 1 error
H68 External thermistor 2 error
H70 Back-up heater OLP error
H72 Tank sensor error
H74 PCB communication error
H75 Low water temp protection
H76 RC-Indoor communication error
H90 Indoor-Outdoor communication error
H91 Tank heater OLP error
H95 Voltage connection error
H98 High pressure protection
H99 Indoor freeze prevention
Error Code Error Explanation
F12 Pressure switch activate
F14 Poor compressor rotation
F15 Fan motor lock error
F16 Current protection
F20 Compressor overload protection
F22 Transistor module overload protection
F23 DC peak
F24 F24 Refrigerant cycle error
F25 *1 Cool / heat cycle error
F27 Pressure switch error
F29 Low discharge super heat
F30 Water outlet sensor 2 error
F32 Internal thermostat error
F36 Outdoor ambient sensor error
F37 Water inlet sensor error
F40 Outdoor discharge sensor error
F41 Power factor correction error
F42 Outdoor heat exchanger sensor error
F43 Outdoor defrost sensor error
F45 Water outlet sensor error
F46 Current transformer disconnection
F48 Evaporator outlet sensor error
F49 Bypass outlet sensor error
F95 *1 Cooling high pressure error
*1 The system is locked to operate without COOL mode. It can be unlocked only by authorised installers or our authorised
service partners.
*2 Only displayed when COOL mode is unlocked (This means when COOL mode is available).
Error Fault Codes
19
AQUAREA USER GUIDE

Want peace of mind with your Panasonic
Aquarea Heat Pump?
If so, check out our new worry free Aquarea Service+, a range
of service packages designed to protect your heat pump.
Our service technicians
are experts in Aquarea
heat pumps
Problems can be
diagnosed remotely,
avoiding any
unnecessary visits
Application of IoT
technology to your
heatpump offers unique
benefits
Why choose our Aquarea Service+?
By choosing Aquarea Service+, you get the best from your Aquarea
heat pump, without any surprises. Thanks to remote monitoring,
your heating specialist can take care of everything without
bothering you and interrupting your life.
20
