Panasonic OCU-CR1000VF8A Operating instructions

ENGLISH
Outdoor Type Refrigeration Unit
(Non-uorocarbon Refrigeration Unit with CO2Refrigerant)
Operating Instructions and Installation Instructions
Panasonic Corporation
1006 Kadoma, Kadoma City, Osaka, Japan
CONTENTS
Cautions for Safety....................................................... 2-8

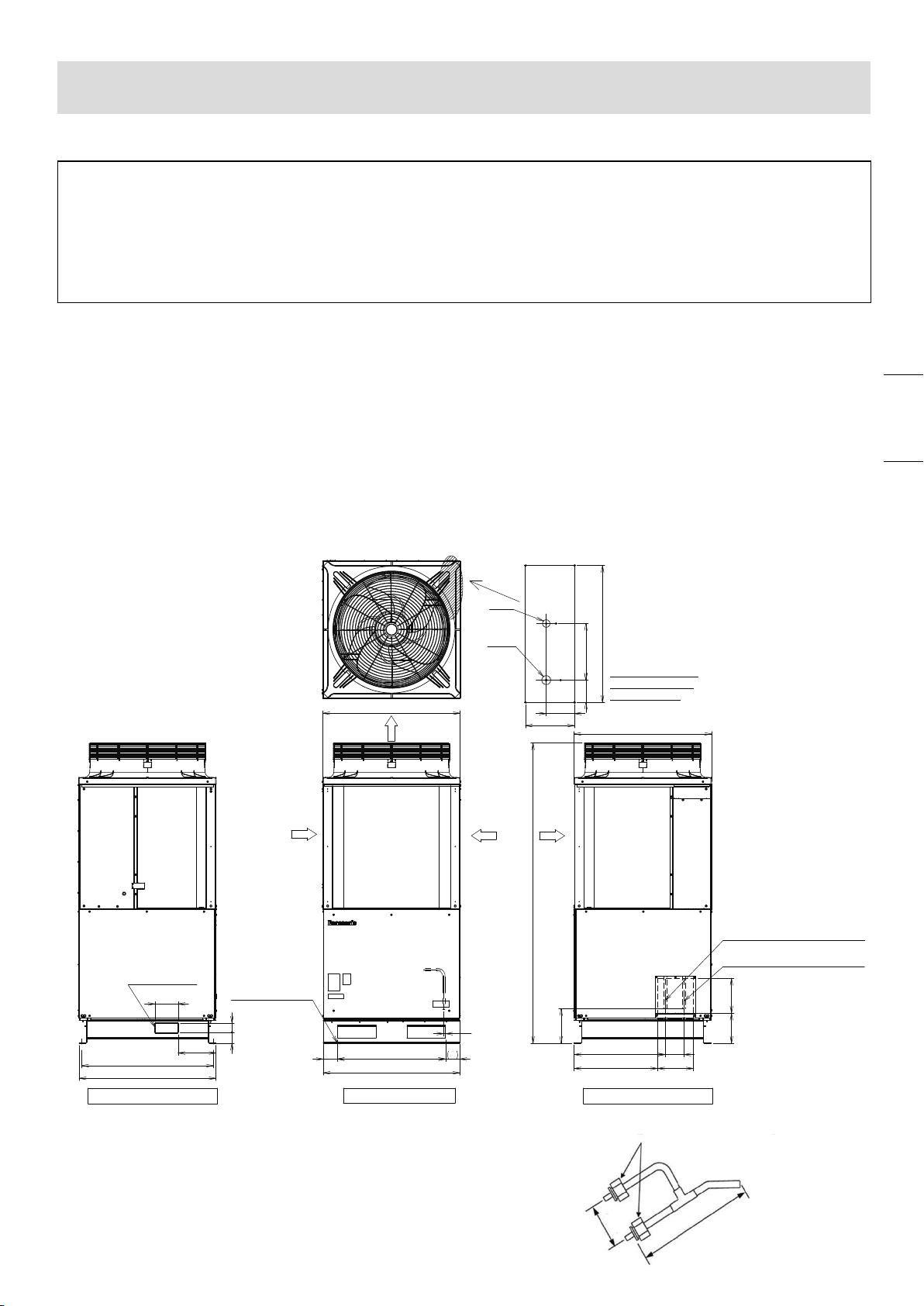

Name of Each Part .......................................................... 9
Scope of Application, Specifications......................... 10-11
For Effectively Using the Refrigeration Unit.............. 12-13
Selection of Installation Location.............................. 13-14
Carry-in/Installation................................................... 14-15
Installation Example ...................................................... 16
Refrigerant Piping Work ........................................... 17-18
Piping Example.............................................................. 19

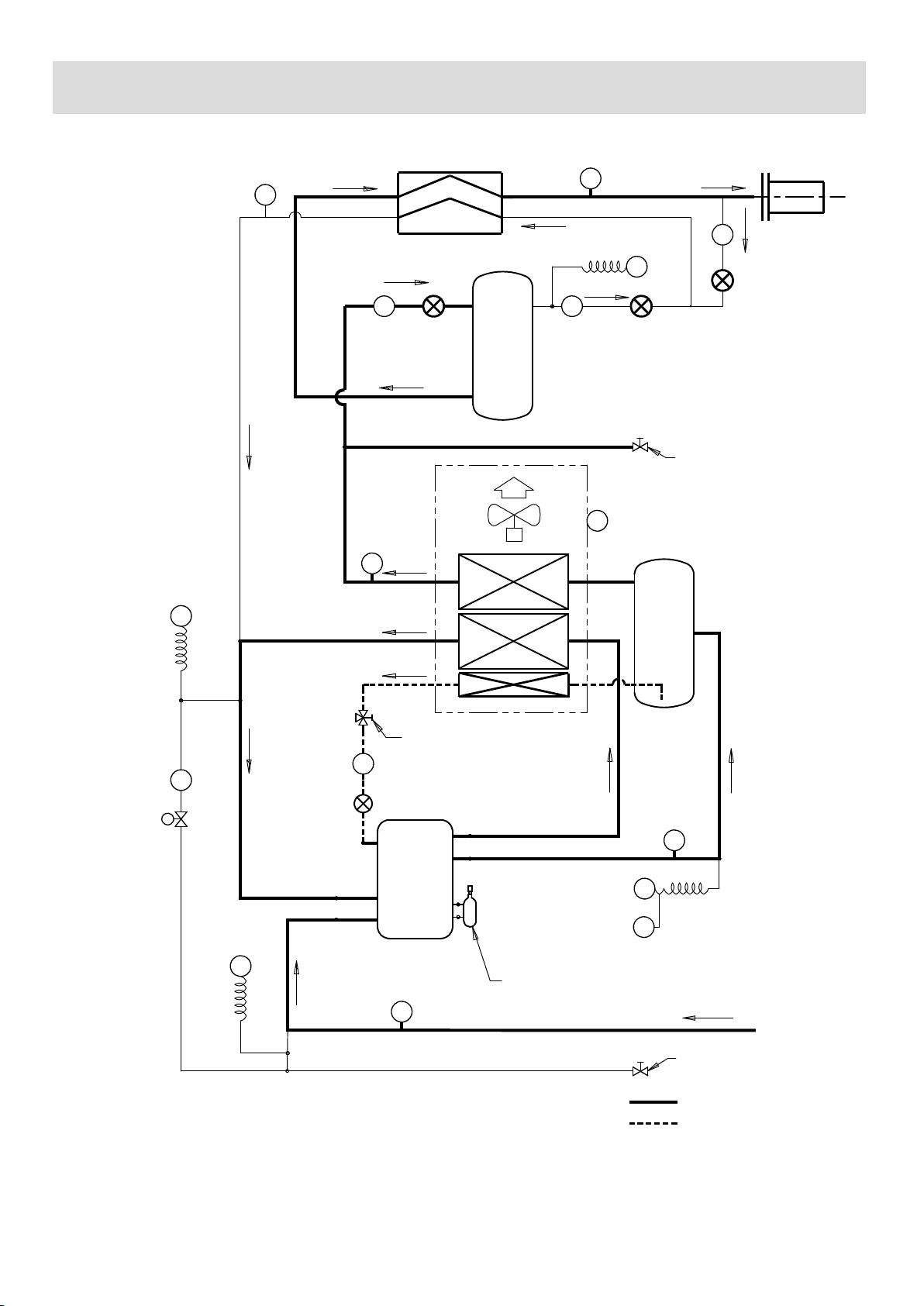

Refrigerant Circuit Diagram........................................... 20
Refrigerant Charging ................................................ 21-22
Cautions for Electrical Wiring Work............................... 23
Electrical Wiring Work .............................................. 24-25
Electrical Circuit Diagram ......................................... 26-27
What Needs to be Checked before Operation............... 28
Setting and Indication............................................... 29-33
Control Functions ..................................................... 34-36
Adjustment during Operation.................................... 36-37
Oil Level Control Method.......................................... 38-41
About Alarms ............................................................ 41-43
Maintenance and Inspection.......................................... 44
Actions at the time of Failure.................................... 45-46
Failure Diagnosis...................................................... 47-53
Makings for Directive 2014/68/EU (PED) ...................... 54
Model No. OCU-CR1000VF8A / OCU-CR1000VF8ASL
Thank you very much for purchasing Panasonic products this time.
Please read this instruction booklet and correctly comply with the explanations.
In particular, please read "Cautions for Safety" (Pages EN2 to EN8) for ensuring safe
operations.
Please retain this instruction booklet in a safe place.
Caution labels are attached to the product.
• The English text is the original instructions.
Other languages are translation of the original
instructions.
NOTICE
This illustration represents OCU-CR1000VF8A
Electrical Approval Certificate in Australia
CS10836N
01_OCU-CR1000VF8A.indd 1 2019/08/27 10:56:02

EN - 3EN - 2
For the purpose of avoiding harm to people and damage to properties, items to be complied with are explained here.
■ Explanations are classified by degree of harm or damage caused by incorrect use.
WARNING Indicates possibility of death or serious injury.
CAUTION Indicates possibility of minor injury or damage to properties.
■ Items to be observed are explained by the following pictograms.
Indicates what you should not do.
Indicates what you must do.
WARNING
Installation Work
Installation to be made by manufacturer’s
service personnel or similarly skilled person.
Incorrect installation work may
lead to malfunction such as
abnormal vibration, and generates
refrigerant gas leak, electrical
shock, or fire.
Do not use other than the designated
refrigerant (for charging, adding or
recharging)
Non-designated refrigerant may
cause equipment failure or burst,
or injury.
Appliances employing R744 refrigeration
system.
System contains refrigerant under
high pressure. Do not tamper with
the system. It must be serviced by
qualified persons only.
Securely complete refrigerant piping before
carrying out airtight testing.
Refrigerant gas leak may cause
suffocation.
Cautions for Safety (Be sure to comply with the following)
01_OCU-CR1000VF8A.indd 2 2019/08/27 10:56:02

EN - 3EN - 2
ENGLISH
Installation Work
Installation should be made securely on a
place that can fully support the mass of the
refrigeration unit.
Insufficient foundation may cause
falling or dropping, and lead
to refrigerant gas leak, injury,
electrical shock, or fire.
● Refrigeration unit should be
secured on a concrete base
with a mass approximately
3 times that of the unit and
fastened with anchor bolts.
Perform airtight test before charging
refrigerant.
Refrigerant gas leak may cause
insufficient oxygen and lead to a
death accident.
● Carry out airtight test and
confirm no leak of refrigerant.
Install the safety cover.
Touching the refrigeration unit
by hand of the people other than
the designated operators may
cause injury.
● Install a safety cover or
protective fence.
Piping, equipment components and tools
should be exclusively for R744 (CO2
refrigerant).
Use of components for HFC
refrigerant may cause serious
accidents such as equipment
failure and rupture of the
refrigerant cycle.
Electrical Work
Always use a dedicated circuit and install a
ground fault protector.
Incorrect electrical work may
lead to current leak and fire or
electrical shock.
● Wiring work should conform to
the installation instructions.
Grounding Work
Lack of grounding work may
lead to electrical shock caused
by current leak.
● Securely carry out grounding
work by qualified technicians.
Electrical wiring should use the specified
cable and to be properly secured.
When the specified cable is
not used, or connection or
securing is incomplete, electrical
resistance becomes larger and
may cause abnormal heating or
fire.
● Use the specified cable and
properly secure it on an
appropriate location.
Securely place the cover on the electrical
box and enclosure panel.
Incomplete attachment may
lead to penetration of water and
living creatures, thereby causing
current leak and fire/electrical
shock.
● Confirm that covers are
securely installed.
Cautions for Safety (Be sure to comply with the following)
01_OCU-CR1000VF8A.indd 3 2019/08/27 10:56:02

EN - 5EN - 4
Cautions for Safety (Be sure to comply with the following)
Cautions for Use
Do not change the set values of the safety
device.
Using the refrigeration unit with
changed values may cause
failure of the safety stop function
and lead to a burst or fire.
● Do not change the set values
of the safety device. If they
are changed unintentionally,
shut off the power switch and
ground fault protector and
consult with the distributor.
Do not insert a finger, stick or foreign
object into the ventilation opening and fan
guard of the enclosure panel.
Such object may hit the fast
rotating fan and result in injury.
When water or other material gets into the
electrical box, turn off the power switch
and shut off the ground fault protector.
Continued use may cause
short-circuit, leading to fire or
electrical shock.
● Do not splash water on
electrical components or wash
them with water.
When the ground fault protector activates,
report to the specialty company.
Forced recovery of power may
cause current leak, leading to
fire or electrical shock.
For the purpose of controlling
concentration of refrigerant gas, install a
leak detector and mechanical ventilation
equipment in the refrigerant-handling
facility (inside the room).
Refrigerant gas leak may cause
suffocation.
Restriction on use of equipment
The appliance is not to be used
by persons (including children)
with reduced physical, sensory
or mental capabilities, or lack
of experience and knowledge,
unless they have been given
supervision or instruction.
Consideration for children
Children shall not play with the
appliance.
«In the European Market»
Children should be supervised
to ensure that they do not play
with the appliance.
«In the Australian and New
Zealand market»
Restriction on use of equipment
This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have
been given supervision or
instruction concerning use of
the appliance in a safe way
and understand the hazards
involved.
«In the European Market»
Cleaning and maintenance by trained person.
Cleaning and user maintenance
shall not be made by children
without supervision.
«In the European Market»
01_OCU-CR1000VF8A.indd 4 2019/08/27 10:56:03

EN - 5EN - 4
ENGLISH
Cautions for Use
Restriction on use of equipment
This appliance is not intended for use by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.
«In the Australian and New Zealand market»
Repairs
Disassembly or repairs should be
performed by a specialty operator.
Incorrect disassembly or repair
may lead to abnormal operation
and causes injury, fire or
electrical shock.
● Request a specialty operator
to perform disassembly or
repair work.
Do not absolutely perform
modification.
When abnormal operation was detected,
or before starting disassembly or repair,
turn off the power switch and shut off the
ground fault protector.
Continued operation with
abnormal condition, or
disassembly/repair without
shutting off the power would
lead to current leak or short-
circuit and may cause fire or
electrical shock.
Specified components must be used for
repair.
Use of non-specified
components may cause failure
of the safety stop function and
lead to burst or fire.
● Consult with the distributor.
Stop the compressor before disconnecting
the refrigerant piping.
Disconnecting the piping while
the compressor is in operation
would cause abnormally high
pressure with air intake, and
may lead to a burst or injury.
Replacing the power cord.
If the supply cord is damaged,
it must be replaced by
manufacturer, its service agent
or similarly qualified persons in
order to avoid a hazard.
Contact technician.
If any leak of refrigerant is
detected, contact the authorized,
licensed and qualified technician
to repair the system.
Moving or Change of Installation Location
Request a certified installer for moving or
changing the location.
Incorrect installation or moving
work may lead to malfunction
such as abnormal vibration, and
generates refrigerant gas leak,
electrical shock, or fire.
Cautions for Safety (Be sure to comply with the following)
01_OCU-CR1000VF8A.indd 5 2019/08/27 10:56:03

EN - 7EN - 6
CAUTION
Installation Work
Do not install in a place with possible leak of
flammable gas.
Leaked flammable gas around the
refrigeration unit may catch fire
from a spark of a switch and lead
to fire.
Produce a refrigeration cycle within the
limits of an operation standard (Scope of
Application).
Non-standard refrigeration cycle
may generate abnormal high
pressure and abnormal heat
generation, thereby causing burst,
smoke generation, fire and current
leak.
Apply a drain work according to the need.
Without consideration of drain
water processing, moisture from
rainwater and defrosted water
generates mold and moss, and
may cause slipping on the floor.
Apply heat insulation on the suction line and
liquid line.
Lack of heat insulation generates
water from condensation and mold
and moss, thus causing slipping
on the floor.
Install in a place without air stagnation.
Leak of refrigerant gas may cause
insufficient oxygen and harm
human health.
● Install in a place with good
ventilation.
Request a specialty operator for moving the
refrigeration unit.
Incorrect moving may cause falling
or dropping of the refrigeration
unit, and cause injury.
● Refrigeration unit is a heavy
item. Always consult with a
specialty operator.
Electrical Work
Always install a ground fault protector with
the specified capacity.
Incorrect capacity does not
operate safety stop function
and may lead to fire or electrical
shock.
Ground fault protector needs
to follow IEC60364-4-44
443,overvoltage category III.
(Impulse withstand voltage value
4kV.)
Do not include electrical wiring in the heat
insulation material.
Condensation of piping may
cause current leak and fire
caused by overheating.
Cautions for Safety (Be sure to comply with the following)
01_OCU-CR1000VF8A.indd 6 2019/08/27 10:56:03

EN - 7EN - 6
ENGLISH
This product is intended for professional
use.
Permission from the power
supplier is required when you
connect this unit to a 16A
distribution network.
Cautions for Use
When the refrigerant bursts out, shut off the
power and fully close the service valve.
Blowout of refrigerant from the
refrigeration cycle by opening
the service port would cause
insufficient oxygen and harm
human health.
Do not use flammable spray near the
refrigeration unit. Do not place flammable
materials nearby.
Flammable material may catch
fire from switch spark.
Do not touch electrical components by a
wet hand.
Switching operation by a wet
hand may cause electrical shock
and injury.
Before any inspection service, turn off the
power switch and shut down the ground
fault protector.
Inspection work with power
on may lead to electrical
shock, interference with the
moving mechanism, and heat
generation, thereby leading to
injury and skin burn.
Periodically check operation of the ground
fault protector.
Failed interrupter does not
operate safety stop function
and may lead to fire or electrical
shock.
Do not touch the fin of the gas cooler.
Touching the fin and sliding
along the fin may cause skin cut
by the fin edge.
Do not ride on the refrigeration unit.
Riding on the refrigeration unit
or placing an article on it may
lead to falling or dropping by
vibration and cause injury.
Do not operate with the oil service valve
closed.
Operation with the oil service
valve closed would cause an
error.
Periodically check the installed base.
Damaged base after a long-time
use may cause the refrigeration
unit to fall or drop and lead to
injury.
Emergency (Leakage, Fire or Explosion).
Do not attempt to operate
or repair the unit during
emergencies if it is not safe to
do so.
Cautions for Safety (Be sure to comply with the following)
01_OCU-CR1000VF8A.indd 7 2019/08/27 10:56:03

EN - 9EN - 8
Disposal
Request a specialty operator for disposing
the refrigeration unit.
The refrigeration system is under
high pressure. Disposal with
the refrigerant and oil inside the
refrigeration unit may cause fire
or explosion.
Before disposal
The refrigeration system is
under high pressure. Do not
tamper with it. Contact qualified
service personal before
disposal.
Disposal of Old Equipment
Only for European Union and countries with recycling systems
This symbol on the products, packaging, and/or accompanying documents
means that used electrical and electronic products must not be mixed with
general household waste.
For proper treatment, recovery and recycling of old products, please take them
to applicable collection points in accordance with your national legislation.
By disposing of them correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment.
For more information about collection and recycling, please contact your local
authority.
Penalties may be applicable for incorrect disposal of this waste, in accordance
with national legislation.
Cautions for Safety (Be sure to comply with the following)
01_OCU-CR1000VF8A.indd 8 2019/08/27 10:56:03

EN - 9EN - 8
ENGLISH
Name of Each Part
Electrical box internal layout
Optional Accessories
Name Model No. Applicable refrigeration unit Remarks
Suction filter S-008T
OCU-CR1000VF8A
OCU-CR1000VF8ASL
Prevention of dust penetration
Filter Dryer D-155T
(Type: CO-085-S)
Ø 15.88
(Outer diameter welding)
Service piping SPK-TU125 ‒
Note: Service piping is not included the unit.
The suction filter and filter dryer (one is shipped with each refrigeration unit) are a standard component. When
replacing the suction filter and filter dryer, use the same suction filter (Model No. S-008T) and filter dryer
(Model No. D-155T) shown above as the standard component.
Front of refrigeration unit Back of refrigeration unit
Oil separator
Electrical box
Listed from the front,
Low pressure sensor
Intermediate pressure
sensor
Balance pressure
solenoid valve
(EV2)
Low pressure
service valve
High pressure
service valve
Compressor
Oil level switch
Electronic expansion
valve for pressure
reduction (MOV5)
Listed from the back,
High pressure sensor,
High pressure switch
Electronic expansion valve
for gas return (MOV6)
Oil service valve
Ambient
temperature
sensor
Flash chamber
Unit outlet
pressure
sensor
Split heat exchangerElectronic expansion valve
for liquid return (MOV7)
Left side of
refrigeration unit
Front of
refrigeration unit
FM (Box back side)
Reactor1 Reactor2
Inverter
A1000
Inverter
V1000 FIL2-EN
-PCB
Power source terminal block Control terminal base
S1
Operation switch
CR2-EN
-PCB
CRD2-EN-PCB
From left 1X1, 1X2, 1X3
Liquid tube electromagnetic
terminal base
External alarm terminal base
External communication
terminal base
Showcase operation
terminal base
Behind compressor,
Oil control electronic
expansion valve
(MOV1)
01_OCU-CR1000VF8A.indd 9 2019/08/27 10:56:03

EN - 11EN - 10
Scope of Application,Specifications
This refrigeration unit operates with a rotary compressor.
Use the refrigeration unit within the range shown below.
Item Standard Value Remarks
Refrigerant R744 The charge supply amount shall be
adequate
Evaporating temperature -45 °C to -5 °C Temperature conversion of inlet
pressure
Suction pressure 0.73MPa to 2.95MPa Unit inlet pressure
Compressor rotational speed 30 s-1 to 60 s-1 * (RPS)
Suction gas temperature 18 °C or below Unit inlet (suction gas) pipe
temperature
Superheat at suction 10 K or above Difference between evaporating temperature
and compressor inlet temperature
Discharge pressure 9.1MPa or below
(except transient) Compressor outlet pressure
Discharge gas temperature 97 °C or below Compressor outlet temperature
Oil temperature 100 °C or below
(Ambient temperature +10 K or above)
Ambient temperature -15 °C to +43 °C Gas cooler intake air temperature
Power source 3N ~ 50 Hz 380 V / 400 V / 415 V Within ± 10 % of Rate Voltage
Installation inclination angle 1° or below
ON/OFF cycle period 10 minutes or longer
for ON/OFF cycle Oil return shall be ensured
Installation Outdoor The foundation shall be rigid enough
Climatic class 0/1/2/3/4/6/8 Please see below “CLIMATIC CLASS”
Net Weight 320 kg
* Operation may not be possible depending on the installed condition.
CLIMATIC CLASS
Test room
climate class
Dry bulb temperature
°C
Relative humidity
%
Dew point
°C
Water vapour mass in
dry air
g/kg
0 20 50 9.3 7.3
1 16 80 12.6 9.1
2 22 65 15.2 10.8
3 25 60 16.7 12.0
4 30 55 20.0 14.8
6 27 70 21.1 15.8
8 23.9 55 14.3 10.2
Excerpt from: EN ISO 23953
Countermeasures in a cold weather operation
In order to prevent excessive reduction of high pressure in a cold weather location, surrounding around the
refrigeration unit should be made.
01_OCU-CR1000VF8A.indd 10 2019/08/27 10:56:04

EN - 11EN - 10
ENGLISH
Scope of Application,Specifications
Rated Specifications
Item Rating Unit
Power source 3N ~ 50 Hz 380 V / 400 V / 415 V V
Power input 8.200/8.200/8.200 kW
Current 13.3/12.6/12.2 A
Conditions
1. Evaporating temperature: -10 °C
2. Ambient temperature: 32 °C
3. Compressor rotational speed : 60 s-1
4. Suction superheat : 10K
Performances (380 V / 400 V / 415 V)
Ambient
temperature Item Symbol
Evaporating
temperature
-10°C
Evaporating
temperature
-35°C
Unit
Annual electricity consumption Q 32409 39985 kWh/a
Seasonal energy
performance ratio SEPR 2.86 1.49
32°C
Rated Cooling capacity PA15.100/15.100/15.100 8.000/8.000/8.000 kW
Rated Power input DA8.200/8.200/8.200 7.570/7.570/7.570 kW
Rated COP COPA1.84/1.84/1.84 1.06/1.06/1.06
25°C
Cooling capacity PB15.200/15.200/15.200 8.400/8.400/8.400 kW
Power input DB7.200/7.200/7.200 6.500/6.500/6.500 kW
COP COPB2.11/2.11/2.11 1.29/1.29/1.29
15°C
Cooling capacity PC15.600/15.600/15.600 8.600/8.600/8.600 kW
Power input DC5.600/5.600/5.600 5.600/5.600/5.600 kW
COP COPC2.79/2.79/2.79 1.54/1.54/1.54
5°C
Cooling capacity PD15.800/15.800/15.800 8.600/8.600/8.600 kW
Power input DD4.550/4.550/4.550 5.550/5.550/5.550 kW
COP COPD3.47/3.47/3.47 1.55/1.55/1.55
43°C
Cooling capacity P312.400/12.400/12.400 6.900/6.900/6.900 kW
Power input D39.280/9.280/9.280 8.900/8.900/8.900 kW
COP COP31.34/1.34/1.34 0.78/0.78/0.78
Compressor rotational speed : 60 s-1, Suction superheat : 10K
Sound pressure level
The A-weighted sound pressure level does not exceed 70 dB(A).
(at a distance of 1 m from surface of product)
CO2 Refrigerant Grade
Charge CO2 refrigerant (R744) that is compatible with following specifications.
Item Specifications
Purity > 99.9 % (volume)
Moisture < 0.005 % (volume)
Total sulfur < 0.03 ppm (weight)
Inert gas (H2, N2, O2, Ar) < 0.01 % (volume)
01_OCU-CR1000VF8A.indd 11 2019/08/27 10:56:04

EN - 13EN - 12
For Effectively Using the Refrigeration Unit
Cautions for Installation Work
This refrigeration unit has been designed exclusively for R744 (CO2refrigerant).
Refrigeration oil and each component including the compressor have been exclusively designed for the refrigeration
unit.
Please use sufficient caution for maintaining the reliability of the product.
(1) Since CO2 refrigeration cycle becomes high pressure during operation, use the piping material and other
components particularly designed for CO2 refrigerant with sufficient strength.
(2) As the refrigeration oil has high moisture absorption property, make the opening time as short as possible.
Connection of the piping to the refrigeration unit should be made at the last stage of piping installation work.
Avoid outdoor work on a rainy day.
(3) For piping work, use “phosphorous-deoxidized copper pipe” of refrigeration grade, clean, dehydrated and
“phosphor-copper brazing solder”.
If “silver brazing solder” is to be used, do not use any flux containing chlorine. During pipe brazing it is a must to
use nitrogen over pressure.
(4) Do not use pipe joints made for HFC refrigerant, because they do not have the required strength. In addition,
absolutely do not use flared joints.
(5) For the purpose of protecting the refrigeration unit and refrigeration cycle, be sure to install the included filter dryer
at the liquid line of the refrigeration unit.
(6) Gas leak detector used for airtight test should be foaming liquid or soap water. Do not use kitchen detergent.
Kitchen detergent may corrode metals.
For Economically Using the Refrigeration Unit
For the purpose of using the refrigeration unit economically, consider the following.
Cooling capacity largely vary by the method of use.
Reduction of evaporating temperature (unit inlet pressure converted to temperature) reduces cooling capacity by 3 to
4%, and increase of discharge pressure decreases cooling capacity and increases power consumption.
In order to fully extract the unit performance, compressor suction pressure should be increased as high as possible,
and discharge pressure should be made as low as possible. For this reason, caution should be used in the following
points.
(1) Make the piping resistance as small as possible.
Ref: Capacity change rate per 1 °C pressure loss of suction line
Evaporating temperature Capacity change rate per 1 °C
-45 °C to -5 °C 2 % to 4 %
(2) Select an evaporator of sufficient capacity for raising evaporating temperature as high as possible.
(3) Do not block the cold air outlet in a refrigerator or showcase with food items.
(4) Operate door opening of a refrigerator as quick as possible. (To avoid leak of cold air, reduce the time of door
opening)
(5) Periodically perform cleaning of the gas cooler to avoid clogging.
01_OCU-CR1000VF8A.indd 12 2019/08/27 10:56:04

EN - 13EN - 12
ENGLISH
Caution for an Inverter-based Refrigeration Unit
(1) Even after turning the power OFF, voltage still remains in the charged part. Until the LED (red) of the Inverter
A1000 and Inverter V1000 turns off (until the capacitor discharges the potential), approximately 5 minutes are
required. Do not touch the charged part.
(2) Phase-advancing capacitor is prohibited
Do not attach a phase-advancing capacitor to an inverter compressor. It may cause inverter failure or capacitor
breakage.
(3) Inverter noise prevention
Take as much distance as possible from the wiring of a radio receiver or wired broadcasting.
Inverter noise may cause undesired noise sound.
(4) The two-stage compression mechanism prevents temperature rise of the second stage discharge gas of the
compressor.
During the operation with a small quantity of refrigerant in the refrigeration circuit, a protection device (the CR2-
EN-PCB) makes the compressor to stop. Avoid refrigerant shortage operation.
(5) Rotary compressor consists of high precision components. Use caution during piping work to avoid contamination
of dust, metal powder, or oxide scale, etc.
Initial Oil Quantity
Model No. Compressor Oil separator
OCU-CR1000VF8A(SL) 1,800 mL 3,000 mL
Oil type PZ-68S
When adding oil or changing oil, be sure to use our specified oil.
General Cautions
Each unit of the equipment should be placed by selecting the most convenient location such as easy to install,
operate or maintain.
(1) Each unit should be placed to make the piping and wiring length as short as possible and easy to install.
(2) Controller should be located within the reach of the user’s hand for convenient daily operations (RUN, STOP,
reset warning, etc.). Do not locate the controller in a place easily accessed by the people other than the user.
(3) Install the refrigeration unit at a location easy to be serviced for daily maintenance and inspection.
Daily maintenance and inspection involves checking the operation pressure, compressor operation condition for
abnormal sound or vibration.
For Effectively Using the Refrigeration Unit
Selection of Installation Location
Caution
01_OCU-CR1000VF8A.indd 13 2019/08/27 10:56:04

EN - 15EN - 14
Selection of Installation Location
Location not disturbing neighbors
Avoid air-blow from the gas cooler to the neighbor’s window or noise to disturb other people.
Location with a sturdy and level surface
Install the refrigeration unit on a rm foundation to avoid an increase of noise and vibration. Particularly at the
boundary from the neighbor’s lot, comply with the regional laws and regulations.
Location away from a heat source
Installation should not be affected by reection from the oor.
Location with good ventilation
To ensure good ventilation, installed location should ensure the intake air by the gas cooler is 43 °C or below with
good airow.
Location not affected by a wet oor
Refrigeration unit is often affected by rainwater and drain water from defrosting. Apply drain water work as required.
Location not affected by snow accumulation
Installation in a cold weather location should avoid snow accumulation and attachment of frost or freezing by furnishing
a roof.
Direction for avoiding strong wind
Install the refrigeration unit with its blow-out side facing perpendicular to the wind direction.
Carry-in Operation
(1) Carry the refrigeration unit gently by keeping the vertical position as much as possible.
(2) Absolutely avoid a lay-down position of the refrigeration unit.
(3) When conveying the refrigeration unit with a forklift, maintain the unit vertically by using the square holes at the
corners of the unit base.
Hang Operation
When hanging the refrigeration unit, use caution for the following points.
When hanging the refrigeration unit, follow the “Precautions for Hanging the Product” attached to the refrigeration unit.
When hanging the refrigeration unit and conveying it, keep it level without causing any impacts.
Hang rope, etc. must be strong enough to withstand the weight of the refrigeration unit.
Carry-in/Installation
01_OCU-CR1000VF8A.indd 14 2019/08/27 10:56:04

EN - 15EN - 14
ENGLISH
Carry-in/Installation
Foundation/Platform Work
● As a reference, the foundation should be made from concrete having a mass about 3 times that of the
refrigeration unit. (Absorbing vibration by mass)
●
Vibration should be reduced by a platform or anti-vibration pad for avoiding transmission of vibration to the floor and wall.
● To avoid falling, secure the refrigeration unit by using anchor bolts. (Use all securing positions)
● The refrigeration unit must be installed with an inclination angle 1° or below.
● The refrigeration unit must be installed below the altitude of 2,000 m.
If a foundation meeting the requirement above cannot be secured, be sure to check that no abnormal vibration is
generated by resonation of the refrigeration unit and piping system.
(1) Basic foundation work when the pipe is extended horizontally.
On a concrete foundation 150 mm or higher from the floor surface, place anti-vibration pads (Approx. 8 to 15 mm
thick) and secure the unit on the entire unit base by anchor bolts.
(2) Basic foundation work when the pipe is extended downward.
Form an elevated foundation with vertical columns.
Place an anti-vibration pad (thickness of 8 to 15 mm) on the entire surface of the foundation and secure it with
anchor bolts.
(3) Anchor bolts
Use M8 size anchor bolts and buried at least 100 mm on the concrete foundation.
Fix unit with double nut and plain washer (28 mm O.D. minimum).
External Dimensions
270mm
52mm
Optional Accessories
The following service piping (optional) is required for the installation and
service work of the refrigeration unit.
Service piping for Evacuation, Airtight test, and Refrigerant charging
(Model No. SPK-TU125)
(Units: mm)
AIR
AIR AIR
AIR
(295)
106
700(installation pitch)
882
9191
890
10
4-φ20hole
Refrigeration fixing
885
851(installation pitch)
245
70
150
60
Power supply hole
122588
540 230
224
1941
194
890
226
Suction
(φ19.05 Outer diameter connection)
Liquid
(φ15.88 Outer diameter connection)
48
61
122
Details of piping hole
on the bottom of the
refrigeration unit
Left side of refrigeration unit Front of refrigeration unit Right side of refrigeration unit
Liquid
Suction
Connected to the unit service valve
Nut (fastening torque 13 ± 1 N·m)
01_OCU-CR1000VF8A.indd 15 2019/08/27 10:56:06

EN - 17EN - 16
Installation Example
500mm
500mm 300mm
Back surface
service space
Standard installation
The gas cooler is designed to take air from 3 directions,
including the front, left and right side, and blow out from
the top.
(1) Secure a service space of 500 mm or more on the
front and left sides.
(2) Secure a service space of 300 mm or more on the
back and right sides.
When there's an obstacle in the
upward direction
When there's an obstacle in the
upward direction, the installation
should not cause a short cycle of the
gas cooler air exhaust.
When installing a roof, it should
be located at a distance of 1.5 m
or more with an upward slope, as
illustrated on the right.
Protection in the snowfall areas
(1) Install a snow protection shed at the air outlet of the
gas cooler. (On-site installation)
(2) The entire refrigeration unit should not be
surrounded by accumulated snow.
Installation example
300
mm
Front surface
service space
Left side
service space
Right side
service space
1.5 m or more
When a wall exists on one side When a wall exists on two sides
When a wall exists on four sides
When a wall exists on three sides
Serial installation
Left side
service space
Left side
service space
Left side
service space
Left side
service space
Left side
service space
Left side
service space
Left side
service space
Left side
service space
Front surface
service space
Front surface
service space
Front surface
service space
Front surface
service space
Front surface
service space
Front surface
service space
Front surface
service space
Front surface
service space
500 mm
or more
500 mm
or more 500 mm
or more
500 mm
or more
500 mm
or more
500 mm
or more
500 mm
or more
500 mm
or more
500 mm
or more
500 mm
or more
300 mm
or more
300 mm
or more
500 mm
or more
500 mm
or more
300 mm
or more
300 mm
or more
500 mm
or more 300 mm
or more
500 mm
or more 500 mm
or more
300 mm or more
500 mm or more
300 mm or more
Notes:
1. Provide an air intake opening of 4 m2or greater at
the lower part.
2. The wall height must be up to the unit height.
500 mm
or more
01_OCU-CR1000VF8A.indd 16 2019/08/27 10:56:06

EN - 17EN - 16
ENGLISH
Refrigerant Piping Work
Design and installation of the refrigerant piping work largely affect the performance of the refrigeration unit as well
as the product life and problem occurrence.
Installation work should comply with the following items. Installation of all equipment have to be in accordance to
Pressure directive 2014/68/EU and European norm EN 378 «In the European Market».
Or, Australian norm AS/NZS 5149 «In the Australian and New Zealand market».
Selection of Refrigerant Piping Size
The connection piping size for refrigeration unit is, in principle, as shown below, but each should be determined by
calculating pressure loss of the piping and refrigerant flow speed and making sure no problem occurs in the cooling
capacity and oil return.
As refrigeration unit using CO2 refrigerant incurs pressure higher than when using HFC refrigerant, it is necessary to
choose adequate materials.
Model No. Suction line (Unit inlet) Liquid line (Unit outlet)
OCU-CR1000VF8A(SL) Ø19.05 mm, 3/4” Ø15.88 mm, 5/8”
Note: Welding is outer diameter welding.
● Piping material should be seamless phosphorous-deoxidized copper pipes (refrigeration grade), K65.
● When cutting pipe, use a pipe cutter and always remove burrs.
● When bending pipe, secure a bending radius 4 times or greater of the outer diameter. During bending, pay attention
to distortion and scars.
Use sufficient caution for handling piping by sealing the pipe end with tape or any other cover for
avoiding entry of contaminants and moisture into the pipe.
Caution
01_OCU-CR1000VF8A.indd 17 2019/08/27 10:56:06

EN - 19EN - 18
Refrigerant Piping Work

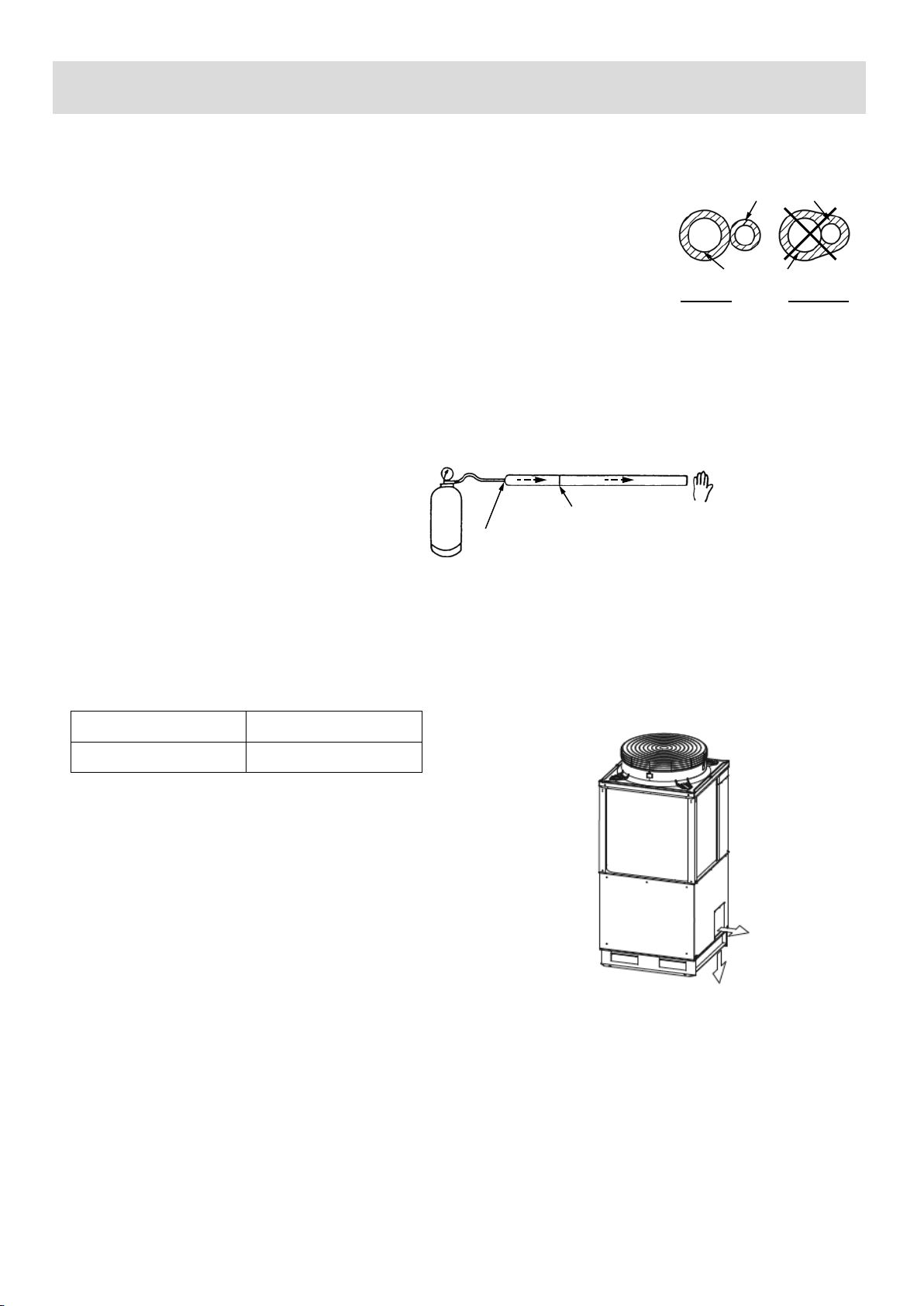

Cautions for Heat Insulation Work
● Apply heat insulation on the suction line and liquid line for avoiding thermal effect from outside.
● Do not wrap together the suction line and liquid line with heat insulation material.
(Refer to the right illustration)
● Apply heat insulation only after executing airtight and pressure test.
Prevent contamination of foreign objects such as dust, metal powder, oxide scale,
etc.
Since the compressor consists of high precision components, contaminants generate scratches on the sliding
surfaces, thereby increasing gas leak, deteriorating performance, and causing excessive wear and seizure.
● Flow nitrogen gas during welding.
● Piping inside and outside must be clean.
● Avoid mixing of debris during cutting
and deburring copper pipe.
Airtight Test
Pressure testing should only be carried out by personal /
companies who have necessary certification.
Consider carefully local regulations and EN378.
Outer side Inner side
8MPa 8MPa
Caution for Gas Leak
Gas leak may lead to excessive heat operation of
compressor and air-mixed operation, thus causing
compressor failure.
Securely execute airtight test.
Piping Direction
The pipe can be connected from 2 directions (right
side or bottom of the refrigeration unit).
When connecting the refrigerant pipe, remove the
right side panel.
Suction Filter
Be sure to install the suction filter
available as optional accessory.
Model No. S-008T
Filter Dryer
Be sure to attach the included filter dryer.
Model No. D-155T (Type: CO-085-S)
Liquid line
Suction line
Correct Incorrect
Brazing position
N2 cylinder Fill the gap with sealing material.
Open gap may cause air to be mixed.
Apply dry nitrogen gas ow
barely felt by the palm.
01_OCU-CR1000VF8A.indd 18 2019/08/27 10:56:06

EN - 19EN - 18
ENGLISH
Piping Example
Expansion valve
Liquid trap
(Make the bent higher
than the evaporator)
Suction line
Downward
slope
Liquid line
Refrigeration unit Back-up solenoid valve
(To prevent liquid return operation
during a power failure)
5 m or below
Evaporator
Total piping length should be limited to 100 m one way.
When the piping length exceeds 50 m, add oil refer to “Oil Level Control Method”.
When the evaporator is located higher
■ Height difference 5 m or below
● The suction line should ideally slope gently towards the unit.
Recommendation slope is 1/200~1/250.
● Refrigerant pipe should be covered
with heat insulation material on both
suction line and liquid line.
Since liquid line becomes approx.
0 °C during operation, apply
heat insulation of 20 mm or
more in thickness.
When the evaporator is located lower
■ Height difference 20 m or below
To promote good oil return in the suction line, piping size and trap
need to be considered.
● The suction line should ideally slope gently towards the unit.
Recommendation slope is 1/200~1/250.
● Refrigerant pipe should be covered with heat insulation material
on both suction line and liquid line.
Since liquid line becomes approx. 0 °C during
operation, apply heat insulation of 20 mm or more in
thickness
Refrigeration unit
Downward
slope
Oil trap
Suction line
Downward
slope
6 m or below
20 m or below
Oil trap
Expansion valve
Evaporator
Step
Liquid line
Note: Adjust refrigerant flow rate to 3.8 m/s or more
in the horizontal suction pipe.
Note: Oil traps should be installed every 6 meters.
Note: Adjust refrigerant flow rate to 7.6 m/s or more
in the vertical suction pipe.
Back-up solenoid valve
(To prevent liquid return
operation during a
power failure)
01_OCU-CR1000VF8A.indd 19 2019/08/27 10:56:06

EN - 21EN - 20
S
Filter Dryer
Inter cooler
PS
S
S
Gas cooler
S
PS
Suction line
Liquid line
PS
S
PS
S
Solid line : Refrigerant
Dotted line : Oil
High pressure service port
TS
Pressure reduction
electronic
expansion valve
1st-stage discharge
2nd-stage suction
Oil service
valve
Unit outlet
pressure sensor
High pressure switch
Oil cooler
High pressure sensor
TS
TS
Unit outlet temperature
sensor
1st-stage suction
Suction gas
temperature
sensor Oil lebel switch
Low pressure service port
Discharge gas
temperature
sensor
Ambient temperature sensor
Intermediate
pressure sensor
TS
Balance pressure
solenoid valve
EV2 MOV1
PS
TS
TS
2nd-stage discharge
Gas return electronic
expansion valve
Low pressure
sensor
Gas cooler
outlet
temperature
sensor
Liquid return
electronic
expansion valve
Split outlet temperature
sensor
Split Heat exchanger
Intermediate cooler
Oil separator
Oil control
electronic
expansion
valve
MOV6
MOV7
MOV5
Compressor
Refrigerant Circuit Diagram
01_OCU-CR1000VF8A.indd 20 2019/08/27 10:56:07
