Order No. PAPAMY1205141CE

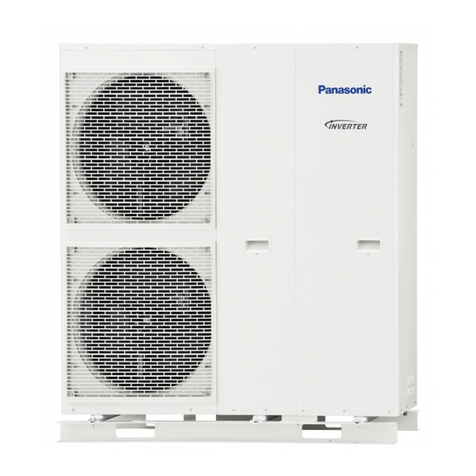

(Mono bloc) Air-to-Water Heatpump System
Mono bloc Unit
WH-MDF09C3E8
WH-MDF12C9E8
WH-MDF14C9E8
WH-MDF16C9E8
(WH-MDF09C3E8-1)
(WH-MDF12C9E8-1)
(WH-MDF14C9E8-1)
(WH-MDF16C9E8-1)
PRECAUTION OF LOW TEMPERATURE
In order to avoid frostbite, be assured of no refrigerant leakage during the installation or repairing of refrigerant circuit.
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.

2
TABLE OF CONTENTS
PAGE PAGE
1. Safety Precautions .............................................3
2. Specifications .....................................................5
2.1 WH-MDF09C3E8 (WH-MDF09C3E8-1) .......5
2.2 WH-MDF12C9E8 (WH-MDF12C9E8-1) .......7
2.3 WH-MDF14C9E8 (WH-MDF14C9E8-1) .......9
2.4 WH-MDF16C9E8 (WH-MDF16C9E8-1) .....11
3. Features.............................................................13
4. Location of Controls and Components..........14
4.1 Mono Bloc Unit.............................................14
5. Dimensions .......................................................21
5.1 Mono Bloc Unit.............................................21
6. Refrigeration And Water Cycle Diagram........22
7. Block Diagram ..................................................24
7.1 WH-MDF09C3E8 (WH-MDF09C3E8-1) .....24
7.2 WH-MDF12C9E8 WH-MDF14C9E8
WH-MDF16C9E8 (WH-MDF12C9E8-1
WH-MDF14C9E8-1 WH-MDF16C9E8-1) ...25
8. Wiring Connection Diagram ............................26
8.1 WH-MDF09C3E8 (WH-MDF09C3E8-1) .....26
8.2 WH-MDF12C9E8 WH-MDF14C9E8
WH-MDF16C9E8 (WH-MDF12C9E8-1
WH-MDF14C9E8-1 WH-MDF16C9E8-1) ...28
9. Electronic Circuit Diagram ..............................30
9.1 WH-MDF09C3E8 (WH-MDF09C3E8-1) .....30
9.2 WH-MDF12C9E8 WH-MDF14C9E8
WH-MDF16C9E8 (WH-MDF12C9E8-1
WH-MDF14C9E8-1 WH-MDF16C9E8-1) ...32
10. Printed Circuit Board .......................................34
10.1 Water System ..............................................34
10.2 Refrigerant System ......................................36
11. Installation Instruction.....................................38
11.1 Select the Best Location ..............................40
11.2 Mono Bloc Unit Installation ..........................40
11.3 Piping Installation.........................................41
11.4 Connect The Cord And Cable To Mono Bloc
Unit...............................................................42
12. Operation and Control .....................................47
12.1 Basic Function .............................................47
12.2 Water Pump .................................................58
12.3 Pump Down Operation ................................59
12.4 Flow Switch..................................................59
12.5 Force Heater Mode Operation .....................59
12.6 Mono Bloc Unit Safety .................................60
12.7 Auto Restart Control ....................................60
12.8 Indication Panel ...........................................60
12.9 Back-Up Heater Control...............................61
12.10Tank Booster Heater Control .......................61
12.11Base Pan Heater Control (Optional) ............62
12.12Three Way Valve Control.............................62
12.13Sterilization Mode ....................................... 63
12.14Quiet Operation........................................... 63
12.15Anti Freeze Control..................................... 63
12.16Solar Operation (Optional) .......................... 64
12.17External Room Thermostat Control
(Optional) .................................................... 67
13. Protection Control........................................... 68
13.1 Protection Control for All Operations .......... 68
13.2 Protection Control for Heating Operation.... 70
14. Servicing Mode ................................................ 71
14.1 Test Run ..................................................... 71
14.2 Proper Pump Down Procedure................... 71
14.3 How to Adjust Water Flow Rate.................. 71
14.4 Expansion Vessel Pre Pressure
Checking ..................................................... 71
15. Maintenance Guide.......................................... 72
16. Troubleshooting Guide................................... 74
16.1 Refrigeration Cycle System ........................ 74
16.2 Relationship Between The Condition Of
The Mono Bloc Unit And Pressure And
Electric Current ........................................... 75
16.3 Breakdown Self Diagnosis Function ........... 76
16.4 Error Codes Table....................................... 77
16.5 Self-diagnosis Method ................................ 79
17. Disassembly and Assembly Instructions ... 113
17.1 To Remove The Cabinet Front Plate ........ 113
17.2 To Remove The Cabinet Top Plate .......... 113
17.3 To Remove The Cabinet Rear Plate......... 114
17.4 To Remove Pressure Gauge .................... 114
17.5 To Remove RCCB .................................... 114
17.6 To Remove Transformer and Electronic
Controller Board........................................ 115
17.7 To Remove Pressure Relief Valve and
Air Purge Valve ......................................... 115
17.8 To Remove Flow Switch ........................... 116
17.9 To Remove Water Pump .......................... 116
17.10To Remove Bottle Complete..................... 116
18. Technical Data ............................................... 117
18.1 Operation Characteristics ......................... 117
18.2 Heating Capacity Table............................. 121
18.3 Hydraulic Pump Performance................... 121
19. Exploded View and Replacement Parts
List .................................................................. 122
19.1 WH-MDF09C3E8 WH-MDF12C9E8
WH-MDF14C9E8 WH-MDF16C9E8
(WH-MDF09C3E8-1 WH-MDF12C9E8-1
WH-MDF14C9E8-1
WH-MDF16C9E8-1).................................. 122
19.2 WH-MDF09C3E8 WH-MDF12C9E8
WH-MDF14C9E8 WH-MDF16C9E8
(WH-MDF09C3E8-1 WH-MDF12C9E8-1
WH-MDF14C9E8-1
WH-MDF16C9E8-1).................................. 127

3
CAUTION
WARNING
WARNING
1. Safety Precautions
Read the following “SAFETY PRECAUTIONS” carefully before perform any servicing.
Electrical work and water installation work must be installed or serviced by a licensed electrician and licensed
water system installer respectively. Be sure to use the correct rating and main circuit for the model installed.
The caution items stated here must be followed because these important contents are related to safety. The
meaning of each indication used is as below. Incorrect installation or servicing due to ignoring of the instruction
will cause harm or damage, and the seriousness is classified by the following indications.
This indication shows the possibility of causing death or serious injury.
This indication shows the possibility of causing injury or damage to properties.
The items to be followed are classified by the symbols:
Carry out test run to confirm that no abnormality occurs after the servicing. Then, explain to user the operation,
care and maintenance as stated in instructions. Please remind the customer to keep the operating instructions for
future reference.
1. Do not modify the machine, part or material during repairing service.
2. If wiring unit is supplied as repairing part, do not repair or connect the wire even partial wire break. Exchange the whole wiring unit.
3. Do not wrench the fasten terminal. Pull it out or insert it straightly.
4. Do not install Mono bloc unit near handrail of veranda. When installing Mono bloc unit at veranda of high rise building, child may climb
up to Mono bloc unit and cross over the handrail and causing accident.
5. Do not use unspecified cord, modified cord, join cord or extension cord for power supply cord. Do not share the single outlet with other
electrical appliances. Poor contact, poor insulation or over current will cause electrical shock or fire.
6. Do not tie up the power supply cord into a bundle by band. Abnormal temperature rise on power supply cord may happen.
7. Do not insert your fingers or other objects into the unit, high speed rotating fan may cause injury.
8. Do not sit or step on the unit, you may fall down accidentally.
9. Keep plastic bag (packaging material) away from small children, it may cling to nose and mouth thus causing suffocation.
10. Do not use pipe wrench to install refrigerant pipe. Using pipe wrench may deform the pipes and cause unit malfunction.
11. Do not purchase unauthorized electrical parts for installation, service, maintenance and etc.. They might cause electrical shock or fire.
12. Do not modify the wiring of Mono bloc unit for installation of other components (i.e. heater, etc). Overloaded wiring or wire connection
points may cause electrical shock or fire.
13. For electrical work, follow local wiring standard, regulation and this installation instruction. An independent circuit and single outlet must be
used. If electrical circuit capacity is not enough or defect found in electrical work, it will cause electrical shock or fire.
14. For water circuit installation work, follow to relevant European and national regulations (including EN61770) and local plumbing and building
regulation codes.
15. Must engage an authorized dealer or specialist for installation. If installation is defective, it will cause water leakage, electrical shock or fire.
16. Install according to this installation instructions strictly. If installation is defective, it will cause water leakage, electrical shock or fire.
17. Only use the supplied or specified installation parts. Else, it may causes Mono bloc unit vibrate, fall, water leakage, electrical shock or fire.
18. Install at a flat, strong and firm location which is able to withstand the Mono bloc unit’s weight. If the location is slanting, or strength is not
enough the set will fall and cause injury.
This symbol denotes item that is PROHIBITED from doing.

4
CAUTION
19. This equipment is strongly recommended to be installed with Residual Current Device (RCD) on-site according to the respective national
wiring rules or country-specific safety measures in terms of residual current.
20. The unit is only for use in a closed water system. Utilization in an open water system may lead to excessive corrosion of the water piping and
risk of incubating bacteria colonies, particularly Legionella, in water.
21. If there is any doubt about the installation procedure or operation, always contact the authorized dealer for advice and information.
22. Select a location where in case of water leakage, the leakage will not cause damage to other properties.
23. When installing electrical equipment at wooden building of metal lath or wire lath, in accordance with electrical facility standard, no electrical
contact between equipment and building is allowed. Insulator must be installed in between.
24. This installation may be subjected to building regulation approval applicable to respective country that may require to notify the local authority
before installation.
25. Any work carried out on the Mono bloc unit after removing the front panel which is secured by screws, must be carried out under the
supervision of authorized dealer and licensed installation contractor.
26. This unit must be properly earthed, the electrical earth must not be connected to a gas pipe, water pipe, the earth of a lightening rod or a
telephone. Otherwise there is a danger of electrical shock in the event of an insulation breakdown or electrical earth fault in the Mono bloc unit.
27. When replace refrigeration circuit components, confirm on usage of specified refrigerant type. Using of refrigerant other than the specified type
may cause product damage, burst and injury etc.
28. Do not add or replace refrigerant other than the specified type. Equipment may damage or deteriorate in safety due to usage of other
refrigerant.
1. Do not install the Mono bloc unit in areas where there is a risk of flammable gas leakage. There is a risk of fire if flammable gas
accumulates near or around the Mono bloc unit.
2. Do not release refrigerant during piping work for installation, re-installation and during repairing a refrigeration parts. Take care of the
liquid refrigerant, it may cause frostbite.
3. Make sure the power supply cord does not contact with hot part (i.e. water piping). High temperature may cause insulator of power
supply cord damage hence electrical shock or fire.
4. Do not touch the sharp aluminum fins or edges of metal parts.
If you are required to handle sharp parts during installation or servicing, please wear hand glove.
Sharp parts may cause injury.
5. Do not apply excessive force to water pipes that may damage the pipes. If water leakage occurs, it will cause flooding and damage to
other properties.
6. Carry out drainage piping as mentioned in installation instructions. If drainage is not perfect, water leakage may happen and may cause
damage to properties of the user.
7. The piping installation work must be flushed before the Mono bloc unit is connected to remove contaminants. Contaminants may damage the
Mono bloc unit components.
8. Select an installation location where it is accessible for maintenance.
9. Power supply connection to Mono bloc unit.
Power supply point should be in easily accessible place for power disconnection in case of emergency.
Must follow local national wiring standard, regulation and this installation instruction.
Strongly recommended to make permanent connection to a circuit breaker.
For 9kW models:
- Power Supply 1: Use approved 20A 4-poles circuit breaker with a minimum contact gap of 3.0mm.
- Power Supply 2: Use approved 15/16A 2-poles circuit breaker with a minimum contact gap of 3.0mm.
For 12kW/14kW/16kW models:
- Power Supply 1: Use approved 20A 4-poles circuit breaker with a minimum contact gap of 3.0mm.
- Power Supply 2: Use approved 15/16A 2-poles circuit breaker with a minimum contact gap of 3.0mm.
- Power Supply 3: Use approved 15/16A 4-poles circuit breaker with a minimum contact gap of 3.0mm.
10. Ensure the correct polarity is maintained throughout all wiring. Otherwise, it will cause electrical shock or fire.
11. After installation, the installer is obliged to verify correct operation of the Mono bloc unit. Check the connection point for water leakage during
test run. If leakage occurs, it will cause damage to other properties.
12. Installation work.
Four or more people are required to carry out the installation work. The weight of Mono bloc unit might cause injury if carried by less than four
people.

5
2. Specifications
2.1 WH-MDF09C3E8 (WH-MDF09C3E8-1)
Item Unit Refrigerant System
Performance Test Condition EN 14511
Condition (Ambient/Water) A7W35 A2W35
kW 9.00 9.00
BTU/h 30700 30700
Heating Capacity
kcal/h 7740 7740
W/W 4.74 3.53
COP
kcal/hW 4.07 3.04
Air Flow m3/min (ft3/min) 76.8 (2710)
Refrigeration Control Device Expansion Valve
Refrigeration Oil cm3FV50S (1200)
Refrigerant (R410A) kg (oz) 2.30 (81.2)
Liquid mm (inch) 9.52 (3/8) Pipe Diameter
Gas mm (inch) 15.88 (5/8)
Type Hermetic Motor (Rotary)
Motor Type Brushless (4-poles)
Compressor
Rated Output kW 4.30
Type Propeller Fan
Material PP
Motor Type Induction (8-poles)
Input Power W —
Output Power W 60
Fan
Fan Speed rpm 490 (Top Fan) 530 (Bottom Fan)
Fin material Aluminium (Pre Coat)
Fin Type Corrugated Fin
Row × Stage × FPI 2 × 51 × 18
Heat Exchanger
Size (W × H × L) mm 881.5 × 1295.4 × 44
Item Unit Mono Bloc Unit
Height mm (inch) 1410 (55.5)
Width mm (inch) 1283 (50.5)
Dimension
Depth mm (inch) 320 (12.6)
Net Weight kg (lbs) 157 (346)
dB-A 49 -
Noise Level
Power Level dB 66 -
ø Three
V 400
Power Source (Phase, Voltage, Cycle)
Hz 50
Input Power kW 1.90 2.55
Starting Current A 2.9
Running Current A 2.9 3.9
Max. Current/Max. Input Power Heatpump unit
(Heatpump unit + Back-up Heater) A/kW 7.5 (11.8) / 4.94 (7.94)
Back-up Heater: Max. Current/Max. Input Power A/kW Common ELCB to Heatpump
Tank Heater [1 Phase, 230V]: Max. Current/
Max. Input Power A/kW 13.0 / 3.00
Power Factor % 95 95
Power factor means total figure of compressor and outdoor fan motor.

6
Item Unit Mono Bloc Unit
Number of core -
Power Cord
Length m (ft) -
Thermostat Electronic Control
Protection Device Electronic Control
Item Unit Water System
Performance Test Condition EN 14511
Outdoor Ambient °C -20 ~ 35
Operation Range
Water Outlet °C 25 ~ 55
Internal Pressure Differential kPa 15.0
Liquid mm (inch) 9.52 (3/8)
Refrigerant Pipe Diameter
Gas mm (inch) 15.88 (5/8)
Inlet mm (inch) 30 (1-3/16)
Water Pipe Diameter
Outlet mm (inch) 30 (1-3/16)
Water Drain Hose Inner Diameter mm (inch) 15.00 (19/32)
Motor Type Capacitor Run Induction Motor (5 μF)
No. of Speed 3
Pump
Input Power W 180
Type Brazed Plate
No. of Plates 60
Size (W x H x L) mm 93 × 100 × 325
Hot Water Coil
Water Flow Rate l/min (m3/h) 25.8 (1.6)
Pressure Relief Valve Water Circuit kPa Open: 300, Close: 265 and below
Flow Switch Magnetic Lead Switch
Protection Device A Residual Current Circuit Breaker (40)
Volume I 10
Expansion Vessel
MWP bar 3
Capacity of Integrated Electric Heater kW 3.00
Note:
Heating capacities are based on outdoor air temperature of 7°C Dry Bulb (44.6°F Dry Bulb), 6°C Wet Bulb
(42.8°F Wet Bulb) with controlled indoor water inlet temperature of 30°C and water outlet temperature of 35°C.
Specification are subjected to change without prior notice for further improvement.

7
2.2 WH-MDF12C9E8 (WH-MDF12C9E8-1)
Item Unit Refrigerant System
Performance Test Condition EN 14511
Condition (Ambient/Water) A7W35 A2W35
kW 12.00 11.40
BTU/h 40900 38900
Heating Capacity
kcal/h 10320 9800
W/W 4.67 3.41
COP
kcal/hW 4.02 2.94
Air Flow m3/min (ft3/min) 80.0 (2830)
Refrigeration Control Device Expansion Valve
Refrigeration Oil cm3FV50S (1200)
Refrigerant (R410A) kg (oz) 2.30 (81.2)
Liquid mm (inch) 9.52 (3/8) Pipe Diameter
Gas mm (inch) 15.88 (5/8)
Type Hermetic Motor (Rotary)
Motor Type Brushless (4-poles)
Compressor
Rated Output kW 4.30
Type Propeller Fan
Material PP
Motor Type Induction (8-poles)
Input Power W —
Output Power W 60
Fan
Fan Speed rpm 510 (Top Fan) 550 (Bottom Fan)
Fin material Aluminium (Pre Coat)
Fin Type Corrugated Fin
Row × Stage × FPI 2 × 51 × 18
Heat Exchanger
Size (W × H × L) mm 881.5 × 1295.4 × 44
Item Unit Mono Bloc Unit
Height mm (inch) 1410 (55.5)
Width mm (inch) 1283 (50.5)
Dimension
Depth mm (inch) 320 (12.6)
Net Weight kg (lbs) 157 (346)
dB-A 50 -
Noise Level
Power Level dB 67 -
ø Three
V 400
Power Source (Phase, Voltage, Cycle)
Hz 50
Input Power kW 2.57 3.34
Starting Current A 3.9
Running Current A 3.9 5.1
Max. Current/Max. Input Power Heatpump unit
(Heatpump unit + Back-up Heater) A/kW 8.8 / 5.85 (Separate ELCB)
Back-up Heater: Max. Current/Max. Input Power A/kW 13.0 / 9.00
Tank Heater [1 Phase, 230V]: Max. Current/
Max. Input Power A/kW 13.0 / 3.00
Power Factor % 96 95
Power factor means total figure of compressor and outdoor fan motor.

8
Item Unit Mono Bloc Unit
Number of core -
Power Cord
Length m (ft) -
Thermostat Electronic Control
Protection Device Electronic Control
Item Unit Water System
Performance Test Condition EN 14511
Outdoor Ambient °C -20 ~ 35
Operation Range
Water Outlet °C 25 ~ 55
Internal Pressure Differential kPa 27.5
Liquid mm (inch) 9.52 (3/8)
Refrigerant Pipe Diameter
Gas mm (inch) 15.88 (5/8)
Inlet mm (inch) 30 (1-3/16)
Water Pipe Diameter
Outlet mm (inch) 30 (1-3/16)
Water Drain Hose Inner Diameter mm (inch) 15.00 (19/32)
Motor Type Capacitor Run Induction Motor (5 μF)
No. of Speed 3
Pump
Input Power W 180
Type Brazed Plate
No. of Plates 60
Size (W x H x L) mm 93 × 100 × 325
Hot Water Coil
Water Flow Rate l/min (m3/h) 34.4 (2.1)
Pressure Relief Valve Water Circuit kPa Open: 300, Close: 265 and below
Flow Switch Magnetic Lead Switch
Protection Device A Residual Current Circuit Breaker (40)
Volume I 10
Expansion Vessel
MWP bar 3
Capacity of Integrated Electric Heater kW 9.00
Note:
Heating capacities are based on outdoor air temperature of 7°C Dry Bulb (44.6°F Dry Bulb), 6°C Wet Bulb
(42.8°F Wet Bulb) with controlled water inlet temperature of 30°C and water outlet temperature of 35°C.
Specification are subjected to change without prior notice for further improvement.

9
2.3 WH-MDF14C9E8 (WH-MDF14C9E8-1)
Item Unit Refrigerant System
Performance Test Condition EN 14511
Condition (Ambient/Water) A7W35 A2W35
kW 14.00 12.40
BTU/h 47800 42300
Heating Capacity
kcal/h 12040 10660
W/W 4.50 3.32
COP
kcal/hW 3.87 2.86
Air Flow m3/min (ft3/min) 84.0 (2970)
Refrigeration Control Device Expansion Valve
Refrigeration Oil cm3FV50S (1200)
Refrigerant (R410A) kg (oz) 2.30 (81.2)
Liquid mm (inch) 9.52 (3/8) Pipe Diameter
Gas mm (inch) 15.88 (5/8)
Type Hermetic Motor (Rotary)
Motor Type Brushless (4-poles)
Compressor
Rated Output kW 4.30
Type Propeller Fan
Material PP
Motor Type Induction (8-poles)
Input Power W —
Output Power W 60
Fan
Fan Speed rpm 540 (Top Fan) 580 (Bottom Fan)
Fin material Aluminium (Pre Coat)
Fin Type Corrugated Fin
Row × Stage × FPI 2 × 51 × 18
Heat Exchanger
Size (W × H × L) mm 881.5 × 1295.4 × 44
Item Unit Mono Bloc Unit
Height mm (inch) 1410 (55.5)
Width mm (inch) 1283 (50.5)
Dimension
Depth mm (inch) 320 (12.6)
Net Weight kg (lbs) 157 (346)
dB-A 51 -
Noise Level
Power Level dB 68 -
ø Three
V 400
Power Source (Phase, Voltage, Cycle)
Hz 50
Input Power kW 3.11 3.73
Starting Current A 4.7
Running Current A 4.7 5.7
Max. Current/Max. Input Power Heatpump unit
(Heatpump unit + Back-up Heater) A/kW 9.4 / 6.25 (Separate ELCB)
Back-up Heater: Max. Current/Max. Input Power A/kW 13.0 / 9.00
Tank Heater [1 Phase, 230V]: Max. Current/
Max. Input Power A/kW 13.0 / 3.00
Power Factor % 96 95
Power factor means total figure of compressor and outdoor fan motor.

10
Item Unit Mono Bloc Unit
Number of core -
Power Cord
Length m (ft) -
Thermostat Electronic Control
Protection Device Electronic Control
Item Unit Water System
Performance Test Condition EN 14511
Outdoor Ambient °C -20 ~ 35
Operation Range
Water Outlet °C 25 ~ 55
Internal Pressure Differential kPa 36.0
Liquid mm (inch) 9.52 (3/8)
Refrigerant Pipe Diameter
Gas mm (inch) 15.88 (5/8)
Inlet mm (inch) 30 (1-3/16)
Water Pipe Diameter
Outlet mm (inch) 30 (1-3/16)
Water Drain Hose Inner Diameter mm (inch) 15.00 (19/32)
Motor Type Capacitor Run Induction Motor (5 μF)
No. of Speed 3
Pump
Input Power W 180
Type Brazed Plate
No. of Plates 60
Size (W x H x L) mm 93 × 100 × 325
Hot Water Coil
Water Flow Rate l/min (m3/h) 40.1 (2.4)
Pressure Relief Valve Water Circuit kPa Open: 300, Close: 265 and below
Flow Switch Magnetic Lead Switch
Protection Device A Residual Current Circuit Breaker (40)
Volume I 10
Expansion Vessel
MWP bar 3
Capacity of Integrated Electric Heater kW 9.00
Note:
Heating capacities are based on outdoor air temperature of 7°C Dry Bulb (44.6°F Dry Bulb), 6°C Wet Bulb
(42.8°F Wet Bulb) with controlled indoor water inlet temperature of 30°C and water outlet temperature of 35°C.
Specification are subjected to change without prior notice for further improvement.

11
2.4 WH-MDF16C9E8 (WH-MDF16C9E8-1)
Item Unit Refrigerant System
Performance Test Condition EN 14511
Condition (Ambient/Water) A7W35 A2W35
kW 16.00 13.00
BTU/h 54600 44300
Heating Capacity
kcal/h 13760 11180
W/W 4.23 3.25
COP
kcal/hW 3.64 2.80
Air Flow m3/min (ft3/min) 90.0 (3180)
Refrigeration Control Device Expansion Valve
Refrigeration Oil cm3FV50S (1200)
Refrigerant (R410A) kg (oz) 2.30 (81.2)
Liquid mm (inch) 9.52 (3/8) Pipe Diameter
Gas mm (inch) 15.88 (5/8)
Type Hermetic Motor (Rotary)
Motor Type Brushless (4-poles)
Compressor
Rated Output kW 4.30
Type Propeller Fan
Material PP
Motor Type Induction (8-poles)
Input Power W —
Output Power W 60
Fan
Fan Speed rpm 580 (Top Fan) 620 (Bottom Fan)
Fin material Aluminium (Pre Coat)
Fin Type Corrugated Fin
Row × Stage × FPI 2 × 51 × 18
Heat Exchanger
Size (W × H × L) mm 881.5 × 1295.4 × 44
Item Unit Mono Bloc Unit
Height mm (inch) 1410 (55.5)
Width mm (inch) 1283 (50.5)
Dimension
Depth mm (inch) 320 (12.6)
Net Weight kg (lbs) 157 (346)
dB-A 53 -
Noise Level
Power Level dB 70 -
ø Three
V 400
Power Source (Phase, Voltage, Cycle)
Hz 50
Input Power kW 3.78 4.00
Starting Current A 5.7
Running Current A 5.7 6.1
Max. Current/Max. Input Power Heatpump unit
(Heatpump unit + Back-up Heater) A/kW 9.9 / 6.59 (Separate ELCB)
Back-up Heater: Max. Current/Max. Input Power A/kW 13.0 / 9.00
Tank Heater [1 Phase, 230V]: Max. Current/
Max. Input Power A/kW 13.0 / 3.00
Power Factor % 96 95
Power factor means total figure of compressor and outdoor fan motor.

12
Item Unit Mono Bloc Unit
Number of core -
Power Cord
Length m (ft) -
Thermostat Electronic Control
Protection Device Electronic Control
Item Unit Water System
Performance Test Condition EN 14511
Outdoor Ambient °C -20 ~ 35
Operation Range
Water Outlet °C 25 ~ 55
Internal Pressure Differential kPa 47.5
Liquid mm (inch) 9.52 (3/8)
Refrigerant Pipe Diameter
Gas mm (inch) 15.88 (5/8)
Inlet mm (inch) 30 (1-3/16)
Water Pipe Diameter
Outlet mm (inch) 30 (1-3/16)
Water Drain Hose Inner Diameter mm (inch) 15.00 (19/32)
Motor Type Capacitor Run Induction Motor (5 μF)
No. of Speed 3
Pump
Input Power W 180
Type Brazed Plate
No. of Plates 60
Size (W x H x L) mm 93 × 100 × 325
Hot Water Coil
Water Flow Rate l/min (m3/h) 45.9 (2.8)
Pressure Relief Valve Water Circuit kPa Open: 300, Close: 265 and below
Flow Switch Magnetic Lead Switch
Protection Device A Residual Current Circuit Breaker (40)
Volume I 10
Expansion Vessel
MWP bar 3
Capacity of Integrated Electric Heater kW 9.00
Note:
Heating capacities are based on outdoor air temperature of 7°C Dry Bulb (44.6°F Dry Bulb), 6°C Wet Bulb
(42.8°F Wet Bulb) with controlled water inlet temperature of 30°C and water outlet temperature of 35°C.
Specification are subjected to change without prior notice for further improvement.

13
3. Features
Inverter Technology
- Energy saving
High Efficiency
Compact Design
Environment Protection
- Non-ozone depletion substances refrigerant (R410A)
Easy to use remote control
Weekly Timer setting
Quality Improvement
- Random auto restart after power failure for safety restart operation
- Gas leakage protection
- Prevent compressor reverse cycle
- Inner protector to protect compressor
Serviceability Improvement
- Breakdown Self Diagnosis function
- System Status Check Buttons for servicing purpose
- System Service Mode Button for servicing purpose
- Front maintenance design for mono bloc unit
Operation Condition
Water outlet temperature (°C) Ambient temperature (°C)
Maximum 55 35
HEATING Minimum 25 -20
NOTICE : When the outdoor temperature is out of the above temperature range, the heating capacity will drop significantly
and mono bloc unit might stop for protection control.

14
4. Location of Controls and Components

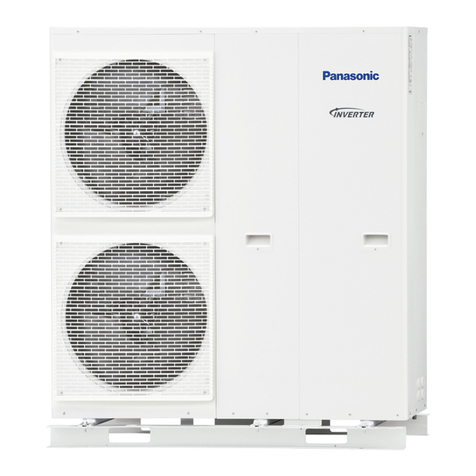

4.1 Mono Bloc Unit

15
4.1.1 Main Components

16
4.1.2 Location of Control
4.1.2.1 Remote Control
The user interface allows the installer and user to setup, use and maintain the unit.

17

18

19
4.1.3 Weekly Timer Setting

20
4.1.4 Setting Up The Special Functions
