Panasonic WH-MDC09G3E5 User manual

© Panasonic Corporation 2015.
Order No: PAPAMY1508107CE
Mono bloc Unit
WH-MDC06G3E5
WH-MDC09G3E5
Destination
Europe
Turkey
WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public.
It does not contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to
service or repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
PRECAUTION OF LOW TEMPERATURE
In order to avoid frostbite, be assured of no refrigerant leakage during the installation or repairing of refrigerant circuit.

7
2.2 WH-MDC09G3E5
Item Unit Refrigerant System
Performance Test Condition EN 14511
Condition (Ambient/Water) A35W7 -
kW 7.00 -
BTU/h 23900 -
Cooling Capacity
kcal/h 6020 -
W/W 2.44 -
EER kcal/hW 2.10 -
Condition (Ambient/Water) A7W35 A2W35
kW 9.00 7.45
BTU/h 30700 25400
Heating Capacity
kcal/h 7740 6410
W/W 4.15 3.14
COP kcal/hW 3.57 2.70
Air Flow m3/min (ft3/min) Cooling : 57.1 (2016)
Heating : 51.6 (1822)
Refrigeration Control Device Expansion Valve
Refrigeration Oil cm3FV50S (900)
Refrigerant (R410A) kg (oz) 1.45 (51.2)
Type Hermetic Motor (Rotary)
Motor Type Brushless (4-poles)
Compressor
Rated Output kW 1.70
Type Propeller Fan
Material PP
Motor Type DC (8-poles)
Input Power W —
Output Power W 60
Fan
Fan Speed rpm Cooling: 700
Heating: 640
Fin material Aluminium (Pre Coat)
Fin Type Corrugated Fin
Row × Stage × FPI 2 × 30 × 17
Heat Exchanger
Size (W × H × L) mm 38.1 × 762 × 903.8:873.8
Item Unit Mono Bloc Unit
Height mm (inch) 865 (34-1/16)
Width mm (inch) 1283 (50-17/32)
Dimension
Depth mm (inch) 320 (12-5/8)
Net Weight kg (lbs) 112 (247)
dB-A Cooling: 49
Heating: 49
Cooling: -
Heating: -
Noise Level
Power Level dB Cooling: 67
Heating: 67
Cooling: -
Heating: -
ø Single
V 230
Power Source (Phase, Voltage, Cycle)
Hz 50
Input Power kW Cooling: 2.87
Heating: 2.17
Cooling: -
Heating: 2.37
Maximum Input Power For Mono Bloc Unit kW 5.01
Power Supply 1: Phase (ø) / Max. Current (A) / Max. Input Power (W) Single / 22.9 / 5.01k
Power Supply 2: Phase (ø) / Max. Current (A) / Max. Input Power (W) Single / 13.0 / 3.00k
Power Supply 3: Phase (ø) / Max. Current (A) / Max. Input Power (W) - / - / -

8
Item Unit Mono Bloc Unit
Starting Current A 13.0
Running Current A Cooling: 13.0
Heating: 9.9
Cooling: -
Heating: 10.8
Maximum Current For Mono Bloc Unit A 22.9
Power Factor % Cooling: 96
Heating: 95
Cooling: -
Heating: 95
Power factor means total figure of compressor and outdoor fan motor.
Number of core -
Power Cord Length m (ft) -
Thermostat Electronic Control
Protection Device Electronic Control
Item Unit Water System
Performance Test Condition EN 14511
Outdoor Ambient °C Cooling: 16 ~ 43
Heating: -20 ~ 35
Operation Range
Water Outlet °C Cooling: 5 ~ 20
Heating: 25 ~ 55
Internal Pressure Differential kPa Cooling: 36.5
Heating: 57.5
Inlet mm (inch) 30 (1-3/16)
Water Pipe Diameter Outlet mm (inch) 30 (1-3/16)
Water Drain Hose Inner Diameter mm (inch) 15.00 (19/32)
Motor Type DC Motor
No. of Speed 7 (software selection)
Pump
Input Power W 84
Type Brazed Plate
No. of Plates 48
Size (H × W × L) mm 82 × 93 × 325
Hot Water Coil
Water Flow Rate l/min (m3/h) Cooling: 20.0 (1.2)
Heating: 25.8 (1.6)
Pressure Relief Valve Water Circuit kPa Open: 300, Close: 265 and below
Flow Switch Magnetic Lead Switch
Protection Device A Residual Current Circuit Breaker (40)
Volume I 6
Expansion Vessel MWP bar 3
Capacity of Integrated Electric Heater kW 3.00
Note:
Cooling capacities are based on outdoor air temperature of 35°C Dry Bulb with controlled water inlet temperature
of 12°C and water outlet temperature of 7°C.
Heating capacities are based on outdoor air temperature of 7°C Dry Bulb (44.6°F Dry Bulb), 6°C Wet Bulb
(42.8°F Wet Bulb) with controlled water inlet temperature of 30°C and water outlet temperature of 35°C.
Specification are subjected to change without prior notice for further improvement.

9
3. Features
Inverter Technology
- Energy saving
High Efficiency
Compact Design
Environment Protection
- Non-ozone depletion substances refrigerant (R410A)
Easy to use remote control
Weekly Timer setting
Quality Improvement
- Random auto restart after power failure for safety restart operation
- Gas leakage protection
- Prevent compressor reverse cycle
- Inner protector to protect compressor
Serviceability Improvement
- Breakdown Self Diagnosis function
- System Status Check Buttons for servicing purpose
- System Service Mode Button for servicing purpose
- Front maintenance design for Mono bloc unit
Operation Condition
Water outlet temperature (°C) Ambient temperature (°C)
Maximum 20 43
COOLING Minimum 5 16
Maximum 55 35
HEATING Minimum 25 -20
NOTICE : When the outdoor temperature is out of the above temperature range, the heating capacity will drop significantly
and Mono bloc unit might stop for protection control.

10

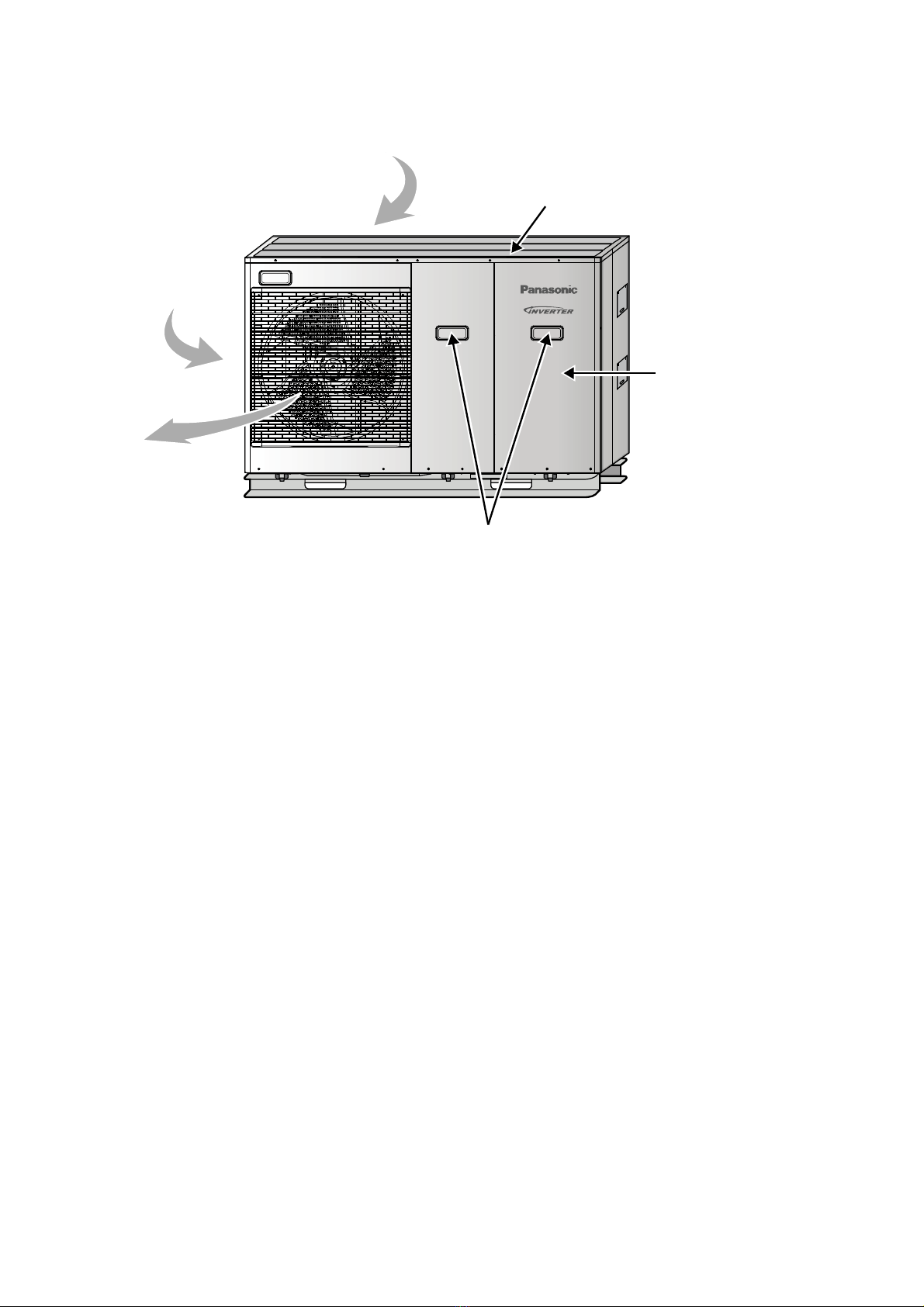

4. Location of Controls and Components
4.1 Mono Bloc Unit
Top Plate
A
ir inlet (rear)
Air inlet (side)
A
ir outlet
Cabinet Front Plate
Handle
(2 pieces front and 2 pieces behind)

11
4.1.1 Main Components
Component name
PCB
Pressure relief valve
Flow switch
Pressure gauge
Water pump
RCCB
Cable cover
Cabinet front plate
Connector name
Water inlet
Water outlet
Cabinet top plate
Overload protector
Heater assembly
Expansion vessel
Cover
Air purge valve
Plug
(VIEW
WITHOUT
COVER)
DETAIL B DETAIL A
View without cabinet top plate
(VIEW
WITHOUT
PCB)
1
2
a
b
3
4
5
6
7
8
9
10
11
12
13
14
15
It is advisable to avoid more than 2 blockage directions. For better ventilation & multiple-outdoor
installation, please consult authorised dealer/specialist

20

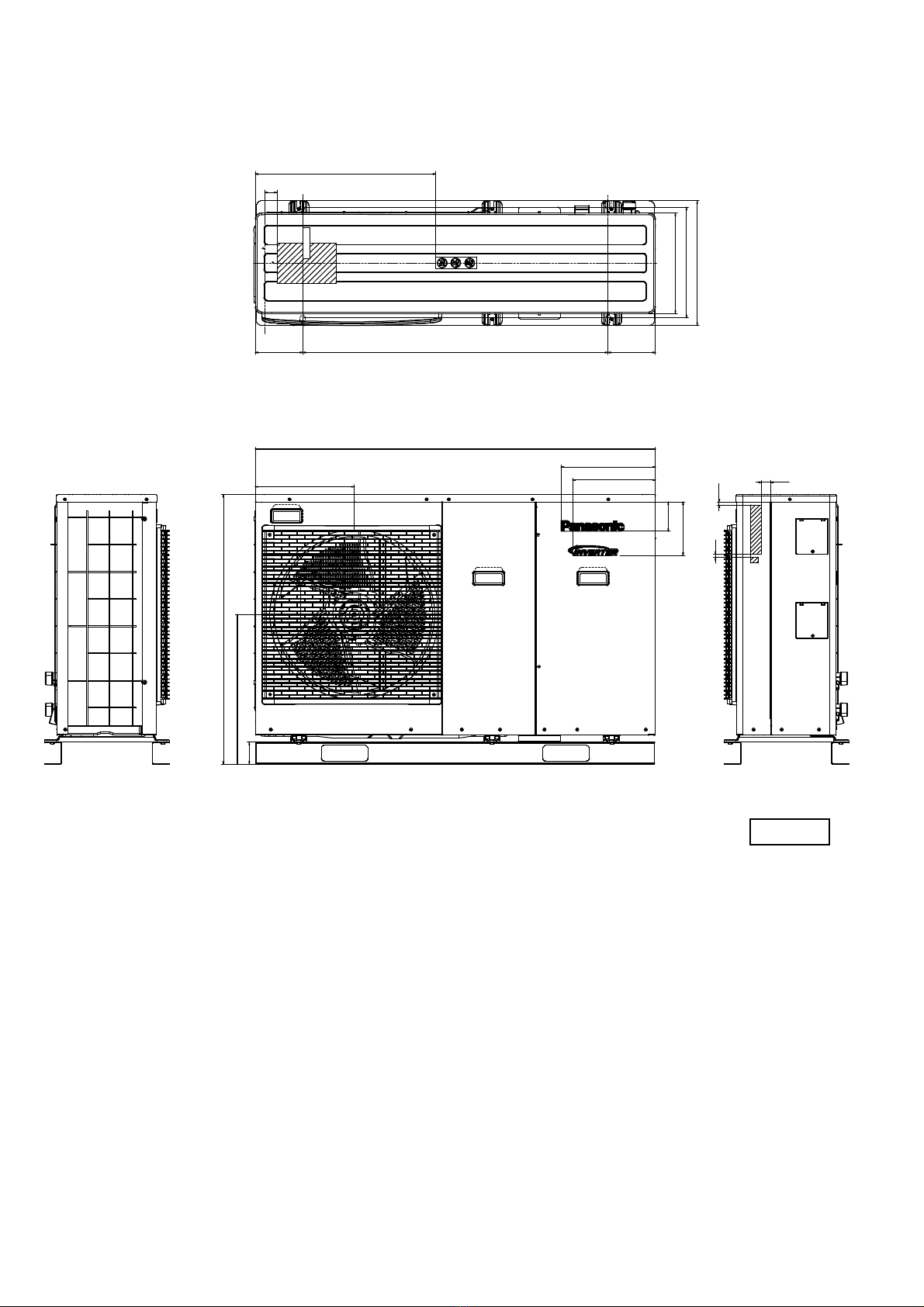

5. Dimensions
5.1 Mono Bloc Unit
Unit: mm
<Top View
>
<Front View> <Side View><Side view>
(579)
152 980
1283
303
319 266
94
865
480
70
172
(10)
(10)
(20)
152
400 355 320
(10)

21
6. Refrigeration and Water Cycle Diagram
Mono bloc Unit
Pipe
Temp.
Sensor
Pipe
Temp.
Sensor
Pipe
Temp.
Sensor
Pipe
Temp.
Sensor
Air
Temp.
Sensor
Compressor
Discharge Temp.
Sensor
Compressor
Tank Temp.
Sensor
Backup Heater
Outdoor
Side
Expansion
Vessel
Pressure
Relief
Valve
Air Purge Valve
Water
Flow
Switch
Water
Pump
Water
Inlet
(Connec
t
to
Sanitary
Tank)
Water
Outlet
(Connec
t
to
Sanitary
Tank)
Drain
Refrigerant Cycle (Heating)
Water Cycle
Heat
Exchanger
Heat
Exchanger
Strainer Strainer
Receiver
4-Way
Valve
Gas Side
(3-Way Valve)
Liquid Side
(3-Way Valve)
Pressure
Switch
High Pressure
Sensor
Compressor
Water
Pressure
Gauge
Capillary
Tube
Expansion
Valve
Refrigerant Cycle (Cooling)
Muffler

24
8. Wiring Connection Diagram
RCCB
POWER
SUPPLY 1
Single phase
AC230V
50Hz 230V 40A
l∆n=30mA
GROUNDING
(WATER SYSTEM)
(L)
(N)
BL
W
SW1 SW2
REACTOR
SURGE
PROTECTION
CIRCUIT
SURGE
PROTECTION
CIRCUIT
NOISE
FILTER
CIRCUIT
NOISE
FILTER
CIRCUIT
NOISE FILTER
CIRCUIT
COMMUNICATION
CIRCUIT
RECTIFICATION
CIRCUIT
RECTIFICATION
CIRCUIT
RECTIFICATION
CIRCUIT
RECTIFICATION
CIRCUIT
TERMINAL
BOARD
REFRIGERANT
SYSTEM
SIGNAL DETECTION
CIRCUIT
SIGNAL
DETECTION
CIRCUIT
WATER
PUMP
CIRCUIT
SIGNAL
DETECTION
CIRCUIT
G
W
WW BL R
BL R
W
21
31
21
BL
W
G
R
R11
AC1-L3
(BLK)
AC1-N
(WHT)
G02
(GRN)
L2
(WHT) L1
(WHT) T2
(BLK) T1
(BLK) CN-T1
(WHT)
FUSE1
T6.3A L250V
G01
(GRN)
G
G05
(GRN)
G
G07
(GRN)
G
R
BL
R
BL BL
22 11
G04
(GRN)
G
W2
BL
1
1 7
1 7
2 1
3 1
W
BL
7 4 3 2 1
1 4 5 6 7
W
W W W W W W W
BL
R
BR
B
W
BL
R
BR
B
7 4 3 2 1
BL
G08
(GRN)
CN-PUMP2
(WHT)
DATA
(RED)
EXTERNAL
CONTROL
TANK
SENSOR
TANK
OLP
ROOM
THERMOSTART
BOOSTER
HEATER
HEATCOOLNL
2-WAY
VALVE
NOPENCLOSE
N OPENCLOSE
3-WAY
VALVE
NOPENCLOSE
REMARKS: W:WHITE O:ORANGE R:RED B:BLUE BL : BLACK Y:YELLOW BR : BROWN G : GREEN GR : GRAY YG/ : YELLOW/GREEN RCCB : RESIDUAL CURRENT CIRCUIT BREAKER
CN-THERMO
(WHT)
RRRYYOOGRGRB
BOBR R Y
3
21 21
3511351 3571 2121 13
BR BL
BLBL
BL BL BLWW
TERMINAL
BOARD
TERMINAL
BOARD
TERMINAL
BOARD
TERMINAL
BOARD
TERMINAL
BOARD
19
11
PUMPSOLAR3-WAYSOLAR
VALVE
LEAD WIRE FIXING FOR OLP
LEAD WIRE FIXING FOR HEATER
BLUE
BLUE
BLACK
BLACK
WHITE
RED
TRANSFORMER
WATER
PUMP
M
HT1-L3
(RED)
AC2-L3
(BLK)
ACL3
(BLK)
ACL-BOOSTER
(BRW)
ACL-BOOSTER2
(WHT)
ACL-BOOSTER2
(BLK)
AC2-N2
(WHT)
ELECTRONIC CONTROLLER
(MAIN)
T3
OLP
80±3°C
OLP
80±3°C
CN-SOLAR_B
(IVORY) CN-SOLAR
(WHT)
HEATER
BACKUP
HEATER
(3kW)
CN-HT
(WHT) CN-V2
(WHT) CN-RCV2
(WHT)
CN-OLP2
(WHT) CN-TH2
(WHT)
CN-V3
(GRN)
PUMP-L
(RED)
ACN-3V
(BLU)
ACL1-3V
(ORG )
ACL2-3V
(BRW)
PUMP-N
(YLW)
ACN
(WHT)
ACL
(BLK)
CN-PWR
(BLK)
ELECTRONIC CONTROLLER (SOLAR)
SW201
RY-V201
RY-HT
(L3)
RY-BOOSTER
RY-HT
RY-V2
RY-V3
RCCB
POWER
SUPPLY 2
Single phase
AC230V
50Hz 230V 40A
l∆n=30mA
GROUNDING
(L1)
(N1)
BL
BL
BL BL
B B
1 2
1 1 4 1 1 2 6 2
1 3
1 3
BL
R
BR
O
BL
1 2 3 4
1 2 3 4
Y
R
BR
O
BL
Y
BL
2 1
2 1
B
B
W
BR
W
W
AB
W
W
11
1 1
11
W
W
1 2 3
20 21 22 23
123456 78910 11 12 13 14 15 16 17 18
CN-FLOW
(YLW)
CN-TH1
(WHT)
CN-OLP1
(WHT)
CN-TH3
(WHT)
CN-REMOTE2
(WHT)
WATER OUTLET TEMP. SENSOR (THERMISTOR) WATER INLET TEMP. SENSOR (THERMISTOR) REFRIGERANT TEMP. SENSOR (THERMISTOR)
REMOTE
CONTROL
HEX WATER OUTLET TEMP. SENSOR (THERMISTOR)
FLOW SWITCH
t° t° t° t°

25
(REFRIGERANT SYSTEM)
REMARKS: W : WHITE R : RED B : BLUE P : PINK BL : BLACK Y : YELLOW BR : BROWN O : ORANGE G : GREEN GR : GRAY Y/G : YELLOW/GREEN
WATER
SYSTEM
1 2 3
TERMINAL
BOARD
CN-ACL
(BLACK)
CN-BLK
(BLACK)
AC-BLK
(BLACK)
AC-BLK01
(BLACK)
AC-L
(GRAY)
DCP
(RED)
DCN2
(BLACK)
CN-PSW1
(BLUE)
CN-EV
(WHITE)
CN-FM1
(WHITE)
FG1
(GREEN)
DCN-OUT
(BLACK)
AC-C
(BLUE)
DCN-IN
(BLACK) DCP-OUT
(WHITE)
AC-C
(BLUE)
DCN
(BLACK)
CN-ACN (WHITE)
CN-WHT
(WHITE)
CN-WHT
(WHITE)
CN-RY1
(WHITE)
CN-HPS
(RED)
CN-HOT
(BLUE)
CN-HT1
(WHITE)
CN-HT2
(BLACK)
AC-BLK02
(BLACK)
AC-WHT02
(WHITE)
CN-TANK
(WHITE)
CN-DIS
(WHITE)
CN-TH1
(WHITE)
COM3
(RED)
ELECTRONIC CONTROLLER
(MAIN)
1
W
COMPRESSOR
3
BL
1
3
W
BL
BL
W
R
BL
2
31214611
ELECTRO MAGNETIC COIL
(MAIN EXPANSION VALVE)
R
2
R
1RY-HT2
1 3 3
RY-HT1
1 3 1
RY-HOT
4
12
1 4 7
FAN MOTOR
P
N
U
V
W
U (RED)
V (BLUE)
3~
W (YELLOW)
MS
M
M
G
BBLR
REACTOR REACTOR
BL
GR
RELAY
41
56
WWW
BL
BL
BL
FG1 (GREEN) FG2 (GREEN)
GG
R
B Y
R
B Y
HIGH PRESSURE SWITCH
R
FUSE2
T3.15A L250V
FUSE1
T3.15A L250V
NOISE FILTER CIRCUIT
ELECTRONIC CONTROLLER (SUB)
ELECTRONIC CONTROLLER (CAPACITOR)
ELECTRO
MAGNETIC COIL
(4-WAY VALVE)
CRANKCASE
HEATER
BASE PAN HEATER
(OPTIONAL)
HIGH PRESSURE
SENSOR
NOISE
FILTER
CIRCUIT
CAPACITOR
CIRCUIT
PFC
CIRCUIT
COMMUNICATION
CIRCUIT
RECTIFICATION
CIRCUIT
RECTIFICATION
CIRCUIT
SWITCHING POWER
SUPPLY CIRCUIT
t° t° t° t°
DISCHARGE TEMP. SENSOR
(THERMISTOR)
COMPRESSOR (TANK) TEMP. SENSOR
(THERMISTOR)
OUTDOOR AIR TEMP. SENSOR
(THERMISTOR)
OUTDOOR PIPE TEMP. SENSOR
(THERMISTOR)
RED
(TRADE MARK)
BLUE
YELLOW
COMPRESSOR TERMINAL

85
14.4 Proper Pump Down Procedure
Strictly follow the steps below for proper pump down procedure. Explosion may occur if the steps are not
followed as per sequence.
1. Press the “SERVICE” switch on remote control to enter SERVICE mode. Operate the system in Sr : 01 mode
for pump down operation.
2. After 10~15 minutes, (after 1 or 2 minutes in case very low ambient temperatures (< 10°C)), fully close 2 way
valve.
3. After 3 minutes, fully close 3 way valve.
4. Press the “OFF/ON” switch on remote control to stop pump down operation.
5. Remove the refrigerant piping.
14.5 How To Adjust Water Flow Rate
Before adjust the water flow rate, make sure that the total water volume in the installation is 30 litres minimum for
heating side. The default setting is SPEED 3 (Only for WH-MDC06G3E5) and SPEED 6 for WH-MDC09G3E5.
Please ensure the minimum flow rate is not less than 9 l/min and not more than 35 l/min.
The available external static pressure (kPa) in function of the water flow rate (l/min) is shown in the P-Q graph.
Depend on the hydraulic system pressure loss and type, the water flow rate can be adjusted by remote control.
1 When the Air-to-Water Heatpump is in stop operation, press SERVICE button for 5 seconds.
2 Press /button to select menu S02 (PUMP SPEED ADJUST MODE) and press SET button to confirm the
menu.
3 Press SELECT button then press /button to change pump speed and press SET button to confirm the
pump speed.
4 Press OFF/ON button to exit PUMP SPEED ADJUST MODE.
During PUMP SPEED ADJUST MODE, we can select AIR PURGE function by pressing FORCE button.
In AIR PURGE function, the pump will operate ON and OFF for 10 minutes to purge the air in the hydraulic system.
Press again the FORCE button to exit AIR PURGE function. PUMP SPEED ADJUST
MODE will stop operation.
0591015202530 4035
0
10
20
30
40
50
60
70
80
90
100
110
1
2
3
4
5
6
7
WATER FLOW RATE (L/min)
EXTERNAL STATIC PRESSURE (kPa)
NOT APPLICABLE RANGE
14.6 Expansion Vessel Pre Pressure Checking
Expansion Vessel with 10 L air capacity and initial pressure of 1 bar is installed in this Mono bloc unit.
Total amount of water in system should be below 200 L.
(Note: This amount of water is not include the tank unit volume)
If total amount of water is more than 200 L, please install additional expansion vessel (field supply).
Please keep the installation height difference of system water circuit within 10 m.
(Inner volume of same Mono bloc unit is about 5 L)

142
18.1.2 WH-MDC09G3E5

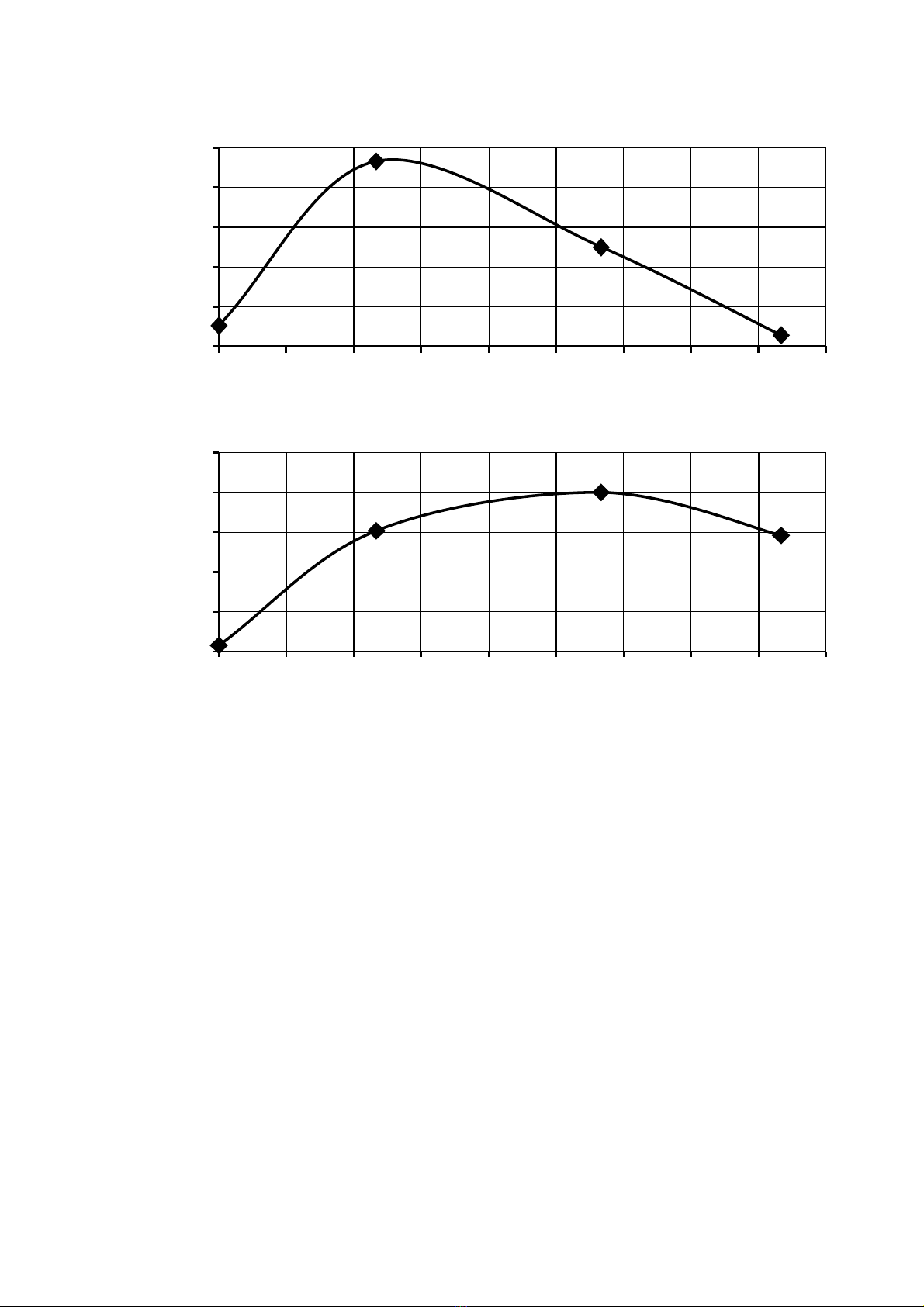

Heating Characteristics at Different Outdoor Air Temperature
Condition
oIndoor water inlet temperature : 30°C
oIndoor water outlet temperature : 35°C
Outdoor Temperature (°C)
Capacity
(
kW
)
Outdoor Temperature (°C)
Input Power
(
kW
)
0.000
1.000
2.000
3.000
4.000
5.000
1
5.500
6.500
7.500
8.500
9.500
10.500
-15 -11 -7 -3 1 5 9 13 17 21 25
-15 -11 -7 -3 1 5 9 13 17 21 25

143
Cooling Characteristics at Different Outdoor Air Temperature
Condition
oIndoor water inlet temperature : 12°C
oIndoor water outlet temperature : 7°C
Outdoor Temperature (°C)
Capacity
(
kW
)
Outdoor Temperature (°C)
Input Power
(
kW
)
1.000
1.500
2.000
2.500
3.000
3.500
3.500
4.500
5.500
6.500
7.500
8.500
18 21 24 27 30 33 36 39 42 45
18 21 24 27 30 33 36 39 42 45

144
Cooling Characteristics at Different Outdoor Air Temperature
Condition
oIndoor water inlet temperature : 19°C
oIndoor water outlet temperature : 14°C
Outdoor Temperature (°C)
Capacity
(
kW
)
Outdoor Temperature (°C)
Input Power
(
kW
)
1.000
1.500
2.000
2.500
3.000
3.500
6.000
7.000
8.000
9.000
10.000
11.000
18 21 24 27 30 33 36 39 42 45
18 21 24 27 30 33 36 39 42 45

145
Cooling Characteristics at Different Outdoor Air Temperature
Condition
oIndoor water inlet temperature : 23°C
oIndoor water outlet temperature : 18°C
Outdoor Temperature (°C)
Capacity
(
kW
)
Outdoor Temperature (°C)
Input Power
(
kW
)
1.000
1.500
2.000
2.500
3.000
3.500
6.500
7.500
8.500
9.500
10.500
11.500
18 21 24 27 30 33 36 39 42 45
18 21 24 27 30 33 36 39 42 45

146

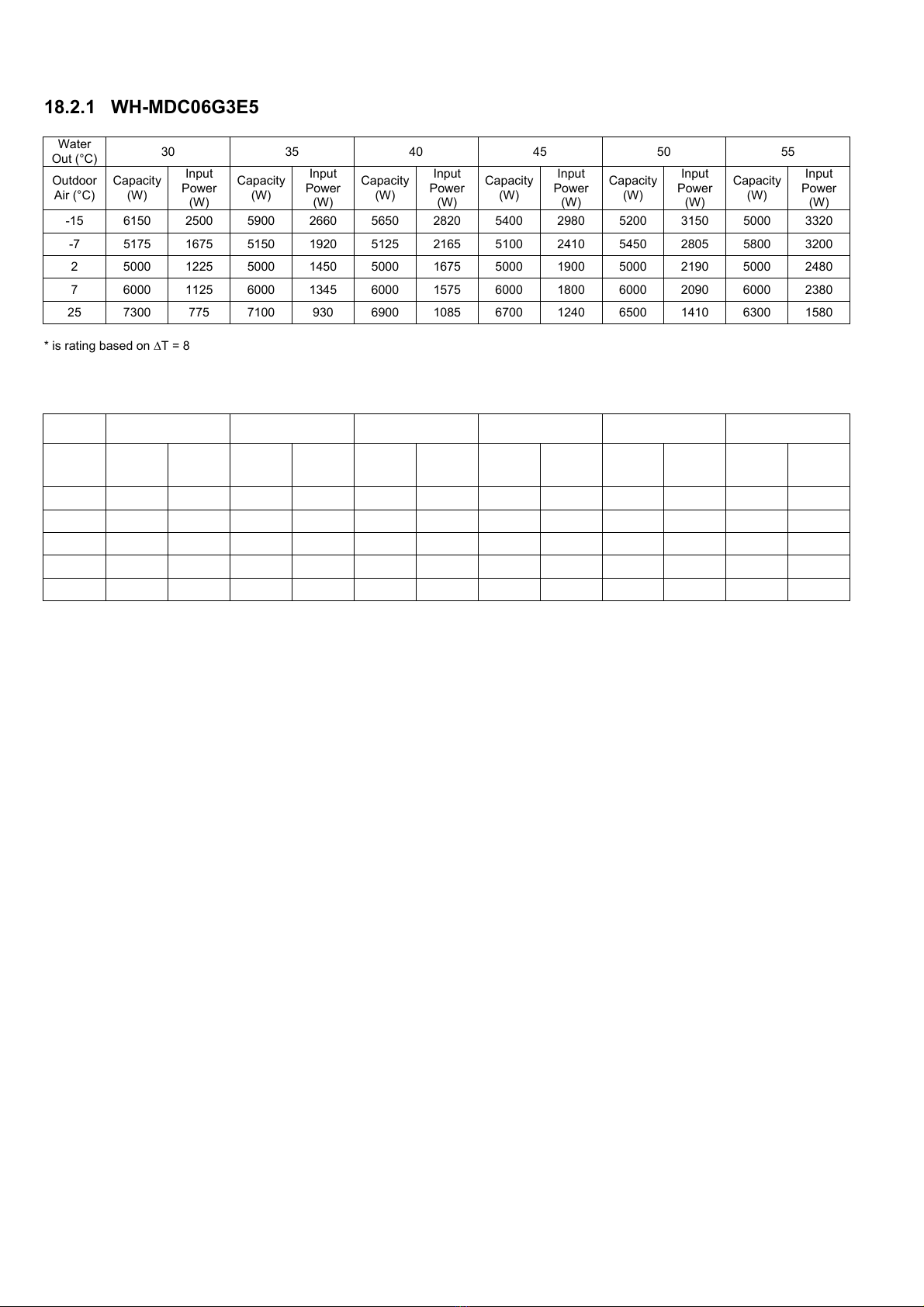

18.2 Heating Capacity Table
18.2.1 WH-MDC06G3E5
Water
Out (°C) 30 35 40 45 50 55
Outdoor
Air (°C)
Capacity
(W)
Input
Power
(W)
Capacity
(W)
Input
Power
(W)
Capacity
(W)
Input
Power
(W)
Capacity
(W)
Input
Power
(W)
Capacity
(W)
Input
Power
(W)
Capacity
(W)
Input
Power
(W)
-15 6150 2500 5900 2660 5650 2820 5400 2980 5200 3150 5000 3320
-7 5175 1675 5150 1920 5125 2165 5100 2410 5450 2805 5800 3200
2 5000 1225 5000 1450 5000 1675 5000 1900 5000 2190 5000 2480
7 6000 1125 6000 1345 6000 1575 6000 1800 6000 2090 6000 2380
25 7300 775 7100 930 6900 1085 6700 1240 6500 1410 6300 1580
* is rating based on ∆T = 8
18.2.2 WH-MDC09G3E5
Water
Out (°C) 30 35 40 45 50 55
Outdoor
Air (°C)
Capacity
(W)
Input
Power
(W)
Capacity
(W)
Input
Power
(W)
Capacity
(W)
Input
Power
(W)
Capacity
(W)
Input
Power
(W)
Capacity
(W)
Input
Power
(W)
Capacity
(W)
Input
Power
(W)
-15 7900 3615 7600 3770 7300 3925 7000 4080 6450 4055 5900 4030
-7 7800 3380 7700 3630 7600 3880 7500 4130 7550 4590 7600 5050
2 7000 2005 7450 2370 7000 2595 7000 2890 7000 3370 7000 3850
7 9000 1865 9000 2165 9000 2475 9000 2780 8950 3310 8900 3840
25 9000 990 9000 1310 9000 1630 9000 1950 9000 2200 9000 2450
* is rating based on ∆T = 8

147
18.3 Cooling Capacity Table
18.3.1 WH-MDC06G3E5
Water In (°C) 12 19 23
Water Out (°C) 7 14 18
°C Capacity
(W)
Input Power
(W)
Capacity
(W)
Input Power
(W)
Capacity
(W)
Input Power
(W)
18 4640 910 5830 990 6740 940
25 5850 1430 9550 1730 9810 1680
35 5500 2030 6700 2060 7300 2050
OD Ambient
43 4560 2340 6310 2470 7140 2450
18.3.2 WH-MDC09G3E5
Water In (°C) 12 19 23
Water Out (°C) 7 14 18
°C Capacity
(W)
Input Power
(W)
Capacity
(W)
Input Power
(W)
Capacity
(W)
Input Power
(W)
18 5360 1050 6120 1080 7020 1080
25 6440 1850 10500 2510 11160 2520
35 7000 2900 8400 2950 9000 3000
OD Ambient
43 5320 3180 6340 2480 6780 2460
