Panasonic SA-HT840GC User manual

ORDERNO.MD0503088C3
DVDHome Theater Sound System
SA-HT840GC / SA-HT840GS / SA-HT840GN
Colour
(S).......................Silver Type

General
Power Source:
GC/GS areas:
GN area:
AC 110/127/220-230/240V, 50/
60Hz
AC 230-240,50Hz
Power consumption: 25 W
Dimensions(W×H×D): 430×60×348.3mm
Mass: 2.7kg
Amplifier section
RMS Output Power: DolbyDigital Mode
Total RMS Dolby
Digital
modePower:
GC/GS areas:
GN area:
600 W
800 W
At 1kHz and total harmonicof 10%
Front:
GC/GS areas:
GN area:
55 W/ Channel (6 )
70 W/ Channel (4 )
Center:
GC/GS areas:
GN area:
160 W/ Channel (6 )
260 W/ Channel (4 )
Surround:
GC/GS areas:
GN area:
55 W/ Channel (6 )
70 W/ Channel (4 )
At 100Hz and total harmonicof 10%
Activesubwoofers:
GC/GS areas:
GN araeas:
220 W/ Channel (4 )
260 W/ Channel (4 )
PMPO Output Power: DolbyDigital Mode:
Total PMPO DolbyDigital :
GC/GS areas: 5000 W
DIN Output Power: DolbyDigital Mode:
Total DIN DolbyDigital modePower:
GC/GS areas:
GN area: 430 W 515 W
At 1kHz and total harmonicof 1%
Front:
GC/GS areas:
GN area:
40 W/ Channel (6 )
45 W/ Channel (4 )
Center:
GC/GS areas:
GN arae:
120 W/ Channel (6 )
165 W/ Channel (4 )
Surround:
GC/GS araes:
GN area:
40 W/ Channel (6 )
50 W/ Channel (4 )
At 100Hz and total harmonicof 1%
2
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Subwoofer:
GC/GS areas:
GN area:
150 W/ Channel (4 )
160 W/ Channel (4 )
FM tuner section
FrequencyRange: 87.5-108.0MHz
(50kHz instep)
Sensitivity: 2.5 V (IHF)
S/N 26dB 2.2 V
AntennaTerminal: 75 (non balance)
AM tuner section (AM/MW)
FrequencyRange:
GC/GS areas: 522-1629kHz (9kHz instep)
520-1630kHz (10kHz instep)
GN area: 520-1629kHz (9kHz instep)
AM SensitivityS/N 20dB at
999kHz:
560 V/m
PhoneJack:
Terminal: Stereo3.5mm jack
MIC Jack:
Sensitivity:
GC/GS areas:
0.7MV, 12 k
Terminal:
GC/GS areas: Mono 6.3mm jack (2system)
Disc section
Discs played[8cm or12 cm]:
(1)DVD-RAM (DVD-VR compatible, JPEG formatteddiscs)
(2)DVD-Audio
(3)DVD-Video
(4)DVD-R, DVD-RW(DVD-Videocompatible)
+R, +RW(Videocompatible)
(5)CD-Audio(CD-DA)
(6)VideoCD
(7)SVCD (Conforming toIEC62107)
(8)CD-R/CD-RW(CD-DA, Video-CD, SVCD, MP3, WMA,
JPEG formatteddiscs)
(9)MP3/WMA
Maximumnumber of recognizableaudioand picture
contentsand groups:
4000 audioand picture
contentsand 400 groups
Compatiblecompression rate:
MP3: between32 kbpsand 320 kbps
WMA: between48 kbpsand 320 kbps
(10)JPEG
Maximumnumber of recognizableaudioand picture
contentsand groups:
4000 audioand picture
contentsand 400 groups
3
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Exif Ver 2.1JPEG Baselinefiles
Picture resolution: between320 x240 and 6144 x
4096 pixels(sub sampling is4:2:2or4:2:0)
(11)HighMATLevel 2(Audioand lmage)
Pick up:
Wavelength:
CD: 785nm
DVD: 662nm
Laser power: CLASS 2/ CLASS 3A
Audiooutput (DISC):
Number of channels: 5.1ch(FL, FR, C, SL, SR,
SW)
Audioperformance (measuredat REC OUTterminal):
Frequencyresponse:
DVD (linear audio): 10 Hz-22 kHz (48 kHz
sampling)
10 Hz-44 kHz (96 kHz
sampling)
DVD-Audio: 10 Hz-88 kHz (192 kHz
sampling)
CD-Audio: 10 Hz-20 kHz
S/N ratio:
CD-Audio: 95 dB
Dynamicrange:
DVD (linear audio): 95 dB
CD-Audio: 93 dB
Total harmonicdistortion:
CD-Audio: 0.005 %
Videosection
Videosystem:
Signal system: PAL625/50, PAL525/60,
NTSC
Compositevideooutput:
Output level: 1Vp-p(75 )
Terminal: Pinjack (1system)
S-videooutput:
Y output level: 1Vp-p(75 )
C output level: PAL; 0.3Vp-p(75 )
NTSC; 0.286 Vp-p(75 )
Terminal S terminal (1system)
Component videooutput :
GC/ GS areas: NTSC: 525(480)P / 525(480)I:
PAL: 625(576)P / 625(576)I:
GN area: (480P/480I):
Y output level: 1Vp-p(75 )
PBoutput level: 0.7Vp-p(75 )
PRoutput level: 0.7Vp-p(75 )
Terminal: Pinjack (Y: green, PB: blue,
PR: red) (1system)
4
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Power consumption instandbymode:
GC/GS areas: approx0.9W
GN area: approx0.7W
Note:
1. Specificationsare subject tochangewithout notice.
Mass and dimensionsare approximate.
2. Total harmonicdistortion ismeasuredbythedigital
spectrumanalyzer.
Solder:
Thismodel uses leadfree solder (PbF).
2005 PanasonicAVCNetworks Singapore Pte. Ltd. All rights
reserved. Unauthorized copying and distribution isaviolation of
law.
5
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

1. Use of Active Subwoofer
1.1. Checking Player when Active Subwoofer isnot used
1. Thisunituses the active subwoofer to supplythe power of the
component, and the active subwoofer shouldbe connected to the
component to check operational conditions of the component.
2. Ifthe active subwoofer isnot availabledue to repairof the unit,
use the following equipment.
6
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Jigproduct number: RFKZ0182 (110V, 127V, 220V, 230V-240V for
overseas domesticuse)
2. Safety Precautions
2.1. GENERALGUIDELINES
1. When servicing, observe the original lead dress. Ifashort circuit
isfound, replace all parts which have been overheated or
damaged bythe short circuit.
2. After servicing, see to itthat all the protective devices such as
insulation barriers, insulation papers shields are properly
installed.
3. After servicing, carryout the following leakage current checks to
prevent the customer from being exposed to shock hazards.
2.1.1. LEAKAGE CURRENTCOLD CHECK
1. Unplug the AC cord and connect ajumper between the two
prongs on the plug.
2. Measure the resistance value, with an ohmmeter, between the
jumpered AC plug and each exposed metalliccabinet part on the
equipment such as screwheads, connectors, control shafts, etc.
When the exposed metallicpart has areturn path to the chassis,
the reading shouldbe between 1M and 5.2M . / When the
exposed metal does not have areturn path to the chassis, the
7
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

reading must be . Figure 1
2.1.2. LEAKAGE CURRENTHOTCHECK (See Figure 1 .)
1. Plug the AC cord directlyinto the AC outlet. Donot use an
isolation transformer for thischeck.
2. Connect a1.5k , 10 watts resistor, inparallel with a0.15 F
capacitors, between each exposed metallicpart on the set and a
good earth ground such as awater pipe, as shownin Figure 1.
3. Use an AC voltmeter, with 1000 ohms/voltor more sensitivity, to
measure the potential across the resistor.
4. Check each exposed metallicpart, and measure the voltage at
each point.
5. Reverse the AC plug inthe AC outlet and repeat each of the above
measurements.
6. The potential at anypoint shouldnot exceed 0.75 volts RMS. A
leakage current tester (Simpson Model 229 or equivalent) maybe
used to make the hot checks, leakage current must not exceed 1/2
milliamp. Incase ameasurement isoutside of the limits specified,
there isapossibilityof ashock hazard, and the equipment should
be repaired and rechecked before itisreturned to the customer.
3. Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices
Some semiconductor(solidstate) devices canbe damagedeasilybystatic electricity. Such
components commonlyare calledElectrostaticallySensitive (ES) Devices. Examples of typical
ES devices are integratedcircuits and some field-effect transistors and semiconductor"chip"
components. The following techniques shouldbe usedtohelpreduce the incidence of
component damage causedbyelectrostatic discharge (ESD).
1. Immediatelybefore handling anysemiconductor component or
8
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

semiconductor-equipped assembly, drainoff anyESDon your
bodybytouching aknownearth ground. Alternatively, obtainand
wear acommerciallyavailabledischarging ESDwrist strap, which
shouldbe removed for potential shock reasons prior to applying
power to the unitunder test.
2. After removing an electrical assemblyequipped with ES devices,
place the assemblyon aconductive surface such as aluminum
foil, to prevent electrostaticcharge buildup or exposure of the
assembly.
3. Use onlyagrounded-tipsoldering iron to solder or unsolder ES
devices.
4. Use onlyan anti-staticsolder removal device. Some solder
removal devices not classified as "anti-static(ESDprotected)"
can generate electrical charge sufficient to damage ES devices.
5. Donot use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Donot remove areplacement ES device from its protective
package until immediatelybefore you are readyto install it. (Most
replacement ES devices are packaged with leads electrically
shorted together byconductive foam, aluminum foil or
comparableconductive material).
7. Immediatelybefore removing the protective material from the
leads of areplacement ES device, touch the protective material to
the chassisor circuitassemblyinto which the device will be
installed.
Caution
Besure no power isapplied to the chassisor circuit, and observe
all other safetyprecautions.
8. Minimize bodilymotions when handling unpackaged replacement
ES devices. (Otherwise harmless motion such as the brushing
together of your clothes fabricor the lifting of your foot from a
carpeted floor can generate staticelectricity(ESD)sufficient to
damage an ES device).
9
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

4. Before Repair and Adjustment (Using Active
Subwoofer)
Disconnect AC power, discharge PowerSupplyCapacitors C546~C549 through a 10 , 10 W
resistortoground.
DO NOTSHORT-CIRCUITDIRECTLY (witha screwdriverblade, forinstance), as this may
destroysolidstate devices.
Afterrepairs are completed, restore powergraduallyusing a variac, toavoidovercurrent.
Current consumption at AC 230 - 240 V, 50 Hz inNO SIGNALmode shouldbe ~ 420 mA (ForGS)
& ~620 mA (ForGN).
Current consumption at AC 100/110 V, 50/60Hz inNO SIGNALmode shouldbe ~835 mA (For
GC).
5. Protection Circuitry
The protection circuitrymayhave operatedif eitherof the following conditions are noticed:
-Nosound isheard when the power isturned on.
-Sound stops during aperformance.
The function of this circuitryis toprevent circuitrydamage if, forexample, the positive and
negative speakerconnection wires are
“shorted”, orif speakersystems withanimpedance less thanthe indicatedratedimpedance of
the amplifierare used.
If this occurs, followthe procedure outlines below:
1. Turn off the power.
2. Determine the cause of the problem and correct it.
3. Turn on the power once againafter one minute.
Note:
Whenthe protection circuitryfunctions, the unit will not operate unless the poweris first turned
off and thenon again.
6. Precaution of Laser Diode
ON :
Thisproduct utilizers aclass 1laser. Invisiblelaser radiation is
emitted from the optical pick up lens.
When the unitisturned on:
Wavelength :658nm/780nm
Maximum output radiation power from pick up :100 W/VDE
Laser radiation from pick up unitissafetylevel, but be sure the
followings:
10
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

1. Donot disassemblethe optical pick up unit, since radiation from
exposed laser diode isdangerous.
2. Donot adjust the variableresistor on the pick up unit. Itwas
alreadyadjusted.
3. Donot look at the focus lens using optical instruments.
4. Recommend not to look at pick up lens for along time.
7. About Lead Free Solder (PbF)
Distinction of PbF PCB: PCBs (manufactured) using leadfree solderwill have a Pbf stampon
the PCB.
Caution:
-Pb free solder has ahigher melting point than standard solder;
Typicallythe melting point is50 -70°F (30 -40°C)higher. Please
use ahigh temperature soldering iron. Incase of the soldering
iron with temperature control, please set itto 700 ± 20°F (370 ±
10°C).
-Pb free solder will tend to splash when heated too high (about
1100°F/ 600°C).
When soldering or unsoldering, please completelyremove all of the
solder on the pins or solder area, and be sure to heat the soldering
points with the Pb free solder until itmelts enough.
8. General Description
8.1. Operating instructions
8.2. Disc information
11
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

8.3. About HighMAT
8.3.1. What’sHighMAT?
Consumers worldwide are using PCs tocreate theirowncollections of music, photos and even
videobyburning themontoCDs. But howthese collections canbe experiencedacross different
devices canbe confusing tonavigate, time consuming toaccess fora DVD player, and be
incomplete interms of music information available tothe customer.
HighMAToffers a solution tothis growing consumerproblem. HighMATdramaticallyimproves
the digital media experience on consumerelectronic devices bydelivering a simple,
standardizedapproachthat allows consumers who have createdpersonal collections of digital
music, photographyand videoon theirPC to:

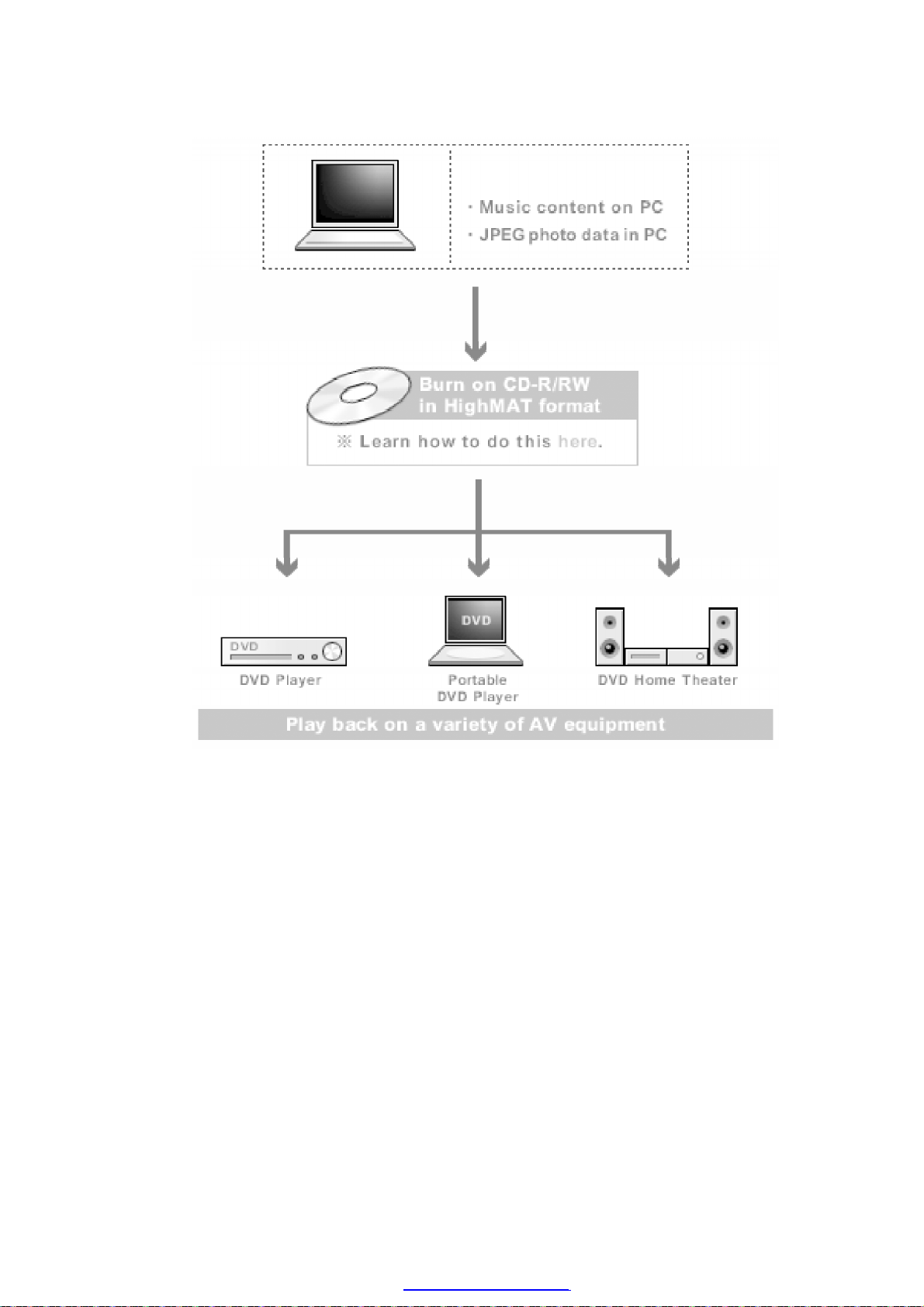

>> Create a HighMATCD orDVD whichcanbe easilyplayedback on consumerelectronics
devices suchas CD and DVD players, and carstereos.
>> Move digital media files (using recordable media suchas CD-R and CD-RW) betweenthe PC
and various playback devices suchas CD and DVD players.
A newstandardforcreating personal media on consumerelectronic devices, HighMATenable
easierand more seamless interoperabilitybetweenWindows PCs and devices designedfor
yourliving room, orthe car.
12
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

8.3.2. Whytake advantage of HighMAT?
A ProblemDefined:Today, whenconsumers create theirowndigital audio, videoorphoto
collections on CD-R orotherphysical formats, there are numerous, inconsistent ways that
devices readthe data. Forthe consumer, the playback experience canbe confusing:
A Solution Created: HighMATdelivers a betterdigital media access experience bycreating a
standardapproachforPCs tostructure digital media on various physical formats and for
playback devices toreadthe data.
8.3.3. Benefitsof HighMAT?
13
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

Conventional HighMAT
Eventhough DVD playeris CD-R/RW compatible, the
inconsistent ways that various DVD players canread
the music orphotos files oftenleads toa confusing
and inconsistant playback experince.
HighMATcompatible products play
content
withconsistent interface. This includes
products
whichare JPEG compatible products
without
HighMATsupport.
14
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

15
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

HighMATis nowavailable forCD Burning and inLeading DVD Players / HighMATis a new
technologythat is nowavailable inleading software and consumerelectronic devices to
dramaticallyimprove the digital media experience whenyou create homemade CDs / HighMAT
delivers a simple, standardizedwayforPC software and consumerelectronics devices totalk to
eachotherand work bettertogether.
Whenyou create yourhomemade CDs withsoftware that supports HighMATCD burning, and
thenplaythemback on a DVD playerthat supports HighMAT, you get better, easiernavigation.

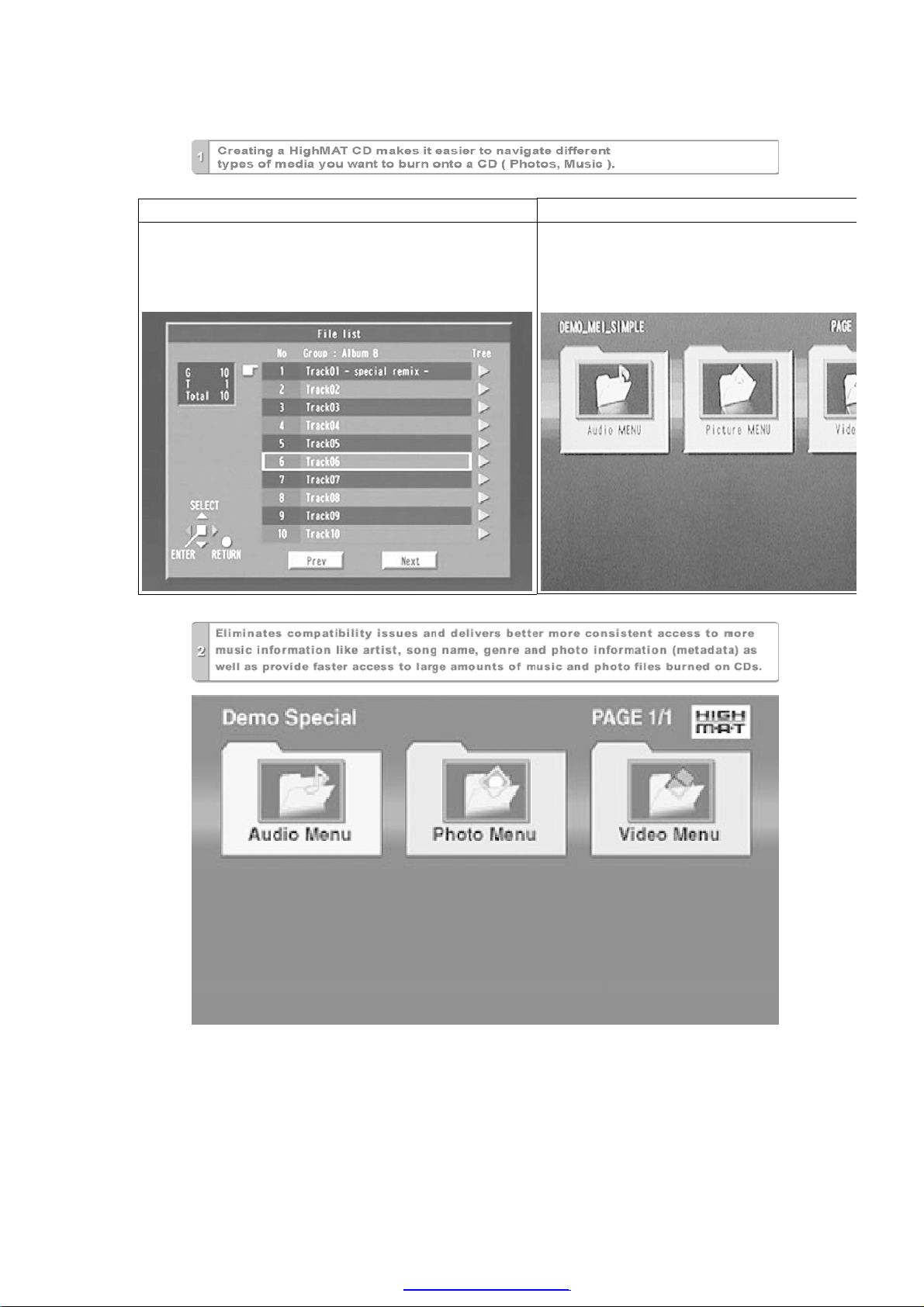

You get folders you canaccess witha single click of yourDVD player's remote control. You can
viewimportant information about yourmusic like full song names, artist titles, albumnames
and genre. And you canget fasterstartup on yourhome entertainment device.
To enjoythe benefits of HighMAT, all you needis software that supports HighMATforCD
burning of music orphotos, as well as a home entertainment device like a DVD playerthat
supports HighMATforplayback. Always look forthe HighMATlogo on yoursoftware orhome
entertainment device toensure it supports the HighMATexperience.
9. Accessories Remote control
16
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

AM loop antenna
FM indoorantenna
VideoCable
Speakercable
AC cord / (ForGC/GS areas)
17
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

AC cord(ForGS area)
AC cord(ForGN area)

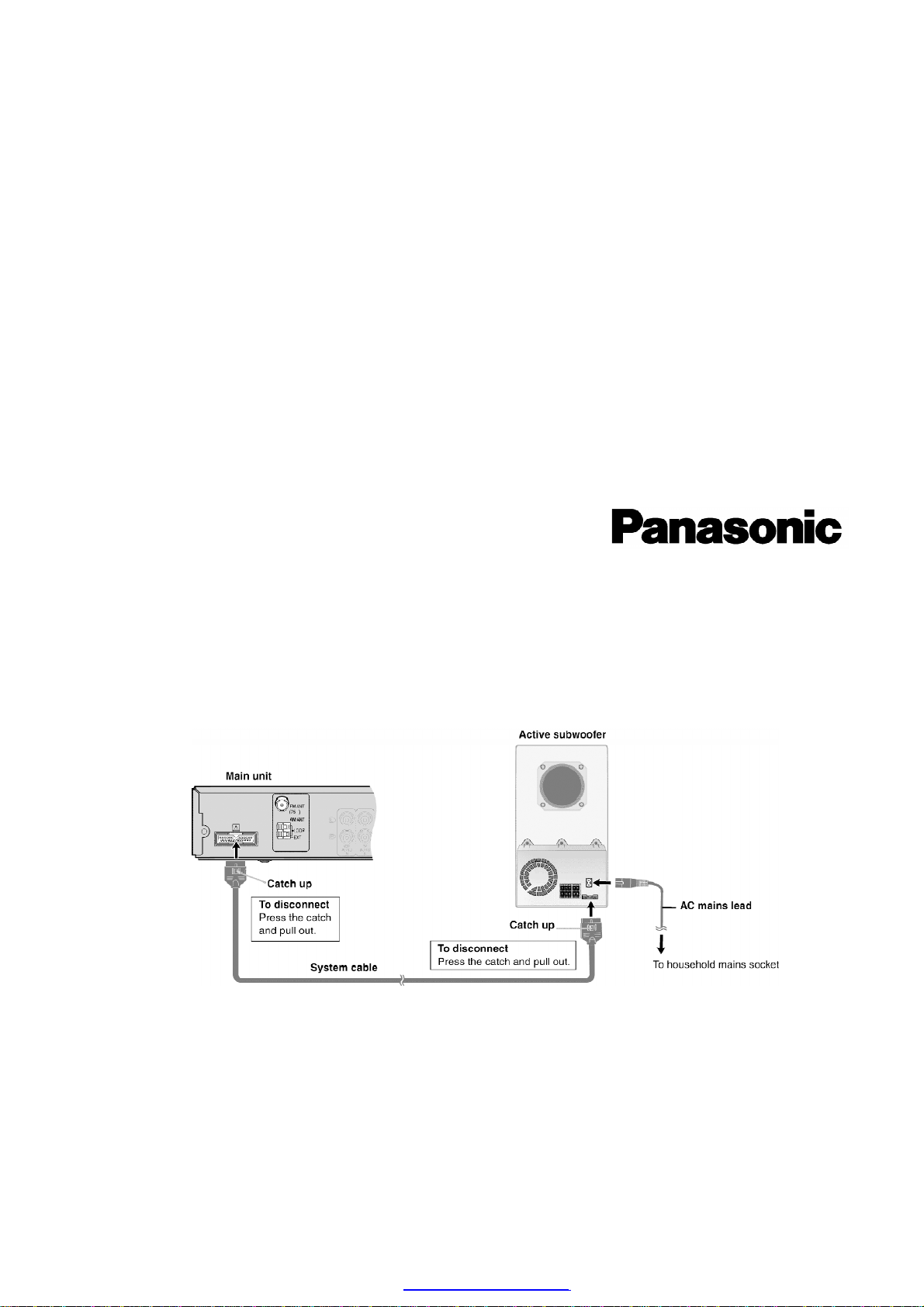

Systemcable
Speakerlabel

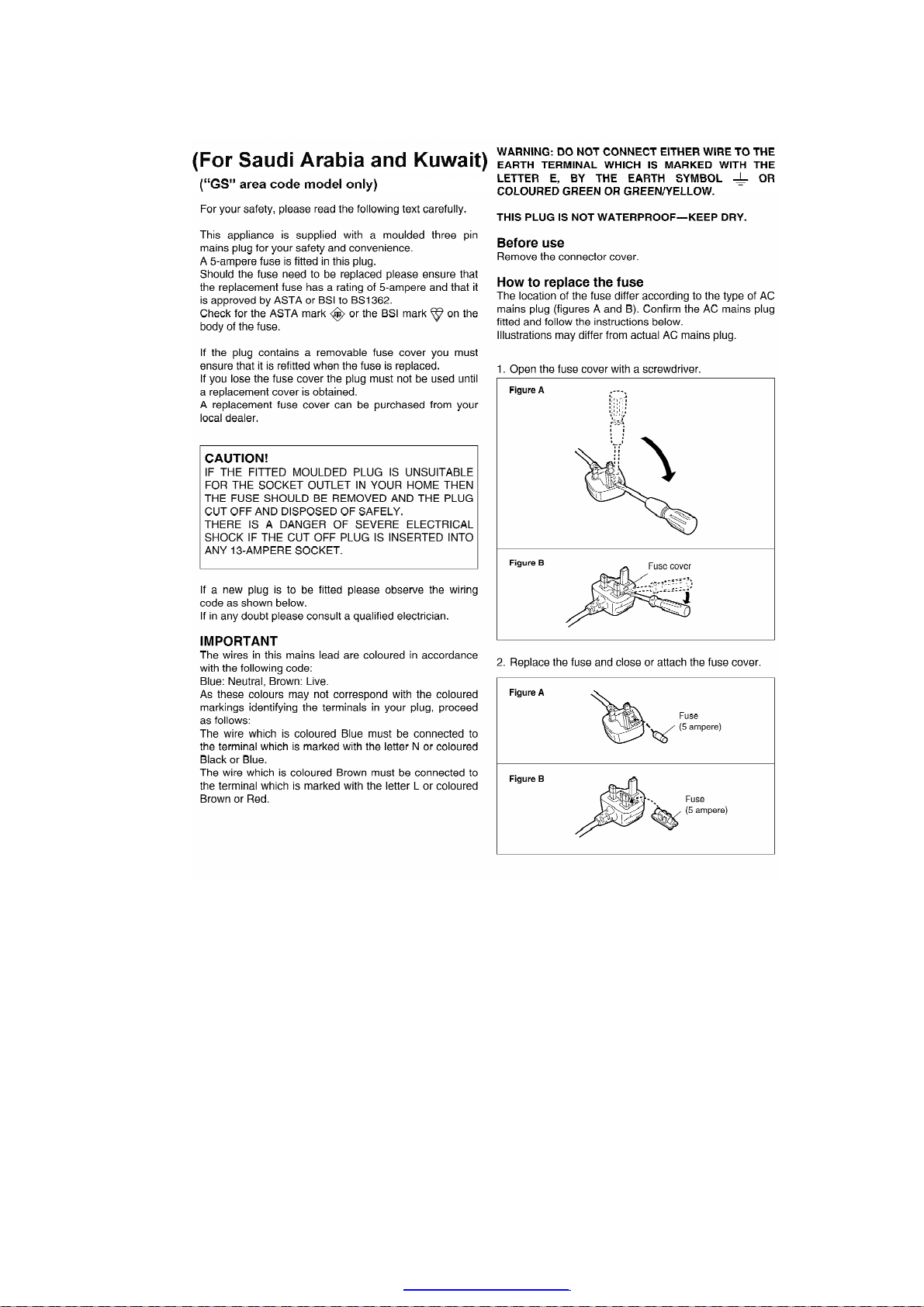

10. Caution for AC Cord
18
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

11. Handling Precautions for Optical Pickup Unit
The laserdiode inthe optical pickup unit maybreak downdue tostatic electricityof clothes or
humanbody. Special care must be takenavoidtoelectrostatic breakdownwhenservicing and
handling the laserdiode.
11.1. Cautions to BeTaken inHandling the Optical Pickup Unit
The laserdiode inthe optical pickup unit maybe damageddue toelectrostatic discharge
generating fromclothes orhumanbody. Special care must be takenavoidtoelectrostatic
discharge damage whenservicing the laserdiode.
1. Donot give aconsiderableshock to the optical pickup unitas it
has an extremelyhigh-precise structure.
19
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com

2. To prevent the laser diode from the electrostaticdischarge
damage, the flexiblecableof the optical pickup unitremoved
shouldbe short-circuited with ashort pinor aclip.
3. The flexiblecablemaybe cut off ifan excessive force isapplied to
it. Use with caution when handling the flexiblecable.
4. The antistaticFPCisconnected to the new optical pickup unit.
After replacing the optical pickup unitand connecting the flexible
cable, cut off the antistaticFPC.
11.2. Cautions to BeTaken When Replacing the Optical Pickup
20
PDFcreated withpdfFactoryProtrialversion www.pdffactory.com
