Panasonic SA-HT990E User manual

ORDERNO.MD0603064C2
DVDHome Theater Sound System
SA-HT990E / SA-HT990EB / SA-HT990EG
Colour
(S).......................Silver Type
SPECIFICATIONS
Specifications
1

General
Power Source:
E/ EG areas: AC 230V, 50Hz
EB area: AC 230V-240V, 50Hz
Power consumption: 120 W
Dimensions(W×H×D): 430×60×354 mm
Mass: 3.35kg
Amplifier section
RMS Output Power: DolbyDigital Mode
Total RMS Dolby
Digital
modePower:
1000 W
At 1kHz and total harmonicof 10%
Front: 125 W/ Channel (3 )
Center: 250 W/ Channel (6 )
Surround: 125 W/ Channel (3 )
At 100Hz and total harmonicof 10%
Activesubwoofers: 250 W/ Channel (6 )
DIN Output Power: DolbyDigital Mode:
Total DIN DolbyDigital modePower:
470 W
At 1kHz and total harmonicof 1%
Front: 80 W/ Channel (3 )
Center: 75 W/ Channel (6 )
Surround: 80 W/ Channel (3 )
At 100Hz and total harmonicof 1%
Subwoofer: 75 W/ Channel (6 )
FM tuner section
Preset Memory: FM 15 stations
AM/MW15 stations
FrequencyRange: 87.5-108.00MHz
(50kHz instep)
Sensitivity: 1.8 V (IHF)
S/N 26dB 1.4 V
AntennaTerminals: 75 (unbalanced)
AM tuner section
FrequencyRange: 522-1629kHz (9kHz instep)
AM SensitivityS/N 20dB at
999kHz:
560 V/m
PhoneJack:
Terminal: Stereo3.5mm jack
Front M. Port:
Sensitivity: 100mV (15k )
Terminal: Stereo3.5mm jack
Disc section
Discs played(8cm or12 cm):
(1) DVD [DVD-Video, DVD-Audio, DivX(*1,2)]
(2) DVD-RAM [DVD-VR, MP3(*2,6), JPEG(*2,3), MPEG4(*2,4),
DivX(*1,2)]
2

(3) DVD-R [DVD-Video, DVD-VR, MP3(*2,6), JPEG(*2,3),
MPEG4(*2,4), DivX(*1,2)]
(4) DVD-R DL[DVD-Video, DVD-VR]
(5) DVD-RW[DVD-Video, DVD-VR, MP3(*2,6), JPEG(*2,3),
MPEG4(*2,4), DivX(*1,2)]
(6) +R/+RW[Video]
(7) +R DL[Video]
(8) CD, CD-R/RW[CD-DA, VideoCD, SVCD(*5), MP3(*2,6),
WMA(*2,7), JPEG(*2,3), MPEG4(*2,4), DivX (*1,2),
HighMATLevel 2(Audioand Image)]
*1 Playsall versionsof DivX video(including DivX 6)
withstandardplayback of DivX mediafiles. Certified
totheDivX Home Theater Profile.
GMC (Global Motion Compensation) isnot supported.
*2Thetotal combinedmaximumnumber of recognizable
audio, picture and videocontentsand groups: 4000
audio, picture and videocontentsand 400 groups.
*3Exif Ver 2.1JPEG Baselinefiles
Picture resolution: between160 x120 and 6144 x
4096 pixels(Sub sampling is4:0:0, 4:2:0, 4:2:2, 4:4:4).
Extremelylong and narrowpictures maynot be
displayed.
*4MPEG4datarecordedwithPanasonicSD multi cameras
orDVD videorecorders.
Conforming toSD VIDEO specifications(ASF
standard)/ MPEG4(SimpleProfile) videosystem/G.726
audiosystem.
*5Conforming toIEC62107
*6MPEG-1Layer 3, MPEG-2Layer 3
*7WindowsMediaAudioVer.9.0L3
Not compatiblewithMultipleBit Rate(MBR)
Pick up:
Wavelength:
CD: 785nm
DVD: 662nm
Laser power:
CD: CLASS 1M
DVD: CLASS 1
Audiooutput (DISC):
Number of channels: 5.1ch(FL, FR, C, SL, SR,
SW)
Audioperformance (Measurement at BE out terminal):
Frequencyresponse:
DVD (linear audio): 4Hz-22 kHz (48 kHz
sampling)
4Hz-44 kHz (96 kHz
sampling)
DVD-Audio: 4Hz-88 kHz (192 kHz
sampling)
CD-Audio: 4Hz-20 kHz
S/N ratio:
CD-Audio: 105 dB
Dynamicrange:
3

DVD (linear audio): 95 dB
CD-Audio: 95 dB
Total harmonicdistortion:
CD-Audio: 0.005 %
Videosection
Videosystem:
Signal system: PAL625/50, PAL525/60,
NTSC
Compositevideooutput:
Output level: 1Vp-p(75 )
Terminal: Pinjack (1system)
Scart jack (1system)
S-videooutput:
Y output level: 1Vp-p(75 )
C output level: PAL; 0.3Vp-p(75 )
NTSC; 0.286 Vp-p(75 )
Terminal S terminal (1system)
Scart jack (1system)
Component videooutput (NTSC: 480p/480i, PAL: 576p/576i):
Y output level: 1Vp-p(75 )
PBoutput level: 0.7Vp-p(75 )
PRoutput level: 0.7Vp-p(75 )
Terminal: Pinjack (Y: green, PB: blue,
PR: red) (1system)
RGB videooutput:
R output level: 0.7Vp-p(75 )
G output level: 0.7Vp-p(75 )
B output level: 0.7Vp-p(75 )
Terminal: Scart jack (1system)
Power consumption instandbymode:
approx0.5W
Note:
1. Specificationsare subject tochangewithout notice.
Mass and dimensionsare approximate.
2. Total harmonicdistortion ismeasuredbythedigital
spectrumanalyzer.
Solder:
Thismodel uses leadfree solder (PbF).
Mechanism:
Thismodel uses DL2SU (Singletray) mechanism.
4

Refer totheoriginal service manual for*1, *2, *3, *4.
2006 PanasonicAVCNetworks Singapore Pte. Ltd. All rights
reserved. Unauthorized copying and distribution isaviolation of
law.
5

1. Safety Precautions
1.1. GENERALGUIDELINES
1. When servicing, observe the original lead dress. Ifashort circuit
isfound, replace all parts which have been overheated or
damaged bythe short circuit.
2. After servicing, see to itthat all the protective devices such as
insulation barriers, insulation papers shields are properly
installed.
3. After servicing, carryout the following leakage current checks to
prevent the customer from being exposed to shock hazards.
1.1.1. LEAKAGE CURRENTCOLD CHECK
1. Unplug the AC cord and connect ajumper between the two
prongs on the plug.
2. Measure the resistance value, with an ohmmeter, between the
jumpered AC plug and each exposed metalliccabinet part on the
equipment such as screwheads, connectors, control shafts, etc.
When the exposed metallicpart has areturn path to the chassis,
the reading shouldbe between 1M and 5.2M . / When the
exposed metal does not have areturn path to the chassis, the
reading must be . Figure 1
6

1.1.2. LEAKAGE CURRENTHOTCHECK (See Figure 1.)
1. Plug the AC cord directlyinto the AC outlet. Donot use an
isolation transformer for thischeck.
2. Connect a1.5k , 10 watts resistor, inparallel with a0.15 F
capacitors, between each exposed metallicpart on the set and a
good earth ground such as awater pipe, as shownin Figure 1.
3. Use an AC voltmeter, with 1000 ohms/voltor more sensitivity, to
measure the potential across the resistor.
4. Check each exposed metallicpart, and measure the voltage at
each point.
5. Reverse the AC plug inthe AC outlet and repeat each of the above
measurements.
6. The potential at anypoint shouldnot exceed 0.75 volts RMS. A
leakage current tester (Simpson Model 229 or equivalent) maybe
used to make the hot checks, leakage current must not exceed 1/2
milliamp. Incase ameasurement isoutside of the limits specified,
there isapossibilityof ashock hazard, and the equipment should
be repaired and rechecked before itisreturned to the customer.
1.2. Before Repairand Adjustment
Disconnect AC power, discharge PowerSupplyCapacitors C5716, C5717, C5718 through a 10
, 10 W resistortoground.
DO NOTSHORT-CIRCUITDIRECTLY (witha screwdriverblade, forinstance), as this may
destroysolidstate devices.
Afterrepairs are completed, restore powergraduallyusing a variac, toavoidovercurrent.
Current consumption at AC 230 V, 50 Hz inNO SIGNALmode volume minimal shouldbe ~ 600
mA (ForE/ EG).
7

Current consumption at AC 220V-230 V, 220V/230V-240V, 50Hz inNO SIGNALmode volume
minimal shouldbe ~ 600 mA (ForEB).
1.3. Protection Circuitry
The protection circuitrymayhave operatedif eitherof the following conditions are noticed:
-Nosound isheard when the power isturned on.
-Sound stops during aperformance.
The function of this circuitryis toprevent circuitrydamage if, forexample, the positive and
negative speakerconnection wires are
“shorted”, orif speakersystems withanimpedance less thanthe indicatedratedimpedance of
the amplifierare used.
If this occurs, followthe procedure outlines below:
1. Turn off the power.
2. Determine the cause of the problem and correct it.
3. Turn on the power once againafter one minute.
Note:
Whenthe protection circuitryfunctions, the unit will not operate unless the poweris first turned
off and thenon again.
2. Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices
Some semiconductor(solidstate) devices canbe damagedeasilybystatic electricity. Such
components commonlyare calledElectrostaticallySensitive (ES) Devices. Examples of typical
ES devices are integratedcircuits and some field-effect transistors and semiconductor"chip"
components. The following techniques shouldbe usedtohelpreduce the incidence of
component damage causedbyelectrostatic discharge (ESD).
1. Immediatelybefore handling anysemiconductor component or
semiconductor-equipped assembly, drainoff anyESDon your
bodybytouching aknownearth ground. Alternatively, obtainand
wear acommerciallyavailabledischarging ESDwrist strap, which
shouldbe removed for potential shock reasons prior to applying
power to the unitunder test.
2. After removing an electrical assemblyequipped with ES devices,
place the assemblyon aconductive surface such as aluminum
foil, to prevent electrostaticcharge buildup or exposure of the
assembly.
3. Use onlyagrounded-tipsoldering iron to solder or unsolder ES
devices.
4. Use onlyan anti-staticsolder removal device. Some solder
removal devices not classified as "anti-static(ESDprotected)"
8

can generate electrical charge sufficient to damage ES devices.
5. Donot use freon-propelled chemicals. These can generate
electrical charges sufficient to damage ES devices.
6. Donot remove areplacement ES device from its protective
package until immediatelybefore you are readyto install it. (Most
replacement ES devices are packaged with leads electrically
shorted together byconductive foam, aluminum foil or
comparableconductive material).
7. Immediatelybefore removing the protective material from the
leads of areplacement ES device, touch the protective material to
the chassisor circuitassemblyinto which the device will be
installed.
Caution
Besure no power isapplied to the chassisor circuit, and observe
all other safetyprecautions.
8. Minimize bodilymotions when handling unpackaged replacement
ES devices. (Otherwise harmless motion such as the brushing
together of your clothes fabricor the lifting of your foot from a
carpeted floor can generate staticelectricity(ESD)sufficient to
damage an ES device).
3. Precaution of Laser Diode
9

4. About Lead Free Solder (PbF)
Distinction of PbF PCB: PCBs (manufactured) using leadfree solderwill have a PbF stampon
the PCB.
Caution:
-Pb free solder has ahigher melting point than standard solder;
Typicallythe melting point is50 -70°F (30 -40°C)higher. Please
use ahigh temperature soldering iron. Incase of the soldering
iron with temperature control, please set itto 700 ± 20°F (370 ±
10°C).
-Pb free solder will tend to splash when heated too high (about
1100°F/ 600°C).
When soldering or unsoldering, please completelyremove all of the
solder on the pins or solder area, and be sure to heat the soldering
points with the Pb free solder until itmelts enough.
5. Caution for AC Cord
10

6. Handling Precautions for Traverse Unit
The laserdiode inthe optical pickup unit maybreak downdue tostatic electricityof clothes or
humanbody. Special care must be takenavoidcaution toelectrostatic breakdownwhen
servicing and handling the laserdiode.

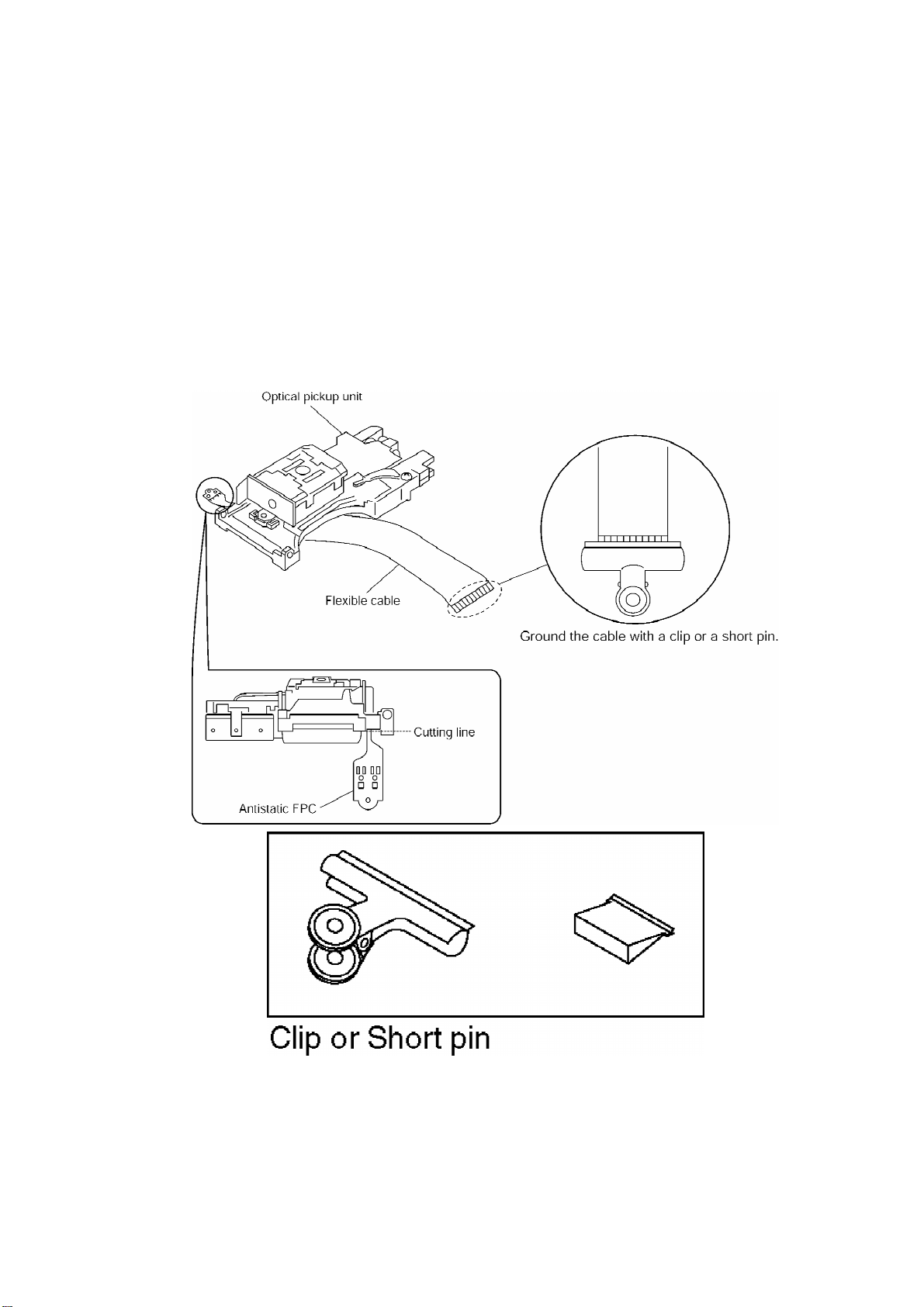

6.1. Cautions to BeTaken inHandling the Optical Pickup Unit
The laserdiode inthe optical pickup unit maybe damageddue toelectrostatic discharge
generating fromclothes orhumanbody. Special care must be takenavoidcaution to
electrostatic discharge damage whenservicing the laserdiode.
1. Donot give aconsiderableshock to the optical pickup unitas it
has an extremelyhigh-precise structure.
11

2. To prevent the laser diode from the electrostaticdischarge
damage, the flexiblecableof the optical pickup unitremoved
shouldbe short-circuited with ashort pinor aclip.
3. The flexiblecablemaybe cut off ifan excessive force isapplied to
it. Use caution when handling the flexiblecable.
4. The antistaticFPCisconnected to the new optical pickup unit.
After replacing the optical pickup unitand connecting the flexible
cable, cut off the antistaticFPC.
6.2. Grounding for electrostaticbreakdownprevention
Some devices suchas the DVD playeruse the optical pickup (laserdiode) and the optical
pickup will be damagedbystatic electricityinthe working environment. Proceedservicing
works underthe working environment where grounding works is completed.
12

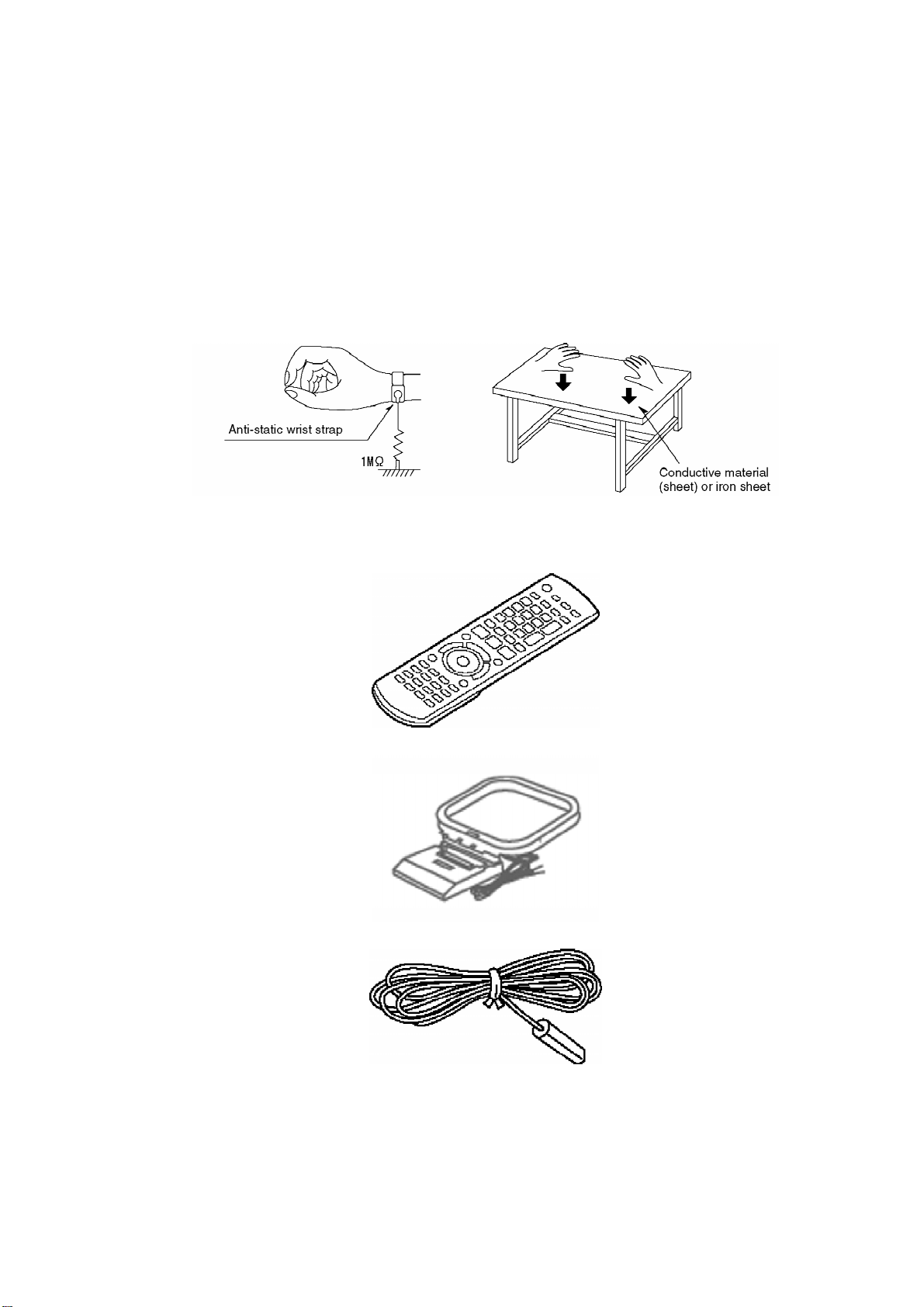

6.2.1. Worktablegrounding
1. Put aconductive material (sheet) or iron sheet on the area where
the optical pickup isplaced, and ground the sheet.
6.2.2. Human bodygrounding
1. Use the anti-staticwrist strap to discharge the staticelectricity
form your body.
7. Accessories Remote control
AM loop antenna
FM indoorantenna

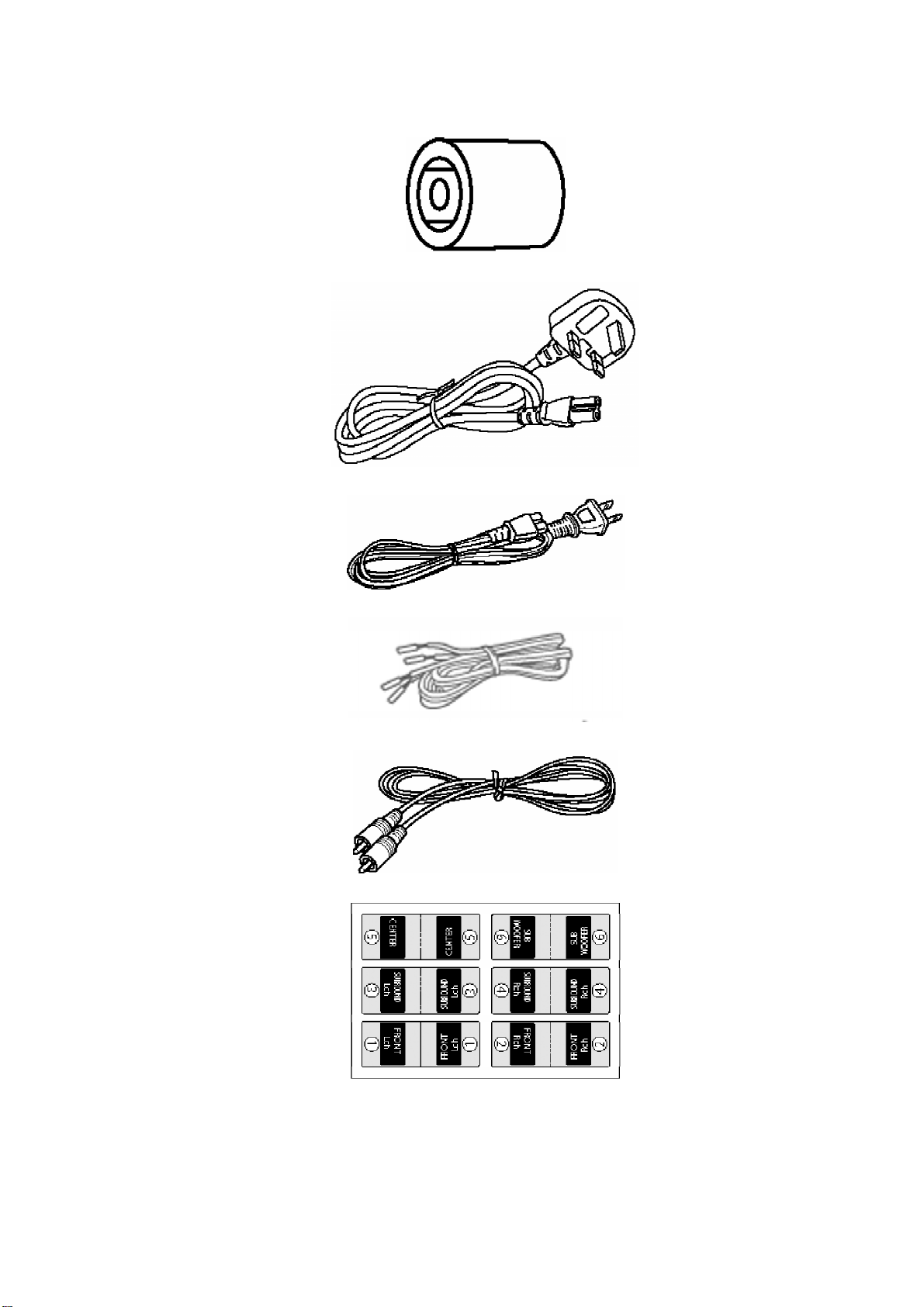

Dinadaptor/ (ForEB area)
13

AC cord / (ForEB area)
AC cord/ (ForE, EG areas)
Speakercable
Videocable / (ForE, EG areas)
Speakerlabel
8. Operation Procedures
8.1. Remote Control KeysOperation
14

8.2. MainUnitKeysOperation
8.3. Disc information
8.3.1. DISC playability(Media)
8.3.2. FileExtension Type Support (WMA/JPEG/MP3)
8.4. About DivX VODContent
9. Self-Diagnosis and special mode setting
9.1. Service Mode SummaryTable
The service modes canbe activatedbypressing various button combination on the playerand
remote control unit.
Belowis the summaryof majorchecking:
15

Playerbuttons Remote control unit
buttons Application
Note
STOP 0 Errorcode display (Refer
to
section,
Self
Diagnostic
Function
Code”).
5 Jitterchecking (Refer
to
section
“
Service
Table 1
for
information”).
6Region displayand mode (Refer
to
section
“
Service
Table 1
for
information”).
7Micro-processorfirmware version check
FUNCTIONS DVD laserdrive current check (Refer
to
“9.2.1.
Optical
-up Self
-
”).
3 CD laserdrive current check
PAUSE Writing of laserdrive current value after
replacement of optical pickup (Douse this
function onlywhenoptical pickup is replaced.)
Initialization of the player(factorysetting is
restored.)
Usedafterreplacement of micro-computer,
FLASH ROM IC, EEPROM and HDMI module.
(Refer
to
section
“
Service
Table 1
for
information”).
ENTER DVD module reset (Refer
to
section
“
Service
Table 1
for
information”).
9.2. Service Mode Table1
Bypressing various button combinations on the playerand remote control unit canactivate the
various service modes forchecking.
Special Note:
Due tothe limitations of the no. characters that canbe shownon FL Display, the “FL Display”
button on the remote control uni is usedtoshowthe following page. (Display1/Display2).

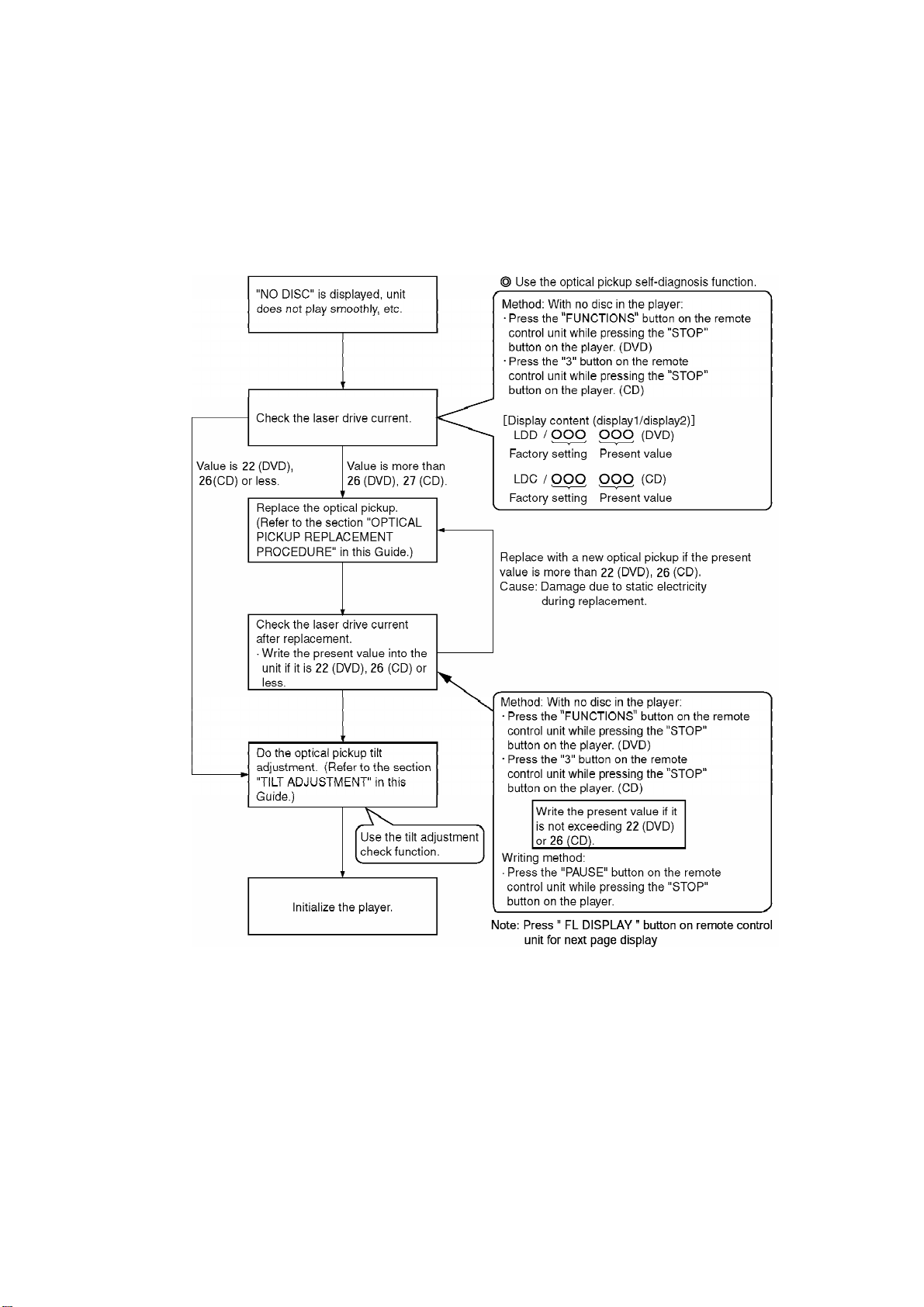

9.2.1. Optical Pick-up Self-Diagnosis
The optical pickup self-diagnosis function and tilt adjustment check function have been
includedinthis unit. Whenrepairing, use the following procedure foreffective self-diagnosis
and tilt adjustment. Be sure touse the self-diagnosis function before replacing the optical
pickup when"NO DISC" is displayed. As a guideline, you shouldreplace the optical pickup
16

whenthe value of the laserdrive current is more than55.
Note:
Press the powerbutton toturnon the power, and check the value withinthree minutes before
the unit warms up. (Otherwise, the result will be incorrect.)

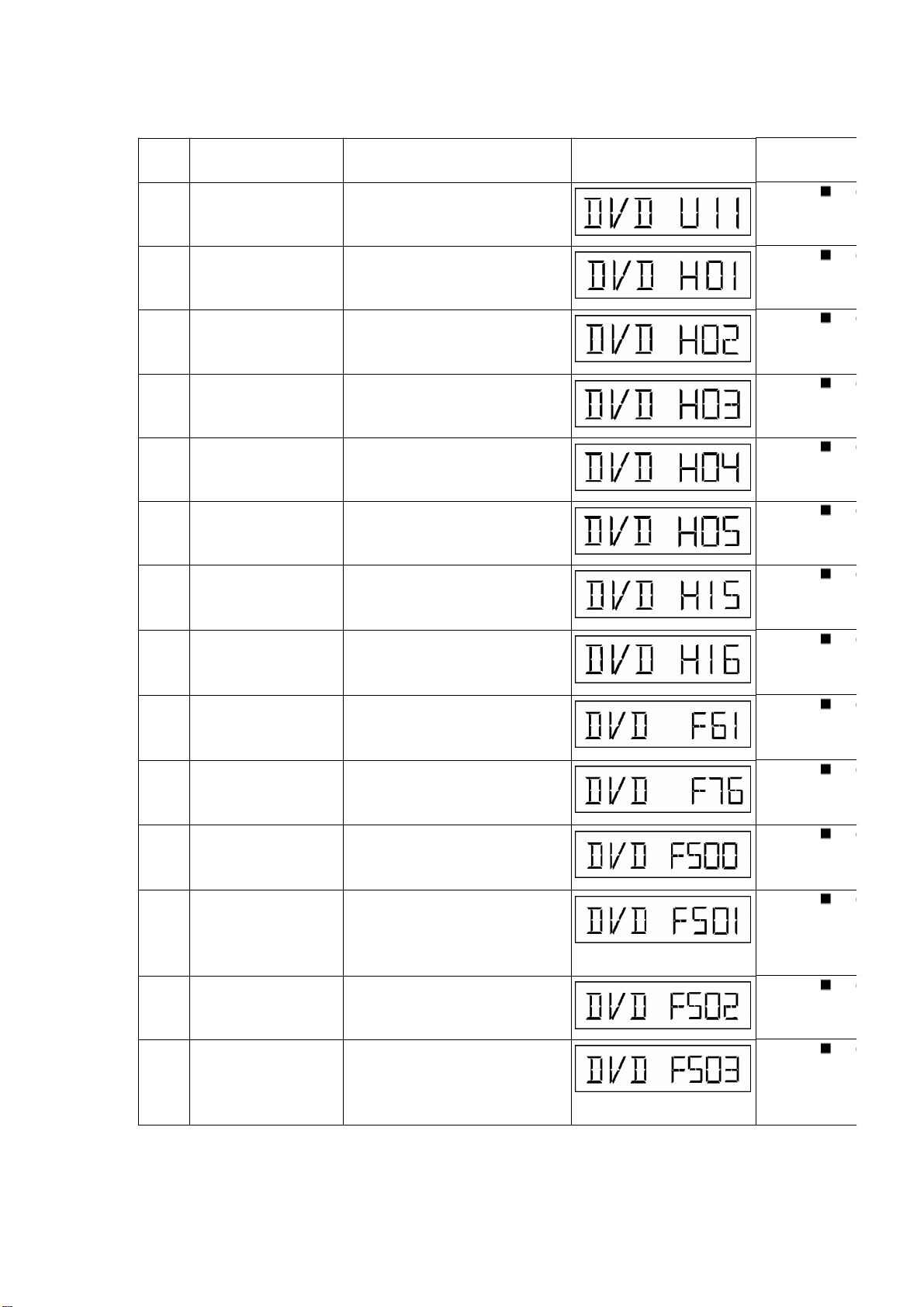

9.3. DVDSelfDiagnosticFunction-Error Code
17

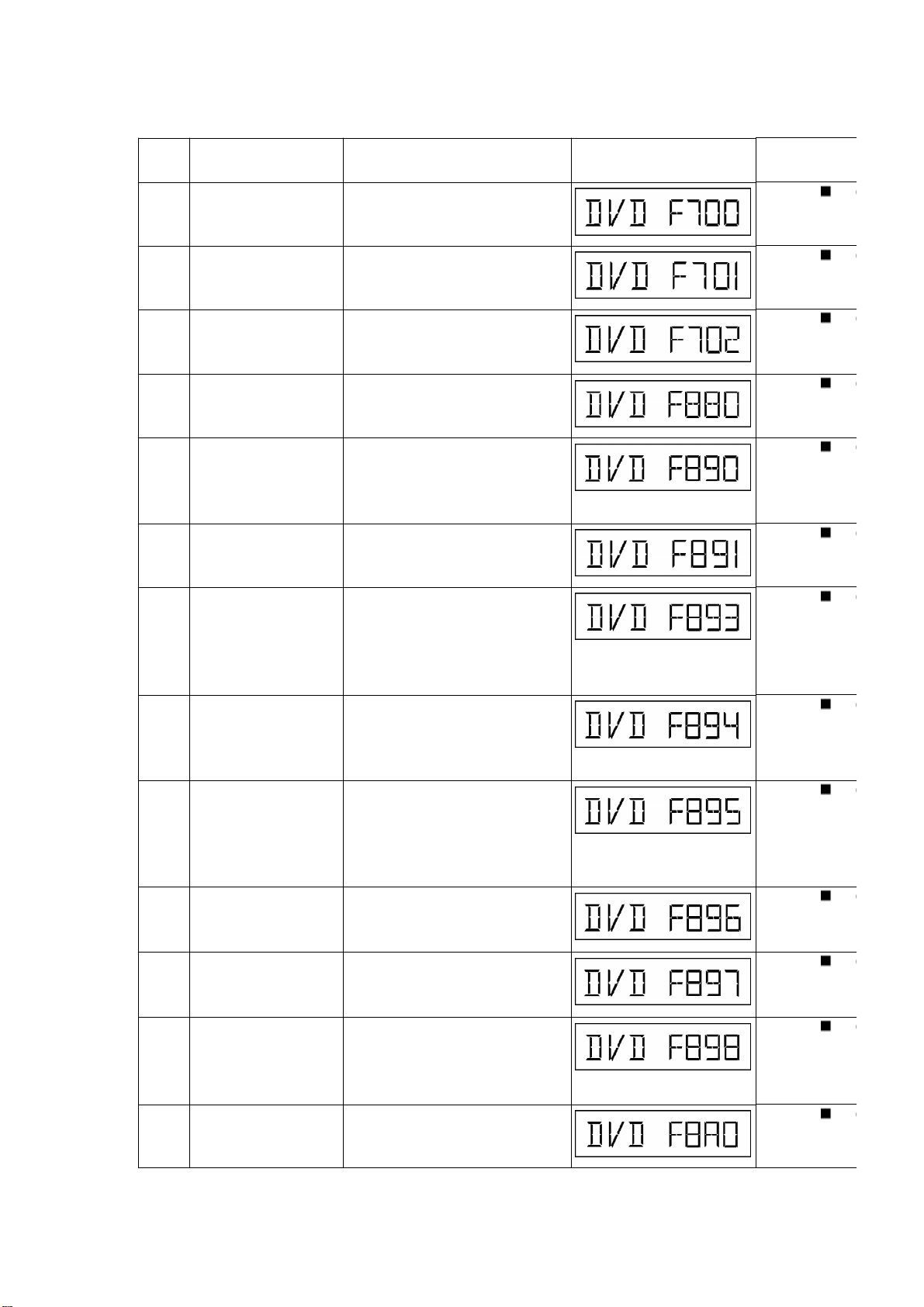

Error
Code Diagnosis Contents Description of error Automatic FL Display
Remarks
U11 Focus servoerror Focus coil NG (OPU unit
abnormal) Press [
STOP]
on mainunit
for
next error.
H01 Trayloading error/
abnormality The trayis not able toopen Press [
STOP]
on mainunit
for
next error
H02 Spindle servo
error, DSC disc
motorerror
(Spindle servo, DSC (IC8251)
Spindle motor, CLV servo
error)
Press [
STOP]
on mainunit
for
next error
H03 Traverse motor
error (Traverse motor, IC8251) Press [
STOP]
on mainunit
for
next error
H04 Tracking servo
error Tracking coil NG (OPU unit abmormal) Press [
STOP]
on mainunit
for
next error
H05 Seek timeout error Timeout of unit whenseeking
time is reached Press [
STOP]
on mainunit
for
next error
H15 Disc trayopen
detection switch
(S9001) failure
The disc traycannot be
opened: it closes
spontaneously
Press [
STOP]
on mainunit
for
next error
H16 Disc trayclose
detection switch
(S9001) failure
The disc traycannot be
closed: it opens
spontaneously
Press [
STOP]
on mainunit
for
next error
F61 Powerdigital amp
IC op & DC output
voltage abnormal.
Upon power-on PCONT=
High, DCDET=Low Press [
STOP]
on mainunit
for
next error
F76 Powerdigital amp
IC op & DC output
voltage abnormal.
SpeakerJack shortedoramp
circuit Press [
STOP]
on mainunit
for
next error
F500 DSC error DSC (IC8251) stops inthe
occurrence of servoerror
(startup, focus error, etc.)
Press [
STOP]
on mainunit
for
next error
F501 DSC not Ready
error DSC-systemcomputer communication error
(Communication failure
causedbyidling of DSC)
Press [
STOP]
on mainunit
for
next error
F502 DSC Time out error Similaras F500 Press [
STOP]
on mainunit
for
next error
F503 DSC
communication
Failure
Communication error(result
erroroccurredalthough
communication command
was sent)
Press [
STOP]
on mainunit
for
next error
18

Error
Code Diagnosis Contents Description of error Automatic FL Display
Remarks
F504 Abnormal adjusting
DSC data slice
offset
Press [
STOP]
on mainunit
for
next error
F505 DSC Attention error Similaras F500 Press [
STOP]
on mainunit
for
next error
F506 Invalidmedia Disc is flippedover, TOC
unreadable, incompatible
disc media
Press [
STOP]
on mainunit
for
next error
F600 Access failure to
management
information caused
bydemodulation
error
Operation stoppedbecause
navigation data is not
accessible causedbythe
demodulation defect
Press [
STOP]
on mainunit
for
next error
F601 Indeterminate
sectorID requested Operation stoppedcausedby the request toaccess
abnormal ID data
Press [
STOP]
on mainunit
for
next error
F602 Access failure to
LEAD-IN causedby
demodulation error
LEAD IN data unreadable Press [
STOP]
on mainunit
for
next error
F603 Access failure to
KEYDETcausedby
demodulation error
Access failure toCSS data of
disc Press [
STOP]
on mainunit
for
next error
F610 ODC abnormality Nopermission forcommand
execution Press [
STOP]
on mainunit
for
next error
F611 NoCRC OK fora
specific time (CD) Access failure toseek address inCD series Press [
STOP]
on mainunit
for
next error
F612 NoCRC OK fora
specific time (DVD) Access failure toID data in DVD series Press [
STOP]
on mainunit
for
next error
F620 Lasersafeguard:
high temperature
condition
High temperature of the laser
guide unit (OPU unit) Press [
STOP]
on mainunit
for
next error
F621 Lasersafeguard:
circuit failure
condition
Circuitryfailure of the laser
guide unit (OPU unit) Press [
STOP]
on mainunit
for
next error
F103 Illegal highlight
Position Bigpossibilityof disc specification violation during
highlight display
Press [
STOP]
on mainunit
for
next error
F4FF Force initialize
failure (time out) Timeout whenforce initialization fails Press [
STOP]
on mainunit
for
next error
19

Error
Code Diagnosis Contents Description of error Automatic FL Display
Remarks
F700 MBX overflow Whenreplying message to
disc manager Press [
STOP]
on mainunit
for
next error
F701 Message command
does not end Next message is sent before replying todisc manager Press [
STOP]
on mainunit
for
next error
F702 Message command
changes Message is changedbefore it is sent as a replytodisc
manager
Press [
STOP]
on mainunit
for
next error
F880 Task numberis not
appropriate Message coming froma non- existing task Press [
STOP]
on mainunit
for
next error
F890 Sending message
whenmessage is
being sent toAV
task
Sending message toAV task Press [
STOP]
on mainunit
for
next error
F891 Message couldn’t
be sent toAV task Beginsending message to AV task Press [
STOP]
on mainunit
for
next error
F893 FLASH ROM IC
problem FLASH ROM IC installedis not operating properly
(Neccessaryreplacement of
FLASH ROM IC) orfirmware
problem
Press [
STOP]
on mainunit
for
next error
F894 EEPROM
abnormality EEPROM IC installedis not operating innormal condition
(EEPROM contains
neccessarydata)
Press [
STOP]
on mainunit
for
next error
F895 Region setting
abnormality Firm version agreement check forfactorypreset
setting failure prevention.
Check region setting & re-
initialize
Press [
STOP]
on mainunit
for
next error
F896 Noexistence model Firm version agreement
check forfactorypreset
setting failure prevention
Press [
STOP]
on mainunit
for
next error
F897 Initialize is not
completed Initialize completion check forfactorypreset setting
failure prevention
Press [
STOP]
on mainunit
for
next error
F898 Disagreement of
hardware and
software
Unsuitable combination of AV
DECORDER, SDRAM and
FLASH ROM
(firmware)
Press [
STOP]
on mainunit
for
next error
F8A0 Message command
is not appropriate Beginsending message to AV task Press [
STOP]
on mainunit
for
next error
20
