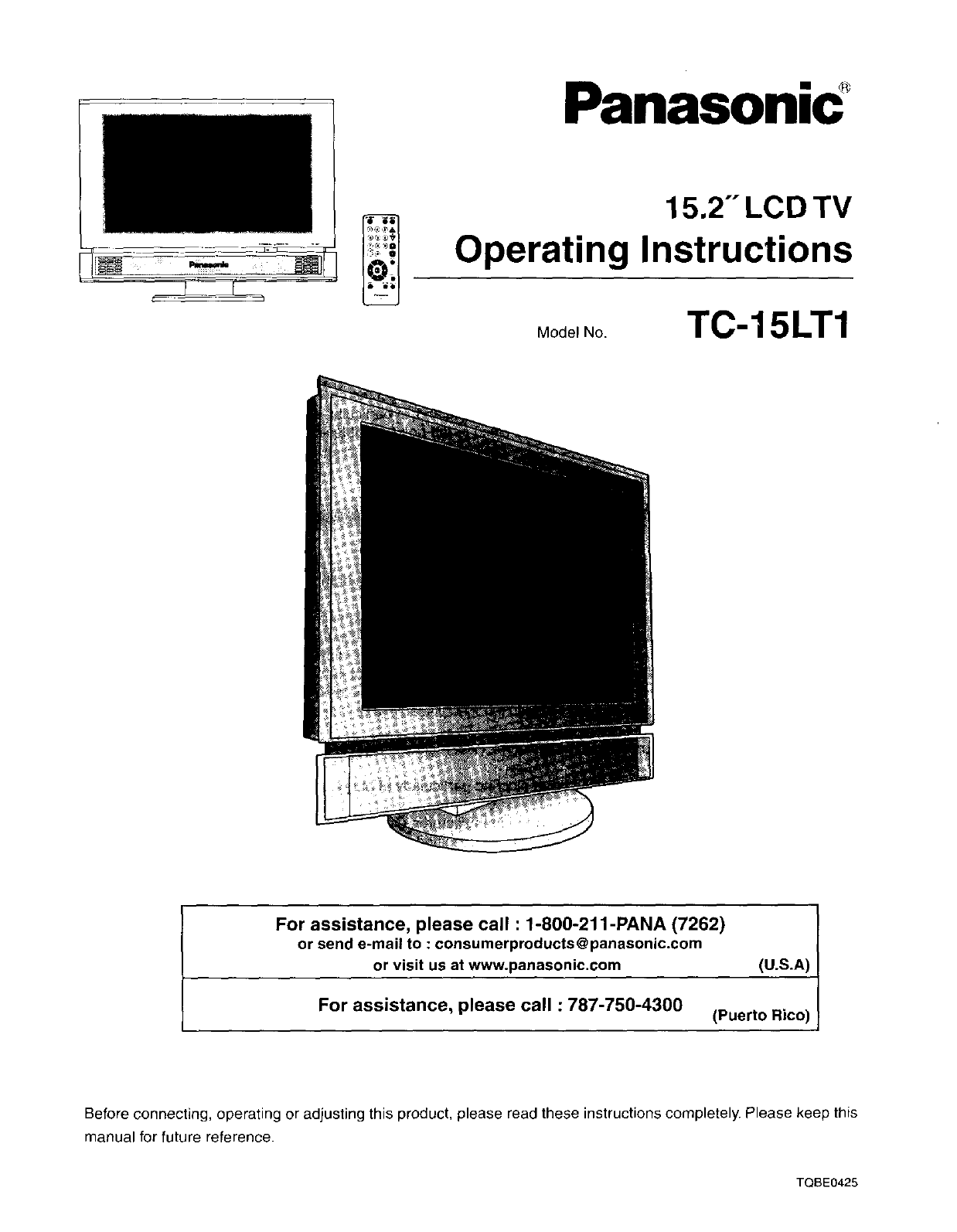

Panasonic TC15LT1 - 15"WIDE LCD TV User manual

Panasonic
15.2- LCD TV
Operating Instructions
Model No. TC-15LT1
For assistance, please call : 1-800-211-PANA (7262)
or send e-mail to : [email protected]
or visit us at www.panasonic.com (U.S.A)
For assistance, please call : 787-750-4300 (Puerto Rico)
Before connecting, operating or adjusting this product, please read these instructionscompletely. Please keep this
manual for future reference.
TQBE0425

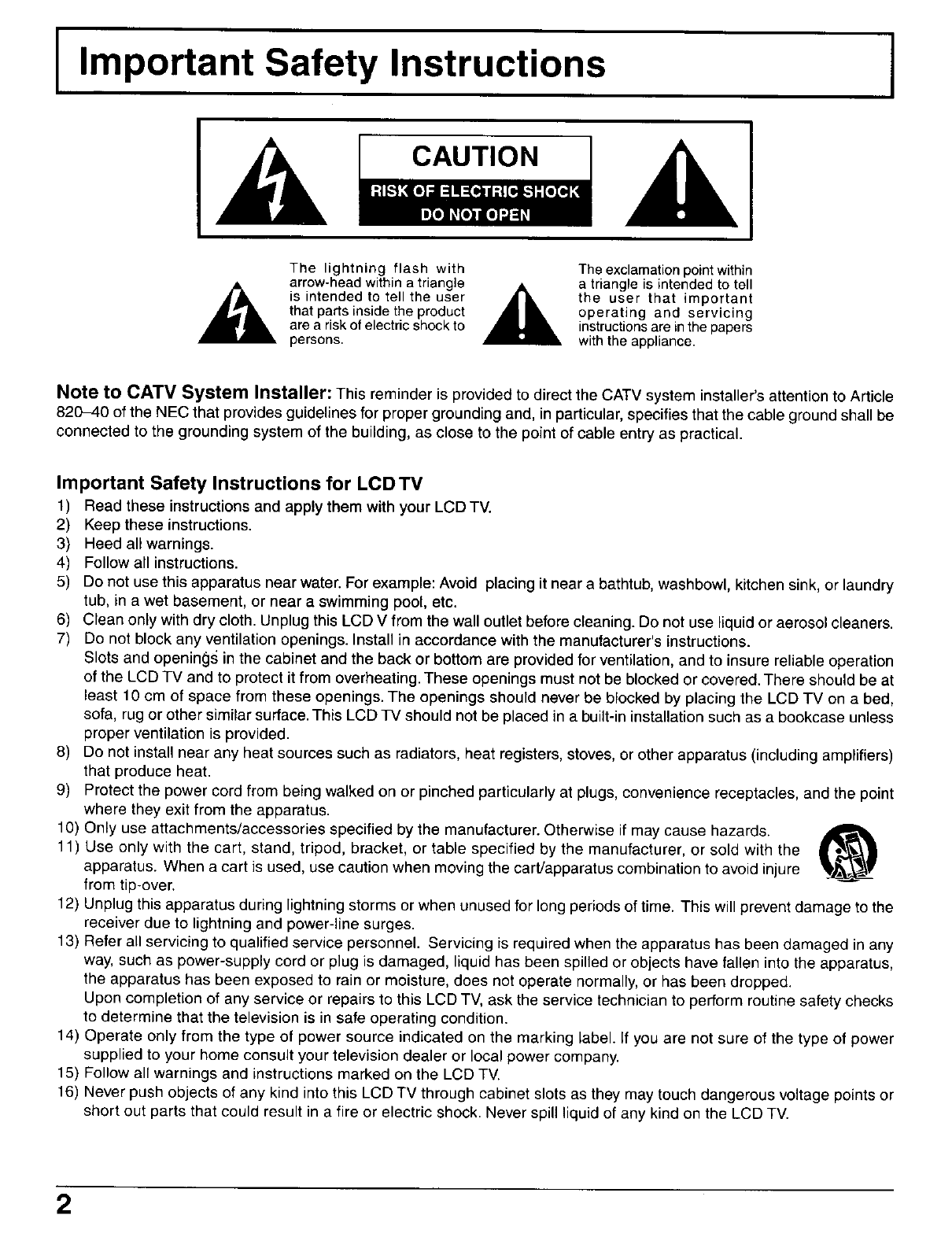

Important Safety Instructions
CAUTION
The lightning flash with
arrow-head within a triangle
is intended to tell the user
that parts inside the product
are a risk of electric shock to
persons.
The exclamation point within
a triangle is intended to tell
the user that important
operating and servicing
instructions are in the papers
with the appliance.
I
Note to CATV System Installer: This reminder is provided to direct the CATV system installer's attention to Article
820-40 ofthe NEC that providesguidelines for proper grounding and, in particular,specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point ofcable entry as practical.
Important Safety Instructions for LCDTV
1) Read these instructionsand apply them with your LCD TV.
2) Keep these instructions.
3) Heed all warnings.
4) Followall instructions.
5) Do not use this apparatus near water. For example: Avoid placing it near a bathtub, washbowl, kitchen sink,or laundry
tub, in a wet basement, or near a swimming pool, etc.
6) Clean only with dry cloth. Unplug this LCD V from the wall outlet before cleaning. Do not use liquidor aerosol cleaners.
7) Do not blockany ventilation openings. Install in accordance with the manufacturer's instructions.
Slots and openinO_ in the cabinet and the back or bottom are provided for ventilation, and to insure reliable operation
of the LCD TV and to protect it from overheating. These openings must not be blocked or covered. There should be at
least 10 cm of space from these openings. The openings should never be blocked by placing the LCD TV on abed,
sofa, rug or other similar surface. This LCD TV should not be placed in a built-ininstallation such as a bookcase unless
proper ventilation is provided.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers)
that produce heat.
9) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
10) Only use attachments/accessories specified by the manufacturer. Otherwise if may cause hazards. ,_
11) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injure
from tip-over.
12) Unplug this apparatus during lightning storms or when unused for long periods of time. This will prevent damage to the
receiver due to lightning and power-line surges.
13) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any
way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Upon completion of any service or repairs to this LCD TV, ask the service technician to perform routine safety checks
to determine that the television is in safe operating condition.
14) Operate only from the type of power source indicated on the marking label. If you are not sure of the type of power
supplied to your home consult your television dealer or local power company.
15) Follow all warnings and instructions marked on the LCD TV.
16) Never push objects of any kind into this LCD TV through cabinet slots as they may touch dangerous voltage points or
short out parts that could result in a fire or electric shock. Never spill liquid of any kind on the LCD TV.
2

Important Safety Instructions
17) If an outside antenna is connected to the television
equipment, be sure the antenna system is grounded
so as to provide some protection against voltage surges
and built up static charges. In the U.S.
Selection 810-21 of the National Electrical Code
provides information with respect to proper grounding
of the mast and supporting structure, grounding of the
lead-in wire to an antenna discharge unit, size of
grounding conductors, location of antenna discharge
unit, connection to grounding electrodes, and
requirements for the grounding.electrode.
18) An outside antenna system should not be located in the
vicinity of overhead power lines or other electric lightor
powercircuifs,or where itcanfall intosuch power linesor
circuits. When installing an outside antenna system
extreme care should be taken to keep from touching
such power lines or circuits as contact with them
might be fatal.
EXAMPLE OF ANTENNA GROUNDI_ ANTDEr_NN_VIRE
2 222GEo.,T
GNOUNDINGCONOUCTORS
(NEC ART 250, PARTH)
19) Unplug this LCD "IV from the wall outlet, and refer servicing to qualified service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the LCD TV.
c. If the LCD TV ha been exposed to rain or water.
d. If the LCD TV does not operate normally by following the operating instructions.
Adjust only these controls that are covered by the operating instructions as improper adjustment of other controls may
result in damage and will often require extensive work by a qualified technician to restore the LCDTV to normal operation.
e. If the LCD TV has been dropped or the cabinet has been damaged.
f. When the LCD TV exhibits a distinct change in performance - this indicates a need for service.
20) When replacement parts are required, be sure the service technician to use replacement parts specified by the manufacture that
havethe same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
21) WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
22) CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT USE THIS PLUG WITH A RECEPTACLE OR OTHER OUTLET
UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE.
23) CAUTION: USE WITH OTHER STAND IS CABABLE OF RESULTING IN INSTABILITY CAUSING POSSIBLE INJURY.
24) CAUTION: DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE
SAME OR EQUIVALENT TYPE.
NOTE: • This equipment is designed to operate in the U.S.A. and other countries where the broadcasting system and
AC house current is exactly the same as in the U.S.A.
•The marking or retainedimage on theLCD panel resulting from fixed image use is notan operatingdefect and as such
is not covered byWarranty.This product is not designed to displayfixed image patterns for extended periods of time.
Important Information Regarding Use of Video Games, Computers, Caption or Other Fixed Image Displays.
The extended use of fixed image program material can cause a permanent "shadow image" on the LCD panel.
This background image is viewable on normal programs in the form of a stationary fixed image, This type of irreversible
LCD panel deterioration can be limited by observing the following steps:
A. Reduce the brightness/contrast setting to aminimum viewing level.
B. Do not display the fixed image for extended periods of time,
C. Turn the power off when not in actual use.
3

Dear Panasonic Customer
Welcome to the Panasonic family of customers. We hope that you will have many
years of enjoyment from your new 15.2" LCD TV.
To obtain maximum benefit from your set, please read these Instructions before making
any adjustments, and retain them for future reference.
Retain your purchase receipt also, and note down the model number and serial number
of your set in the space provided on the rear cover of these instructions.
For assistance, please call : 1-800-211-PANA (7262)
or send e-mail to : [email protected]
or visit us at www.panasonic.com (U.S.A)
For assistance, please call : 787-750-4300 (Puerto Rico)
4

ITable of Contents
Important Safety Instructions ...................................... 2
SUPPLIED ACCESSORIES ........................................ 5
Installation ..................................................................... 6
Receiver Location ........................................................ 6
Optional External Equipment ....................................... 6
For optimum quality picture .......................................... 6
How to use the LCD stand ........................................... 6
Federal Communication Commission Information ....... 6
Remote control battery installation ............................... 7

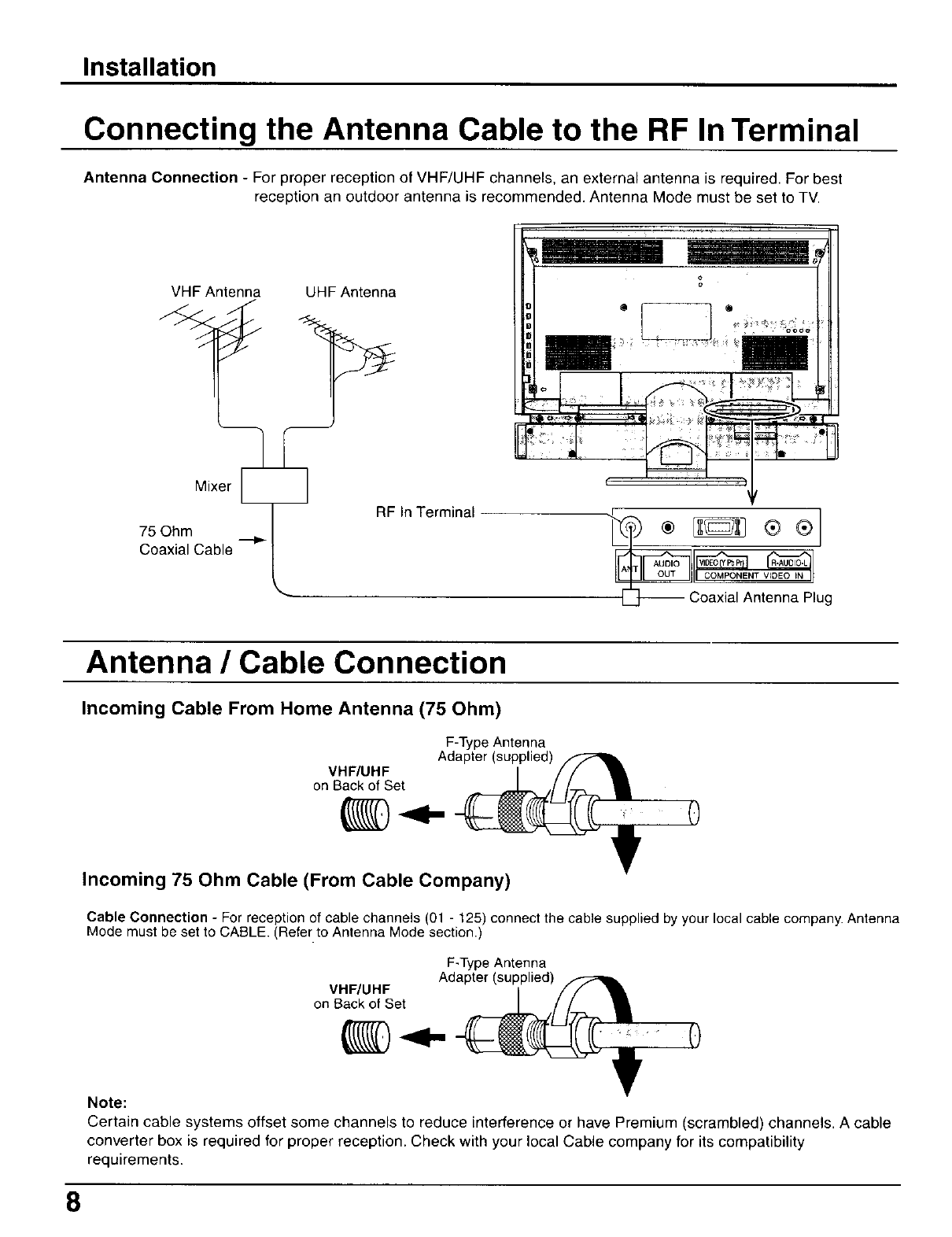

Connecting the Antenna Cable to the RF In Terminal 8

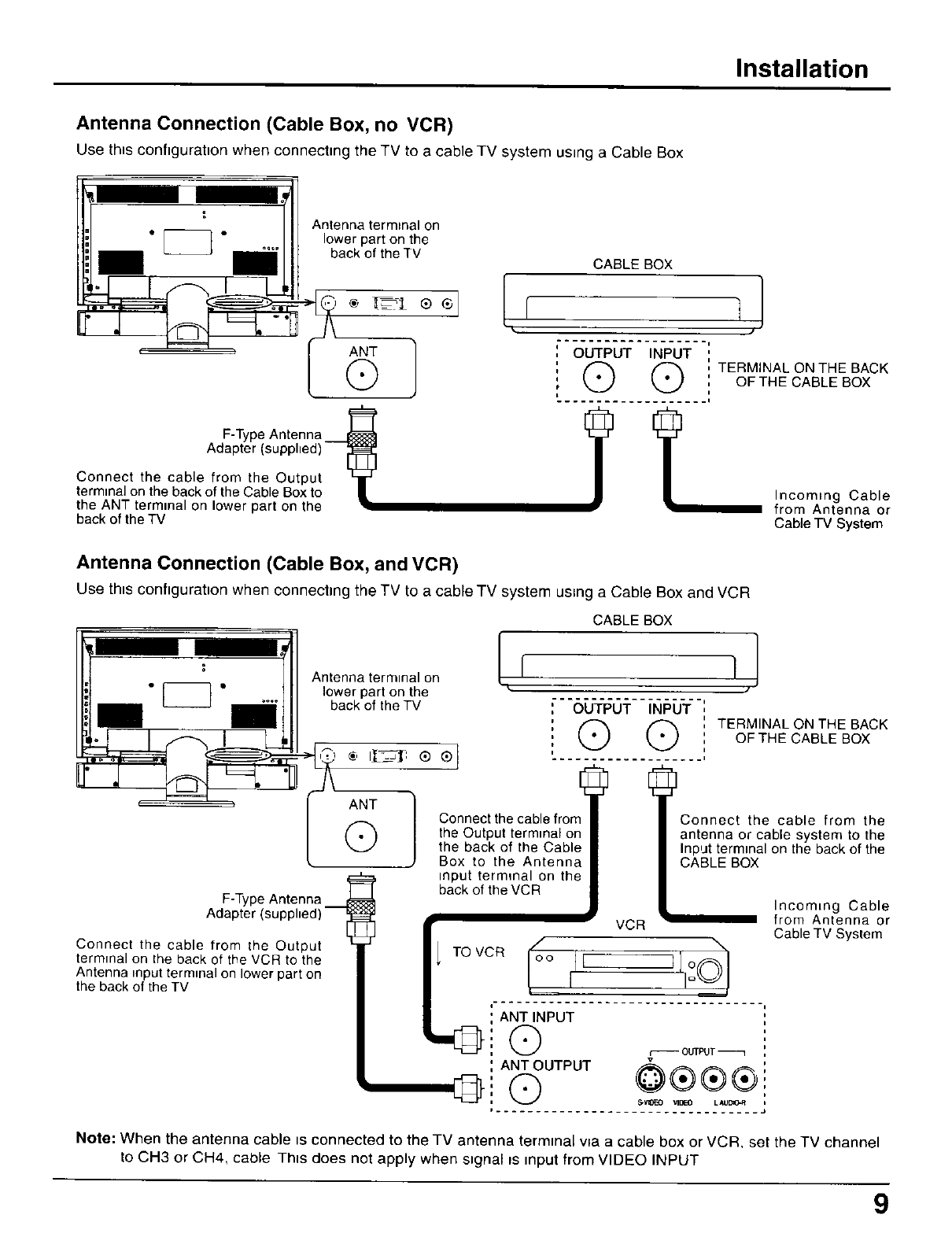

Antenna /Cable Connection ........................................ 8

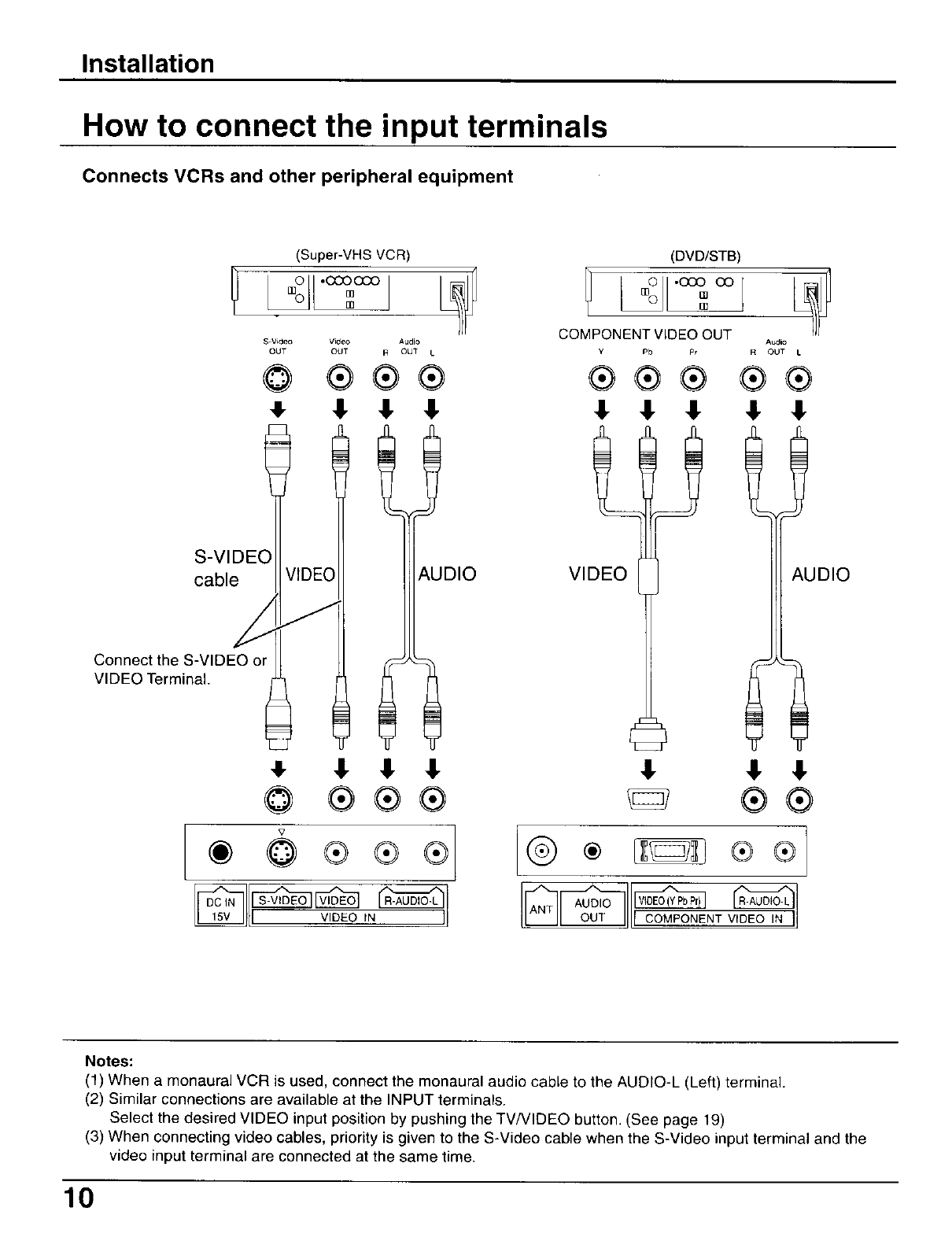

How to connect the input terminals ............................ 10
How to connect the AUDIO OUT Terminals ............... 11
Connecting Headphones /Earphones ....................... 11
Basic Controls ............................................................. 12

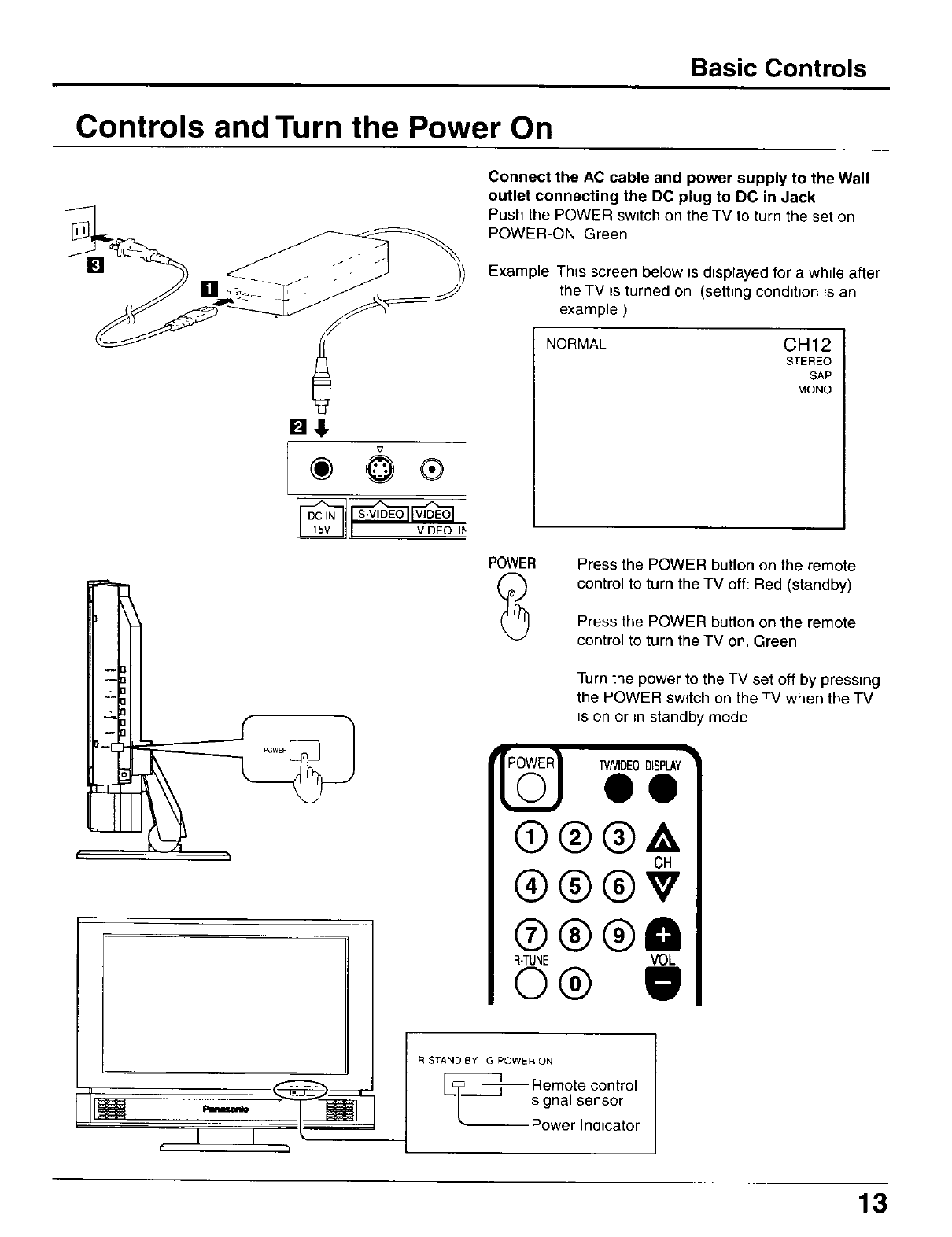

Controls and Turn the Power On ................................ 13
Flow Chart of MENU ................................................... 14
Tuning channels (Automatic channel programming) ... 16
Tuning channels (Manual channel programming) ....... 17
I

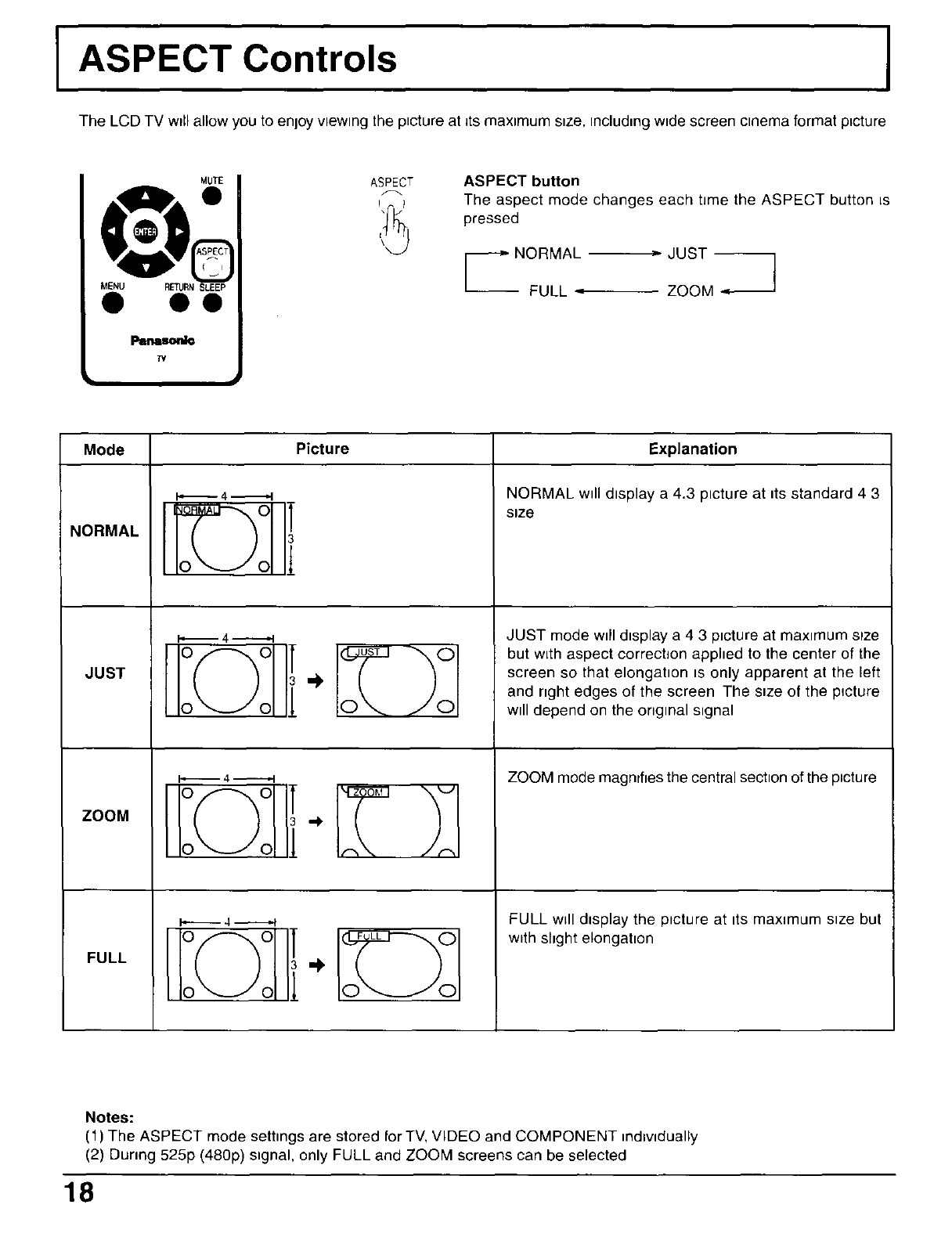

AS PECT Controls ........................................................ 18

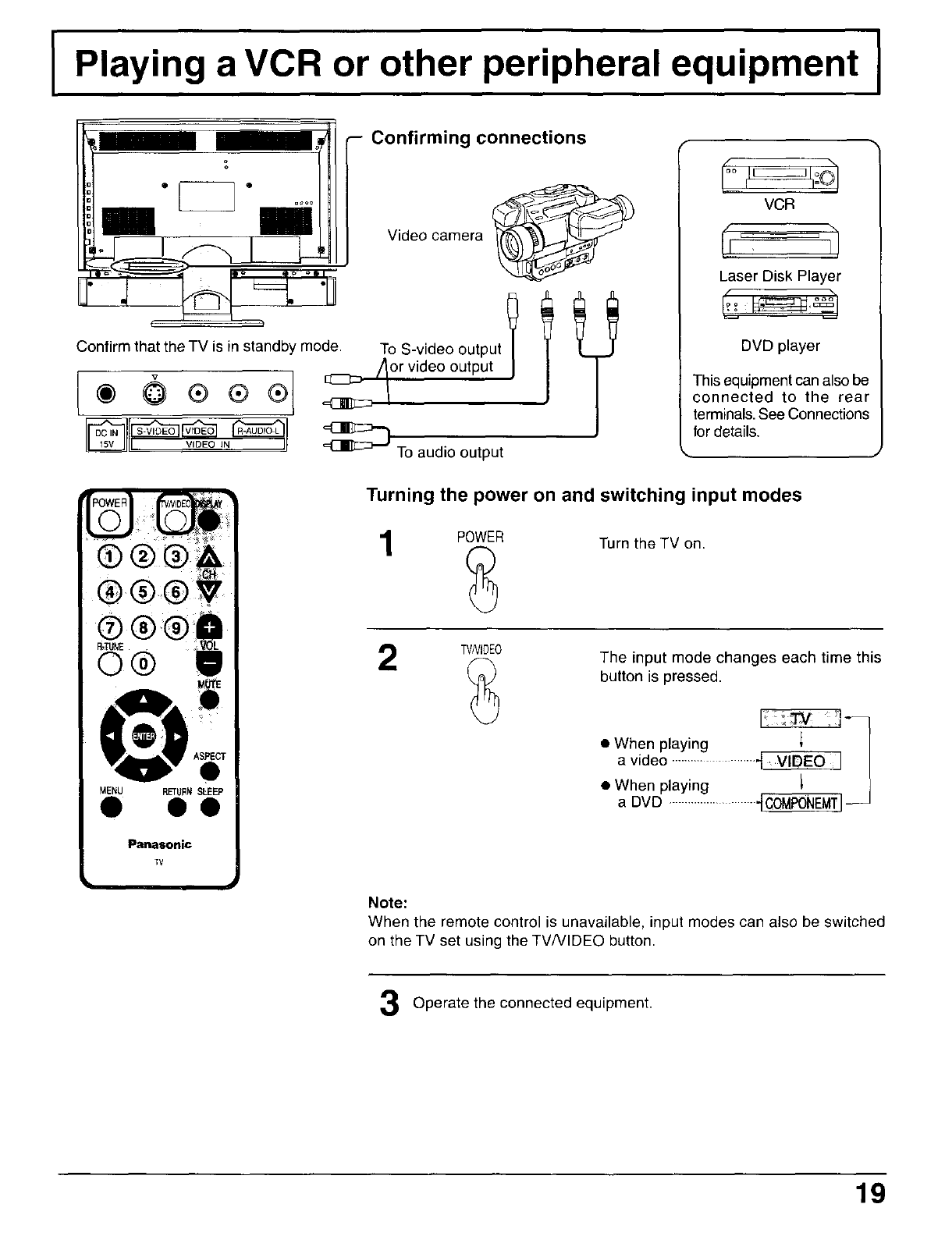

Playing a VCR or other peripheral equipment .......... 19

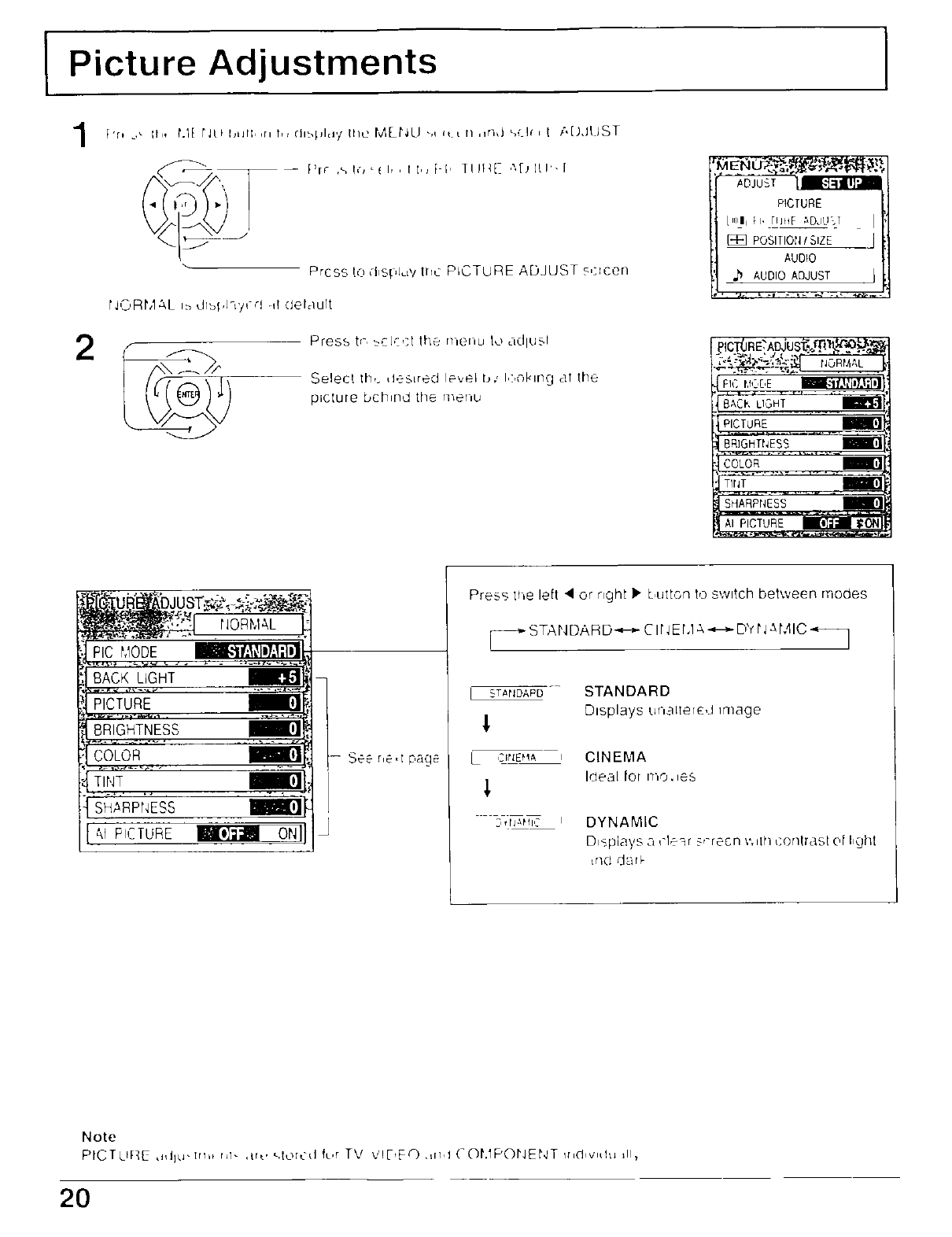

Picture Adjustments ................................................... 20
Audio Adjustments ..................................................... 22
MUTE ............................................................................ 23
Adjusting screen position and size ........................... 24
Closed Captions .......................................................... 25
Lock Feature ................................................................ 26
Customizing theVIDEO INPUT labels ....................... 29
Adjusting unnatural video images (3DY/C FILTER)..........30
Natural Color ............................................................... 30
Video Noise Reduction ............................................... 31
AutomaticallychangingscreensizeforVIDEOINPUTmodes....31
Whenthetopand bottomofthescreennoise(IMAGEADJ.)....32
Maintenance ................................................................ 32
Troubleshooting .......................................................... 33
Specifications .............................................................. 34
SUPPLIED ACCESSORIES
Check the accessories before installations.
•Operating Instruction book
(TQBE0425)
Panasonic
• Warranty Card
• Service Center List
• Remote Control Transmitter
with lithium battery
(N2QAFC000006)
• AC Adaptor & AC Cord
AC Adaptor: (NOJZHK000003)
AC Cord: (K2CA2EA00005)
oi=
i_ I
• F Type Antenna Adapter
(K1SGABCA0001)
• D-Y/PB/Pr Conversion Cable
(K2KZ9DB00001)
5

IInstallation
Receiver Location
Locate for comfortable viewing. Avoid placing where sunlight or other bright light (including reflections) will fall on the screen.
Use of some types of fluorescent lighting can reduce remote control transmitter range.
Adequate ventilation is essential to prevent internal component failure. Keep away from areas of excessive heat or moisture.
To insure optimum picture do not position magnetic equipment (motors, fans, other speakers, etc.) nearby.
Optional External Equipment
The Video/Audio connection between components can be made with shielded video and audio cables. Forbest performance,
Antenna cables should utilize 75 ohm coaxial shielded wire. Cables are available from your dealer or electronic supply store.
Before you purchase any cables, be sure you know what type of output and input connectors your various components require.
Also determine the length of Gableyou'll need.
For optimum quality picture
When the LCD is exposed to light from outdoors or lighting fixtures, high-contrast pictures may not be displayed clearly.Turnoff
florescent lamps near the LCD and place in a location not exposed to outdoor light.
How to use the LCD stand
Adjust the stand to your desired angle. The stand angle can be adjusted between 0 ° forward to 28 ° back.
0ore
IFederal Communication Commission Information ]
This equipment has been tested and found to comply with the limits for a TV Broadcast Receiver, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. If this
equipment does cause or receive interference, which can be determined by turning equipment off and on, the user is
encouraged to try to correct the interference by one of the following measures:
Reorient or relocate the TV antenna.
Increase the separation between TV and other equipment.
Connect TV into separate outlet from other equipment.
Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate this equipment.
6

Installation
Remote control battery installation
Remove the insulation sheet. Back of the Remote Control
The lithium battery is included in the remote control
at the time of delivery.
Remove the insulation sheet to operate the
remove control.
the insulation sheet
Replacing batteries
Replace batteries by following the steps below:
"Replacing batteries" label
Requires a 0R2025 battery
1. Draw out the battery tray by sliding 2. Remove battery as shown below.
latch [] and pulling in the direction Install the battery in the battery
of [] as shown below, tray. (Confirm that the positive
pole marked" +" is facing up.)
3. Replace the tray and slide back
the latch until it snaps in place.
/_k Caution
Keep batteries out of children's reach. If batteries are swallowed, contact a physician immediately,
Z_ Precaution on battery use
Incorrect installation can cause battery leakage and corrosion that will damage the remote control transmitter.
Observe the following precautions:
1. Always use new batteries when replacing the old set.
2. Do not attempt to charge, short-circuit, disassemble, heat or burn used batteries.
3. Battery replacement is necessary when remote control acts sporadically or stops operating this unit.
Notes:
•Do not drop, apply shock or step on the remote control.
• Do not spill water on the remote control.
• Do not place objects between the remote control and remote control receiver.
• Do not use remote controlsfor other equipments at the same time.
•If the TV does not operate even when operating the remote control from a close range, it is time to replace the
batteries (product number: CR2025).
Refer to the label on back of the remote control for directions on replacing batteries.
AC Adaptor installation
• Be sure to use the power cord and AC adaptor (model no. :NOJZHK000003) included in the accessories.
• Usage of AC adapters other than specified may cause malfunctions.
7

Installation
Connecting the Antenna Cable to the RF In Terminal
Antenna Connection -For proper reception of VHF/UHF channels, an external antenna is required. For best
reception an outdoor antenna is recommended. Antenna Mode must be set to TV.
VHF Antenna
Mixer_
75 Ohm
Coaxial Cable
UHF Antenna
RF In Terminal
Antenna /Cable Connection
Incoming Cable From Home Antenna (75 Ohm)
F-Type Antenna
Adapter (supplied)
VHF/UHF
on Back of Set
Incoming 75 Ohm Cable (From Cable Company)
Cable Connection - For reception of cable channels (01 - 125) connect the cable supplied by your local cable company. Antenna
Mode must be set to CABLE. (Refer to Antenna Mode section.)
VHF/UHF
on Back of Set
F-Type Antenna
Adapter (supplied)
Note:
Certain cable systems offset some channels to reduce interference or have Premium (scrambled) channels. A cable
converter box is required for proper reception. Check with your local Cable company for its compatibility
requirements.
8

Installation
Antenna Connection (Cable Box, no VCR)
Use this configuration when connectmg the TV to a cable TV system using a Cable Box
Antenna terminal on
lower part on the
back of the TV CABLE BOX
ANT
Q
F-Type Antenna .._
Adapter (supplied) _
Connect the cable from the Output'z 4
terminal on the back of the Cable Box to _[
the ANT terminal on lower part on the
back of the TV
}OUTPUT INPUT
QQTERMINAL ON THE BACK
OFTHE CABLE BOX
Incommg Cable
from Antenna or
Cable TV System
Antenna Connection (Cable Box, and VCR)
Use this configuration when connectmg the TV to a cable TV system using a Cable Box and VCR
F-Type Antenna
Connect the cable from the Output
terminal on the back of the VCR to the
Antenna input terminal on lower part on
the back of the TV
Antenna terminal on
lower part on the
back of the TV
ANT
@
CABLE BOX
OUTPUT INPUT
G Q TERMINAL ON THE BACK
OF THE CABLE BOX
................... i
Connect the cable from Connect the cable from the
the Output terminal on antenna or cable system to the
the back of the Cable Input terminal on the back of the
Box to the Antenna CABLE BOX
input terminal on the
back of the VCR Incoming Cable
from Antenna or
Cable TV System
Note: When the antenna cable is connected to the TV antenna terminal wa a cable box or VCR, set the TV channel
to CH3 or CH4, cable This does not apply when stgnal ts mput from VIDEO INPUT
9

Installation
How to connect the input terminals
Connects VCRs and other peripheral equipment
S-Video
OUT
0
,I.
S-VIDE(
cable
Connect the S-VIDEO or
VIDEO Terminal.
(DVD/STB)
Video Audio
OUT R OUT L
®®®
,!, ,!, ,!,
t9
AUDIO
GO®
•ooo oo
COMPONENT VIDEO OUT
Y Pb pr
®®®J
vI
Audio
ROUT L
®®
V
_ @®®® rSl LCOMPONENTv,oeo,NJ
AUDIO
Notes:
(1) When a monaural VCR is used, connect the monaural audio cable to the AUDIO-L (Left) terminal.
(2) Similar connections are available at the INPUT terminals.
Select the desired VIDEO input position by pushing the TV/VIDEO button.(See page 19)
(3) When connecting video cables, priority is given to the S-Video cable when the S-Video input terminal and the
video input terminal are connected at the same time.
10

Installation
How to connect the AUDIO OUT Terminals
-- -- AUDIO IN
!ool o°H _
Amplifier to speaker system
t
Note:
The volume control output of the LCD TV will fix. (SOUND, ADJUST, VOLUME UP/DOWN and SURROUND ON/OFF
are not functional for output signals from the AUDIO OUT terminals.)
Connecting Headphones /Earphones
Connect headphones /earphones as follows.
Use Volume Up _Jhor Down _ button to control volume level.
(Optional)
11

Basic Controls
ASPECT
TV VIDEO
+
,OLUME
A
ZHANNEL
v
SLEEP
r
: I I ASPECT button (Change to screen size)
- TV/VIDEO button (Change to input signal )
:ll
: VOLOMEup,dowo
I
I)
CHANNEL up/down
SLEEP button
Mare Power On/Off Swdch
Power button
Press to turn thts untt ON or OFF
(See page 13)
Note:
The W_de LCD TV's power cord must
first be plugged into the wall outlet
and then turned on at the Mare
POWER swttch
Direct program number selection
buttons
R-TUNE button
Sw_tches to prevtously vtew to
channel or vtdeo mode
Moves cursor upward
durmg menu mode
Moves cursorto
the left durmg
menumode A._
Movescursor to
the nghtdurmg
menu mode
Moves cursor downward
durmg menu mode
MENU button
Press to dBplay
the Menu screen
TV/VIDEO button
This input mode changes
each time this button is
pressed (See page 19)
®®®
VOL
Pan
i
RETURN button
CHI2 1
DISPLAY button ,0°Eo
The screen below ,,&_
_sdisplayed for 3
seconds
Changes to the next channel up
Changes to the next channel down
Increase volume
Reduces volume
MUTE button
Push thts button to mute the sound
(See page 23)
ASPECT button
Change of screen s_ze(See page 18)
--- OSt------]
-- FULL _" ZOOM 4--
SLEEP button
The Wide LCD TV may be preset to
switch to stand-by after a fixed penod
The settmg changes to 30 mmutes, 90
minutes and 0 minutes (off t_mer
cancelled) each ttme the button ts
pressed
[] 0 "-----'-_1_30----------_ [360 q
[E390 :
When 3 mmutes remain, 'Off ttmer 3"
wdl flash The off ttmer ts cancelled if a
power mterruptlon occurs
Before the ttmer automahcally turns the
power off, the remammg hme wtll blink
on the screen ("3" for 3 mmutes, "2" for
2 minutes and "1" for 1 mmute before
power off)
12

Basic Controls
Controls and Turn the Power On
'i
i
I
-'i
I
t_
Connect the AC cable and power supply to the Wall
outlet connecting the DC plug to DC in Jack
Push the POWER switch on the TV to turn the set on
POWER-ON Green
Example This screen below tsdtsplayed for awhtle after
the TV ts turned on (settmg condtbon rs an
example )
NORMAL CH12
STEREO
SAP
MONO
POWER Press the POWER button on the remote
control to turn the TV off: Red (standby)
Press the POWER button on the remote
control to turn the TV on. Green
Turn the power to the TV set off by pressmg
the POWER switch on the TV when the TV
tson or tn standby mode
TVNIDEODISPLAY_
00
OH
®®®v
®®®a
R-TUNE VOL
©®
IR STAND BY O POWER ON
-- emote control
s_gnal sensor
Power Indicator
13

Flow Chart of MENU
All adjustments and setting functions equipped in this set can be made using the menu buttons
The menu screen _s composed of 2 menus, the ADJUST menu and the SET UP menu.
I1If the MENU button is
pressed, the MENU
screen will be displayed
If the MENU button is
pressed once more while
the menu screen is
displayed, the MENU
screen will be cleared
MENU
ADJUST
E_ PICTUREADJUST
POSITION/SIZE
AUDIO
AUDIO ADJUST
POWER TVNIDEO OISPLAY
• 0O
¢)@@ACH
®@@a
RTUNE VOL
O@ 1=
Panasonic
TV
Select MENU desired by
pushing Right " • " button
or Left " • " button.
MENU
ADJUST
PICTUREADJUST
POSITION/SIZE
AUDIO
,_ AUDIOADJUST I
MENU SET UPd r_'.ii II
ii_ PROGRAM CH
LOCK
[_c] CLOSED CAPTION
INPUT LABEL
"_ OTHER ADJUST
14

Flow Chart of MENU
i1Pross to SOIOct oath item
2Press to each scroon _sdisplay< d
TO PICTURE ADJUST
menu
'ICTURE'AOJUST _!
._;_ -. o[ NORMAL
PiCMODE
BACKLIGHT
RCTURE
corT6_
TINT
[SHARPNESS
AI PICTURE
E
E
(See page 20)
TO POSITION"SIZE
POSITION1SIZE
NORMAL
<_L_ NORMALIZE
s,zE
O RETURN
(See page 24)
TO AUDIO ADJUST
menu
AUDIOADJUST!
•[ NORMAL
_oDE
BASS
TREBLE
BALANCE
(See page 22)
TO VIDEO INPUT LABEL
selection screen
INPUTLABEL
;{VIDEO
(See page 29)
TO OIltER
adlusl s(u con
OTHERADJUST
_atunL CLR III_Lo_ I
See pa(te 30, 3t)
TO LOCK
selection screen
LocK
MOTON PICr
_oN 11
7v r,_,_ENfP_i-
__ ONI
(See p_/ce ',26)
TO CLOSED CAPTION
selection screen TO PROGRAM CHANNELS
CLOSEDCAPTION ]
(See page 251
adjust screen
•• 16 17_
(St_ p _g(
15

Tuning channels (Automatic channel programming)
Automatically searches and adds receivable channels m the installed area and/or CATV
signals to the program
pr_ Iht- t.IUJU h,.Tt_,hr.,,jmIjla/Th, tlEtJU',,bt r, *rhq , h,t [T[q
Press k,seI_tPRO(_RArICH,_NrlEL
Press 1,, dhspl._,i IIrL PROGR-t.1 CH
Press to select MODE
Press Io select TV or CABLE
MENU
LOCK
[]_ CLOSED CAPTIC,N I
LqPUTLABEL
OTHER ADJUST J
uTopROOR r,,q
3
4
Press to select AUTO PROGRAM
Press to d,spla'_ the cor]flrmat_on screen
Press t,c select YES
Press to rur-i AUTO PROGR:,L1
Ohaf7mcls will 3utor]]ahc711'. advan,:,: uirhl oil dTanr7El._ have b.-en ScL]r,r,_d Ch ],,r_,_l numbers with a ,qdeo
_lc![]_l preserd ,".llllL_[rl hqhl blbe _,%_h¢h ,ri,J,, _1_3 it ha-- t,epn _!,_J,_d u,lh, _ r"Ii _nr,,-I - art flcrT_ory
F'rt Th, I,IErJLI [,,JIl, r, I,_ _,LT I1,, ", I LIf rh, r,tJ
Notes
• _',/_,, Ii [H[l,,r, ,lit ! rt _,_,t ,1 _',dh *\I. tTLp F f_ )r_FtAr,1 r_Jr_h,l,,l th, [ '_' -,_ I ,' ,11 r, TtJrr_ _ , r,,,rmal VIL_V, Iru_I I1: rhlflflt I
",c.lr_ h, d uq, l_,thl [,,,l[ll lrL'.bl_J,r_ ;
• Alhl 2_klit)_q4(l(_f_AIll- hrm.f_o,'l lht h,,.,..,_l_ll,ltlrltlr]LJr_l[]tr _rld,'d_%dlb_,r_._,l
• Wh_rlfh*r, _r_ h,,r,,tl.,_t',lp_har_rJtl- ,h_rlr_.ltlrf m,l_£,l_L,';'t dl,.h.lrlr/ol I_')_*,rr I[,I, IV}
16

Tuning channels (Manual channel programming)
Use this setting when changing setting of receiving channels or changing the channel display.
ITur_/tho IV orl H_hd_>t'h'<JH_e broadca(M(h;Ir_nel follow the ship',on lhe provlou_ t_a(l_,Io display the PROGRAM |
1
CHANNEl :_:r_,_r_ J
Ths PROGRAbl CHANNEL screeH can be (hsplayed wherl the MAIN plctdre is a TV broadcast
Selecting the PROGRAM CHANNELS menu.
1Press lhe MENU button to display the MENU screen and select SETUP
Press to select PROGRAM CHANNELS
Press to display the PROGRAM CHANNEL.
Press to select MODE.
Press to select TV or CABLE
SET UP
PROGRAMCH j
I_1 LOCK I
CLOSEDCAPTION J
INPUTLABEL J
"_, OTHERADJUST J
3Press to select MANUAL PROGRAM
Press to display the MANUAL PROGRAM screen
Adding or deleting channels
4Press to select channel ( or number keys )
Press to select channel
Press to {t(]d ( htll/rlels to memory ( blue )
Press to delete ( hannels from memory ( yellow )
_(}p(Xlt St(}[)!_ I {Ir/(i {_ to Conhllu_, _J(_lr/L ()r (]ol(}trn( ch;ll/rl(}l!4
PIOSS lho t,t_ NLJ btlttoH tO Oxlt the' Sit up rl/or]La
17

I ASPECT Controls I
The LCD TV will allow you to enjoy vlewtng the ptcture at its maximum size, tncludmgwide screen ctnema format p_cture
MUTE
• O0
ASPECT ASPECT button
The aspect mode changes each time the ASPECT button is
pressed
NORMAL 4,,.JUST ]
FULL _ ZOOM -,,,----
Mode Picture Explanation
NORMAL
JUST
ZOOM
FULL
P,_ 4-----_
I.,_ 4-------=1
Io o!
o
NORMAL wtll dtsplay a 4.3 ptcture at its standard 4 3
size
JUST mode wtll display a 4 3 ptcture at maxtmum size
but w_th aspect correction applied to the center of the
screen so that elongation _sonly apparent at the left
and right edges of the screen The size of the p_cture
wtll depend on the ongtnal stgnal
ZOOM mode magnifies the central sectton of the p_cture
FULL will display the picture at tts maximum stze but
w_th slight elongation
Notes:
(1) The ASPECT mode settings are stored for TV, VIDEO and COMPONENT individually
(2) During 525p (480p) signal, only FULL and ZOOM screens can be selected
18

IPlaying a VCR or other peripheral equipment I
Confirm that theTV is in standby mode•
® 6®®®
- Confirming connections
Video camera
To S-video output
or video output
_}To audio output
VCR
Laser Disk Player
DVD player
This equipment can also be
connected to the rear
terminals. See Connections
for details.
®®®
®®_®
O@ U
MENU RETURNSI_EEP
• O0
Panasonic
TV
Turning the power on and switching input modes
POWER Turn the TV on.
TVNIDEO The input mode changes each time this
button is pressed.
•When playing l r
avideo ................ _1
• When playing 1 J
aDVD .............. _
Note:
When the remote control is unavailable, input modes can also be switched
on the TV set using the TV/VIDEO button.
Operate the connected equipment.
19

I Picture Adjustments
1F'I_ _," 11,. t.lt rJlF bkJIh,rl h, rht, pld'/ Ihe ME¢,ILJ _,_ H t n ,iri_J %EDi t f,[J,JlJST
I,:) .)
F'rr ,,,h','_ h, Ih,i E, TtHtE- ,'.[J]tl'-[
Prcss to CJ_st,ldv lht" PICTURE ADJUST s,:_cen
NC, RM :_L i:, Lhbf,lq,/t ,'l -II t'Jel.-ILIIt
I,llll fl, [HHF _'DJL_T
E_] POSITION /SIZE j
AUO_O
,,_ AUDIO ADJUST ]
Press tc, bC[_''_t tt'Le rTIOFILJ tO adlUSl
SelecI ttl_ Ll@SLred level b,, I,:,okl[1C_ al the
picture bcblrld tile q',erib
.... r ORM_,L
PIC MODE
11#
BACK LIGHT
BRIGHTNESS
:OLOR
TINT
SHARPNESS
&l PICTURE
See r,e,t page
3
Press trhe left • or right • button to switch between modes
_,.- STA NDA RD _-,.- CIr 1Er,l,_ _,-_, D'r rJa U_IC._
I ST/_IIDAPD STANDARD
Displays lJnSLtercd m_age
,:IrIEHA iCINEMA
Ideal for mo.,es
_,TrlaP11,2 I DYNAMIC
D,splays a €1e'er srregn ',',ql_contrast of hghl
_r_¢Jdark
Note
PICTURE ,_,Jlu- uh, rd_ ,lr_, _,lorcd fur TV VIDEO ,_r_,l(-Ot.IF'ONEt4T _i,d,v_du ,11_
20
