Panasonic TX-32LXD85F User manual

Service Manual
Colour LCD Television
TX-32LXD85F
TX-37LXD85F
TX-32LXD85
TX-37LXD85
GLP23 Chassis
Specifications
(Informations in brackets [ ] refers to model 32”)
Power Source: 220-240V AC, 50Hz
Power Consumption 180W [140W]
Stand-by Power Consumption: 0.4W (Without monitor out recording)
14,5W [13W] (With monitor out recording)
Aerial Impedance: 75Ωunbalanced, Coaxial Type
Receiving System: LXD85 LXD85F
PAL-I PAL-I/H, B/G, D/K
PAL-525/60 (AV only) SECAM B/G, D/K, L/L’
DVB (via UHF aerial input) PAL-525/60 (AV only)
M.NTSC (AV only) DVB (via VHF/UHF aerial input)
NTSC (AV only) M.NTSC (AV only)
NTSC (AV only)
Receiving Channels: LXD85 LXD85F
UHF E21-E68 VHF E2-E12 VHF H1-H2 (ITALY)
VHF A-H (ITALY) VHF R1-R2
VHF R3-R5 VHF R6-R12
UHF E21-E69 CATV (S01-S05)
CATV S1-S10 (M1-M10) CATV S11-S20 (U1-U10)
CATV S21-S41 (Hyperband)
Operating Conditions: Temperature: 0°C ÷35°C
Humidity: 20% ÷ 80% RH (non condensing)
Scanning format: 480i(60Hz), 480p(60Hz), 576i(50Hz), 576p(50Hz), 720p(60Hz), 720p(50Hz), 1.080i(60Hz),
1.080i(50Hz), 1.080p(60Hz), 1.080p(50Hz) ), 1.080p(24Hz)
PC signals: VGA, SVGA, XGA, SXGA(compressed)
Horizontal scanning frequency 31 – 69 kHz
Vertical scanning frequency 59 – 86 Hz
ORDER No. PCZ0804034CE
Panasonic CS ( U.K. ) Ltd.
WILLOUGHBY ROAD,
BRACKNELL,
BERKS.,
RG12 8FT.

Intermediate Frequency:
Video/Audio LXD85 LXD85F
Video 38,9MHz 38,9MHz, 33,9MHz
Audio 32.90MHz 33,4MHz (B/G), 33,16MHz (A2)
32.35MHz(NICAM) 33,05MHz (NICAM B/G, D/K, L’)
32,4MHz (D/K), 32,66MHz (CZ STEREO)
40,4MHz (L’), 39,75MHz (L’ NICAM)
Colour 34,47MHz 34,47MHz (PAL)
34,5MHz, 34,65MHz (SECAM)
38,3MHz, 38,15MHz (SECAM L’)
Terminals:
AV1 IN Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin) 0,7V p-p 75Ω
AV1 OUT Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
AV2 IN Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 10kΩ
RGB (21 pin) 0,7V p-p 75Ω
S-video IN (21-pin)Y: 1V p-p 75Ω
C:0,3V p-p 75Ω
AV2 OUT Video (21 pin) 1V p-p 75Ω
Audio (21 pin) 500mV rms 1kΩ
AV3 IN S-Video IN (4-pin) Y: 1V p-p 75Ω
C:0,286V p-p 75Ω
Audio (RCAx2) 500mV rms 10kΩ
Video (RCAx1) 1V p-p 75Ω
HDMI1, HDMI2, HDMI3 Type A Connector
COMPONENT Video (RCAx3) Y:1V p-p 75Ω(including synchronization)
Pb, Pr: ±0,35V p-p 75Ω
AUDIO IN Audio (RCAx2) 500mV rms 10kΩ(for YUV; HDMI1)
AUDIO OUT Audio (RCAx2) 500mV rms 1kΩ(high Impedance)
CARD SLOT SD CARD slot ×1
PC HIGH-DENSITY D_SUB 15PIN R,G,B: 700mV p-p 75Ω
HD,VD:TTL Level 2-5V p-p (high impedance)
LCD screen: L5EDD9Q00004 [L5EDD8Q00040]
1366 x 768 XGA, 16:9
Visible Diagonal 940mm [800mm]
Audio Output: 20W (2x10W)
Headphones: 3,5mm (M3), 8ΩImpedance
Accessories supplied : Remote Control 2 x R6 (UM3) Batteries
Dimensions:
Height: Width: Depth:
Including TV stand 645mm 940mm 294mm
[572mm] [820mm] [250mm]
TV set only 605mm 940mm 120mm
[534mm] [820mm] [119mm]
Net weight:
Including TV stand 21.0kg [17.0kg]
TV set only 17,5kg [14kg]
Specifications are subject to change without notice.
Weights and dimensions shown are approximate.
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potencial dangers in attempting to service a product. Products
powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or repair the
product or products deal within this service information by anyone else could result in serious injury or death.
Warning
2

CONTENTS
SAFETY PRECAUTIONS .......................................................................... 4
GENERAL GUIDE LINES..................................................................... 4
TOUCH – CURRENT CHECK.............................................................. 4
PREVENTION OF ELECTROSTATIC DISCHARGE (ESD)
TO ELECTROSTATICALLY SENSITIVE (ES) DEVICES .......................... 5
ABOUT LEAD FREE SOLDER (PBF)........................................................ 6
SUGGESTED PB FREE SOLDER....................................................... 6
APPLICABLE SIGNALS............................................................................. 7
SERVICE HINTS ....................................................................................... 8
CHASSIS BOARD LAYOUT ...................................................................... 9
LOCATION OF LEAD WIRING…………………………………………….9
SETTING INSPECTION........................................................................... 10
SELF-CHECK .......................................................................................... 11
POWER LED BLINKING TIMING CHART ............................................... 12
SERVICE MODE FUNCTION .................................................................. 13

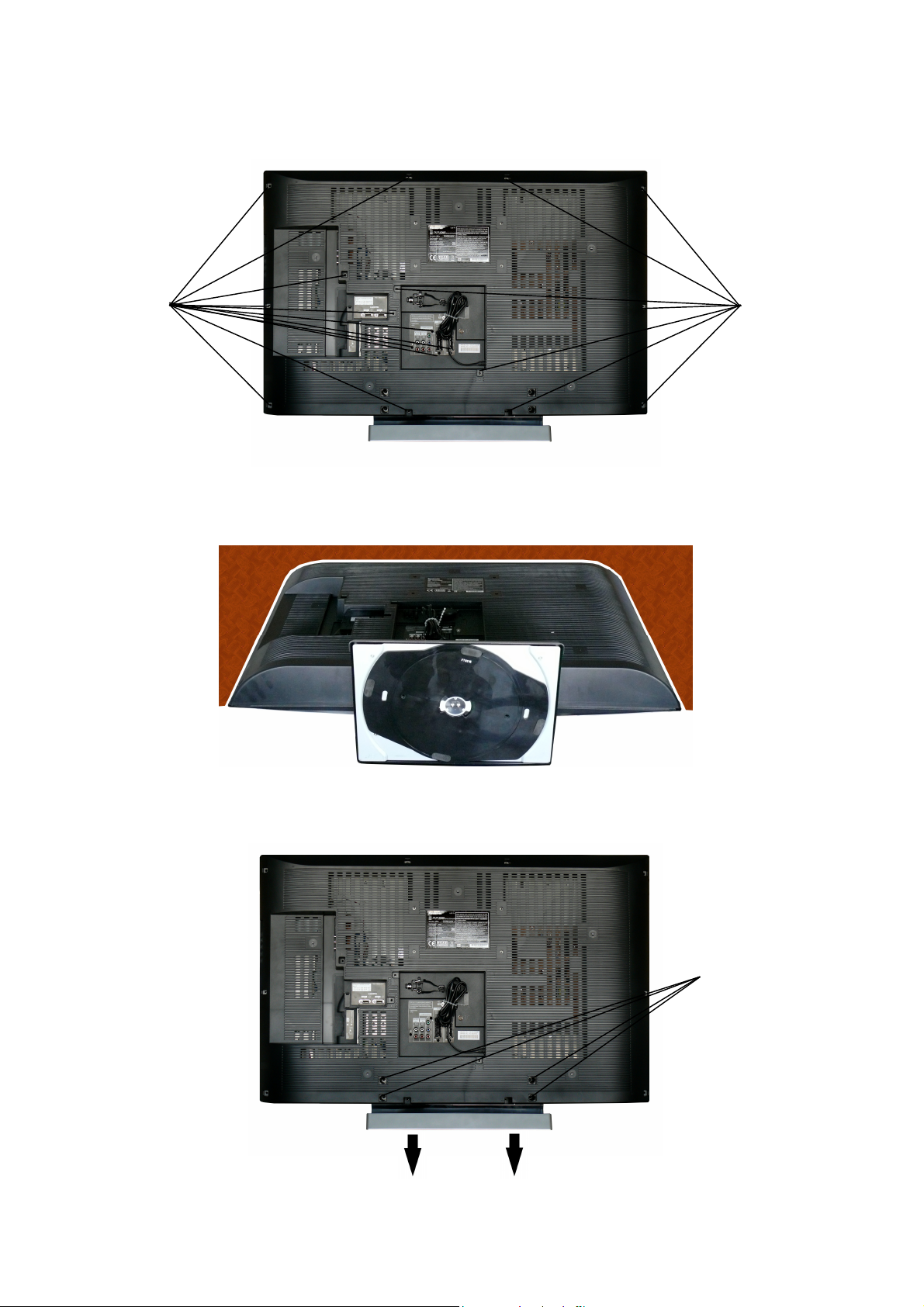

SERVICE ................................................................................................ 14
OPTION DESCRIPTION.......................................................................... 15
ADJUSTMENT METHOD ........................................................................ 16
WIRING DIAGRAM.................................................................................. 17

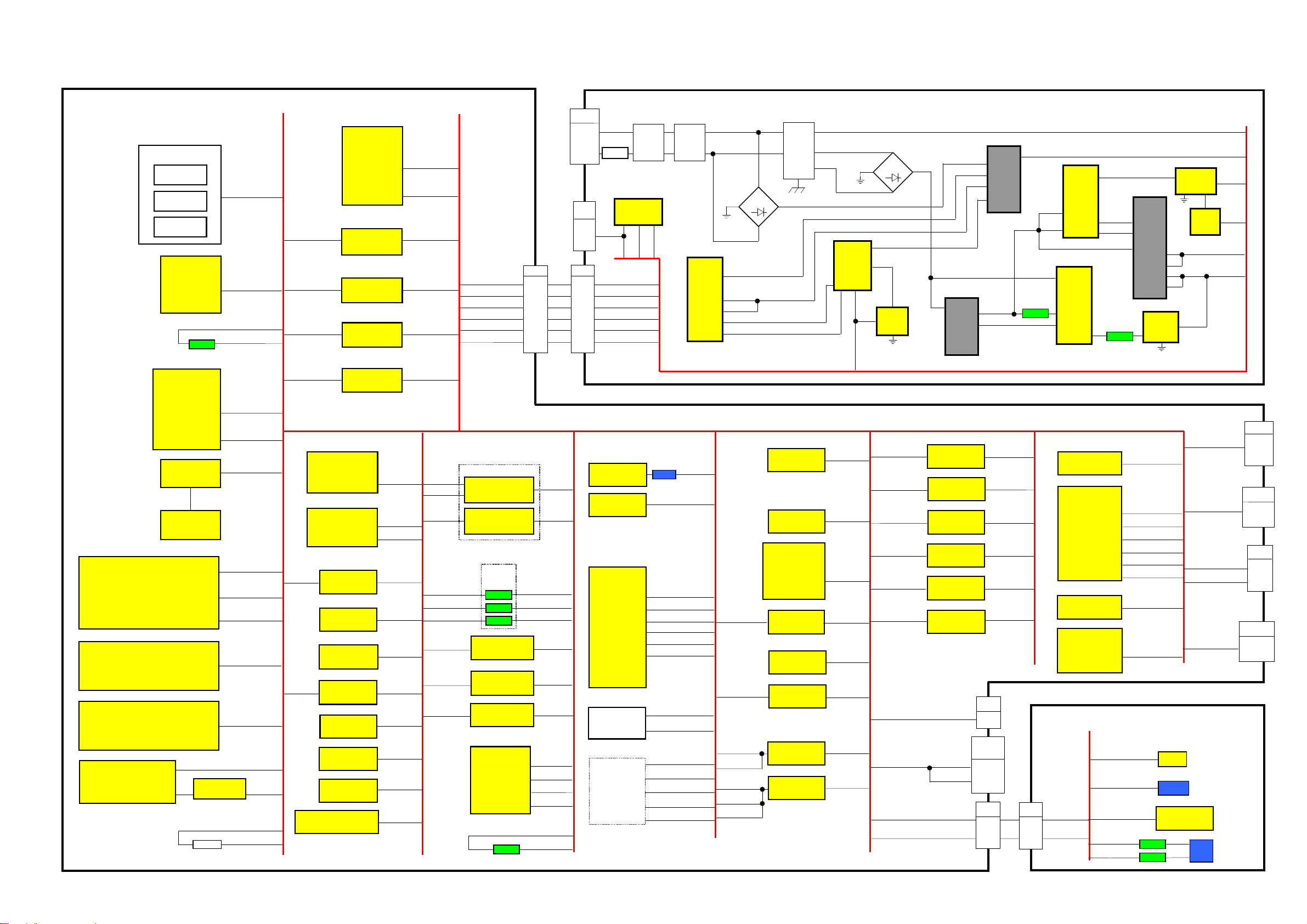

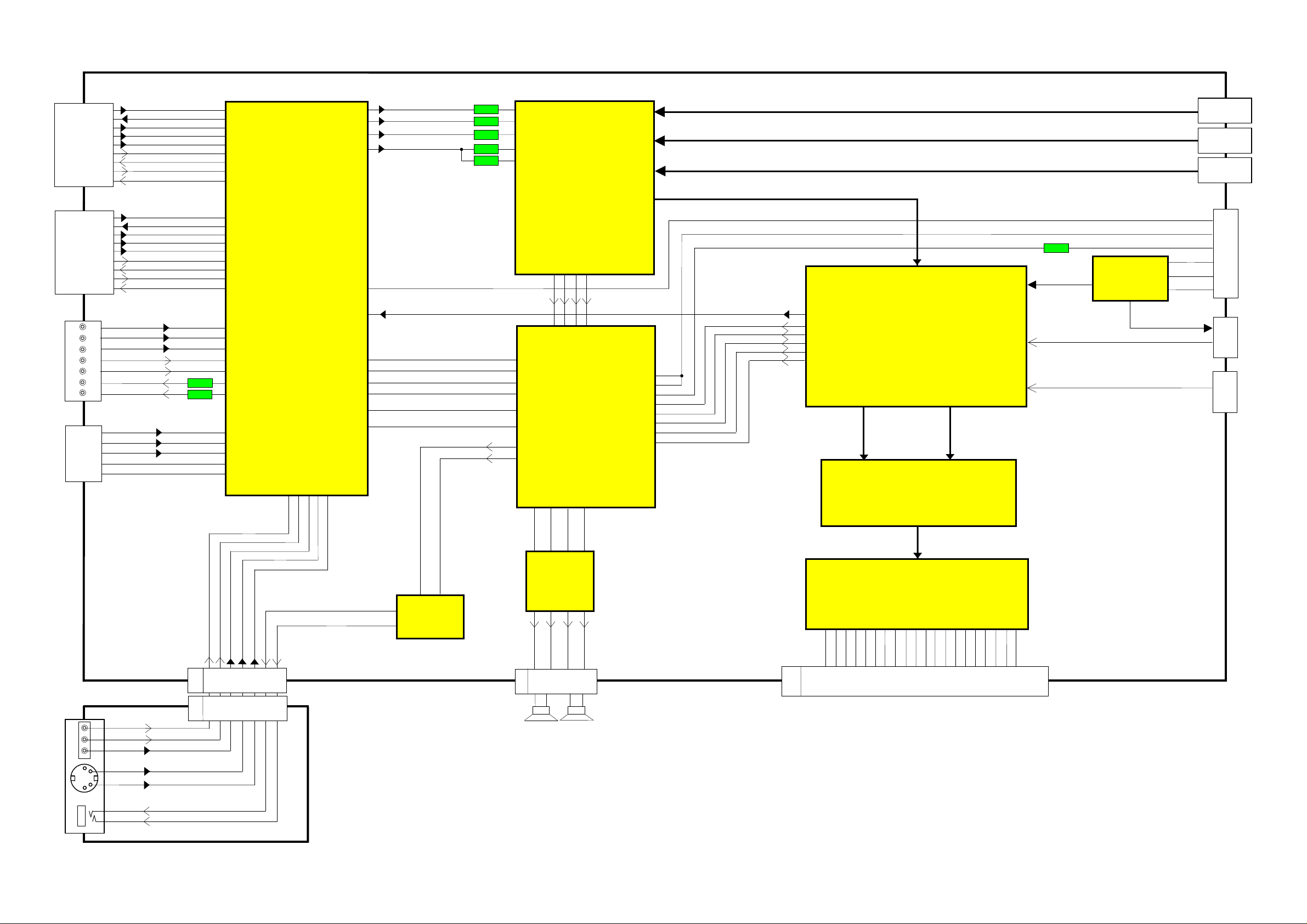

BLOCK DIAGRAMS................................................................................. 18
PARTS LOCATION.................................................................................. 21
REPLACEMENT PARTS LIST................................................................. 23
SCHEMATIC DIAGRAMS........................................................................ 43
A-BOARD (1 OF 18) SCHEMATIC DIAGRAM ................................... 44
P-BOARD SCHEMATIC DIAGRAM ................................................... 62
G-BOARD SCHEMATIC DIAGRAM................................................... 63
V-BOARD SCHEMATIC DIAGRAM ................................................... 64
K-BOARD SCHEMATIC DIAGRAM ................................................... 65
CONDUCTOR VIEWS ............................................................................. 66
3

Safety Precautions
General Guide Lines
1. When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated
or damaged by the short circuit.
2. After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
3. After servicing, make the following touch current checks to prevent the customer from being exposed to shock hazards.
4. Always ensure panel TKP0E16001 is correctly replaced before returning to customer (see Fig.1).
Touch-Current Check
1. Plug the AC cord directly into the AC outlet. Do not use an isolation transformer for this check.
2. Connect a measuring network for touch currents between each exposed metallic part on the set and a good earth
ground such as a water pipe, as shown in Fig. 2.
3. Use Leakage Current Tester (Simpson 228 or equivalent) to measure the potential across the measuring network.
4. Check each exposed metallic part, and measure the voltage at each point.
5. Reserve the AC plug in the AC outlet and repeat each of the above measure.
6. The potential at any point (TOUCH CURRENT) expressed as voltage U1 and U2, does not exceed the following values:
For a. c.: U1 = 35 V (peak) and U2 = 0.35 V (peak);
For d. c.: U1 = 1.0 V,
Note:
The limit value of U2 = 0.35 V (peak) for a. c. and U1 = 1.0 V for d. c. correspond to the values 0.7 mA (peak) a. c. and
2.0 mA d. c.
The limit value U1 = 35 V (peak) for a. c. correspond to the value 70 mA (peak) a. c. for frequencies greater than 100
kHz.
7. In case a measurement is out of the limits specified, there is a possibility of a shock hazard, and the equipment should
be repaired and rechecked before it is returned to the customer.
Fig. 2
4
TO
A
PPLIANCES
EXPOSED
METAL PARTS
Resistance values in ohms (Ω)
V
R0=500
Ω
RS=1500
Ω
CS=0.22
μ
F
10k
Ω
0.022
μ
F
U1
COLD
WATER PIPE
(EARTH GROUND)
V: Voltmetr or oscilloscope
(r.m.s. or peak reading)
Measuring network for TOUCH CURRENTS
Input resistance: ≥ 1M
Ω
Input capacitance: ≤ 200pF
Frequency range: 15Hz to 1MHz and d.c.respectively
NOTE – Appropriate measures should be taken to obtain the correct value in case of non-sinusoidal waveforms
U2(V)
Fig. 1

Prevention of Electrostatic Discharge (ESD) to Electrostatically
Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are
called Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect
transistors and semiconductor "chip" components. The following techniques should be used to help reduce the incidence of
component damage caused by electrostatic discharge (ESD).
1. Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on
your body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD
wrist strap, which should be removed for potential shock reasons prior to applying power to the unit under test.
2. After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as
aluminum foil, to prevent electrostatic charge build up or exposure of the assembly.
3. Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4. Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD
protected)" can generate electrical charge sufficient to damage ES devices.
5. Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6. Do not remove a replacement ES device from its protective package until immediately before you are ready to install it.
(Most replacement ES devices are packaged with leads electrically shorted together by conductive foam, aluminum foil
or comparable conductive material).
7. Immediately before removing the protective material from the leads of a replacement ES device, touch the protective
material to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8. Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise harmless motion such as the
brushing together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity
(ESD) sufficient to damage an ES device).
There are special components used in this equipment which are important for safety.
These parts are marked by in schematic diagrams, exploded views and replacement parts list. It is essential that
these critical parts should be replaced with manufacturer’s specified parts to prevent shock, fire, or other hazards. Do
not modify the original design without permission of manufacturer.
IMPORTANT SAFETY NOTICE
5

About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work,
we’d suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol
stamped on the back of PCB.
Caution
•Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C)
higher. Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
•Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before
applying Pb solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
•After applying PbF solder to double layered boards, please check the component side for excess solder which may
flow onto the opposite side. (see Fig.3)
Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.
However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used. (see Fig.4)
Fig.3
Fig.4
6

Applicable signals
Signal name Horizontal frequency (kHz) Vertical frequency (Hz)
640 ×400 @70 Hz 31.47 70.07
640 ×480 @60 Hz 31.47 59.94
640 ×480 @75 Hz 37.50 75.00
800 ×600 @60 Hz 37.88 60.32
800 ×600 @75 Hz 46.88 75.00
800 ×600 @85 Hz 53.67 85.06
852 ×480 @60Hz 31.44 59.89
1,024 ×768 @60Hz 48.36 60.00
1,024 ×768 @70Hz 56.48 70.07
1,024 ×768 @75Hz 60.02 75.03
1,024 ×768 @85Hz 68.68 85.00
1,280 ×1,024 @60Hz 63.98 60.02
1,366 ×768 @60Hz 48.39 60.04
Macintosh 13“ (640 ×480) 35.00 66.67
Macintosh 16“ (832 ×624) 49.73 74.55
Macintosh 21“ (1,152 ×870) 68.68 75.06
Note:
•Signals other than above may not be displayed properly.
•The above signals are reformatted for optimal viewing on your display.
•Applicable input signal for PC is basically compatible to VESA standard timing.
•PC signal is magnified or compressed for display, so that it may not be possible to show fine detail
with sufficient clarity.
7
Signal name COMPONENT HDMI
525 (480) / 60i * *
525 (480) / 60p * *
625 (576) / 50i * *
625 (576) / 50p * *
750 (720) / 60p * *
750 (720) / 50p * *
1,125 (1,080) / 60i * *
1,125 (1,080) / 50i * *
1,125 (1,080) / 60p *
1,125 (1,080) / 50p *
1,125 (1,080) / 24p *
Component (Y, Pb, Pr), HDMI
PC (D-sub 15P)

Service Hints
How to remove the backcover
Remove the 18 fixing screws. (see Fig.5)
How to remove the Pedestal assembly
Lay the main unit face down. (see Fig.6)
Remove the 4 fixing screws and the pedestal assembly. (see Fig.7)
Fig.6
8
Fig.7
SCREWS
SCREWS SCREWS
Fig.5

Chassis Board Layout
Location of Lead Wiring
To find the Part Number of required wire in Replacement Parts List click on the wire name in red box.
Board Name Function
A-Board Tuner, PC, AVSW, HQ1L, HDMI,CI Slot, Global Core,
GENX, AV Terminal, SD Slot, Speaker out, ADV
P-Board Power Supply, Main Input
V-Board Remote Receiver, Bats, R/G LED
G-Board Side AV Connector
K-Board Main Switch
V-BOARD
A-BOARD
P-BOARD
G-BOARD
9
P5
A1-V1 A12-K1
A14-SPK
CN-A,P
A51-G51
A5-PAN
A5-PAN
( 32” )
( 37” )
K-BOARD
P1
A
14
A
51
A
13
A1
A12
A10
G51
V
1
K1
CN0100
A
5
CN3
CN101
( 32” )
( 37” )
( 32” )
( 37” )
( 32” )
( 37” ) A14-SPK A1-V1 A12-K1
CN-A,P
( 32” )
( 37” )

Setting Inspection
Voltage Confirmation
Confirm the following voltages:
P board
Description Test
point
Position Normal mode Stand by mode Active stand by mode
Panel 12V TP863 P2, pins 16, 17 12,0V +/- 0,35V 0V 12V +/- 0,35V
16V_Audio TP858 P2, pins 20, 21 16V +/- 1V 0V 16V +/- 1V
SUB_9V TP860 P2, pins 11, 12 9V +/- 0,25V 0V 9V +/- 0,25V
STBY_5V6 TP853 P2, pins 1, 2 5,65V +/- 0,25V 5,65V +/- 0,25V 5,65V +/- 0,25V
24V_IN TP856 P2, pins 7, 8 24V +/- 1,5V 0V 24V +/- 1,5V
A board
SUB 1,8V TP5602 1,76V – 1,85V
SUB 1,2V TP5601 1,22V – 1,27V
SUB 3,3V TP5600 3,19V – 3,39V
SUB5V TP1011 4,75V – 5,25V
DVDDIO3,3V/
TVDD3,3V
TP4531 3,23V – 3,37V
BT30V TP2905 29,5V – 31,5V
DVDD1,8V TP4529 1,77V – 1,83V
AUD3,3V TP2031 3,23V – 3,37V
DVDD1,8V TP2032 1,77V – 1,83V
5V TP2030 4,75V – 5,25V
STB 3,3V TP7601 3,23V – 3,37V
MHQLV3,3V TP4235 3,24V – 3,41V
MHQDDRR2,5V TP4210 2,44V – 2,56V
HQ3,3V TP4200 3,18V – 3,47V
MHQVD1,2V TP4201 1,19V – 1,26V
MHQVD3,3V TP4300 3,24V – 3,41V
10

Self Check
Self-check is used to automatically check the bus lines and hexadecimal code of the TV set. To enter Self-Check mode, keep
pressing the down (-/v) button on the TV set and press the STATUS button on the remote control. To exit Self Check,
switch off the TV set at the power button.
Display Ref. No. Description P.C.B.
ADV IC4510 A/D CONVERTER A-Board
ADAV IC2106 AUDIO PROCESSOR A-Board
TUN TU2901 TUNER A-Board
GENX IC1100 MICROPROCESSOR A-Board
MEM1 IC1101 EEPROM (GENX) A-Board
MEM2 IC8601 EEPROM (PEAKS LITE2) A-Board
AVSW IC3001 AUDIO VIDEO SWITCH A-Board
OFDM IC8301 COFDM DEMODULATOR A-Board
TEMP IC1000 TEMP SENSOR A-Board
VIF TU2901 TUNER A-Board
HQ1L IC4200 HQ1L A-Board
If the CCU
p
orts have been checked and found to be incorrect or not located then " - - " will a
pp
ear in
p
lace of "O.K.".
11
SUM
OPTION 1
OPTION 2
OPTION 3
CHECK
MODEL ID
EDID1
EDID2
1723
0c
00
00
0c
05
03131100
00000004
fa.f5
fa.e5
ADV O.K.
ADAV O.K.
TUN O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
AVSW O.K.
OFDM O.K.
TEMP O.K.
VIF O.K.
HQ1L O.K.
PEAKS-SOFT 2.106
PEAKS-EEP 01.05.0033
GenX-SOFT 1.01.00
GenX-EEP 1.03.00
GenX-ROMCORR 1.01.00
HQ1L-EEP 20
Self Check Com
p
lete
32HD Panasonic 2008LCD
1701
0c
00
00
0c
05
03141100
00000004
fa.f5
fa.e5
ADV O.K.
ADAV O.K.
TUN O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
AVSW O.K.
OFDM O.K.
TEMP O.K.
VIF O.K.
HQ1L O.K.
PEAKS-SOFT 2.106
PEAKS-EEP 01.05.0012
GenX-SOFT 1.01.00
GenX-EEP 1.03.00
GenX-ROMCORR 1.01.00
HQ1L-EEP 20
SUM
OPTION 1
OPTION 2
OPTION 3
CHECK
MODEL ID
EDID1
EDID2
32HD
Self Check Complete
Panasonic 2008LCD
ADV O.K.
ADAV O.K.
TUN O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
AVSW O.K.
OFDM O.K.
TEMP O.K.
VIF O.K.
HQ1L O.K.
SUM
OPTION 1
OPTION 2
OPTION 3
CHECK
MODEL ID
EDID1
EDID2
Self Check Complete
37HD Panasonic 2008LCD
ADV O.K.
ADAV O.K.
TUN O.K.
GENX O.K.
MEM1 O.K.
MEM2 O.K.
AVSW O.K.
OFDM O.K.
TEMP O.K.
VIF O.K.
HQ1L O.K.
37HD
Self Check Complete
Panasonic 2008LCD
TX-32LXD85
TX-32LXD85F
TX-37LXD85
TX-37LXD85F
PEAKS-SOFT 2.106
PEAKS-EEP 01.05.0032
GenX-SOFT 1.01.00
GenX-EEP 1.03.00
GenX-ROMCORR 1.01.00
HQ1L-EEP 20
PEAKS-SOFT 2.106
PEAKS-EEP 01.05.0011
GenX-SOFT 1.01.00
GenX-EEP 1.03.00
GenX-ROMCORR 1.01.00
HQ1L-EEP 20
1722
0c
00
00
0c
05
03131100
00000004
fa.f5
fa.e5
1700
0c
00
00
0c
05
03141100
00000010
fa.f5
fa.e5
SUM
OPTION 1
OPTION 2
OPTION 3
CHECK
MODEL ID
EDID1
EDID2

4 sec
Once
Power LED blinking timing chart
1. Subject
Information of LED Flashing timing chart.
2. Contents
When abnormality has occurred the unit, the protection circuit operates and reset to the stand by mode. At this time, the
defective block can be identified by number of blinking of the Power LED on the front panel of the unit.
Blinking
times Blinking timing Contents Check point
1 INVERTER_SOS LCD PANEL
A BOARD
2 FAN_SOS A BOARD
3SOS
A BOARD
5 MAIN_9V A BOARD
6 SUB_5V A BOARD
V BOARD, P BOARD
7 SUB_3.3V A BOARD
8 MAIN_3.3V A BOARD
9 SOUND_SOS A BOARD
10 HQ1L_SOS A BOARD
13 EMERGENCY SOS A BOARD
No Light
12
Light

Service Mode Function
MPU controls the functions switching for each IICs through IIC bus in this chassis. The following setting and adjustment can be
adjusted by remote control in Service Menu
How to enter SERVICE
While pressing (-/v) button on TV unit, press on the remote
control for 3 times within 2 seconds.
Note:
To exit from Service mode, press the exit button on remote control.
0
13

SERVICE
14
SERVICE
ADJUST
WB-ADJ
OPTION
SRV-TOOL
Peaks SOFT 2.106 OPTION 1 0c
Peaks EEP 01.05.0012 OPTION 2 00
LSI DATA 0.00.04 OPTION 3 00
STBY SOFT 1.01.00 Model ID 05
STBY EEP 1.03.00 03141100
STBY ROMCOR 1.01.00 00000004
HQ1L EEP 20 RB Cnt 000
Time 00000:15
0000009
ADJUST DYNAMIC
CONTRAST
Y
MAX
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
Y
ELLOW:AUTO ADJUST
VOL:ADJUST
OK :WRITE
000
ADJUST DYNAMIC
COLOR
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
3A
A
DJUST DYNAMIC
TINT
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
00
ADJUST DYNAMIC
SUB-BRT
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
808
A
DJUST DYNAMIC
BACKLIGHT
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
270
A
DJUST DYNAMIC
H-POS
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
0
A
DJUST DYNAMIC
H-AMP
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
0
ADJUST DYNAMIC
V-POS
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
0
A
DJUST DYNAMIC
V-AMP
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
0
WB-ADJ DYNAMIC
R-GAIN
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
FF
WB-ADJ DYNAMIC
G-GAIN
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
FF
WB-ADJ DYNAMIC
B-GAIN
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
F0
WB-ADJ DYNAMIC
R-CENT
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
77
WB-
A
DJ DYNAMIC
G-CENT
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
WB-
A
DJ DYNAMIC
B-CENT
COLOR TEMP NORMAL
1,2:MAIN SELECT
3,4:SUB SELECT
7 :COLOR TEMP SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
7D
OPTION DYNAMIC
Boot
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
ROM
OPTION DYNAMIC
STBY-SET
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
OK :POWER OFF
00
OPTION DYNAMIC
Emergency
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
ON
OPTION DYNAMIC
Y
/C Dela
y
1,2:MAIN SELECT
3,4:SUB SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
OPTION DYNAMIC
OPT 1
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
00001100
OPTION DYNAMIC
OPT 2
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
00000000
OPTION DYNAMIC
OPT 3
1,2:MAIN SELECT
3,4:SUB SELECT
5,6:BIT SELECT
9 :PICTURE MENU SELECT
VOL:ADJUST
OK :WRITE
00000000
SRV-TOOL DYNAMIC
1,2:MAIN SELECT
9 :PICTURE MENU SELECT
OK :ENTER
00
1
2
3
4
1
1
1
2
2
2
333
3
3
33
3
3
3
3
3
3
3
3
333
4
4
4
4
4
4
444
4
44
4
4
4
44
4
80
Key Command
•Press the 3/4 button to change the adjustment values or function.
•Press the 1/2 button to step up/down through the functions and adjustments
•Press the numerical button VOLUME (+/-) to change option item.
•Press the OK button after each adjustment has been made to store the required values.

Option Bytes Description
OPTION1
0 ATP Speed Slow (1) / Fast (0)
1 TXT Ch On (1) / Off (0)
2 ID-1 On (1) / Off (0)
3 Macrovision Auto Evaluation On (1) / Off (0)
4 SRS Surround On (1) / Off (0)
5 Teletext Top Off (1) / On (0)
6 Equalizer
7 Not Use Not Use
OPTION2
0 Not Use Not Use
1 A2 Stereo (5,5MHz) On (1) / Off (0)
2 A2 Stereo (6,0MHz) On (1) / Off (0)
3 A2 Stereo (6,5MHz) On (1) / Off (0)
4 Not Use Not Use
5 NICAM (5,5MHz) On (1) / Off (0)
6 NICAM (6,0MHz) On (1) / Off (0)
7 NICAM (6,5MHz) On (1) / Off (0)
OPTION3
0 NICAM priority (ASIA/M.E) On (1) / Off (0)
1 NICAM priority (K/UK) On (1) / Off (0)
2 NICAM priority (China) On (1) / Off (0)
3 NICAM priority (NZ/INDN) On (1) / Off (0)
4 NICAM priority (AUS) On (1) / Off (0)
5 NICAM priority (E.Europe) On (1) / Off (0)
6 NICAM priority (Special) On (1) / Off (0)
7 Not Use Not Use
15

Adjustment Method
Sub-Contrast/White Balance Adjustment
Instrument Name Connect to Remarks
1. Remote controller
2. LCD WB meter (Minolta CS-1000A equivalent)
3. Comunication jig
4. Computer for external control
Correlation can be also taken by
CA-210 or equivalent
Procedure Remarks
Subcontrast adjustment
1. Receive PAL colour bar (100% white) RF signal.
2. Enter “Contrast” adj. In SERVICE mode.
3. Start adjusting by using Yellow Key.
4. If the adjustment finished normally, the letter of Contrast will change from red
to black
White Balance adjustment
1. Procedure basically performs checking using the production software and
make automatic adjustment using external computer.
2. It adjusts in the mode of : Colour balance Normal as follows.
Viewing Mode Dynamic
32LXD85 32LXD85F
WHITE Normal WHITE Normal
x: 0,2860 ±0,010 x: 0,2840 ±0,010
y: 0,3090 ±0,010 y: 0,2970 ±0,010
GRAY Normal GRAY Normal
x: 0,2860 ±0,010 x: 0,2860 ±0,010
y: 0,3120 ±0,010 y: 0,3040 ±0,010
37LXD85 37LXD85F
WHITE Normal WHITE Normal
x: 0,2860 ±0,010 x: 0,2840 ±0,010
y: 0,3090 ±0,010 y: 0,2970 ±0,010
GRAY Normal GRAY Normal
x: 0,2860 ±0,010 x: 0,2860 ±0,010
y: 0,3120 ±0,010 y: 0,3040 ±0,010
Let the panel standfor more than 3
hours at more than 20 °C.
Basically perform adjustment in the
ambient environment of room
temperature more than 20 °C.
The aging time is more than20 min
at above room temperature.
Applied signal
100% full colour bar
0,7V p-p white peak
87.5% modulation
100% WHITE
50% GRAY
100% WHITE
50% GRAY
16

Wiring diagram
A-BOARD
G-BOARD
G51
JK3700
AV3
V-BOARD
V1
LCD PANEL
AV1
AV2
A10
KEY
A51
JK3002B
J
K
3003
B
A1
JK3001
PC
JK8401 JK4501 JK4500 JK4700 JK8801 CN0100
TU2901
YUV,AUDIO IN,
AUDIO OUT CI SLOT HDMI1 HDMI2 HDMI3 SD SLOT SERVICE
J
K
3
1
00A
17
K-BOARD
K1
A12
P-BOARD
P2
A7
P1
TUNER
MAIN IN
P5
A14
SP L/R
A5
A13
CN3
CN101

A
V1 21PIN SCART
AV1_V 20
AV1_VOUT 19
AV1_RED 15
AV1_GREEN 11
AV1_BLUE 7
AV1_L 6
AV1_LOUT 3
AV1_R 2
AV1_ROUT 1
JK3002B
A
V2 21PIN SCART
AV2_V 20
AV2_VOUT 19
AV2_RED/C 15
AV2_GREEN 11
AV2_BLUE 7
AV2_L 6
AV2_LOUT 3
AV2_R 2
AV2_ROUT 1
JK3003B
Video & Stereo Audio Block Diagram
G51
1
3
5
13
15
7
11
A51
1
3
10
7 5
12
14
R
L
V
L
R
Y
C
JK3700
AV4_R
AV4_L
AV4_V
AV4_Y
AV4_C
HP_LOUT
HP_ROUT
G-BOARD
Y
PB
PR
L
R
YPBPR_Y
YPBPR_PB
YPBPR_PR
JK3100A
YPBPR, AUDIO / IN,OUT/
PC_LIN
PC_RIN
L
R
RCA_AUDIOOUT_L
RCA_AUDIOOUT_R
1
2
3
13
14
JK3001
PC
PC_R
PC_G
PC_B
PC_H_IN
PC_V_IN
IC3001
[C1AB00002855]
AUDIO VIDEO SWITCH
89 AV1_GREEN
MAIN_Y/CVBS 31
AUDIOOUT_L 58
91 AV1_RED
87 AV1_BLUE
93 YPBPR_PB
97 YPBPR_PR
69 FRONT_AV_RIN
68 FRONT_AV_LIN
81 FRONT_AV_V
AV_R 49
AV_L 50
63 AV1_R
62 AV1_L RGB _CVBS 46
95 YPBPR_Y
79 AV1_V
44 AV1_VO
56 AV1_LO
TV_R 61
AUDIOOUT_R 59
MAIN_PR/C 35
MAIN_PB 33
83 FRONT_AVS_
Y
85,88 FRONT_AVS_C
TV_L 60
55 AV1_RO
13 AV2_GREEN
11,21 AV2_RED_C
15 AV2_BLUE
65 AV2_R
64 AV2_L
19,23 AV2_V_Y
41 AV2_VO
54 AV2_LO
53 AV2_RO
71 PC_RIN
52 RCA_AUDIOOUT_L
70 PC_LIN
51 RCA_AUDIOOUT_R
Q3001
Q3000
1 PC_G
99 PC_B
3 PC_R
100 PC_V_IN
2 PC_H_IN
FRONT_AV_RIN
FRONT_AV_LIN
FRONT_AV_V
FRONT_AVS_Y
FRONT_AVS_C
IC2012
[C1BB00000947]
HP AMP
1
7
35
HP_LOUT
HP_ROUT
IC2106
[C1AB00002909]
AUDIO PROCESSOR
72 AUDIOOUT_L
73 AUDIOOUT_R
74
TV L
75 TV
_
R
58 HPOUTR1
57 HPOUTL1
45 SQ_R-
44 SQ_R+
43 SQ_L-
42 SQ_L+
79 AV_R
78 AV
_
L
IC4510
[C1AB00002966]
71 MAIN_Y/CVBS
73 MAIN_PB
72 MAIN_PR/C
78 RGB_CVBS
69 SOY
A-BOARD
[EXCHANGE UNIT]
IC2301
[C1AB00002875]
AUDIO AMPLIFIER
7
14
12 5
30
25
21 34
SP_L SP_R
A14
4
3
2 1
SP_L+
SP_L-
SP_R+
SP_R-
HDMI_BCLK 35
HDMI_LRCK 36
HDMI_SPDIF 25
HDMI_SDIN 22 8 HDMI_SDIN
4 HDMI_SPDIF
6 HDMI_BCLK
7 HDMI_LRCK
Q4516
Q4515
Q4514
Q4519
Q4517
DVB _CVBS 17 IC8001-PeksLite2
MN2WS0047
D12 ANALOG
VIDEO I/F
F2,G6,F3,E1,E2,E3,D1,D2,A4,B4,C4,A3,B3,A2,B1,
C2,C1,B10,C10,A9,B9,C9,B8,C8,A7,B7,C7,A6,B6,
C6,A5,B5,C5
F14
B13
D15
A13
A10
DTV_LRCK 18
DTV_SDIN 24
DTV2_SDIN 23
DTV_BCLK 19
IECOUT0 27
DVB_CVBS
14,15,20-31,34-45,
48-50,53-55,59,60
V
I1P0
,
VI1P2-VI1P19
,
VI1P21-VI1P29
,
VI1CLK
,
CLK0A
,
VI1ENB
,
VI1CLK2
,
VI1HSYNC
,
VI1VSYNC
A5
TU2901
CI SLOT
JK8401
TS SERIAL
BUS
DIG.TUNER
IC8301
[C1AB00002710]
COFDM
DEMODULATO
R
TO LCD PANEL
17
19
30
31
IFD1
IFD2
DATA
POD. CI I/F
CH.IS IF
RXB_2P,2N,1P,1N,0P,0N,CP,CN
RXC_2P,2N,1P,1N,0P,0N,CP,CN
RXA_2P,2N,1P,1N,0P,0N,CP,CN
114,115,117,118,
120,121,123,124
130,131,133,134,
136,137,139,140
95,96,98,99,101,
102,104,105
(1,3,4,6,7,9,10,12)
(1,3,4,6,7,9,10,12)
(1,3,4,6,7,9,10,12)
SD SLOT
JK8801
DATA
SD
CARD I/F
42 IFAGC 12
AUXIN2R 77
SIF_IN1 8
AUXIN2L 76
21
10
11
SIF_OUT
AUDIO_OUT
VIDEO_OUT
MAIN_RF_CVBS 5
Q2001
AM
AUDIO IF
JK4700
HDMI 3
JK4500
HDMI 2
JK4501
HDMI 1
IC4200
HQ1L
[C1AB00002727]
IC4207
LVDS Transmitter
[C0JBCZ000558]
23
24
30
32
33
35
39
38
37
36
16
17
19
20
21
22
14
40
36 37 39 40 41 42 43 48
47
46
44
29 30 31 32 34 35 28 49
27
TD2+
TCLK2+
TD2-
TCLK2-
TC2+
TB2+
TC2-
TB2- TA2+
TD1+
TA2- TD1-
TCLK1+
TC1+
TCLK1-
TC1-
TB1+
TB1-
TA1+
TA1-
13
29
RGB,
HV_SYNC,
CLK
OSD
C25,C26,D24,D25,D26,E25,
E26,F24,F25,F26,G24,G25,
G26,H25,K25,K26,J26,L25,
L26,M26
B3,A3,B2,C3,C2,C1,D3,D2,B6,A6,C5,B5,A5,C4,B4,
A4,B9,A9,C8,B8,A8,C7,B7,C6,A10,C9,B10,A11
HSYNC,VSYNC,DE,CLKIN,
ROE2-9,GOE2-9,BOE2-9
A
16,A17,B17,C17,A18,B18,
C18,A19,B19,C19,A20,B20,
C20,A21,B21,C21,A22,B22,
C22,A23,B23,C23,A24,B24,
C24,B25,C16
C14,E15,B14,A14,B15,A15,
E11,E10,F10,E9,F9,E8,F8,
E7,F7,D6,D5,F5,E4,D3,F4
A
23,C22,E20,E18,B18,F17,
A18,C17,B17,A17,E17,B20,
E19,A20,C19,F18,B19,A19,
C18,B22,D20,A22,C21,F19,
B21,A21,C20,H26
18

Power Supply Block Diagram
IC8001-PeaksLite2
PROCESSOR
IC8004
CLOCK
GENERATOR
A1, E1, M9, J9, R1, J1, A9, C1, C3, C7,
C9, E9, G1, G3, G7, G9
IC8002
MEMORY
A1, E1, M9, J9, R1, A9, C1, C3, C7, C9,
E9, G1, G3, G7, G9, J1
IC8003
MEMORY
2, 13, 15, 16, 17, 18, 33, 45, 54
IC8301
COFDM DEM
7, 19, 21, 28, 37, 39, 59, 64
IC8401
IC8404
TS BUFFER
IC8405
TS BUFFER
JK8401
CI SLOT
17, 18
51, 52
IC8408
TS BUFFER
IC8409
TS BUFFER
IC8554
NOR FLASH
IC5601
REG Vin23
3Vout
12Vout
IC5600
REG Vin17
23Vout
Peaks-LITE2 POWER
MAIN5V/
MAIN3,3V/
MAIN9V
IC5660
RESET IC
IC1101
EEPROM
IC1100
MICROPROCESSOR
IC4515
IC4510
A
DV7495BBSTZ-170
IC8403
Vout 5
1Vin REG
IC8302
Vin5
1Vout REG
A1
V1
1
8
STB3.3
V
SUB5V
Q2505
Q2506
D2501
STB3.3V
STB3.3V
RM2501
REMOTE
STB3.3V
V-BOARD
IC2301
AUDIO
AMPLIFIER
29,12,4, 53, 59, 68,
71
IC2106
AUDIO
PROCESSOR
14, 21, 31, 40, 51
IC2013
REG
IC2012
HP AMPLIFIER
Vin7
1Vout REG
IC2107
Vin7
1Vout REG
IC3001
A
V
SWITCH
P-BOARD
IC8601
EEPROM
A7
TU2901
IC2008
A-BOARD
(EXCHANGE UNIT)
IC1104
IC4514
IC5602
IC1000
IC2008
IC2902
IC4511
IC4512
IC4513
IC4700
IC5603
IC5604
STB_5V6
24V_IN
SUB_9V
RELAY_5V6
SUB5V
AUD3.3V
DVDD1.8V SUB3.3V
DVDD1.8V
AUD3.3V
19, 20, 35, 36 SOUND17V
4, 6, 16, 18, 22,
24, 36, 82, 86,
90, 92
SUB5V
45, 80 SUB9V
4
5
8
5V
SUB3.3V
SUB1.2V
SUB1,8V
1.8_DDRI/F
1.8_DDRI/F
SUB3.3V
1.8V SUB3.3V
SUB5V
33, 17,2
49 SUB3.3V
5, 13, 15 SUB3.3V
20 SUB5V
20 SUB5V
20 SUB3.3V
20 SUB3.3V
3
5, 16 TUNER5V
BT30V
2
1
8
SUB3.3V SUB9V
STB3.3V
STB3.3V
29, 43, 53
24, 39, 62, 64,
68, 73, 83, 88
STB3,3V
5VCARDSUB5V
SUB9V
SUB9V
SUB1.8V
SUB1.2V
SUB3.3V
SUB_M5V
SUB_M3,3V
SUB_M9V
SUB5V
SUB3.3V
SUB9V
SUB3.3V
8
RELAY_5V6
8
5VCARD
A
VDD1.8V
CVDD1.8V
DVDD1.8V
PVDD1.8V
TVDD3.3V
EDID EPROM D4713 SUB_M5V
8
75, 81, 85
1, 92, 109, 127
3, 19, 57
87, 90
94, 108, 113,
125, 129, 141
12, 52, 33 DVDDIO3.3V
REG 7
1
TVDD3.3V
DVDDIO3.3V
SUB5V
4SUB3.3V
REG
PVDD1.8V
A
VDD1.8V
CVDD1.8V
5
REG
SUB3.3V
4
5
DVDD1.8V
SWITCH_5V
24
SUB5V
SUB_M3.3V
4, 5
TEMP SENSOR
Vout Vin
Vout Vin
Vout Vin
Vout Vin
SUB5V
4
1
Vout Vin
AUD3.3V
STB3.3V
10, 11
RELAY_5V6
STB5V
STB_5V6
8, 12
9
15
SUB9V
2
1
Vout Vin
BT30V
SWITCH_5V6
TUNER5V
Vout Vin
4
5
8RELAY_5V6
2
124VIN
STB3.3V
SUB_M9V
12V
STB3,3
V
SUB5V
JK8801
1
8
4
A
12
1
Q5692
Q5693
Q5695
Vin
Vout
1
,
2
7
,
8
11,12
5
Line
Filter
2
34
1
MAIN IN
A5
1,2
3,4
Line
Filter
2
34
1
STB_5V6
24V_IN
SUB_9V
RELAY_5V6
P2
1
,
2
7
,
8
11,12
5
LVDS12V
S_17VALWAYS
17
20,21
17
20,21
LVDS12V
S_17VALWAYS
RL801
T803
D817
~
~
+
-
STB_5V6
RELAY_5V6
IC803
P1
2
1
D809
~
~
+
-
T802
5
6
1
7
8
4
PC803
7
4
STB_5V6
2
IC853
2
IC801
IC802 T804
3
75
47
Q805
PC801
2
6
Q804
P5
24V
14
23
10
20 3
4
19
IC854
24V 9V
13,12
IC851 24V
PC802 24V
TO LCD PANEL
IC4201
IC4202 MHQDDR2.5V
1,8
2
MHQ1.2V
Vout Vin
SUB9V
IC4204 1
2
MHQPL3.3V
V
out Vin
SUB5V
IC4200
HQ1L
MHQ1.2V
MHQDDR2.5V
STB3.3V
IC4203
REG
IC4207
2HQ3.3V
3, 24, 33,45,
55, 71, 87
MHQL3.3V
4
MHQDDR2.5V
IC4205 1
2
MHQPL1.2V
Vout Vin
HQ3.3V
IC4206 1
5
MHQPLDDR1.2V
Vout Vin
HQ3.3V
IC4208 4
5
MHQLV3.3V
Vout Vin
SUB5V
IC4209 8MHQLV3.3V
IC5605 2
3
HQ3.3V
Vout Vin
SUB_M9V
LVDS
TRANSMITTER
MAINS PS
CONTROL
HEATSINK
MAINS PS
CONTROL
REG
RESET IC
DDR
REG
C1AB00002727
IC SWITCH
IC SWITCH
REG
REG
REG
REG
REG
REG
REG
REG
EEPROM
REG
DC/DC CONVERTER
C1AB00002913
SD CARD
TO K-BOARD
3
RELAY_5V6
STB_5V6
SUB3.3V
HDMI TERMINAL
5V
JK4501
JK4700
JK4500
HDMI1
HDMI2
HDMI3
CN0100
1
SERVICE
RELAY_5V6
3
1, 2
3, 4
TO INVERTOR
Vout Vin
SUB_M3.3V
SUB_M9V
SUB5
V
SUB3.3V
POWER
DETECTION
SUB9V
17_VALWAYS
13
Q5613
12V
LVDS12V
SUB1.8V
1.8_DDRI/F
SWITCH_5V
STB_5V6
L8003 Q5610
LVDS12
8,9
7
F801
LF801 LF802
A13
1
12V
STB3.3V
SUB5V SN2551
D2503
MHQPL3.3V
MHQPL1.2V
MHQDDR1.2V
19

Control Block Diagram
JK3002JK3003
V1
5
4
2
7
6
TIMER_REC_LED
AI_SENSOR
REMOTE
G_LED_ON
R_LED_ON
JK8401
CI SLOT
V - BOARD
(EXCHANGE UNIT)
A - BOARD
P - BOARD
Q2503
Q2501
Q2502
Q2504
Q2505
Q2506
D2501
D2503
SN2551
PHOTO IC
RM2501
REMOTE OUT
AG_ADV_XRST
A10
1
AG_KEY1
IC8001
PeksLite2
P1
XIRQ3
A1
5
4
2
7
6
TIMER_REC_LED
AI_SENSOR
REMOTE
G_LED_ON
R_LED_ON
HDMI1
JK4501
15
16
HDMI2
JK4500
15
16
HDMI3
JK4700
15
16
DDCB_SCL_AD
DDCB_SDA_AD
DDCC_SCL_AD
DDCC_SDA_AD
DDCA_SCL
DDCA_SDA
LCD PANEL
HPD1 19
HPD2 19
HPD4 19
SBI2
SBO2
GENX_SDA0
GENX_SCL0
A
24
B23
A
D1
A
C4
AG_AUDIO_XRST
AG_BACK_VOUTENB
GENX_SCL1
IC5660 1AG_DTV_XRST
AG_SD_BOOT_STS
AG_SW_OFF_DET J5
G3
IC4700
7
AG_EDID_WP Q4702
J1
WP_PL2_CN
GENX_SDA1
AG_HQ_XRST
AG_MID_VOUTENB
GENX_EEP_WP
AG_TV_SUB_ON
AG_SW_OFF_DET
AG_EDID_WP
AG_HPD4
AG_SOUND_SOS
G72_NRST
AG_AI_SENSOR
AG_KEY1
AG_RF_AFT1
AG_ACTIVE_ANTENNA_DET
DTV9V_SENSE
DTV_XRST
AG_VOUTENB
AG_QLINK2
AG_QLINK1
AG_HDMI_CEC_SV_ON
AG_HDMI_CEC
INVERTER_SOS
CLKGEN_S2
IC8002
IC8003
DDR2
DDR2
DATA BUS
DATA BUS
SMTCLKO
IS1CLK
VIN
CLK74
CK27
A
D9
A
D5
J22
H25
K21
A
D24 IC8554
256Mbit
NOR FLASH
DATA BUS
DATA BUS
IC4207
LVDS
TRANSMITTER
17, 19
4
K1
A
LL_OFF_DET
SW2501
TV_SUB_ON
TV_MAIN_ON
615
P2
TV_SUB_ON Q852 RL801
TV_MAIN_ON Q851 PC801
AG_BACK_VOUTENB
IC4204
3
IC4203
1
IC4202
5
IC4205
3
IC4206
3
AG_TV_MAIN_ON
AG_TV_MAIN_ON
AG_TV_MAIN_ON
AG_TV_MAIN_ON
AG_TV_MAIN_ON
IC4208
3
AG_TV_MAIN_ON
IC4209
5SDA_AIR
IC4200
Y
26
Y
25
SCL_AIR
SDA_AIR
6SCL_AIR 18
AG_HDMI_5V_DET1 13
HDMI_CEC
18
AG_HDMI_5V_DET2 13
HDMI_CEC
18
AG_HDMI_5V_DET4 13
HDMI_CEC
V26
U24
AG_HQ_XRST
AG_MID_VOUTENB
KEY CONTROL
POWER DET
MAIN3.3V_SENSE
MAIN9V_SENSE
SUB3.3V_SENSE
SUB5V_SENSE
DTV9V_SENSE
IC8004
CLOCK GEN
4
9
V
IN
14
CLKGEN_S2
CK27
CLK74 7
FE_SCL
FE_SDA
XIRQ2
FE_XRST
IFD1
IFD2
IC8301
COFDM DEM
9
6
30
31
4
5
35
36
42
FE_OUT_SCL
FE_UUT_SDA
IFAGC
A
V1 21PIN SCART
AV1_FB 16
AV1_SLOW 8
A
V2 21PIN SCART
AV2_QLINK 10
AV2_SLOW 8
Q2003
IC3001
VIDEO SWITCH
PC_VS
AV2_SLOW
PC_HS
AV1_FB
AV2_FB
PC_H_IN
PC_V_IN
AV1_SLOW
AV1_QLINK 10
AV2_FB 16
TV_SUB_ON
TV_MAIN_ON
RGB_FB
20
34
32
27, 94
78
76
100
2
14
HVMUTE_ADV_XRST
AV_SW_SCL 96
29
AV_SW_SDA 28
1
13
14
14
JK3001
PC
IC4510
ADV_SDA
ADV_SCL
XIRQ3
9
10
16
IC2106
AUDIO
PROCESSOR
IC1100
MICROPROCESSOR
AG_TV_MAIN_ON
44
29
IC5604
18
AG_TV_SUB_ON
PC_HS
PC_VS 32
34
15
MUTE
Q2020
Q2021
16
ADAV_SDA
ADAV_SCL 17
PWM_READY 39
IC2301
AUDIO AMP
AG_SOUND_SOS Q2022
MUTE
AMUTE
16
3
1
AG_ADV_XRST
PC_HS
DDCA_SDA
64
65
PC_VS 66
RGB_FB 67
DDCB_SCL_AD
DDCA_SCL 106
107
111
DDCB_SDA_AD 112
615
IC4700
5
6
DDCA_SDA
DDCA_SCL
IC4515
3
2
DDCC_SDA
DDCC_SCL_AD
AG_SP_MUTE
AG_AUDIO_MUTE 2
3
AG_R_LED_ON 5
AG_G_LED_ON
ACTIVE_STBY_LED_ON 6
7
DDCB_SDA 10
AUDIO_MUTE
DDCB_SCL
DDCC_SDA
DDCC_SCL
AG_HPD1
AG_HPD2
SBI2
SBO2
AG_HDMI_5V_DET1
GENX_SDA0
GENX_SCL0
AG_HDMI_5V_DET2
AG_SRQ_GENX
11
12
13
14
15
17
18
19
20
21
23
26
71
DDCC_SCL_AD 142
DDCC_SDA_AD 143
6
5
DDCC_SCL
DDCC_SDA_AD
AG_SOS
AG_PANEL_STBY_ON
AG_INVERTER_ON
AG_RMIN
28
30
31
32
41
43
49
50
AG_PWM_POW_ON
AG_AUDIO_XRST 50
51 AG_GENX_EEP_WP
IC1101
EEPROM
GENX_EEP_SCL
GENX_EEP_SDA
WP_GENX_CN
5
6
7
AG_GENX_EEP_WP
45
47
48
51
52
56
57
59
60
AG_SD_BOOT_STS
70
72
84
85
87
91
54
55
56
92
93
94
95
99
100
IC1104
1
STB_RST
7
STB_RST
IC8403
3
SMTCLKO
4
IS1CLK
IC1000
6
1
TMP_SENS_SDA
TMP_SENS_SCL
A7
SOUND_SOS
ALL_OFF_DET
4
A12
7
AG_EDID_WP
1
STB_RST
7
IC4514
3
2
DDCB_SDA
DDCB_SCL_AD
6
5
DDCB_SCL
DDCB_SDA_AD
1
STB_RST
7
IC SWITCH
IC SWITCH
PC_H_IN
PC_V_IN
GENX4_POWER_RST
C1AB00002966
AV1-2 OUT MUTE
Q3002
Q3005
MONITOROUT_MUTE Q3004
Q3003
Q3000Q3001
LITE2-EEP_SD
A
EEPROM_WP
LITE2-EEP_SCL IC8601
EEPROM
5
6
7
ADAV_SDA R2000
SDA2
ADAV_SCL R2001
SCL2
SDA1
ADV_SDA
SCL1
ADV_SCL
R4658
R4657
LITE2-EEP_SDA
SDA3
LITE2-EEP_SCL R8602
SCL3
R8601
AV-SW_SDA
SDA2
AV-SW_SCL R3131
SCL2
R3130
TUNER_SCL
FE-OUT_SCL
R8314
TUNER_SDA
FE-OUT_SDA
R8315
FE_SDA
SDA2
FE_SCL R8310
SCL2
R8311
FE_XRST
XNFWE R8947
HDMI_CEC_PU_ON
D1107
HDMI_CEC
SDA
GENX_EEP_SDA
R1206
SCL
GENX_EEP_SCL
R1205
SDA
GENX_SDA1
R1184
SCL
GENX_SCL1
R1183
TEMP SENSOR
IC SWITCH
RESET IC
SCL1
TMP_SENS_SCL
R1003
SDA1
TMP_SENS_SDA
R1004
34
AG_MAIN3.3V_SENSE
35
AG_SUB3.3V_SENSE
36
AG_MAIN9V_SENSE
37
AG_HDMI_5V_DET4
27
AG_SUB5V_SENSE
EEPROM
TU2901
17
TUNER
14
13
TUNER_SCL
TUNER_SDA
IFD1
12
19
IFD2
IFAGC
20
RF_AFT1
MN2WS0047
IC4201
DDR2
DATA BUS
EEPROM
REG
EEPROM
RESET IC
6
5
DDCA_SCL
DDCA_SDA
REG
REG
REG
REG
REG
SCL0 M2
SDA0 M1
VOUTENB H26
SCL1 N5
SCL2
A
06
SDA1 N3
SDA2
A
B8
XRST D21
U26
AD_SDA0
U25
AD_SCL0
R1
R2
R6
R3
T5
HQ1L_TMS
HQ1L_TRST
HQ1L_TCK
HQ1L_TD0
HQ1L_TDI
W24
HQ1L_TMS
W25
HQ1L_TRST
W26
HQ1L_TCK
V23
HQ1L_TD0
V24
HQ1L_TDI
OEBLK
V
25
V25
OEBLK
JK8801
SD SLOT
CN0100
4
SERVICE
5
6
7
SCL
SDA
SCL3
SDA3
2
SRQ_GENX
HQ1L
SDA3
GENX_SDA0
R1175
SCL3
SCL0
R1174
A13
3
TO INVERTOR
4
5
PWMK
INV_SOS
INV_PWM_A
2INV_ON
A
D3
XNFWE
XIRQ2 N1
B15
PWMK
C14
PWMA
20
