TC-17LA2
TC-17LA2D
LH32 Chassis
LCD TV
Specifications
Power Source
A
C 120 V, 60 Hz
Power Consumption
A
verage use : 36 W
Stand-by condition : 0.6 W
Power off : 0.4 W
TV set DC : 15V, 3.6A max.
LCD 17-inch (432 mm), 4 : 3 aspect ratio LCD panel
Screen Size 13.53 " (343.7 mm) (W) × 10.30 " (261.6 mm) (H)
Channel Capability
V
HF-12 : UHF-56 : Cable-125
Sound
Speaker 9×5cm,2pcs,169
Audio Output 6W[3W+3W](10%THD)
Headphones M3 (3.5 mm) Jack × 1
FEATURES 3D Y/C Digital Comb Filter
CLOSED CAPTION
V
-Chip
Operating Conditions Temperature : 41 °F - 95 °F (5 °C - 35 °C)
Humidity : 5 % - 90 % RH (non-condensing)
Connection Terminals
INPUT
V
IDEO (RCA PIN Type × 1) × 2 1.0 Vp-p (75 9)
S-VIDEO (MINI DIN 4pin × 1) × 2 Y : 1.0 Vp-p (75 9), C : 0.286 Vp-p (75
9)
A
UDIO L-R (RCA PIN Type × 2) × 2 0.5 Vrms
COMPONENT VIDEO INPUT Y×1 1.0 Vp-p (including synchronization)
PB/P
R×1 ±0.35Vp-p
A
UDIO L-R (RCA PIN Type × 2) × 1 0.5 Vrms
Dimensions ( W × H × D )
Including Stand (TC-17LA2) 17 21/64 “ (440 mm) × 17 63/64 “ (457 mm) × 10 15/64 “(260mm)
ORDER NO. ITD0405013C1
B05 Canada:B07

1 Safety Precautions 3
1.1. General Guidelines 3
2 Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices 3
3 About lead free solder (PbF) 4
4 Self-check function 5
4.1. How to access 5
4.2. Screen display 5
5 Chassis Board Layout 6
6 Servicing method 7
6.1. Removing the base metal ass´y 7
6.2. Removing the rear cover 7
6.3. Removing the TA-Board 7
6.4. Removing the A-Board 8
6.5. Removing the DP-Board 8
6.6. Removing the BL-Board 8
6.7. Removing the R-Board 8
6.8. Removing the V-Board 9
6.9. Removing the speakers (left and right) 9
6.10. Removing the main chassis 9
6.11. Removing the DG-Board 10
6.12. Removing the LCD panel 10
7 Location of Lead Wiring 11
8 Adjustment method 12
8.1. How to enter into adjustment mode 12
8.2. Cancellation 12
8.3. Contents of adjustment mode 12
8.4. Video Signal Level Adjustment 13
8.5. LCD GAMMA Adjustment 13
8.6. LCD FLICKER Adjustment 14
8.7. MTS Adjustment 14
9 Conductor Views 17
9.1. A-Board 17
9.2. DG-Board 19
9.3. DP-Board 20
9.4. BL-Board 22
9.5. R, V and TA-Board 23
10 Block and Schematic Diagrams 25
10.1. Schematic Diagram Notes 25
10.2. Power Block Diagram 26
10.3. Signal Block Diagram 28
10.4. A-Board (1 of 6) Schematic Diagram 30
10.5. A-Board (2 of 6) Schematic Diagram 31
10.6. A-Board (3 of 6) Schematic Diagram 32
10.7. A-Board (4 of 6) Schematic Diagram 33
10.8. A-Board (5 of 6) Schematic Diagram 34
10.9. A-Board (6 of 6) Schematic Diagram 35
10.10. DG-Board (1 of 2) Schematic Diagram 36
10.11. DG-Board (2 of 2) Schematic Diagram 37
10.12. BL and DP-Board Schematic Diagram 38
10.13. R, TA, and V-Board Schematic Diagram 39
11 Parts Location & Mechanical Replacement Parts List 41
11.1. Parts Location 41
11.2. Packing Exploded View 42
11.3. Mechanical Replacement Parts List 43
12 Replacement Parts List 44
12.1. Replacement Parts List Notes 44
12.2. Electrical Replacement Parts List 45
(TC-17LA2D) 17 21/64 “ (440 mm) × 15 3/4 “ (400 mm) × 7 21/64 “ (186 mm)
TV Set Only 17 21/64 “ (440 mm × 15 25/32 “ (401 mm) × 3 35/64 “ (90 mm)
Mass (Weight) (TC-17LA2) 14.8 lb. (6.7 kg) Net
(TC-17LA2D) 12.6 lb. (5.7 kg) Net
Note:
Design and specifications are subject to change without notice. Weight and dimensions shown are approximate.
CONTENTS Page Page
2
TC-17LA2 / TC-17LA2D

1 Safety Precautions
1.1. General Guidelines
1.When servicing, observe the original lead dress. If a short circuit is found, replace all parts which have been overheated or
damaged by the short circuit.
2.After servicing, see to it that all the protective devices such as insulation barriers, insulation papers shields are properly
installed.
2 Prevention of Electro Static Discharge (ESD) to
Electrostatically Sensitive (ES) Devices
Some semiconductor (solid state) devices can be damaged easily by static electricity. Such components commonly are called
Electrostatically Sensitive (ES) Devices. Examples of typical ES devices are integrated circuits and some field-effect transistors and
semiconductor "chip" components. The following techniques should be used to help reduce the incidence of component damage
caused by electro static discharge (ESD).
1.Immediately before handling any semiconductor component or semiconductor-equipped assembly, drain off any ESD on your
body by touching a known earth ground. Alternatively, obtain and wear a commercially available discharging ESD wrist strap,
which should be removed for potential shock reasons prior to applying power to the unit under test.
2.After removing an electrical assembly equipped with ES devices, place the assembly on a conductive surface such as alminum
foil, to prevent electrostatic charge buildup or exposure of the assembly.
3.Use only a grounded-tip soldering iron to solder or unsolder ES devices.
4.Use only an anti-static solder removal device. Some solder removal devices not classified as "anti-static (ESD protected)" can
generate electrical charge sufficient to damage ES devices.
5.Do not use freon-propelled chemicals. These can generate electrical charges sufficient to damage ES devices.
6.Do not remove a replacement ES device from its protective package until immediately before you are ready to install it. (Most
replacement ES devices are packaged with leads electrically shorted together by conductive foam, alminum foil or comparable
conductive material).
7.Immediately before removing the protective material from the leads of a replacement ES device, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Caution
Be sure no power is applied to the chassis or circuit, and observe all other safety precautions.
8.Minimize bodily motions when handling unpackaged replacement ES devices. (Otherwise hamless motion such as the brushing
together of your clothes fabric or the lifting of your foot from a carpeted floor can generate static electricity (ESD) sufficient to
damage an ES device).
3
TC-17LA2 / TC-17LA2D

3 About lead free solder (PbF)
Note: Lead is listed as (Pb) in the periodic table of elements.
In the information below, Pb will refer to Lead solder, and PbF will refer to Lead Free Solder.
The Lead Free Solder used in our manufacturing process and discussed below is (Sn+Ag+Cu).
That is Tin (Sn), Silver (Ag) and Copper (Cu) although other types are available.
This model uses Pb Free solder in it’s manufacture due to environmental conservation issues. For service and repair work, we’d
suggest the use of Pb free solder as well, although Pb solder may be used.
PCBs manufactured using lead free solder will have the PbF within a leaf Symbol stamped on the back of PCB.
Caution
·
· ·
· Pb free solder has a higher melting point than standard solder. Typically the melting point is 50 ~ 70 °F (30~40°C) higher.
Please use a high temperature soldering iron and set it to 700 ± 20 °F (370 ± 10 °C).
·
· ·
· Pb free solder will tend to splash when heated too high (about 1100 °F or 600 °C).
If you must use Pb solder, please completely remove all of the Pb free solder on the pins or solder area before applying Pb
solder. If this is not practical, be sure to heat the Pb free solder until it melts, before applying Pb solder.
·
· ·
· After applying PbF solder to double layered boards, please check the component side for excess solder which may flow onto
the opposite side. (see figure below)
Suggested Pb free solder
There are several kinds of Pb free solder available for purchase. This product uses Sn+Ag+Cu (tin, silver, copper) solder.
However, Sn+Cu (tin, copper), Sn+Zn+Bi (tin, zinc, bismuth) solder can also be used.
4
TC-17LA2 / TC-17LA2D

4 Self-check function
When phenomena like "the power fails from time to time" or "the video/audio fails from time to time" can not be confirmed at the
time of servicing, the self-check function can be used to confirm the occurrence and to limit the scope for the defective circuits.Also,
when "the power fails from time to time", display on the screen can be used to confirm the occurrence and to limit the scope for
the defective circuits.
Any programmed channels, channels caption data and some other user defined settings will be erased and return to factory setting.
4.1. How to access
4.1.1. Access
Produce TV reception screen and, while pressing [VOLUME- ] button on the main unit, press [SLEEP] button on the remote
control simultaneously.
4.1.2. Exit
When one of the buttons for channel selection etc. is pressed, the display returns to the normal screen.
4.2. Screen display
Display Ref No. Description P.C.B
TNR TU001 Tuner 1 TA-Board
AVSW IC3001 AV Switch A-Board
MTS IC2201 Multi Sound Processor TA-Board
GLP IC4014 LCD Processor A-Board
GC3 IC4012 Global Core A-Board
MEMORY IC1002 EEPROM A-Board
LTP IC6402 LTP Control DG-Board
5
TC-17LA2 / TC-17LA2D

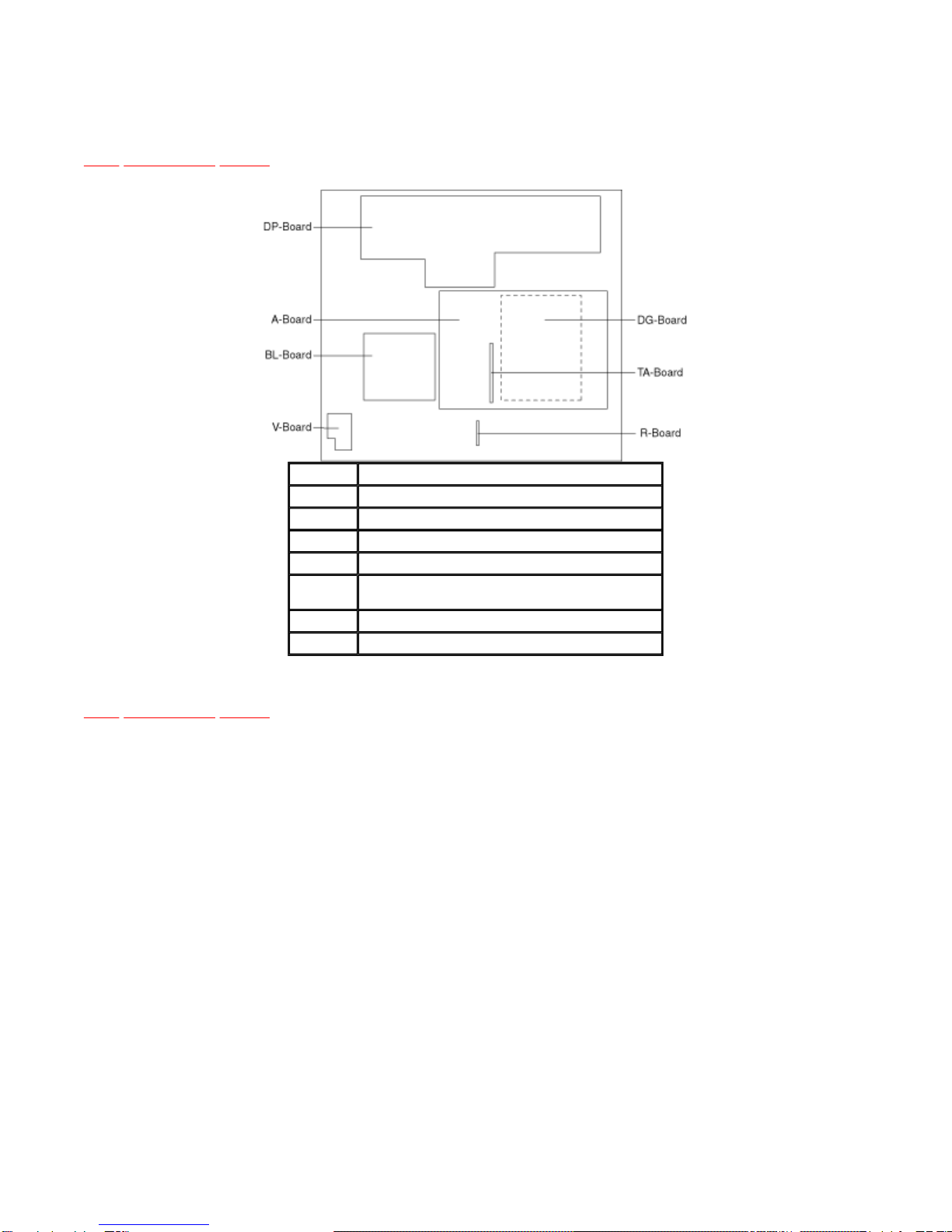

5 Chassis Board Layout
Board Name Function
A-Board Main (AV Switch, Audio, MCU, Grobal Core, AV connector )
R-Board Remote Reciever, LED Drive
V-Board Headphone, Speaker Terminals
TA-Board Tuner, MTS
DP-Board Power (AC/DC), Switch
Back Light Inverter, Feed Back Control
DG-Board LTP Control, R/G/B-Drive, Switching Power Control
BL-Board DC In, Back Light Drive, Back Light Feed Back
6
TC-17LA2 / TC-17LA2D

6.1. Removing the base metal
ass´y
1.Lay down the main unit so that the rear cover faces upward.
2.Remove the fixing screws (4pcs).
3.Remove the base metal ass´y.
6.2. Removing the rear cover
1.Remove the base metal ass´y. (See 6.1.)
2.Remove the fixing screws (8pcs and 3pcs).
3.Remove the rear cover.
6.3. Removing the TA-Board
1.Remove the rear cover. (See 6.2.)
2.Remove the fixing screw (1pcs).
3.Disconnect the connectors (TA-A1, TA2-A2) to remove the
TA-Board.
6 Servicing method
7
TC-17LA2 / TC-17LA2D

6.4. Removing the A-Board
1.Remove the rear cover. (See 6.2.)
2.Disconnect the couplers (A5, A8, A9) and a flexible cable
(A15).
3.Remove the fixing screws (7pcs).
4.Remove the TA-Board supporter and the A-Board with the
TA-Board.
6.5. Removing the DP-Board
1.Remove the rear cover. (See 6.2.)
2.Remove the fixing screws (3pcs ) and remove the BL
cable cover R.
3.Disconnect the couplers (DP1, DP2, DP3, DP4, DP8, A9).
4.Remove the fixing screws (9pcs ).
5.Remove the DP-Board.
6.6. Removing the BL-Board
1.Remove the rear cover. (See 6.2.)
2.Remove the fixing screws (3pcs ) and remove the BL
cable cover L.
3.Disconnect the couplers (BL1, BL2, BL3, BL4), remove the
screws (3pcs ) and remove the BL-Board.
6.7. Removing the R-Board
1.Remove the rear cover. (See 6.2.)
2.Remove the fixing screws (4pcs).
3.Remove the fixing metal.
4.Disconnect the coupler (R1).
5.Remove the R-Board.
8
TC-17LA2 / TC-17LA2D

6.8. Removing the V-Board
1.Remove the rear cover. (See 6.2.)
2.Remove the fixing screw (1pcs ) to release a GND cable.
3.Remove a fixing screw (1pcs ).
4.Remove the V-Board.
5.Disconnect the couplers (V1 and V2).
6.9. Removing the speakers (left
and right)
1.Remove the rear cover. (See 6.2.)
2.Remove the fixing screws (8pcs).
3.Remove the speakers (left and right).
6.10. Removing the main chassis
1.Remove the rear cover. (See 6.2.)
2.Disconnect the couplers (A5, A8, A9) and a flexible cable
(A15).
3.Remove the A-Board with the TA-Board and TA-Board
supporter. (See 6.4.)
4.Remove the BL cable cover R, remove the couplers (DP1,
DP2) and release the cables from the clampers. (See 6.5.)
5.Remove the BL cable cover L, remove the couplers (BL1,
BL2) and release the cables from the clampers. (See 6.6.)
6.Remove the fixing screw (2pcs ) and remove the button
cover.
7.Remove the fixing screws (3pcs ).
8.Release the cables (A5-R1/V1, V2-speakers) from the
clampers.
9.Remove the fixing screws (2pcs )
10.Remove the main chassis with the DP-Board and the BL
Board.
9
TC-17LA2 / TC-17LA2D

6.11. Removing the DG-Board
1.Remove the rear cover. (See 6.2.)
2.Remove the main chassis. (See 6.10.)
3.Disconnect the flexible cable (DG1, DG2).
4.Remove the screws (2pcs ) and remove the DG-Board
with the Bracket.
5.Remove the fixing screws (4pcs ) and remove the DG-
Board.
6.12. Removing the LCD panel
1.Remove the main chassis. (See 6.10.)
2.Remove the DG-Board with the bracket. (See 6.11.)
3.Remove the fixing screws (2pcs).
4.Remove the LCD panel.
10
TC-17LA2 / TC-17LA2D

7 Location of Lead Wiring
11
TC-17LA2 / TC-17LA2D

8 Adjustment method
8.1. How to enter into adjustment mode
While pressing [VOLUME- ] button of the main unit, press [RECALL] button of the remote control three times in a row (within 2
seconds).
8.1.1. Adjustment method.....Use the remote control.
“1” button...Main items Selection in forward direction
“2” button...Main items Selection in reverse direction
“3” button...Sub items Selection in forward direction
“4” button...Sub items Selection in reverse direction
“VOL” button...Value of sub items change in forward direction ( ), in reverse direction ( )
8.2. Cancellation
Switch off the power with the [POWER] button on the main unit or the [POWER] button on the remote control.
8.3. Contents of adjustment mode
·
· ·
· Value is shown as a hexadecimal number.
·
· ·
· Preset value differs depending on models.
·
· ·
· After entering the adjustment mode, take note of the value in each item before starting adjustment.
Main item Sub item Remarks Sample Data
MAIN Y-GAIN Video level (RF, video, component) 0A
B-Y Video level (RF, video, component) BD
R-Y Video level (RF, video, component) 47
FLICKER Flicker (RF, video, component) 5D
SUB COLOR Sub color 1C
TINT Sub tint 05
BACK-L Sub Back light 173
BRIGHT Sub Bright 800
B-Y-G B-Y Gain 3D
R-Y-A R-Y demodulation axis 0D
GAMMA R-GAIN R-Gain for test pattern (100% white) D9
G-GAIN G-Gain for test pattern (100% white) E6
B-GAIN B-Gain for test pattern (100% white) FF
R-CENT R-Gain for test pattern (50% white) 7E
G-CENT G-Gain for test pattern (50% white) 80
B-CENT B-Gain for test pattern (50% white) 52
OPT OPT00 (TV) 00
RM CODE Remote control code A or B A
MTS MTSIN RF Audio input level 22
SEPAH Stereo separation Hi 20
SEPAL Stereo separation Low 07
12
TC-17LA2 / TC-17LA2D

8.4. Video Signal Level Adjustment
Instrument Name Connect to Remarks
1.Remote control
2.RF signal
3.SG
1.Receive studio color bar by RF signal input.
(Viewing mode: standard, LCD AI: OFF, Back Light: +30 )
2.Enter into Main adjustment in the adjustment mode, push for one second "8" on the remote control and make automatic
adjustment of video signal level.
8.5. LCD GAMMA Adjustment
Instrument Name Connect to Remarks
1.Remote control
2.LCD WB meter (Minolta CA-110 equivalent)
3.Communication jig
4.Computer for external control
·
· ·
· After 30 minutes aging perform the white balance adjustment.
1.Enter into GAMMA adjustment in the adjustment mode and measure the WHITE brightness data to check that it is higher than
300 cd /m2.
(Viewing mode: standard, LCD AI: OFF, Back Light: +30 )
(When it is below 300 cd /m2, make re-measurement in 30 minutes after cold-on.)
2.Measure white brightness data and chromaticity coordinate, decide "Standard color 1" and "Standard color 2" at the peak
adjustment.
3.Set up objective of coordinate, select two color R-GAIN or G-GAIN or B-GAIN except the decided standard color 1 (=0xff) in the
condition of displaying white color. When adjustment is not completed normal, make it by selecting two color R-GAIN or G-GAIN
or B-GAIN except the decided standard color 2 (=0xff).
<< objective of coordinate (x0, y0) = (0.277 ± 0.002, 0.279 ± 0.002) >>
Standard color 1/2 RED GREEN BLUE
x direction B-GAIN [1] R-GAIN [2] R-GAIN [1]
y direction G-GAIN [2] B-GAIN [1] G-GAIN [2]
·
· ·
· When turn up R-GAIN and G-GAIN chromaticity coordinate get bigger and when turn up B-GAIN chromaticity coordinate get
smaller.
·
· ·
· When adjust for remote control select R-GAIN, G-GAIN and B-GAIN by pressing "3" and "4", and change the value by VOL
and "VOL ".
·
· ·
· Adjust preferentially [1] ,converge smoothly.
4.Set up objective of coordinate, select R-CENT and B-CENT, set the standard color GREEN (=0x80) in displaying GRAY color.
Standard color GREEN Adjustment direction
x direction R-GAIN When turn up chromaticity coordinate get bigger.
y direction B-GAIN When turn up chromaticity coordinate get smaller.
·
· ·
· When adjust for remote control select R-GAIN, G-GAIN and B-GAIN by pressing "3" and "4", and change the value by "VOL
" and "VOL ".
5.Write the values converge objective of coordinate above in the gamma data part of EEPROM.
·
· ·
· When adjusting by the remote control, push for one second or more "8" on the remote control in R-CENT, G-CENT and B-
CENT. (OSD is flash red at upper left of display.)
6.Check that the chromaticity coordinate, at WHITE and GRAY, are within the values given below.
x= 0.277 ± 0.003 y= 0.279 ± 0.003
13
TC-17LA2 / TC-17LA2D

8.6. LCD FLICKER Adjustment
·
· ·
· After 30minutes aging, perform the LCD FLICKER adjustment.
1.Enter into FLICKER (MAIN) adjustment mode and on the dispay the Test pattern is appeared except at the part of OSD display.
2.On the screen, adjust to obtain the best condition of flicker by "VOL " and "VOL ".

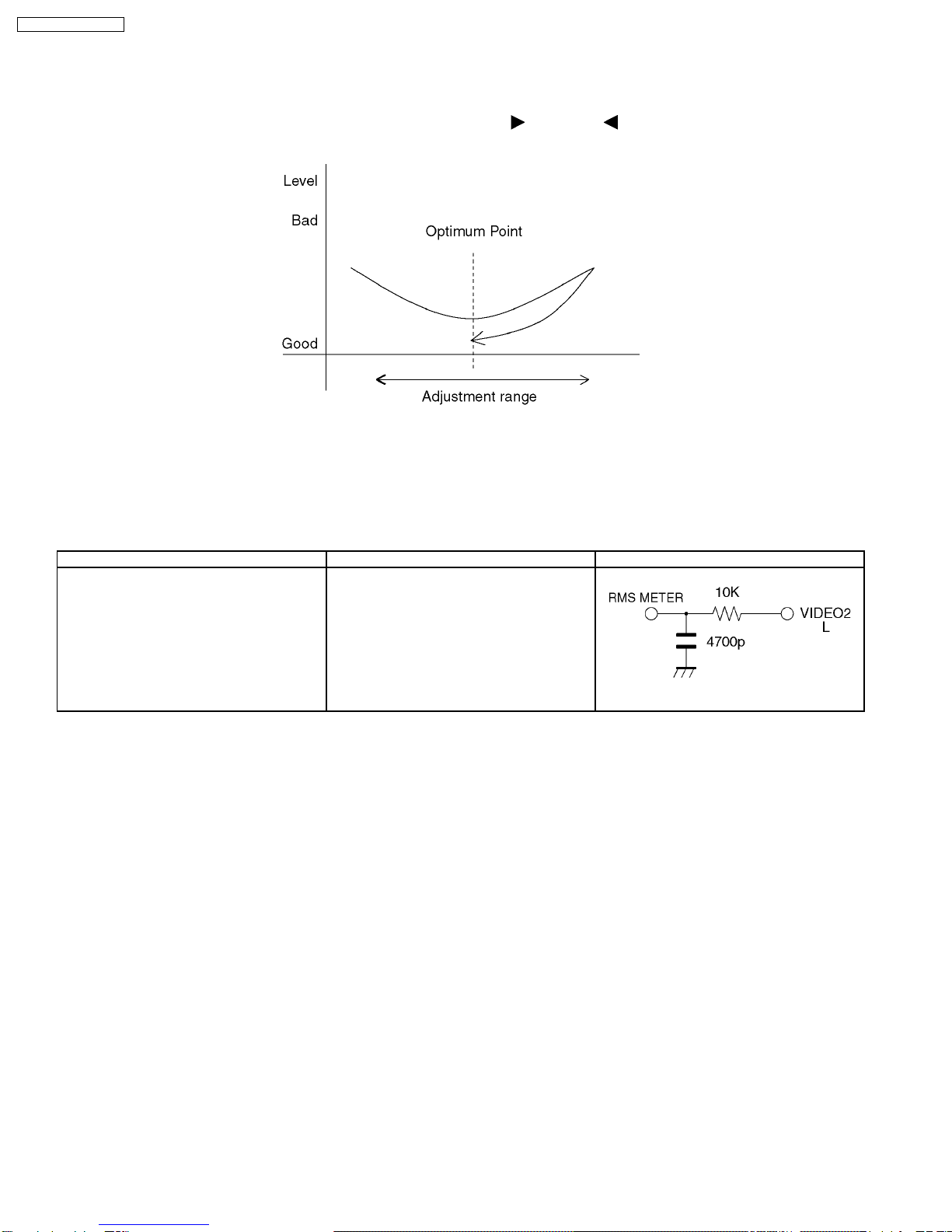

In adjustment, once, make over-run step and find the optimum flicker point as shown fligure below.
8.7. MTS Adjustment
Caution:
MTS adjustment shall be after the aging of 30 minutes or longer.
8.7.1. RF Audio Input level Adjustment
Instrument name Connection Remarks
1. Filter jig
2. RF signal generator
3. RMS voltage meter
TP3572 - GND
RF ANT. INPUT
Filter jig
Filter jig
1.Apply following RF signal at Antenna input.
VIDEO : Flat field, 30 % modulation
AUDIO : 300 Hz, 100 % modulation, monaural
(70dB±5dB,759Open, P/S 10 dB)
Note:
Make sure 75 us PRE-EMPHASIS is off.
2.Enter into MTSIN (MTS) adjustment mode.
3.Adjust "MTSIN" data (Input level) until the RMS voltage meter indicates 106 mVrms ± 6 mVrms.
14
TC-17LA2 / TC-17LA2D

8.7.2. Stereo Separation Adjustment
Instrument name Connection Remarks
1. RF signal generator
2. Oscilloscope RF ANT. INPUT VIDEO2 R
VIDEO2 R (RCA jack)-GND
1.Select STEREO mode in the AUDIO Menu.
2.Set “Audio volume” DAC to “40”.
3.Apply following RF signal at Antenna input.
VIDEO : Flat field, 30% modulation
AUDIO : 300Hz sine wave, 30% modulation, STEREO (LEFT only)
(70dB ± 5dB, 75 9OPEN, P/S 10dB)
Note:
After setting 30% modulation with PL SW and NR SW off, turn PL SW and NR SW on.
4.Enter into SEPAL (MTS) adjustment mode.
5.Adjust "SEPAL" data (Low-level separation) until the amplitude becomes minimum.
6.Apply following RF signal at Antenna input.
VIDEO : Flat field, 30% modulation
AUDIO : 3kHz sine wave, 30% modulation, STEREO (LEFT only)
(70dB ± 5dB, 759OPEN, P/S 10dB)
Note:
After setting 30% modulation with PL SW and NR SW off, turn PL SW and NR SW on.
7.Enter into SEPAH (MTS) adjustment mode.
8.Adjust "SEPAH" data (High-level separation) until the amplitude of the waveform is minimum.
9.Repeat steps 3. to 8. until Low-level separation and High-level separation satisfy above-mentioned conditions.
10.After adjustment, set “Audio“ volume “DAC” to “16“.
Note:
The separation must be more than 20 dB at 300Hz and 3kHz.
15
TC-17LA2 / TC-17LA2D

16
TC-17LA2 / TC-17LA2D

5 Chassis Board Layout
TOP PREVIOUS NEXT
TOP
PREVIOUS
NEXT
Board Name Function
A-Board Main (AV Switch, Audio, MCU, Grobal Core, AV connector )
R-Board Remote Reciever, LED Drive
V-Board Headphone, Speaker Terminals
TA-Board Tuner, MTS
DP-Board Power (AC/DC), Switch
Back Light Inverter, Feed Back Control
DG-Board LTP Control, R/G/B-Drive, Switching Power Control
BL-Board DC In, Back Light Drive, Back Light Feed Back
Page
1
of
1
8/26/2008
http://tsn.pstc.panasonic.com/viewing/NA/TC
-
17LA2/SVC/s0500000000x.html

Page
1
of
1
8/26/2008
http://tsn.pstc.panasonic.com/viewing/NA/TC
-
17LA2/SVC/parts.gif

Page
1
of
1
8/26/2008
http://tsn.pstc.panasonic.com/viewing/NA/TC
-
17LA2/SVC/packing.gif

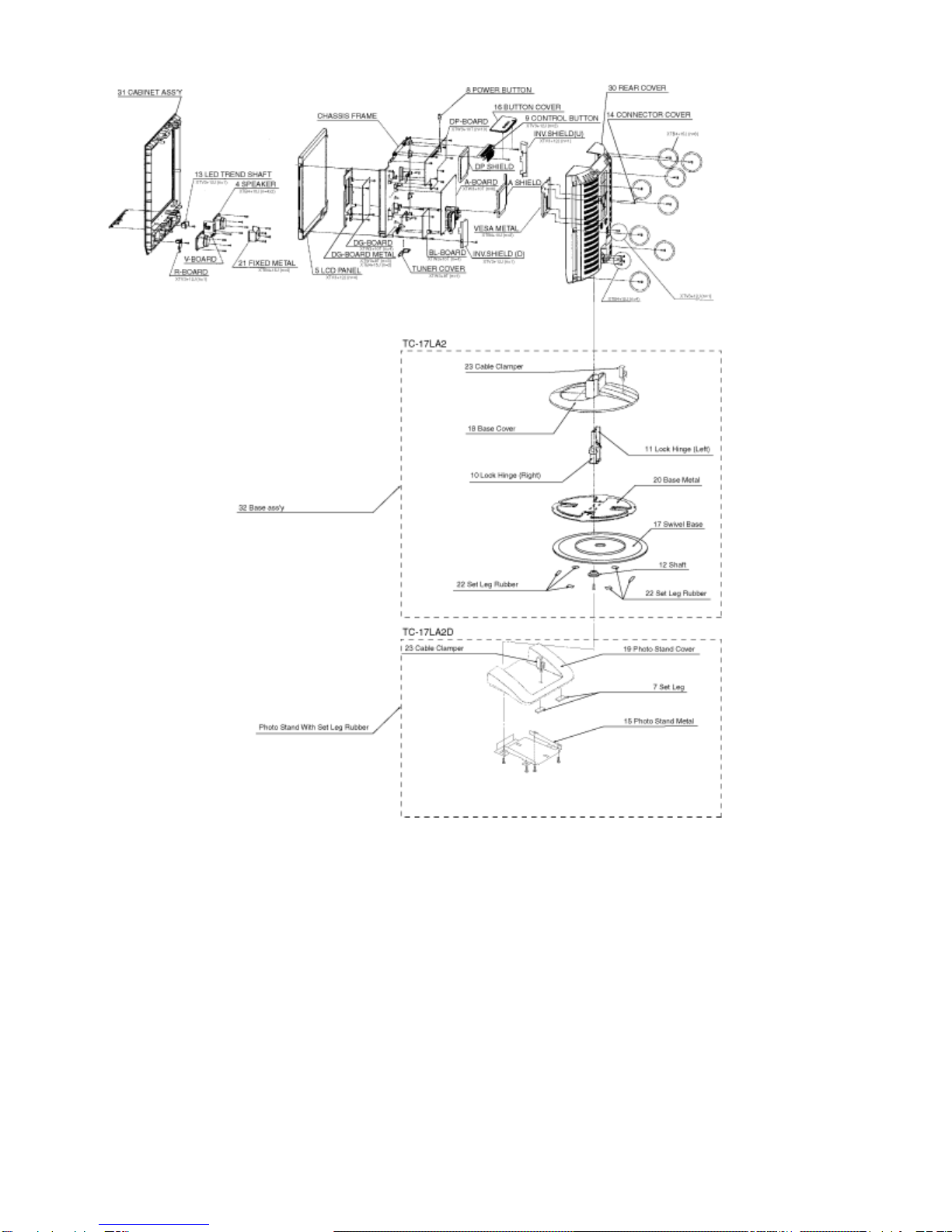

11.3 Mechanical Replacement Parts List
TOP PREVIOUS NEXT
Ref. No. Part No. Part Name & Description Pcs Remarks
1EUR7726020 REMOTE CONTROL 1
2K1SKAABB0001 F-ADAPTOR 1
3K2CA2EA00005 AC POWER CORD 1
4L0AA09B00001 SPEAKER 2
5L5EDD4L00003 LCD PANEL 1
6N0JZHK000005 AC ADAPTOR 1
7TBLG3037 SET LEG 2
TBLG3067 SET LEG(REAR COVER) 2
TBMA148 PANASONIC BADGE 1
8TBXA42901 POWER BUTTON 1
9TBXA43002 CONTROL BUTTON 1
10 TEJA081 LOCK HINGE(RIGHT) 1 TC-17LA2
11 TEJA082 LOCK HINGE(LEFT) 1 TC-17LA2
12 TEJF016 SHAFT 1 TC-17LA2
13 TKKC5184 LED TREND SHAFT 1
14 TKKL5141-3 C0NNECTOR COVER 1
15 TKLA0901 PHOTO STAND METAL 1 TC-17LA2D
16 TKPA85002 BUTTON C0VER 1
17 TKXA13201 SWIVEL BASE 1 TC-17LA2
18 TKXA16901 BASE COVER 1 TC-17LA2
19 TKXA17001 PHOTO STAND COVER 1 TC-17LA2D
20 TKZG5039-2 BASE METAL 1 TC-17LA2
21 TKZX5180 FIXED METAL 1
22 TMKK039-1 SET LEG 6 TC-17LA2
TMM15481 CLAMPER 2
TMM76416-1 CLAMPER 2
TMME047 CLAMPER 4
TMME190 CLAMPER 1
23 TMME237 CABLE CLAMPER 2
TMW4G724-1 LED BRACKET 1
TMWJ002 SPACER 1
TMWX023 TUNER BRACKET 1
24 TPCB55901 CARTON BOX 1 TC-17LA2
24 TPCB56401 CARTON BOX 1 TC-17LA2D
25 TPDA0935 CUSHION(TOP) 1
26 TPDA0936 CUSHION(BOTTOM) 1 TC-17LA2
26 TPDA0940 CUSHION(BOTTOM) 1 TC-17LA2D
TPDF1258 AC ADAPUTER CASE 1
27 TPEH211 PROTECT COVER 1
Page
1
of
2
8/26/2008
http://tsn.pstc.panasonic.com/viewing/NA/TC
-
17LA2/SVC/s1103000000.html
