Panasonic TX-37LZ8F User manual

English
For more detailed instructions, refer to the Operating Instructions on the CD-ROM.
To view the Operating Instructions on the CD-ROM, you need a computer equipped with a CD-ROM
drive, and Adobe® Reader® (Version 7.0 or later is recommended) installed on your computer.
Depending on the operating system or settings on your computer, the Operating Instructions may not start
automatically.
In this case, open the PDF le under \MANUAL\PDF manually to view the instructions.
Please read these instructions before operating your set and retain them for future reference.
The images shown in this manual are for illustrative purposes only.
Please refer to Pan European Guarantee Card if you need to contact your local Panasonic dealer for assistance.
Model No. TX-37LZ8F
Operating Instructions
LCD Television
Be Sure to Read
•Safety Precautions ··································· 4
(Warning / Caution)
•Notes························································ 5
•Maintenance············································· 5
Quick Start Guide
•Accessories / Options ·············6
•Identifying Controls··················7
•Basic Connection ·····················8

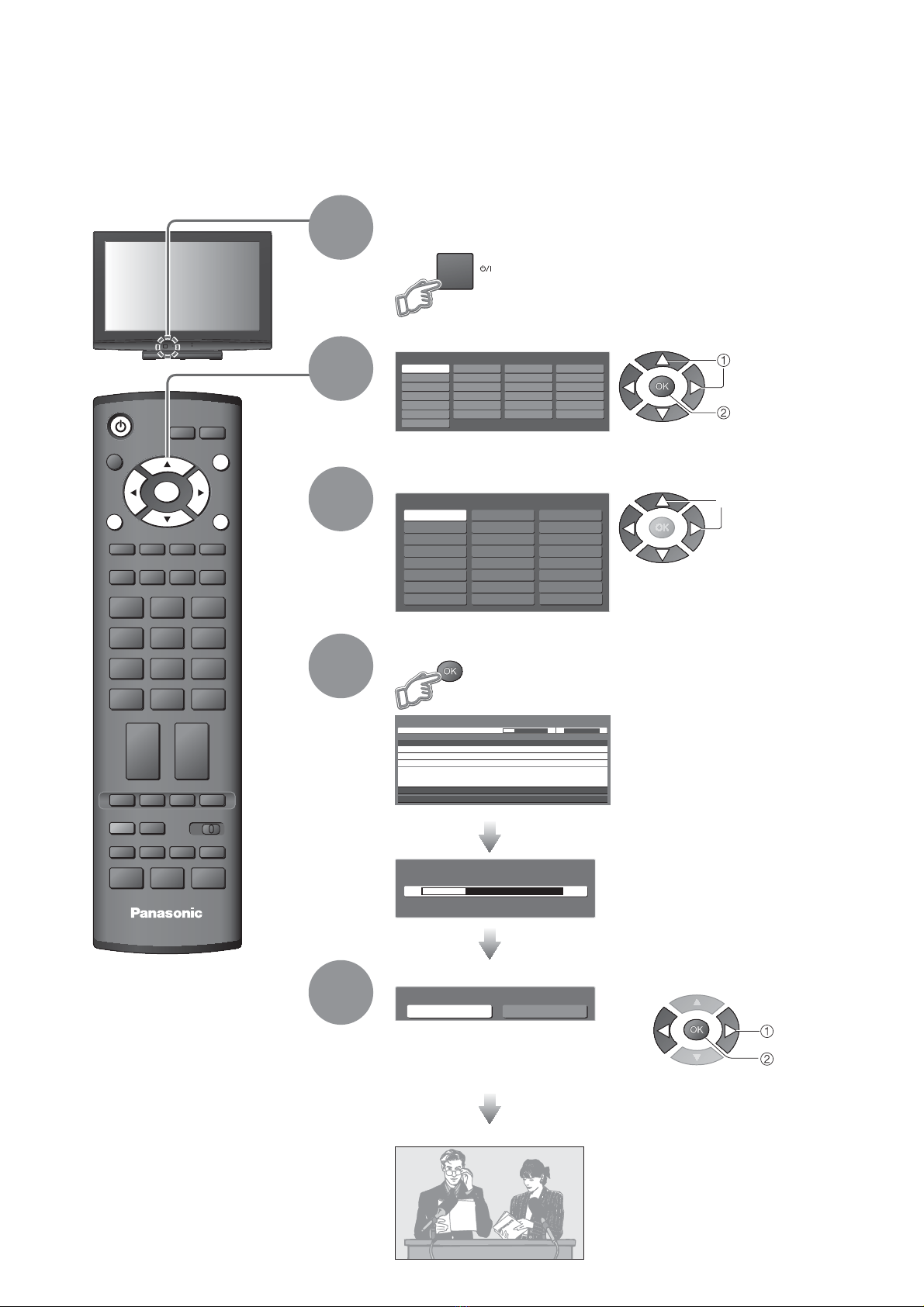

•Auto Setup ·······························10
•

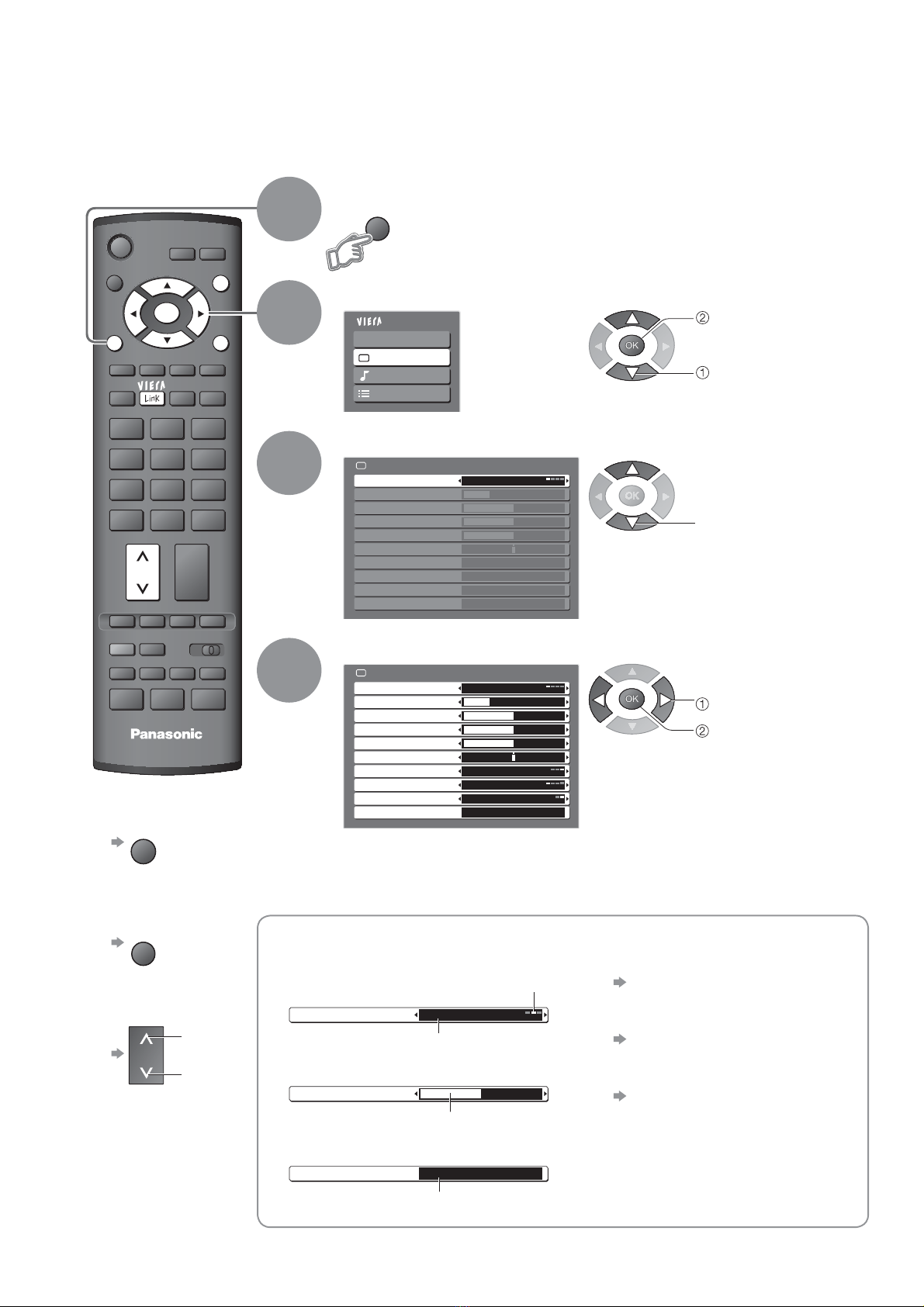

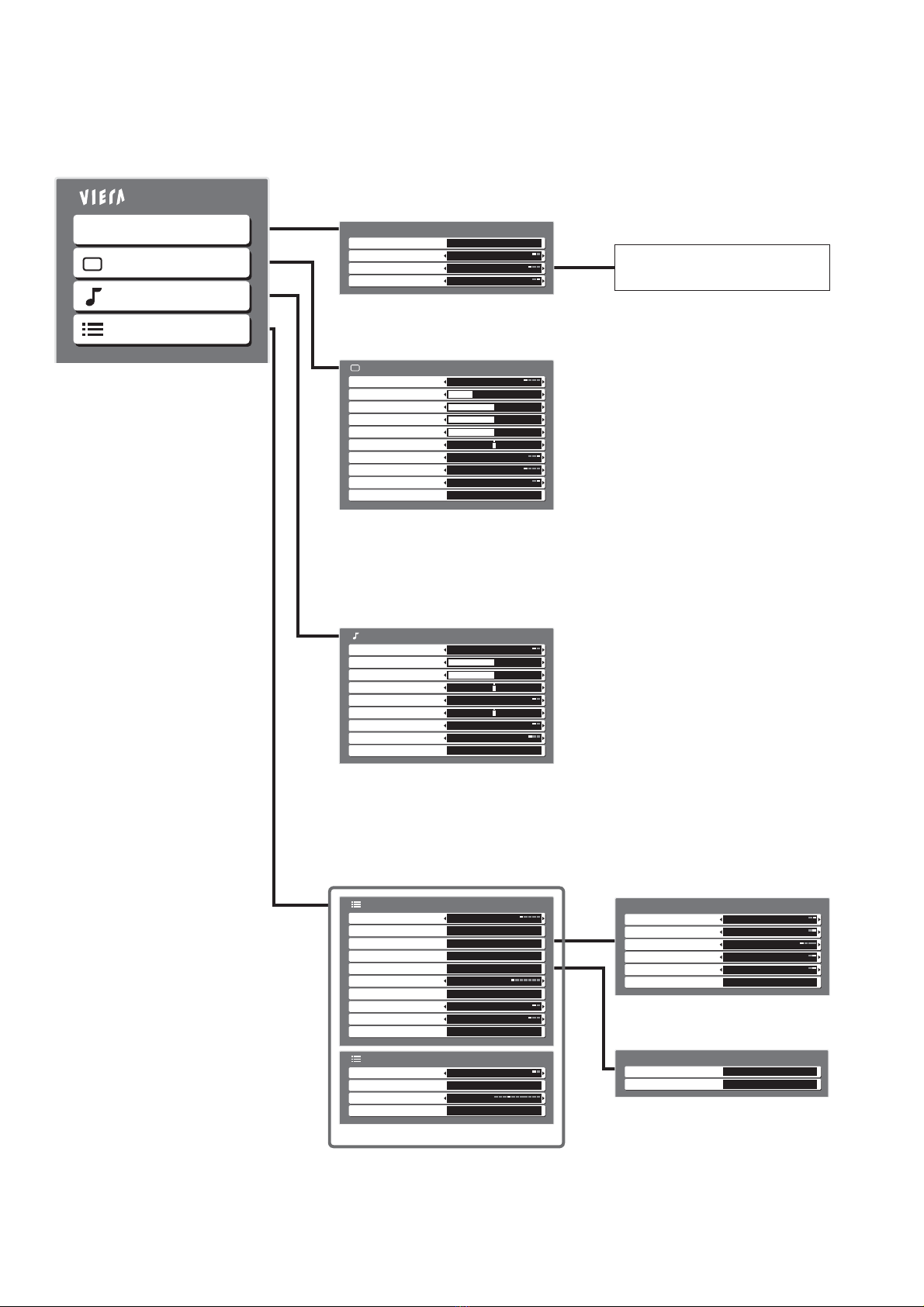

How to Use Menu Functions ···12
Contents

2
Turn your own living room into a movie theatre!
Experience an amazing level of multi-

3
media excitement
Enjoy rich multi-media
Camcorder
Amplier with
Speaker system
VCR DVD player
DVD Recorder Set top box
Personal
computer

4

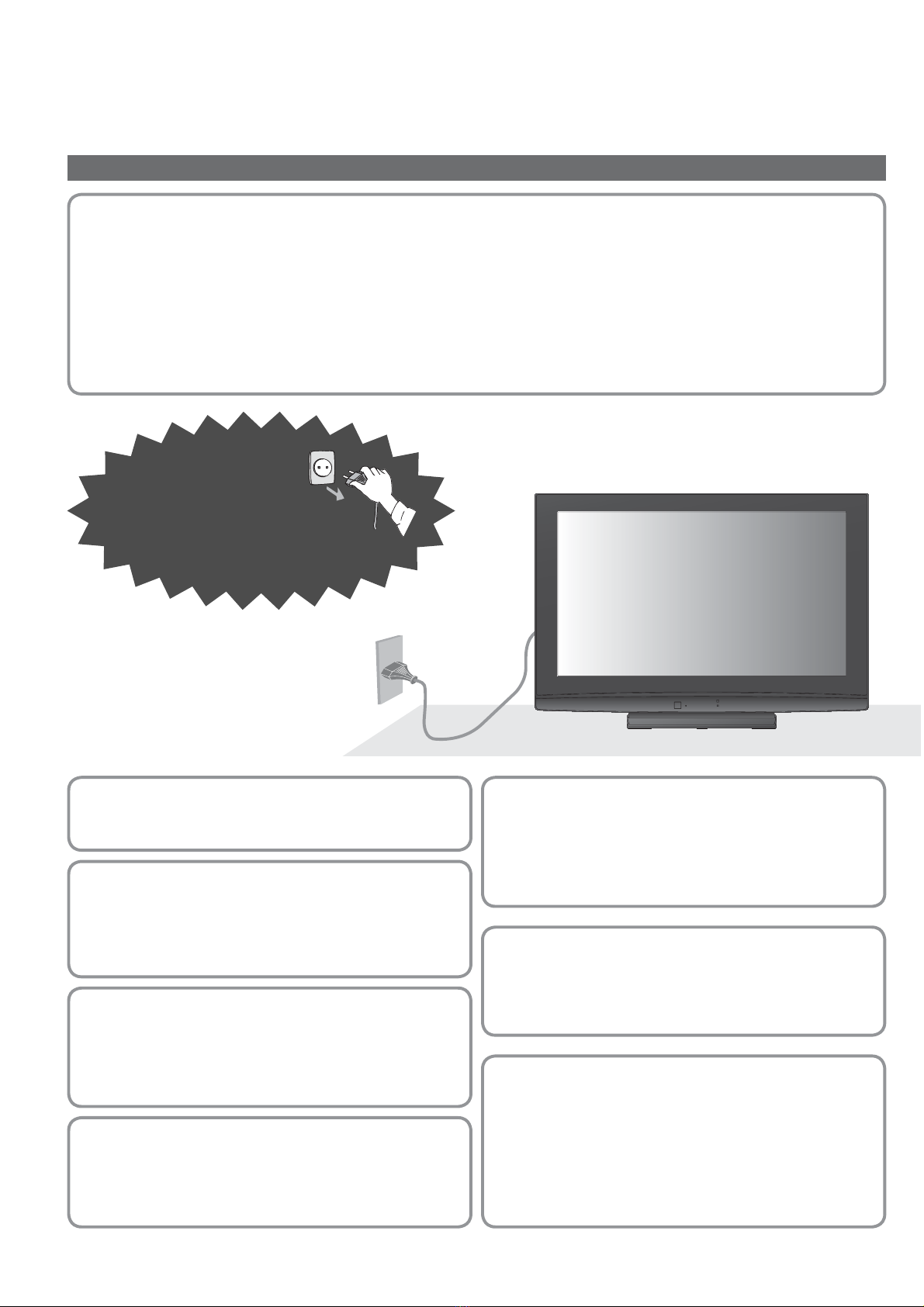

Safety Precautions
If you nd any
abnormality,
remove the mains plug
immediately!
AC 220-240 V
50 Hz
Warning
Handling the mains plug and lead
•
Insert the mains plug fully into the socket outlet. (If the mains plug is loose, it could generate heat and cause re.)
•
Ensure that the mains plug is easily accessible.
•
Do not touch the mains plug with a wet hand. (This may cause electrical shock.)
•
Do not damage the mains lead. (A damaged lead may cause re or electrical shock.)
•
Do not move the TV with the lead plugged in the socket outlet.
•
Do not place a heavy object on the lead or place the lead near a high-temperature object.
•
Do not twist the lead, bend it excessively, or stretch it.
•
Do not pull on the lead. Hold onto the mains plug body when disconnecting lead.
•
Do not use a damaged mains plug or socket outlet.
Do not expose to direct sunlight
and other sources of heat
•
Avoid exposing the TV to direct sunlight and other
sources of heat. To prevent re never place any type of
candle or naked ame on top or near the TV.
Power source
•
This TV is designed to operate on 220-240 V,
50 Hz AC.
Keep liquids away from the TV
•
To prevent damage which may result in re or shock hazard,
do not expose this appliance to dripping or splashing.
•
Do not place containers with water (ower vase, cups,
cosmetics, etc.) above the TV. (including on shelves
above, etc.)
Do not remove covers
NEVER modify the TV yourself
(High-voltage components may cause serious electrical shock.)
•
Have the TV checked, adjusted, or repaired at your
local Panasonic dealer.
Do not place foreign objects
inside the TV
•
Do not allow any objects to drop into the TV through
the air vents (re or electrical shock may result).
Do not place the TV on sloped or
unstable surfaces
•
The TV may fall off or tip over.
Use only the dedicated pedestals
/ mounting equipment
•
Using an unapproved pedestal or other xtures may
make the TV unstable, risking injury. Be sure to ask
your local Panasonic dealer to perform setup.
•
Use approved pedestals / mounts (p. 6).

5
Notes
Maintenance
Mains plug
Wipe the mains plug with a dry cloth at regular intervals. (Moisture and dust may lead to re or electrical shock.)
First, remove the mains plug from the socket outlet.
Display panel
Regular care: Gently wipe the surface clean of dirt by using a soft cloth.
Major contamination: Wipe the surface clean using a soft cloth dampened with clean water or diluted neutral detergent
(1 part detergent to 100 parts water). Then, using a soft dry cloth, evenly wipe the surface clean until it is dry.
Caution
•
The surface of the display panel has been specially treated and may be easily damaged.
Do not tap or scratch the surface with your ngernail or other hard object.
•
Take care not to subject the surface to insect repellent, solvent, thinner, or other volatile substances
(this may degrade surface quality).
Cabinet, Pedestal
Regular care: Wipe the surface clean using a soft dry cloth.
Major contamination: Dampen a soft cloth with clean water or water containing a small amount of neutral detergent.
Then, wring the cloth and wipe the surface clean with it. Finally, wipe the surface clean with a dry cloth.
Caution
•
Take care not to subject the TV's surfaces to detergent.
(A liquid inside the TV could lead to product failure.)
•
Take care not to subject surfaces to insect repellent, solvent, thinner, or other volatile substances
(this may deteriorate the surface by peeling the paint).
•
Do not allow the cabinet and pedestal to make contact with a rubber or PVC substance for a long time.
•Notes / •Maintenance •
Safety Precautions
Caution
When cleaning the TV, remove the
mains plug
•
Cleaning an energized TV may cause
electrical shock.
 When the TV is not going to be used for a
long period of time, remove the mains plug
•
This TV will still consume some power even in
the Off mode, as long as the mains plug is still
connected to a live socket outlet.
Allow sufcient space around the
TV for radiated heat
10
10
10 10
(cm)
Minimum distance
•
When using the pedestal, keep the space
between the bottom of the TV and the oor
surface.
•
In case of using Wall-hanging bracket, follow
the manual of it.
Do not block the rear air vents
•
Blocked ventilation by newspapers, table cloths,
curtains, etc. may cause overheating, re or electrical
shock.
 Do not expose your ears to excessive
volume from the headphones
•
Irreversible damage can be caused.
Auto power standby function
•
If no signal is received and no operation is performed
in Analogue TV mode for 30 minutes, the TV will
automatically go to standby mode.
 Keep the TV away from these types of equipment
•
Electronic equipment
In particular, do not place video equipment near the TV
(electromagnetic interference may distort images / sound).
•
Equipment with an infrared sensor
This TV also emits infrared rays (this may affect
operation of other equipment).
Transport only in upright position

6
Accessories / Options
Standard accessories Check that you have the accessories and items shown
Batteries for the
Remote Control (2)
•
R6 (UM3)
Clamper
Operating Instructions
Optional accessories
Wall-hanging bracket
•TY-WK32LR2W
WARNING!
•
Failure to use a Panasonic bracket or choosing to mount the unit
yourself will be done at the risk of the consumer.
Any damage resulting from not having a professional installer mount
your unit will void your warranty.
•
Always be sure to ask a qualied technician to carry out set-up.
Incorrect tting may cause equipment to fall, resulting in injury and
product damage.
•
Do not mount the unit directly below ceiling lights (such as spotlights,
oodlights or halogen lights) which typically give off high heat. Doing
so may warp or damage plastic cabinet parts.
•
Take care when xing wall brackets to the wall. Always ensure that there
are no electrical cables or pipes in the wall before hanging bracket.
 How to remove the Pedestal
Remove four screws.
Rear of the TV
Please contact your nearest Panasonic dealer to purchase the
recommended wall-hanging bracket. For additional details, please
refer to the wall-hanging bracket installation manual.
Using the clamper
To tighten:
Keep
the knob
pressed
Rear of the TV
To loosen:
•
Do not bundle the RF cable and mains lead together (could cause
distorted image).
•
Fix cables with clampers as necessary.
•
When using the optional accessory, follow the option’s assembly
manual to x cables.
Pan European Guarantee Card
•
This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by
young children accidentally. Keep these parts out of reach of young children.
Installing remote’s batteries
1Pull
open
Hook
2
+
-
-
+
Note the correct
polarity (+ or -)
Close
Caution
•
Incorrect installation may cause battery
leakage and corrosion, resulting in
damage to the remote control.
•Do not mix old and new batteries.
•Do not mix different battery types (such
as alkaline and manganese batteries).
•
Do not use rechargeable (Ni-Cd) batteries.
•
Do not burn or breakup batteries.
Batteries must not be exposed to
excessive heat such as sunshine, re or
the like.
Cleaning cloth
TV
OK
132
465
798
0
Remote Control
•
N2QAYB000223

7
•Identifying Controls •Accessories / Options

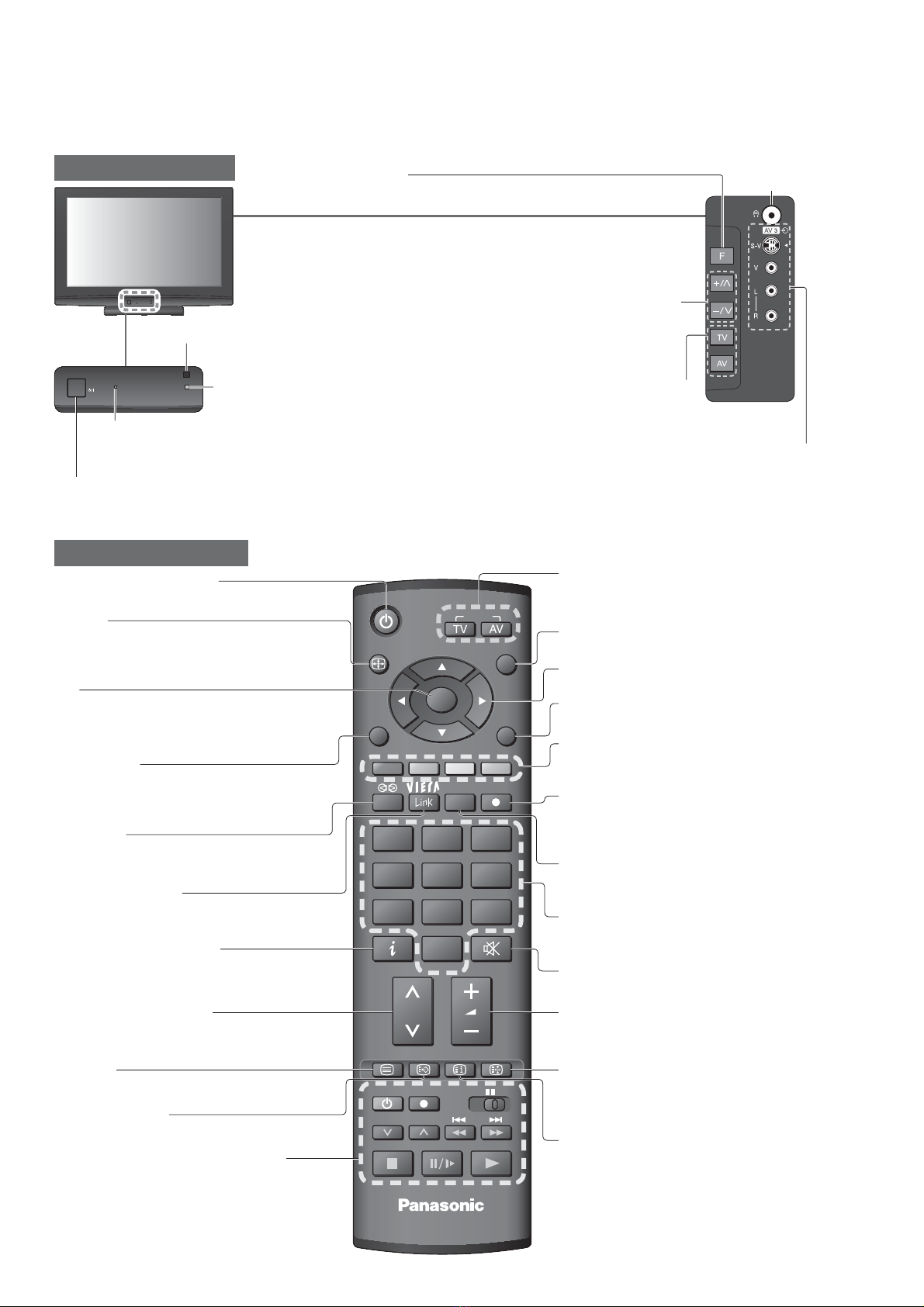

Identifying Controls
TV
PROGRAMME
ASPECT
INPUT
RETURN
EXIT
MENU
OK
OPTION DIRECT TV REC
VCR
132
465
798
0
REC VCR DVD
TEXT F.P. INDEX HOLD
Remote Control
Cursor buttons
•Makes selections and adjustments
Standby On / Off switch
•Switches TV On or Off standby
Sound Mute
•Switches sound mute On or Off
Surround
•Switches Surround On or Off
Programme Up / Down
•Selects programme in sequence
Teletext
•Switches to teletext mode
OK
•Conrms selections and choices
•Press after selecting programme positions to
quickly change programme
VCR / DVD Panasonic equipment
operations
Volume Up / Down
Programme Information
•Displays programme information
Index
•Returns to the teletext index page
(teletext mode)
Exit
•Returns to the normal viewing screen
VIERA Link Menu
•Press to access VIERA Link Menu directly
Aspect
•
Changes aspect ratio from Aspect Selection list
•Also possible by pressing this button
repeatedly until you reach the desired aspect
Option Menu
•Easy setting for viewing and sound
options
Main Menu
•Press to access VIERA Link, Picture,
Sound and Setup Menus
Favourite Page
•
Calls up the teletext page stored in blue button
Input mode selection
•TV - switches to TV mode
•AV - switches to AV input mode from Input
Selection list
Direct TV Recording
•Records programme immediately in
DVD Recorder / VCR with Q-Link or
VIERA Link connection
Hold
•Freeze / unfreeze picture
•Holds the current teletext page (teletext
mode)
Return
•Returns to the previous menu
Numeric buttons
•Changes programme and teletext pages
•When in Standby mode, switches TV On
Coloured buttons
•Used for the selection, navigation and
operation of various functions
TV
C.A.T.S. (Contrast Automatic Tracking System) sensor
•Senses brightness to adjust picture quality in “Eco” mode
in Picture Menu (p. 14)
Mains power On / Off switch
•Switch On to turn on the TV or turn the TV to standby mode by the remote control
Changes the
input mode
Increases or decreases the programme
position by one. When a function is
already displayed, press to increase or
decrease the selected function. When
in Standby mode, switches TV On.
Function select
•Volume / Contrast / Brightness / Colour / Sharpness /
Tint (NTSC mode) / Bass / Treble / Balance / Auto Setup
Headphones
jack
Power LED
•Standby: red
On: green
•When using the remote control, indicates the TV has received a command.
AV3 terminals
Remote control signal receiver

8

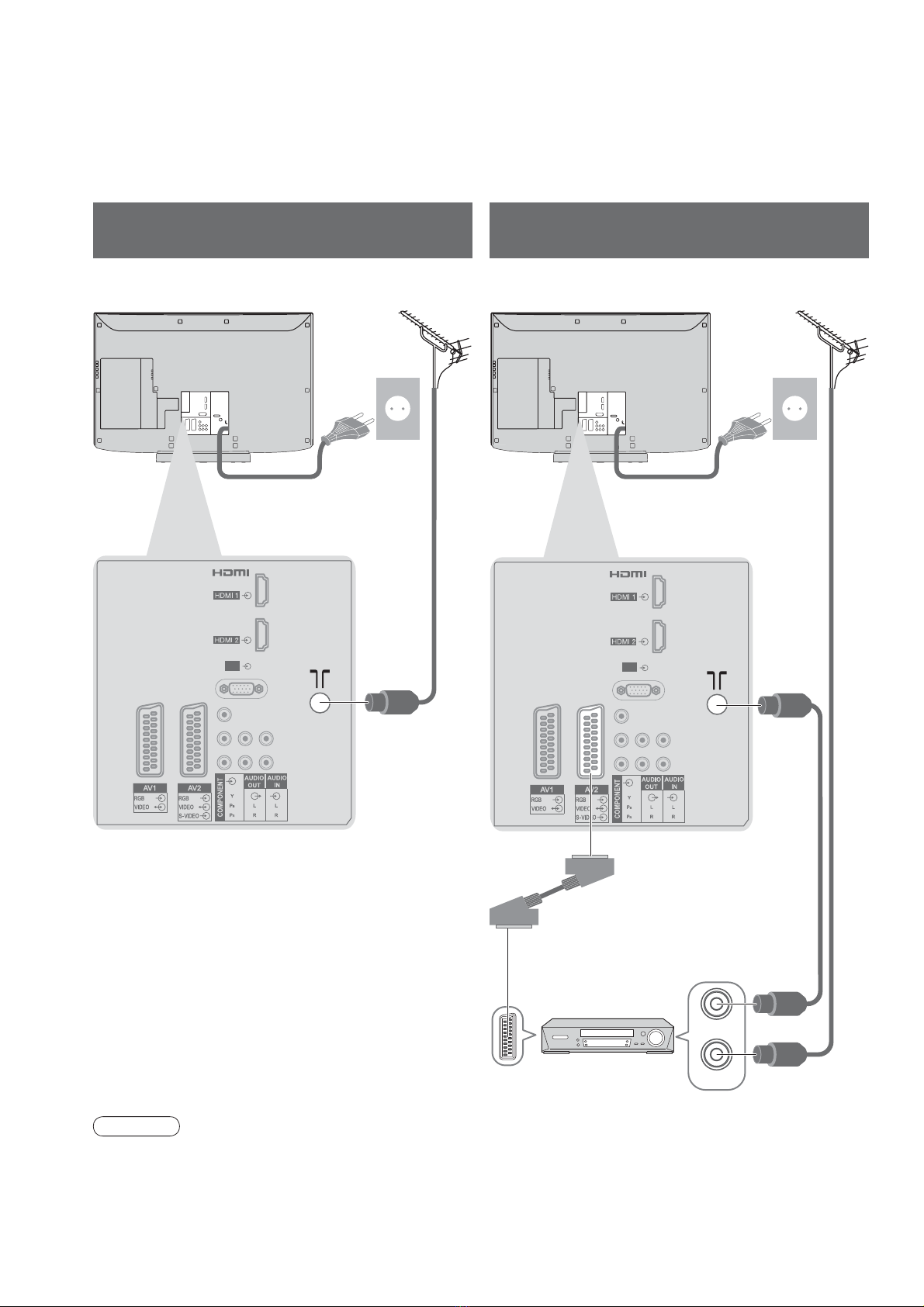

Basic Connection
AV2
PC
RF OUT
RF IN
AV2
PC
Mains lead Mains lead
SCART cable
(fully wired)
DVD Recorder or VCR
RF cable
Aerial AerialRear of the TV Rear of the TV
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
RF cable
RF cable
TV only TV, DVD Recorder or VCR
AC 220-240 V
50 Hz
AC 220-240 V
50 Hz
Note
•
Connect to AV1 / AV2 for a DVD Recorder / VCR supporting Q-Link.
•
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2) by using HDMI cable.
•
Read the manual of the equipment too.
Example 1
Connecting aerial
Example 2
Connecting DVD Recorder / VCR

9
•
Basic Connection
AV2
PC
RF OUT
RF IN
RF IN
RF OUT
RF IN
DVD Recorder
or VCR
Aerial
Mains lead
Rear of the TV
Set top box
AC 220-240 V
50 Hz
RF cable
RF cable
TV, DVD Recorder / VCR and Set top box
SCART cable
(fully wired)
SCART cable
(fully wired)
RF cable
RF cable
Example 3
Connecting DVD Recorder / VCR and Set top box
Fully wired HDMI
compliant cable

10
Auto Setup
INPUT
ASPECT
OPTION DIRECT TV REC
VCR
132
465
798
0
PROGRAMME
REC VCR DVD
TEXT F.P. INDEX HOLD
TV
RETURN
EXIT
MENU
OK
Auto Setup
This will take about 3 minutes.
CH 29
Channel Service Name
CH 33
Analogue: 2
Searching
Scan 2 78 141
Sending Preset Data
Please wait!
Remote control unavailable
0% 100%
Country
Norway
Switzerland
Italy
Germany
Sweden
Portugal
Belgium
France
Finland
Denmark
Spain
Austria
Turkey
Luxembourg
Czech
Netherlands Poland
Andorra
Ireland
Slovakia
Malta
Hungary
Greece
E.Eu
Menüsprache
Nederlands
Português
Español
Italiano
Français
English
Deutsch
Latviešu
Slovenščina
Hrvatski
Lietuvių
eesti keel
Srpski
Românǎ
Български
Slovenčina
Magyar
čeština
Polski
Еλληνικά
Türkçe
Suomi
Norsk
Svenska
Dansk
Please select your viewing environment.
Home Shop
Plug the TV into mains socket and switch On
(Takes a few seconds to be displayed)
1
Auto Setup is now complete and your TV is ready for viewing.
•
You can now use the remote
control to turn On the TV or turn
the TV to standby mode.
(Power LED: On)
4Start Auto Setup
•
If Q-Link, VIERA Link or similar
technology, compatible recorder is
connected, programme, language,
country / region settings are
automatically downloaded to the
recorder.
•
Auto Setup will start to search for
TV programmes and store them.
The sorted programme order
depends upon the TV signal,
the broadcasting system and
reception conditions.
3Select your country
2Select the language
•
“Shop” and “Home” are equal
to “Dynamic” and “Normal”
respectively - “Viewing Mode” in
“Picture Menu” (p. 14)
5Select the picture setting
Search and store TV programmes automatically.
These steps are not necessary if the setup has been completed by your local dealer.
•
Depending on the selected
countries, you may also be
required to select the region.
select
select
store
select
set

11
•
Auto Setup
Select EXIT
Change
RETURN
Mode Music
Bass
Treble
Balance
Surround Off
Volume Correction
MPX Stereo
Reset to Default
Sound Menu
ON SCREEN HELP Instructions box
(example: Sound Menu)
Many features available on this TV can be accessed via the On Screen Display
menu.
How to use remote control
Using the
On Screen
Displays
MENU
Open the main menu
Move the cursor / select the menu
Move the cursor / adjust levels / select from a range of options
Access the menu / store settings after adjustments have been made or options
have been set
RETURN
Return to the previous menu
EXIT
Exit the menu system and return to the normal viewing screen
Note
•
If tuning has failed “Auto Setup” ( p. 15)
•
If downloading has failed “Download” ( p. 15)
•
To initialize all settings “Shipping Condition” ( p. 15)
•
If you turned the TV Off during Standby mode last time, the TV will be in Standby mode when you turn the TV On
with Mains power On / Off switch.
On-screen operation guide
will help you.

12
How to Use Menu Functions
Main Menu
VIERA Link
Sound
Setup
Picture Menu
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
P-NR Off
3D-COMB On
Reset to Default
REC VCR DVD
TEXT STTL INDEX HOLD
VCR
132
465
798
0
ASPECT OPTION DIRECT TV REC
GUIDE
INPUT
PROGRAMME
TV
RETURN
EXIT
MENU
OK
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
P-NR Off
3D-COMB On
Picture Menu
Reset to Default Set
Colour Balance Normal
Sharpness
Tuning Menu Access
MENU
Display the menu
3
2
4
Various menus allow you to make settings for the picture, sound, and other functions.
•
Displays the functions that can be set
(varies according to the input signal)
To return to TV
at any time
EXIT
To return to the
previous screen
RETURN
To change menu
pages
up
down
Select the menu
Select the item
(example: Picture Menu)
Adjust or select
(example: Picture Menu)
(example: Picture Menu)
1
Changed
Number and positions of alternatives
Moved
Choose from among
alternatives
Adjust using the slide bar
Displays the next screen
Go to the next screen
To reset the settings
•
To reset the picture settings only
“Reset to Default”
in Picture Menu (p. 14)
•
To reset the sound settings only
“Reset to Default”
in Sound Menu (p. 14)
•
To initialize all settings
“Shipping Condition”
in Setup Menu (p. 15)
access
select
change
store or access
(Required by
some functions)
select

13
•
How to Use Menu Functions
Overview
Direct TV Rec
VIERA Link Menu
Start
Pause Live TV
Access
VIERA Link Control
Speaker Selection
Home Cinema
Recorder
(p. 14)
Main Menu
VIERA Link
Sound
Setup
The menu of the accessed
equipment
(p. 14)
Viewing Mode Dynamic
Contrast
Brightness
Colour
Sharpness
Tint
Colour Balance Warm
P-NR Off
3D-COMB On
Picture Menu
Reset to Default Set
Mode Music
Bass
Treble
Balance
Surround Off
Volume Correction
Sound Menu
HDMI1 Input Auto
MPX Stereo
Reset to Default Set
(p. 14)
Link Settings
Power off Link Set
Power on Link Set
Download Access
Q-Link AV2
AV2 out TV
VIERA Link On
(p. 15)
Tuning Menu
Auto Setup Access
Manual Tuning Access
(p. 15)
•
Only available items can be selected.
1/2
AV Colour System Auto
Off Timer Off
OSD Language
Teletext Character Set West
Shipping Condition Access
Access
Setup Menu
Service List Edit Access
Tuning Menu Access
Teletext TOP
Link Settings
Child Lock Access
Access
(p. 15)
2/2
Input Labels Access
Picture Overscan Off
Setup Menu
Banner Display Timeout
System Information Access
3 seconds

14
How to Use Menu Functions
Menu list
Menu Item Adjustments / Configurations (alternatives)
VIERA Link
Pause Live TV
Controls the connected equipment with VIERA Link function, and enables various
convenient recording, playback, etc.
•
You can also access VIERA Link Menu directly using the VIERA Link button on the
remote control.
Direct TV Rec
VIERA Link Control
Speaker Selection
Viewing Mode
Basic picture mode (Dynamic / Normal / Cinema / Eco)
Dynamic : Provides enhanced picture contrast and sharpness when viewing in a bright room
Normal : Recommended for viewing under normal ambient room lighting conditions
Cinema : For watching movies in a darkened room producing a cinema-like picture
Eco : Adjusts picture settings automatically dependent on ambient lighting conditions
•
Set for each input signal
Contrast, Brightness,
Colour, Sharpness
Increases or decreases the levels of these options according to your personal preference
Tint
With an NTSC signal source connected to the TV, the picture hue can be adjusted to
suit your taste
•
For NTSC signal reception only
Colour Balance Allows you to set the overall colour tone of the picture (Cool / Normal / Warm)
P-NR
Picture Noise Reduction
Automatically reduces unwanted picture noise and icker noise in the contoured parts of
a picture (Off / Min / Mid / Max)
•
Not valid on PC signal
3D-COMB
Occasionally, whilst viewing still or slow moving pictures, colour patterning may be seen
Set to “On” to display sharper and more accurate colours (Off / On)
•
For PAL or NTSC signal reception only
•
Not valid on RGB, S-Video, Component, PC and HDMI
Reset to Default Press the OK button to reset the present Picture Mode to the default settings
Sound
Mode Basic sound mode (Music / Speech)
Bass Increases or decreases level to enhance or minimise lower, deeper sound output
Treble Increases or decreases level to enhance or minimise sharper, higher sound output
Balance Adjusts volume level of right and left speakers
Surround
Surround sound settings (Off / On)
Provides a dynamic enhancer to simulate improved spatial effects
•
Switching is also possible by the Surround button on the remote control
Volume Correction Adjusts volume of individual programme or input mode
MPX
Select stereo / monaural (Mono / Stereo)
•
Normally: Stereo
•
Stereo signal cannot be received: Mono
•
M1 / M2: Available while mono signal is transmitted
HDMI1 Input
Select to t the input signal (Auto / Digital / Analogue)
Auto : Automatic detection of digital or analogue sound source
Digital : HDMI cable connection
Analogue : HDMI-DVI adapter cable connection
•
HDMI input mode only
•
HDMI2 terminal is for digital signal only
•
No setting for HDMI2 available
Reset to Default Press the OK button to reset the present Sound Mode to the default settings

15
•
How to Use Menu Functions
Menu list
Menu Item Adjustments / Configurations (alternatives)
Setup
AV Colour System Selects optional colour system based on video signals in AV mode
(Auto / PAL / SECAM / M.NTSC / NTSC)
Service List Edit Skips the unwanted programmes or edits programmes
Link Settings
VIERA Link Sets to use VIERA Link functions (Off / On)
Q-Link
Selects which AV terminal is to be used for data communication between this TV
and a compatible recorder (AV1 / AV2)
•
Select the connected terminal to the recorder even it is not compatible with Q-Link.
AV1 / AV2 out
Chooses the signal to be transmitted from the TV to Q-Link
(TV / AV1 / AV2 / AV3 / Monitor)
•
Monitor: Image displayed on screen
•
Component, PC and HDMI signals cannot be outputted.
Power off Link Sets to use Power off Link function (No / Set)
Power on Link Sets to use Power on Link function (No / Set)
Download Downloads programme, language, country / region settings to a Q-Link or VIERA Link
compatible equipment connected to the TV
Child Lock Locks a programme / AV input to prevent access to it
Tuning Menu
Auto Setup Automatically sets the programmes received in the area
Manual Tuning Sets the programmes manually
Off Timer Sets the time the TV automatically turns Off (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
OSD Language Changes language for on-screen displays
Teletext
Teletext display mode (TOP (FLOF) / List)
Teletext Character
Selects teletext language (West / East1 / East2)
•
West: English, French, German, Greek, Italian, Spanish, Swedish, Turkish, etc.
•
East1: Czech, English, Estonian, Lettish, Rumanian, Russian, Ukrainian, etc.
•
East2: Czech, Hungarian, Lettish, Polish, Rumanian, etc.
Shipping Condition Resets all settings, for example, when moving house
Picture Overscan
Selects the screen area displaying the image (Off / On)
On : Enlarged the image to hide the edge of the image.
Off : Displayed the image in the original size.
•
Set to “On” if noise is generated on the edge of the screen.
•
This function is available when aspect is set to Auto (16:9 signal only) or 16:9.
•
This function can be memorized separately for SD (Standard denition) and HD (High
denition) signals.
Input Labels Labels or skips each input terminal
Banner Display Timeout
Sets how long the information banner stays on screen
•
0 (No display) to 10 sec. in 1-sec. increments
System Information Displays the system information of this TV
•
Only available items can be selected.

TX-37LZ8F
Power Source AC 220-240 V, 50 Hz
Power
Consumption
Average use 162 W
Standby condition 0,8 W
•
This equipment complies with the EMC standards listed below.
EN55013, EN61000-3-2, EN61000-3-3, EN55020, EN55022, EN55024.
Printed in Czech Republic
Information for Users on Collection and Disposal of Old Equipment and used Batteries
These symbols on the products, packaging, and/or accompanying documents mean that used
electrical and electronic products and batteries should not be mixed with general household waste.
For proper treatment, recovery and recycling of old products and used batteries, please take them to
applicable collection points, in accordance with your national legislation and the Directives
2002/96/EC and 2006/66/EC.
By disposing of these products and batteries correctly, you will help to save valuable resources and
prevent any potential negative effects on human health and the environment which could otherwise
arise from inappropriate waste handling.
For more information about collection and recycling of old products and batteries, please contact your
local municipality, your waste disposal service or the point of sale where you purchased the items.
Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.
For business users in the European Union
If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for
further information.
[Information on Disposal in other Countries outside the European Union]
These symbols are only valid in the European Union. If you wish to discard these items, please
contact your local authorities or dealer and ask for the correct method of disposal.
Note for the battery symbol (bottom two symbol examples):
This symbol might be used in combination with a chemical symbol. In this case it complies with the
requirement set by the Directive for the chemical involved.
Matsushita Electric Industrial Co., Ltd.
Web Site : http://www.panasonic-europe.com
¤2008 Matsushita Electric Industrial Co., Ltd. All Rights Reserved.
Customer’s Record
The model number and serial number of this product may be found on its rear panel. You should note this serial
number in the space provided below and retain this book, plus your purchase receipt, as a permanent record of your
purchase to aid in identication in the event of theft or loss, and for Warranty Service purposes.
Model Number Serial Number
